FIGURE 4 7. PROXIMITY SWITCH INSTALLATION 18RS

from JLG 18RS 18RSJ Parts Manual (3121285)-PDF Download En

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

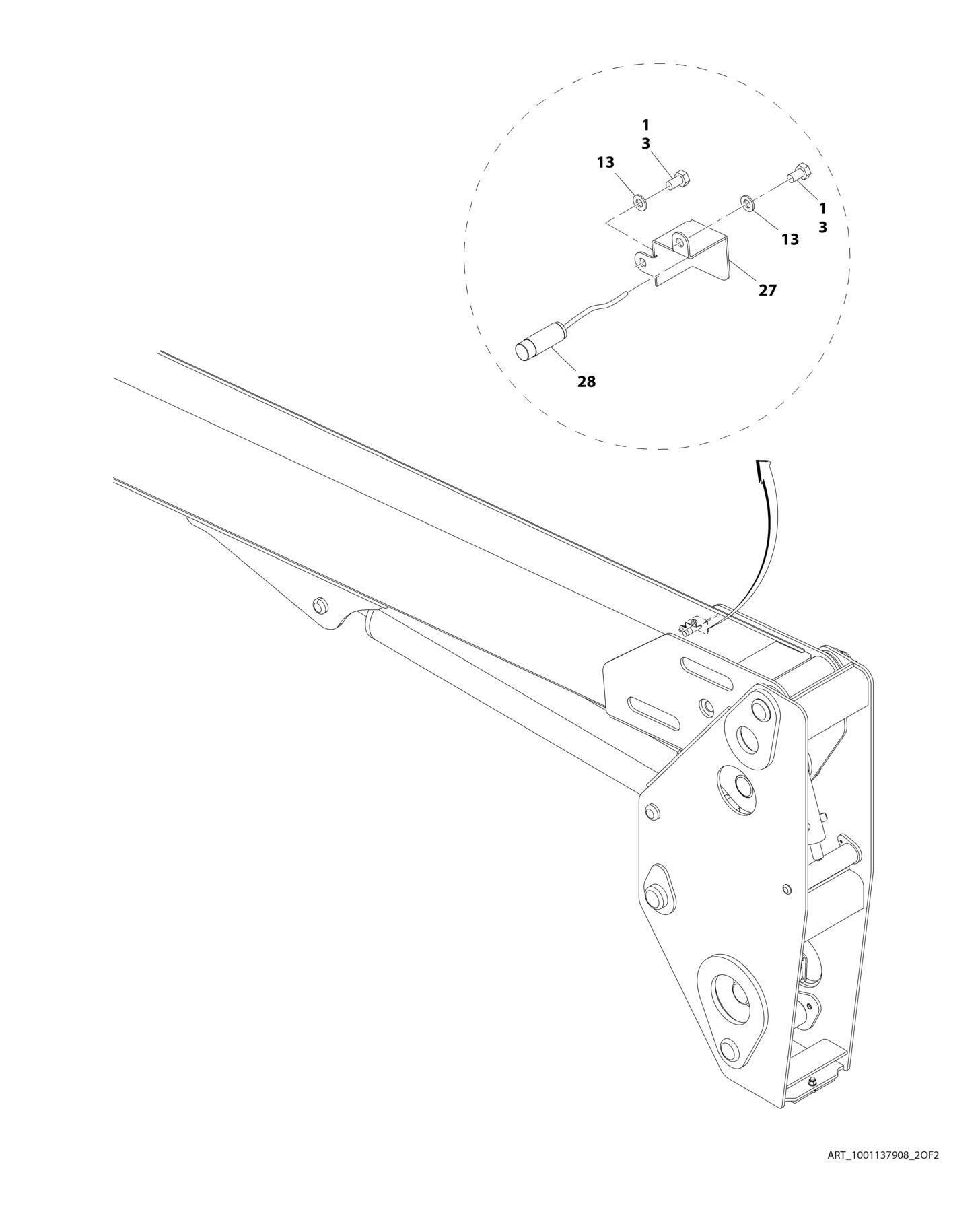

FIGURE 4-7. PROXIMITY SWITCH INSTALLATION - 18RS

ITEM PART NUMBER QTY

DESCRIPTION

1001137908 Ref PROXIMITY SWITCH INSTALLATION - 18RS 1 0100011 AR Compound, Locking 3 0760807 2 Bolt M8 x 14 13 4811900 2 Washer M8 27 1001149922 1 Cover 28 1001150772 1 Sensor, Proximity 28 4460536 1 Receptacle, Female - 3 Position 28 4460464 3 Pin, Male 29 1001155121 1 Proximity Sensor Harness (Not Shown - See ELECTRICAL SECTION for Breakdown)

FIGURE 4 7. PROXIMITY SWITCH INSTALLATION 18RS

Next Article

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

FIGURE 4-7. PROXIMITY SWITCH INSTALLATION - 18RS

FIGURE 4-7. PROXIMITY SWITCH INSTALLATION - 18RS

ITEM PART NUMBER QTY

DESCRIPTION

REV
