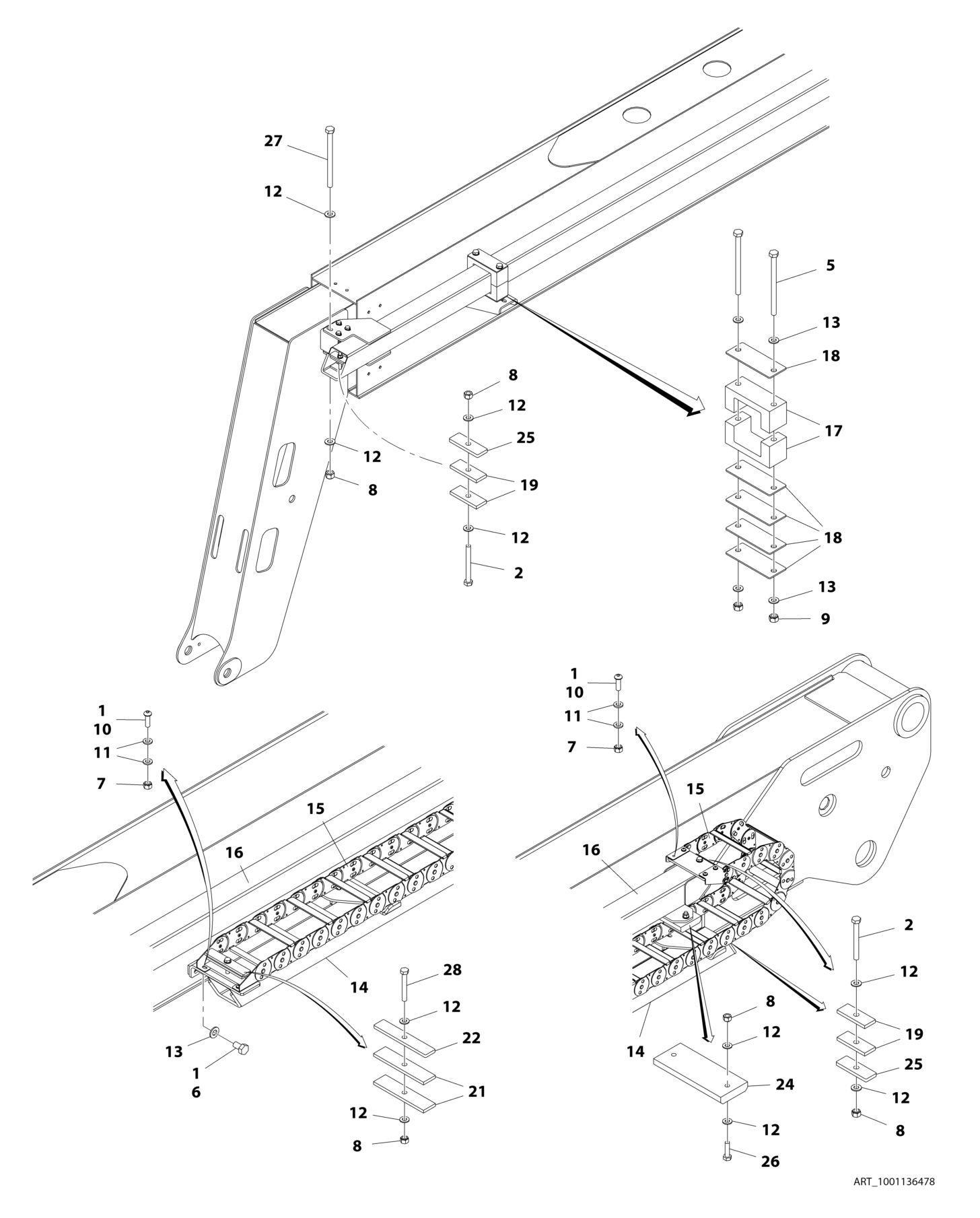

FIGURE 4 6. POWER TRACK ASSEMBLY

FIGURE 4-6. POWER TRACK ASSEMBLY

FIGURE 4-6. POWER TRACK ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001136478 Ref POWER TRACK ASSEMBLY 1 0100011 AR Compound, Locking 2 0700823 3 Bolt M8 x 75 5 0761032 2 Bolt M10 x 150 6 0761009 10 Bolt M10 x 18 7 3290605 8 Nut M6 8 3290805 10 Nut M8 9 3291005 2 Nut M10 10 3900364 8 Capscrew M6 x 20 11 4811700 16 Washer M6 12 4811900 20 Washer M8 13 4812000 14 Washer M10 14 1001136223 1 Support 15 1001136242 1 Carrier, Power Track 15 70004073 1 Repair Kit (Includes One Repair Section) 15 70004074 1 Bracket Kit (Includes Mounting Feet for Both Ends and Attaching Hardware) 16 1001136331 1 Tube, Push 17 1001136398 2 Pad, Push Tube 18 1001136400 5 Mount 19 1001136402 6 Pad 21 1001136407 2 Pad 22 1001136461 1 Plate 24 1001136469 1 Pad (Prior to SN B300003130) 24 3340787 1 Pad (SN B300003130 to Present) 25 1001139078 3 Plate 26 0760814 2 Bolt M8 x 30 27 0700828 4 Bolt M8 x 110 28 0700820 1 Bolt M8 x 60

REV

F
