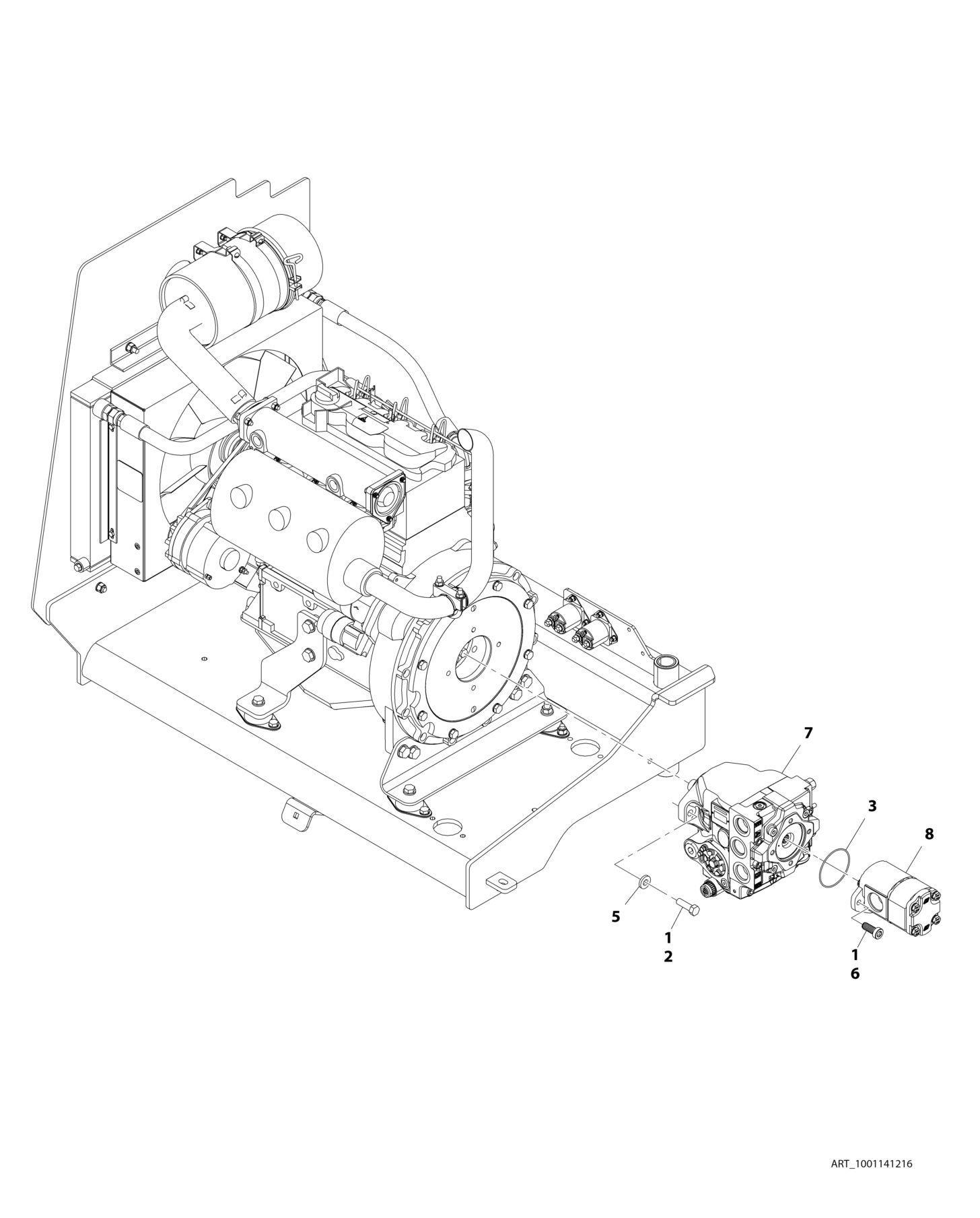

FIGURE 3 2. ENGINE AND PUMP ASSEMBLY

FIGURE 3-2. ENGINE AND PUMP ASSEMBLY

FIGURE 3-2. ENGINE AND PUMP ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001141216 Ref ENGINE AND PUMP ASSEMBLY 1 0100011 1 Compound, Locking 2 0641813 2 Bolt 1/2 x 1-5/8 3 3790152 1 O-Ring 5 4891800 2 Washer 1/2 6 1001150756 NLA Bolt (Use p/n 1001157442) 7 1001132305 1 Piston Pump Assembly (See PISTON PUMP ASSEMBLY for Breakdown) 8 1001132306 1 Gear Pump Assembly (Note: Only Serviceable Parts is the Seal Kit) 8 70004326 1 Seal Kit 8 70004327 1 Seal, Lip

REV

F
