FIGURE 3 5. PUMP COUPLING INSTALLATION

from JLG 18RS 18RSJ Parts Manual (3121285)-PDF Download En

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

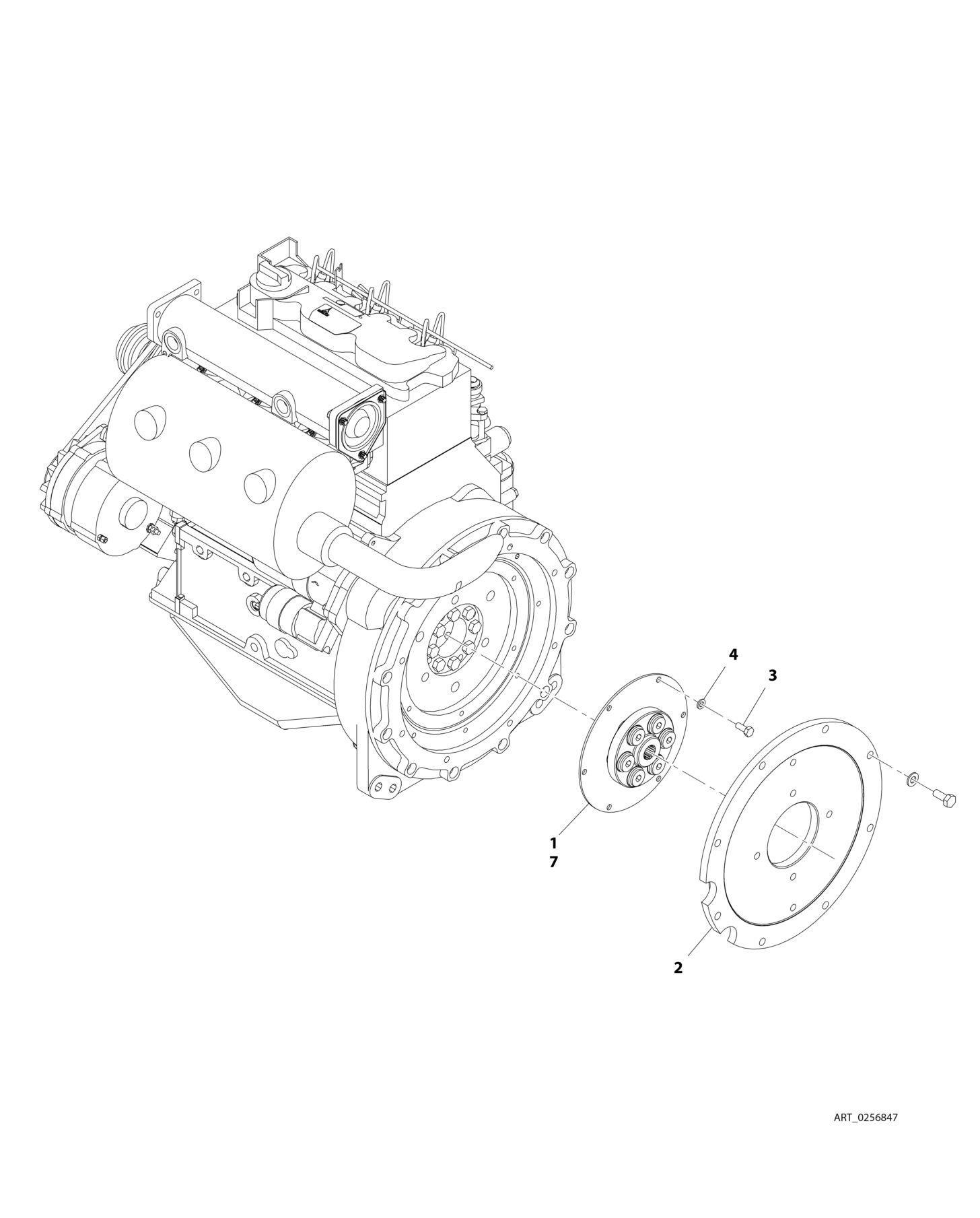

FIGURE 3-5. PUMP COUPLING INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

0256847 Ref PUMP COUPLING INSTALLATION 1 1660234 1 Coupling, Hayes 2 0080163 1 Plate, Pump Adapter 3 0700810 6 Bolt M8 x 20 4 4831900 6 Washer M8 7 3020021 AR Grease, Coupling

REV

2
