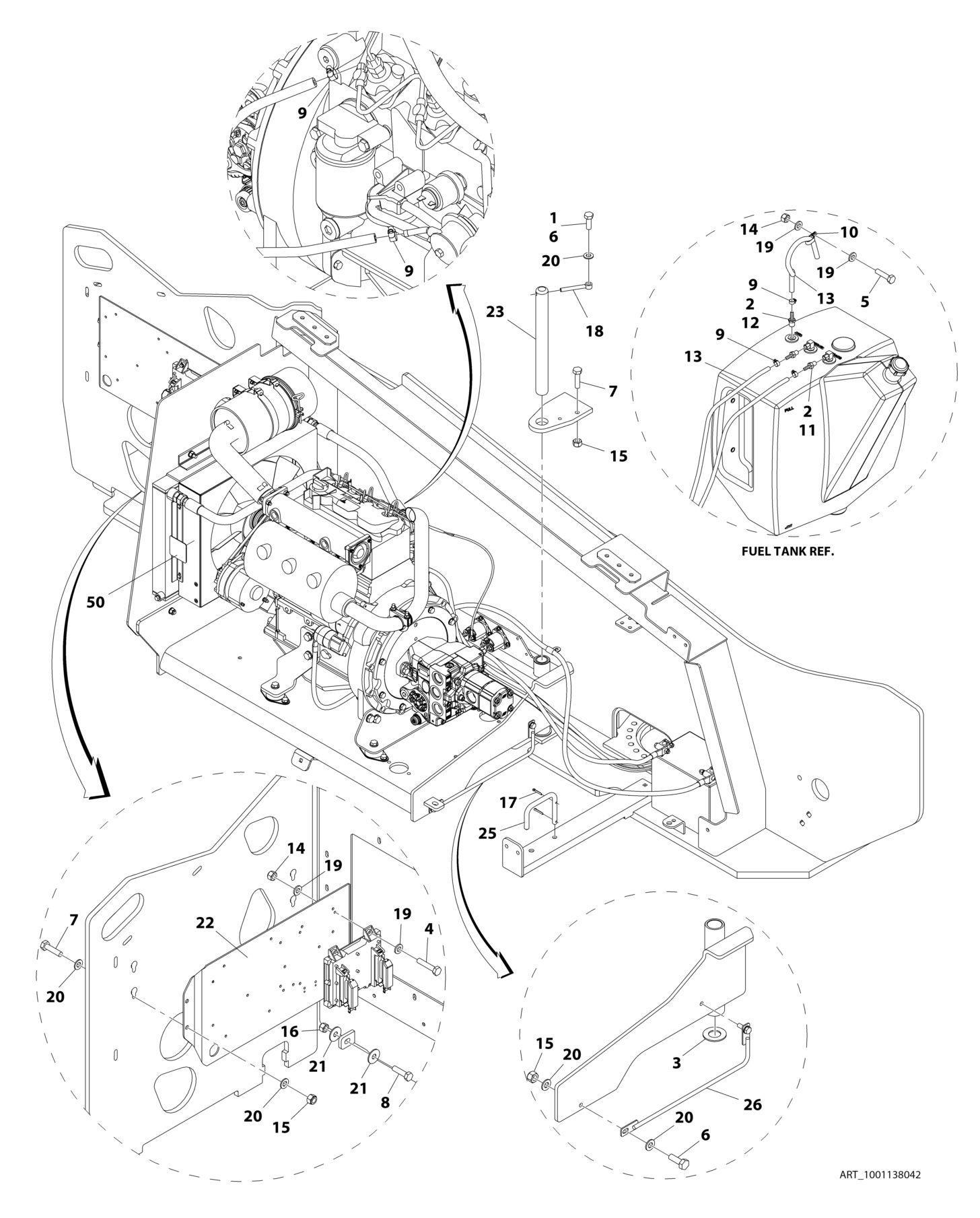

FIGURE 3 1. DEUTZ ENGINE INSTALLATION

FIGURE 3-1. DEUTZ ENGINE INSTALLATION

FIGURE 3-1. DEUTZ ENGINE INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001138042 Ref DEUTZ ENGINE INSTALLATION 1 0100011 AR Compound, Locking 2 0100020 AR Sealant 3 0440162 1 Thrustwasher 4 0700614 4 Bolt M6 x 30 5 0760612 1 Bolt M6 x 25 6 0761014 3 Bolt M10 x 30 7 0761016 5 Bolt M10 x 40 8 0761217 1 Bolt M12 x 45 9 1320022 5 Clamp 10 1321385 1 Clamp, Hose 11 2180348 2 Fitting, Straight Barbed 12 2180876 1 Fitting, Straight Barbed 13 2720058 18 ft/5.6m Hose 14 3290605 5 Nut M6 15 3291005 7 Nut M10 16 3291205 1 Nut M12 17 3391408 2 Roll Pin M4 x 20 18 3841143 1 Keeper, Pin 19 4811700 10 Washer M6 20 4812000 13 Washer M10 21 4812102 2 Washer M12 22 1001134767 1 Plate, Electrical Panel 23 1001135196 1 Pin 25 1001144325 1 Support, Tray 26 1001150601 1 Support, Hose 50 Ref Decal - Warning Explosion/Fire Options: 50 1704972 1 ANSI Spec 50 1706059 1 Brazilian Spec 50 1706060 1 Chinese Spec 50 1706062 1 Japanese Spec 50 1706061 1 Korean Spec 50 1706063 1 Spanish Language

REV

E
