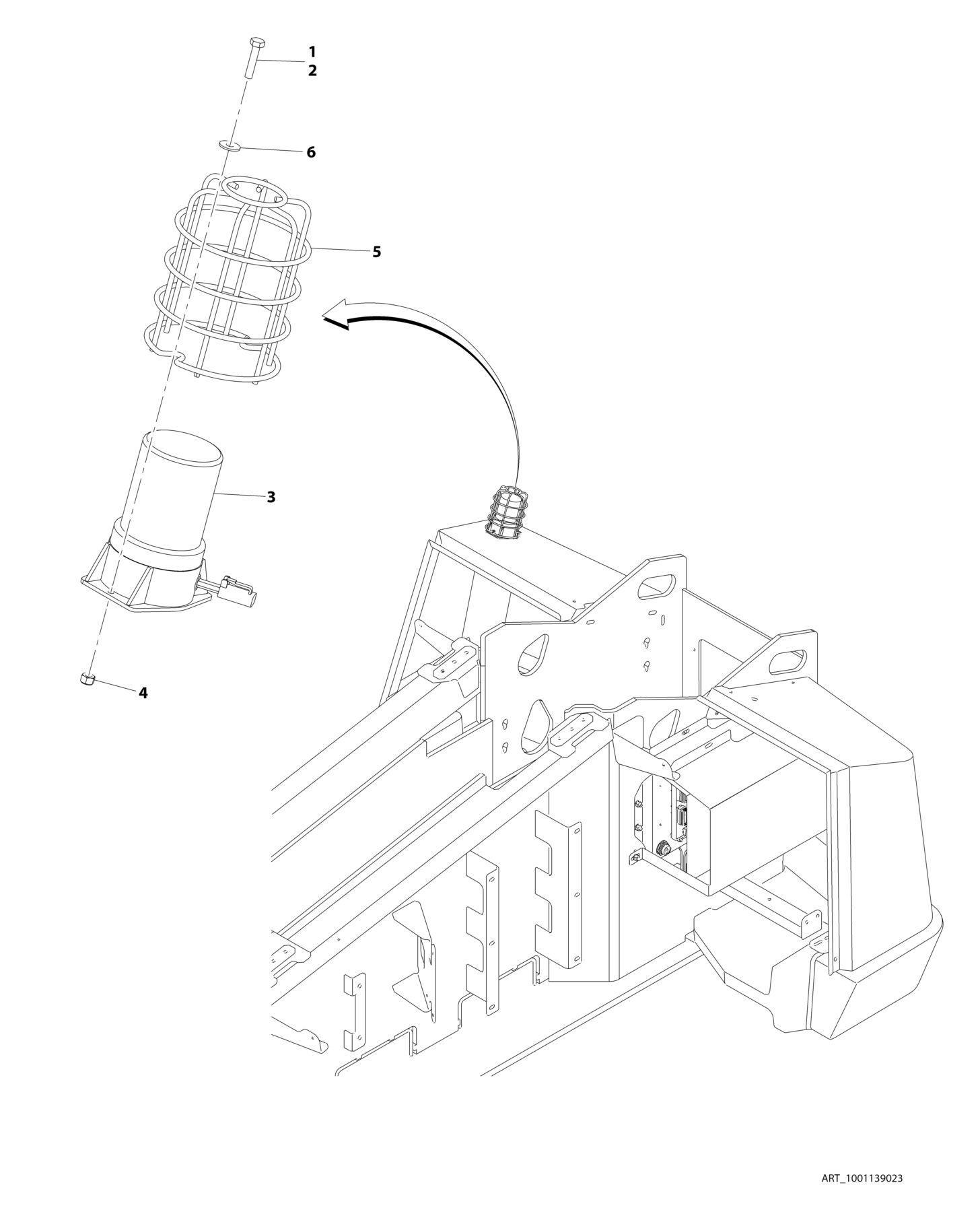

FIGURE 2-21. BEACON LIGHT INSTALLATION (OPTIONAL)

ITEM PART NUMBER QTY

DESCRIPTION

1001139023 Ref BEACON LIGHT INSTALLATION (OPTIONAL) 1 0100011 AR Compound, Locking 2 0760410 2 Bolt M4 x 20 3 2920161 1 Strobe Light Assembly 3 7016319 1 Bulb, Replacement 3 7016372 1 Lens 3 4460891 1 Plug, Male - 2 Position 3 4460465 2 Socket, Female 4 3290405 2 Nut M4 5 4060865 1 Guard 6 1001091102 2 Washer M4

FIGURE 2 21. BEACON LIGHT INSTALLATION (OPTIONAL

Next Article

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

FIGURE 2-21. BEACON LIGHT INSTALLATION (OPTIONAL)

FIGURE 2-21. BEACON LIGHT INSTALLATION (OPTIONAL)

ITEM PART NUMBER QTY

DESCRIPTION

REV
