FIGURE 2 16. GROUND CONTROL PANEL ASSEMBLY 18RSJ

from JLG 18RS 18RSJ Parts Manual (3121285)-PDF Download En

by www.heydownloads.com

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

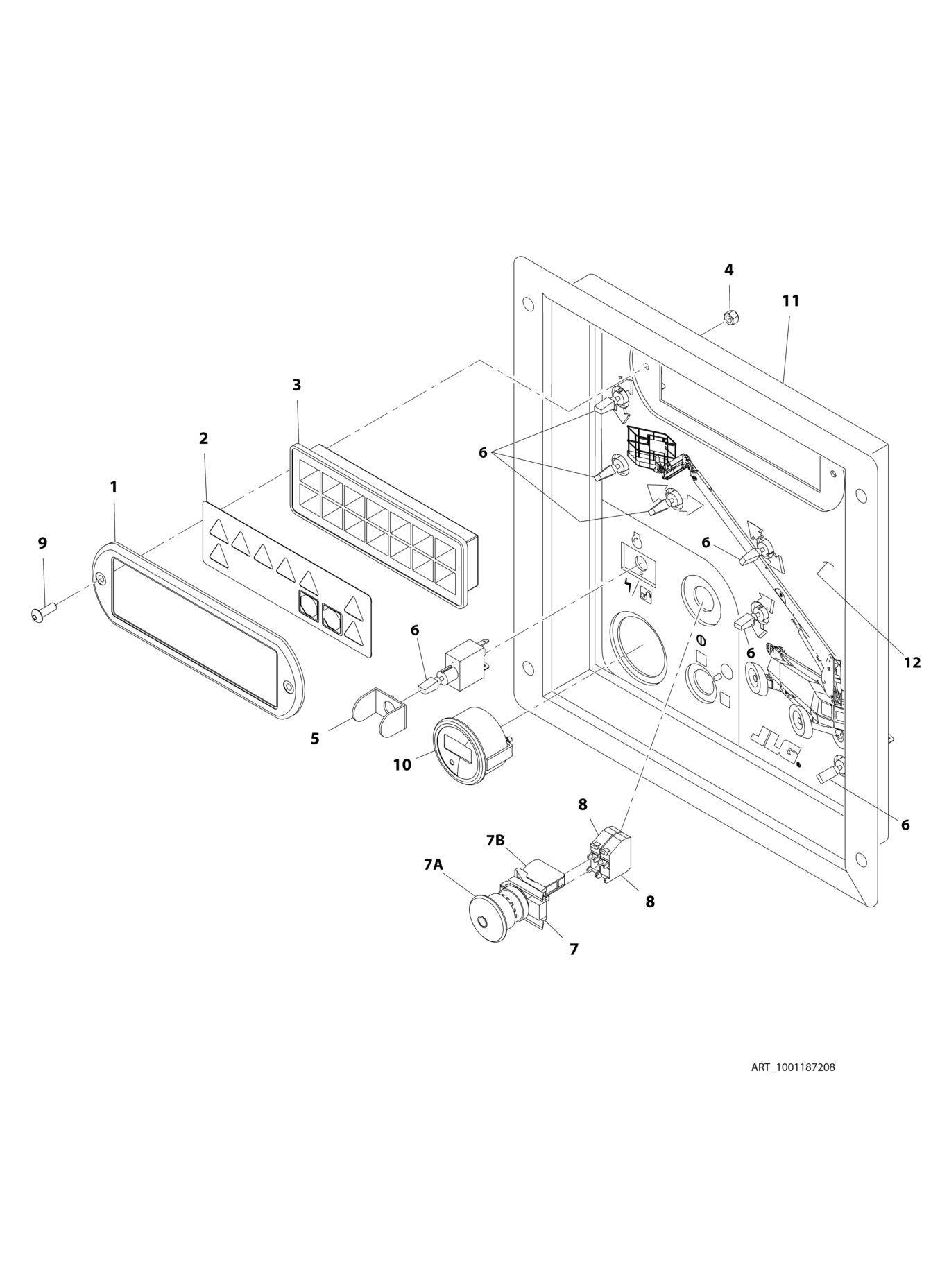

FIGURE 2-16. GROUND CONTROL PANEL ASSEMBLY - 18RSJ

ITEM PART NUMBER QTY

DESCRIPTION

1001187208 Ref GROUND CONTROL PANEL ASSEMBLY - 18RSJ 1 1670829 1 Bezel 2 1706712 1 Decal - Display Panel 3 2760105 1 Housing, Display Light 4 3290505 2 Nut M5 5 4060906 1 Shield, Toggle Switch 6 4360328 6 Switch, Toggle 7 4360475 1 Switch, Emergency Stop 7A 7020175 1 Cap, Mushroom Head 7B 7020176 1 Block, Contact 8 4360476 1 Switch, Contact Block 9 1001099125 2 Screw M5 x 16 10 1001109503 1 Gauge, Indicator 11 1001134790 1 Panel 12 1001185707 1 Decal - Ground Control

FIGURE 2 16. GROUND CONTROL PANEL ASSEMBLY 18RSJ

Next Article

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

ITEM PART NUMBER QTY

DESCRIPTION

REV
