FIGURE 2 19. ELECTRICAL PANEL ASSEMBLY

from JLG 18RS 18RSJ Parts Manual (3121285)-PDF Download En

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

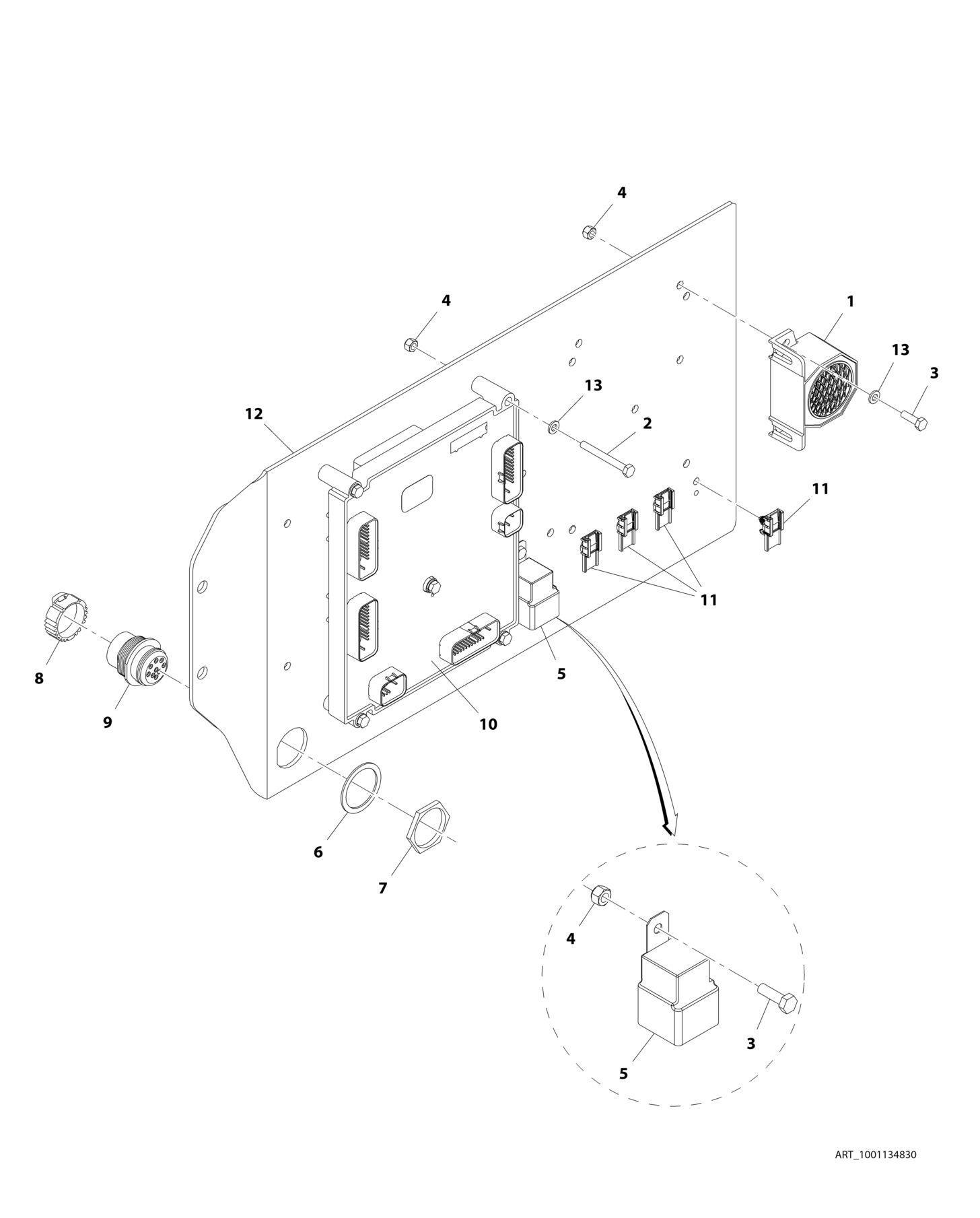

FIGURE 2-19. ELECTRICAL PANEL ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001134830 Ref ELECTRICAL PANEL ASSEMBLY 1 0140043 1 Alarm, Motion 1 4460536 1 Receptacle, Female - 3 Position 1 4460464 3 Pin, Male 2 0700619 5 Bolt M6 x 55 3 0760610 3 Bolt M6 x 20 4 3290605 8 Nut M6 5 3740080 1 Relay 6 4460496 1 Washer, Terminal 7 4460497 1 Nut, Terminal 8 1001106736 1 Cap, Dust 9 1001112612 1 Connector, Electrical 10 1001120431 1 Module, Ground Control 10 Ref Note: Recalibration Required when Replaced. 11 1001121172 4 Bracket, Mounting 12 1001134767 1 Panel 13 4811700 7 Washer M6

FIGURE 2 19. ELECTRICAL PANEL ASSEMBLY

Next Article

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

FIGURE 2-19. ELECTRICAL PANEL ASSEMBLY

FIGURE 2-19. ELECTRICAL PANEL ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

REV
