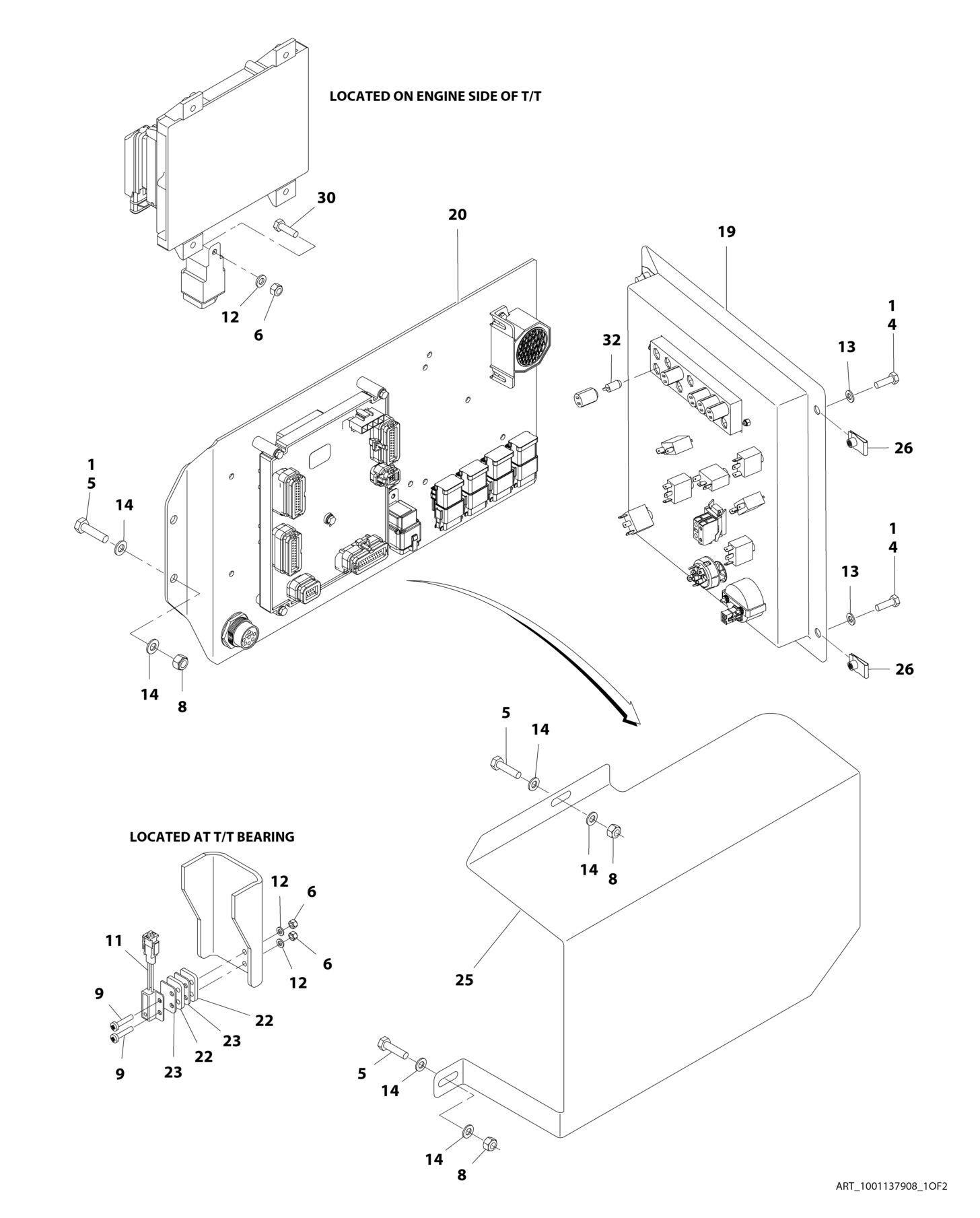

FIGURE 2 13. ELECTRICAL INSTALLATION 18RS

FIGURE 2-13. ELECTRICAL INSTALLATION - 18RS

FIGURE 2-13. ELECTRICAL INSTALLATION - 18RS

ITEM PART NUMBER QTY

DESCRIPTION

1001137908 Ref ELECTRICAL INSTALLATION - 18RS 1 0100011 AR Compound, Locking 4 0760812 4 Bolt M8 x 25 5 0761016 6 Bolt M10 x 40 6 3290605 3 Nut M6 8 3291005 6 Nut M10 9 3900392 2 Screw M6 x 30 10 4240018 6 Tie-Strap (Not Shown) 11 4360514 1 Switch, Proximity 11 4460424 1 Receptacle, Female - 2 Position 11 4460227 2 Pin, Male 12 4811700 4 Washer M6 13 4811900 6 Washer M8 14 4812000 12 Washer M10 15 1001132511 1 Turntable Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 16 1001132556 1 Engine Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 17 1001134067 1 Valve Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 19 1001134791 1 Ground Control Panel Assembly (See GROUND CONTROL PANEL ASSEMBLY for Breakdown) 20 1001134830 1 Electrical Panel Assembly (See ELECTRICAL PANEL ASSEMBLY for Breakdown) 21 1001135506 1 Ground Control Panel Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 22 1001140710 2 Shim 23 1001141075 2 Shim 24 1001145874 1 Chassis Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 25 1001148387 1 Cover 26 1001149160 4 Nut, Tinnerman M8 30 0760610 1 Bolt M6 x 20 31 1001159284 1 EMR2 Power Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 32 2920129 5 Lamp

REV

G
