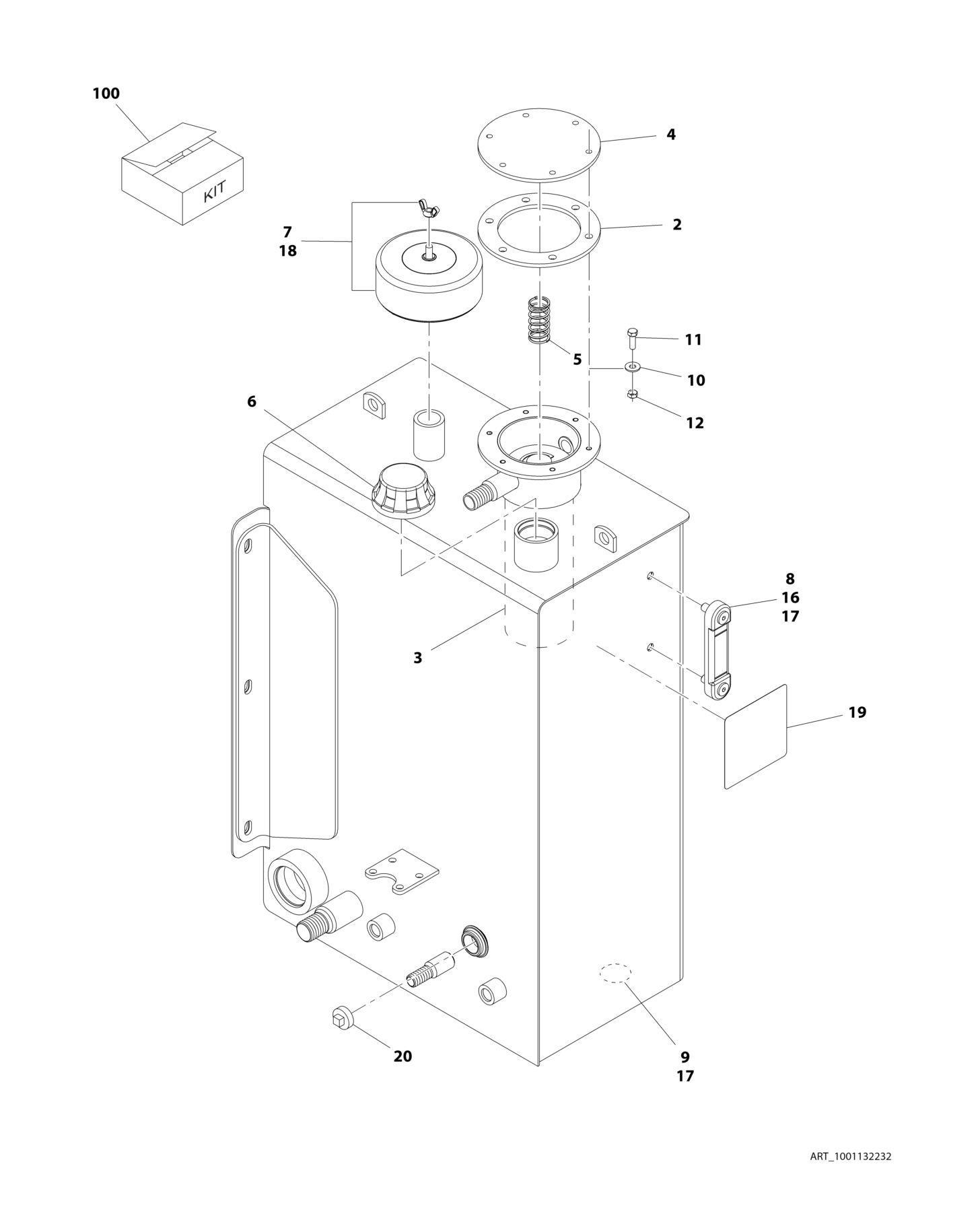

FIGURE 2 9. HYDRAULIC TANK ASSEMBLY

FIGURE 2-9. HYDRAULIC TANK ASSEMBLY

FIGURE 2-9. HYDRAULIC TANK ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001132232 Ref HYDRAULIC TANK ASSEMBLY 2 70002839 1 Gasket, Filter 3 See Note NSS Element, Filter (Note: Use Item 100) 4 See Note NSS Cover (Note: Not Available for Purchase) 5 70004195 1 Spring 6 70002838 1 Fill Cap Assembly 7 See Note NSS Breather Assembly (Note: Use Item 100) 8 7024441 1 Gauge 9 70004196 1 Plug 10 70004197 6 Washer 5/16 Stainless Steel 11 70004198 6 Bolt 5/16 x 1 Stainless Steel 12 70004199 6 Nut 5/16 Stainless Steel 16 See Note AR Compound, Locking (Note: Use Loctite #243) 17 See Note AR Lubricant (Note: Not Available) 18 See Note AR Sealant (Note: Use Loctite #565) 19 70004200 1 Decal - Service 20 See Note NSS Plug (Note: Not Available - Purchase Locally) 100 70003614 1 Filter Kit (Includes Items 3 & 7)

REV

H
