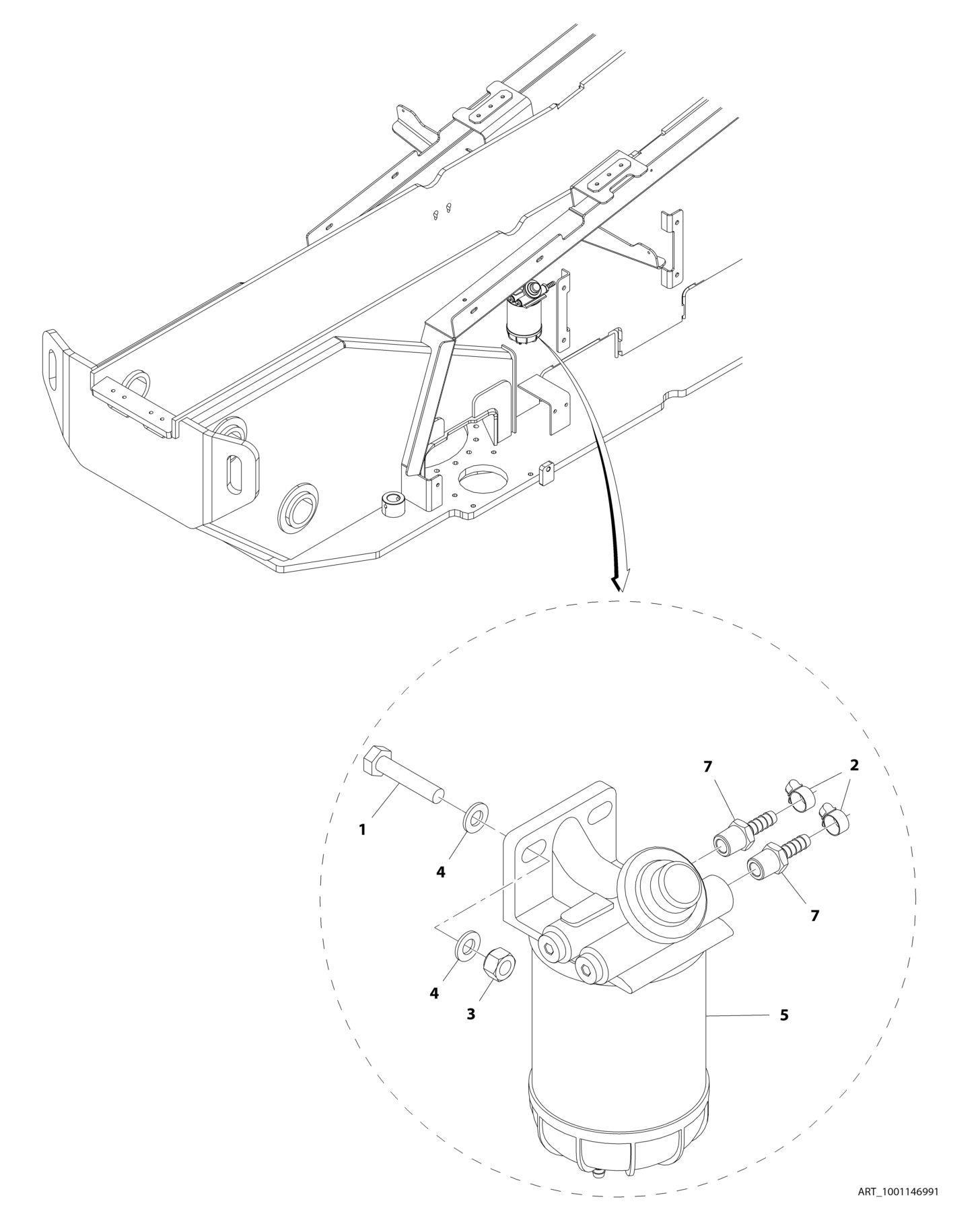

FIGURE 2-11. FUEL FILTER INSTALLATION (OPTIONAL)

ITEM PART NUMBER QTY

DESCRIPTION

1001146991 Ref FUEL FILTER INSTALLATION (OPTIONAL) 1 0701018 2 Bolt M10 x 50 2 1320022 2 Clamp 3 3291005 2 Nut M10 4 4812000 4 Washer M10 5 1001136173 1 Water Separator Filter Assembly (See WATER SEPARATOR FILTER ASSEMBLY (OPTIONAL) for Breakdown) 7 2180876 2 Fitting, Straight Barbed
