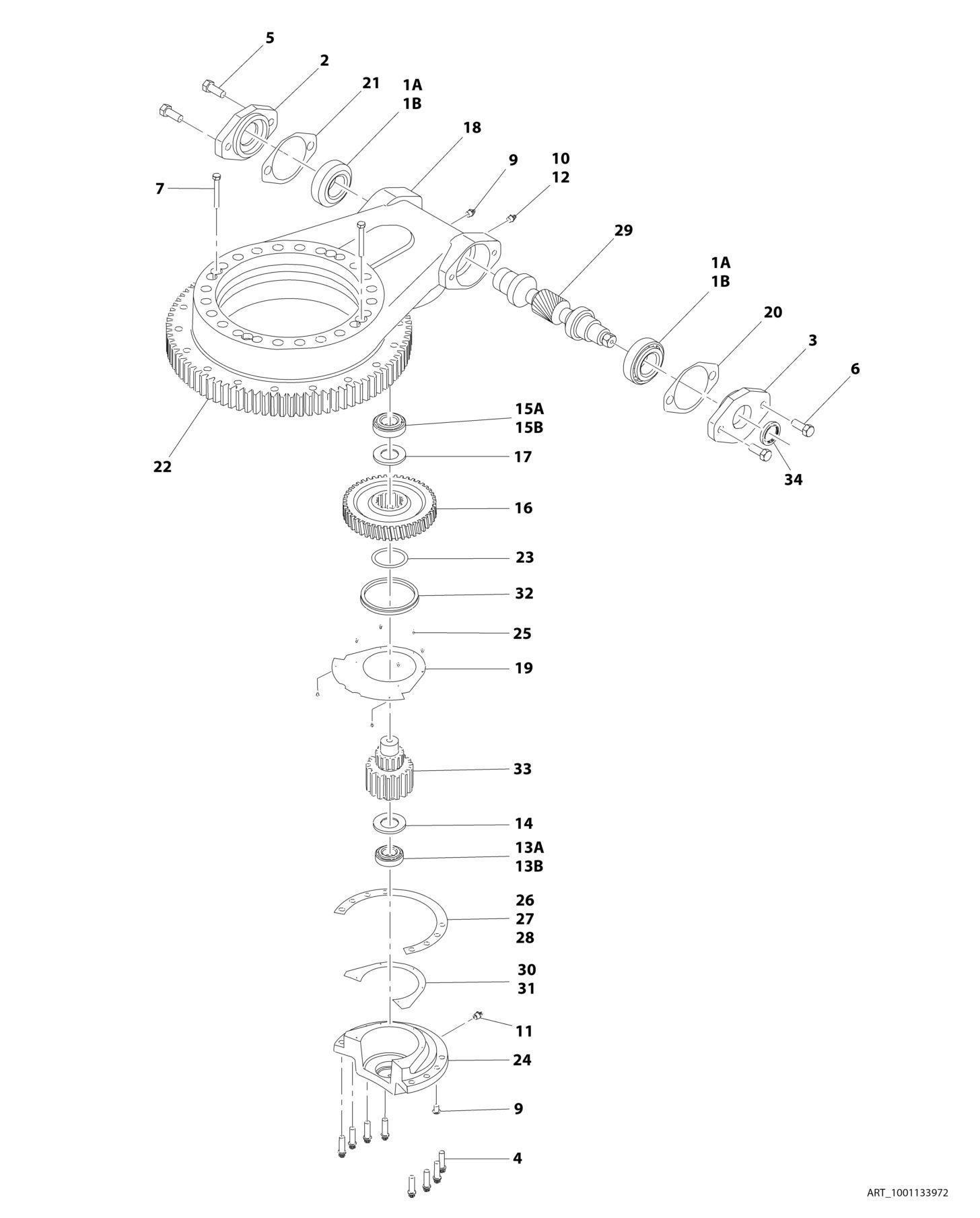

FIGURE 2 7. SWING BEARING AND ROTATION BOX ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001133972 Ref SWING BEARING AND ROTATION BOX ASSEMBLY 1A 7026042 2 Cup, Bearing 1B 7026043 2 Cone, Bearing 2 7027356 1 Adapter, Motor 3 7027354 1 Cap, Worm 4 70004249 8 Bolt M10 x 35 Grade 10.9 5 70004250 2 Bolt M12 x 30 Grade 10.9 6 70004251 2 Bolt M12 x 40 Grade 10.9 7 70004252 2 Bolt M8 x 65 9 70000865 1 Plug 10 70002649 1 Vent, Pressure 11 70002651 1 Fitting, Grease 12 7026044 1 Bushing, Reducer 13A 7026045 1 Cup, Bearing 13B 7026047 1 Cone, Bearing 14 7026046 1 Ring, Grease 15A 7026048 1 Cup, Bearing 15B 7026049 1 Cone, Bearing 16 7026050 1 Worm-Gear 17 7026052 1 Spacer, Washer 18 See Note NSS Housing (Note: Not Available - Purchase Complete Assembly) 19 7026053 1 Cover, Gear 20 7027350 AR Shim, Blue (.005in) 20 7027351 AR Shim, Clear (.0075in) 20 7027352 AR Shim, Brown (.010in) 21 7027353 AR Shim, Yellow (.020in) 22 70004253 1 Bearing, Turntable 23 70004254 1 O-Ring 24 70004255 1 Cap, Gear 25 70004256 8 Bolt M4 x 8 26 70004257 AR Shim, Green (.003) 27 70004258 AR Shim, Blue (.005) 28 70004259 AR Shim, Natural (.0075) 29 7026057 1 Gear, Worm 30 70004260 AR Shim, Blue (.005) 31 70004261 AR Shim, Yellow (.020) 32 70004262 1 Seal, Oil 33 7026051 1 Pinion, Output 34 70004263 1 Seal, Oil
REV
D
