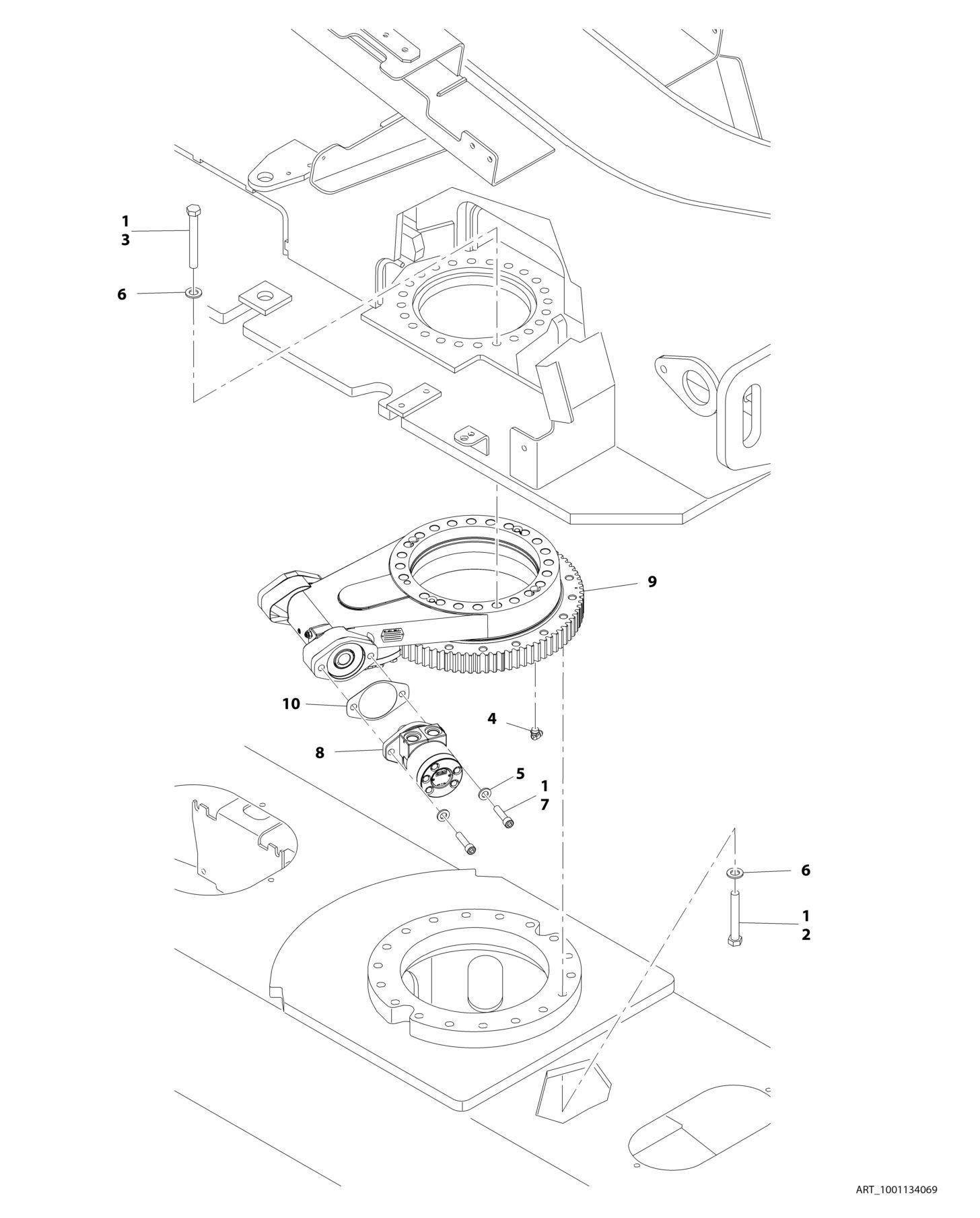

FIGURE 2 5. TURNTABLE BEARING AND SWING DRIVE INSTALLATION
ITEM PART NUMBER QTY DESCRIPTION REV
1001134069 Ref TURNTABLE BEARING AND SWING DRIVE INSTALLATION G 1 0100019 AR Compound, Locking 2 0711628 18 Bolt M16 x 110 (Grade 10.9) 3 0711630 23 Bolt M16 x 130 (Grade 10.9) 4 2160001 2 Fitting, Grease 5 5241200 2 Washer M12 6 5241600 41 Washer M16 7 5272114 2 Capscrew M12 x 50 8 1001104850 1 Swing Motor Assembly (See SWING MOTOR ASSEMBLY for Breakdown) 9 1001133972 1 Swing Bearing and Rotation Box Assembly (See SWING BEARING AND ROTATION BOX ASSEMBLY for Breakdown) 10 1001155744 1 Gasket
