FIGURE 2 4. MAIN CONTROL VALVE ASSEMBLY 18RSJ

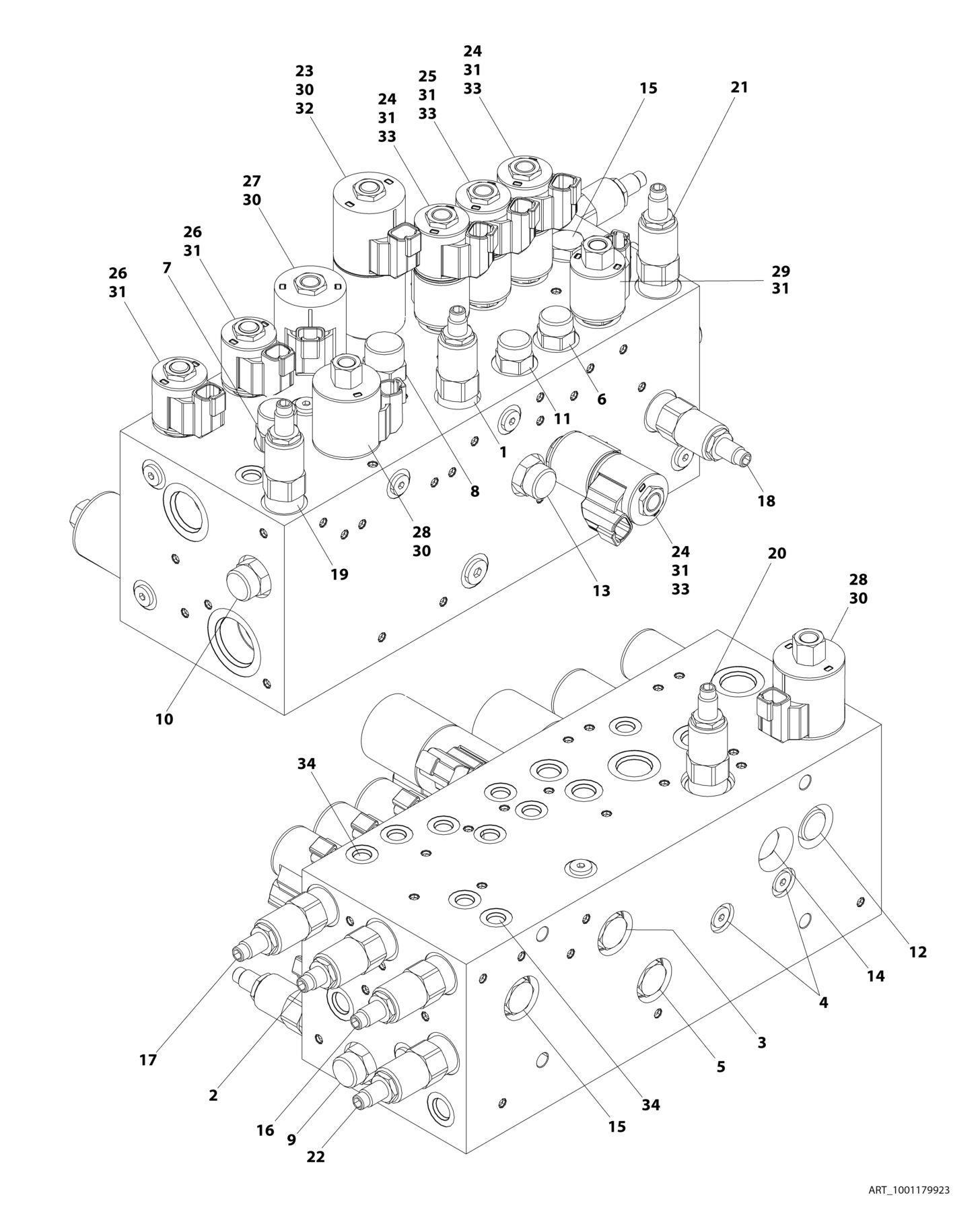

FIGURE 2-4. MAIN CONTROL VALVE ASSEMBLY - 18RSJ
FIGURE 2-4. MAIN CONTROL VALVE ASSEMBLY - 18RSJ
ITEM PART NUMBER QTY
DESCRIPTION
1001179923 Ref MAIN CONTROL VALVE ASSEMBLY - 18RSJ 1 70003961 1 Cartridge, Crossover Relief 1 7021653 1 Seal Kit - 70003961 Cartridge 2 70004151 1 Cartridge, Crossover Relief 2 7021653 1 Seal Kit - 70004151 Cartridge 3 7012975 1 Cartridge, Check 3 7012540 1 Seal Kit - 7012975 Cartridge 4 70002975 2 Cartridge, Check 4 70002976 2 Seal Kit - 70002975 Cartridge 5 7022391 1 Cartridge, Check 5 7012967 1 Seal Kit - 7022391 Cartridge 6 70003963 1 Cartridge, Compensator 6 7010543 1 Seal Kit - 7003963 Cartridge 7 70002973 1 Cartridge, Compensator 7 2900707 1 Seal Kit - 70002973 Cartridge 8 70004152 1 Cartridge, Compensator 8 2900707 1 Seal Kit - 70004152 Cartridge 9 70002972 2 Cartridge, Flow Control 9 7010543 2 Seal Kit - 70002972 Cartridge 10 7012989 1 Cartridge, Flow Regulator 10 7012953 1 Seal Kit - 7012989 Cartridge 11 7023984 1 Cartridge, Flow Regulator 11 7012953 1 Seal Kit - 7023984 Cartridge 12 7012965 1 Cartridge, Flow Regulator 12 7012953 1 Seal Kit - 702965 Cartridge 13 10837580 1 Cartridge, Load Shuttle 13 7010543 1 Seal Kit - 10837580 Cartridge 14 7012914 2 Cartridge, Pilot Check 14 7012918 2 Seal Kit - 7012914 Cartridge 15 70004153 1 Cartridge, Relief 15 7012998 1 Seal Kit - 70004153 Cartridge 16 70003968 1 Cartridge, Relief 16 7012998 1 Seal Kit - 70003968 Cartridge 17 7017420 1 Cartridge, Relief 17 7012998 1 Seal Kit - 7017420 Cartridge 18 7023913 1 Cartridge, Relief 18 7012998 1 Seal Kit - 7023913 Cartridge 19 70004154 1 Cartridge, Relief 19 7017496 1 Seal Kit - 70004154 Cartridge 20 7017422 1 Cartridge, Relief 20 7012998 1 Seal Kit - 7017422 Cartridge 21 7017421 1 Cartridge, Relief 21 7012998 1 Seal Kit - 7017421 Cartridge 22 70003970 1 Cartridge, Solenoid (Without Coil) 22 70003976 1 Seal Kit - 70003970 Cartridge 22 7022390 1 Nut, Coil 23 70003971 3 Cartridge, Solenoid (Without Coil) 23 70002967 3 Seal Kit - 70003971 Cartridge 23 7022390 3 Nut, Coil 24 70002966 1 Cartridge, Solenoid (Without Coil)
REV
B
ITEM PART NUMBER QTY
DESCRIPTION
24 70003976 1 Seal Kit - 70002966 Cartridge 24 7022390 1 Nut, Coil 25 7024884 2 Cartridge, Solenoid (Without Coil) 25 7012967 2 Seal Kit - 7024884 Cartridge 25 7022390 2 Nut, Coil 26 70002401 1 Cartridge, Solenoid (Without Coil) 26 7017496 1 Seal Kit - 70002401 Cartridge 26 7022390 1 Nut, Coil 27 7012910 2 Cartridge, Solenoid (Without Coil) 27 2900708 2 Seal Kit - 7012910 Cartridge 27 70003977 2 Nut, Coil 28 7017410 1 Cartridge, Solenoid (Without Coil) 28 7012967 1 Seal Kit - 7017410 Cartridge 28 70003978 1 Nut, Coil 29 70003788 5 Coil 30 70002386 11 Coil 31 70003974 1 Disc, Check Valve 32 70002974 4 Disc, Check Valve 33 70003975 2 Orifice 34 See Note AR Plug Options (Not Shown) 34 7024844 1 Plug 3/8 (#6) 34 7017406 9 Plug 1/4 (#4)
