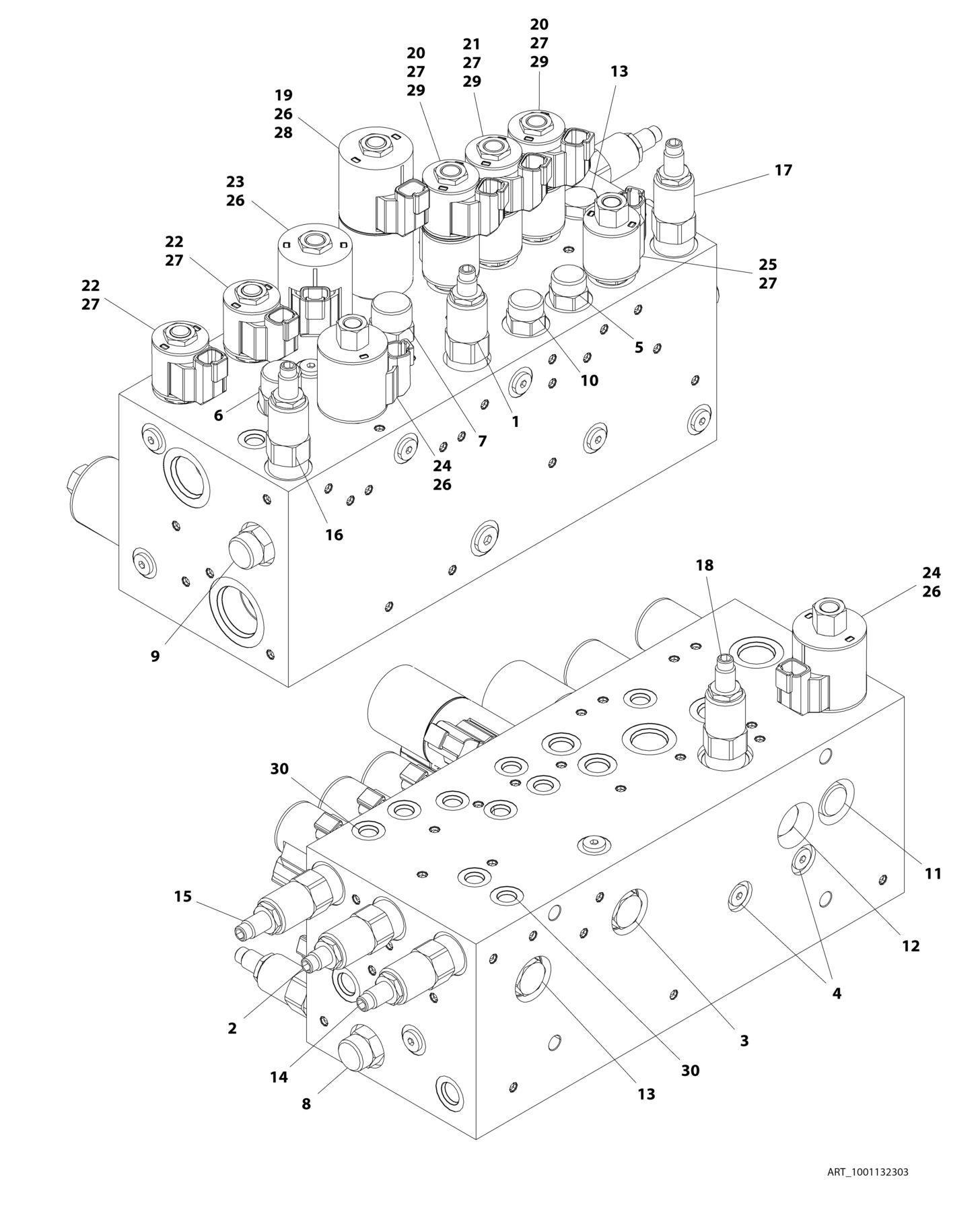

FIGURE 2 3. MAIN CONTROL VALVE ASSEMBLY 18RS
FIGURE 2-3. MAIN CONTROL VALVE ASSEMBLY - 18RS
FIGURE 2-3. MAIN CONTROL VALVE ASSEMBLY - 18RS
ITEM PART NUMBER QTY
DESCRIPTION
1001132303 Ref MAIN CONTROL VALVE ASSEMBLY - 18RS 1 70003961 1 Cartridge, Crossover Relief 1 7021653 1 Seal Kit - 70003961 Cartridge 2 70004151 1 Cartridge, Crossover Relief 2 7021653 1 Seal Kit - 70004151 Cartridge 3 7012975 1 Cartridge, Check 3 7012540 1 Seal Kit - 7012975 Cartridge 4 70002975 2 Cartridge, Check 4 70002976 2 Seal Kit - 70002975 Cartridge 5 70003963 1 Cartridge, Compensator 5 7010543 1 Seal Kit - 7003963 Cartridge 6 70002973 1 Cartridge, Compensator 6 2900707 1 Seal Kit - 70002973 Cartridge 7 70004152 1 Cartridge, Compensator 7 2900707 1 Seal Kit - 70004152 Cartridge 8 70006291 1 Cartridge, Flow Control 8 7010543 1 Seal Kit - 70006291 Cartridge 9 70002972 1 Cartridge, Flow Control 9 7010543 1 Seal Kit - 70002972 Cartridge 10 7012989 1 Cartridge, Flow Regulator 10 7012953 1 Seal Kit - 7012989 Cartridge 11 7023984 1 Cartridge, Flow Regulator 11 7012953 1 Seal Kit - 7023984 Cartridge 12 10837580 1 Cartridge, Load Shuttle 12 7010543 1 Seal Kit - 10837580 Cartridge 13 7012914 2 Cartridge, Pilot Check 13 7012918 2 Seal Kit - 7012914 Cartridge 14 70004153 1 Cartridge, Relief 14 7012998 1 Seal Kit - 70004153 Cartridge 15 70003968 1 Cartridge, Relief 15 7012998 1 Seal Kit - 70003968 Cartridge 16 7023913 1 Cartridge, Relief 16 7012998 1 Seal Kit - 7023913 Cartridge 17 7017422 1 Cartridge, Relief 17 7012998 1 Seal Kit - 7017422 Cartridge 18 70004154 1 Cartridge, Relief 18 7017496 1 Seal Kit - 70004154 Cartridge 19 70003970 1 Cartridge, Solenoid (Without Coil) 19 70003976 1 Seal Kit - 70003970 Cartridge 19 7022390 1 Nut, Coil 20 70003971 2 Cartridge, Solenoid (Without Coil) 20 70002967 2 Seal Kit - 70003971 Cartridge 20 7022390 2 Nut, Coil 21 70002966 1 Cartridge, Solenoid (Without Coil) 21 70003976 1 Seal Kit - 70002966 Cartridge 21 7022390 1 Nut, Coil 22 7024884 2 Cartridge, Solenoid (Without Coil) 22 7012967 2 Seal Kit - 7024884 Cartridge 22 7022390 2 Nut, Coil 23 70002401 1 Cartridge, Solenoid (Without Coil)
REV
C
ITEM PART NUMBER QTY
DESCRIPTION
23 7017496 1 Seal Kit - 70002401 Cartridge 23 7022390 1 Nut, Coil 24 7012910 2 Cartridge, Solenoid (Without Coil) 24 2900708 2 Seal Kit - 7012910 Cartridge 24 70003977 2 Nut, Coil 25 7017410 1 Cartridge, Solenoid (Without Coil) 25 7012967 1 Seal Kit - 7017410 Cartridge 25 70003978 1 Nut, Coil 26 70003788 5 Coil 27 70002386 9 Coil 28 70003974 1 Disc, Check Valve 29 70002974 3 Disc, Check Valve 30 70003975 2 Orifice 31 See Note AR Plug Options (Not Shown) 31 7024844 1 Plug 3/8 (#6) 31 7017406 9 Plug 1/4 (#4)
