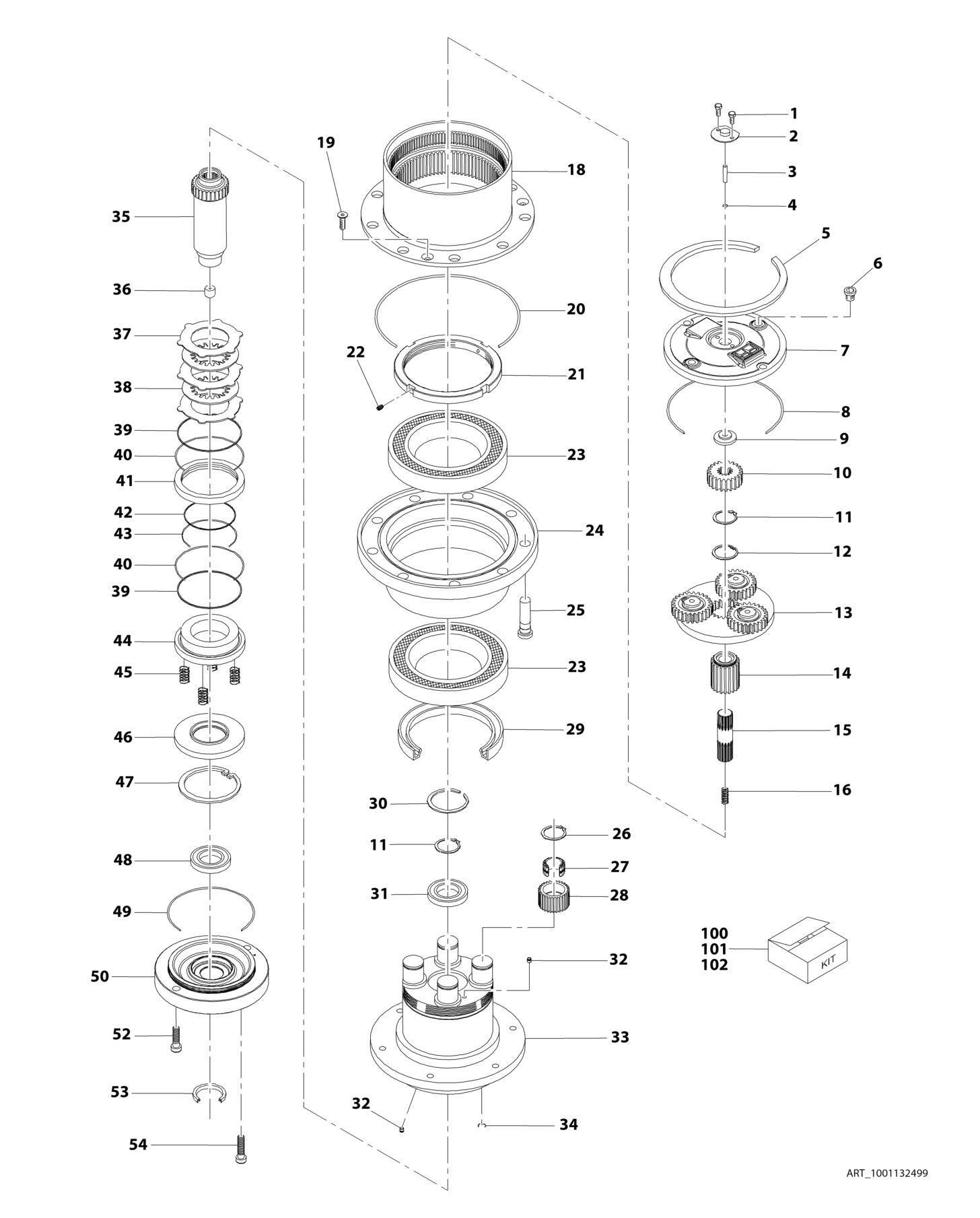

FIGURE 1 4. DRIVE HUB/BRAKE ASSEMBLY
FIGURE 1-4. DRIVE HUB/BRAKE ASSEMBLY
FIGURE 1-4. DRIVE HUB/BRAKE ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001132499 Ref DRIVE HUB/BRAKE ASSEMBLY 1 70004353 2 Screw 1/4-20 x 1/2 2 See Note NSS Cover (Note: Use Item 101) 3 See Note NSS Pin (Note: Use Item 101) 4 See Note NSS O-Ring (Note: Use Item 100 or 101) 5 See Note NSS Ring (Note: Use Item 101) 6 See Note NSS Plug with O-Ring (Note: Use Item 101) 7 See Note NSS Cover (Note: Use Item 101) 8 See Note NSS O-Ring (Note: Use Item 100 or 101) 9 See Note NSS Shim (Note: Use Item 101) 10 70004354 1 Gear, Pinion 11 70004355 2 Ring, Retaining 12 70004356 1 Ring, Retaining 13 70004357 1 Gear Assembly 14 70004358 1 Gear, Pinion 15 70004359 1 Shaft, Coupling 16 70004360 1 Spring 18 See Note NSS Housing, Planetary Gear (Note: Purchase Complete Hub) 19 70004361 3 Screw M8 x 20 Grade 10.9 20 See Note NSS O-Ring (Note: Use Item 100) 21 70004362 1 Nut, Ring 22 70004363 2 Screw M6 x 10 23 70004364 2 Bearing 24 70004365 1 Support, Hub 25 70004366 9 Bolt, Wheel 26 70004367 4 Ring, Retaining 27 70004368 4 Bearing 28 70004369 4 Gear 29 See Note NSS Seal (Note: Use Item 100) 30 70004370 1 Ring 31 70004371 1 Bearing 32 See Note NSS Plug (Note: Not Available for Purchase) 33 70004372 1 Stub, Axle 34 See Note NSS O-Ring (Note: Use Item 100) 35 70004373 1 Shaft, Input 36 70004374 1 Shim 37 See Note NSS Disc, Metal (Note: Use Item 102) 38 See Note NSS Disc, Composite (Note: Use Item 102) 39 See Note NSS Seal (Note: Use Item 100 or 102) 40 See Note NSS O-Ring (Note: Use Item 100 or 102) 41 See Note NSS Spacer (Note: Use Item 102) 42 See Note NSS Seal (Note: Use Item 100 or 102) 43 See Note NSS O-Ring (Note: Use Item 100 or 102) 44 See Note NSS Piston (Note: Use Item 102) 45 See Note NSS Spring (Note: Use Item 102) 46 See Note NSS Spacer (Note: Use Item 102) 47 See Note NSS Ring, Retaining (Note: Use Item 102) 48 70004375 1 Bearing 49 See Note NSS O-Ring (Note: Use Item 100) 50 70004376 1 Support, Input
REV
G
ITEM PART NUMBER QTY
DESCRIPTION
52 See Note NSS Screw 7/16 x 1 (Note: Use Item 101) 53 See Note NSS Seal (Note: Use Item 100) 54 70004377 4 Screw M10 x 30 100 70004378 1 Seal Kit (Includes Items 4, 8, 20, 29, 34, 39, 40, 42, 43, 49 & 53) 101 70004379 1 Cover Kit (Includes Items 2-9 & 52) 102 70004380 1 Brake Kit (Includes Items 37-47)
