FIGURE 1 1. STEERING INSTALLATION

from JLG 18RS 18RSJ Parts Manual (3121285)-PDF Download En

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

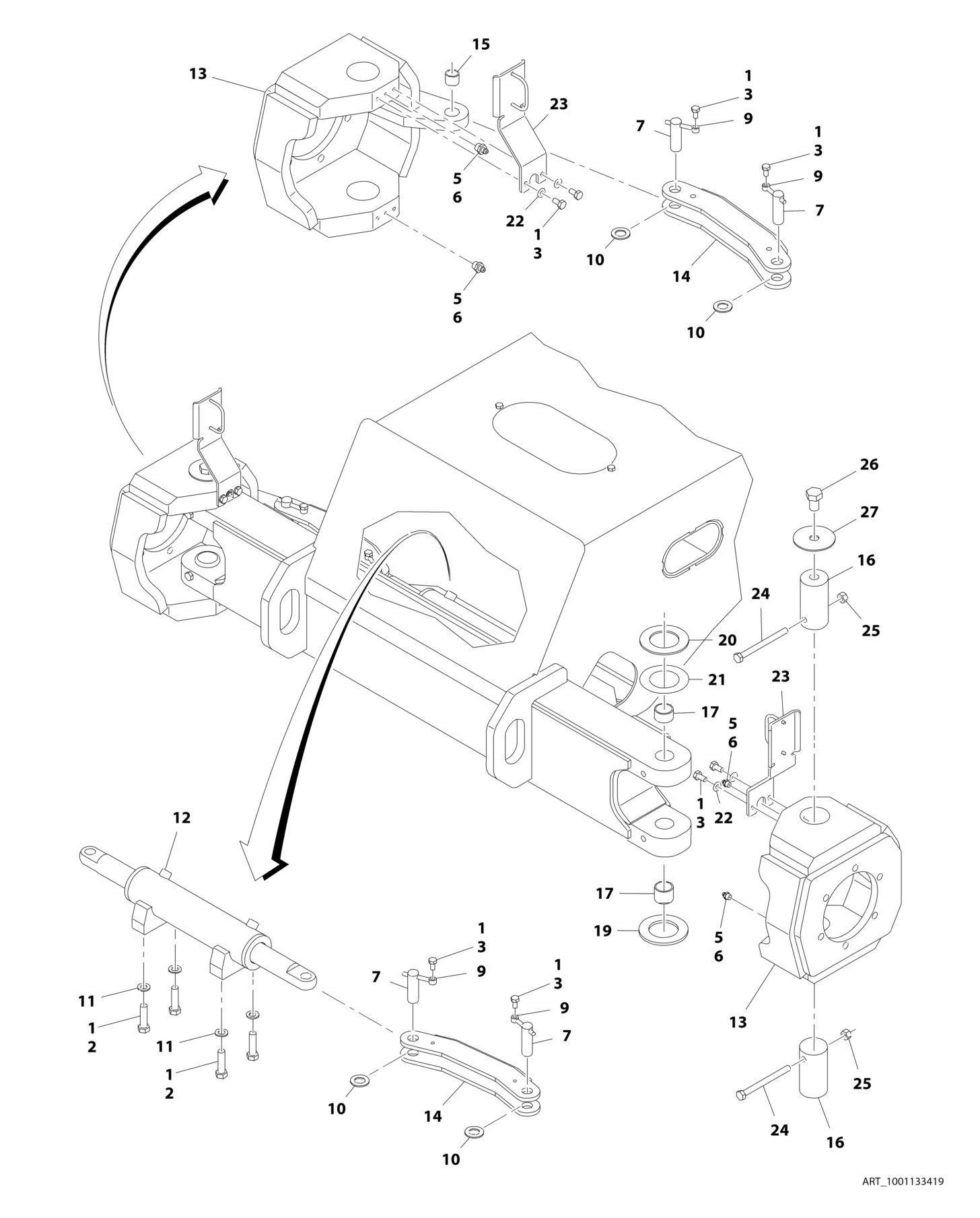

FIGURE 1-1. STEERING INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001133419 Ref STEERING INSTALLATION 1 0100011 AR Compound, Locking 2 0711620 4 Bolt M16 x 60 3 0761010 8 Bolt M10 x 20 5 2160016 4 Fitting, Grease 6 3020029 AR Grease, Bearing 7 3422813 4 Pin 9 3841143 4 Keeper, Pin 10 4740111 4 Thrustwasher 11 4812300 4 Washer M16 12 1001130477 1 Steer Cylinder Assembly (See CYLINDER SECTION for Breakdown) 13 1001148486 2 Spindle 14 1001131788 2 Link, Tie-Rod 15 1001134289 2 Bearing 16 1001148425 4 Kingpin 17 1001148430 4 Bearing 19 1001148482 2 Thrustwasher 20 1001148537 2 Thrustwasher 21 1001148538 2 Thrustwasher 22 4812100 4 Washer M10 23 1001148540 2 Support, Hose 24 0711231 4 Bolt M12 x 140 25 3291205 4 Nut M12 26 0762014 2 Bolt M20 x 30 27 1001148610 2 Cover, Kingpin

FIGURE 1 1. STEERING INSTALLATION

Next Article

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

FIGURE 1-1. STEERING INSTALLATION

FIGURE 1-1. STEERING INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

REV
