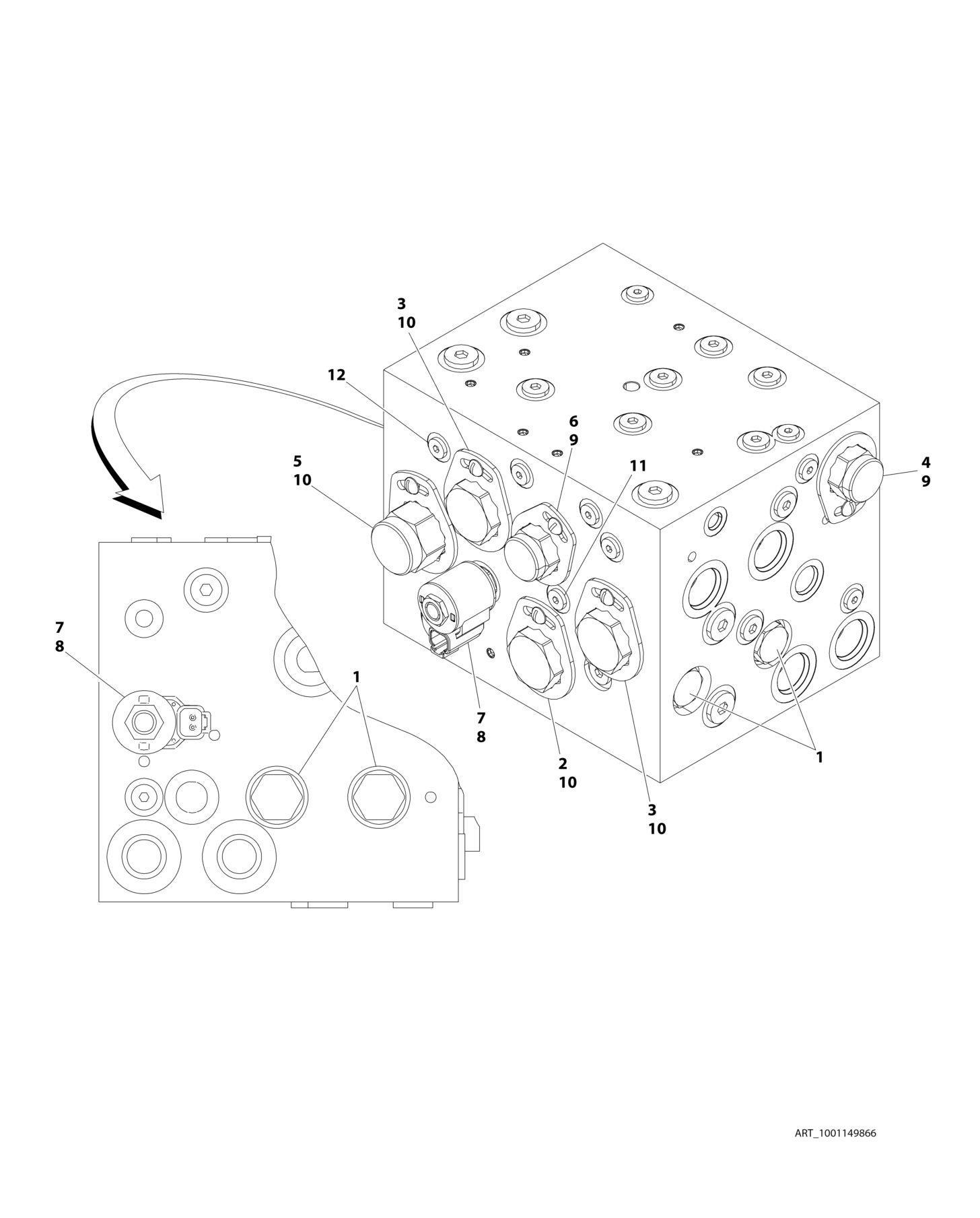

FIGURE 1 8. FLOW DIVIDER VALVE ASSEMBLY

FIGURE 1-8. FLOW DIVIDER VALVE ASSEMBLY

FIGURE 1-8. FLOW DIVIDER VALVE ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001149866 Ref FLOW DIVIDER VALVE ASSEMBLY 1 7022397 4 Valve, Check 1 7022399 4 Seal Kit - 7022397 Cartridge 2 70004017 1 Valve, Flow Divider 2 7021625 1 Seal Kit - 70004017 Cartridge 3 70004018 2 Valve, Flow Divider 3 7021625 2 Seal Kit - 70004018 Cartridge 4 70003957 1 Valve, Pilot 4 70003980 1 Seal Kit - 70003957 Cartridge 5 70003958 1 Valve, Pilot 5 70003981 1 Seal Kit - 70003958 Cartridge 6 70003959 1 Valve, Pilot 6 70003980 1 Seal Kit - 70003959 Cartridge 7 7012974 2 Valve, Solenoid (Less Coil) 7 7010543 2 Seal Kit - 7012974 Cartridge 8 70002386 2 Coil 9 70002962 2 Lock Kit 10 70000781 4 Lock Kit 11 70003960 1 Orifice 12 70002209 2 Orifice 13 Ref Plug Options (Note: Not called out on Drawing): 13 7017406 11 Plug 1/4 (#4) 13 7024844 15 Plug 3/8 (#6) 13 7024845 11 Plug 1/2 (#8) 13 See Note 1 Plug 5/8 (#10) (Note: Not Available - Purchase Locally)

REV

B
