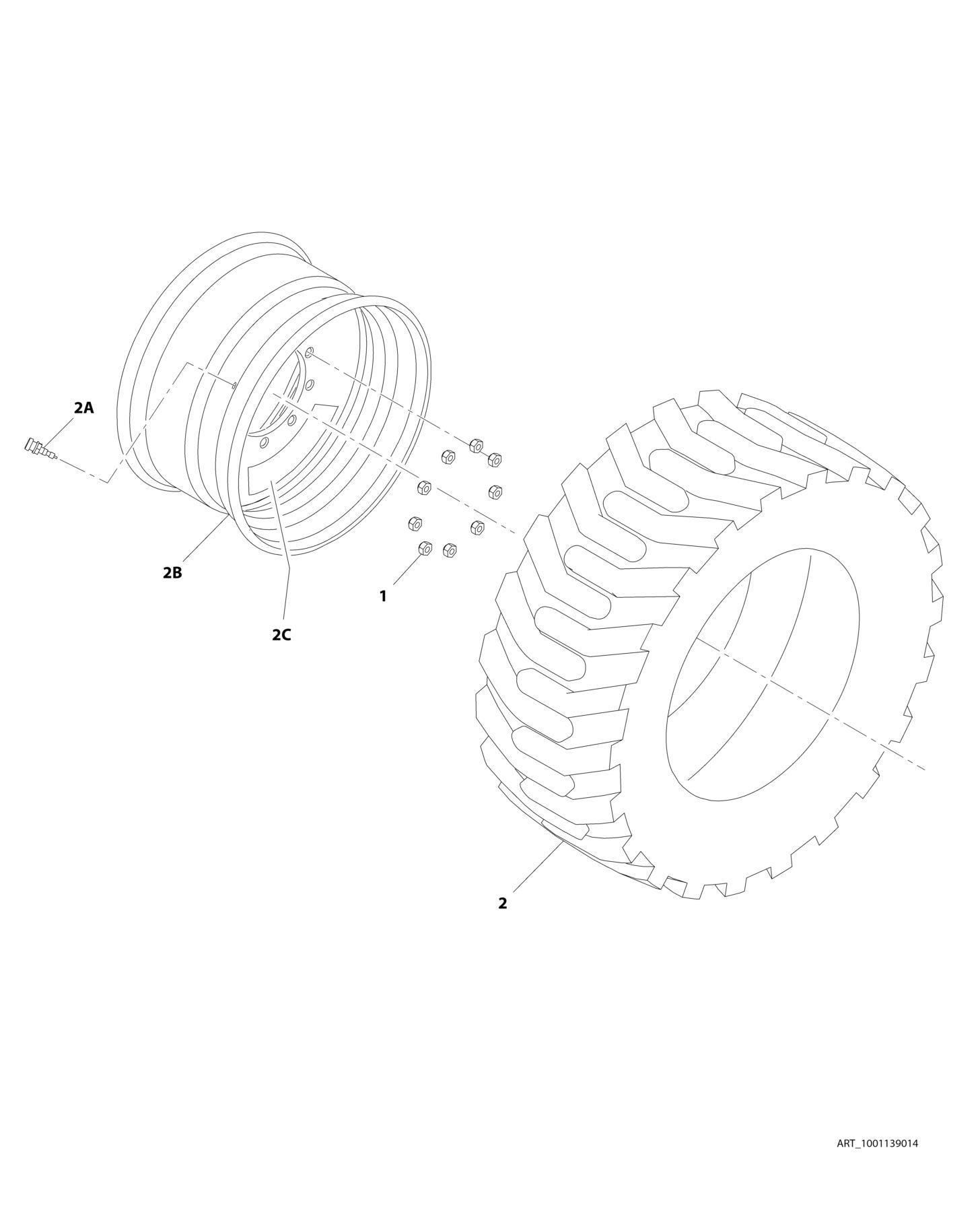

FIGURE 1 5. TIRE AND WHEEL INSTALLATION

FIGURE 1-5. TIRE AND WHEEL INSTALLATION

FIGURE 1-5. TIRE AND WHEEL INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001139014 Ref TIRE AND WHEEL INSTALLATION 1 3300106 36 Nut, Wheel (9 per Wheel) 2 Ref Tire and Wheel Assembly Options: 2 1001134196 2 315/55D20 Foam-Filled Left Side 2 1001134197 2 315/55D20 Foam-Filled Right Side Ref Note: Assemblies may require ballast/foam filling to

manufacture's specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and/or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly.

2 1001134195 1 Tire 315/55D20 2A 4640113 NLA Valve Stem, Air (Use p/n 8786514) 2B 1001134194 1 Rim, Wheel 2C 1001144655 1 Decal - Transport Wheels
