FIGURE 1 3. DRIVE MOTOR ASSEMBLY

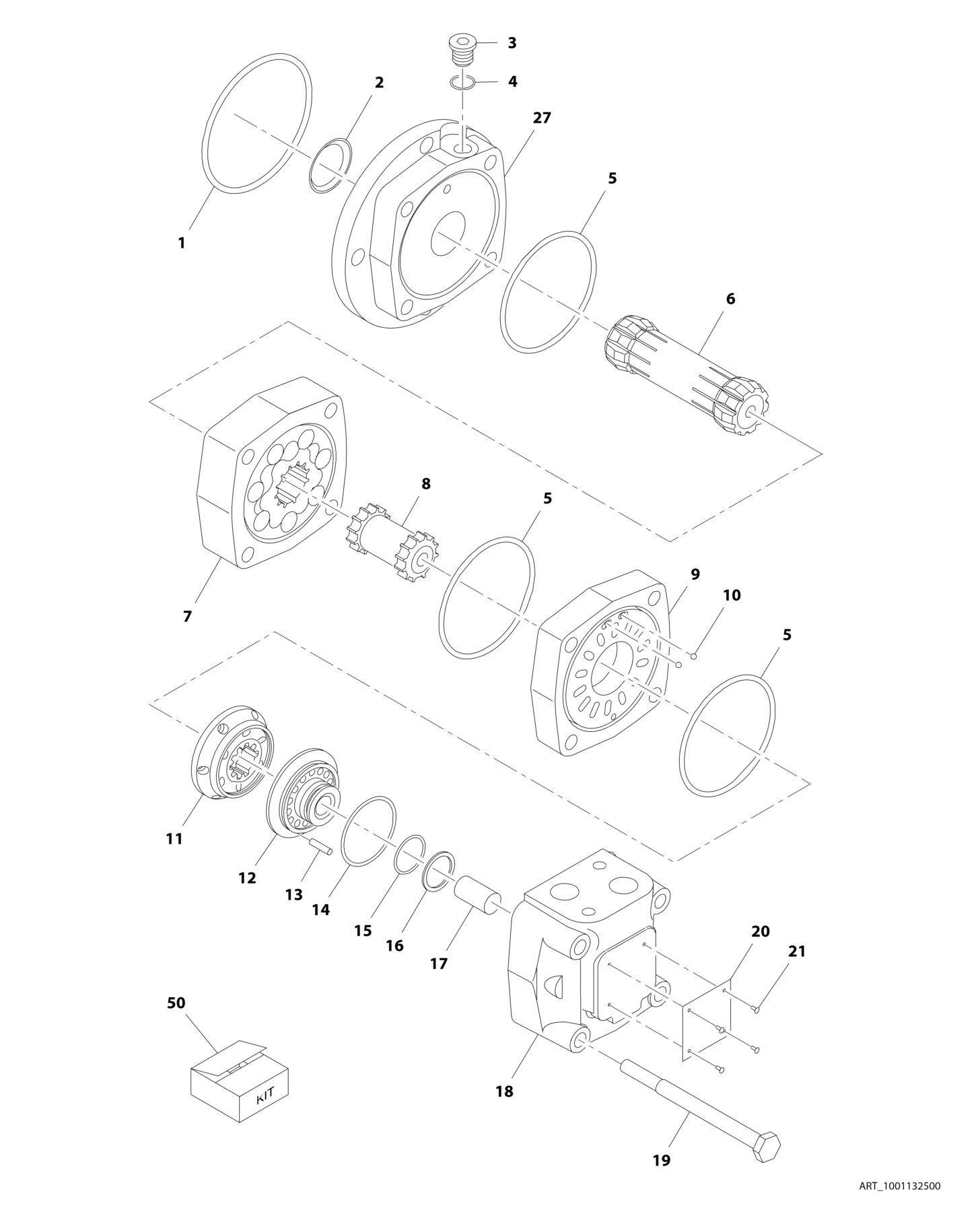

FIGURE 1-3. DRIVE MOTOR ASSEMBLY

FIGURE 1-3. DRIVE MOTOR ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001132500 Ref DRIVE MOTOR ASSEMBLY 1 70004126 1 O-Ring 2 70004075 1 Seal, Shaft 3 70004076 1 Plug 4 See Note NSS O-Ring (Note: Use Item 50) 5 See Note NSS O-Ring (Note: Use Item 50) 6 70004077 NLA Shaft (Note: Purchase Complete Motor) 7 70004078 NLA Gear Set (Note: Purchase Complete Motor) 8 70004079 NLA Coupling, Drive (Note: Purchase Complete Motor) 9 70004080 NLA Plate (Note: Purchase Complete Motor) 10 70004081 NLA Ball (Note: Purchase Complete Motor) 11 70004082 NLA Plate, Valve (Note: Purchase Complete Motor) 12 70004083 NLA Plate, Balance (Note: Purchase Complete Motor) 13 70004084 NLA Pin (Note: Purchase Complete Motor) 14 See Note NSS O-Ring (Note: Use Item 50) 15 See Note NSS O-Ring (Note: Use Item 50) 16 70004085 NLA Washer (Note: Purchase Complete Motor) 17 70004086 NLA Spacer (Note: Purchase Complete Motor) 18 70004087 NLA Cover, End (Note: Purchase Complete Motor) 19 70004088 4 Screw M10 20 See Note 1 Nameplate (Note: Not Available for Purchase) 21 See Note 4 Rivet (Note: Not Available - Purchase Locally) 27 70004089 NLA Flange, Mounting (Note: Purchase Complete Motor) 50 70004090 1 Seal Kit - Motor (Includes Items 1, 2, 4, 5, 14 & 15)

REV

E
