Replacing the Mainboard

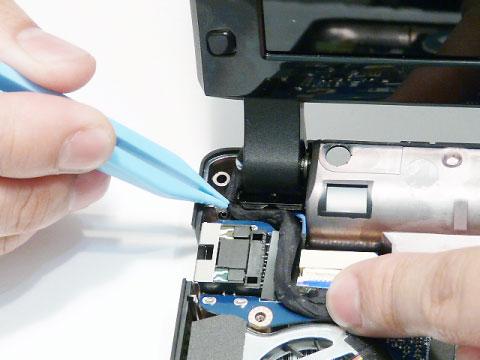

1. Connect the USB Board cable to the Mainboard. 2. Replace the adhesive to secure the cable in place.

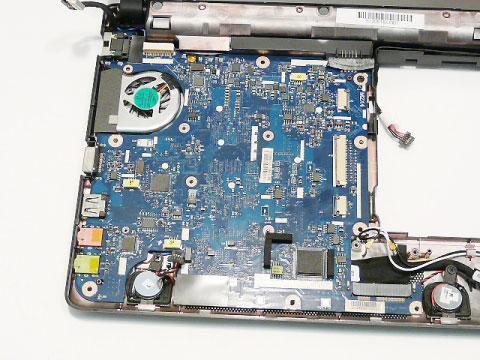

3. Turn the Mainboard over and insert it into the Lower

Cover left side first to ensure the I/O ports pass through the casing. 4. Replace the single screw securing the Mainboard to the Lower Cover.

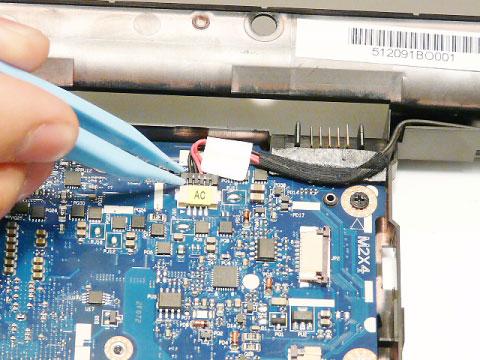

5. Connect the Speaker cable to the Mainboard. 6. Connect the AC Power cable to he Mainboard and press down as indicated to secure the cable in place.

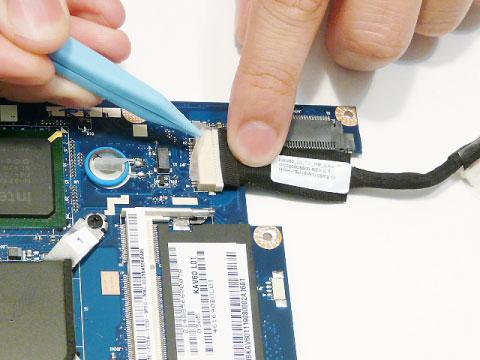

7. Run the LVDS cable along the cable channel as shown.
