Card reader board
Item Description Item Description

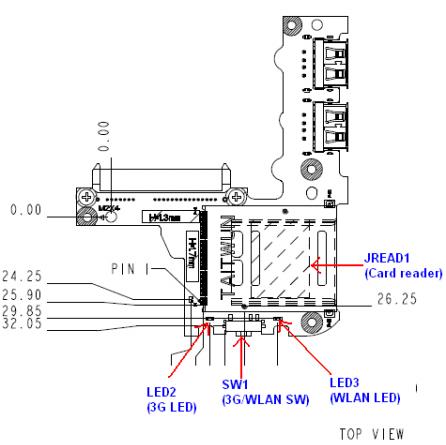

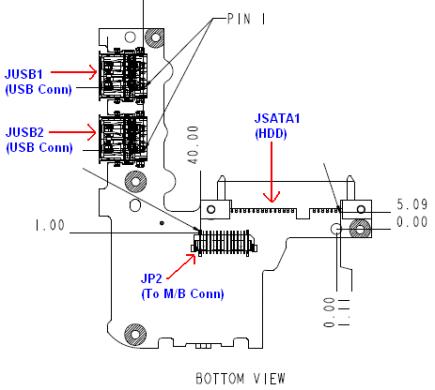

JUSB1 External USB connector JP2 To M/B connector JUSB2 External USB connector SW1 3G/WLAN switch JREAD1 Card reader connector LED2 3G(WWAN) LED JSATA1 HDD connector LED3 Wireless LED
