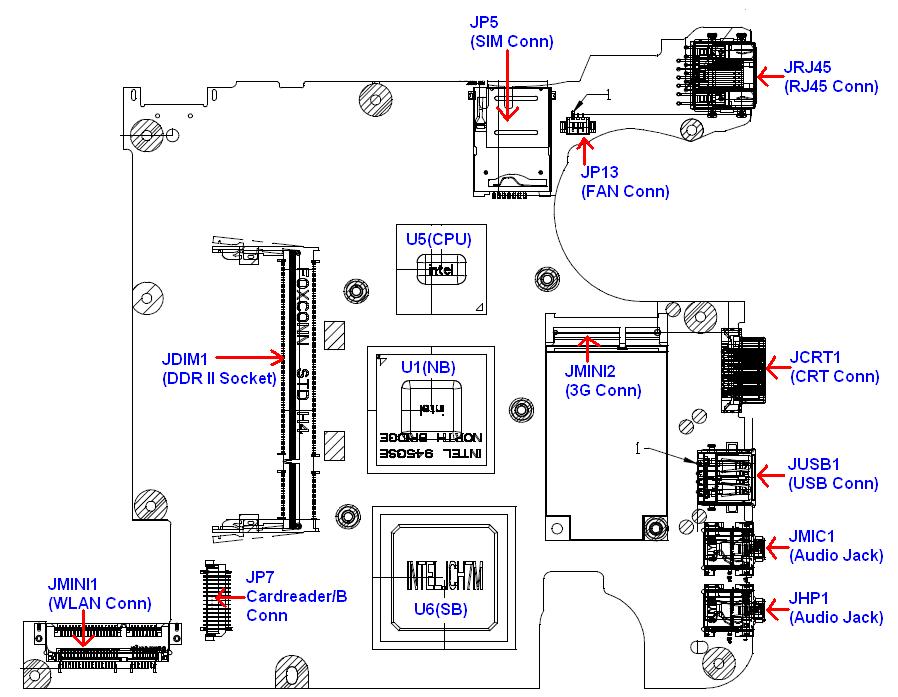

Bottom View

Item Description Item Description

JDIM1 DDR2 Socket JMINI2 MINI card (3G) socket JMINI1 MINI card (wireless) socket JP13 Fan connector JCRT1 CRT connector JP5 SIM card connector JRJ45 RJ45 LAN connector JP7 To Cardreader/B connector JUSB1 External USB connector U1 NB JHP1 Headphone connector U5 CPU JMIC1 Mic-in connector U6 SB
