Top View

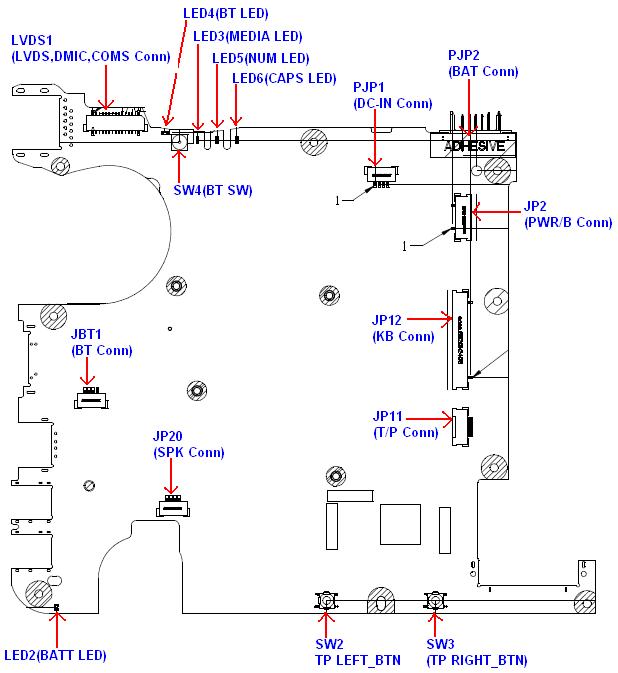

Jumper and Connector Locations

Top View

Item Description Item Description

JP2 To PWR/B connector SW2 Left button JP12 Internal keyboard connector SW3 Right button JP20 Speaker connector SW4 Bluetooth button JP11 Internal track-pad connector LED2 Battery LED JLVDS1 LCD connector LED3 Media LED JBT1 Bluetooth connector LED4 Bluetooth LED PJP1 To Power core connector LED5 NUM LED PJP2 Battery connector LED6 CAPS LED
