Replacing the Power Board

Next Article
Rear Assembly

Rear Assembly

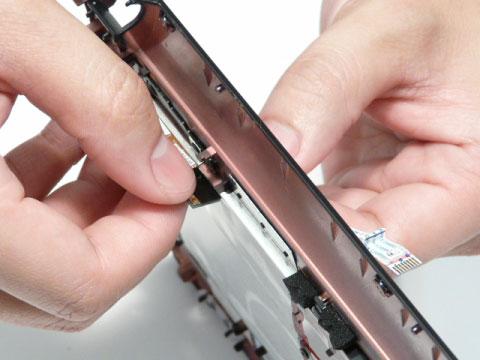

1. Insert the Power Board FFC under the mylar cover as shown.

2. Pull the FFC through the Upper Cover until none of the FFC is visible from the underside.

3. Place the Power Board in the Upper Cover and slide it to the left to engage the securing clips. 4. Replace the single securing screw to secure the board to the Upper Cover.
