Removing the LCD Panel

1. See “Removing the Camera Board” on page 78. 2. Remove the two securing screws from the LCD Panel.

3. Remove the LVDS cable from the cable channel in the bracket.

4. Lift the panel as shown to expose the LVDS and Microphone cables. IMPORTANT: Do not remove the panel at this stage to avoid damaging the cables.

LCD Panel M2*4 2

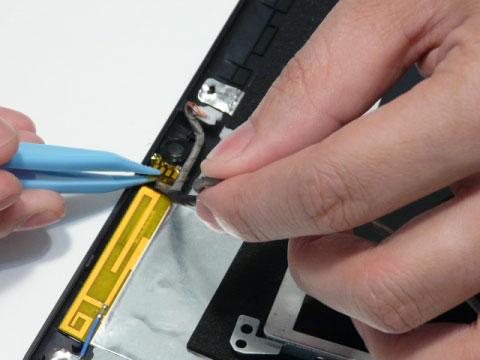

5. Remove the Microphone cable from the cable channel as shown. Ensure that the cable is free from all cable clips.

6. Lift the Microphone Module upward to detach the adhesive holding it in place.

7. Remove the LCD Panel from the LCD Module.
