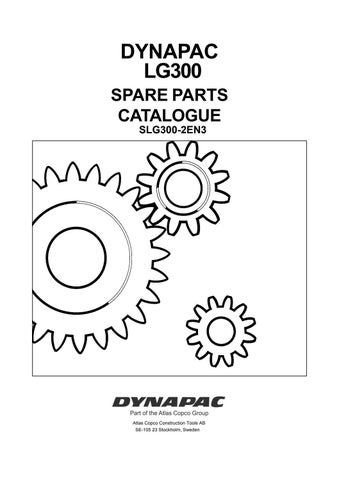

DYNAPAC LG300 SPARE PARTS CATALOGUE SLG300-2EN3

Atlas Copco Construction Tools AB SE-105 23 Stockholm, Sweden

I

Forward and Reverse Plate Compactor LG300 Spare Parts Catalogue SLG300-2EN3 Valid from serial number: *13000001-* Engines: Honda GX270 Hatz IB30 Published catalogue issues valid for these plate compactors: Catalogue Issue date SLG300-2EN0 2005 - 10 Replaced by SLG300-2EN1 SLG300-2EN1 2006 - 06 Replaced by SLG300-2EN2 SLG300-2EN2 2008 - 01 Replaced by SLG300-2EN3 SLG300-2EN3 2009 - 04

We reserve the right to change specifications without notice.

Printed in Sweden.

II

RESERVDELSBESTÄLLNING

ORDERING SPARE PARTS

Följande uppgifter ska lämnas vid beställning av reservdelar för att undvika leveransfel: 1. Maskintyp.

2. Vältens serienummer.

3. Antal av önskad reservdel.

4. Reserdelens artikelnummer.

5. Reservdelens benämning.

6. Måttuppgifter vid beställning av metervara.

To avoid errors in delivery, please give the following information when ordering spare parts: 1. Type of machine.

2. Roller serial number.

3. Quantity required.

4. Part number.

5. Parts denomination.

6. Dimensions when ordering per length.

ERSATZTEILBESTELLUNG

ORDINI DI RICAMBI

Zur Vermeidung von Fehllieferungen sind bei der Bestellung von Ersatzteilen folgende Angaben zu machen: 1. Maschinentyp.

2. Herstellungsnummer.

3. Bestellmenge. (Quantity) 4. Ersatzteilnummer. (Part Nº) 5. Ersatzteilbenennung. (Denomination) 6. Massangaben bei Bestellung von Meterware.

Per evitare errori nelle consegne di ricambi, Vi preghiamo di comunicarci le seguenti informazioni al momento dell 'ordinazione: 1. Tipo di macchina.

2. Numero di serie della macchina.

3. Quantità dei pezzi desiderati. (Quantity) 4. Numero di codice del pezzo. (Part Nº) 5. Descrizione del pezzo di ricambio. (Denomination) 6. Misura, in caso di ordine per metro.

PEDIDO DE RECAMBIOS

COMMANDE DE PIECES DE RECHANGE

Para evitar errores en las entregas, deberán indicarse los siguientes datos al hacer un pedido de recambios: 1. Tipo de máquina.

2. Número de serie.

3. Cantidad de piezas deseadas. (Quantity) 4. Número de artículo de la pieza de recambio. (Part Nº) 5. Denominación de la pieza. (Denomination) 6. Indíquese la medida al solicitar un artículo que se expide por metros.

Les indications suivantes doivent être fournies lors de la commande de piéces de rechange, afin d'éviter toute erreur de livraison: 1. Type de machine.

2. Numéro de série.

3. Quantité désirée de pièce de rechange. (Quantity) 4. Numéro de la piéce de rechange. (Part Nº) 5. Dénomination de la piéce de rechange. (Denomination) 6. Longueur en cas de commande au mètre.

YOUR AGENT/DEALER:

III

Text pages The text pages is structured as the picture on the right.

1.

This is the remarks for specific items and the descriptions of the remarks is at the bottom of the parts list.

2.

Parts indicated by a dot and moved to the right are included when buying the assembled unit above.

3.

Spare parts and service code for a specific part, mainly for internal use at Dynapac. "A" = Service part, "B" = Fast moving part, "C" = Suggested exchanged part and "D" = Regular spare part.

3 1

1

Changes PARTS INFO

SERVICE INFO

GROUP

PAGE

Notes

NOTES

2

IV

Notes

V

PÄRMETIKETT

BINDER LABEL

För att undvika fel vid reservdelsbeställning finns här nedan två etiketter som passar i fickorna på pärmarnas ryggar. På dessa kan man se från vilket vältnummer av aktuell maskin reservdelskatalogen gäller. Gör så här: 1. Tag denna sida ur pärmen.

2. Klipp ut etiketten till VÄNSTER (1) och sätt in den i fickan på DENNA pärmens rygg.

3. Finns det en etikett till HÖGER (2), kan denna användas på pärmen för FÖREGÅENDE utgåva av denna katalog.

4. Kasta detta papper.

To avoid errors when ordering spare parts use the labels below to identify the catalogues on the back of the binder. The label contain the serial number range for which the catalogue is valid. Do like this: 1. Remove this page from the binder.

2. Cut out the LEFT label (1) and put it on THIS binders back.

3. If there is a label to the RIGHT (2), it can be used on thebinder for PRECEDING issue of this catalogue.

4. Throw away this paper.

KATALOG-BESCHRIFTUNG

ETICHETTAPOSTASULRACCOGLITORE

Zur Vermeidung von Fehlen bei der Ersatzteilbestellung benutzen Sie bitte die unteren Beschriftungen, um die Kataloge auf der Rückseite zu kennzeichen. Auf der Beschriftung ist angegaben, für welche Maschinennummern der jeweilige Katalog gültig ist.

Ablauf: 1. Nehmen Sie dieses Blatt aus dem Katalog.

2. Schneiden Sie die LINKE Beschriftung (1) aus. Schieben Sie die Beschriftung in die tasche auf DEM Katalogrücke.

3. Sollte die Beschriftung unten RECHTS (2) mitgeliefert werden, kennzeichen Sie damit bitte die ÄLTERE Ausführung dieses Kataloges.

4. Den Rest dieses Blattes bitte vernichten.

Per evitare errori quando ordinate pezzi di ricambio, usate le etichette in calce che servono ad identificare i cataloghi sul retro del raccoglitore. L'etichetta indica il numero di matricola delle maccine prese in considerazione nel catalogo.

1. Rimuovete questa pagina dal raccoglitore.

2. Ritagliate l'etichetta posta a SINISTRA (1) e ponetela sul retro DEL raccoglitore.

3. Se trovate anche un'etichetta sulla DESTRA (2), ritagliatela e ponetela sul raccoglitore relativo alla PRECEDENTE edizione del catalogo.

4. Distruggete questo foglio.

ETIQUETA PARA LA CARPETA

ETIQUETAGE DU CATALOGUE

Para evitar errores al pedir repuestos utilicen las etiquetas abajo descritas para identificar los catálogos en la parte trasera de la carpeta. En la etiqueta se ven los números de referencia de la serie para la cual es válido el catálogo.

Instrucciones: 1. Quitar esta página de la carpeta.

2. Corta la etiqueta IZQUIERDA (1) y ponerla est ESTA carpeta en la parte trasera.

3. Si hay una etiqueta en la parte DERECHA (2) se puede utilizar en la carpeta para el catálogo que PRECEDE a esta.

4. Tirar esta hoja.

Afin d'éviter des erreurs lors de commandes de pièces de rechange, nous vous conseillons d'apposer les marquages ci-dessous à l'arrière du classeur, pour identifier les catalogues. Ce marquage indique les numéros de série pour lesquels le catalogue est adapté. Il convient de procéder de la façon suivante: 1. Retirez cette page du classeur.

2. Découpez l'étiquette de GAUCHE (1), et apposez-la à l'arrière de CE catalogue.

3. Si il y a une étiquette à DROITE (2), vous pourrez l'apposer sur le classeur de l'edition PRECEDENTE du catalogue.

4. Détruire cetta feuille.

1.

Catalogue

SLG300-2EN3

Atlas Copco Construction Tools AB

TABLE OF CONTENTS

Page

LG300 SN 13000001-

2

Main assy, engine plate and lower part Main assy, engine plate and lower part Hoods, Hatz version Ground plate and eccentric element Transport device New version Option, block paving kit 500 mm Option, block paving kit 600 mm

4 6 8 10 12 14 16

Eccentric element

18

Eccentric element Piston, cpl

20 22

Engine and engine installation

24

Engine, cpl Honda Engine installation, Honda Engine Honda GX270 Engine, cpl Hatz Engine installation, Hatz Man. Engine installation, Hatz.EL Engine, Hatz 1B30

26 28 30 32 34 36 38

Power transmission

42

Clutch Honda Clutch Hatz Belt tightener

44 46 48

Hydraulic system

50

Hydraulic diagram Hydraulic pump installation Hydraulic tank

52 54 56

Handle and throttle control

58

Handle Throttle control, Honda Throttle control, Hatz

60 62 64

Decals and documentation

66

Decals and documentation

68

TC 1

Atlas Copco Construction Tools AB LG300 SN 13000001TOPLEVELLG300

2

SLG300-2EN3

Atlas Copco Construction Tools AB LG300 SN 13000001Item Part No 10 20 30 40 50 70 80

SLG300-2EN3

Rem Qty Description

Code

Main assy, engine plate and lower part ( Page 4 ) Eccentric element ( Page 18 ) Engine and engine installation ( Page 24 ) Power transmission ( Page 42 ) Hydraulic system ( Page 50 ) Handle and throttle control ( Page 58 ) Decals and documentation ( Page 66 )

3

Atlas Copco Construction Tools AB Main assy, engine plate and lower part

4

SLG300-2EN3

Atlas Copco Construction Tools AB Main assy, engine plate and lower part Item Part No 10 15 20 30 40 50

SLG300-2EN3

Rem Qty Description

Code

Main assy, engine plate and lower part ( Page 6 ) Hoods, Hatz version ( Page 8 ) Ground plate and eccentric element ( Page 10 ) Transport device ( Page 12 ) New version Option, block paving kit 500 mm ( Page 14 ) Option, block paving kit 600 mm ( Page 16 )

5

Atlas Copco Construction Tools AB Main assy, engine plate and lower part 18213-2

6

SLG300-2EN3

Atlas Copco Construction Tools AB Main assy, engine plate and lower part Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 A) B) D)

Rem Qty Description

D391218-01

1

4700379235 4700904230 4700500029 4700376674 4700376675 4700313003 4700313008 4700904230 4700947700 4700573004 4700904213 4700570007 4700280534 D100505023

1 6 4 1 1 1 1 4 2 2 4 4 1 1 1 2 1 1 1 1 1 1 4 4 1 10 1 1 1 1 1 1 1 1

4700500025 4700385387 4700379004 4700500048 4700570006 D376992-03 D379030-03 4700904213 4700508063 D378624-03 4700904229 4700500019 4700904230 4700500043 4700791373 4700904230 4700500043 4700791373

A B

D D D

Code

Engine plate Handle ( Page 60 ) Ground plate and eccentric element ( Page 10 ) Hydraulic pump installation ( Page 54 ) Hydraulic hose Washer Screw Adapter Adapter Hose clamp Hose clamp Washer Screw Nut Washer Hexagon nut M12 Rubber block Bracket Not used on this model Screw M8-1,25x50 8,8 Shock absorber Hook Screw M10-1,5x20 8,8 Nut Protective frame Protective frame Washer Screw Cover Washer 8,4x16x1,5 Screw M8x16H 8.8 A2K Washer Screw M10x16H 8,8 Shock absorber Washer Screw M10x16H 8,8 Shock absorber

D D

Honda Hatz Valid for Hatz version with electrical starter

SLG300-2EN3

7

Atlas Copco Construction Tools AB Hoods, Hatz version 18300-2

8

SLG300-2EN3

Atlas Copco Construction Tools AB Hoods, Hatz version Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

4700904649 4700904206 4700904228 4700904655 4700379433 4700379038 4700378927 4700379045 4700379402 4700904655 4700902224 4700792208 4700791234 4700381882 4700904206 4700390485 4700379041 4700379046 4700379047 4700378756 4700921031 4700500013 4700390487 4700904228 4700586002 4700500026 4700391406 4700792208

SLG300-2EN3

Rem Qty Description 1 8 6 2 4 1 1 2 1 1 1 3 2 14 2 8 1 1 1 1 1 2 6 1 4 2 2 1 4

Protective frame Screw Screw Washer Washer Bar Front hood Clip Insulation Holder Washer Screw Screw Insulating washer Hinge Screw Insulation Hood Insulation Insulation Holder Clamp Screw Bracket Washer Lock nut Screw Cover Screw

Code

6,4x12x1,5

M6x10

M6-1x16 8,8 6,4x12x1,5 M6 -8 M8-1,25x60 8,8

9

Atlas Copco Construction Tools AB Ground plate and eccentric element 18214

10

SLG300-2EN3

Atlas Copco Construction Tools AB Ground plate and eccentric element Item Part No 2 3 4 5 7 8 9 11 12 13 14 15 16 17 18 21 22 23 B)

Rem Qty Description

4700280750 4700570007 4700904231 4700378048 4700904229 4700500053 4700500022 4700280540 4700377624 4700390396

B

4700747541 4700508028 4700904703 4700929454 4700377943 4700280654 4700500029

4 4 4 1 5 3 2 1 1 1 1 1 2 1 6 6 1 1 1

Shock absorber Hexagon nut Washer Belt guard Washer Screw Screw Cover Not used on this model Ground plate Ground plate Eccentric element ( Page 20 ) Washer Screw Washer Screw Pulley Washer Screw

Code B M12 13x24x2 300 HV 8,4x16x1,5 M8x20H 8.8 M8x30H 8.8 A2K

D

Widht = 600mm

SLG300-2EN3

11

Atlas Copco Construction Tools AB Transport device New version 18682

12

SLG300-2EN3

Atlas Copco Construction Tools AB Transport device New version Item Part No 1 2 3 4 5 6 7 8 9 10 11

4700394933 4700280417 4700924543 4700500051 4700791614 4700394985 4700271032 4700383598 4700630015 4700904640 4700570005

SLG300-2EN3

Rem Qty Description 1 1 1 1 4 2 4 2 2 4 4

Transport device Strap Washer Screw Screw Wheel bracket Washer Wheel Split pin Washer Nut

Code B M12x25H 8.8 A3K

8,4x22x3 M8

13

Atlas Copco Construction Tools AB Option, block paving kit 500 mm 18658

14

SLG300-2EN3

Atlas Copco Construction Tools AB Option, block paving kit 500 mm Item Part No 1 2 3 4 5

4700391211 4700381954 4700904341 4700902287

SLG300-2EN3

Rem Qty Description 1 2 4 4

Code

Polyurethane plate, cpl Polyurethane plate Bracket Carriage screw Nut

15

Atlas Copco Construction Tools AB Option, block paving kit 600 mm 18658

16

SLG300-2EN3

Atlas Copco Construction Tools AB Option, block paving kit 600 mm Item Part No 1 2 3 4 5

4700391212 4700381954 4700904341 4700902287

SLG300-2EN3

Rem Qty Description 1 2 4 4

Code

Polyurethane plate, cpl Polyurethane plate Bracket Carriage screw Nut

17

Atlas Copco Construction Tools AB Eccentric element

18

SLG300-2EN3

Atlas Copco Construction Tools AB Eccentric element Item Part No 10 30

SLG300-2EN3

Rem Qty Description 1 1

Code

Eccentric element ( Page 20 ) Piston, cpl ( Page 22 )

19

Atlas Copco Construction Tools AB Eccentric element 18215-1

20

SLG300-2EN3

Atlas Copco Construction Tools AB Eccentric element Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 17 18 22 23 24 25 26 27 28 29 30 31 32 33 35 36 40 41 42 43

4700508025 4700904228 4700500040 4700379168 4700379175 4700232143 4700162011 4700379167 4700379165 4700150017 4700903363 4700395060 4700280645 4700928794 4700378777 4700929287 4700280669 4700395059 4700379016 4700928241 4700280677 4700280648 4700151007 4700286380 4700904638 4700792724 4700792723 4700280644 4700792254 4700379166 4700791537 4700380155

SLG300-2EN3

Rem Qty Description 1 1 2 18 1 16 1 1 1 1 1 1 4 3 1 1 1 1 2 1 1 1 1 1 2 1 1 2 1 1 1 1 1 1 1 1

Eccentric element, cpl .Piston, cpl ( Page 22 ) .Screw .Washer .Hydraulic pump installation ( Page 54 ) .Screw .Cover .Eccentric housing .Plug .Washer, sealing .Cover .Cover .Retaining ring .Ball bearing .Shaft, cpl .Spacer ring .Sealing ring .Shaft .Ball bearing .Eccentric .Reverser .Ring .Screw .Spring .Washer .Retaining ring .Weight .Washer .Screw .Screw .Pin .Spherical roller bearing .Cylinder .Straight connector .Screw

Code M6x20 6,4x12x1,5 M6-1x20 8,8

D D D D D D

12x22x2

21

Atlas Copco Construction Tools AB Piston, cpl 18217

22

SLG300-2EN3

Atlas Copco Construction Tools AB Piston, cpl Item Part No 1 2 3 4 5 6 7 8

4700281276 4700377359 4700151039 4700929286 4700280647 4700929291 4700150002 4700280637

SLG300-2EN3

Rem Qty Description 1 1 1 1 2 1 10 1 1

Piston, cpl .Sealing ring .Piston rod .Retaining ring .Ball bearing .Spacer ring .Cup spring .Retaining ring .Piston

Code

D

23

Atlas Copco Construction Tools AB Engine and engine installation

24

SLG300-2EN3

Atlas Copco Construction Tools AB Engine and engine installation Item Part No 10 20 30 40 50 55 60

SLG300-2EN3

Rem Qty Description 1 1 1 1 1 1 1

Engine, cpl Honda ( Page 26 ) Engine installation, Honda ( Page 28 ) Engine ( Page 30 ) Engine, cpl Hatz ( Page 32 ) Engine installation, Hatz Man. ( Page 34 ) Engine installation, Hatz.EL ( Page 36 ) Engine, Hatz 1B30 ( Page 38 )

Code Honda GX270

25

Atlas Copco Construction Tools AB Engine, cpl Honda 18209

26

SLG300-2EN3

Atlas Copco Construction Tools AB Engine, cpl Honda Item Part No 1 2 3 4 5 8 9 10 11 12 13

Rem Qty Description

4700615050 4700904734 4700500022 4700903268 4700792099 4700313001 D100901382 D100504609

SLG300-2EN3

1 1 1 1 1 1 1 1 1XL 1 1

Engine ( Page 30 ) Clutch ( Page 44 ) Washer Washer Screw Connector Connector Hose clamp Hose Plug Key

Code Honda GX270 Honda 8,4x26x4 M8x30H 8.8 A2K

27

Atlas Copco Construction Tools AB Engine installation, Honda 18211-2

28

SLG300-2EN3

Atlas Copco Construction Tools AB Engine installation, Honda Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 22 23 24 25 26 27 30 31 32

4700281336 D390875-02 4700500031 4700904557 4700500046 4700924543 4700500019 4700904229 4700284365 4700508025 4700902285 4700904747 4700283075 4700500013 4700904228 4700500035 4700904231 4700500056 4700586019 4700281234 4700508023 4700791341 4700904213 4700394417 4700395582

SLG300-2EN3

Rem Qty Description

1 1 4 4 1 4 4 4 1 1 1 4 1 1 1 2 2 2 2 1 1 2 1 1 1

Main assy, engine plate and lower part ( Page 6 ) Engine, cpl Honda ( Page 26 ) Belt tightener ( Page 48 ) Throttle control, Honda ( Page 62 ) V-belt V-belt cover Screw Washer Screw Washer Screw M8x16H 8.8 A2K Washer 8,4x16x1,5 Bracket Screw M6x20 Lock nut M6 Screw M5X30 Strap Screw M6-1x16 8,8 Washer 6,4x12x1,5 Screw M12x020H Washer 13x24x2 300 HV Screw Lock nut Ryw-clips Screw Clamp Washer Spacer Strap

Code

B

29

Atlas Copco Construction Tools AB Engine Honda GX270 16714

30

SLG300-2EN3

Atlas Copco Construction Tools AB Engine Honda GX270 Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

4700284115 4700937476 4700937516 4700937515 4700937513 4700937512 4700937514 4700937460 4700937471 4700937467 4700937464 4700937463 4700937466 4700937462 4700937465 4700937468 4700937469 4700937461 4700936538 4700937499 4700239772 4700937501 4700937502 4700937609 4700937503 4700937610 4700937472 4700937479 4700937473 4700937477 4700937475 4700937474 4700937493 4700937496 4700937482 4700937478 4700937481 4700937489 4700937491 4700937490 4700937494 4700937488 4700937495 4700937480 4700937497 4700937487 4700937484 4700937486 4700937485 4700937498

SLG300-2EN3

Rem Qty Description 1 1 1 1 1 1 1 1 1 1 1 2 2 1 1 1 1 1 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1

Engine, cpl .Spark plug .Oil filling plug .Oil dipstick .Noise suppression .Ignition coil .Hose .Recoil starter, cpl ..Screw ..Guide ..Spring ..Ratchet ..Spring ..Reel ..Spring ..Knob ..Rope .Cover .Screw .Air filter, cpl ..Air filter ..Grommet ..Outer filter .Holder .Muffler .Gasket .Exhaust pipe .Gasket .Carburettor, cpl. ..Screw ..Gasket kit ..Chamber ..Float set ..Valves ..Cup ..Stud ..Nozzle ..Screw, set ..Screw ..Lever ..Spring ..Bracket ..Screw ..Lever ..Pin ..Coil ..Screw .Gasket .Insulator .Gasket .Spacer .Gasket

Code Honda GX270

31

Atlas Copco Construction Tools AB Engine, cpl Hatz 18304

32

SLG300-2EN3

Atlas Copco Construction Tools AB Engine, cpl Hatz Item Part No 1 2 3 4 5 6 7 8 9 10

4700904734 4700500021 4700903925 4700232095 4700482539 4700390560 4700904228 4700508002

SLG300-2EN3

Rem Qty Description 1 1 1 1 1 1 1 1 2 2

Engine Clutch Washer Screw Connector Plug Hydraulic hose Deflector Washer Screw

Code 8,4x26x4 M8-1,25x25 8.8

6,4x12x1,5

33

Atlas Copco Construction Tools AB Engine installation, Hatz Man. 18358-2

34

SLG300-2EN3

Atlas Copco Construction Tools AB Engine installation, Hatz Man. Item Part No 1 2 3 4 6 7 8 16 17 18 20 21 22 23 24 25 26 27 30 31 32 33 34 37 38 39 40 41 44 45

4700281258 D390876-02 4700284365 4700791752 4700284107 4700500019 4700500046 4700904687 4700904229 4700924543 4700921044 4700500053 4700508025 4700902285 4700791341 4700904228 4700500013 4700904231 4700500198 4700283075 4700500035 4700586019 4700500056 4700904213 4700394417 4700395582

SLG300-2EN3

Rem Qty Description

1 1 1 1 5 1 4 9 4 1 4 1 1 2 2 2 6 3 1 2 4 2 1 1 1

Main assy, engine plate and lower part ( Page 6 ) Engine Belt tightener ( Page 48 ) Throttle control, Hatz ( Page 64 ) V-belt V-belt guard Bracket Battery cable Nipple Screw M8x16H 8.8 A2K Screw Screw M5X25 Washer 8,4x16x1,5 Washer Clamp Screw M8x20H 8.8 Screw M6x20 Lock nut M6 Clamp Washer 6,4x12x1,5 Screw M6-1x16 8,8 Washer 13x24x2 300 HV Screw Strap Screw M12x020H Lock nut Screw Washer Spacer Strap

Code

B

35

Atlas Copco Construction Tools AB Engine installation, Hatz.EL 18303-3

36

SLG300-2EN3

Atlas Copco Construction Tools AB Engine installation, Hatz.EL Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 30 31 32 33 37 38 39 40 41 42 43 44 45 46 A) B) C) D) E)

4700378719 4700281258 D390876-02 4700284365 4700379243 4700390641 4700393848 4700379061 4700379062 4700390645 4700390644 4700792234 4700791752 4700284107 4700500019 4700500021 4700500046 4700904747 4700904229 4700924543 4700921044 4700500053 4700508025 4700902285 4700791341 4700904228 4700500013 4700904231 4700283075 4700500035 4700586019 4700500056 4700904213 4700394417 4700378071 4700378072 4700938146 4700938086 4700379028 4700393849 4700395582

Rem Qty Description

1 1 1 D E D D

A B C E

1 1 1 1 1 1 1 1 1 1 5 4 1 4 13 4 1 4 1 1 2 2 2 4 2 2 4 2 1 1 1 1 1 1 1 2 1

Main assy, engine plate and lower part ( Page 6 ) Engine Belt tightener ( Page 48 ) Throttle control, Hatz ( Page 64 ) Battery V-belt V-belt guard Bracket Plate Holder Holder Insulation Insulation Screw Screw Battery cable + Battery cable Nipple Screw M8x16H 8.8 A2K Screw M8-1,25x25 8.8 Screw Screw M5X30 Washer 8,4x16x1,5 Washer Clamp Screw M8x20H 8.8 Screw M6x20 Lock nut M6 Clamp Washer 6,4x12x1,5 Screw M6-1x16 8,8 Washer 13x24x2 300 HV Strap Screw M12x020H Lock nut Screw Washer Spacer Control box Control box .Ignition switch ..Ignition key Dirt shield Battery screw Strap

Code

B B

Standard version, without hour meter Option, equipped with hour meter Complete with keys Old version New version

SLG300-2EN3

37

Atlas Copco Construction Tools AB Engine, Hatz 1B30 17019

38

SLG300-2EN3

Atlas Copco Construction Tools AB Engine, Hatz 1B30 Item Part No 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 C) D)

4700377894 4700377893 4700383293 4700939588 4700938146 4700938086 4700937002 4700937003 4700936975 4700938935 4700936982 4700936983 4700936985 4700936986 4700936987 4700936988 4700936989 4700936990 4700936991 4700936992 4700936993 4700936994 4700936995 4700936996 4700936997 4700936998 4700936999 4700937000 4700937011 4700937012 4700937013 4700937014 4700937348 4700937016 4700937017 4700937018 4700937350 4700937020 4700239517

Rem Qty Description D D D D C

1 1 1 1 1 1

4700937022 4700937023 4700937024 4700937347 4700939220

1 1 1 1 1 1 1 1 4 4 1 1 1 1 1 1 1 1 3 3 1 1 1 3 1 1 1 1 1 1 1 1 2 1 2 1 1 1 1

4700939638

1

4700937004 4700937354 4700937346 4700936977 4700936978 4700936979 4700936980 4700936981 4700937608

1 5 1 1 1 1 1 1 1

Diesel engine, manual Diesel engine, electric .Summer .Instrument box, cpl ..Ignition switch ..Ignition key Not used on this model .Plug .O-ring .Speed control .Starter .Recoil starter, cpl ..Knob ..Spiral spring ..Housing ..Washer ..Screw ..Rope ..Reel ..Spring ..Friction plate ..Screw ..Washer ..Ratchet ..O-ring ..Screw ..Washer ..Starter pulley ..Decal .Washer .Screw .Filter element .Nut .Protecting cover .Rubber sleeve .Nut .Plate .Rubber tube .Edge trim .Washer .Not Sold Separately .Gasket .Gasket .Vent nipple .Edge trim .Protecting cover Not used on this model .Muffler Not used on this model .Exhaust pipe .Gasket .Injection pump ..O-ring ..O-ring ..O-ring ..O-ring ..O-ring .Oil dipstick

Code

D B D B B

B B

A

0,2 mm 0,3 mm 0,4 mm 0,5 mm 0,6 mm

Old version, replaced by item 59 For electrical version

SLG300-2EN3

39

Atlas Copco Construction Tools AB Engine, Hatz 1B30 17019

40

SLG300-2EN3

Atlas Copco Construction Tools AB Engine, Hatz 1B30 Item Part No 55 56 57 58 59

4700939519 4700937606 4700937604 4700937605 4700937001

SLG300-2EN3

Rem Qty Description 1 1 1 1 1

Code

.Nozzle .Sleeve .Lock .Socket .Oil strainer, cpl

41

Atlas Copco Construction Tools AB Power transmission

42

SLG300-2EN3

Atlas Copco Construction Tools AB Power transmission Item Part No 20 25 30

SLG300-2EN3

Rem Qty Description 1 1 1

Clutch ( Page 44 ) Clutch ( Page 46 ) Belt tightener ( Page 48 )

Code Honda Hatz

43

Atlas Copco Construction Tools AB Clutch Honda 18254

44

SLG300-2EN3

Atlas Copco Construction Tools AB Clutch Honda Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Rem Qty Description

4700377988 4700945260 D100901032 4700535002 D100901024 4700937527 4700945111 4700239857 4700239539 4700938726 4700938725 4700938724 4700134036 4700945110

SLG300-2EN3

1 2 2 2 1 4 1 1 1 2 1 1 1 1

Clutch, cpl .Clutch lining .Clutch weight .Screw .Cover .Spring .Hub .Cover .Retaining ring .Snap ring .Retaining ring .Ball bearing .Nilos ring .V-belt pulley

Code

D

45

Atlas Copco Construction Tools AB Clutch Hatz 18316

46

SLG300-2EN3

Atlas Copco Construction Tools AB Clutch Hatz Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Rem Qty Description

4700378033 4700937029 4700938724 4700938725 4700938726 4700134036 4700937031 D100901032 4700945612 4700937527 4700239857 4700239539 4700239768 4700239734

SLG300-2EN3

1 1 1 1 2 1 1 2 2 4 1 1 1 1

Clutch, cpl .V-belt pulley .Ball bearing .Retaining ring .Snap ring .Nilos ring .Hub .Clutch weight .Clutch lining .Spring .Cover .Retaining ring .Cover .Retaining ring

Code D

47

Atlas Copco Construction Tools AB Belt tightener 18212

48

SLG300-2EN3

Atlas Copco Construction Tools AB Belt tightener Item Part No 1 2 3 4 5 6

4700280835 4700280837 4700111114 4700150009 4700151017 4700280836

SLG300-2EN3

Rem Qty Description 1 1 1 1 1 1

Idler, cpl .Shaft .Ball bearing .Snap ring .Snap ring .V-belt pulley

Code D

D

49

Atlas Copco Construction Tools AB Hydraulic system

50

SLG300-2EN3

Atlas Copco Construction Tools AB Hydraulic system Item Part No 10 20 30

SLG300-2EN3

Rem Qty Description

Code

Hydraulic diagram ( Page 52 ) Hydraulic pump installation ( Page 54 ) Hydraulic tank ( Page 56 )

51

Atlas Copco Construction Tools AB Hydraulic diagram 18219

52

SLG300-2EN3

Atlas Copco Construction Tools AB Hydraulic diagram Item Part No 1 2 3 4 5 6 7 8 9

SLG300-2EN3

Rem Qty Description

Code

Piston, cpl ( Page 22 ) Measure nipple Handle ( Page 60 ) Handle ( Page 60 ) Handle ( Page 60 ) Hydraulic pump installation ( Page 54 ) Eccentric element ( Page 20 ) Handle ( Page 60 ) Hydraulic tank ( Page 56 )

53

Atlas Copco Construction Tools AB Hydraulic pump installation 18222

54

SLG300-2EN3

Atlas Copco Construction Tools AB Hydraulic pump installation Item Part No 1 2 3 4 5 6

4700383562 4700928894 4700792253 4700791537

SLG300-2EN3

Rem Qty Description 1 1 1 1 1 1

Code

Hydraulic pump Sleeve Elbow Nut Key Straight connector

55

Atlas Copco Construction Tools AB Hydraulic tank 18635

56

SLG300-2EN3

Atlas Copco Construction Tools AB Hydraulic tank Item Part No 1 2 3 4 5 7 8 9

4700376676 4700381566 4700381563 4700904960 4700381385 4700500021 4700160110 4700904229

Rem Qty Description A

A A A)

1 1 1 2 1 1 1 1 1 1 1

Hydraulic oil tank, cpl .Air filter .Holder .Screw .Cover .Screw .O-ring .Washer

Code

M8-1,25x25 8.8 8,4x16x1,5

Connection parts, see section Main assy, engine plate and lower part

SLG300-2EN3

57

Atlas Copco Construction Tools AB Handle and throttle control

58

SLG300-2EN3

Atlas Copco Construction Tools AB Handle and throttle control Item Part No 10 20 230

SLG300-2EN3

Rem Qty Description

Code

Handle ( Page 60 ) Throttle control, Honda ( Page 62 ) Throttle control, Hatz ( Page 64 )

59

Atlas Copco Construction Tools AB Handle 18210

60

SLG300-2EN3

Atlas Copco Construction Tools AB Handle Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

Rem Qty Description

D378440-02 D100900827 4700904230 4700500043 4700282993 4700937924 4700904229 4700500025 4700280534 D100505023 4700904228 4700500016 D378031-02 4700791373 4700379659 4700483899 4700483900 4700586003 4700791397 4700390450 4700903821 4700902285 4700570005

SLG300-2EN3

1 4 9 9 1 1 1 4 2 2 2 2 1 1 1 1 1 2 3 1 1 1 1

Handle Shock absorber Washer Screw Valve Lever housing Washer Screw Rubber block Bracket Washer Screw Bracket Shock absorber Hydraulic hose Hydraulic hose Hydraulic hose Lock nut Elbow 90, O-ring Rod Grab handle Lock nut Nut

Code

M10x16H 8,8 8,4x16x1,5 M8-1,25x50 8,8 6,4x12x1,5 M6x55 8.8 A2K

M8

M6 M8

61

Atlas Copco Construction Tools AB Throttle control, Honda 18255

62

SLG300-2EN3

Atlas Copco Construction Tools AB Throttle control, Honda Item Part No 1 2 3 4

4700286452 4700455019 4700945655 4700238443 4700286445

SLG300-2EN3

Rem Qty Description 1 1 1 1 1

Code

Throttle control, cpl .Throttle handle ..Knob .Square nipple .Throttle cable

63

Atlas Copco Construction Tools AB Throttle control, Hatz 18255

64

SLG300-2EN3

Atlas Copco Construction Tools AB Throttle control, Hatz Item Part No 1 2 3 4

4700379300 4700455019 4700945655 4700238443 4700379299

SLG300-2EN3

Rem Qty Description 1 1 1 1 1

Code

Throttle control, cpl .Throttle handle ..Knob .Square nipple .Throttle cable

65

Atlas Copco Construction Tools AB Decals and documentation

66

SLG300-2EN3

Atlas Copco Construction Tools AB Decals and documentation Item Part No 10

SLG300-2EN3

Rem Qty Description

Code

Decals and documentation ( Page 68 )

67

Atlas Copco Construction Tools AB Decals and documentation 18218

68

SLG300-2EN3

Atlas Copco Construction Tools AB Decals and documentation Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 14 15 16 17

18 A)

Rem Qty Description

4700379424 4700379423 4700379645 4700527002 4700281269 4700791296 4700904680 4700284285 4700284278 4700904785 4700281898 4700272373 4700908229 4700903832

4700991658

A

2 1 1 1 4 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Decal "DYNAPAC" Decal "DYNAPAC" Decal "MODEL CODE" Product identification plate Drive screw Decal "LIFT" Decal "Sound power level" Decal "Read instruction manual" Decal Decal Safety decal Decal "Ear protection" Decal "HYDRAULIC OIL" Safety decal Safety decal Documentation .Spare parts catalogue .Instruction book, engine .Operation and maintenance .Warranty conditions .Warranty registration certificate .CE declaration Decal "FUEL"

Code

SLG300 ILG300

Only for Hatz version

SLG300-2EN3

69

Atlas Copco Construction Tools AB

SLG300-2EN3

NUMERICAL INDEX Part Number

Page

Part Number

Page

Part Number

Page

4700111114 4700134036 4700150002 4700150009 4700150017 4700151007 4700151017 4700151039 4700160110 4700162011 4700232095 4700232143 4700238443 4700239517 4700239539 4700239734 4700239768 4700239772 4700239857 4700271032 4700272373 4700280417 4700280534 4700280540 4700280637 4700280644 4700280645 4700280647 4700280648 4700280654 4700280669 4700280677 4700280750 4700280835 4700280836 4700280837 4700281234 4700281258 4700281269 4700281276 4700281336 4700281898 4700282993 4700283075 4700284107 4700284115 4700284278 4700284285 4700284365 4700286380 4700286445 4700286452 4700313001 4700313003 4700313008 4700376674 4700376675 4700376676 4700377359 4700377624 4700377893 4700377894

49 45,47 23 49 21 21 49 23 57 21 33 21 63,65 39 45,47 47 47 31 45,47 13 69 13 7,61 11 23 21 21 23 21 11 21 21 11 49 49 49 29 35,37 69 23 29 69 61 29,35,37 35,37 31 69 69 29,35,37 21 63 63 27 7 7 7 7 57 23 11 39 39

4700377943 4700377988 4700378033 4700378048 4700378071 4700378072 4700378719 4700378756 4700378777 4700378927 4700379004 4700379016 4700379028 4700379038 4700379041 4700379045 4700379046 4700379047 4700379061 4700379062 4700379165 4700379166 4700379167 4700379168 4700379175 4700379235 4700379243 4700379299 4700379300 4700379402 4700379423 4700379424 4700379433 4700379645 4700379659 4700380155 4700381385 4700381563 4700381566 4700381882 4700381954 4700383293 4700383562 4700383598 4700385387 4700390396 4700390450 4700390485 4700390487 4700390560 4700390641 4700390644 4700390645 4700391211 4700391212 4700391406 4700393848 4700393849 4700394417 4700394933 4700394985 4700395059

11 45 47 11 37 37 37 9 21 9 7 21 37 9 9 9 9 9 37 37 21 21 21 21 21 7 37 65 65 9 69 69 9 69 61 21 57 57 57 9 15,17 39 55 13 7 11 61 9 9 33 37 37 37 15 17 9 37 37 29,35,37 13 13 21

4700395060 4700395582 4700455019 4700482539 4700483899 4700483900 4700500013 4700500016 4700500019 4700500021 4700500022 4700500025 4700500026 4700500029 4700500031 4700500035 4700500040 4700500043 4700500046 4700500048 4700500051 4700500053 4700500056 4700500198 4700508002 4700508023 4700508025 4700508028 4700508063 4700527002 4700535002 4700570005 4700570006 4700570007 4700573004 4700586002 4700586003 4700586019 4700615050 4700630015 4700747541 4700791234 4700791296 4700791341 4700791373 4700791397 4700791537 4700791614 4700791752 4700792099 4700792208 4700792234 4700792253 4700792254 4700792723 4700792724 4700902224 4700902285 4700902287 4700903268 4700903363 4700903821

21 29,35,37 63,65 33 61 61 9,29,35,37 61 7,29,35,37 33,37,57 11,27 7,61 9 7,11 29 29,35,37 21 7,61 29,35,37 7 13 11,35,37 29,35,37 35 33 29 21,29,35,37 11 7 69 45 13,61 7 7,11 7 9 61 29,35,37 27 13 11 9 69 29,35,37 7,61 61 21,55 13 35,37 27 9 37 55 21 21 21 9 29,35,37,61 15,17 27 21 NI 1 61

Atlas Copco Construction Tools AB

SLG300-2EN3

NUMERICAL INDEX Part Number

Page

Part Number

Page

Part Number

Page

4700903832 4700903925 4700904206 4700904213 4700904228

69 33 9 7,29,35,37 9,21,29,33,35,37 61 7,11,29,35,37,57 61 7,61 11,29,35,37 15,17 29 21 13 9 9 69 35 11 27,33 29,37 69 57 69 9 35,37 13,29,35,37 21 21 55 23 21 23 11 31 39 39 39 39 39 39 39 39 39 39 39 39 39 39 39 39 39 39 39 39 39 39 39 39 41 39 39

4700937004 4700937011 4700937012 4700937013 4700937014 4700937016 4700937017 4700937018 4700937020 4700937022 4700937023 4700937024 4700937029 4700937031 4700937346 4700937347 4700937348 4700937350 4700937354 4700937460 4700937461 4700937462 4700937463 4700937464 4700937465 4700937466 4700937467 4700937468 4700937469 4700937471 4700937472 4700937473 4700937474 4700937475 4700937476 4700937477 4700937478 4700937479 4700937480 4700937481 4700937482 4700937484 4700937485 4700937486 4700937487 4700937488 4700937489 4700937490 4700937491 4700937493 4700937494 4700937495 4700937496 4700937497 4700937498 4700937499 4700937501 4700937502 4700937503 4700937512 4700937513 4700937514

39 39 39 39 39 39 39 39 39 39 39 39 47 47 39 39 39 39 39 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31

4700937515 4700937516 4700937527 4700937604 4700937605 4700937606 4700937608 4700937609 4700937610 4700937924 4700938086 4700938146 4700938724 4700938725 4700938726 4700938935 4700939220 4700939519 4700939588 4700939638 4700945110 4700945111 4700945260 4700945612 4700945655 4700947700 4700991658 D100504609 D100505023 D100900827 D100901024 D100901032 D100901382 D376992-03 D378031-02 D378440-02 D378624-03 D379030-03 D390875-02 D390876-02 D391218-01

31 31 45,47 41 41 41 39 31 31 61 37,39 37,39 45,47 45,47 45,47 39 39 39 39 39 45 45 45 47 63,65 7 69 27 7,61 61 45 45,47 27 7 61 61 7 7 29 35,37 7

4700904229 4700904230 4700904231 4700904341 4700904557 4700904638 4700904640 4700904649 4700904655 4700904680 4700904687 4700904703 4700904734 4700904747 4700904785 4700904960 4700908229 4700921031 4700921044 4700924543 4700928241 4700928794 4700928894 4700929286 4700929287 4700929291 4700929454 4700936538 4700936975 4700936977 4700936978 4700936979 4700936980 4700936981 4700936982 4700936983 4700936985 4700936986 4700936987 4700936988 4700936989 4700936990 4700936991 4700936992 4700936993 4700936994 4700936995 4700936996 4700936997 4700936998 4700936999 4700937000 4700937001 4700937002 NI 2 4700937003
