1.3 Technical data

1.3.3.7 Screed copying system

The screed copying system (2) is used to set a constant paving thickness with the guide surface (e.g. the original paved layer). Before paving, fill the area in front of the screed with a sufficient amount of paving material.

During paving with the copying system (2), the operator must maintain a sufficient amount of paving material in front of/under the screed. Insufficient material supplied by the conveyor may result in uneven road (waves, pits).

Install the screed copying system (2) according to the installation instructions.

When operating the screed copying system (2), do not turn on vibration.

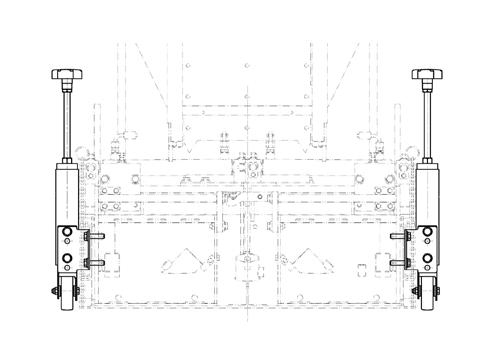

Screed copying system set

Order number: 4812335000

The screed copying system set consists of: copying system 2x (1) angle plate 2x (2) installation material.

When installing the screed copying system (2), the machine must be standing on a level and firm surface with the engine switched off. Use personal protective equipment.
