1.3 Technical data

1.3.3.5 Material hopper extension

The material hopper extension serves for enlarging the filling space and easier feeding of material to the machine. The material hopper extension consists of two plates (1) and (2), which are fitted with two fork-shaped holders (3)

Mount the material hopper extensions according to the Mounting Manual.

Material hopper extension kit

Order number: 4812061019

The material hopper extension kit consists of the following components:

• Material hopper extension – left (2),

• Material hopper extension – right (1),

During mounting of the material hopper extension the machine must be parked on a flat and solid surface with the engine and battery disconnecter off.

It is prohibited to use the material hopper extension as a container extension.

Use personal protective equipment.

1.3.3.6 Additional lighting

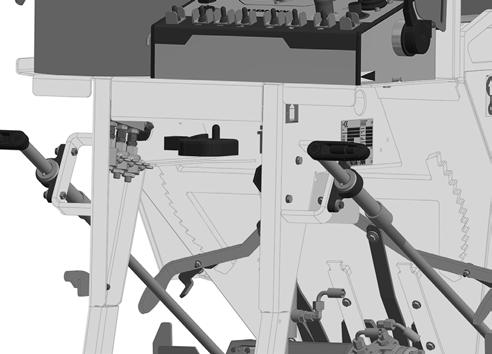

Additional lighting (1) serves for lighting the area of the screed and augers.

Mount the additional lighting according to the Mounting Manual.

Additional lighting kit

Order number: 4812061020

The additional lighting kit consists of the following components:

• Additional lighting (1),

• Mounting material.

Operating the additional lighting: The additional lighting is fitted with its own switch, on the rear of the light, which is used to switch the light on and off.

During mounting of additional lighting the machine must be parked on a flat and solid surface with the engine and battery disconnecter off. Use personal protective equipment.
