1.3 Technical data

1.3.3.3 Dual wheels

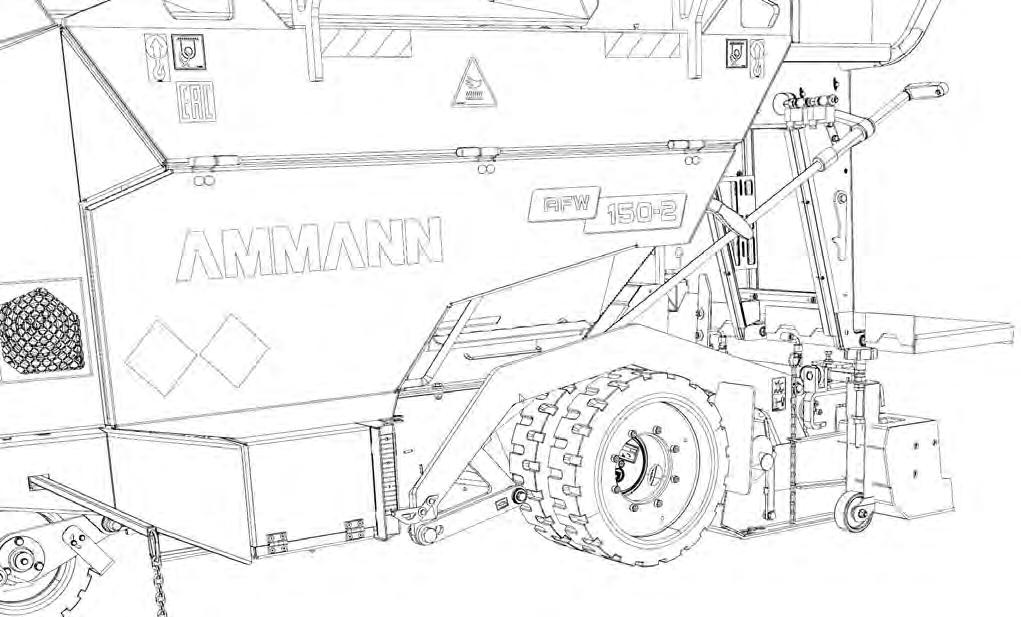

Dual wheels serve for the improvement of machine traction and stability.

A dual wheel, which is part of the dual wheel set, is identical with the standard rear wheel.

Distance between external surfaces of rear wheels:

• With standard rear wheels: 765 mm (30.1 in).

• With dual wheels: 1,077 mm (42.4 in).

Mount the dual wheels according to the Mounting Manual.

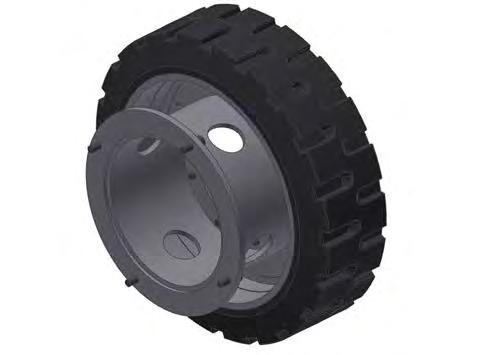

Dual wheel kit:

Order number: 4812061018

The dual wheel kit consists of the following components:

• Two dual wheels (1),

• Two dual wheel supports (2),

• Two dual wheel cover plates (3),

• Mounting material.

During mounting of dual wheels the machine must be parked on a flat and solid surface with the engine and battery disconnecter off.

Use personal protective equipment.

Use twin wheels only with wheels from the base of the machine.

It is forbidden to operate the machine only on the outer auxiliary wheels.

1.3.3.4 Front wheel scraper

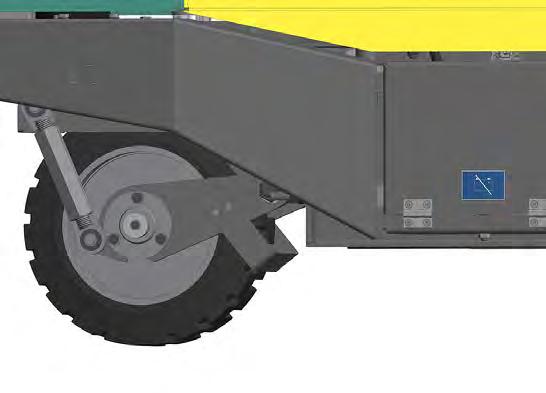

The scraper (1) is located on the swing fork of the front wheel and serves for cleaning the front wheel from gross dirt. Mount the scraper according to the Mounting Manual.

Front wheel scraper kit

Order no.: 4812061021

The front wheel scraper kit consists of the following components:

• Front wheel scraper (1),

• Mounting material.

Operating the front wheel scraper: The distance of the scraper to the front wheel can be adjusted by loosening the screws (2) on both sides.

During mounting of front wheel scraper the machine must be parked on a flat and solid surface with the engine and battery disconnecter off. Use personal protective equipment.
