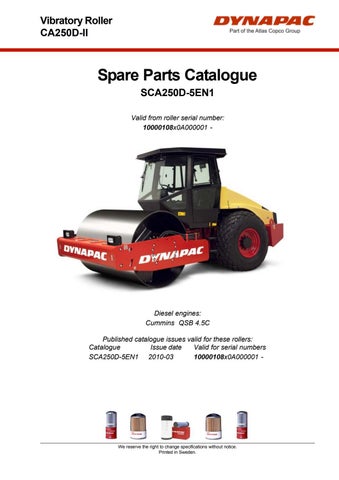

Vibratory Roller CA250D-II

Spare Parts Catalogue SCA250D-5EN1 Valid from roller serial number: 10000108x0A000001 -

Diesel engines: Cummins QSB 4.5C Published catalogue issues valid for these rollers: Catalogue Issue date Valid for serial numbers SCA250D-5EN1 2010-03 10000108x0A000001 SCC624HF-2EN1

2010-02

10000324x0A000001 -

We reserve the right to change specifications without notice.

Printed in Sweden.

II

RESERVDELSBESTÄLLNING

ORDERING SPARE PARTS

Följande uppgifter ska lämnas vid beställning av reservdelar för att undvika leveransfel: 1. Maskintyp.

2. Vältens serienummer.

3. Antal av önskad reservdel.

4. Reserdelens artikelnummer.

5. Reservdelens benämning.

6. Måttuppgifter vid beställning av metervara.

To avoid errors in delivery, please give the following information when ordering spare parts: 1. Type of machine.

2. Roller serial number.

3. Quantity required.

4. Part number.

5. Parts denomination.

6. Dimensions when ordering per length.

ERSATZTEILBESTELLUNG

ORDINI DI RICAMBI

Zur Vermeidung von Fehllieferungen sind bei der Bestellung von Ersatzteilen folgende Angaben zu machen: 1. Maschinentyp.

2. Herstellungsnummer.

3. Bestellmenge. (Quantity) 4. Ersatzteilnummer. (Part Nº) 5. Ersatzteilbenennung. (Denomination) 6. Massangaben bei Bestellung von Meterware.

Per evitare errori nelle consegne di ricambi, Vi preghiamo di comunicarci le seguenti informazioni al momento dell 'ordinazione: 1. Tipo di macchina.

2. Numero di serie della macchina.

3. Quantità dei pezzi desiderati. (Quantity) 4. Numero di codice del pezzo. (Part Nº) 5. Descrizione del pezzo di ricambio. (Denomination) 6. Misura, in caso di ordine per metro.

PEDIDO DE RECAMBIOS

COMMANDE DE PIECES DE RECHANGE

Para evitar errores en las entregas, deberán indicarse los siguientes datos al hacer un pedido de recambios: 1. Tipo de máquina.

2. Número de serie.

3. Cantidad de piezas deseadas. (Quantity) 4. Número de artículo de la pieza de recambio. (Part Nº) 5. Denominación de la pieza. (Denomination) 6. Indíquese la medida al solicitar un artículo que se expide por metros.

Les indications suivantes doivent être fournies lors de la commande de piéces de rechange, afin d'éviter toute erreur de livraison: 1. Type de machine.

2. Numéro de série.

3. Quantité désirée de pièce de rechange. (Quantity) 4. Numéro de la piéce de rechange. (Part Nº) 5. Dénomination de la piéce de rechange. (Denomination) 6. Longueur en cas de commande au mètre.

YOUR AGENT/DEALER:

III

The text pages is structured as the picture on the right.

Text pages

1.

This is the remarks for specific items and the descriptions of the remarks is at the bottom of the parts list.

3 1

2.

Parts indicated by a dot and moved to the right are included when buying the assembled unit above.

3.

Spare parts and service code for a specific part, mainly for internal use at Dynapac. "A" = Service part, "B" = Fast moving part, "C" = Suggested exchanged part and "D" = Regular spare part.

PARTS INFO

SERVICE INFO

GROUP

1

Changes PAGE

Notes

NOTES

2

IV

Notes

V

PÄRMETIKETT

BINDER LABEL

För att undvika fel vid reservdelsbeställning finns här nedan två etiketter som passar i fickorna på pärmarnas ryggar. På dessa kan man se från vilket vältnummer av aktuell maskin reservdelskatalogen gäller. Gör så här: 1. Tag denna sida ur pärmen.

2. Klipp ut etiketten till VÄNSTER (1) och sätt in den i fickan på DENNA pärmens rygg.

3. Finns det en etikett till HÖGER (2), kan denna användas på pärmen för FÖREGÅENDE utgåva av denna katalog.

4. Kasta detta papper.

To avoid errors when ordering spare parts use the labels below to identify the catalogues on the back of the binder. The label contain the serial number range for which the catalogue is valid. Do like this: 1. Remove this page from the binder.

2. Cut out the LEFT label (1) and put it on THIS binders back.

3. If there is a label to the RIGHT (2), it can be used on thebinder for PRECEDING issue of this catalogue.

4. Throw away this paper.

KATALOG-BESCHRIFTUNG

ETICHETTAPOSTASULRACCOGLITORE

Zur Vermeidung von Fehlen bei der Ersatzteilbestellung benutzen Sie bitte die unteren Beschriftungen, um die Kataloge auf der Rückseite zu kennzeichen. Auf der Beschriftung ist angegaben, für welche Maschinennummern der jeweilige Katalog gültig ist.

Ablauf: 1. Nehmen Sie dieses Blatt aus dem Katalog.

2. Schneiden Sie die LINKE Beschriftung (1) aus. Schieben Sie die Beschriftung in die tasche auf DEM Katalogrücke.

3. Sollte die Beschriftung unten RECHTS (2) mitgeliefert werden, kennzeichen Sie damit bitte die ÄLTERE Ausführung dieses Kataloges.

4. Den Rest dieses Blattes bitte vernichten.

Per evitare errori quando ordinate pezzi di ricambio, usate le etichette in calce che servono ad identificare i cataloghi sul retro del raccoglitore. L'etichetta indica il numero di matricola delle maccine prese in considerazione nel catalogo.

1. Rimuovete questa pagina dal raccoglitore.

2. Ritagliate l'etichetta posta a SINISTRA (1) e ponetela sul retro DEL raccoglitore.

3. Se trovate anche un'etichetta sulla DESTRA (2), ritagliatela e ponetela sul raccoglitore relativo alla PRECEDENTE edizione del catalogo.

4. Distruggete questo foglio.

ETIQUETA PARA LA CARPETA

ETIQUETAGE DU CATALOGUE

Para evitar errores al pedir repuestos utilicen las etiquetas abajo descritas para identificar los catálogos en la parte trasera de la carpeta. En la etiqueta se ven los números de referencia de la serie para la cual es válido el catálogo.

Instrucciones: 1. Quitar esta página de la carpeta.

2. Corta la etiqueta IZQUIERDA (1) y ponerla est ESTA carpeta en la parte trasera.

3. Si hay una etiqueta en la parte DERECHA (2) se puede utilizar en la carpeta para el catálogo que PRECEDE a esta.

4. Tirar esta hoja.

Afin d'éviter des erreurs lors de commandes de pièces de rechange, nous vous conseillons d'apposer les marquages ci-dessous à l'arrière du classeur, pour identifier les catalogues. Ce marquage indique les numéros de série pour lesquels le catalogue est adapté. Il convient de procéder de la façon suivante: 1. Retirez cette page du classeur.

2. Découpez l'étiquette de GAUCHE (1), et apposez-la à l'arrière de CE catalogue.

3. Si il y a une étiquette à DROITE (2), vous pourrez l'apposer sur le classeur de l'edition PRECEDENTE du catalogue.

4. Détruire cetta feuille.

1.

CA250D-II CatalogueSCA250D-5EN1 Valid from serial number: *10000108x0A000001*

Dynapac Compaction Equipment AB

TABLE OF CONTENTS

Page

CA250D SN 10000108x 0A000001 Service kits

2 4

4700945845 Service kit 50 h 4700945790 Service kit 500 h 4700945846 Service kit 1000 h

6 8 10

Frame

12

Frames Scraper and beam Scrapers, Urethan Rubber Option Scrapers, Spring Steel Option Hitch Structure

14 16 18 20 22 24

Drum

28

Drum 4700380462 Drum gear 4700372987 Drum gear

30 34 36

Engine

38

Engine Cummins QSB 4.5 C Cooling system Combustion air system Fuel system Exhaust system

40 42 46 48 50

Transmission

52

Rear axle and wheels 4700393002 Rear axle Differential with limited slip Differential housing and brakes Planet gear 4700383856 Rear axle No-Spin, Option Differential with No-Spin Differential housing and brakes Planet gear 4700396309 Rear axle Option Differential with limited slip Differential housing and brakes Planet gear

54 56 58 60 62 64 66 68 70 72 58 60 62

Hydraulic system

74

Propulsion system, Front 4700371509 Propulsion motor Vibration system 4700380145 Hydraulic motor, vibration 4700383958 Vibration pump 4700937167 Rotary group, cpl 4700937168 Valve block, cpl Steering system 4700376000 Steering valve 4700392002 Steering cylinder Brake system Central test panel hydraulic Option

76 78 80 82 84 86 88 90 92 94 96 98

Electric system

100

TC 1

Dynapac Compaction Equipment AB

TABLE OF CONTENTS

Page

Electric system Control panel Rotating beacon Option Back-up alarm Option Compaction meter Option

102 104 106 108 110

Drivers platform

112

Drivers platform Control panel Forward and reverse control Forward and reverse control handle Steering column Canopy Option Rops and fops Cab mounting Cab 392479 Cab Screens Cab Door, left side Cab Interior rear mirror Wiper arm with blade, front Cab Electric

114 116 118 120 122 124 126 128 130 132 136 138 140 142

Decals

144

Decals Decals

146 148

Standard equipment

150

Standard equipment

152

Optional equipment

154

Tool equipment Pad shell Air conditioner and heater, Simple cab 4700383413 Condenser, cpl Air conditioner and heater unit Dy-Mic Heater Simple cab 4700379394 Heater box

TC 2

156 158 160 164 166 168 170 172

Dynapac Compaction Equipment AB CA250D SN 10000108x 0A000001 CA260220

2

SCA250D-5EN1

Dynapac Compaction Equipment AB CA250D SN 10000108x 0A000001 Item Part No 1 10 20 30 40 50 60 70 80 90 91

SCA250D-5EN1

Rem Qty Description

Code

Service kits ( Page 4 ) Frame ( Page 12 ) Drum ( Page 28 ) Engine ( Page 38 ) Transmission ( Page 52 ) Hydraulic system ( Page 74 ) Electric system ( Page 100 ) Drivers platform ( Page 112 ) Decals ( Page 144 ) Standard equipment ( Page 150 ) Optional equipment ( Page 154 )

3

Dynapac Compaction Equipment AB Service kits

4

SCA250D-5EN1

Dynapac Compaction Equipment AB Service kits Item Part No 10 20 30

4700945845 4700945790 4700945846

SCA250D-5EN1

Rem Qty Description

Code

Service kit 50 h ( Page 6 ) Service kit 500 h ( Page 8 ) Service kit 1000 h ( Page 10 )

5

Dynapac Compaction Equipment AB 4700945845 Service kit 50 h 18517

6

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700945845 Service kit 50 h Item Part No 1 2 3 5

4700945845 4700945145 4700945624 4700945147 4700372229

SCA250D-5EN1

Rem Qty Description 1 1 1 1

Code

Service kit 50 h ( Page 6 ) Oil filter element Fuel filter element Pre-fuel filter element Hydraulic oil filter element

A A A A

7

Dynapac Compaction Equipment AB 4700945790 Service kit 500 h 18517

8

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700945790 Service kit 500 h Item Part No 1 2 3 8

4700945790 4700945145 4700945624 4700945147 4700908450

SCA250D-5EN1

Rem Qty Description 1 1 1 1

Code

Service kit 500 h ( Page 8 ) Oil filter element Fuel filter element Pre-fuel filter element Air filter element, Main

A A A A

9

Dynapac Compaction Equipment AB 4700945846 Service kit 1000 h 18517

10

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700945846 Service kit 1000 h Item Part No 1 2 3 5 7 8 9 10 B)

4700945846 4700945145 4700945624 4700945147 4700372229 4700357138 4700394686 4700394687 4700945760

Rem Qty Description

B

1 1 1 1 1 1 1 1

Service kit 1000 h ( Page 10 ) Oil filter element Fuel filter element Pre-fuel filter element Hydraulic oil filter element Ventilating filter Air filter element, main Air filter element, safety Valve cover gasket

Code A A A A A A A

Ventilated oil filler cap for the hydraulic oil tank

SCA250D-5EN1

11

Dynapac Compaction Equipment AB Frame

12

SCA250D-5EN1

Dynapac Compaction Equipment AB Frame Item Part No 10 30 45 55 60 70

SCA250D-5EN1

Rem Qty Description

Code

Frames ( Page 14 ) Scraper and beam ( Page 16 ) Scrapers, Urethan Rubber Option ( Page 18 ) Scrapers, Spring Steel Option ( Page 20 ) Hitch ( Page 22 ) Structure ( Page 24 )

13

Dynapac Compaction Equipment AB Frames 18930

14

SCA250D-5EN1

Dynapac Compaction Equipment AB Frames Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 29 30 38 39 40 41

4700393052 4700397126 4700374744 4700347119 4700635061 4700904230 4700500043 4700357488 4700343775 4700813391 4700372087 4700904557 4700500029 4700902919 4700904229 4700500188 4700386366 4700397130 4700372709 4700373460

SCA250D-5EN1

Rem Qty Description 1 1 1 1 2 3 4 2 1 2 1 1 4 4 6 32 32 1 1 1 1

Tractor frame Drum frame Hitch Safety rod Shaft Hair clip .Steel plain washer Screw M10x16H 8,8 Spring Wire Magnetic plug Protective plate Steel plain washer Hexagon head screw Plug Washer 8,4x16x1,5 Screw M8-1,25x14 8,8 Cover Cover O-ring Fuel cap

Code

C C C C D D

C

D D

15

Dynapac Compaction Equipment AB Scraper and beam 17372

16

SCA250D-5EN1

Dynapac Compaction Equipment AB Scraper and beam Item Part No 1 2 3 4 5 6 A)

4700376667 4700376652 4700384048 4700500102 4700904558 4700904234 4700903792

Rem Qty Description A

1 1 1 4 4 4 4

Cross beam Cross beam Scraper Screw M16x45 Washer 17X30X6 300HV Steel plain washer Screw M24x100 10.9

Code

C C

Heavy beam, Option

SCA250D-5EN1

17

Dynapac Compaction Equipment AB Scrapers, Urethan Rubber Option 18014

18

SCA250D-5EN1

Dynapac Compaction Equipment AB Scrapers, Urethan Rubber Option Item Part No 1 2 3 4 8 20 21 22 23 24 25 26 A)

4700376819 4700376622 4700904232 4700500076 4700586019 4700376825 4700358033 4700904213 4700376826 4700904231 4700500056 4700500049

Rem Qty Description A A

A A A

8 8 16 16 18 2 2 8 2 28 10 8

Scraper bracket Holder Washer Screw M16x55 Lock nut Scraper bracket Scraper blade Washer Scraper bracket Steel plain washer Screw Screw

Code

C

A C

C

Mounted on the front and rear of the drum.

SCA250D-5EN1

19

Dynapac Compaction Equipment AB Scrapers, Spring Steel Option 18012

20

SCA250D-5EN1

Dynapac Compaction Equipment AB Scrapers, Spring Steel Option Item Part No 1 2 3 4 5 6 7 8 A)

4700376819 4700376829 4700376622 4700904232 4700500076 4700791948 4700904703 4700586019

Rem Qty Description

A

8 4 8 16 16 8 8 8

Scraper bracket Scraper Holder Washer Screw M16x55 Bolt M12x40H 8,8 Washer Lock nut

Code

C

C

Cup square neck bolt.

SCA250D-5EN1

21

Dynapac Compaction Equipment AB Hitch 16083

22

SCA250D-5EN1

Dynapac Compaction Equipment AB Hitch Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 14 15 16 17 18 19 20 21

4700374900 4700100040 4700373421 4700345871 4700345872 4700345873 4700337042 4700337045 4700345874 4700345875 4700343159 4700167032 4700926214 4700904229 4700500287 4700925208 4700910995 4700500037 4700904231 4700500018 4700380993 4700384498

SCA250D-5EN1

Rem Qty Description 1 4 1 N N N 2 N N N 1 4 4 1 12 12 3 12 12 1 N N

Hitch Axial ball bearing Bearing cover Shim T=1,0 mm Shim T=0,35 mm Shim T=0,10 mm Bearing cover Shim T=1,0 mm Shim T=0,35 mm Shim T=0,10 mm Cover Lip-type oil seal Grease fitting Washer 8,4x16x1,5 Screw M20x80 10,9 Screw M20x90 Stop screw Screw Steel plain washer Screw M8-1,25x12 8,8 Shim T = 2,0 mm Shim T = 0,15 mm

Code B C C C C C C C C C C C C C C C

23

Dynapac Compaction Equipment AB Structure 18693

24

SCA250D-5EN1

Dynapac Compaction Equipment AB Structure Item Part No

Rem Qty Description 1

2 3 4 5 6 7 8 9 10 11 13 14 17 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 37 38 41 42 44 45 47 48 49 50 52 53 54 55 56 57 1) A) B) C) D) G) H) I) J) R)

4700385152 4700374797 4700374798 4700371366 4700500028 4700904557 4700500030 4700902166 4700902166 4700373955 4700374799 4700500133 4700382384 4700382387 4700904241 4700570005 4700902286 4700372608 4700903732 4700382130 4700382335 4700382131 4700380109 4700382165 4700902866 4700927637 4700904556 4700382129 4700904874 4700535011 4700902284 4700382132 4700382336 4700500026 4700904640 4700902166 4700902166 4700373204 4700373203 4700373309 4700500021 4700500019 4700372575 4700901767 4700373956 4700373957 4700500505

A B

C D

R

G H I J

1 1 1 1 2 10 10 7 2XL 1XL 1 1 4 2 2 1 5 3 2 2 1 1 1 1 1 1 2 2 1 1 2 2 1 1 2 11 2XL 2XL 1 1 2 5 4 1 4 N N 1

Code C

Protecting cover Clamp Clamp Hinge Screw Steel plain washer Hexagon head screw Edge trim Edge trim Cover Holder plate Screw Gas spring Gas spring Screw Nut M8 Hexagon lock nut with flange Bracket Screw Hook Spacer sleeve Lock clamp Holder Locking handle .Key Marked "455" Hexagon socket countersunk screw Washer 8,4x16x3,0 Holder plate Grab handle Screw Nut M5 Holder Holder Screw M8-1,25x60 8,8 Washer 8,4x22x3 Edge trim Edge trim Holder plate Holder plate Holder plate Screw M8-1,25x25 8.8 Screw M8x16H 8.8 A2K Grid Screw ST3,5x9,5 Black Shim Shim Screw M8x20 8.8

D

D D

C D C C C

A

D C

D D

C

Hood cpl. with Gas springs, Lock, Edge trims, Hinges and Grids.

Right Left L = 0.940 m L = 0.630 m L = 0.340 m L = 0.040 m Right side Left side With noise suppression mounted, Option

SCA250D-5EN1

25

Dynapac Compaction Equipment AB Structure 18693

26

SCA250D-5EN1

Dynapac Compaction Equipment AB Structure Item Part No 59 60 62 63 66 67 68 69 72 73 74 75 77 86 87 99 100 101 102

K)

4700382382 4700381989 4700904231 4700374854 4700925629 4700902285 4700500088 4700904228 4700500013 4700500040 4700570004 4700500018 4700904567 4700395119 4812110773 4700904230 4700375681 4700375678 4700372658 4700902866

Rem Qty Description

K K K

1 2 4 1 2 2 2 4 2 1 1 1 7 1 N 2 1 1 1 1

Safety rod Holder Steel plain washer Grab handle Shock absorber Nut Screw M6x40 Washer 6,4x12x1,5 Screw M6-1x16 8,8 Screw M6-1x20 8,8 Nut M6X1,00 -8 A2K Screw M8-1,25x12 8,8 Washer 10,5x28x6 HB305 Spacer Shim Steel plain washer Gasket Cover Lock .Key Marked "455"

Code

C

C C C C

D A

Option

SCA250D-5EN1

27

Dynapac Compaction Equipment AB Drum

28

SCA250D-5EN1

Dynapac Compaction Equipment AB Drum Item Part No 10 40 41

4700380462 4700372987

SCA250D-5EN1

Rem Qty Description Drum ( Page 30 ) Drum gear ( Page 34 ) Drum gear ( Page 36 )

Code C C

29

Dynapac Compaction Equipment AB Drum 18803

30

SCA250D-5EN1

Dynapac Compaction Equipment AB Drum Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 39 40 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 58 60 61 62 A) B)

4700392822 4700389063 4700391206 4700116041 4700390897 4700343318 4700388089 4700391194 4700791927 4700167023 4700929447 4700343322 4812110860 4700380018 4700381027 4700349715 4700801187 4700396030 4700791156 4700384114 4700500082 4700904232 4700500165 4700500194 4700904231 4700570007 4700500196 4700232210 4700162017 4700343744 4700162018 4700370231 4700900775 4700904737 4700160105 4700230277 4700904177 4700343801 4700527002 4700383783 4700160358 4700904230 4700500029 4700396142 4700380462 4700500051 4700904233 4700903281 4700373442 4700373443 4700903919 4700359955 4700904229 4700500019 4700926736 4700393276 4700393277 4700393278

Rem Qty Description

A B

1 1 1 1 1 1 2 1 2 1 1 1 1 1 1 1 10 1 8 8 8 24 24 56 84 56 4 3 3 1 1 1 6 2 1 3 3 1 4 1 1 6 6 1 1 24 32 16 1 1 16 1 2 2 1 N N N

Drum Bearing housing Bearing housing Taper roller bearing Shaft nut Bearing housing Bearing Eccentric shaft Retaining ring Seal ring V-ring Holder plate Motor adapter Splined shaft Splined sleeve Spring Shock absorber Bracket Screw M10-1,5x55 12,9 Spacer Screw M16x70 8,8 Washer Screw M16-2,0x75 8,8 Screw Steel plain washer Hexagon nut M12 Screw M12-1,75x80 8.8 Plug Seal ring Magnetic plug Sealing Plug Plug O-ring O-ring 70 Copper washer 12,2x17,9x1,5 Screw Sign plate Drive screw Bearing cover O-ring Steel plain washer Hexagon head screw Drive disc Drum gear ( Page 34 ) Screw M12x25H 8.8 A3K Steel plain washer Screw Gear holder Gear holder Screw Drop plate Washer 8,4x16x1,5 Screw M8x16H 8.8 A2K Breather Shim T = 1,5 mm Shim T = 3 mm Shim T = 6 mm

Code

B C D

B B

C C B

C C

C B C B C C D C

D C D C C C

C C

Right Left

SCA250D-5EN1

31

Dynapac Compaction Equipment AB Drum 18803

32

SCA250D-5EN1

Dynapac Compaction Equipment AB Drum Item Part No 63 64 65 66 67

4700393279 4700903792 4700792464 4700928231 4700904234

SCA250D-5EN1

Rem Qty Description N 6 6 10 22

Shim T = 8 mm Screw M24x100 10.9 Nut M24 -10 DIN985 Screw M24X80 10.9 Steel plain washer

Code C

C

33

Dynapac Compaction Equipment AB 4700380462 Drum gear 18410

34

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700380462 Drum gear Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 30 35 36 37 38 A)

Rem Qty Description

4700935394 4700935395 4700935865 4700935866 4700935867 4700935868 4700935870 4700902944 4700935874 4700935875 4700935876 4700935877

4812155788 4700935881 4700935882 4700935883 4700935413 4700935414 4700945581 4700935859

4700935862

A

1 1 3 3 2 2 4 1 1 1 2 2 4 1 1 1 1 1 6 3 3 3 1 1 1 1 12 1 1 2 1 1

Drum gear, cpl .Hub .Planet gear .Retaining ring .Plug .Plug .Seal ring .Adapter .O-ring .O-ring .Bushing .Screw .Screw .Coupling .Retaining ring .Sun wheel .Spacer .Planet carrier .Retaining ring .Roller bearing .Planet gear .Retaining ring .Sun wheel .Retaining ring .O-ring .Cover .Screw .Seal kit Not used on this model .Seal .Roller bearing .Spring ring .Nut

Code C C C C

Only used with Single speed Propulsion motor.

SCA250D-5EN1

35

Dynapac Compaction Equipment AB 4700372987 Drum gear 16115

36

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700372987 Drum gear Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 A) B)

4700935859 4700935860 4700935861 4700935862 4700935863 4700935864 4700935865 4700935866 4700935867 4700935868 4700935869 4700935870 4700935871 4700935872 4700935873 4700935421 4700935394 4700935395 4700935398 4700935399 4700935400 4700935401 4700935402 4700935403 4700935404 4700935874 4700935875 4700935413 4700935414 4700935415 4700935876 4700935877 4700935878 4700935879 4700935880 4700935881 4700935882 4700935883 4700935380

Rem Qty Description

A A

A

A A

B A

1 1 1 1 1 1 1 1 1 1 5 3 2 4 4 4 4 4 4 1 1 1 1 1 1 10 1 1 1 1 12 1 1 1 3 3 3 1 1 1

Code

Drum gear, cpl .Seal .Roller bearing .Spring ring .Nut .Hub .Hollow wheel .Adapter .O-ring .O-ring .Bushing .Screw .Screw .Screw .Roller bearing .Planet gear .Retaining ring .Plug .Seal ring .Plate .Spring ring .Brake disc kit .O-ring .O-ring .Piston .Spring .Coupling .Retaining ring .O-ring .Cover .Screw .Sun wheel .Spacer .Planet carrier .Roller bearing .Planet gear .Retaining ring .Sun wheel .Retaining ring Seal kit

Incl. in item 40 Only used with Single speed Propulsion motor.

SCA250D-5EN1

37

Dynapac Compaction Equipment AB Engine

38

SCA250D-5EN1

Dynapac Compaction Equipment AB Engine Item Part No 10 20 30 40 50

SCA250D-5EN1

Rem Qty Description

Code

Engine Cummins QSB 4.5 C ( Page 40 ) Cooling system ( Page 42 ) Combustion air system ( Page 46 ) Fuel system ( Page 48 ) Exhaust system ( Page 50 )

39

Dynapac Compaction Equipment AB Engine Cummins QSB 4.5 C 18433

40

SCA250D-5EN1

Dynapac Compaction Equipment AB Engine Cummins QSB 4.5 C Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

4700391663 4700945731 4700945624 4700945145 4700945140 4700945730 4700392283 4700392284 4700393022 4700393021 4700904638 4700508079 4700500194 4700370229 4700509025 4700372772 4700904637 4700508029 4700379163 4700393096 4700382393 4700379164 4700792081 4700904229 4700500047 4700792275 4700387129 4700904232 4700500070 4700904703 4700500194 4700586019 4700330333 4700379480 4700330331 4700379621 4700904292 4700230515 4700904233 4700330383 4700791468 4700313035 4700388855 4700500154 4700921028 4700904228 4700192812 4700902285

SCA250D-5EN1

Rem Qty Description 1 1 1 1 1 1 1 1 1 1 12 8 4 1 8 1 12 12 1 1 1 1 3 6 6 4 4 5 4 16 8 8 1 1 2 1 1 1 2 1 1 1 1 1 1 1 1 1

Diesel engine Cummins QSB 4,5 .V-belt .Fuel filter element .Oil filter element .Alternator .Starter Engine bracket, Right Engine bracket, Left Engine bracket, Left Engine bracket, Right Washer 12x22x2 Screw M12-1,75x35H 8,8 Screw Coupling, cpl Screw 3/8-16UNCx32 8,8 Bracket Washer Screw M10-1,5x30H 8,8 V-belt cover Connector Fan hub Fan Socket head cap screw M12x50 10,9 Washer 8,4x16x1,5 Hexagon head screw Socket head cap screw 7/16-20UNFX32 12.9 Shock absorber Washer Screw M16x50 Washer Screw Lock nut Copper washer Reducer Washer 18,2x23,9x1,5 Hydraulic hose Hollow screw Connector Steel plain washer Cap hydraulic Hydraulic hose Hose clamp Bracket Screw M16-2,0x25 8,8 Clamp Washer 6,4x12x1,5 Screw M6x1x20 10.9 Nut

Code B A A C C

C

C C

C D C C C C D C

C

C

C

41

Dynapac Compaction Equipment AB Cooling system 18434-2

42

SCA250D-5EN1

Dynapac Compaction Equipment AB Cooling system Item Part No 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44

4700392220 4812155659 4812155660 4812155661 4700904551 4700393081 4700904352 4700392297 4700392170 4700393062 4700392313 4700903714 4700205027 4700387085 4700313010 4700313006 4700313075 4700904230 4700500028 4700904229 4700500019 4700904640 4700500053 4700381413 4700500075 4700371774 4700902285 4700904228 4700500012 4700313102 4700386853 4700904486 4700902166 4700902166 4700902166 4700392714 4700392715 4700393361 4700904076 4700904076 4700902166 4700500025 4700386943 4700246069 4700246069 4700393362

A) B) C) D) E) F) G) H) I)

L=0,600M L=0,690M L=0,330M L=0,450M L=0,500M L=0,500M L=0,470M L=1,500M L=1,780M

SCA250D-5EN1

Rem Qty Description

A

B C D

E F G

H I

1 1 1 1 2 1 2 1 1 1 1 1 1XL 2 4 3 4 7 7 16 5 8 15 2 4 2 2 10 2 N 1 2 1XL 1XL 1XL 1 1 1 1XL 1XL 1XL 1 1 1XL 1XL 2

Radiator .Air cooler .Water cooler .Oil cooler Shock absorber Coolant hose Clamp Coolant hose Holder Holder Expansion tank Cap Coolant hose Fan guard Hose clamp Hose clamp Hose clamp Steel plain washer Screw Washer 8,4x16x1,5 Screw M8x16H 8.8 A2K Washer 8,4x22x3 Screw M8x20H 8.8 Washer Screw M6-1,0x25 8.8 Shock absorber Nut Washer 6,4x12x1,5 Screw M6x12 Cable ties Air inlet plate Quick lock Edge trim Edge trim Edge trim Cooler frame, right Cooler frame, left Cooler frame, top Edge trim Edge trim Edge trim Screw M8-1,25x50 8,8 Air leading plate Fuel hose 3/8" Fuel hose 3/8" Air inlet

Code

C C

C C

C C

D D D

D D D C

43

Dynapac Compaction Equipment AB Cooling system 18434-2

44

SCA250D-5EN1

Dynapac Compaction Equipment AB Cooling system Item Part No 45 46 47 48 49 50 51 52 53 54 55 56 57 60

4700902166 4700902166 4700500040 4700371767 4700570005 4700791597 4700791597 4700791597 4700902166 4700500018 4700904623 4700902286 4700926985 4700908136

J) K) L) M) N)

L=0,610M L=0,610M L=0,310M L=0,730M L=0,200M

SCA250D-5EN1

Rem Qty Description J 1XL K 1XL 4 1 1 L 1XL L 1XL M 1XL M 1XL 2 N 1 1 2 1

Edge trim Edge trim Screw M6-1x20 8,8 Spacer Nut M8 Rubber strip Rubber strip Rubber strip Edge trim Screw M8-1,25x12 8,8 Hose guard L=200 Hexagon lock nut with flange Quick lock washer Bracket

Code D D C C C

D C C C

45

Dynapac Compaction Equipment AB Combustion air system 18435

46

SCA250D-5EN1

Dynapac Compaction Equipment AB Combustion air system Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

4700393089 4700394680 4700908399 4700394686 4700394687 4700908452 4700813791 4700393086 4700392810 4700389600 4700393045 4700386966 4700385691 4700393058 4700904229 4700500019 4700393059 4700313093 4700392742 4700904228 4700500040 4700586003 4700904231 4700500046 4700392741 4700393097 4700902285

SCA250D-5EN1

Rem Qty Description 1 1 1 1 1 1 2 1 1 2 1 6 2 1 8 4 1 2 2 8 8 4 2 2 1 2 2

Air inlet hose Air cleaner Cpl .Vacuator valve .Air filter element, main .Air filter element, safety .Cover Mounting band Air inlet hose Hose clamp Hose clamp Charge air hose Hose clamp 2.3/4"-3.5/8" Air intake hose Charge air tube Washer 8,4x16x1,5 Screw M8x16H 8.8 A2K Holder Pipe clamp Clamp Washer 6,4x12x1,5 Screw M6-1x20 8,8 Lock nut M8 Steel plain washer Screw M12x025H Holder Clamp Nut

Code

C A A D

C C

C C C

C

47

Dynapac Compaction Equipment AB Fuel system 18986

48

SCA250D-5EN1

Dynapac Compaction Equipment AB Fuel system Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 40 41

4700373460 4700904695 4700747282 4700330171 4700373574 4700244054 4700313002 4700901121 4700230277 4700792251 4700234919 4700904984 4700313001 4700904985 4700904984 4700313041 4700904230 4700500029 4700904281 4700500006 4700921084 4700904228 4700500013 4700945777 4700792814 4700792808 4700792526 4700792547 4700791513 4700945538 4700945147

A) B) C) D)

L=0,66M L=0,65M L=2,35M L=1,30M

SCA250D-5EN1

Rem Qty Description

A

B C D

1 1 4 2 2 1XL 2 2 4 1 2 1XL 6 1XL 1XL N 2 2 5 5 1 1 1 1 1 1 1 1 1 1 1

Fuel cap Fuel level sender Copper washer Hollow screw Hose connection Hose reinforced Hose clamp 13-20 mm Banjo fitting 14x6 Hose 8 Copper washer 12,2x17,9x1,5 Banjo coupling M12 Hose 8 Screw M12-1,5-24-3 Fuel hose Hose clamp Fuel hose Fuel hose Cable ties Steel plain washer Hexagon head screw Washer 5,3x10x1 300HV Screw M5x16 Pipe clamp Washer 6,4x12x1,5 Screw M6-1x16 8,8 Gasket Quick connect coupling Banjo coupling Quick connect coupling Quick connect coupling Pipe clamp Fuel filter head with hand pump Pre-fuel filter element

Code D D C C

C C C

C C C

C

A

49

Dynapac Compaction Equipment AB Exhaust system 18436

50

SCA250D-5EN1

Dynapac Compaction Equipment AB Exhaust system Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

4700392294 4700392295 4700392296 4700386789 4700377098 4700392747 4700902166 4700904076 4700904076 4700313094 4700904640 4700500053 4700904229 4700313093 4700500022 4700396185 4700904231 4700500163

A) B) C)

L=0.080M L=0,410M L=0,410M

SCA250D-5EN1

Rem Qty Description 1 1 1 2 1 1 A 1XL B 1XL C 1XL 2 6 4 4 1 4 1 2 2

Exhaust pipe Muffler Exhaust pipe Clamp Thermal guard Thermal guard Edge trim Edge trim Edge trim Pipe clamp Washer 8,4x22x3 Screw M8x20H 8.8 Washer 8,4x16x1,5 Pipe clamp Screw M8x30H 8.8 A2K Thermal guard Steel plain washer Screw M12x16

Code

D D D C C C C

C

51

Dynapac Compaction Equipment AB Transmission

52

SCA250D-5EN1

Dynapac Compaction Equipment AB Transmission Item Part No 17 21 30 40

4700393002 4700383856 4700396309

SCA250D-5EN1

Rem Qty Description

Code

Rear axle and wheels ( Page 54 ) Rear axle ( Page 56 ) Rear axle No-Spin, Option ( Page 64 ) Rear axle Option ( Page 72 )

53

Dynapac Compaction Equipment AB Rear axle and wheels 18225-1

54

SCA250D-5EN1

Dynapac Compaction Equipment AB Rear axle and wheels Item Part No 1 2 3 4 5

6 7 8 9

10 11 12 13 14 15 16 17 18 19

A) B) C) D) E) F) G) H) I) J) K)

Rem Qty Description

4700393002 1 4700929217 8 4700904233 16 4700901145 8 4700390590 2 4700390762 A 2 4700388145 A,G 1 4700388146 G 1 4700393335 1 4700792261 1 4700390591 1 4700791573 J,G 1 4700390588 B 1 4700390587 C 1 4700390759 D 1 4700390760 E 1 4700393335 1 4700792261 1 4700390589 1 4700383974 F 2 4700383975 K 2 4700383955 1 4700901443 1 4700901444 1 4700791175 1 4700791176 1 4700901218 1 4700355983 H 2 4700903985 I 2

Rear axle ( Page 56 ) Screw Steel plain washer Lock nut M20-10 Wheel, cpl Wheel, cpl Wheel, cpl Wheel, cpl .Rim .Air charging valve Straight .Tyre .Tyre Tractor wheel, cpl Tractor wheel, cpl Tractor wheel, cpl Tractor wheel, cpl .Rim .Air charging valve Straight .Tyre Wheel, tubeless, cpl Wheel, tubeless, cpl .Rim cpl ..Snap ring ..Side ring .Air charging valve .Valve foot .Tyre Decal "TYRE PRESSURE" 200kPa/29psi Decal "SAFETY", "TYRE IN BALLAST"

Code

B D D

B D

D D

Liquidfilled, option.

Left, option.

Right, option.

Liquidfilled tyre, right, option.

Liquidfilled tyre, left, option.

Option, Michelin branded.

For Chinese market only.

Used with item 13, 4700383974. 4700383975.

Used with Liqued filled tyres.

Used together with 4700388145 and 4700388146.

Liquidfilled, option, Michelin branded.

SCA250D-5EN1

55

Dynapac Compaction Equipment AB 4700393002 Rear axle 18839

56

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700393002 Rear axle Item Part No 1 2 3 4 5 6 7 8 9 10

4700909630 4700950556 4700929648 4700950559 4700929712

SCA250D-5EN1

Rem Qty Description 1 1 2 2 1 1 1 1 8 1

Rear axle .Differential with limited slip ( Page 58 ) .Differential housing and brakes ( Page 60 ) .Planet gear ( Page 62 ) O-ring Flange O-ring Splined sleeve Screw Circlip

Code

D D

57

Dynapac Compaction Equipment AB Differential with limited slip 18841

58

SCA250D-5EN1

Dynapac Compaction Equipment AB Differential with limited slip Item Part No 1 2 6

7 8

9 10 12 13 14 15 21 23 24 26 28 30 31 32 33

4700938988 4700926354 4700926356 4700926786 4700936053 4700936054 4700936055 4700936056

4700938991

4700938989 4700936036 4700936035

4700938993

SCA250D-5EN1

Rem Qty Description 1 1 N N N 1 1 1 1 1 1 1 16 1 2 2 2 4 4 4 1 2 N N N

Ring nut Roller bearing Shim Shim Shim Spacer Shim 0.15mm Shim 0.20mm Shim 0.40mm Shim 0.50mm Roller bearing Bevel gear set Screw Bearing Nut Screw Differential gear Friction washer Differential pinion Pin Differential carrier Disc kit .Limited slip disc .Limited slip disc .Limited slip disc

Code

D D D D

59

Dynapac Compaction Equipment AB Differential housing and brakes 18842

60

SCA250D-5EN1

Dynapac Compaction Equipment AB Differential housing and brakes Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

4700929612

4700938984 4700909544 4700938983 4700939348 4700939350 4700929617 4700909616 4700909618 4700939280 4700909619 4700938984 4700939282 4700939036 4700939035 4700939285 4700909622 4700900966 4700909624 4700909626 4700900957 4700926847 4700939026 4700950558

4700929612

SCA250D-5EN1

Rem Qty Description 6 2 1 1 2 2 2 1 1 1 1 2 4 2 4 4 2 2 2 4 2 2 2 2 2 2 4 4 4 6 2 2 10 10 2

O-ring Cover Housing Vent nipple Screw Sealing washer Seal Plug Magnetic plug Plug Lock ring Spring O-ring Piston O-ring Bolt Vent nipple Bolt Sealing washer Screw Disc Ring Pinion O-ring Lock plate Screw Bolt Nut Sealing washer Screw Cover Brake disc kit .Brake disc .Brake disc .O-ring

Code

D D D

D D

61

Dynapac Compaction Equipment AB Planet gear 18840

62

SCA250D-5EN1

Dynapac Compaction Equipment AB Planet gear Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

4700939003

4700939009 4700926781 4700901987 4700939015 4700939348 4700939016 4700939010 4700939017 4700929612 4700939350 4700939014 4700939019 4700939278 4700950557 4700939267

4700939270 4700939271 4700939272 4700939273

SCA250D-5EN1

Rem Qty Description 2 32 24 2 4 20 20 4 6 4 20 2 20 2 2 2 2 2 8 8 2 2 2 2 2 6 6 6 2 2

Code

Axle case Spring washer Bolt Seal Bearing Wheel screw Wheel nut Screw Copper washer Plug Nut Lock plate Stud O-ring Wheel hub Magnetic plug Half shaft Seal Nut Stud Planet gear carrier Cpl. .Circlip .Ring gear .Ring gear support .Washer .Seal .Planet gear .Bearing .Planet gear carrier Ring

63

Dynapac Compaction Equipment AB 4700383856 Rear axle No-Spin, Option 17671

64

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700383856 Rear axle No-Spin, Option Item Part No 1 2 3 4 5 6 7 8 9

4700909584 4700909583 4700929648 4700901834 4700909582

SCA250D-5EN1

Rem Qty Description 1 1 2 2 1 1 1 1 8

Rear axle .Differential with No-Spin ( Page 66 ) .Differential housing and brakes ( Page 68 ) .Planet gear ( Page 70 ) O-ring Flange O-ring Splined sleeve Screw

Code

D D

65

Dynapac Compaction Equipment AB Differential with No-Spin 17689

66

SCA250D-5EN1

Dynapac Compaction Equipment AB Differential with No-Spin Item Part No 1 2 3 4

5 6

7 8 9 10 11 12 13 14 15 16 17 18 19

4700929638 4700909574 4700908485 4700939259 4700909580 4700909576 4700929644 4700939260 4700909567 4700909568 4700909569 4700909570 4700939258 4700212553 4700929628 4700929629 4700938989 4700939261 4700923342 4700929630 4700929631 4700929625 4700929626 4700909581 4700939257 4700909572

SCA250D-5EN1

Rem Qty Description 1 1 1 1 1 1 1 1 1 1 1 1 1 1 16 16 2 2 1 1 1 8 1 1 16 16

Code

Nut Roller bearing Housing Shim 0,15mm Shim 0,20mm Shim 0,30mm Shim 0,40mm Shim 0,50mm Spacer Shim 0,10mm Shim 0,20mm Shim 0,50mm Shim 0,15mm Bevel gear set Washer Screw Screw Nut Bearing Differential case Spacer Screw Non-spin unit Roller bearing Bolt Spring washer

67

Dynapac Compaction Equipment AB Differential housing and brakes 17670

68

SCA250D-5EN1

Dynapac Compaction Equipment AB Differential housing and brakes Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

4700909609 4700939255 4700939256 4700938984 4700909544 4700938983 4700909607 4700909596 4700926810 4700938296 4700929617 4700909616 4700909618 4700939280 4700909619 4700939281 4700938984 4700939282 4700939036 4700939035 4700939283 4700939285 4700909622 4700900966 4700939286 4700909624 4700909626 4700900957 4700926847 4700939026 4700939287 4700939284

4700909609

SCA250D-5EN1

Rem Qty Description 6 2 1 1 2 2 1 1 1 1 1 2 4 2 4 4 2 2 2 4 2 2 2 2 2 2 4 4 4 6 2 2 12 12 2

O-ring Cover Housing Vent nipple Screw Sealing washer Seal Plug Magnetic plug Plug Lock ring Spring O-ring Piston O-ring Bolt Vent nipple Bolt Sealing washer Screw Disc Ring Pinion O-ring Lock plate Screw Bolt Nut Sealing washer Screw Cover Brake disc kit .Brake disc .Brake disc .O-ring

Code D

D

D D

D

D

69

Dynapac Compaction Equipment AB Planet gear 17673

70

SCA250D-5EN1

Dynapac Compaction Equipment AB Planet gear Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

4700939263 4700939003 4700939264 4700939265 4700939266 4700926781 4700901987 4700939015 4700330333 4700909596 4700939016 4700939275 4700939017 4700929612 4700939276 4700938985 4700939277 4700909586 4700939019 4700939278 4700939351 4700939267 4700939268 4700939269 4700939270 4700939271 4700939272 4700939273 4700939349

SCA250D-5EN1

Rem Qty Description 2 32 24 2 4 20 20 4 6 4 20 2 20 2 2 2 2 2 8 8 2 2 2 2 2 8 8 8 2

Axle case Spring washer Bolt Seal Bearing Wheel screw Wheel nut Screw Copper washer Plug Nut Lock plate Stud O-ring Wheel hub Magnetic plug Half shaft Seal Nut Stud Planet gear carrier Cpl. .Circlip .Ring gear .Ring gear support .Washer .Seal .Planet gear .Bearing .Planet gear carrier

Code

D

D

71

Dynapac Compaction Equipment AB 4700396309 Rear axle Option 18839

72

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700396309 Rear axle Option Item Part No 1 2 3 4 5 6 7 8 9 10

4700909584 4700950555 4700929648 4700901834 4700900256

SCA250D-5EN1

Rem Qty Description 1 1 2 2 1 1 1 1 8 1

Rear axle .Differential with limited slip ( Page 58 ) .Differential housing and brakes ( Page 60 ) .Planet gear ( Page 62 ) O-ring Flange O-ring Splined sleeve Screw Not used on this model

Code

D D

73

Dynapac Compaction Equipment AB Hydraulic system

74

SCA250D-5EN1

Dynapac Compaction Equipment AB Hydraulic system Item Part No 10 20 30 60 70

SCA250D-5EN1

Rem Qty Description

Code

Propulsion system, Front ( Page 76 ) Vibration system ( Page 80 ) Steering system ( Page 90 ) Brake system ( Page 96 ) Central test panel hydraulic Option ( Page 98 )

75

Dynapac Compaction Equipment AB Propulsion system, Front 16613-1

76

SCA250D-5EN1

Dynapac Compaction Equipment AB Propulsion system, Front Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

4700371509 4700904058 4700904230 4700923384 4700904005 4700904638 4700502132 4700334132 4700334138 4700372235 4700791230 4700500101 4700903290 4700483996 4700483190 4700483995 4700373016 4700373270 4700500032 4700373423 4700500029 4700904230

SCA250D-5EN1

Rem Qty Description 1 1 6 4 2 8 8 1 1 1 2 2 2 1 1 1 2 2 2 2 4 2

Propulsion motor ( Page 78 ) O-ring Steel plain washer Flange half O-ring Washer 12x22x2 Screw UNC 7/16" x 22 Elbow 45, O-ring Adapter Hose guard Elbow 45 Screw M20x50 Washer 21x36x6 Hydraulic hose Hydraulic hose Hydraulic hose Hose clamp Hose clamp Screw M10 x 55 Spacer Hexagon head screw Steel plain washer

Code C

C

C

C

77

Dynapac Compaction Equipment AB 4700371509 Propulsion motor 16542

78

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700371509 Propulsion motor Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 38 40 1)

4700937274 4700937275 4700902928 4700901453 4700908432 4700937277 4700935619 4700937278 4700935621 4700935622 4700903570 4700903571 4700935623 4700935624 4700935625 4700935626 4700937279 4700813822 4700935629 4700358388 4700908432 4700909252 4700909253 4700935630 4700937280 4700903053 4700909255 4700923087 4700358388 4700935853 4700926658 4700935631 4700901465 4700901467 4700950368 4700908773 4700937283

Rem Qty Description

1 1

1

1

1

1 1 1 2 2 1 1 1 1 1 1 9 1 1 1 1 1 1 2 1 2 1 4 2 1 1 1 1 2 2 1 1 1 1 1 1 3 1

Hydraulic motor, Cpl .Housing .O-ring .Plug ..O-ring .Plug .Cylinder block, cpl ..Spacer ..Spring ..Spring retainer ..Ring retainer .Piston .Pressure plate .Retainer guide .Shim .Holder .Valve plate .Thrust plate .Pin .Gasket .Plug .Plug .Screw .Screw .Screw .End cap, cpl ..Bushing .Spool .O-ring .Plug .Plug .O-ring .Shaft .Bearing .Ring .Shaft seal kit .Screw Seal kit

Code

C C C

D D

C D C

C

C

C

Includes in item 40, Seal kit

SCA250D-5EN1

79

Dynapac Compaction Equipment AB Vibration system 18323

80

SCA250D-5EN1

Dynapac Compaction Equipment AB Vibration system Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 16 17 18 19 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 44 45 46 47 A)

Rem Qty Description

4700234382 4700901155 4700334135 4700334122 4700330383 4700334121 4700904767 4700929226 4700904773 4700500030 4700904230 4700904781 4700901157 4700334205 4700900430 4700904774 4700502019 4700904229 4700483286 4700483910 4700483911 4700483031 4700483397 4700373017 4700500028 4700500194 4700904231 4700380145 4700160132 4700500032 4700373270 4700373424 4700383958 4700903877 4700502078 4700904232 A A A A

1 1 1 1 1 1 2 4 2 8 14 1 3 1 4 2 8 8 1 1 1 1 1 2 4 4 4 1 1 2 2 2 1 1 2 2 1 1 1 1

Adapter Connector Tee-connector Adapter Cap hydraulic Straight connector Flange adapter Flange half O-ring Hexagon head screw Steel plain washer Adapter Measuring nipple Straight connector Flange half O-ring Screw Washer 8,4x16x1,5 Hydraulic hose Hydraulic hose Hydraulic hose Hydraulic hose Hydraulic hose Hose clamp Screw Screw Steel plain washer Hydraulic motor, vibration ( Page 82 ) O-ring 124, 50x3, 00 Screw M10 x 55 Hose clamp Spacer Vibration pump ( Page 84 ) O-ring Screw Washer Hydraulic pump Connection block Tee-connector Straight connector

Code C C

C C

C C C

C C D

C

C C C C C

See section "Hydraulic propulsion"

SCA250D-5EN1

81

Dynapac Compaction Equipment AB 4700380145 Hydraulic motor, vibration 16978

82

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700380145 Hydraulic motor, vibration Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 1)

4700340863 4700380078 4700901387 4700937261 4700937264 4700937265 4700901390 4700901389 4700938042 4700938041 4700901386 4700937260 4700901385 4700938040

4700937995 4700937256 4700937258 4700937257 4700902655 4700927350 4700937993 4700937259 4700937674

Rem Qty Description

1 1

1

1

1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 7 1 1 1 7 1 2 1 1 1 1 1 1 1 2 4 1 1 1

Hydraulic motor, vibration .Splined sleeve .Hydraulic motor, vibration ..Snap ring ..Cover ..Seal ring ..O-ring ..Shim T=0,3 mm ..Shim T=0,1 mm ..Retaining ring ..Back-up plate ..Bearing ..Bearing ring ..Bearing ..Shaft .Rotary group, hydr.section ..Washer ..Retaining plate ..Screw ..Pin ..Spring ..Spring collar ..Piston ...Piston ...Sealing ring ..Cylinder ..Pressure plate ..Washer ..Screw ..Housing ..O-ring ..Plate ..Screw ..Screw ..Pin ..Screw .Seal kit

Code C D

Included in seal kit, item 35

SCA250D-5EN1

83

Dynapac Compaction Equipment AB 4700383958 Vibration pump 18843

84

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700383958 Vibration pump Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 22 23 24 25 26 28 29 30 31 32 33 34 35 36 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 54

4700940675 4700937167 4700937168 4700937986 4700935158 4700935219 4700902724 4700936803 4700909514 4700936308 4700902624 4700902687 4700902695 4700940507 4700945775 4700945776 4700936686

4700936307 4700927358 4700908383 4700940505

4700937985 4700937998 4700937999 4700938003 4700937195 4700936340 4700902856 4700938004 4700936393 4700938005 4700937198 4700938014 4700937199 4700936648 4700937531 4700937200 4700937201 4700939167 4700938001 4700909469 4700939173 4700935192

SCA250D-5EN1

Rem Qty Description 1 1 1 1 1 1 1 1 5 2 2 1 1 1 1 1 1 2 2 1 2 1 3 2 1 2 1 1 1 1 1 2 2 1 8 2 2 1 1 2 2 2 2 2 2 2 2 2 1 4 1 1

Vibration pump .Seal kit .Rotary group, cpl ( Page 86 ) .Valve block, cpl ( Page 88 ) .Housing .Pin .Plug .Plug .Plug .Pin .Orifice .Screw .Pin .Nut .Control valve, cpl ..Housing ..Piston ..Spring collar ..Spring ..Gasket ..Pin ..Double break-off pin ..Screw ..Screw ..O-ring ..Solenoid ..Socket ..Socket .Hydraulic control ..Cover ..Cover ..Guide ring ..Pin ..Nut ..Screw ..O-ring ..Seal lock nut ..Piston ..Rod ..Ring ..Sleeve ..Spring collar ..Spacer ring ..Spring, outer ..Spring, inner ..Spring collar ..Retaining ring ..O-ring ..O-ring .Screw .O-ring .Cover

Code

D

85

Dynapac Compaction Equipment AB 4700937167 Rotary group, cpl 17011

86

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700937167 Rotary group, cpl Item Part No 1 2 2-A 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

4700937170 4700940308 4700937171 4700937172 4700937173 4700937174 4700908367 4700936621 4700935164 4700937175 4700937176 4700937180 4700937181 4700937182 4700937183 4700937184 4700937185 4700937186 4700937187 4700937188 4700937189 4700937190 4700902792

SCA250D-5EN1

Rem Qty Description 1 1 1 9 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 2 1 1 2

Code

Rotary group, cpl .Cylinder with control plate ..Control plate .Piston .Cup springs, cpl .Cradle .Slide ring .Shaft .Wire .Pin .Wire .Shim .Retaining plate .Retaining ball .Bearing liner, 1 pair .Washer .Spring .Bearing .Cradle bearing assembly, 1 set .Retaining ring .V-ring .Seal ring .Retaining ring .Pin

87

Dynapac Compaction Equipment AB 4700937168 Valve block, cpl 18844

88

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700937168 Valve block, cpl Item Part No

Rem Qty Description

1 2 4700935172

10 11 12 22 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 50

A) B)

4700937240 4700927278 4700936673 4700908375 4700902783 4700936394 4700936674 4700927278 4700937202 4812155765 4700902735 4700937203 4700937204 4700937205 4700908384 4700937206 4700909514 4700936370 4700909469 4700902625 4700901742 4700902723 4700902811 4700902693 4700927278 4700902697 4700936613 4700936614 4700936313 4700936370 4700935212

B

A

1 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 1 4 2 1 3 2 2 2 1 1 3 1 1 1 1 1 1 1 1

Valve block, cpl .Relief valve 310 bar .Pressure relief valve 350 bar .Relief valve 380 bar .Pressure relief valve 440 bar ..O-ring ..Back-up ring .Valve ..O-ring ..O-ring .Pin .O-ring .Port plate .Port plate .Pin .Bush .Bearing bushing .Screw .Pin .O-ring .Pin .Locking screw .O-ring .Screw .Pin .Plug .Plug .Screw .O-ring .Screw .Locking screw .Plug .Orifice .Locking screw .Pin

Code

D D D

D

D

D

Used with Item 27; P/N 4812155765.

Replaced by P/N 4812155765.

SCA250D-5EN1

89

Dynapac Compaction Equipment AB Steering system 18480

90

SCA250D-5EN1

Dynapac Compaction Equipment AB Steering system Item Part No 1 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 43

4700394905 4700500046 4700904231 4700232097 4700904637 4700904005 4700508029 4700379481 4700334558 4700792237 4700338304 4700910161 4700234626 4700929123 4700372513 4700372514 4700904229 4700500019 4700500023 4700376000 4700813444 4700392002 4700379630 4700500044 4700234218 4700813500 4700334121 4700483109 4700483109 4700334197 4700483049 4700483498 4700483280 4700483497 4700483231 4700313102 4700234662

SCA250D-5EN1

Rem Qty Description 1 2 4 2 4 1 4 1 1 1 1 1 1 1 1 1 3 2 1 1 4 2 4 4 2 1 1 1 1 1 1 1 1 1 1 2 1

Hydraulic oil tank Steering pump Screw M12x025H Steel plain washer Flange half Washer O-ring Screw M10-1,5x30H 8,8 Connector Elbow 90G with O-ring Elbow 90, O-ring Connector Measuring nipple Adapter Elbow 90, O-ring Hose clamp Hose clamp Washer 8,4x16x1,5 Screw M8x16H 8.8 A2K Screw M8-1,25x40 8,8 Steering valve ( Page 92 ) Elbow 90, O-ring Steering cylinder ( Page 94 ) Radial spherical plain bearing Screw M6x8 Tee-connector Elbow 45, O-ring Straight connector Hydraulic hose Hydraulic hose Elbow 90 Up to 65X21500 Hydraulic hose Hydraulic hose Hydraulic hose Hydraulic hose Hydraulic hose Cable ties Elbow 45

Code

C C C C

C C C C

C C

C C C C C C C C

C C

91

Dynapac Compaction Equipment AB 4700376000 Steering valve 17013

92

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700376000 Steering valve Item Part No 1 2 3 4 5 7 8 9 11 12 13 14 15 17 18 20 21 22 24 25 26 27 29 32 33 A)

4700938062 4700938063 4700938064 4700908780 4700911620 4700938065 4700938066 4700902861 4700938067 4700938068 4700902862 4700903457 4700938069 4700938070 4700938071 4700935468 4700938072 4700938073 4700938074 4700929013 4700929014 4700938075 4700935429

Rem Qty Description A

A

A

A

1 1 1 1 1 1 1 1 1 1 3 1 1 1 7 1 6 1 1 1 2 2 2 1 1

Dust seal ring Housing, spool and sleeve Ball Threaded bushing O-ring Bearing Ring Cross pin Cardan shaft Set of springs O-ring Valve plate Gear wheel set End cover Washer Screw with pin Spring washer Name plate Pressure relief valve Spring Shock valve Ball Rolled pin Check valve Seal kit

Code

B

C

C

D C

Included in seal kit, item 33

SCA250D-5EN1

93

Dynapac Compaction Equipment AB 4700392002 Steering cylinder 16490

94

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700392002 Steering cylinder Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

4700392002 4700392100

4700392105 4700392103 4700635061 4700600016

SCA250D-5EN1

Rem Qty Description 1 1 1 2 1 1 1 1 1 1 1 2 1 1 1 1 1 1 2 4 4

Steering cylinder ( Page 94 ) .Seal kit ..Seal ..Seal ..O-ring ..Back-up ring ..Back-up ring ..O-ring ..Seal ..Retaining ring ..Seal ..Back-up ring ..O-ring ..Lock nut .Piston block .Cylinder .Steering .Piston rod .Shaft .Hair clip .Washer 26x45x4

Code C B B B B B B B B B B B B B B B B C C C C

95

Dynapac Compaction Equipment AB Brake system 16621-1

96

SCA250D-5EN1

Dynapac Compaction Equipment AB Brake system Item Part No 1 2 3 4 5 6 7 8 9

4700334389 4700482056 4700900552 4700234888 4700482399 4700234843 4700482474 4700334205 4700334524

SCA250D-5EN1

Rem Qty Description 1 1 2 1 1 1 1 1 1

Connector Hydraulic hose Adapter Tee-connector Hydraulic hose Adapter Hydraulic hose Straight connector Connector

Code C C

C

97

Dynapac Compaction Equipment AB Central test panel hydraulic Option 16988

98

SCA250D-5EN1

Dynapac Compaction Equipment AB Central test panel hydraulic Option Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

4700374028 4700904229 4700500053 4700356348 4700234622 4700484005 4700313102 4700483445 4700483188 4700483445 4700334196 4700902125 4700234388

4700908136 4700500018

SCA250D-5EN1

Rem Qty Description 1 4 2 6 1 1 N 2 2 1 5 3 1 2 1 1 2 2 1

Test panel Washer 8,4x16x1,5 Screw M8x20H 8.8 Measuring nipple Elbow 45 Hydraulic hose Cable ties Hydraulic hose Hydraulic hose Hydraulic hose Elbow 90 Connector Vibration pump Connector Propulsion pump Steering pump Bracket Screw M8-1,25x12 8,8 Connector

Code

C D C

C

C C C C C

99

Dynapac Compaction Equipment AB Electric system

100

SCA250D-5EN1

Dynapac Compaction Equipment AB Electric system Item Part No 15 25 70 80 90

SCA250D-5EN1

Rem Qty Description

Code

Electric system ( Page 102 ) Control panel ( Page 104 ) Rotating beacon Option ( Page 106 ) Back-up alarm Option ( Page 108 ) Compaction meter Option ( Page 110 )

101

Dynapac Compaction Equipment AB Electric system 18998-1

102

SCA250D-5EN1

Dynapac Compaction Equipment AB Electric system Item Part No 1 3 4

5 6 7 8 9 10 14 16 18 19 21 22 23 24 25 26 27 28 29 30 31 32 33 35 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 71 72 75 79 81 84 90 A) B)

4700397128 4700904020 4700387427 4700791477 4700791479 4700392937 4700903760 4700335607 4700791503 4700904018 4700373891 4700500184 4700792682 4700903640 4700903641 4700901230 4700904229 4700500053 4700791183 4700904228 4700500013 4700570004 4700904036 4700904281 4700500060 4700586001 4700500075 4700586002 4700901767 4700389662 4700902284 4700378745 4700500025 4700904556 4700586003 4812110560 4700903768 4700570005 4700813434 4700903631 4700960727 4700921072 4700902468 4700338304 4700813462 4700903632 4700904231 4700500051 4700500019 4700904038 4700791185 4700901227 4700929023 4700313041 4700904780 4700500004 4812110818

Rem Qty Description A B

1 1 1 2 4 1 1 1 1 1 1 3 1 1 1 1 11 2 3 8 2 2 1 16 4 5 2 2 2 2 2 1 2 2 5 1 3 3 1 1 2 2 1 1 1 1 2 2 1 1 2 1 1 N 1 4 2

Cable harness Battery cable Cable harness .Fuse holder .Fuse, Orange 125A Cable harness Connection cable, coarse Connection cable, coarse Battery cable Connection cable, coarse Cover Screw M5-0,8x14 8,8 Battery Battery switch .Key Fuse 30A Washer 8,4x16x1,5 Screw M8x20H 8.8 Relay Washer 6,4x12x1,5 Screw M6-1x16 8,8 Nut M6X1,00 -8 A2K Fuse holder Washer 5,3x10x1 300HV Screw M5-0,8x20 8.8 Lock nut Screw M6-1,0x25 8.8 Lock nut M6 -8 Screw ST3,5x9,5 Black Strap Nut M5 Control unit, ECU Screw M8-1,25x50 8,8 Washer 8,4x16x3,0 Lock nut M8 Power socket 12V Threaded stud Nut M8 Reducer Temperature sensor Hydraulic oil Clamp Clamp Connector Connector Oil pressure sender Temperature sensor Engine Steel plain washer Screw M12x25H 8.8 A3K Screw M8x16H 8.8 A2K Fuse 40A Fuse box Fuse 10A Indicator Cable ties Hose clamp Screw M5 0,8x12 8,8 Rubber cloth Not valid for this model

Code

B

D D

C D C D C C C

C C C C C B

C D

C C A A B

C

Main cable harness Pre-heater

SCA250D-5EN1

103

Dynapac Compaction Equipment AB Control panel 18887

104

SCA250D-5EN1

Dynapac Compaction Equipment AB Control panel Item Part No 1 2 3 4 5 6 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

24 26 27 28 29 30 35 42 43 44 50 51 52 53 54 60 61 A) B)

4700396968 4700387683 4700385599 4700238158 4700940451 4700791739 4700392996 4700792083 4700792414 4700792461 4700791185 4700903782 4700570004 4700500075 4700904229 4700500053 4700999027 4700500075 4700586002 4700343550 4700901767 4700791211 4700901228 4700901227 4700901225 4700791582 4700792317 4700792318 4700792435 4700792432 4700792319 4700792315 4700791587 4700791585 4700791583 4700791584 4700792413 4700791588 4700792463 4700791578 4700792462 4700791657 4700903956 4700394061 4700791733 4700791723

Rem Qty Description B

A A A A A A A A

1 1 1 1 1 1 1 N 1 1 1 4 3 1 1 1 1 1 1 1 2 N N N N 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2

Cable harness Distribution control plate Buzzer Ignition switch .Key Emergency stop Control panel Plug Switch, RPM Switch, vibration Fuse box Screw M5x12 Nut M6X1,00 -8 A2K Screw M6-1,0x25 8.8 Washer 8,4x16x1,5 Screw M8x20H 8.8 Horn Screw M6-1,0x25 8.8 Lock nut M6 -8 Connection cable Screw ST3,5x9,5 Black Contact bridge Fuse 15A Fuse 10A Fuse 5A Switch, parking brake Switch Switch Pilot lamp Red Illuminated block red Pilot lamp Yellow Illuminated block yellow Switch, working light Switch, rotating beacon Switch, driving light Switch, hazard flashers Switch, drive direction Panel plug Switch, Power distribution Switch, horn Switch, TC & TM Switch, Hi-Lo Speed Relay Decal Fixing collar Connector

Code

B

C

C B

B

A A A

A C

Option Control panel

SCA250D-5EN1

105

Dynapac Compaction Equipment AB Rotating beacon

Option

16981

106

SCA250D-5EN1

Dynapac Compaction Equipment AB Rotating beacon Item Part No 1 2 3 4 5 6 7 8 9 10 11 1) 2)

4700999011 4700358452 4700500021 4700586003 4700904229 4700500013 4700904228 4700392773 4700921039 4700541702 4700389577

Option Rem Qty Description 1

2

1 1 2 2 4 1 1 1 1 1 1

Rotating beacon Lamp holder Screw M8-1,25x25 8.8 Lock nut M8 Washer 8,4x16x1,5 Screw M6-1x16 8,8 Washer 6,4x12x1,5 Cable harness Pipe clamp Screw M6x12 Rotating beacon

Code B D C C

C C D

Is replaced by item 11, P/N 4700389577.

Replaces item 1, P/N 4700999011.

SCA250D-5EN1

107

Dynapac Compaction Equipment AB Back-up alarm Option 17984

108

SCA250D-5EN1

Dynapac Compaction Equipment AB Back-up alarm Option Item Part No 1 2 3 4 5 6 7 8 9 A) B)

4700380798 4700901224 4700377071 4700904910 4700500053 4700904229 4700500040 4700904228 4700902285

Rem Qty Description A B

1 1 1 1 2 2 2 2 2

Cable harness Fuse 3A Bracket Back-up alarm Screw M8x20H 8.8 Washer 8,4x16x1,5 Screw M6-1x20 8,8 Washer 6,4x12x1,5 Nut

Code A

C C C

Is connected to the main wiring harness.

Located in the fusebox on the control panel.

SCA250D-5EN1

109

Dynapac Compaction Equipment AB Compaction meter Option 17358

110

SCA250D-5EN1

Dynapac Compaction Equipment AB Compaction meter Option Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

4700372836 4700388210 4700500053 4700904229 4700372784 4700313102 4700381351 4700930151 4700383452 4700373096 4700393543 4700904206 4700541526 4700500079 4700902496 4700348213 4700902285 4700373140 4700904231 4700902288 4700313041 4700500194 4700373016 4700349435 4700901190 4700903192

A)

L=230mm

SCA250D-5EN1

Rem Qty Description

A

1 1 4 4 1 N 1 1 1 1 1 3 4 4 1 1 7 1 2 2 N 2 1 1 1 2

Bracket Processor comp.meter Screw M8x20H 8.8 Washer 8,4x16x1,5 Cable harness Cable ties Cable harness Switch Compaction meter Instrument box Bracket Screw Screw Screw M6-1x50 8,8 Clamp Sensor, cpl Nut Bracket Steel plain washer Nut M12 Cable ties Screw Hose clamp Rubber part Conduit Grommet

Code

C

B

C

C

C

111

Dynapac Compaction Equipment AB Drivers platform

112

SCA250D-5EN1

Dynapac Compaction Equipment AB Drivers platform Item Part No 10 20 40 52 100 110 120 130

SCA250D-5EN1

Rem Qty Description

Code

Drivers platform ( Page 114 ) Control panel ( Page 116 ) Forward and reverse control ( Page 118 ) Steering column ( Page 122 ) Canopy Option ( Page 124 ) Rops and fops ( Page 126 ) Cab mounting ( Page 128 ) Cab 392479 ( Page 130 )

113

Dynapac Compaction Equipment AB Drivers platform 18726

114

SCA250D-5EN1

Dynapac Compaction Equipment AB Drivers platform Item Part No 1 3

4 5 6 7 8 9 10 11 12 13 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 A) B) C) D) E)

4700392394 4700377556 4700377518 4700348331 4700376252 4700380727 4700372757 4700373400 4700500210 4700372494 4700372785 4700382582 4700927974 4700904433 4700500029 4700904230 4700586003 4700904229 4700500053 4700904231 4700500195 4700347512 4700903290 4700904233 4700379636 4812155075 4700901145 4700902203 4700383705 4700357643 4700791226 4700903192 4700380123 4700392875 4700500013 4700904228 4700902166 4700903727

Rem Qty Description

E

A

C D

B

1 1 1 1 1 2 2 2 4 1XL 1 2 13 13 4 4 4 8 4 16 16 4 4 8 1 1 4 2 1 1 4 1 1 1 2 2 1XL 1

Platform Drivers seat, cpl Drivers seat, cpl Seat cover Step Cover Shock absorber Shock absorber Screw M20-2,5x100 8.8 Rubber strip List List Washer Blind rivet Hexagon head screw Steel plain washer Lock nut M8 Washer 8,4x16x1,5 Screw M8x20H 8.8 Steel plain washer Screw Washer Washer 21x36x6 Steel plain washer Seat switch Seat switch Lock nut M20-10 Plug Instruction book holder Wire Screw Grommet Grab handle Cover Screw M6-1x16 8,8 Washer 6,4x12x1,5 Edge trim Plug

Code

D D

D D

C C C C

C D D C

C D

L=2,400M L=0,210M With bayonet fitting.

With screws.

Option

SCA250D-5EN1

115

Dynapac Compaction Equipment AB Control panel 18487

116

SCA250D-5EN1

Dynapac Compaction Equipment AB Control panel Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

4700387720 4700391784 4700387227 4700387545 4700357855 4700904281 4700904653 4700513017 4700500007 4700791476 4700378335 4700902166 4700387226 4700500505 4700904230 4700500029

A)

L=0,190 m

SCA250D-5EN1

Rem Qty Description 1 1 1 1 2 4 3 2 1 1 1 A 1XL 1 2 4 4

Control panel holder Control panel Control panel cover Latch Bushing Washer 5,3x10x1 300HV Screw M5x16 A2-70 Screw M6x30H 10,9 Screw M5-0,8x22H 8,8 Nut M5 -8 Control panel column Edge trim Column cover Screw M8x20 8.8 Steel plain washer Hexagon head screw

Code

C C C

D

C

117

Dynapac Compaction Equipment AB Forward and reverse control 18489

118

SCA250D-5EN1

Dynapac Compaction Equipment AB Forward and reverse control Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 A)

Rem Qty Description

4700392899 4700392900 4700904556 4700508092 4700586003 4700904556 4700500021 4700904229 4700586003 4700377019 4700950382 4700416034 4700377024 4700377020 4700377021 4700926537 4700586001 4700947680

A

1 1 1 3 2 2 2 2 8 1 1 1 1 1 1 1 2 2 3

Forward and reverse control handle ( Page 120 ) Control bracket Control lever Washer 8,4x16x3,0 Screw Lock nut M8 Washer 8,4x16x3,0 Screw M8-1,25x25 8.8 Washer 8,4x16x1,5 Lock nut M8 Ball joint Ball stud M8 Ball joint Cable Forward/Reverse Clamp Spacer Screw M5-0,8x16H 8,8 Lock nut Screw M8-1,25x25 10.9

Code

C C

C

C

C

L=1900MM

SCA250D-5EN1

119

Dynapac Compaction Equipment AB Forward and reverse control handle 18071-2

120

SCA250D-5EN1

Dynapac Compaction Equipment AB Forward and reverse control handle Item Part No 1 2

Rem Qty Description

4700945407 4700940374 4700945729

3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 20 21 22 23 24 25 26 27 28 29 30 31 33 34 36 B)

4700377018 4700378759 4700391379 4700377009 4700570004 4700377015 4700391381 4700391382 4700377016 4700377010 4700903945 4700903946 4700508068 4700904563 4700927233 4700391383 4700903947 B 4700377011 4700377012 4700391380 4700377014 4700586019 4700391386

1 1 1 1 1 1 1 1 2 1 1 2 1 1 1 1 1 1 2 2 1 1 1 1 1 1 1 1 1 1 3 1 1 1 1 1 1 1

Lever, cpl .Handle kit, cpl ..Handle ...Push-button switch ...Cable ..Lockfluid ..Service information ..Washer ..Washer ..Connector, receptable ..Lock wedge ..Pin ..Rod ..Nut ..Protection plug ..Handle top .Lever .Bellows .Nut M6X1,00 -8 A2K .Set screw Bushing Potentiometer with cable Spring loaded pin Bracket Connector, plug Lock wedge Screw Lock nut M6 Nut Screw Pin Cable Spacer Friction washer Cam washer Spring washer Lock nut Spirol pin

Code

C C

Included in potentiometer Pos 17

SCA250D-5EN1

121

Dynapac Compaction Equipment AB Steering column 18258

122

SCA250D-5EN1

Dynapac Compaction Equipment AB Steering column Item Part No 1 2 3 4 5 6 7 8 9 10 11 A)

Rem Qty Description

4700372964 4700935614 4700935613 4700928830 4700500031 4700904230 4700355869 4700500048 4700904230 4700902123 A

1 1 1 1 2 2 2 2 2 1 1

Steering wheel, cpl .Turning knob .Cover Rubber washer Screw Steel plain washer Spacer sleeve Screw M10-1,5x20 8,8 Steel plain washer Steering column Bracket

Code D D

C

Included in control panel

SCA250D-5EN1

123

Dynapac Compaction Equipment AB Canopy Option 17483

124

SCA250D-5EN1

Dynapac Compaction Equipment AB Canopy Option Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

4700904340 4700373746 4700373747 4700373748 4700373749 4700373750 4700380963 4700380964 4700373906 4700500021 4700904229 4700586003 4700500153 4700904228 4700586002 4700373907 4700924791 4700500022

SCA250D-5EN1

Rem Qty Description 2 1 2 1 4 2 1 1 1 16 44 22 4 8 4 2 2 8

Pipe clamp Canopy profile Canopy profile Canopy profile Canopy rib Canopy anchor Canopy anchor Canopy anchor Roof Screw M8-1,25x25 8.8 Washer 8,4x16x1,5 Lock nut M8 Screw Washer 6,4x12x1,5 Lock nut M6 -8 Lath Cover plate Screw M8x30H 8.8 A2K

Code

C C

C

125

Dynapac Compaction Equipment AB Rops and fops 17526

126

SCA250D-5EN1

Dynapac Compaction Equipment AB Rops and fops Item Part No 1 2 3 4 5 6 7 8

21 22 23

4700372347 4700370803 4700624016 4700904619 4700904734 4700500239 4700904180 4700372409 4700370792 4700624016 4700372678 4700376489 4700376488 4700372489 4700904562 4700904234 4700381330 4700381353 4700904640 4700500022 4700381352 4700377677 4700379637 4700383225 4700904734 4700500100

A)

Option 3"

9 10 11 12 13 14 15 16 17 18 19 20

SCA250D-5EN1

Rem Qty Description

A

1 1 4 12 19 19 4 1 1 4 1 1 1 2 12 12 2 1 8 8 1 1 1 2 4 4

Rops .Sign, rops .Blind rivet Blind rivet Washer 8,4x26x4 Screw Plug Fops roof .Sign, fops .Blind rivet Absorbent Absorbent holder Absorbent holder Rubber seal Screw M24x160 10.9 Steel plain washer Holder Holder plate Washer 8,4x22x3 Screw M8x30H 8.8 A2K Holder plate Seat belt 2" Seat belt 3" Hook Washer 8,4x26x4 Screw

Code

C C C C

C

D

C

C B B

127

Dynapac Compaction Equipment AB Cab mounting 18429

128

SCA250D-5EN1

Dynapac Compaction Equipment AB Cab mounting Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 A) B) C) D)

Rem Qty Description

4700570005 4700377556 4700377518 4700927974 4700904433 4700372785 4700382582 4700372494 4700791218 4700904233 4700384759 4700500195 4700904231 4700904229 4700374606 4700372457 4700903290 4700901145 4700904230 4700500029 4700376255 4700374607 4700382397

D

A

B

C

4 1 1 13 13 1 2 N 4 4 4 16 16 4 2 4 4 4 6 6 1 2 2

Cab 392479 ( Page 130 ) Nut M8 Drivers seat, cpl Drivers seat, cpl Washer Blind rivet List List Rubber strip Screw M20x200 Steel plain washer Spacer Screw Steel plain washer Washer 8,4x16x1,5 Shock absorber Green Back-up ring Washer 21x36x6 Lock nut M20-10 Steel plain washer Hexagon head screw Step Shock absorber Yellow Spacer

Code C D

C

D

C D

L=2400 mm Rear Front Option

SCA250D-5EN1

129

Dynapac Compaction Equipment AB Cab 392479

130

SCA250D-5EN1

Dynapac Compaction Equipment AB Cab 392479 Item Part No 130 140 150 170 180

SCA250D-5EN1

Rem Qty Description

Code

Cab Screens ( Page 132 ) Cab Door, left side ( Page 136 ) Cab Interior rear mirror ( Page 138 ) Wiper arm with blade, front ( Page 140 ) Cab Electric ( Page 142 )

131

Dynapac Compaction Equipment AB Cab Screens 18431

132

SCA250D-5EN1

Dynapac Compaction Equipment AB Cab Screens Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 49 50 51 52 53 54 A) B) C) D) E) F)

Rem Qty Description

4700937380 4700908545 4700935278 4700935279 4700937381 4700908545 4700935280 4700935281 4700937382 4700908545 4700935282 4700935283 4700937383 4700908545 4700935284 4700935285 4700937384 4700908545 4700935286 4700935287 4700937385 4700908545 4700935288 4700935289 4700938290 4700908499 4700935271 4700935272 4700935273 4700935274 4700935275 4700935276 4700935277 4700935290 4700938291 4700908545 4700935291 4700379608 4700938292 4700908545 4700935293 4700938659 4700937389 4700908499 4700935271 4700935272 4700935295 4700935296 4700935297 4700935298 4700935299 4700935300 4700935301

D

C

A

E

B

B

F

1 XL 1 1 1 XL 1 1 1 1 1 1 1 XL 1 1 1 1 1 1 1 1 1 1 1 1 8 8 4 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 12 12 1 2 1 2 1 1 2

Screen Seal list List List Screen, left Seal list List List Screen Seal list List List Screen Seal list List List Screen Seal list List List Screen Seal list List List Screen Rubber list Washer, Flexible rubber Washer, Black Hinge Screw Rubber washer Bracket Lock pin Window lock, right Screen Seal list List Cover Screen Seal list List List Screen Rubber list Washer, Flexible rubber Washer, Black Screen holder Washer Bracket Bracket Bolt Shaft Lock

Code B

B

B

B

B

B

C

B

B

C

L=1100 mm L=1400 mm L=1900 mm L=2100 mm L=2700 mm L=3300 mm

SCA250D-5EN1

133

Dynapac Compaction Equipment AB Cab Screens 18431

134

SCA250D-5EN1

Dynapac Compaction Equipment AB Cab Screens Item Part No 55 56 59 100 101 102 119 120 121 124 G)

4700935302 4700935303 4700379236 4700908506 4700908507 4700908499 4700904229 4700500019 4700500053 4700903782

Rem Qty Description

G

1 1 1 1 1 1 16 14 2 2

Rod Ring Cover Holder Emergency hammer Rubber list Washer 8,4x16x1,5 Screw M8x16H 8.8 A2K Screw M8x20H 8.8 Screw M5x12

Code

C D C C C C

L=5 m

SCA250D-5EN1

135

Dynapac Compaction Equipment AB Cab Door, left side 16967-1

136

SCA250D-5EN1

Dynapac Compaction Equipment AB Cab Door, left side Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 38 A) B) C)

Rem Qty Description

4700940678 4700390927 4700935277 4700938017 4700908580 4700908581 4700908582 4700908583 4700935248 4700935249 4700935250 4700935247 4700935246 4700935244 4700935245 4700935268 4700937391 4700908545 4700935267 4700908545 4700937392 4700935270 4700935272 4700935271 4700935273 4700935274 4700935269 4700935266 4700937390 4700935265 4700908545 4700935276 4700935275 4700937393 4700908499 4700935253 4700938101 4700938018

A A

B

C

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 8 8 2 2 1 1 1 1 1 1 1 1 1 1 XL 1

Door, cpl .Door frame .Lock pin .Lock .Lock pin .Washer .Cover .Bracket .Turning mechanism .Retainer .Rod .Leader .Seal .Door handle with key .Seal .List .Screen .Seal list .List .Seal list .Screen .List .Washer, Black .Washer, Flexible rubber .Hinge .Screw .List .List .Screen .List .Seal list .Bracket .Rubber washer .Screen .Rubber list .Lock .Brush profile .Gas spring

Code

C

D

B B

B

C

L=1400 mm L=1100 mm L=2700 mm

SCA250D-5EN1

137

Dynapac Compaction Equipment AB Cab Interior rear mirror 16008

138

SCA250D-5EN1

Dynapac Compaction Equipment AB Cab Interior rear mirror Item Part No 1 2 3

4700908623 4700535005 4700908624

SCA250D-5EN1

Rem Qty Description 1 2 1

Bracket Screw M5x12 Rear mirror

Code C C

139

Dynapac Compaction Equipment AB Wiper arm with blade, front 16968

140

SCA250D-5EN1

Dynapac Compaction Equipment AB Wiper arm with blade, front Item Part No 1 2 3 4 5 6

4700905306 4700905305 4700905304 4700937871 4700908605 4700908617

SCA250D-5EN1

Rem Qty Description 1 1 1 1 1 1

Wiper blade Wiper arm Wiper motor Cover Symbol, wiper Switch

Code

D B

141

Dynapac Compaction Equipment AB Cab Electric 18780

142

SCA250D-5EN1

Dynapac Compaction Equipment AB Cab Electric Item Part No 1 2 3 4 5 6 7 8 9 10

4700937870 4700791378 4700500019 4700904229 4700938678 4700938679 4700935580 4700391219

SCA250D-5EN1

Rem Qty Description 1 2 12 12 1 1 2 1 1 1

Cable harness Grommet Screw M8x16H 8.8 A2K Washer 8,4x16x1,5 Cover Cover Bracket Gasket Sign, rops Sign, fops

Code

C

143

Dynapac Compaction Equipment AB Decals

144

SCA250D-5EN1

Dynapac Compaction Equipment AB Decals Item Part No 10 20

SCA250D-5EN1

Rem Qty Description

Code

Decals ( Page 146 ) Decals ( Page 148 )

145

Dynapac Compaction Equipment AB Decals 18498

146

SCA250D-5EN1

Dynapac Compaction Equipment AB Decals Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 17 18 19 20 25 26 27

Rem Qty Description

4700588176 4700904068 4700904723 4700377744 4700358090 4700902915 4700903459 4700904870 4700624005 4700903424 4700903423 4700991990 4700390900 4700903425 4700903422 4700272373 4700384159 4700908229 4700358881 4700382751 4700791642 47393691XX 47960787XX

SCA250D-5EN1

2 2 2 2 1 4 2 2 12 2 2 2 1 1 2 1 1 2 1 4 1 1 1

Decal "LIFT POINT" Decal "DYNAPAC" L=1770 mm Decal "MODEL CODE" Reflector, yellow Product plate ce Screw Decal "SAFETY" Lifting sign Blind rivet 3,2x6,1 Decal "HOT SURFACE" Decal "SAFETY" Decal "TYRE PRESSURE" 110-150kPA/16-21psi Decal "TYRE PRESSURE" 110kPA/16psi Decal "SAFETY MANUAL" Decal "SAFETY" Decal "HYDRAULIC OIL" Instructions Loading-Unloading Safety decal Pad lock Decal "TIE DOWN POINT" Decal "WARNING" Use of starting fluid prohib.

Instruction Handbook Product identif. decal "Dynapac"

Code

D

D D C D D

D D D D D D D

147

Dynapac Compaction Equipment AB Decals 18499

148

SCA250D-5EN1

Dynapac Compaction Equipment AB Decals Item Part No 1 2 3 4 5 6 7 8 9 11 12

4700904098 4700377742 4700991658 4700904068 4700377743 4700373364 4700373363 4700272372 4700904835 4700358881 4700348331

SCA250D-5EN1

Rem Qty Description 1 4 1 1 2 1 4 1 1 1 1

Decal "DYNAPAC" L=1350 mm Reflector, red Decal "FUEL" Decal "DYNAPAC" L=1770 mm Reflector, white Slip protection Slip protection Decal "HYDRAULIC OIL" Decal "BATTERY POWER" Pad lock Seat cover

Code D D D

D D D D

149

Dynapac Compaction Equipment AB Standard equipment

150

SCA250D-5EN1

Dynapac Compaction Equipment AB Standard equipment Item Part No 100

SCA250D-5EN1

Rem Qty Description

Code

Standard equipment ( Page 152 )

151

Dynapac Compaction Equipment AB Standard equipment 15639-1

152

SCA250D-5EN1

Dynapac Compaction Equipment AB Standard equipment Item Part No 1

2 3 4

4700358881

SCA250D-5EN1

Rem Qty Description 1 1 1 1 1 1 1 1

Documentation ISCA250D .Warranty registration card .Operation and maintenance ICA250 .Spare parts catalogue SCA250D .Instruction manual Cummins QSB 4.5 C .Operation / maintenance instruction I5CA250 .Safety manual RSAFE Pad lock

Code

D

153

Dynapac Compaction Equipment AB Optional equipment

154

SCA250D-5EN1

Dynapac Compaction Equipment AB Optional equipment Item Part No 10 40 85 86 90 100 230

4700383413

SCA250D-5EN1

Rem Qty Description

Code

Tool equipment ( Page 156 ) Pad shell ( Page 158 ) Air conditioner and heater, Simple cab ( Page 160 ) Condenser, cpl ( Page 164 ) Air conditioner and heater unit ( Page 166 ) Dy-Mic ( Page 168 ) Heater Simple cab ( Page 170 )

155

Dynapac Compaction Equipment AB Tool equipment 17111-1

156

SCA250D-5EN1

Dynapac Compaction Equipment AB Tool equipment Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

4700355890

4700902610 4700311016

4700901220 4700372837 4700372658 4700500021 4700904640

SCA250D-5EN1

Rem Qty Description 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 3 6

Tool set Cpl .Adjustable wrench .Screw driver .Belt pliers .Grease gun .Open end spanner 10mm .Open end spanner 13mm .Open end spanner 16mm .Open end spanner 18mm .Allen wrench 10mm .Allen wrench 12mm .Allen wrench 6mm .Allen wrench 8mm .Tool bag .Wheel nut key 30/32mm .Pressure gauge Tool box .Lock Screw M8-1,25x25 8.8 Washer 8,4x22x3

Code

D D D D D D D D D D D D B D

157

Dynapac Compaction Equipment AB Pad shell 18170

158

SCA250D-5EN1

Dynapac Compaction Equipment AB Pad shell Item Part No 1 3 4 5 6 7 8 9 10 11 12 13 14 A)

Rem Qty Description

4700382139 4700500286 4700586022 4700904233 4700500206 4700382572 4700570015 4700382571 A 4700376551 4700376622 4700904232 4700500165

2 8 12 16 4 4 4 1 1 18 18 36 36

Pad shell Screw M20-2,5x140 8.8 Lock nut M20-8 Steel plain washer Screw M20X60 Mounting screw Nut M20 Hexagon sleeve Cross beam Scraper tooth Holder Washer Screw M16-2,0x75 8,8

Code

C

C

See section "Frames".

SCA250D-5EN1

159

Dynapac Compaction Equipment AB Air conditioner and heater, Simple cab 18684

160

SCA250D-5EN1

Dynapac Compaction Equipment AB Air conditioner and heater, Simple cab Item Part No 1 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 A) B)

4700383413 4700384589 4700393954 4700921056 4700904228 4700500013 4700570004 4700393955 4700904229 4700500022 4700500053 4700346230 4700500023 4700313093 4700570005 4700904230 4700500192 4700904567 4700570006 4700390824 4700384875 4700384876 4700393405 4700393406 4700921044 4700384877 4700384878 4700384879 4700904165 4700393408 4700500048 4700313102 4700393647 4700390823 4700390529 4700904734 4700500180 4700792015 4700313068 4700925802 4700937737 4700937737 4700330330 4700391303 4700387466 4700394210 4700379275 4700586003 4700379285 4700379286 4700385443 4700938691 4700385442 4700908501 4700908502 4700908504

Rem Qty Description

1 1 2 2 1 1 1 18 10 2 3 3 1 3 2 1 1 1 1 1 1 1 1 1 4 1 3 1 1 1 1 1 1 2 2 1 1 1 A 1 B 1XL B 1XL 1 1 1 1 1 2 1 1 3 12 3 1 1 2

Air conditioner and heater unit ( Page 166 ) Condenser, cpl ( Page 164 ) Cover Holder Clamp Washer 6,4x12x1,5 Screw M6-1x16 8,8 Nut M6X1,00 -8 A2K Drying filter Washer 8,4x16x1,5 Screw M8x30H 8.8 A2K Screw M8x20H 8.8 Clamp Screw M8-1,25x40 8,8 Pipe clamp Nut M8 Steel plain washer Screw M10x80 Washer 10,5x28x6 HB305 Nut Cable harness Hose Hose Hose Hose Clamp O-ring O-ring O-ring Safety decal Toxic gases Heat protection Screw M10-1,5x20 8,8 Cable ties Holder Compressor Belt guard Washer 8,4x26x4 Screw Conduit Cable ties L=92 mm Cable ties L=142 mm V-belt Hose Hose Copper washer Hose connection Cable harness Cable harness Cable harness Lock nut M8 Panel Panel Ring Screw Air nozzle Filter frame Filter Handle

Code

C C

C C C C C C C C

C C C C D

C

C C

C

C D A D

See section "Engine installation".

L=3,600M

SCA250D-5EN1

161

Dynapac Compaction Equipment AB Air conditioner and heater, Simple cab 18684

162

SCA250D-5EN1

Dynapac Compaction Equipment AB Air conditioner and heater, Simple cab Item Part No 62 63 64 65 66 67 68 69 70 71 72

4700908503 4700904543 4700903852 4700345870 4700904039 4700313004 4700813434 4700387638 4700792248 4700945314 4700945315

SCA250D-5EN1

Rem Qty Description 2 10 10 1 1 2 1 1 5 2 3

O-ring Cable tie holder Screw ST4,2x13 Plug Fuse 50A Red High Hose clamp Reducer Hose connection Screw 4,2 X25 Guide ring Screw M8X100

Code C C C A C

163

Dynapac Compaction Equipment AB 4700383413 Condenser, cpl 18385

164

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700383413 Condenser, cpl Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 15 16 17

4700938597 4700938598 4700938599 4700938600 4700938601 4700938602 4700938603 4700938604 4700938605 4700938606 4700938607 4700287598 4700938608 4700938609 4700901832

SCA250D-5EN1

Rem Qty Description 1 1 1 2 1 1 3 12 1 3 1 2 1 1 4

Cover Cover Fan bracket Condensor bracket Resistor bracket Condensor Coil Fan Clip Pressure switch Resistor Cable harness Relay 12V-30A Grommet Grommet Screw

Code

D

B C B B A C C

165

Dynapac Compaction Equipment AB Air conditioner and heater unit 18681

166

SCA250D-5EN1

Dynapac Compaction Equipment AB Air conditioner and heater unit Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 A)

4700938625 4700938626 4700938627 4700384760 4700384177 4700938628 4700938629 4700938630 4700945174 4700945175 4700384761 4700939693 4700938645 4700938622 4700938619 4700938644 4700384897 4700945176 4700945177 4700938634 4700394176 4700938621 4700938635 4700384880 4700313003 4700384878 4700384927 4700938620 4700938636 4700385134 4700384881 4700945178 4700938638 4700938639 4700383414 4700384762 4700939413 4700287597 4700938643 4700379332 4700792187 4700541703 4700901767 4700792091 4700903741 4700901240 4700901699 4700500019 4700904229

Rem Qty Description

A A A A A A A A

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 2 2 1 2 2 2 3 2 2 1 1 1 1 1 1 2 1 1 1 2 4 2 1 2 1 1 5 5

Casing Cover Fan bracket Filter grill Holder Cover Cover Bracket Panel Cable harness Air filter element Heater control valve Bowden cable Switch Switch Cap Thermostat Cover plate Cover plate Knob Noise cover Rotary control Sleeve Wire clamp Hose clamp O-ring Grommet Knob Drain valve Lock washer Hose Panel overlay Fan Heater coil Evaporator Wire Star lock Relay Plug Holder Screw M5x14 Screw M6x16 Screw ST3,5x9,5 Black Fuse holder Fuse 20A Yellow Medium Connector Connector Screw M8x16H 8.8 A2K Washer 8,4x16x1,5

Code

B B C B

D

C D C C D C

C

D C

C

A B C

Only valid for simple cab

SCA250D-5EN1

167

Dynapac Compaction Equipment AB Dy-Mic 17823

168

SCA250D-5EN1

Dynapac Compaction Equipment AB Dy-Mic Item Part No 1 3 4 5 6 7 8 9 10 11 12 13 16 17 18 20 21 22

4700386390 4700508002 4700386391 4700921039 4700904415 4700386512 4700386533 4700930154 4700386392 4700386506 4700904228 4700500040 4700586002 4700909122 4700313102 4700313041 4700901224 4700386507 4700904281

SCA250D-5EN1

Rem Qty Description 1 4 1 4 4 1 1 3 1 1 4 4 2 1 N N 1 1 2

Communicator box Screw M6x16 Antenna Cpl Pipe clamp Screw Cable holder Cable harness Contact piece, NC Cable harness Antenna holder Washer 6,4x12x1,5 Screw M6-1x20 8,8 Lock nut M6 -8 Grommet Cable ties Cable ties Fuse 3A Antenna holder Washer 5,3x10x1 300HV

Code

C

B

C C

A C

169

Dynapac Compaction Equipment AB Heater Simple cab 18555

170

SCA250D-5EN1

Dynapac Compaction Equipment AB Heater Simple cab Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 A)

Rem Qty Description

4700379394 4700500019 4700904229 4700903741 4700921056 4700813434 4700330330 4700387638 4700391303 4700313004 4700921132 4700387466 4700394210 4700904039 4700313102 4700937737

1 6 6 2 1 1 1 1 1 4 2 1 1 1 N A 2XL

Heater box ( Page 172 ) Screw M8x16H 8.8 A2K Washer 8,4x16x1,5 Fuse 20A Yellow Medium Clamp Reducer Copper washer Hose connection Hose connection Hose clamp Clamp Cable harness Cable harness Fuse 50A Red High Cable ties Hose

Code C A C

C C

A

L=3600 mm

SCA250D-5EN1

171

Dynapac Compaction Equipment AB 4700379394 Heater box 18432

172

SCA250D-5EN1

Dynapac Compaction Equipment AB 4700379394 Heater box Item Part No 10 11 16 19 24 25 27 28 29 31 33 34

4700939693 4700938622 4700938621 4700313003 4700385134 4700384881 4700938638 4700938639 4700938645 4700384762 4700384761 4700287597

A)

L=200 mm

SCA250D-5EN1

Rem Qty Description

A

1 1 2 2 2 1 1 1 1 1 1 1

.Heater control valve .Switch .Rotary control .Hose clamp .Lock washer .Hose .Fan .Heater coil .Bowden cable .Wire .Air filter element .Relay

Code B D

C

D

173

SCA250D-5EN1

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number

Page

Part Number

Page

Part Number

Page

4700100040 4700116041 4700160105 4700160132 4700160358 4700162017 4700162018 4700167023 4700167032 4700192812 4700205027 4700212553 4700230277 4700230515 4700232097 4700232210 4700234218 4700234382 4700234388 4700234622 4700234626 4700234662 4700234843 4700234888 4700234919 4700238158 4700244054 4700246069 4700272372 4700272373 4700287597 4700287598 4700311016 4700313001 4700313002 4700313003 4700313004 4700313006 4700313010 4700313035 4700313041 4700313068 4700313075 4700313093 4700313094 4700313102

23 31 31 81 31 31 31 31 23 41 43 67 31,49 41 91 31 91 81 99 99 91 91 97 97 49 105 49 43 149 147 167,173 165 157 49 49 167,173 163,171 43 43 41 49,103,111,169 161 43 47,51,161 51 43,91,99,111,161 169,171 49 161,171 41 41,71 41,81 81,91 81 77 81 77 99 91 81,97 97 97

4700334558 4700335607 4700337042 4700337045 4700338304 4700340863 4700343159 4700343318 4700343322 4700343550 4700343744 4700343775 4700343801 4700345870 4700345871 4700345872 4700345873 4700345874 4700345875 4700346230 4700347119 4700347512 4700348213 4700348331 4700349435 4700349715 4700355869 4700355890 4700355983 4700356348 4700357138 4700357488 4700357643 4700357855 4700358033 4700358090 4700358388 4700358452 4700358881 4700359955 4700370229 4700370231 4700370792 4700370803 4700371366 4700371509 4700371767 4700371774 4700372087 4700372229 4700372235 4700372347 4700372409 4700372457 4700372489 4700372494 4700372513 4700372514 4700372575 4700372608 4700372658 4700372678

91 103 23 23 91,103 83 23 31 31 105 31 15 31 163 23 23 23 23 23 161 15 115 111 115,149 111 31 123 157 55 99 11 15 115 117 19 147 79 107 147,149,153 31 41 31 127 127 25 77,79 45 43 15 7,11 77 127 127 129 127 115,129 91 91 25 25 27,157 127

4700372709 4700372757 4700372772 4700372784 4700372785 4700372836 4700372837 4700372964 4700372987 4700373016 4700373017 4700373096 4700373140 4700373203 4700373204 4700373270 4700373309 4700373363 4700373364 4700373400 4700373421 4700373423 4700373424 4700373442 4700373443 4700373460 4700373574 4700373746 4700373747 4700373748 4700373749 4700373750 4700373891 4700373906 4700373907 4700373955 4700373956 4700373957 4700374028 4700374606 4700374607 4700374744 4700374797 4700374798 4700374799 4700374854 4700374900 4700375678 4700375681 4700376000 4700376252 4700376255 4700376488 4700376489 4700376551 4700376622 4700376652 4700376667 4700376819 4700376825 4700376826 4700376829

15 115 41 111 115,129 111 157 123 29,37 77,111 81 111 111 25 25 77,81 25 149 149 115 23 77 81 31 31 15,49 49 125 125 125 125 125 103 125 125 25 25 25 99 129 129 15 25 25 25 27 23 27 27 91,93 115 129 127 127 159 19,21,159 17 17 19,21 19 19 21

4700330171 4700330330 4700330331 4700330333 4700330383 4700334121 4700334122 4700334132 4700334135 4700334138 4700334196 4700334197 4700334205 4700334389 4700334524

NI 1

SCA250D-5EN1

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number 4700377009 4700377010 4700377011 4700377012 4700377014 4700377015 4700377016 4700377018 4700377019 4700377020 4700377021 4700377024 4700377071 4700377098 4700377518 4700377556 4700377677 4700377742 4700377743 4700377744 4700378335 4700378745 4700378759 4700379163 4700379164 4700379236 4700379275 4700379285 4700379286 4700379332 4700379394 4700379480 4700379481 4700379608 4700379621 4700379630 4700379636 4700379637 4700380018 4700380078 4700380109 4700380123 4700380145 4700380462 4700380727 4700380798 4700380963 4700380964 4700380993 4700381027 4700381330 4700381351 4700381352 4700381353 4700381413 4700381989 4700382129 4700382130 4700382131 4700382132 4700382139 NI 2 4700382165

Page

Part Number

Page

Part Number

Page

121 121 121 121 121 121 121 121 119 119 119 119 109 51 115,129 115,129 127 149 149 147 117 103 121 41 41 135 161 161 161 167 171,173 41 91 133 41 91 115 127 31 83 25 115 81,83 29,31,35 115 109 125 125 23 31 127 111 127 127 43 27 25 25 25 25 159 25

4700382335 4700382336 4700382382 4700382384 4700382387 4700382393 4700382397 4700382571 4700382572 4700382582 4700382751 4700383225 4700383413 4700383414 4700383452 4700383705 4700383783 4700383856 4700383955 4700383958 4700383974 4700383975 4700384048 4700384114 4700384159 4700384177 4700384498 4700384589 4700384759 4700384760 4700384761 4700384762 4700384875 4700384876 4700384877 4700384878 4700384879 4700384880 4700384881 4700384897 4700384927 4700385134 4700385152 4700385442 4700385443 4700385599 4700385691 4700386366 4700386390 4700386391 4700386392 4700386506 4700386507 4700386512 4700386533 4700386789 4700386853 4700386943 4700386966 4700387085 4700387129 4700387226

25 25 25 25 25 41 129 159 159 115,129 147 127 155,161,165 167 111 115 31 53,65 55 81,85 55 55 17 31 147 167 23 161 129 167 167,173 167,173 161 161 161 161,167 161 167 167,173 167 167 167,173 25 161 161 105 47 15 169 169 169 169 169 169 169 51 43 43 47 43 41 117

4700387227 4700387427 4700387466 4700387545 4700387638 4700387683 4700387720 4700388089 4700388145 4700388146 4700388210 4700388855 4700389063 4700389577 4700389600 4700389662 4700390529 4700390587 4700390588 4700390589 4700390590 4700390591 4700390759 4700390760 4700390762 4700390823 4700390824 4700390897 4700390900 4700390927 4700391194 4700391206 4700391219 4700391303 4700391379 4700391380 4700391381 4700391382 4700391383 4700391386 4700391663 4700391784 4700392002 4700392100 4700392103 4700392105 4700392170 4700392220 4700392283 4700392284 4700392294 4700392295 4700392296 4700392297 4700392313 4700392394 4700392714 4700392715 4700392741 4700392742 4700392747 4700392773

117 103 161,171 117 163,171 105 117 31 55 55 111 41 31 107 47 103 161 55 55 55 55 55 55 55 55 161 161 31 147 137 31 31 143 161,171 121 121 121 121 121 121 41 117 91,95 95 95 95 43 43 41 41 51 51 51 43 43 115 43 43 47 47 51 107

SCA250D-5EN1

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number

Page

Part Number

Page

Part Number

Page

4700392810 4700392822 4700392875 4700392899 4700392900 4700392937 4700392996 4700393002 4700393021 4700393022 4700393045 4700393052 4700393058 4700393059 4700393062 4700393081 4700393086 4700393089 4700393096 4700393097 4700393276 4700393277 4700393278 4700393279 4700393335 4700393361 4700393362 4700393405 4700393406 4700393408 4700393543 4700393647 4700393954 4700393955 4700394061 4700394176 4700394210 4700394680 4700394686 4700394687 4700394905 4700395119 4700396030 4700396142 4700396185 4700396309 4700396968 4700397126 4700397128 4700397130 4700416034 4700482056 4700482399 4700482474 4700483031 4700483049 4700483109 4700483188 4700483190 4700483231 4700483280 4700483286

47 31 115 119 119 103 105 53,55,57 41 41 47 15 47 47 43 43 47 47 41 47 31 31 31 31 55 43 43 161 161 161 111 161 161 161 105 167 161,171 47 11,47 11,47 91 27 31 31 51 53,73 105 15 103 15 119 97 97 97 81 91 91 99 77 91 91 81

4700483397 4700483445 4700483497 4700483498 4700483910 4700483911 4700483995 4700483996 4700484005 4700500004 4700500006 4700500007 4700500012 4700500013

81 99 91 91 81 81 77 77 99 103 49 117 43 27,49,103,107 115,161 23,27,45,99 25,31,43,47,91 103,135,143,167 171 25,107,119,125 157 51,125,127,161 91,161 43,103 25 25,43,81 15,31,49,77,115 117,129 25,81 123 77,81 23 27,45,47,109,169 15 91 47,91 41 123,161 19 31,103 43,51,99,103,105 109,111,115,135 161 19 103 41 43,103,105 19,21 111 31 27 127 77 17 25 125 41 51 31,159 161 103 15

4700500192 4700500194 4700500195 4700500196 4700500206 4700500210 4700500239 4700500286 4700500287 4700500505 4700502019 4700502078 4700502132 4700508002 4700508029 4700508068 4700508079 4700508092 4700509025 4700513017 4700527002 4700535005 4700535011 4700541526 4700541702 4700541703 4700570004

161 31,41,81,111 115,129 31 159 115 127 159 23 25,117 81 81 77 169 41,91 121 41 119 41 117 31 139 25 111 107 167 27,103,105,121 161 25,45,103,129 161 161 31 159 103,119 103,105,125,169 47,103,107,115 119,125,161 19,21,41,121 159 147 95 147 127 15,95 49 31 55 55 103 103,105 105 129 115 77 143 41 117 103 103 103 49 55

4700500018 4700500019

4700500021 4700500022 4700500023 4700500025 4700500026 4700500028 4700500029 4700500030 4700500031 4700500032 4700500037 4700500040 4700500043 4700500044 4700500046 4700500047 4700500048 4700500049 4700500051 4700500053

4700500056 4700500060 4700500070 4700500075 4700500076 4700500079 4700500082 4700500088 4700500100 4700500101 4700500102 4700500133 4700500153 4700500154 4700500163 4700500165 4700500180 4700500184 4700500188

4700570005 4700570006 4700570007 4700570015 4700586001 4700586002 4700586003 4700586019 4700586022 4700588176 4700600016 4700624005 4700624016 4700635061 4700747282 4700791156 4700791175 4700791176 4700791183 4700791185 4700791211 4700791218 4700791226 4700791230 4700791378 4700791468 4700791476 4700791477 4700791479 4700791503 4700791513 4700791573

NI 3

SCA250D-5EN1

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number 4700791578 4700791582 4700791583 4700791584 4700791585 4700791587 4700791588 4700791597 4700791642 4700791657 4700791723 4700791733 4700791739 4700791927 4700791948 4700792015 4700792081 4700792083 4700792091 4700792187 4700792237 4700792248 4700792251 4700792261 4700792275 4700792315 4700792317 4700792318 4700792319 4700792413 4700792414 4700792432 4700792435 4700792461 4700792462 4700792463 4700792464 4700792526 4700792547 4700792682 4700792808 4700792814 4700801187 4700813391 4700813434 4700813444 4700813462 4700813500 4700813791 4700813822 4700900256 4700900430 4700900552 4700900775 4700900957 4700900966 4700901121 4700901145 4700901155 4700901157 4700901190 NI 4 4700901218

Page

Part Number

Page

Part Number

Page

105 105 105 105 105 105 105 45 147 105 105 105 105 31 21 161 41 105 167 167 91 163 49 55 41 105 105 105 105 105 105 105 105 105 105 105 33 49 49 103 49 49 31 15 103,163,171 91 103 91 47 79 73 81 97 31 61,69 61,69 49 55,115,129 81 81 111 55

4700901220 4700901224 4700901225 4700901227 4700901228 4700901230 4700901240 4700901385 4700901386 4700901387 4700901389 4700901390 4700901443 4700901444 4700901453 4700901465 4700901467 4700901699 4700901742 4700901767 4700901832 4700901834 4700901987 4700902123 4700902125 4700902166

157 109,169 105 103,105 105 103 167 83 83 83 83 83 55 55 79 79 79 167 89 25,103,105,167 165 65,73 63,71 123 99 25,43,45,51,115 117 115 25,103 27,41,43,47,109 111 25,45 111 103 111 157 85 89 83 85 89 85 89 89 85 89 89 87 89 85 93 93 25,27 147 15 79 35 79 111,115 31 77,115,129 147

4700903423 4700903424 4700903425 4700903457 4700903459 4700903570 4700903571 4700903631 4700903632 4700903640 4700903641 4700903714 4700903727 4700903732 4700903741 4700903760 4700903768 4700903782 4700903792 4700903852 4700903877 4700903919 4700903945 4700903946 4700903947 4700903956 4700903985 4700904005 4700904018 4700904020 4700904036 4700904038 4700904039 4700904058 4700904068 4700904076 4700904098 4700904165 4700904177 4700904180 4700904206 4700904213 4700904228

147 147 147 93 147 79 79 103 103 103 103 43 115 25 167,171 103 103 105,135 17,33 163 81 31 121 121 121 105 55 77,91 103 103 103 103 163,171 77 147,149 43,51 149 161 31 127 111 19 27,41,43,47,49 103,107,109,115 125,161,169 15,23,31,41,43 47,51,81,91,99 103,105,107,109 111,115,119,125 129,135,143,161 167,171 15,27,31,43,49 77,81,115,117 123,129,161 19,23,27,31,47 51,81,91,103,111 115,129 19,21,31,41,81 159 31,41,55,115,129 159 17,33,127

4700902203 4700902284 4700902285 4700902286 4700902288 4700902468 4700902496 4700902610 4700902624 4700902625 4700902655 4700902687 4700902693 4700902695 4700902697 4700902723 4700902724 4700902735 4700902783 4700902792 4700902811 4700902856 4700902861 4700902862 4700902866 4700902915 4700902919 4700902928 4700902944 4700903053 4700903192 4700903281 4700903290 4700903422

4700904229

4700904230

4700904231

4700904232 4700904233 4700904234

SCA250D-5EN1

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number

Page

Part Number

Page

Part Number

Page

4700904241 4700904281 4700904292 4700904340 4700904352 4700904415 4700904433 4700904486 4700904543 4700904551 4700904556 4700904557 4700904558 4700904562 4700904563 4700904567 4700904619 4700904623 4700904637 4700904638 4700904640 4700904653 4700904695 4700904703 4700904723 4700904734 4700904737 4700904767 4700904773 4700904774 4700904780 4700904781 4700904835 4700904870 4700904874 4700904910 4700904984 4700904985 4700905304 4700905305 4700905306 4700908136 4700908229 4700908367 4700908375 4700908383 4700908384 4700908399 4700908432 4700908450 4700908452 4700908485 4700908499 4700908501 4700908502 4700908503 4700908504 4700908506 4700908507 4700908545 4700908580 4700908581

25 49,103,117,169 41 125 43 169 115,129 43 163 43 25,103,119 15,25 17 127 121 27,161 127 45 41,91 41,77 25,43,51,127,157 117 49 21,41 147 127,161 31 81 81 81 103 81 149 147 25 109 49 49 141 141 141 45,99 147 87 89 85 89 47 79 9 47 67 133,135,137 161 161 161 161 135 135 133,137 137 137

4700908582 4700908583 4700908605 4700908617 4700908623 4700908624 4700908773 4700908780 4700909122 4700909252 4700909253 4700909255 4700909469 4700909514 4700909544 4700909567 4700909568 4700909569 4700909570 4700909572 4700909574 4700909576 4700909580 4700909581 4700909582 4700909583 4700909584 4700909586 4700909596 4700909607 4700909609 4700909616 4700909618 4700909619 4700909622 4700909624 4700909626 4700909630 4700910161 4700910995 4700911620 4700921028 4700921039 4700921044 4700921056 4700921072 4700921084 4700921132 4700923087 4700923342 4700923384 4700924791 4700925208 4700925629 4700925802 4700926214 4700926354 4700926356 4700926537 4700926658 4700926736 4700926781

137 137 141 141 139 139 79 93 169 79 79 79 85,89 85,89 61,69 67 67 67 67 67 67 67 67 67 65 65 65,73 71 69,71 69 69 61,69 61,69 61,69 61,69 61,69 61,69 57 91 23 93 41 107,169 161 161,171 103 49 171 79 67 77 125 23 27 161 23 59 59 119 79 31 63,71

4700926786 4700926810 4700926847 4700926985 4700927233 4700927278 4700927350 4700927358 4700927637 4700927974 4700928231 4700928830 4700929013 4700929014 4700929023 4700929123 4700929217 4700929226 4700929447 4700929612 4700929617 4700929625 4700929626 4700929628 4700929629 4700929630 4700929631 4700929638 4700929644 4700929648 4700929712 4700930151 4700930154 4700935158 4700935164 4700935172 4700935192 4700935212 4700935219 4700935244 4700935245 4700935246 4700935247 4700935248 4700935249 4700935250 4700935253 4700935265 4700935266 4700935267 4700935268 4700935269 4700935270 4700935271 4700935272 4700935273 4700935274 4700935275 4700935276 4700935277 4700935278 4700935279

59 69 61,69 45 121 89 83 85 25 115,129 33 123 93 93 103 91 55 81 31 61,63,71 61,69 67 67 67 67 67 67 67 67 57,65,73 57 111 169 85 87 89 85 89 85 137 137 137 137 137 137 137 137 137 137 137 137 137 137 133,137 133,137 133,137 133,137 133,137 133,137 133,137 133 133

NI 5

SCA250D-5EN1

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number 4700935280 4700935281 4700935282 4700935283 4700935284 4700935285 4700935286 4700935287 4700935288 4700935289 4700935290 4700935291 4700935293 4700935295 4700935296 4700935297 4700935298 4700935299 4700935300 4700935301 4700935302 4700935303 4700935380 4700935394 4700935395 4700935398 4700935399 4700935400 4700935401 4700935402 4700935403 4700935404 4700935413 4700935414 4700935415 4700935421 4700935429 4700935468 4700935580 4700935613 4700935614 4700935619 4700935621 4700935622 4700935623 4700935624 4700935625 4700935626 4700935629 4700935630 4700935631 4700935853 4700935859 4700935860 4700935861 4700935862 4700935863 4700935864 4700935865 4700935866 4700935867 NI 6 4700935868

Page

Part Number

Page

Part Number

Page

133 133 133 133 133 133 133 133 133 133 133 133 133 133 133 133 133 133 133 133 133 135 37 35,37 35,37 37 37 37 37 37 37 37 35,37 35,37 37 37 93 93 143 123 123 79 79 79 79 79 79 79 79 79 79 79 35,37 37 37 35,37 37 37 35,37 35,37 35,37 35,37

4700935869 4700935870 4700935871 4700935872 4700935873 4700935874 4700935875 4700935876 4700935877 4700935878 4700935879 4700935880 4700935881 4700935882 4700935883 4700936035 4700936036 4700936053 4700936054 4700936055 4700936056 4700936307 4700936308 4700936313 4700936340 4700936370 4700936393 4700936394 4700936613 4700936614 4700936621 4700936648 4700936673 4700936674 4700936686 4700936803 4700937167 4700937168 4700937170 4700937171 4700937172 4700937173 4700937174 4700937175 4700937176 4700937180 4700937181 4700937182 4700937183 4700937184 4700937185 4700937186 4700937187 4700937188 4700937189 4700937190 4700937195 4700937198 4700937199 4700937200 4700937201 4700937202

37 35,37 37 37 37 35,37 35,37 35,37 35,37 37 37 37 35,37 35,37 35,37 59 59 59 59 59 59 85 85 89 85 89 85 89 89 89 87 85 89 89 85 85 85,87 85,89 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 87 85 85 85 85 85 89

4700937203 4700937204 4700937205 4700937206 4700937240 4700937256 4700937257 4700937258 4700937259 4700937260 4700937261 4700937264 4700937265 4700937274 4700937275 4700937277 4700937278 4700937279 4700937280 4700937283 4700937380 4700937381 4700937382 4700937383 4700937384 4700937385 4700937389 4700937390 4700937391 4700937392 4700937393 4700937531 4700937674 4700937737 4700937870 4700937871 4700937985 4700937986 4700937993 4700937995 4700937998 4700937999 4700938001 4700938003 4700938004 4700938005 4700938014 4700938017 4700938018 4700938040 4700938041 4700938042 4700938062 4700938063 4700938064 4700938065 4700938066 4700938067 4700938068 4700938069 4700938070 4700938071

89 89 89 89 89 83 83 83 83 83 83 83 83 79 79 79 79 79 79 79 133 133 133 133 133 133 133 137 137 137 137 85 83 161,171 143 141 85 85 83 83 85 85 85 85 85 85 85 137 137 83 83 83 93 93 93 93 93 93 93 93 93 93

SCA250D-5EN1

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number

Page

Part Number

Page

Part Number

Page

4700938072 4700938073 4700938074 4700938075 4700938101 4700938290 4700938291 4700938292 4700938296 4700938597 4700938598 4700938599 4700938600 4700938601 4700938602 4700938603 4700938604 4700938605 4700938606 4700938607 4700938608 4700938609 4700938619 4700938620 4700938621 4700938622 4700938625 4700938626 4700938627 4700938628 4700938629 4700938630 4700938634 4700938635 4700938636 4700938638 4700938639 4700938643 4700938644 4700938645 4700938659 4700938678 4700938679 4700938691 4700938983 4700938984 4700938985 4700938988 4700938989 4700938991 4700938993 4700939003 4700939009 4700939010 4700939014 4700939015 4700939016 4700939017 4700939019 4700939026 4700939035 4700939036

93 93 93 93 137 133 133 133 69 165 165 165 165 165 165 165 165 165 165 165 165 165 167 167 167,173 167,173 167 167 167 167 167 167 167 167 167 167,173 167,173 167 167 167,173 133 143 143 161 61,69 61,69 71 59 59,67 59 59 63,71 63 63 63 63,71 63,71 63,71 63,71 61,69 61,69 61,69

4700939167 4700939173 4700939255 4700939256 4700939257 4700939258 4700939259 4700939260 4700939261 4700939263 4700939264 4700939265 4700939266 4700939267 4700939268 4700939269 4700939270 4700939271 4700939272 4700939273 4700939275 4700939276 4700939277 4700939278 4700939280 4700939281 4700939282 4700939283 4700939284 4700939285 4700939286 4700939287 4700939348 4700939349 4700939350 4700939351 4700939413 4700939693 4700940308 4700940374 4700940451 4700940505 4700940507 4700940675 4700940678 4700945140 4700945145 4700945147 4700945174 4700945175 4700945176 4700945177 4700945178 4700945314 4700945315 4700945407 4700945538 4700945581 4700945624 4700945729 4700945730 4700945731

85 85 69 69 67 67 67 67 67 71 71 71 71 63,71 71 71 63,71 63,71 63,71 63,71 71 71 71 63,71 61,69 69 61,69 69 69 61,69 69 69 61,63 71 61,63 71 167 167,173 87 121 105 85 85 85 137 41 7,9,11,41 7,9,11,49 167 167 167 167 167 163 163 121 49 35 7,9,11,41 121 41 41

4700945760 4700945775 4700945776 4700945777 4700945790 4700945845 4700945846 4700947680 4700950368 4700950382 4700950555 4700950556 4700950557 4700950558 4700950559 4700960727 4700991658 4700991990 4700999011 4700999027 47393691XX 47960787XX 4812110560 4812110773 4812110818 4812110860 4812155075 4812155659 4812155660 4812155661 4812155765 4812155788

11 85 85 49 5,9 5,7 5,11 119 79 119 73 57 63 61 57 103 149 147 107 105 147 147 103 27 103 31 115 43 43 43 89 35

NI 7
