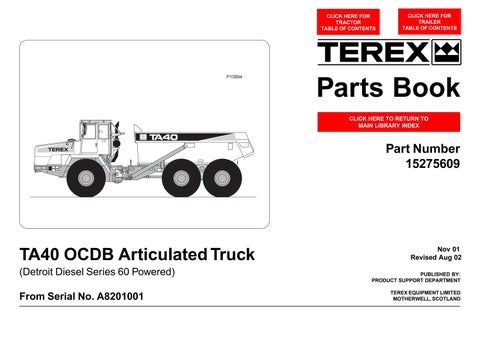

Parts Book CLICK HERE TO RETURN TO MAIN LIBRARY INDEX

Part Number 15275609

TA40 OCDB Articulated Truck (Detroit Diesel Series 60 Powered) From Serial No. A8201001

Nov 01 Revised Aug 02 PUBLISHED BY: PRODUCT SUPPORT DEPARTMENT TEREX EQUIPMENT LIMITED MOTHERWELL, SCOTLAND

THIS PAGE IS INTENTIONALLY LEFT BLANK

WARRANTY ON PARTS AND ATTACHMENTS Terex Equipment Limited warrants that for a period of six months after sale of new Terex replacement parts or attachments by an authorised Terex dealer it will repair, or at its option, replace any defective or malfunctioning part or attachment. This warranty covers only malfunctions resulting from defects in material or workmanship.

This warranty does not cover malfunctions resulting from negligence, alteration, accident or overloading; use for a purpose for which the part or attachment is not designed or approved by Terex; loss of time, inconvenience, loss of use of the vehicle or other consequential damages; or labour for removal or reinstallation of defective or malfunctioning parts or attachments.

Repairs or replacements qualifying under this warranty will be performed by any authorised Terex dealer within a reasonable time following delivery of the malfunctioning part or attachment to the dealer's place of business.

Defective or malfunctioning parts or attachments must be delivered to an authorised Terex dealer's place of business during regular business hours for warranty repairs or replacements. The dealer must be furnished with the purchaser's copy of the sales slip or repair order to validate date of purchase. * * * * *

SOLE WARRANTY This is the only express warranty applicable to new Terex parts and attachments sold by Terex dealers and Terex neither assumes nor authorises anyone to assume for it any other obligation or liability in connection with such parts or attachments.

THIS PAGE IS INTENTIONALLY LEFT BLANK

INSTRUCTIONS FOR USE OF TEREX PARTS BOOK This Parts Book is divided into Major Sections which cover components corresponding to specific areas of the machine.

Printed at the top left hand corner of each Parts Page is an Index Code which includes three numbers - the first of these relates to a Major Section, the second indicates a Sub-section within a Major Section and the last the model PLI number. Certain Major Sections may not apply to the particular model covered in this Parts Book and, consequently, will be omitted.

An illustrated Index page shows all the Major Component Section numbers included in the book. For example SECTION 100 - CHASSIS

SECTION 140 - FRONT AXLE GROUP

SECTION 230 - BODY HOIST SYSTEM etc.

Major Component Sections are listed in the 'Table Of Contents' pages together with Sub-section headings.

For example to locate the serviceable items of a Steering Cylinder 1. The Table of Contents shows the steering components to be in Major Section 220.

2. The steering cylinder is listed in Major Section 220, Sub-section 0120 3. Select the Parts Page Code that applies to the unit Serial number for which parts are needed and locate the Page with reference number.

EXAMPLE - 220-0120.

SERIAL NUMBERS - Each Parts Book covers a particular range of unit Serial Numbers.

It is important that unit Serial Numbers are quoted on all orders for Parts.

PARTS LISTS - Parts Forms usually consist of detailed parts information listed on one page together with a parts illustration on the opposite page. The parts list is printed in the order of the reference numbers shown on the parts illustration. The first column lists Note Letters; the second lists the reference numbers; the third shows quantity required and the fourth gives the parts descriptions. Parts which are part of an assembly have their descriptions indented beneath the assembly description.

ILLUSTRATIONS - These show typical assemblies and individual piece parts.They are intended for general reference only and may not always show exact details of parts. Parts are identified on each illustration with an item number. Note the item number of the part required and locate it in the parts list. The part number opposite the item number is the part to order.

INDENTATIONS - Parts which are indented under another part are Sub-groups of a Major Assembly or Sub-assembly. Parts which are not indented are major assemblies or individual component parts which do not belong to a major assembly.

EXAMPLE -

1 2 3 4 5 6

9052564 9058512 9024169 9058132 9058135 9072162

Pump Assy. . Shaft . Ring . Control Assy. . . Spring Gasket

- If you order Item 1, you will receive Items 1 - 5.

- If you order Item 4, you will receive Items 4 and 5.

- If you order Item 6, you will receive only Item 6.

NOTES - Whenever there is an alphabetical symbol to the left of the item number, refer to the corresponding note at the bottom of the form for information regarding ordering or application of the particular part number(s) noted.

ABBREVIATIONS - The abbreviations in this book have the following meanings Amps .................... Amperes As R ..................... As Required Assy ..................... Assembly Brkt ....................... Bracket Cad-Pltd ............... Cadium Plated Comm .................. Commencement of production E.S.N .................... Elastic Stop Nut Ftgs ...................... Fittings

Hsg ...................... Housing I.D ........................ Inside Diameter L.H ....................... Left Hand L.W ...................... Lockwasher Lg ......................... Long Lkg ....................... Linkage Mtg ....................... Mounting N.C ....................... Note Code

N.I ........................ Not Illustrated N.L.A .................... No Longer Available N.S.S .................... Not Sold Separately O.D ....................... Outside Diameter Pr ......................... Pair P.T.O .................... Power-Take-Off R.H ....................... Right Hand Std ........................ Standard

Articulated Truck

TRACTOR SECTIONS

CHASSIS

100

COOLING SYSTEM

210

ENGINE

110

STEERING SYSTEM

220

TRANSMISSION

120

BODY SYSTEM

230

DRIVELINE

130

BRAKING SYSTEM

250

FRONT AXLE

140

CAB

260

BRAKE PARTS

165

DECALS

290

SUSPENSION SYSTEM

180

ELECTRICAL SYSTEM

190

FUEL SYSTEM

200

TABLE OF CONTENTS FOR MODEL TA40

FROM SERIAL NO. A8201001

SECT-PAGE-PLI DESCRIPTION

SECT-PAGE-PLI DESCRIPTION

SECTION 100 CHASSIS 100-0010-8211 CHASSIS 100-0040-8211 HOOD AND MOUNTING 100-0070-8211 FENDERS AND MOUNTING

SECTION 140 140-0010-8211 140-0020-8211 140-0040-8211 140-0060-8211

SECTION 110 110-0030-8211 110-0050-8211 110-0060-8211 110-0070-8211

ENGINE ENGINE AND MOUNTING AIR CLEANER AIR CLEANER PIPES AND HOSES EXHAUST AND MOUNTING

SECTION 120 120-0010-8211 120-0020-8211 120-0050-8211 120-0070-8211 120-0100-8211 120-0110-8211 120-0220-8211 120-0390-8211 120-0400-8211 120-0410-8211 120-0430-8211 120-0440-8211 120-0450-8211 120-0460-8211 120-0470-8211 120-0480-8211 120-0490-8211 120-0491-8211 120-0500-8211 120-0510-8211 120-0515-8211 120-0520-8211 120-0530-8211 120-0540-8211 120-0550-8211

TRANSMISSION TRANSMISSION MOUNTING TRANSMISSION BREAKDOWN CONTROL VALVE SHIFT CONTROL FILTER OIL LINES-TRANSMISSION OIL PUMP TORQUE CONVERTER LUBRICATION PIPES INDUCTIVE TRANSMITTER ELECTRIC SHIFT CONTROL VALVE GEARSHIFT GEARBOX HOUSING CLUTCH ASSEMBLY KV+K1 CLUTCH ASSEMBLY KR+K2 CLUTCH ASSEMBLY K3+K4 RETARDER RETARDER OIL PIPES PTO MAIN HYDRAULIC PUMP POWER TAKE-OFF EMERGENCY STEERING PUMP INPUT-DRIVE ASSEMBLY LAYSHAFT GEARING DIFFERENTIAL AXLE DISCONNECT

SECTION 130 DRIVELINE 130-0010-8211 FRONT DRIVELINE

28/01/02

FRONT AXLE AXLE COMPLETE-FRONT AXLE GROUP-FRONT WHEEL, RIM AND TYRE-FRONT DIFFERENTIAL-FRONT

SECTION 165 BRAKE PARTS 165-0015-8211 BRAKE ASSY-OCDB(ARTICS) SECTION 180 SUSPENSION SYSTEM 180-0020-8211 FRONT SUSPENSION SECTION 190 ELECTRICAL SYSTEM 190-0010-8211 TERMINALS 190-0011-8211 CONNECTORS 190-0030-8211 CABLES/HARNESSES-CAB 190-0040-8211 CABLES/HARNESSES-CHASS/ENG 190-0070-8211 BATTERY AND CABLES 190-0080-8211 BATTERY MOUNTING 190-0100-8211 ELECTRICAL LIGHTING SYSTEM 190-0110-8211 ALTERNATOR 190-0120-8211 STARTER MOTOR 190-0170-8211 FLOODLAMP/SPOTLIGHT/WORK LIGHT 190-0270-8211 SWITCHES AND SENSORS 190-0300-8211 RADIO CASSETTE AND SPEAKERS 190-0310-8211 ELECTRICAL HORN SECTION 200 FUEL SYSTEM 200-0010-8211 FUEL TANK AND MOUNTING 200-0040-8211 FUEL LINES 200-0050-8211 ACCELERATOR LINKAGE SECTION 210 COOLING SYSTEM 210-0010-8211 RADIATOR ASSEMBLY 210-0020-8211 RADIATOR MOUNTING 210-0025-8211 RADIATOR FAN MOTOR-HYD LINES 210-0030-8211 RADIATOR PIPING 210-0040-8211 RADIATOR HEADER TANK AND HOSES 210-0045-8211 LOW TEMPERATURE UNLOADER VALVE 210-0050-8211 OIL COOLER-DISC BRAKES

R1 01/02 R1 01/02

R1 01/02

R1 01/02 R1 01/02

R1 01/02

R1 01/02 R1 01/02

TABLE OF CONTENTS FOR MODEL TA40

FROM SERIAL NO. A8201001

SECT-PAGE-PLI DESCRIPTION SECTION 210 COOLING SYSTEM 210-0052-8211 OIL COOLING LINES-DISC BRAKES 210-0060-8211 OIL COOLER AND PIPING-TRANS 210-0065-8211 OIL COOLER 210-0100-8211 OIL COOLER AND LINES-HYDRAULIC SECTION 220 220-0010-8211 220-0050-8211 220-0090-8211 220-0100-8211 220-0120-8211 220-0140-8211 220-0230-8211

STEERING SYSTEM STEERING LINES PUMP-STEERING STEERING VALVE FLOW AMPLIFIER VALVE STEERING CYLINDER EMERGENCY STEERING VALVE STEERING COLUMN MOUNTING

SECTION 230 230-0020-8211 230-0021-8211 230-0040-8211 230-0060-8211 230-0081-8211 230-0121-8211

BODY SYSTEM LINES AND FITTINGS-BODY HOIST SERVO CONTROL LINES-BODY TANK AND MOUNTING-BODY HOIST CONTROL VALVE-BODY HOIST JOYSTICK-BODY CONTROL PILOT SUPPLY VALVE

SECTION 250 BRAKING SYSTEM 250-0020-8211 BRAKE LINES-HYDRAULIC 250-0025-8211 BRAKE COOLANT TANK ASSEMBLY 250-0040-8211 BRAKE PUMP 250-0045-8211 MOTOR/TRIPLE PUMP ASSY 250-0050-8211 BRAKE MANIFOLD/PAS VALVE 250-0060-8211 BRAKE ACCUMULATOR 250-0065-8211 TWO SPEED CONTROL VALVE 250-0070-8211 TREADLE VALVE 250-0075-8211 PRIORITY UNLOADER VALVE 250-0090-8211 DIRECTIONAL CONTROL VALVE 250-0120-8211 RELIEF VALVE-BRAKES SECTION 260 CAB 260-0010-8211 CAB ASSEMBLY 260-0015-8211 CAB MOUNTING 260-0030-8211 CAB DOOR-LEFT HAND 260-0080-8211 SWITCHES AND INSTRUMENTS

SECT-PAGE-PLI DESCRIPTION

R1 01/02

SECTION 260 260-0090-8211 260-0110-8211 260-0130-8211 260-0140-8211 260-0145-8211 260-0190-8211

CAB SEAT-DRIVER SEAT-PASSENGER AIR CONDITIONER/HEATER HEATER LINES AND WIRING AIR CONDITIONER LINES WINDSCREEN WASHER

SECTION 290 DECALS 290-0010-8211 DECALS-ENGLISH

R1 01/02

R1 01/02

R1 01/02

28/01/02

100-0010-8211 CHASSIS FROM SERIAL NO. A8201001

DRAWING NO. P10839

P10839

1

100-0010-8211 CHASSIS FROM SERIAL NO. A8201001

NC REF QTY 001 001

PART NO. DESCRIPTION 15310725 FRAME ASSY-COMPLETE

SER.NO. FROM

SER.NO. TO

100-0040-8211 HOOD AND MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P10887 P10887

17

18

24 41

19

16 15

1

52

20 56

21 23

16

42 53 55 54

43 44 45 14

22 4

3 25

30

2

31

2

5 12,13

10 11 9

50 49 51

6

36 37

8

HOOD

46

34 28

35

9 27

26

8

7

32

33

35 29

40 39 38

36

48 34 47

37

49 50

FRAME

100-0040-8211 HOOD AND MOUNTING FROM SERIAL NO. A8201001

NC REF QTY

A

A A

001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

001 001 015 015 003 006 001 002 002 006 006 001 001 001 002 002 002 002 004 002 002 001 001 001 004 002 004 002 001 012 012 002 002 004 004 004 004 002 002 002

PART NO. DESCRIPTION 15307426 15306138 06351240 01967343 15309253 15307237 NSS 15311207 15309043 06351230 07161230 15313188 15313189 15306805 06351050 06471001 06351030 07151020 15244714 15307804 09073839 15310545 15309000 15307427 00179870 15246971 07151630 06471601 15312906 00179839 00108580 15313444 15313445 06351065 09270000 15312897 15312898 07151020 07161030 06471001

HOOD ASSY-TA40 .HANDLE (LHS) .BOLT .WASHER .BOLT .WASHER .SUBFRAME/HINGE ASSY .HINGE ASSY .PLATE .BOLT .LOCKWASHER .DECAL - HOOD LH .DECAL - HOOD RH KIT-HOODCATCH BOLT LOCKNUT BOLT WASHER WASHER-HARDENED STOP-HOOD SPRING CABLE ASSY-HOOD CATCH PLATE-HOOD CABLE ANCHO GOALPOST WELDMENT BOLT BOLT WASHER LOCKNUT GRILLE-HOOD ASSY BOLT LOCKWASHER GAS STRUT STRAP-HOOD RETAINING BOLT WASHER-HARDENED TUBE TUBE WASHER LOCKWASHER LOCKNUT

100-0040-8211 HOOD AND MOUNTING FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 042 043 044 045 046 047 048 049 050 051 052 053 054 055 056

001 002 002 002 002 001 001 001 004 004 004 001 002 002 002 001

PART NO. DESCRIPTION 15313253 06351240 09024430 09267949 06471201 15313162 00179887 00274209 00106265 15309558 00274209 15312768 06351020 07151020 07161030 15256961

HOOD BLANKING PIECE BOLT WASHER WASHER-HARDENED LOCKNUT BAR-HOOD SAFETY BOLT LOCKNUT WASHER WASHER D SHAPE LOCKNUT PLATE BULKHEAD BOLT WASHER LOCKWASHER BALLJOINT

NOTES: A PARTS IN 15275453 HOOD HANDLE KIT

SER.NO. FROM

SER.NO. TO

100-0070-8211 FENDERS AND MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P10886 P108861

29 19

16

44,18,48

45,18,48 32 41

10 42 6

29 33 43

5 49,18,48 21 15

32 30 41

40

39

41 37 13

A

31

20

19 35

4

A

11

REF. SEC. 230-0040

32

17 22 28 35

2

46

32

12

25

14 3

8

30

38 34

23

A

36

A

1 47 33 A

27 19 29

27

26

26

31 19 35

29

9

21

11 17

24

7

45

44 18

14

23 32 25

100-0070-8211 FENDERS AND MOUNTING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

001 001 008 001 001 006 001 001 001 001 001 001 001 002 001 001 001 015 022 001 002 004 012 002 012 010 006 004 021 014 009 023 012 002 029 002 001 002 004 002

PART NO. DESCRIPTION 15310358 15275591 15272138 15310865 15275450 15272138 15249935 15234415 15310916 15304587 15235513 15235710 15305642 15235511 15245948 15312811 15304588 06351225 09267949 15301479 15304359 09270000 06350830 15246954 07150815 07151630 06471601 15244017 06351230 07180820 06351240 06470801 07161230 06351020 06471201 06351035 15310617 07161030 07181020 06471001

FENDER ASSY-LHS .TREAD PLATE .SCREW-C/SUNK M8X20 FENDER ASSY-RHS .TREAD PLATE .SCREW-C/SUNK M8X20 BRACKET-LH FENDER PAD PAD-LH FENDER STEP-RH EXTENSION-FENDER MUDGUARD-LH MUDGUARD-RH MUDFLAP PANEL PLATE ASSY-RH FENDER STEP-LH BOLT WASHER-HARDENED ANGLE-CAB FLOOR STEP WIRE WASHER-HARDENED BOLT BOLT WASHER WASHER LOCKNUT BOLT BOLT WASHER BOLT NUT LOCKWASHER BOLT LOCKNUT BOLT HANDRAIL ASSY-LHS LOCKWASHER WASHER LOCKNUT

100-0070-8211 FENDERS AND MOUNTING FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY

A A

A

041 042 043 044 045 046 047 048 049

011 001 012 001 001 001 001 015 001

PART NO. DESCRIPTION 06350820 15312524 09267660 15301495 15301497 15300193 15235537 15234758 NSS

SCREW HANDRAIL ASSY-RH WASHER QUILT-FRONT WHEEL LH QUILT-FRONT WHEEL RH GUARD ASSY-SUMP PLATE WASHER QUILT-FRONT WHEEL LH F

NOTES: A PARTS IN 15312716 KIT-INSULATION QUILTS

SER.NO. FROM

SER.NO. TO

110-0030-8211 ENGINE AND MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P10789 P10789

26 27

24 34

14

1

16

35 33 12

41 37 40

39

20

36 13

15

38

9 8

28 7

8 2 10

29

21 25

23 22

8

31 32

3,6 28 ON ENGINE LHS

18 LH 19 RH 9 10

30 31 4

5

32

42

110-0030-8211 ENGINE AND MOUNTING FROM SERIAL NO. A8201001

NC REF QTY

A

A

001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

001 002 001 001 001 001 001 006 004 004 001 001 002 002 008 001 001 001 001 001 008 001 001 001 008 001 001 004 002 001 005 004 001 001 001 001 002 001 002 001

PART NO. DESCRIPTION 15310393 15275408 15271147 15271148 15271149 15271150 15313160 15235607 15226567 06472001 06441020 06351230 63520140 15252522 00179885 15246547 15255131 15247829 15247827 15250582 00271562 00128003 15247130 15250581 15234743 00179889 00103329 15311433 15301285 15250912 07161030 06351025 09270000 15252584 00454565 15250591 07151630 09428043 01967343 00274209

ENGINE ASSY-SER 60 T2 .OIL FILTER .FILTER-WATER PRE-CH .FILTER-FUEL PRIMARY .FILTER-FUEL SECONDARY .FILTER-WATER ENGINE COUPLING- 8.5C WASHER WASHER NUT BOLT BOLT BOLT V BELT BOLT PLATE SCREW ASSY-ALTERNATO ENGINE MTG-REAR LH ENGINE MTG-REAR RH LINK BOLT BUSHING CONNECTOR LINK-ALTERNATOR WASHER-HARDENED BOLT LOCKWASHER ISOLATION MOUNT BOLT STEP-ENGINE LH LOCKWASHER BOLT WASHER-HARDENED NUT PIN BOLT WASHER BOLT WASHER LOCKNUT

110-0030-8211 ENGINE AND MOUNTING FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 001 042 001

PART NO. DESCRIPTION

SER.NO. FROM

SER.NO. TO

06471601 LOCKNUT 09152893 CLIP

NOTES: A 15271147 FILTER-WATER PRECHARGED AT INITIAL FILL. AFTER DRAINING USE 15271150 FILTER-WATER FOR OTHER CHANGE INTERVALS.

110-0050-8211 AIR CLEANER FROM SERIAL NO. A8201001

DRAWING NO. P10131 P10131

7 8 6 2 1

6

3

5

4

110-0050-8211 AIR CLEANER FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008

001 001 001 001 001 002 001 001

PART NO. DESCRIPTION 15306691 15306692 15273424 15273425 15273998 15306839 15306840 15308721

AIR CLEANER KIT .AIR CLEANER ASSY ..ELEMENT-MAIN ..ELEMENT-SAFETY ..VALVE-VACUATOR .BAND-MOUNTING .CAP-RAIN ..CLAMP

SER.NO. FROM

SER.NO. TO

110-0060-8211 AIR CLEANER PIPES AND HOSES FROM SERIAL NO. A8201001

DRAWING NO. P10797 P10797

17 18 7

10

15 16

8

AIR CLEANER SEC. 110-0050

6

20 14 21

19

10 2 TO TURBO

2

4 3

4

5

3 5

1 13

22 24

23 12 11 9

110-0060-8211 AIR CLEANER PIPES AND HOSES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024

001 008 008 016 008 001 001 001 001 002 001 001 001 001 001 001 001 001 002 001 001 001 001 001

PART NO. DESCRIPTION 15308940 06351240 07161230 09267660 06431201 15310968 15246331 09356047 15246332 09229246 15246333 09204030 15310973 15312286 06441020 07161030 06350820 07160830 15244714 09065853 15250363 00179837 00102635 09131881

BRACKET-A/C MTG BOLT LOCKWASHER WASHER NUT TUBE ASSY-AIR INTAKE HOSE CLAMP ELBOW CLAMP INSERT CLAMP BRACKET-A/C MTG BRACKET-AIR INTAKE TUB BOLT LOCKWASHER SCREW LOCKWASHER WASHER-HARDENED CLAMP PLATE BOLT NUT CLAMP

SER.NO. FROM

SER.NO. TO

110-0070-8211 EXHAUST AND MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P10796 P10796

10

28 29

36 35

7 1

9 8

CLAMP SWE

27

36

25 6

COVER & MTG-HYDRAULIC VALVES

21 11

2 12,13,15

16 11 16

24 22 26

5

16

23 11 14,18 20 19

16 4

11

30

34

33

16

17

3 16

32 31

110-0070-8211 EXHAUST AND MOUNTING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036

001 001 001 001 001 001 008 008 008 001 004 001 002 001 001 007 001 007 008 016 001 002 001 002 001 002 001 004 004 001 002 002 002 001 001 002

PART NO. DESCRIPTION 15312052 15300583 15304737 15256687 15300832 15308505 06351240 06431201 07161230 15308457 15246651 09215052 00186282 06351250 00102635 09017439 15312653 06351245 06471201 07151220 15311916 07160830 15301031 06350814 15312051 07180820 15302111 06351025 07151020 15302585 06351225 07161230 09267949 15304736 15308469 09017439

TUBE-TURBO OUTLET TUBE-EXHAUST TUBE-EXHAUST SLEEVE TUBE-EXHAUST SILENCER BOLT NUT LOCKWASHER EXHAUST STACK CLAMP CLAMP BOLT BOLT NUT CLAMP CRADLE ASSEMBLY BOLT LOCKNUT WASHER EXHAUST GUARD LOCKWASHER EXHAUST GUARD BOLT EXHAUST TUBE-FLEXIBLE WASHER PLATE-COVER BOLT WASHER PLATE-BENT BOLT LOCKWASHER WASHER-HARDENED TUBE-EXHAUST HEAT SHIELD CLAMP

SER.NO. FROM

SER.NO. TO

120-0010-8211 TRANSMISSION MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P9587 P9587

32

16

31

26,27 28

33 34

30 25 29 16

2 6,9 13 5 2 5 11 1

17

3

23 20

11 4 7

12

14 8

19

10 8

18 15

21 22

22 24

120-0010-8211 TRANSMISSION MOUNTING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034

001 002 002 002 004 004 008 004 002 002 004 008 006 002 001 001 001 002 001 001 001 002 001 001 001 001 001 001 001 001 001 002 002 002

PART NO. DESCRIPTION 15309479 15300371 15311297 15311433 15251433 15251434 15251436 00274098 15301385 15251642 15235607 07162030 07161630 00106269 15265486 15252705 15313135 06350860 15305544 09176191 06350814 07160830 06350820 06430801 15004684 09015715 00179793 00274856 09268885 09268892 15300465 06441040 07151020 06471001

BRACKET ASSY-TRANS FRO BRACKET ASSY-REAR ISOLATION MOUNT ISOLATION MOUNT BOLT BOLT BOLT LOCKNUT SPECIAL BOLT-METRIC WASHER-HARDENED WASHER LOCKWASHER LOCKWASHER WASHER GASKET DIPSTICK DIPSTICK TUBE ASSY BOLT BRACKET CLIP BOLT LOCKWASHER SCREW NUT LATCH SECURITY CLAMP NO LONGER AVAILA BOLT LOCKNUT LOCK KEY PLATE ASSY BOLT WASHER LOCKNUT

SER.NO. FROM

SER.NO. TO

120-0020-8211 TRANSMISSION BREAKDOWN FROM SERIAL NO. A8201001

DRAWING NO. P9524 P9524

1

120-0020-8211 TRANSMISSION BREAKDOWN FROM SERIAL NO. A8201001

NC REF QTY

PART NO. DESCRIPTION

A

15311595 TRANSMISSION ZF 6WG310

001 001

SER.NO. FROM

SER.NO. TO

NOTES: A 15275616 SEAL/GASKET KIT FOR COMPLETE TRANSMISSION OVERHAUL

120-0050-8211 CONTROL VALVE FROM SERIAL NO. A8201001

DRAWING NO. P9527

120-0050-8211 CONTROL VALVE FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020

001 001 001 002 001 002 008 001 001 001 001 001 001 001 001 005 004 001 001 001

PART NO. DESCRIPTION 15271696 15271242 15266373 15266374 15266375 15271697 15268877 15271905 15266378 15266379 15271698 15269046 15266380 15268875 15271243 15266382 15265446 15266384 15266383 15271904

HOUSING-GEARSHIFT PISTON PISTON RING COVER GASKET SCREW PLUG SPRING COVER SENSOR-TEMPERATURE O RING PLATE GASKET GASKET SCREW SCREW O RING PLUG PLUG

SER.NO. FROM

SER.NO. TO

120-0070-8211 SHIFT CONTROL FROM SERIAL NO. A8201001

DRAWING NO. P10651 P10651

5 1

2 6

V + N + + - R

3

4

120-0070-8211 SHIFT CONTROL FROM SERIAL NO. A8201001

NC REF QTY 001 001 002 003 004 005 006

001 001 001 001 001 001 001

PART NO. DESCRIPTION 15305235 15312088 15274262 15273731 15275194 15271329 15266837

AUTO KIT EST-37 AUTO KIT EST-37 .SHIFT CONTROLLER .VDU AND CABLE .MODULE .HARNESS .FOOTSWITCH

SER.NO. FROM

SER.NO. TO

A8201001 A8201012

A8201011

120-0100-8211 FILTER FROM SERIAL NO. A8201001

DRAWING NO. P8072

120-0100-8211 FILTER FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005

001 001 001 003 003

PART NO. DESCRIPTION 15269573 15269574 15271702 15268865 09397850

SCREEN COVER .O RING SCREW WASHER

SER.NO. FROM

SER.NO. TO

120-0110-8211 OIL LINES-TRANSMISSION FROM SERIAL NO. A8201001

DRAWING NO. P10882A P10882

24,25 35 RETARDER VALVE

FRONT DIFF. LOCK

43

59

C B

26 27 28

48

A

19

20

60

49

42

35

TO LOCK-UP SOLENOID RETURN PORT

47

55

55

12

21

11

SOL. VALVE T A

B

20

56

P

29,30 55 40

22

SOL. VALVE

34

39

T

62

58

A

B P

49

34

44

57

A

38

41

29,30 DIR. CONTROL VALVE

44

45

35

61 T

TO REAR DIFF. LOCK TOP END PORT PORT

23

24,25

A P

24,25

36

PRESS. RED. VALVE

46 37

31,32 54

33,25

35

TO TRANS

50 TO TRANS SUMP

53

120-0110-8211 OIL LINES-TRANSMISSION FROM SERIAL NO. A8201001

DRAWING NO. P10882B

P10882

17

12

9 11

16

8 7

14 13

6

15

5

7

4

10

6

11

4 21

2

64 3

63

TO SOL VALVE PORT T

23 C B

22

A

RETARDER VALVE

1

1

56 18

51,52

12

120-0110-8211 OIL LINES-TRANSMISSION FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

002 002 001 001 002 002 002 001 001 001 004 004 001 001 001 001 001 001 001 003 001 003 001 003 006 001 001 001 002 001 001 001 001 001 004 001 001 001 001 001

PART NO. DESCRIPTION 15252698 15307714 15258034 15252752 15252832 15252702 15252699 15237004 15300924 15300922 15300946 15025869 15253611 00118753 09410330 15252699 15300985 15300670 15236118 15233983 15301034 15255875 15302509 15237288 15233869 15308138 15274411 15274412 15304321 15272875 15235674 15265695 09410332 15300470 15233858 15300926 15253157 15300927 15252977 15300968

ELBOW HOSE ASSY HOSE ASSY ADAPTOR ELBOW ADAPTOR ADAPTOR ELBOW HOSE ASSY HOSE ASSY ADAPTOR-BULKHEAD PLUG-DUST ADAPTOR ELBOW TEE ADAPTOR HOSE ASSY HOSE ASSY ELBOW CONNECTOR PLATE ASSY UNION HOSE ASSY TEE REDUCER RETARDER VALVE .CARTRIDGE STEM .COIL SOLENOID VALVE .KIT-STEM & COIL VALVE-PRESS REDUCER .KIT-SEAL TEE PIPE ASSY ELBOW HOSE ASSY ELBOW-BULKHEAD HOSE ASSY TEE ELBOW

120-0110-8211 OIL LINES-TRANSMISSION FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 042 043 044 045 046 047 048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063 064

001 001 001 002 001 002 001 001 001 001 002 001 002 001 003 002 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15300925 15302510 15302459 15302530 15302508 15233865 15300468 15300469 15300550 15300714 15273572 15273573 15301058 15252703 15233983 15233971 15300770 15300769 15302511 15302531 09410304 15257393 15308872 15308858

HOSE ASSY HOSE ASSY ADAPTOR ELBOW HOSE ASSY UNION PIPE ASSY PIPE ASSY PIPE ASSY HOSE ASSY FILTER (BLUE) HEAD-FILTER HOSE ASSY ELBOW CONNECTOR ELBOW HOSE ASSY HOSE ASSY HOSE ASSY TEE TEE PLUG ELBOW HOSE ASSY

SER.NO. FROM

SER.NO. TO

THIS PAGE IS INTENTIONALLY LEFT BLANK

120-0220-8211 OIL PUMP FROM SERIAL NO. A8201001

DRAWING NO. P9537

120-0220-8211 OIL PUMP FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004

001 001 001 001

PART NO. DESCRIPTION 15271913 15269457 15269458 15269353

PUMP KEY SLEEVE-NEEDLE O RING

SER.NO. FROM

SER.NO. TO

120-0390-8211 TORQUE CONVERTER FROM SERIAL NO. A8201001

DRAWING NO. P8057

120-0390-8211 TORQUE CONVERTER FROM SERIAL NO. A8201001

NC REF QTY 001 001

PART NO. DESCRIPTION 15269255 CONVERTER

SER.NO. FROM

SER.NO. TO

120-0400-8211 LUBRICATION PIPES FROM SERIAL NO. A8201001

DRAWING NO. P9542A

120-0400-8211 LUBRICATION PIPES FROM SERIAL NO. A8201001

DRAWING NO. P9542B

120-0400-8211 LUBRICATION PIPES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 030 031 032 033 034 035 036 037 038 039

004 008 001 008 002 004 001 001 001 004 001 002 001 001 002 001 001 001 001 001 001 002 002 001 001 001 001 001 006 001 001 001 001 002 002 004 001 005 001 001

PART NO. DESCRIPTION 09397890 09397891 15266916 15271907 09399363 09397943 15269647 15269648 15272135 15271908 15272136 15271709 15269661 15271712 15271710 15271910 15269694 15269320 09397891 09397895 09399200 15271714 15269046 15268837 15268838 15271912 15265459 15268839 15271715 15268866 15268867 15271907 15268840 09398201 15268841 15268825 15271716 09397868 15271717 15271718

SCREW SEAL O RING SLEEVE-SCREW-IN SCREW-UNION SEAL REDUCER SOCKET HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY SLEEVE-SCREW-IN HOSE ASSY UNION ADAPTOR O RING O RING SEAL CONNECTOR HOSE ASSY FITTING-DOUBLE O RING HOUSING GASKET PLUG SPRING PISTON RING STOP STOP SLEEVE-SCREW-IN VALVE-SOLENOID SCREW LOCKWASHER SCREW CAPSCREW WASHER COVER SETSCREW

120-0400-8211 LUBRICATION PIPES FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 040 041 042 043 044

002 001 001 001 001

PART NO. DESCRIPTION 15271719 15271720 15271721 15271722 15271711

SCREW HOSE ASSY HOSE ASSY SLEEVE SCREW

SER.NO. FROM

SER.NO. TO

THIS PAGE IS INTENTIONALLY LEFT BLANK

120-0410-8211 INDUCTIVE TRANSMITTER FROM SERIAL NO. A8201001

DRAWING NO. P9529

120-0410-8211 INDUCTIVE TRANSMITTER FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006

003 001 001 001 004 002

PART NO. DESCRIPTION 15271704 15271705 15271706 15271707 09397814 09397815

TRANSMITTER TRANSMITTER SHEET CAPSCREW SHIM (2.00 MM) SHIM (0.50 MM)

SER.NO. FROM

SER.NO. TO

120-0430-8211 ELECTRIC SHIFT CONTROL VALVE FROM SERIAL NO. A8201001

DRAWING NO. P9523

120-0430-8211 ELECTRIC SHIFT CONTROL VALVE FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010

001 001 001 001 001 021 018 002 001 001

PART NO. DESCRIPTION 15273844 15273843 15273842 15273845 15275385 15271663 15271664 15271665 15271995 15271996

GASKET INTERM SHEET GASKET DUCT PLATE GASKET CAPSCREW CAPSCREW CAPSCREW PLUG PLUG

SER.NO. FROM

SER.NO. TO

120-0440-8211 GEARSHIFT FROM SERIAL NO. A8201001

DRAWING NO. P9666A

120-0440-8211 GEARSHIFT FROM SERIAL NO. A8201001

DRAWING NO. P9666B

120-0440-8211 GEARSHIFT FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032

001 008 008 006 006 006 006 006 001 001 001 001 001 001 046 006 006 006 001 001 018 001 002 001 001 001 001 001 006 001 001 018

PART NO. DESCRIPTION 15271997 15271666 15265433 15271669 15271670 15271671 15271672 15271673 15271674 15271675 15271676 15271677 15271678 15271679 15271680 15272011 15265475 15271683 15271684 15271685 15271680 15273849 15271687 15271688 15271689 15271690 15273853 15273850 15272000 15273851 15274201 15271695

VALVE BLOCK PLUG O RING ORIFICE PISTON SPRING PISTON SPRING PISTON SPRING CONTROL PISTON SPRING GASKET HOUSING CAPSCREW PRESSURE REGULATOR PLATE CAPSCREW GASKET HOUSING CAPSCREW HARNESS GASKET COVER COVER CLAMP GASKET INTERM SHEET SCREEN GASKET DUCT PLATE CAPSCREW

SER.NO. FROM

SER.NO. TO

THIS PAGE IS INTENTIONALLY LEFT BLANK

120-0450-8211 GEARBOX HOUSING FROM SERIAL NO. A8201001

DRAWING NO. P9530

120-0450-8211 GEARBOX HOUSING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033

001 001 021 002 002 001 001 001 003 002 004 004 001 004 002 011 002 002 002 002 001 001 002 001 001 001 001 002 001 005 001 001 004

PART NO. DESCRIPTION 15271864 15273854 15266302 15269310 15269311 15269312 15271563 15271564 09398204 15271244 06440816 09397850 15269314 09397927 15271566 15272007 15269625 15271867 15269321 15269322 15271570 15269323 09398117 15269325 15269326 15269327 15269328 15271556 15269329 15269624 15269331 15271574 06440816

HOUSING COVER SCREW SCREW PIN COVER COVER SHEET SCREEN SHEET CAPSCREW GASKET SCREW NO LONGER AVAILA WASHER PLATE PIN-GROOVED CAPSCREW CAPSCREW SCREW-HEXAGON PLUG PLATE SCREW HOSE ASSY POT PLATE O RING O RING BUSHING SCREW O RING PLUG SCREW-HEXAGON PIN ORIFICE SCREW NO LONGER AVAILA

SER.NO. FROM

SER.NO. TO

120-0460-8211 CLUTCH ASSEMBLY KV+K1 FROM SERIAL NO. A8201001

DRAWING NO. P10164

120-0460-8211 CLUTCH ASSEMBLY KV+K1 FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 014 014 014 014 015 016 017 018 019 020 021 022 023 024 024 024 024 025 026 027 028 029 029 029 029 030

002 003 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 002 002 002 011 005 001 001 001 001 011 002 008 002 001 001 001 001 008

PART NO. DESCRIPTION 15269345 15269346 15269347 15273856 15271621 15271622 15269349 15273857 15273183 15269353 15269354 15271611 15269357 15271590 15271589 15271588 15271587 09398017 15269358 15269359 15269360 15269361 15269404 15269363 15269364 15271593 15271934 15271592 15271597 15271595 15271593 15271598 15271599 15271602 15273181 15271603 15271602 15271601 15271600 15271604

SCREW RING RING-SNAP DISC CARRIER SLOT PIN SLOT PIN WASHER PISTON PISTON O RING O RING O RING RING-SNAP RING A=2.10 RING A=2.20 RING A=2.40 RING A=2.30 RING A=2.50 SHIM-END SHIM-END SPRING SPRING WASHER RING-GUIDE RING-SNAP SHIM B=2.5 SCREW SHIM B=4.0 SHIM B=2.0 SHIM B=3.5 SHIM B=2.5 DISC DISC SHIM B=2.5 VALVE SHIM B=2.0 SHIM B=2.5 SHIM B=3.0 DISC DISC

120-0460-8211 CLUTCH ASSEMBLY KV+K1 FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 031 032 033 034 035 035 035 035 035 035 035 035 036 037 038 039 040 041 042 043 043 043 043 043 043 043 043 043 043 043 043 044 045 046 047 048

002 001 002 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15271605 15272004 15269455 15271918 15271922 15271923 15271924 15271926 15271925 15271919 15271920 15271921 15271927 15269391 15271928 15271929 15271930 15269390 15269391 15269396 15269397 15269398 15269399 15273185 15273184 15273185 15273184 15269392 15269393 15269394 15269395 15271931 15271612 15269401 15271932 15271933

DISC GEAR-SPUR BEARING-ROLLER RING SHIM-1.20 SHIM-1.10 SHIM-1.00 SHIM-0.50 SHIM-0.80 SHIM-1.50 SHIM-1.40 SHIM-1.30 BEARING-ROLLER NUT COVER GEAR BEARING-BALL BEARING-ROLLER NUT SHIM-0.90 SHIM-0.50 SHIM-0.30 SHIM-0.20 SHIM 0.95 SHIM 0.85 SHIM 0.95 SHIM 0.85 SHIM-2.00 SHIM-1.50 SHIM-1.20 SHIM-1.00 COVER-BEARING O RING RING O RING SCREW

SER.NO. FROM

SER.NO. TO

120-0470-8211 CLUTCH ASSEMBLY KR+K2 FROM SERIAL NO. A8201001

DRAWING NO. P10165

120-0470-8211 CLUTCH ASSEMBLY KR+K2 FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 012 012 012 012 012 012 012 012 012 012 013 014 015 016 017 018 019 020 020 020 020 020 021 022 023 024 025 025

002 003 001 001 001 001 001 001 001 001 001 002 002 002 002 002 002 002 002 002 002 002 002 002 002 002 002 010 002 001 001 001 001 001 011 002 005 003 001 001

PART NO. DESCRIPTION 15269345 15269346 15273863 15271621 15271622 15273857 15273187 15269355 15271611 15269356 15271612 15271583 15271584 15271585 15271614 15271615 15271582 15271577 15271578 15271579 15271580 15271581 15269358 15269360 15269404 15269363 15269364 15271593 15273181 15271597 15271592 15271595 15271594 15271593 15271598 15271599 15271594 15271593 15271597 15271592

SCREW RING DISC CARRIER SLOT PIN SLOT PIN PISTON PISTON O RING O RING O RING O RING RING A=2.65 RING A=2.60 RING A=2.55 SNAP RING A=3.05 SNAP RING A=3.10 RING A=2.70 RING A=2.95 RING A=2.90 RING A=2.85 RING A=2.80 RING A=2.75 SHIM-END SPRING WASHER RING-GUIDE RING-SNAP SHIM B=2.5 VALVE SHIM B=2.0 SHIM B=4.0 SHIM B=3.5 SHIM B=3.0 SHIM B=2.5 DISC DISC SHIM B=3.0 SHIM B=2.5 SHIM B=2.0 SHIM B=4.0

120-0470-8211 CLUTCH ASSEMBLY KR+K2 FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 025 025 025 026 027 028 029 029 029 029 029 029 029 030 031 032 033 034 035 036 037 038 039 039 039 039 039 039 039 039 040 041 042 043 043 043 043 043 043 043

001 001 001 008 002 001 002 002 002 002 002 002 002 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15271595 15271594 15271593 15271598 15271599 15271937 15271944 15271943 15271942 15271941 15271940 15271939 15271938 15273188 15271946 15271947 15271948 15269385 15271949 15273189 15271617 15271951 15271959 15271958 15271957 15271956 15271952 15271953 15271954 15271955 15271960 15271961 15271962 15269519 15269520 15269521 15269522 15269523 15269518 15269513

SHIM B=3.5 SHIM B=3.0 SHIM B=2.5 DISC DISC GEAR-SPUR WASHER-4.00 WASHER-3.80 WASHER-3.60 WASHER-3.30 WASHER-3.10 WASHER-3.00 WASHER-2.90 BEARING-ROLLER BEARING-INNER RING BEARING-ROLLER NUT-SLOTTED COVER GEAR-SPUR GEAR SNAP RING BEARING-INNER RING SHIM-2.50 SHIM-2.40 SHIM-2.30 SHIM-2.20 SHIM-1.80 SHIM-1.90 SHIM-2.00 SHIM-2.10 BEARING-INNER RING BEARING-ROLLER NUT-SLOTTED SHIM-1.6 SHIM-1.7 SHIM-1.8 SHIM-1.9 SHIM-2.0 SHIM-1.5 SHIM-1.0

SER.NO. FROM

SER.NO. TO

120-0470-8211 CLUTCH ASSEMBLY KR+K2 FROM SERIAL NO. A8201001

NC REF QTY 043 043 043 043 044 045 046 047

001 001 001 001 001 001 006 002

PART NO. DESCRIPTION 15269514 15269515 15269516 15269517 15271963 15269525 15271964 15266176

SHIM-1.1 SHIM-1.2 SHIM-1.3 SHIM-1.4 COVER O RING SCREW STUD

SER.NO. FROM

SER.NO. TO

THIS PAGE IS INTENTIONALLY LEFT BLANK

120-0480-8211 CLUTCH ASSEMBLY K3+K4 FROM SERIAL NO. A8201001

DRAWING NO. P10166

120-0480-8211 CLUTCH ASSEMBLY K3+K4 FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 009 009 009 009 009 009 009 009 009 009 009 010 011 012 013 014 015 016 017 017 017 017 017 018 019 020 021 021 021 021 021

002 003 001 001 001 002 002 002 002 002 002 002 002 002 002 002 002 002 002 002 002 002 002 002 002 005 001 001 001 001 001 001 008 002 005 001 001 001 001 001

PART NO. DESCRIPTION 15269345 15269346 15273955 15271621 15271622 15273187 15269355 15269356 15271583 15271584 15271585 15271613 15271614 15271615 15271577 15271578 15271579 15271580 15271581 15271582 15269358 15269360 15269404 15269363 15269364 15271594 15271593 15271597 15271592 15271595 15271594 15271593 15271598 15271599 15271595 15271597 15271592 15271595 15271594 15271593

SCREW RING DISC CARRIER SLOT PIN SLOT PIN PISTON O RING O RING RING A=2.65 RING A=2.60 RING A=2.55 SNAP RING A=3.00 SNAP RING A=3.05 SNAP RING A=3.10 RING A=2.95 RING A=2.90 RING A=2.85 RING A=2.80 RING A=2.75 RING A=2.70 SHIM-END SPRING WASHER RING-GUIDE RING-SNAP SHIM B=3.0 SHIM B=2.5 SHIM B=2.0 SHIM B=4.0 SHIM B=3.5 SHIM B=3.0 SHIM B=2.5 DISC DISC SHIM B=3.5 SHIM B=2.0 SHIM B=4.0 SHIM B=3.5 SHIM B=3.0 SHIM B=2.5

120-0480-8211 CLUTCH ASSEMBLY K3+K4 FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 022 023 024 025 026 026 026 026 026 026 026 026 026 027 028 029 030 031 032 033 033 033 034 035 036 037 038

005 002 001 002 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 004 002

PART NO. DESCRIPTION 15271598 15271599 15271591 15271623 15271629 15271630 15271631 15271632 15271628 15271624 15271625 15271626 15271627 15269382 15269391 15271928 15273888 15271967 15271968 09399365 09399366 15271969 15271970 15273896 15271972 15271619 15273181

DISC DISC SPUR GEAR BEARING SHIM S=5.2 SHIM S=5.3 SHIM S=5.4 SHIM S=5.5 SHIM S=5.1 SHIM S=4.7 SHIM S=4.8 SHIM S=4.9 SHIM S=5.0 BEARING-ROLLER NUT COVER SPUR GEAR BEARING-ROLLER BEARING-ROLLER WASHER (0.20 MM) WASHER (0.10 MM) WASHER (0.50 MM) BEARING-ROLLER COVER O RING SCREW VALVE

SER.NO. FROM

SER.NO. TO

120-0490-8211 RETARDER FROM SERIAL NO. A8201001

DRAWING NO. P9534

120-0490-8211 RETARDER FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 015 015 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 032 032 032 032 033 034 035

001 001 001 001 001 012 001 002 001 001 001 006 001 020 001 001 001 001 001 020 003 003 133 006 003 003 001 002 012 001 016 001 001 001 001 001 001 001 001 002

PART NO. DESCRIPTION 15271539 15271540 15269247 15268871 15266221 06440820 15271265 15266224 15271266 15267735 15271541 15271542 15266227 15271543 15271276 15271275 15271274 15271273 15271547 09397850 15266228 15266229 15266230 15266230 15266231 15266232 15269249 15269250 15271544 15271269 15266236 15265470 15271237 15271239 15271238 15266207 15266205 15271784 09398066 09399327

STATOR PLUG O RING RING-STATOR RING BOLT ROTOR RING-PISTON RING COVER RING SCREW O RING CAPSCREW SHIM (1.50 MM) SHIM (2.10 MM) SHIM (2.50 MM) SHIM (3.00 MM) ORIFICE WASHER GUIDE-SPRING SPRING CUP-SPRING CUP-SPRING PIN-GUIDE GUIDE-SPRING RING O RING CAPSCREW FLANGE-SHAFT SCREW BEARING SHIM SHIM 1.50MM SHIM 2.00MM SHIM (0.20 MM) SHIM (0.50 MM) SEAL DISC SCREW

120-0490-8211 RETARDER FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 036 037 038 039 040

001 012 001 001 001

PART NO. DESCRIPTION 15271545 15271546 15271271 15271272 15267781

WASHER-TAB SCREW DISC-HOUSING CAGE-ROLLER WASHER-AXIAL

SER.NO. FROM

SER.NO. TO

120-0491-8211 RETARDER OIL PIPES FROM SERIAL NO. A8201001

DRAWING NO. P10775

120-0491-8211 RETARDER OIL PIPES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014

001 001 001 001 002 002 002 001 001 001 002 002 001 001

PART NO. DESCRIPTION 15273903 15273904 15275383 15271550 15271551 15271552 15271553 15271554 15271555 15271556 15269066 15269065 15273907 15273908

PIPE ELBOW PIPE PIPE RING NUT SLEEVE SLEEVE ADAPTOR O RING SLEEVE O RING PLUG TEE

SER.NO. FROM

SER.NO. TO

120-0500-8211 PTO MAIN HYDRAULIC PUMP FROM SERIAL NO. A8201001

DRAWING NO. P9535

120-0500-8211 PTO MAIN HYDRAULIC PUMP FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 004 005 006 006 006

001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15271973 15269406 15269407 15269429 15269430 15269431 15269432 15269428 15269427 15269426 15269425 15269440 15269439 15269438 15269437 15269436 15269435 15269434 15269433 15269424 15269415 15269414 15269413 15269412 15269411 15269410 15269409 15269408 15269423 15269422 15269421 15269420 15269416 15269417 15269418 15269419 15271651 15269447 15269446 15269445

SHAFT RING-PISTON BEARING SHIM-1.15 SHIM-1.20 SHIM-1.25 SHIM-1.30 SHIM-1.10 SHIM-1.05 SHIM-1.00 SHIM-0.95 SHIM-2.00 SHIM-1.65 SHIM-1.60 SHIM-1.55 SHIM-1.50 SHIM-1.45 SHIM-1.40 SHIM-1.35 SHIM-0.90 SHIM-0.45 SHIM-0.40 SHIM-0.35 SHIM-0.30 SHIM-0.25 SHIM-0.20 SHIM-0.15 SHIM-0.10 SHIM-0.85 SHIM-0.80 SHIM-0.75 SHIM-0.70 SHIM-0.50 SHIM-0.55 SHIM-0.60 SHIM-0.65 WASHER WASHER-1.50 WASHER-0.20 WASHER-0.10

120-0500-8211 PTO MAIN HYDRAULIC PUMP FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 006 006 006 007 008 009 010 011 012 013 014 015 016 017

001 001 001 001 003 001 001 001 001 008 001 002 001 001

PART NO. DESCRIPTION 15269444 15269443 15269442 15269448 15269449 15269450 09398207 15271652 15271653 15269453 15271654 15266343 15269455 15271655

WASHER-0.30 WASHER-0.50 WASHER-2.00 DRIVER V-RING PLATE CAPSCREW O RING FLANGE-PUMP SCREW GEAR RING-SNAP BEARING-ROLLER O RING

SER.NO. FROM

SER.NO. TO

120-0510-8211 POWER TAKE-OFF FROM SERIAL NO. A8201001

DRAWING NO. P9284

120-0510-8211 POWER TAKE-OFF FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 007 008

001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15269460 15269461 15269462 15269463 15269455 15269440 15269429 15269430 15269431 15269432 15269428 15269427 15269426 15269425 15269440 15269439 15269438 15269437 15269436 15269435 15269434 15269433 15269424 15269415 15269414 15269413 15269412 15269411 15269410 15269409 15269408 15269423 15269422 15269421 15269420 15269419 15269418 15269417 15269416 09397714

SHAFT GEAR BEARING-ROLLER ORIFICE BEARING-ROLLER SHIM-2.00 SHIM-1.15 SHIM-1.20 SHIM-1.25 SHIM-1.30 SHIM-1.10 SHIM-1.05 SHIM-1.00 SHIM-0.95 SHIM-2.00 SHIM-1.65 SHIM-1.60 SHIM-1.55 SHIM-1.50 SHIM-1.45 SHIM-1.40 SHIM-1.35 SHIM-0.90 SHIM-0.45 SHIM-0.40 SHIM-0.35 SHIM-0.30 SHIM-0.25 SHIM-0.20 SHIM-0.15 SHIM-0.10 SHIM-0.85 SHIM-0.80 SHIM-0.75 SHIM-0.70 SHIM-0.65 SHIM-0.60 SHIM-0.55 SHIM-0.50 CIRCLIP

120-0510-8211 POWER TAKE-OFF FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 009 010 011 012 012 012 012 012 012 012 012 012 012 012 013 014

001 001 004 001 001 001 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15271656 15269466 15269467 15269474 15269475 15269476 15269477 15269478 15269473 15269468 15269469 15269470 15269471 15269472 15271657 15268869

FLANGE-PUMP O RING SCREW SHIM-2.00 SHIM-1.85 SHIM-1.70 SHIM-1.55 SHIM-1.40 SHIM-2.15 SHIM-2.90 SHIM-2.75 SHIM-2.60 SHIM-2.45 SHIM-2.30 O RING GASKET

SER.NO. FROM

SER.NO. TO

120-0515-8211 EMERGENCY STEERING PUMP FROM SERIAL NO. A8201001

DRAWING NO. P9536

120-0515-8211 EMERGENCY STEERING PUMP FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006

001 004 001 001 002 001

PART NO. DESCRIPTION 15271858 15271859 15271860 15271861 15271862 15271863

PUMP CAPSCREW GEAR RING-RETAINING SNAP RING BEARING-BALL

SER.NO. FROM

SER.NO. TO

120-0520-8211 INPUT-DRIVE ASSEMBLY FROM SERIAL NO. A8201001

DRAWING NO. P10776

120-0520-8211 INPUT-DRIVE ASSEMBLY FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037

001 001 001 002 001 001 001 001 001 004 001 001 001 001 012 010 001 001 002 001 004 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15273921 15271558 15271559 15269257 15273922 15271927 15273923 15275384 15269262 15273925 15273926 15273928 15269292 15269293 09399327 15269295 15269296 15269297 15266175 15271560 09398210 15269298 15269299 15269300 15265429 15269301 15269302 15273927 15273929 15266383 15269305 09397794 15269306 15275137 15271785 15273930 15269291

SHAFT-INPUT PIN PIN RING-PISTON GEAR-HELICAL BEARING-ROLLER BEARING CONVERTER BELL GASKET SCREW FLANGE-OIL FEED O RING COVER SLEEVE-NEEDLE SCREW SCREW SCREW SCREW SCREW SCREW SCREW RING PISTON SPRING PIN O RING PLUG ORIFICE VALVE PLUG O RING PLUG NO LONGER AVAILAB O RING FLANGE 8.5C GUARD PIN GASKET

SER.NO. FROM

SER.NO. TO

120-0530-8211 LAYSHAFT GEARING FROM SERIAL NO. A8201001

DRAWING NO. P9539

120-0530-8211 LAYSHAFT GEARING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 003 003 003 003 003 003 003 004 005 006

001 002 001 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15271893 15271894 15271897 15271898 15271899 15271900 15271901 15271902 15271896 15271895 06361012 15271903 15269344

GEAR BEARING-ROLLER SHIM-2.00 SHIM-2.50 SHIM-2.80 SHIM-2.90 SHIM-3.10 SHIM-3.30 SHIM-1.20 SHIM-1.00 SCREW AXLE COVER

SER.NO. FROM

SER.NO. TO

120-0540-8211 DIFFERENTIAL FROM SERIAL NO. A8201001

DRAWING NO. P9541

120-0540-8211 DIFFERENTIAL FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 023 023 023 023 023 023 023 023 023 023 023 024 025 026 027 027 027

001 001 006 360 006 012 006 006 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15269577 15269578 15269579 15269580 15269581 15269582 15269583 15269584 15271635 15272006 15269587 09399234 15269588 15269589 15269590 09397921 15269591 15271871 15269593 15269594 15269595 15271872 15271877 15271878 15271879 15271880 15271883 15269607 15271881 15271882 15271873 15271874 15271875 15271876 15269608 15271637 15269610 15265476 15271638 09399430

CARRIER-PLANETARY SUN GEAR PLANET-GEAR ROLLER-NEEDLE WASHER WASHER-THRUST SHAFT-PLANET SLOT PIN SLOT PIN SHAFT-OUTPUT RING-SNAP RING-RETAINER SHAFT-OUTPUT RING-SNAP SLEEVE-NEEDLE RING-SNAP RING GEAR-RING RING-GEAR RING-SNAP BEARING-ROLLER BEARING-ROLLER WASHER-1.80 WASHER-1.90 WASHER-2.00 WASHER-2.10 WASHER-2.40 SHIM-2.00 WASHER-2.20 WASHER-2.30 WASHER-1.40 WASHER-1.50 WASHER-1.60 WASHER-1.70 RING BEARING WASHER SHIM (0.50 MM) SHIM S=0.3 SHIM (0.20 MM)

120-0540-8211 DIFFERENTIAL FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 027 027 027 027 027 027 027 027 028 029 030 031 032 033 034 035 036

001 001 001 001 001 001 001 001 001 001 001 001 002 001 002 006 001

PART NO. DESCRIPTION 15268780 15268779 15268778 15268777 09397971 09397972 09397973 09397970 09397919 15269611 15271884 15269613 09399327 15271640 15269614 15271641 15271885

SHIM (1.40 MM) SHIM (1.20 MM) SHIM (1.30 MM) SHIM (1.10 MM) SHIM (1.70 MM) SHIM (1.60 MM) SHIM (1.50 MM) SHIM (1.80 MM) CIRCLIP SHAFT-SEAL FLANGE-OUTPUT WASHER SCREW WASHER-TAB RING-PISTON SETSCREW SCREEN-SHEET

SER.NO. FROM

SER.NO. TO

120-0550-8211 AXLE DISCONNECT FROM SERIAL NO. A8201001

DRAWING NO. P9540

120-0550-8211 AXLE DISCONNECT FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 009 009 009 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 028 028 028 028 028 028 029 030

001 001 006 006 001 002 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 002 001 001 001 001 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15273953 15269622 15269623 15269624 15269625 15269626 15269627 15269628 15269629 15269630 15267214 15269631 15267216 15269615 15269616 09398637 09398636 15269045 15271643 15271545 15271644 15269646 15265435 15269618 15274166 09398642 15269620 15271637 15269610 15269632 15269633 15269636 15269637 15269638 15269639 15269640 15269635 15269634 09397919 15269642

HOUSING-G/SHIFT GASKET CAPSCREW SCREW-HEXAGON SCREW-HEXAGON PIN-CYLINDRICAL SPRING PISTON SHIM RING SHIM RING SHIM SHIM RING SHIM CAPSCREW RING-PISTON DISC ELEMENT-FILTER PLUG BOLT WASHER-TAB SWITCH RING O RING PIN SHIFT FORK BLOCK-THRUST SLEEVE-SLIDING BEARING WASHER RING-RETAINER CAP-SEALING WASHER-0.50 WASHER-1.50 WASHER-1.60 WASHER-1.70 WASHER-1.80 WASHER-0.40 WASHER-0.30 CIRCLIP SHIM-4.00

120-0550-8211 AXLE DISCONNECT FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 030 031 032 033 034 035

001 001 001 001 002 001

PART NO. DESCRIPTION 15269641 15271884 15269611 15269645 09399327 15271650

SHIM-3.00 FLANGE-OUTPUT SHAFT-SEAL WASHER SCREW SCREEN SHEET

SER.NO. FROM

SER.NO. TO

130-0010-8211 FRONT DRIVELINE FROM SERIAL NO. A8201001

DRAWING NO. P10791

P10791 DETAIL A

10 11

12

11

1,2,3

REF. SEC. 220-0010

14

A

13 TRANSMISSION

ENGINE

TO TRAILER

FRONT AXLE

11 4,5,6

11

8 11

7

9

11 8

130-0010-8211 FRONT DRIVELINE FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014

001 002 008 001 002 008 001 002 008 002 024 001 002 002

PART NO. DESCRIPTION 15311565 15275364 15272770 15311843 15275364 15272770 15311840 15275364 15272770 06471601 15234737 15303256 06351650 07151630

DRIVELINE 8.5C-ENG/TRA .U-JOINT 8.5C-MAINT.FR .SCREW DRIVELINE 8.5C .U-JOINT 8.5C-MAINT.FR .SCREW DRIVELINE 8.5C TM/PIVO .U-JOINT 8.5C-MAINT.FR .SCREW LOCKNUT BOLT GUARD-ANTI-FLAIL BOLT WASHER

SER.NO. FROM

SER.NO. TO

140-0010-8211 AXLE COMPLETE-FRONT FROM SERIAL NO. A8201001

DRAWING NO. P10872

P10872

4 5 FRONT

TRANSMISSION SEC. 120-0020

3 TO FRAME

2

1

140-0010-8211 AXLE COMPLETE-FRONT FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005

001 001 001 001 001

PART NO. DESCRIPTION 15308851 15247154 15301071 00118748 00119930

AXLE-FRONT (OCDB) ADAPTOR HOSE ASSY CONNECTOR BUSHING-REDUCER

SER.NO. FROM

SER.NO. TO

140-0020-8211 AXLE GROUP-FRONT FROM SERIAL NO. A8201001

DRAWING NO. P10875

P10875

4

5

6

10

7

3 2

8

9

13

1 14 15 16 17 18 19

23

22

21

20

24

12

31

11

32 33

34

28 27 26

25 37

36

35

37

38

30 29 39 REF. SEC. 165-0015

140-0020-8211 AXLE GROUP-FRONT FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039

002 070 070 003 006 003 002 002 002 002 002 002 002 002 004 002 002 006 002 002 002 006 006 001 001 046 046 002 002 002 002 002 002 002 002 038 008 002 002 002

PART NO. DESCRIPTION 15265843 15265840 15265957 15265803 15265804 15265803 15265838 15265807 15265808 15272904 15265817 15265816 15265815 15265814 15265813 15265812 15265803 15265806 15265802 15265841 15265842 15265801 15265800 15265811 15265810 15265820 15265821 15272904 15275552 15275562 15275561 15275553 15275554 15275555 15275556 15275557 15275558 15275559 15275560 15275581

PLUG BOLT WASHER WASHER PINION WASHER BUTTON-THRUST CIRCLIP GEAR-SUN BEARING ASSY RETAINER RING-HUB GEAR RING-PLANETARY GEAR NUT-HUB LOCKRING RING-SPRING WASHER SCREW CARRIER WASHER BOLT PIN O RING DRIVESHAFT LH DRIVESHAFT RH NUT STUD BEARING ASSY FACE SEAL-HUB/STUB STUB AXLE CAPSCREW SPACER-OIL SEAL O RING HOUSING-OIL SEAL RING CAPSCREW CAPSCREW SEAL HUB O RING

SER.NO. FROM

SER.NO. TO

140-0040-8211 WHEEL, RIM AND TYRE-FRONT FROM SERIAL NO. A8201001

DRAWING NO. P10871 P10533

10 11

1 13 9

4

5

4 3 16 19

20 21 2

R.H. FENDER SHOWN

6

17

22 RH 19 20 21RH 18 LH

21 19 20

14,15

7 8

12

140-0040-8211 WHEEL, RIM AND TYRE-FRONT FROM SERIAL NO. A8201001

NC REF QTY

PART NO. DESCRIPTION

A A A A

15252291 15245339 15245338 15228568 09178785 09211054 09142286 09116292 15301369 07551686 09368123 09209216 15252305 15310921 15253367 06351050 06351065 06351025 15244041 07161030 06431001 06351020

B B

001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022

006 006 006 012 006 006 006 006 006 006 006 006 006 001 001 003 004 002 009 009 007 002

SER.NO. FROM

SER.NO. TO

RIM & DISC ASSY LOCKRING BAND-BEAD SEAT FLANGE O RING VALVE ASSY .CORE .CAP TYRE, BRID 29.5R25VLT ADAPTOR CAP-VALVE SPUD DRIVER EXTENSION-FENDER LH EXTENTION-FENDER RH BOLT BOLT BOLT WASHER LOCKWASHER NUT BOLT

NOTES: A RIM PARTS FROM DIFFERENT MANUFACTURERS MUST NOT BE INTERMIXED B LOCATED ON FRONT LH WHEEL, FOR USE WITH NORMAL COMMERCIAL AIR LINE.

140-0060-8211 DIFFERENTIAL-FRONT FROM SERIAL NO. A8201001

DRAWING NO. P10870

140-0060-8211 DIFFERENTIAL-FRONT FROM SERIAL NO. A8201001

NC REF QTY

A

B

001 002 003 004 005 005 005 006 007 008 009 010 010 010 010 010 010 010 010 011 011 011 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028

001 008 008 001 ASR ASR ASR 001 001 001 001 ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR 001 001 001 003 001 012 020 001 001 012 002 002 002 004 004 002 002

PART NO. DESCRIPTION 15275563 15265844 15265845 15265846 15265849 15265848 15265847 15273192 15265852 15269793 15265883 15265864 15265862 15265861 15265859 15265854 15265855 15265857 15265858 15265868 15265869 15265871 15265867 15265872 15273193 15265874 15265876 15273194 15273195 15265878 15273981 15274403 15265881 15265882 15265883 15273799 15265885 15265886 15273797 15265888

DIFF ASSY-FRONT AXLE .SETSCREW .WASHER .RETAINER .SHIM (0.38 MM) .SHIM (0.25 MM) .SHIM (0.20 MM) .HOUSING .BEARING .HELICAL PINION .BEARING .SPACER (6.750MM) .SPACER (6.700MM) .SPACER (6.675MM) .SPACER (6.625MM) .SPACER (6.500MM) .SPACER (6.525MM) .SPACER (6.575MM) .SPACER (6.600MM) .SPACER (9.300MM) .SPACER (9.600MM) .SPACER (10.200MM) .SPACER (9.000MM) .BEARING .GEAR SET-2400 RATIO .BEARING .DOWEL .CASE ASSY .BOLT .STUD .DIFF HOUSING ASSY .END-FLANGED .NUT .NUT-ADJUSTING .BEARING .THRUST WASHER .PLATE .PLATE .DIFF CAGE .WHEEL-DIFF

140-0060-8211 DIFFERENTIAL-FRONT FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 029 030 031 032 033 034 035 036 037 038 038 039 040 041 042 043 044 045 046 047 048 049 050 051 052 053 054 055 056 057 058 058 059 060

002 004 002 004 004 002 001 020 004 ASR ASR 001 001 007 001 001 013 013 001 001 001 001 001 001 001 006 006 006 001 001 007 007 014 014

PART NO. DESCRIPTION 15267865 15273798 15274402 15265890 15265891 15265907 15274404 15273196 15265911 15265918 15265919 15265921 15265872 15275542 15269795 15265931 15265925 15265926 15275540 15271234 15271235 15265896 15265939 15265898 15267716 15265900 15265901 15265902 15265903 15265905 15265906 15275541 15265912 15265913

.TRUNNION-DIFF .PINION GEAR .STRAP-GEAR CASING .WASHER .NUT .PIN SPLIT .END-BOLTED .NUT .STUD .SHIM (0.005 IN) .SHIM (0.007 IN) .HOUSING .BEARING .SETSCREW .HELICAL WHEEL .NUT .WASHER .BOLT AXLE CASING LOCKNUT LOCKPLATE BEARING SEAL-VITON CAP SHAFT NUT WASHER STUD PLUG PLUG STUD STUD-AXLE CASING WASHER-SPRING NUT

NOTES: A ITEM 16 INCLUDES ITEMS 31,32,33 & 37 B ITEM 19 INCLUDES ITEMS 18,20,27 & 35

SER.NO. FROM

SER.NO. TO

165-0015-8211 BRAKE ASSY-OCDB(ARTICS) FROM SERIAL NO. A8201001

DRAWING NO. P10878

165-0015-8211 BRAKE ASSY-OCDB(ARTICS) FROM SERIAL NO. A8201001

NC REF QTY

A A

A B A A

B B B B

B

001 002 003 004 005 006 007 008 009 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031

001 003 003 003 003 003 001 001 001 001 005 025 002 004 001 001 003 003 001 001 001 001 020 020 001 001 006 006 010 010 001 001

PART NO. DESCRIPTION 15275494 15275495 NSS 15275497 NSS 15275499 15275500 NSS 15275502 NSS 15275504 NSS 15275506 NSS 15275508 NSS 15275510 NSS NSS 15275513 NSS 15275515 15275516 15275517 15275518 NSS 15275520 15275521 15275522 15275523 15275524 15275525

SER.NO. FROM

SER.NO. TO

BRAKE ASSY-(6 PLATE) .NUT-SLACK ADJUSTER .SEAL-SLACK ADJUSTER .JAM NUT-SLACK ADJUSTE .SEAL-SLACK ADJUSTER .SCREW-SLACK ADJUSTER .CAP-WEAR INDICATOR ..O RING .PIN-WEAR INDICATOR .O RING-WEAR INDICATOR .PLUG-DRAIN ..O RING .PLUG-PRESS INLET ..O RING .BLEEDER SCREW .COVER-BRAKE INNER .PIN-DOWEL .O RING .O RING .SEAL-PISTON INNER .SEAL-PISTON OUTER .PISTON-BRAKE .CAPSCREW .WASHER .COVER-BRAKE OUTER .O RING .FRICTION DISC & LININ .DISC-REACTION .SPRING-RETRACTOR .GUIDE PIN .PLATE-PISTON PRESS .BRK COVER & HSG ASSY

NOTES: A PARTS IN 15275527 SEAL KIT-BRAKE ASSY OUTER, PARTS ARE ALSO INCLUDED IN KIT 15275526 B PARTS IN 15275526 SEAL KIT-COMPLETE BRAKE ASSY

180-0020-8211 FRONT SUSPENSION FROM SERIAL NO. A8201001

DRAWING NO. P10795 P10795

19 27 2

14 22

7 5

26

2,7,8,9 19,27,33 38,39,40

4

5

3

33 8

6 23

40

24

9

3

6

39

17 25

3

17,25

10

38

32

18 25

11

1 18 25

16 31

37

30

35 21 25 13

29 28

31 30 29

25 15

25 21 12 34 36 20

180-0020-8211 FRONT SUSPENSION FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

001 002 004 001 002 002 002 002 002 002 001 001 002 002 002 004 008 004 004 001 014 002 004 004 028 002 002 002 004 004 004 002 002 001 001 001 002 002 002 002

PART NO. DESCRIPTION 15310231 15259048 15259050 15259051 15259052 15259053 15259054 15307898 15307900 15259059 15259060 15235370 15235373 15245020 15245691 15245693 15306178 15259161 09429052 15246954 06642401 15301159 15248882 09250715 15234742 09008198 00106269 15301347 15247263 07162030 06472001 15301273 15301616 09191596 15303167 07161630 15303270 15255614 06351665 06471601

FRAME-FRONT SUSPENSION WASHER DAMPER LINK RUBBER MOUNT RUBBER MOUNT RUBBER MOUNT BOLT CHAIN PIN ASSY CONTROL LINK BEARING BUSH BOLT BOLT BOLT BOLT BOLT NUT BOLT LOCKNUT NUT LOCKNUT WASHER-HARDENED WASHER-HARDENED WASHER WASHER CHAIN AND SHACKLE ASSY BOLT LOCKWASHER NUT PLATE BUSH WASHER GUARD-FRONT SUSP LOCKWASHER BOLT SHACKLE BOLT LOCKNUT

SER.NO. FROM

SER.NO. TO

190-0010-8211 TERMINALS FROM SERIAL NO. A8201001

DRAWING NO. P9336A

P9336

1

2

3

4

190-0010-8211 TERMINALS FROM SERIAL NO. A8201001

DRAWING NO. P9336B

P9336

6 5

9 7

8

190-0010-8211 TERMINALS FROM SERIAL NO. A8201001

DRAWING NO. P9336C

P9336

10

11

12

13

14

190-0010-8211 TERMINALS FROM SERIAL NO. A8201001

DRAWING NO. P9336D

P9336

16

17

18

19

15

20

190-0011-8211 CONNECTORS FROM SERIAL NO. A8201001

DRAWING NO. P9337A

P9337

1

5

10 11

2 6 3

12

4

13 7

8

9

190-0011-8211 CONNECTORS FROM SERIAL NO. A8201001

DRAWING NO. P9337B P9337

14

21 28

15 16

22

23

29

24 30

17 25 26 18 19 20

27

190-0011-8211 CONNECTORS FROM SERIAL NO. A8201001

DRAWING NO. P9337C P9337

45 31

38

32

46 39

33 47 34

40 41

35

42 48

36 37

43 49 44

190-0011-8211 CONNECTORS FROM SERIAL NO. A8201001

DRAWING NO. P9337D

P9337

50 62

51 52

67

68

53 63 54

69

55 56 57

64 70 65

58

71

59 60 61

66

72

190-0011-8211 CONNECTORS FROM SERIAL NO. A8201001

DRAWING NO. P9337E P9337

73 80 74

87

88 81

75

76

82 83 84

77

89 90

85 91

78

86

92

190-0011-8211 CONNECTORS FROM SERIAL NO. A8201001

DRAWING NO. P9337F P9337

98

93

99

100 94 101 95

102

96 97

103

R1 01/02 (ECN 104253) 190-0030-8211 CABLES/HARNESSES-CAB FROM SERIAL NO. A8201001

DRAWING NO. P10867A P10867 15254385 CONNECTOR TO FRAME POWER HARNESS

1 TO BUSBAR

TO BUSBAR

15255081 15248038

15248076

15257950

CONNECTOR TO BRAKE HARNESS

TO EARTH CONNECTOR TO FRAME HARNESS

CONNECTOR TO ENGINE HARNESS

CONNECTOR TO TRANSMISSION HARNESS

FUSE BANK 1 2 3

15256232 TO ALARM TO BUSBAR

2 SHEET 1

RELAY BANK 3 1 2

190-0030-8211 CABLES/HARNESSES-CAB FROM SERIAL NO. A8201001

DRAWING NO. P10867B

P10867

15257249 CONNECTOR TO RADIO SPEAKERS HARNESS

2

15257962

15256588

15257963

CONNECTOR TO RADIO CONVERTOR SUPPLY

15236937

15256587

CONNECTOR TO TRANSMISSION ELECTRONIC HARNESS

CONNECTOR TO RADIO CONVERTOR EARTH CONNECTOR TO TRANSMISSION ELECTRONIC HARNESS CONNECTOR TO TRANSMISSION ELECTRONIC HARNESS

TO FUSE BANK 3 (SEE SHEET 1)

TO RELAY BANK 1 (SEE SHEET 1)

15236936 CONNECTOR TO COLUMN SWITCH CONNECTOR TO COLUMN SWITCH

15257956

TO RELAY BANK 2 (SEE SHEET 1)

2 SHEET 2 R1 01/02 (ECN 104253)

R1 01/02 (ECN 104253) 190-0030-8211 CABLES/HARNESSES-CAB FROM SERIAL NO. A8201001

DRAWING NO. P10867C P10867

ALARM DIODE BLOCK

ALARM DIODE BLOCK

TEST DIODE BLOCK 1

TEST DIODE BLOCK 2

TEST DIODE BLOCK 3

INDICATOR DIODE BLOCK

RADIATOR FAN DIODE BLOCK

CONNECTOR TO PANEL / W.L. HARNESS

15256576

2 CONNECTOR TO SPEEDOMETER FREQUENCY DIVIDER

15226970 CONNECTOR TO FRONT WIPER MOTOR

2

15226251

TO HAZARDS LIGHT ROTATING BEACON SW. LIGHT

TO RELAY BANK 3 (SEE SHEET 1)

15236938

15236939 15236938

2

SHEET 3

HAZARDS SWITCH CONNECTOR

ROTATING BEACON SW. CONNECTOR

HEATER SWITCH LIGHT

15236939

TEST SWITCH LIGHT

15236939

15236938 HEATER SWITCH CONNECTOR

15236938 TEST SWITCH CONNECTOR

190-0030-8211 CABLES/HARNESSES-CAB FROM SERIAL NO. A8201001

DRAWING NO. P10867D P10867

15248365

CONNECTOR TO GAUGES PANEL HARNESS

15252801

CONNECTOR TO CAB MANUFACTURER HARNESS

CONNECTOR TO AIR CONDITIONER HARNESS

RETARDER MODE SW.

15248365 CONNECTOR TO TRANSMISSION VDU

CONNECTOR TO AIR CONDITIONER HARNESS (KYSOR)

EMERGENCY STOP SW. 4066C

CONNECTOR TO BLOWER HARNESS (KYSOR)

RETARDER MODE SW.

PARKING BRAKE SW. 2566C,3066C

15253354

BODY DOWN SW. LT.

15236938

15259159

2

CONNECTOR TO BODY CONTROL JOYSTICK

15236939

DIFFLOCKS SWITCH LIGHT

EXHAUST BRAKE SW. 2566C RETARDER REQUEST SW. 3566/4066D 15236939

15236938

15256587

BODY DOWN SWITCH

15236938

15236939 15236938 DIFFLOCKS SWITCH CONNECTOR

LIGHTS SW. LT.

FOG LIGHT SWITCH LIGHT

15236939

15236939

15236938

TO HAND LAMP SOCKET

LIGHTS SW.

15236938

FOG LIGHT SWITCH

REAR W/WIPE SW. LT.

REAR WORKING LIGHTS SW.LT.

AUX. LIGHTS SW. LT.

15236939

15236939

15236939

15236938

REAR W/WIPE SW.

15236938

REAR WORKING LIGHTS SW.

15236939

15236938

AUX. LIGHTS SWITCH

EMERGENCY ENGINE OVERRIDE SW. LT.

15256598 15256597 CONNECTOR TO KEYSWITCH

R1 01/02 (ECN 104253)

TO CIGAR LIGHTER CONNECTOR TO KEYSWITCH

SHEET 4

R1 01/02 (ECN 104253) 190-0030-8211 CABLES/HARNESSES-CAB FROM SERIAL NO. A8201001

DRAWING NO. P10867E P10867 CONNECTOR TO PANEL HARNESS

15256836

3

15256836

EARTH

CONNECTOR TO MAIN DASH HARNESS

15236938 CONNECTOR TO DIAGNOSTIC / EMERGENCY ENGINE SHUTDOWN OVERRIDE SWITCH 15255081

C B A

15250802

15248424

15301012 CONNECTOR TO DIAGNOSTICS

CONNECTOR TO ELECTRONIC THROTTLE

CONNECTOR TO DDEC 111 INTERFACE HARNESS

CONNECTOR TO TRANSMISSION ECU HARNESS

4

190-0030-8211 CABLES/HARNESSES-CAB FROM SERIAL NO. A8201001

DRAWING NO. P10867F

P10867

15252482 15252482

5 WARNING LIGHT MODULE TOP CONNECTOR

WARNING LIGHT MODULE TOP CONNECTOR

15252482

CONNECTOR TO DDEC HARNESS

15252482

WARNING LIGHT MODULE BOTTOM CONNECTOR

WARNING LIGHT MODULE BOTTOM CONNECTOR 15253354 15226251

15226251

+VE

FUEL +VE GAUGE LT. 15248364

CONNECTOR TO TACHOMETER

CONNECTOR TO FUEL GAUGE

+VE -VE TACHOMETER LIGHTS +VE 15256616

CONNECTOR TO DASH HARNESS GAUGES CONNECTOR

-VE

15256611

R1 01/02 (ECN 104253)

SPEEDOMETER LIGHTS

-VE

CONNECTOR TO DASH HARNESS WARNING LIGHTS CONNECTOR

CONNECTOR TO TRANS.TEMP. GAUGE

TRANS. TEMP. GAUGE LT.

CONNECTOR TO SPEEDOMETER

-VE

R1 01/02 (ECN 104253) 190-0030-8211 CABLES/HARNESSES-CAB FROM SERIAL NO. A8201001

NC REF QTY 001 002 002 003 004 005

001 001 001 001 001 001

PART NO. DESCRIPTION 15255926 15311528 15312763 15300095 09077769 15312762

HARNESS-BATT/ALT HARNESS-DASH DASH HARNESS HARNESS-DASH DDEC II CABLE-EARTH HARNESS PANEL 4066D

SER.NO. FROM

SER.NO. TO

A8201001 A8201015

A8201014

THIS PAGE IS INTENTIONALLY LEFT BLANK

R1 01/02 (ECN 104253) 190-0040-8211 CABLES/HARNESSES-CHASS/ENG FROM SERIAL NO. A8201001

DRAWING NO. P10893A

P10893 TO STARTER MOTOR +ve

1

TO STARTER RELAY CONTACTS

TO STARTER MOTOR SOLENOID +ve

TO STARTER RELAY COIL 15250869

CONNECTOR TO DASH HARNESS

15257967

2

TO ENGINE HARNESS

CONNECTOR TO TRANSMISSION ECU RETARDER TEMP. SENDER

CONNECTOR TO MIDDLE AXLE DIFFLOCK SOLENOID

15257951 15257967

CONNECTOR TO TURBINE SPEED SENSOR

CONNECTOR TO LOCK UP SOLENOID

15257952 CONNECTOR TO CLUTCH PACK CONTROL VAL.

15234423

CONNECTOR TO TRANSMISSION TEMPERATURE GAUGE SENDER 15300187

15232617 1

15257967

CONNECTOR TO ENGINE SPEED SEN.

2

CONNECTOR TO INTERNAL GEAR CHAIN SPEED SENSOR

CONNECTOR TO OUTPUT SPEED SENSOR

15257967 CONNECTOR TO OIL CONTAMINATION SWITCH

15250847

CONNECTOR TO RETARDER TEST POINT

3

15257967

15257954

CONNECTOR TO DIFFLOCK SOLENOID CONNECTOR TO DIFFLOCK SWITCH

15234423

15232617

15232617 CONNECTOR TO RETARDER SOLENOID

190-0040-8211 CABLES/HARNESSES-CHASS/ENG FROM SERIAL NO. A8201001

DRAWING NO. P10893B P10893 L.H. SIDE LIGHT & INDICATOR

CONNECTOR TO DASH HARNESS 15248074

TO REAR WASHER PUMP

CONNECTOR TO DASH HARNESS

L.H. DIPPED BEAM TO FRONT WASHER PUMP

15257403

15257403

FUEL LEVEL SENDER

15255083

CONNECTOR TO TEMP. SW. FOR WARNING LIGHT

15234423 15300187

CONNECTOR TO TEMP. SW. FOR FAN SOLENOID

CONNECTOR TO CRADLE FRAME HARNESS

15250847

CONNECTOR TO STOP LIGHT PRESSURE SWITCH 15250869

TO EARTH TRACTOR

CONNECTOR TO ENGINE E.C.M.

CONNECTOR TO BATTERY BOX POWER HARNESS

B C

15248424

3

R.H. MAIN R.H. DIPPED BEAM BEAM

A

CONNECTOR TO RETARDER PROXIMITY SW.

R1 01/02 (ECN 104253)

CONNECTOR TO HORN HARNESS

CONNECTOR TO O.C.D.B. COOLING SOLENOID

CONNECTOR TO BRAKE DIFFERENTIAL

15312921

15257951

15232617

CONNECTOR TO KICKDOWN SWITCH

15300187

15300187

L.H. MAIN BEAM

TO EARTH TRAILER

R.H. SIDE LIGHT & INDICATOR

R1 01/02 (ECN 104253) 190-0040-8211 CABLES/HARNESSES-CHASS/ENG FROM SERIAL NO. A8201001

P10893

CONNECTOR TO ENGINE SENSOR HARNESS

CONNECTOR TO ECM COMMUNICATION CONNECTOR 15248395

DRAWING NO. P10893C

15248439 A

CONNECTOR TO KYSOR FAN HARNESS

15257490

B

CONNECTOR TO COOLANT LEVEL SENDER

15250847

CONNECTOR TO POWER HARNESS

15255083 15250869

4 CB

A

15248402

CONECTOR TO DDEC III DASH HARNESS

F

E

D

15250805

K

JH

G

CONNECTOR TO ENGINE HARNESS CONNECTOR TO ECM

EARTH

15250882

TO MASTER SWITCH 15248414 CONNECTOR TO ECM 15A FUSE

CONNECTOR TO ECM 15A FUSE 15248414

5 TO BATTERY BOX +ve STUD

15248414 CONNECTOR TO IGNITION 5A FUSE

15250847 CONNECTOR TO VEHICLE INTERFACE HARNESS

CONNECTOR TO ECM POWER CONNECTOR

190-0040-8211 CABLES/HARNESSES-CHASS/ENG FROM SERIAL NO. A8201001

DRAWING NO. P10893D P10893

6

CONNECTOR TO FRAME POWER HARNESS

15255037

CONNECTOR TO FRONT FRAME HARNESS

15254386

C B

A

TO BATTERY -ve POST

7

TO BATTERY BOX +ve STUD

TO BATTERY BOX FRAME EARTH POINT

TO ALTERNATOR TACHOMETER DRIVE

TO ALTERNATOR WARNING LIGHT

8

15248077

15253703

EARTH CONNECTOR TO AIR COND. COMPRESSOR

R1 01/02 (ECN 104253)

15253703 CONNECTOR TO DDEC III INTERFACE HARNESS

15250847 TO STARTER RELAY HARNESS

CONNECTOR TO CAB WALL

R1 01/02 (ECN 104253) 190-0040-8211 CABLES/HARNESSES-CHASS/ENG FROM SERIAL NO. A8201001

DRAWING NO. P10893E P10893

CONNECTOR TO CAB AMMETER POWER HARNESS

15254386

CONNECTOR TO BATTERY BOX POWER HARNESS

15254387

TO ALTERNATOR

9

CONNECTOR TO TRACTOR BRAKES LOW OIL PRESS. SW.

CONNECTORS TO HYDRAULICS MAIN CONTROL VALVE BODY

CONNECTOR TO TRAILER BRAKES LOW OIL PRESS. SW.

LOWER SOL. 15257967

CONNECTOR TO EMERGENCY STOP BRAKE SOL. VALVE

15300187

15300187

CONNECTOR TO STEERING PRESS. SW. 15300187

RAISE SOL. 15257967

CONNECTOR TO ENGINE FAN VALVE

15250847 CONNECTOR TO PARKING BRAKE PRESS. SW.

15232617

CONNECTOR TO REAR FRAME HARNESS

15300187

15255081

10

CONNECTOR TO REAR FRAME HARNESS 15257950

190-0040-8211 CABLES/HARNESSES-CHASS/ENG FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 003 004 005 006 007 008 009 010 010

001 001 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15303771 15302546 15308508 15312764 15300099 15300105 09384487 15306219 15303764 15302627 15303006 15313067

HARNESS-STARTER RELA HARNESS-TRANSMISSION HARNESS,FRONT FRAME HARNESS,FRONT FRAME HARNESS-INTERFACE DD HARNESS-POWER DDEC CABLE-EARTH HARNESS-BATTERY BOX HARNESS-ENGINE HARNESS-POWER FRAME HARNESS, CRADLE HARNESS, CRADLE

R1 01/02 (ECN 104253)

SER.NO. FROM

SER.NO. TO

A8201001 A8201015

A8201014

A8201001 A8201015

A8201014

190-0070-8211 BATTERY AND CABLES FROM SERIAL NO. A8201001

DRAWING NO. P10447

P10447 STARTER

5

2

+ 7 6

4

9 1

+

10

-

3

8

190-0070-8211 BATTERY AND CABLES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010

002 001 001 001 001 001 001 001 002 002

PART NO. DESCRIPTION 15226158 15248302 15306264 15306221 15300103 15230097 15306220 15305862 06350612 07150615

BATTERY CABLE-STARTER MOTOR CABLE ASSY CABLE ASSY-BATTERY B CABLE-BATTERY CABLE-INTER BATTERY CABLE ASSY-BATTERY SWITCH-MAGNETIC SCREW LOCKWASHER

SER.NO. FROM

SER.NO. TO

190-0080-8211 BATTERY MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P10792 P10792

2 4 3

1 2-7

5 6 7

8

9 15 16

12 11

10

14

A

13

A A A

A

A

20 19

A

19 17

A

18 A

190-0080-8211 BATTERY MOUNTING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020

001 001 001 002 002 002 001 004 004 002 002 004 002 001 002 002 006 004 008 004

PART NO. DESCRIPTION 15310626 15310902 00103373 06351250 06471201 07181230 15229899 00274208 00106263 09140612 15226109 15226286 00117966 15246310 06351025 07151020 15302814 06351035 07151020 06471001

BATTERY BOX ASSY .LID-BATTERY BOX .PIN-COTTER .BOLT .LOCKNUT .WASHER .SEAL LOCKNUT WASHER PAD BAR BOLT-HOOK GROMMET BRACKET BOLT WASHER GROMMET BOLT WASHER LOCKNUT

SER.NO. FROM

SER.NO. TO

R1 01/02 (SERVICE CORR.) 190-0100-8211 ELECTRICAL LIGHTING SYSTEM FROM SERIAL NO. A8201001

DRAWING NO. P9579 P9579

4,5

3

8,9,10 1,2

6,7

190-0100-8211 ELECTRICAL LIGHTING SYSTEM FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010

004 001 004 004 004 004 004 002 002 002

PART NO. DESCRIPTION 15230426 15271433 15230393 00106263 00102635 06430601 07160630 15258907 15258872 15258873

HEADLAMP .BULB-H4 BRACKET-HEADLAMP WASHER NUT NUT WASHER LAMP-INDICATORS/SIDE .BULB 21W .BULB 5W

R1 01/02 (SERVICE CORR.)

SER.NO. FROM

SER.NO. TO

190-0110-8211 ALTERNATOR FROM SERIAL NO. A8201001

DRAWING NO. P8145 P8145

1

190-0110-8211 ALTERNATOR FROM SERIAL NO. A8201001

NC REF QTY

PART NO. DESCRIPTION

001 001

15273449 .ALTERNATOR

SER.NO. FROM

SER.NO. TO

190-0120-8211 STARTER MOTOR FROM SERIAL NO. A8201001

DRAWING NO. P7981 P7981

1

190-0120-8211 STARTER MOTOR FROM SERIAL NO. A8201001

NC REF QTY 001 001

PART NO. DESCRIPTION 10478998 .STARTER MOTOR

SER.NO. FROM

SER.NO. TO

R1 01/02 (SERVICE CORR.) 190-0170-8211 FLOODLAMP/SPOTLIGHT/WORK LIGHT FROM SERIAL NO. A8201001

DRAWING NO. P10864

P10864

1,2

1,2

3,4

PART VIEW ON FRONT R.H. SIDE OF DASH

190-0170-8211 FLOODLAMP/SPOTLIGHT/WORK LIGHT FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004

002 002 001 001

PART NO. DESCRIPTION 15248898 15271434 15258800 15249195

LAMP-FLOOD .BULB-24V-70W SWITCH-WORK LIGHTS LENS-WORK LIGHTS

R1 01/02 (SERVICE CORR.)

SER.NO. FROM

SER.NO. TO

R1 01/02 (SERVICE CORR.) 190-0270-8211 SWITCHES AND SENSORS FROM SERIAL NO. A8201001

DRAWING NO. P10920 P10920 TREADLE VALVE SEC. 250-0070

HEADER TANK SEC. 210-0040

9 10 1 REF. FRONT FRAME HARNESS

2 7

3

6

8

4

6

11

5

12 13

BRAKE MANIFOLD VALVE SEC. 250-0050

TRANSMISSION SEC. 120-0020 FRONT AXLE MANIFOLD BLOCK SEC. 210-0052

190-0270-8211 SWITCHES AND SENSORS FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013

001 001 001 001 002 001 001 001 002 002 001 001 001

PART NO. DESCRIPTION 15305802 15273741 15248834 15300088 15300082 15300942 15300744 15250819 06350665 07160630 15274198 15300089 15300087

DIFFERENTIAL SWITCH .SWITCH ASSY BUSH-INSULATING SWITCH-PRESSURE SWITCH-PRESSURE SWITCH-PRESSURE SENDER-TEMPERATURE SENDER-COOLANT LEVEL BOLT WASHER SWITCH SWITCH SWITCH

R1 01/02 (SERVICE CORR.)

SER.NO. FROM

SER.NO. TO

190-0300-8211 RADIO CASSETTE AND SPEAKERS FROM SERIAL NO. A8201001

DRAWING NO. P10837

P10837

2 STEERING COLUMN SUPPORT

3

4,5,6

8

1 1

ASL

8 7

190-0300-8211 RADIO CASSETTE AND SPEAKERS FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008

001 002 001 004 004 004 001 001

PART NO. DESCRIPTION 15311211 15256599 15305080 06350512 06430501 07160530 15305085 15305082

RADIO/CASSETTE 12V SPEAKER-SINGLE PLATE-VOLTAGE CONVER BOLT NUT LOCKWASHER HRN-ADAPTOR/VOLT CONV CONVERTOR ASSY DC/DC

SER.NO. FROM

SER.NO. TO

190-0310-8211 ELECTRICAL HORN FROM SERIAL NO. A8201001

DRAWING NO. P9903

P9903

2

1

4 5

3

7

6 4

8 9

5

190-0310-8211 ELECTRICAL HORN FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009

001 001 002 002 003 001 001 001 001

PART NO. DESCRIPTION 15303068 15303069 15300950 06350835 06470801 15303734 09131853 06350825 07150815

HORN HORN BUSHING-HORNS SCREW NUT HARNESS-HORN CLIP BOLT WASHER

SER.NO. FROM

SER.NO. TO

R1 01/02 (SERVICE CORR.) 200-0010-8211 FUEL TANK AND MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P10799 P10799

9268885

9268892

2,3

13

9 5

8 6 7

1 10 11 12 16 15 17 14 20

20 18

14 19 15 16

4

200-0010-8211 FUEL TANK AND MOUNTING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020

001 001 001 001 004 005 005 001 004 001 001 001 001 005 001 003 001 001 003 003

PART NO. DESCRIPTION 15310044 15257970 15271521 00444637 07161030 06350520 07150510 15310857 06351025 15310045 15275478 15275479 09160607 07151220 09270000 06471201 15310799 15310800 15313059 06351245

FUEL TANK-WELDMENT .CAP ASSY-FUEL ..CARTRIDGE-FILTER KIT .PLUG .LOCKWASHER .SCREW .WASHER .PLATE .BOLT .SENDER UNIT KIT-FUEL ..SEAL-CORK ..FLANGE .STRAINER WASHER WASHER-HARDENED LOCKNUT PAD-FUEL TANK PAD-FUEL TANK PAD-FUEL TANK BOLT

R1 01/02 (SERVICE CORR.)

SER.NO. FROM

SER.NO. TO

200-0040-8211 FUEL LINES FROM SERIAL NO. A8201001

DRAWING NO. P10861 P10861

D.D. ELECTRONIC CONTROLS S.W.E.

TO ENGINE - REAR

2

FUEL PUMP S.W.E.

7 TANK SEC. 200-0010

10 7 SECONDARY FILTER S.W.E.

6

9 1

8

13 12 11

3

PRIMARY FILTER S.W.E.

5

10

4

200-0040-8211 FUEL LINES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013

001 001 001 001 001 001 002 001 001 004 016 016 016

PART NO. DESCRIPTION 15248701 15313373 15313372 15308429 09402865 09423452 15248706 15303096 15275567 15300463 06350625 07150615 06470601

COOLER-FUEL HOSE ASSY HOSE ASSY HOSE ASSY ELBOW ELBOW ELBOW ELBOW BRACKET ASSY MOUNT-FLEXIBLE BOLT LOCKWASHER LOCKNUT

SER.NO. FROM

SER.NO. TO

200-0050-8211 ACCELERATOR LINKAGE FROM SERIAL NO. A8201001

DRAWING NO. P9907

P9907

1

7 8, 9

4

6

2

10 6

5

5 4

2

5 10 6 5

ENGINE

3

200-0050-8211 ACCELERATOR LINKAGE FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010

001 001 001 001 001 009 001 005 001 002

PART NO. DESCRIPTION 15302063 15267961 15267960 15272867 15272868 07160830 15304241 06350825 06350825 06350816

PEDAL-ACCELERATOR .POTENTIOMETER .HARNESS .COVER .KIT-OVERHAUL LOCKWASHER PLATE ASSY BOLT BOLT BOLT

SER.NO. FROM

SER.NO. TO

R1 01/02 (SERVICE CORR.) 210-0010-8211 RADIATOR ASSEMBLY FROM SERIAL NO. A8201001

DRAWING NO. P10860 P10860

3

1

5

6

2 - 16

19

8

16 15

17

14 18

9

12 13

2 7

4 3

10

11

210-0010-8211 RADIATOR ASSEMBLY FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019

001 001 002 001 001 001 001 001 001 001 001 001 001 001 001 001 006 006 001

PART NO. DESCRIPTION 15275528 15275530 15275531 15275539 15275538 15275568 15275569 15275536 15275534 15275535 15275537 15275533 15275532 15275571 15275570 15275572 06351025 07161030 15275529

RADIATOR ASSY .TUBE BLOCK .JOINT .TANK ASSY-LH .TANK ASSY-RH .SIDE COLUMN-TOP .SIDE COLUMN-BTM .PLATE ASSY-FAN .FAN .CARRIER FRAME-MOTOR .GUARD ASSY-FAN .ADAPTOR-FAN HUB .MOTOR ASSY-FAN DRIVE .WASHER .NUT-SLOTTED .SPLIT PIN .BOLT .LOCKWASHER CHARGE COOLER ASSY

R1 01/02 (SERVICE CORR.)

SER.NO. FROM

SER.NO. TO

210-0020-8211 RADIATOR MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P10855 P10855

2 1 10 11 12

3

5

7 6 15

6

14 13

7

9 8

8 4 9

210-0020-8211 RADIATOR MOUNTING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015

001 001 001 001 001 003 002 003 003 002 004 002 004 008 004

PART NO. DESCRIPTION 15312144 15312142 15312143 15312195 15310952 15246953 15246971 15246956 06471601 06351250 00106264 06471201 06351030 07151020 06471001

BAFFLE-TOP BAFFLE-RHS BAFFLE-LHS BAFFLE-BOTTOM BRACKET-RAD STEADY MOUNTING BOLT WASHER-SNUBBING LOCKNUT BOLT WASHER LOCKNUT BOLT WASHER LOCKNUT

SER.NO. FROM

SER.NO. TO

R1 01/02 (DRG CHGE)

210-0025-8211 RADIATOR FAN MOTOR-HYD LINES FROM SERIAL NO. A8201001

DRAWING NO. P10881 P10881

8

9

14

10,11

LOW TEMP. UNLOADER VALVE SEC. 210-0045

1

22 21

8

3

13

12

HYDRAULIC PUMP SEC. 250-0040

14,15 21,22

PRIORITY UNLOADER VALVE SEC. 250-0075

2

33

7

19

34 35

30

18

15

FAN MOTOR SEC. 210-0010

23

REF. SEC. 250-0020

33

4

24

14

17 16

26 27 28

6

32 36

29 36

HYDRAULIC TANK SEC. 230-0040

38

37

15 25 14,15 16,17

41 40 5

39

31

34 35

20 14,15 21,22

210-0025-8211 RADIATOR FAN MOTOR-HYD LINES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

001 001 001 001 001 001 001 002 001 001 001 001 001 003 006 004 004 001 001 001 008 008 001 001 001 001 001 001 001 001 001 001 002 002 002 002 001 001 002 002

PART NO. DESCRIPTION 15312022 15312021 15253200 15312252 15313190 15312220 15312020 15253094 15252902 15253098 15253153 15257391 15253242 09216976 09409981 00179841 00108580 15255890 15312637 15312589 15244027 07161030 15312071 15253129 15251936 15253125 15253126 15252996 15313526 15313528 15313529 15253647 15252902 15253098 15253153 15252849 15313527 15308358 06351225 07161230

R1 01/02 (DRG CHGE)

HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY ADAPTOR TEE NUT-SWIVEL REDUCER TEE ELBOW O RING FLANGE-SPLIT BOLT LOCKWASHER ELBOW TUBE ASSY TUBE ASSY SCREW LOCKWASHER ELBOW ELBOW ADAPTOR REDUCER NUT ELBOW VALVE-CHECK HOSE ASSY HOSE ASSY ELBOW TEE NUT-SWIVEL REDUCER ADAPTOR BRACKET PIPE CLAMP-30MM SINGLE BOLT LOCKWASHER

210-0025-8211 RADIATOR FAN MOTOR-HYD LINES FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 002

PART NO. DESCRIPTION 07151220 WASHER

SER.NO. FROM

SER.NO. TO

210-0030-8211 RADIATOR PIPING FROM SERIAL NO. A8201001

DRAWING NO. P10854

P10854

1 2 1

3 1 2 1 1 2 1 11 10

2

9 6

1 4

7

5 8

1

210-0030-8211 RADIATOR PIPING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011

008 004 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15311494 15311474 15310970 15312108 15307667 00116524 09402708 15236118 09214090 15230961 00444704

CLAMP HOSE-SILICON PIPE-ENG TO RAD PIPE-RAD TO ENG HOSE ASSY BUSHING CONNECTOR ELBOW CONNECTOR VALVE-BALL SHUT-OFF PLUG

SER.NO. FROM

SER.NO. TO

210-0040-8211 RADIATOR HEADER TANK AND HOSES FROM SERIAL NO. A8201001

DRAWING NO. P10857

P10857

5 7 6

4

9 8 10

8 2 ENGINE

1 3

14 16 13 12

15 REF. SEC. 110-0030 ENGINE

11

12 17 16

210-0040-8211 RADIATOR HEADER TANK AND HOSES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017

001 001 001 001 001 001 001 002 001 001 004 008 004 ASR ASR 004 ASR

PART NO. DESCRIPTION 15307440 15306796 15312273 15312274 09250048 00118755 00118753 15017992 00118750 00116436 06351030 07151020 06471001 15248513 15247847 02337379 09030744

REMOTE HEADER TANK .CAP-HEADER TANK HOSE ASSY HOSE ASSY HOSE ASSY ELBOW ELBOW ELBOW CONNECTOR CONNECTOR BOLT WASHER LOCKNUT HOSE HOSE-FIREMASTER CLAMP TUBING

SER.NO. FROM

SER.NO. TO

210-0045-8211 LOW TEMPERATURE UNLOADER VALVE FROM SERIAL NO. A8201001

DRAWING NO. P10892 P10892

1,2

210-0045-8211 LOW TEMPERATURE UNLOADER VALVE FROM SERIAL NO. A8201001

NC REF QTY 001 001 002 001

PART NO. DESCRIPTION 15310871 LOW TEMPERATURE UNLOAD 15275602 .REPAIR KIT

SER.NO. FROM

SER.NO. TO

210-0050-8211 OIL COOLER-DISC BRAKES FROM SERIAL NO. A8201001

DRAWING NO. P10836 P10836

1 5 6 4

2 8

7

4

3 5

9 10

11 12

13

12 14

210-0050-8211 OIL COOLER-DISC BRAKES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014

001 001 001 006 006 001 001 001 001 001 004 008 004 004

PART NO. DESCRIPTION 15310670 15275455 15275456 15275457 15275458 15275459 15275460 15275461 15275462 15275463 06351290 09024430 15310943 06471201

BRAKE COOLER ASSY-OCDB .COVER-FRONT .OIL COOLER .ADAPTOR .MTG ANTI-VIBRATION .BOX CASING .FAN/IMPELLER .PLATE ASSY-FAN .GUARD ASSY-REAR .HYDRAULIC MOTOR BOLT WASHER ISOLATION MOUNT LOCKNUT

SER.NO. FROM

SER.NO. TO

R1 01/02 (DRG CHGE) 210-0052-8211 OIL COOLING LINES-DISC BRAKES FROM SERIAL NO. A8201001

DRAWING NO. P10880A P10880

2 3 4

5

L.H. BRAKE

16

6

13

8

LOW PRESS. RELIEF VALVE SEC. 250-0025

10 14

5 26

7

5 1

9

15

35

MOTOR / TRIPLE PUMP

36 37

32

30

34

16 SWITCHES SEC. 190-0270

29

17

31

20

28

15 21

23

18 11

12 10

27

24

BTM.

BTM.

25

MID

MID

TOP

TOP R.H. BRAKE

33

22 16

19

16

BRAKE COOLER

34

MANIFOLD BLOCK SEC. 250-0025

210-0052-8211 OIL COOLING LINES-DISC BRAKES FROM SERIAL NO. A8201001

DRAWING NO. P10880B P10880 BRAKE COOLANT TANK SEC. 250-0025

64

48

MOTOR / TRIPLE PUMP

53

52 63

HYDRAULIC PUMP SEC. 250-0040

5

51

45

47

RELIEF VALVE SEC. 250-0120

46

40

56 54 59 60,61

43

56

2 SPEED CONTROL VALVE SEC. 250-0065

62 HYDRAULIC TANK SEC. 230-0040

57

42

55

52

58

52

49 BRAKE COOLER

R1 01/02 (DRG CHGE)

38

50 39

44

41

R1 01/02 (DRG CHGE) 210-0052-8211 OIL COOLING LINES-DISC BRAKES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

001 002 002 002 007 001 001 001 001 004 001 001 001 001 004 002 001 001 002 002 001 001 001 001 001 003 003 003 001 001 001 001 001 002 003 004 004 001 001 001

PART NO. DESCRIPTION 15311645 06351225 07161230 00106265 15244929 15312013 15312026 15312014 15312027 15312057 15312605 15312606 15312608 15312609 15251936 15251981 15310138 15311178 06351225 07161230 15312036 15312037 15312031 15312032 15312033 15253082 15312254 15255830 15312255 15312256 15312257 15251936 15252695 15253129 15312030 06351290 07161230 15312023 15312249 15312248

PLATE BENT BOLT LOCKWASHER WASHER ADAPTOR-BULKHEAD HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY ADAPTOR PIPE ASSY PIPE ASSY PIPE ASSY PIPE ASSY ADAPTOR ELBOW MANIFOLD BLOCK BRACKET ASSY BOLT LOCKWASHER HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY ADAPTOR HOSE ASSY ELBOW-BULKHEAD HOSE ASSY HOSE ASSY HOSE ASSY ADAPTOR ELBOW ELBOW HOSE ASSY BOLT LOCKWASHER HOSE ASSY HOSE ASSY HOSE ASSY

210-0052-8211 OIL COOLING LINES-DISC BRAKES FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 042 043 044 045 046 047 048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063 064

001 001 001 001 001 001 001 001 001 001 001 003 001 001 001 002 002 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15312114 15312115 15312041 15312040 15312024 15312110 15312251 15312250 15312109 15257392 15253121 15252849 15253082 15311822 15252989 15253073 15253242 15252983 15253647 15253239 15251953 15310074 15311607 15253242

HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY ELBOW ELBOW-BULKHEAD ADAPTOR ADAPTOR TEE MALE RUN TEE TEE ELBOW ELBOW ELBOW ADAPTOR CAP CONNECTOR-STRAIGHT M12 ELBOW MALE MALE 90 ELBOW

SER.NO. FROM

SER.NO. TO

THIS PAGE IS INTENTIONALLY LEFT BLANK

210-0060-8211 OIL COOLER AND PIPING-TRANS FROM SERIAL NO. A8201001

DRAWING NO. P10794

P10794

21 11 17

17

18

4 17 19 10

17

9,16

6,27

9,16

17 11

5

24,20,1

25 2 12,16

3

8

16 12 16

15

14,23 20,1

15

COOLER SEC. 210-0065

22,26

22,26 16

13

6,27

7

210-0060-8211 OIL COOLER AND PIPING-TRANS FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027

003 001 001 001 001 002 001 001 002 001 003 002 001 001 002 008 008 002 002 006 004 004 003 003 004 004 002

PART NO. DESCRIPTION 09410968 15305087 15305086 15310959 15310960 15251142 15305956 15305955 15311980 15247533 15247449 15311979 15305658 15258378 15257452 15311495 15246891 15001429 15001436 07160830 15001428 06351025 06350860 06350830 00179839 00106263 15253037

O RING TUBE-WATER TUBE-WATER CHARGE COOLER PIPE CHARGE COOLER PIPE TUBE HOSE ASSY HOSE ASSY ELBOW HOSE SILICON ELBOW HOSE-COOLER HOSE SILICON PLATE PLATE-SANDWICH ADAPTOR CLAMP, WORM DRIVE CLAMP CLAMP BUSHING-SPLIT LOCKWASHER NUT-STACKING BOLT BOLT BOLT BOLT WASHER O RING (-20) ORFS

SER.NO. FROM

SER.NO. TO

210-0065-8211 OIL COOLER FROM SERIAL NO. A8201001

DRAWING NO. P10219

P10219

6

1

2 4

5 4 2 6

3

210-0065-8211 OIL COOLER FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006

001 002 001 002 001 008

PART NO. DESCRIPTION 15305953 NSS NSS 15273569 NSS NSS

COOLER-TRANSMISSION .COVER-END .TUBES-STACK .SEAL .BODY .BOLT

SER.NO. FROM

SER.NO. TO

210-0100-8211 OIL COOLER AND LINES-HYDRAULIC FROM SERIAL NO. A8201001

DRAWING NO. P10862 P10862

15

HYDRAULIC CONTROL VALVE

5

3

14

10

5

13 7 8

14 13

12

4 11 16

15 14 6

7 8

16

9

4 14 13

1

12 9 2 3

210-0100-8211 OIL COOLER AND LINES-HYDRAULIC FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016

001 001 001 001 002 001 002 004 002 001 001 004 006 012 004 004

PART NO. DESCRIPTION 15313284 15313391 15313294 15313293 15253036 15275575 15256737 15256740 15275578 15275576 15275577 06351040 07161030 09267949 06351245 06471201

HYDRAULIC OIL COOLER STRAIGHT ADAPTOR 1"BSP HOSE ASSY HOSE ASSY O-RING BRACKET-SUPPORT MOUNT-FLEXIBLE PLATE ANGLE-SUPPORT BRACKET-SUPPORT PLATE-SUPPORT BOLT LOCKWASHER WASHER-HARDENED BOLT LOCKNUT

SER.NO. FROM

SER.NO. TO

220-0010-8211 STEERING LINES FROM SERIAL NO. A8201001

DRAWING NO. P10286 P10286

51

48

TO HYD.TANK

R.H.STEERING CYLINDER SEC 220-0120

33

14 26

32

50 49

35

47

36

TO MANIFOLD

6

16

31 TO HYD. TANK

19 22

EMERGENCY STEER VALVE SEC 220-0140

23

34

LS

38

8

46

13

PP FLOW AMPLIFIER VALVE SEC 220-0100

38 42

47,48 49,50

31

21

54

43 43

28

24

37

L

34

T

P R 30

7 42

30

20

11

2

5

12

P

12

EMERGENCY STEERING PUMP (PART OF TRANS)

29

10

1 9

T

12 L5

15 16

L

3 25 4

32

2

56

4

52

35 6

16

39,40

18,44 35

TO MANIFOLD 27

30

3

R

STEERING VALVE SEC 220-0090

19

20

5 21

10

24

44.48

55

53

41.45

CHECK VALVE SEC. 230-0020

L.H.STEERING CYLINDER SEC 220-0120 51

14 32

DIAGNOSTIC MANIFOLD

220-0010-8211 STEERING LINES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

001 001 001 001 001 001 001 001 001 001 001 004 001 001 001 003 001 001 001 001 001 001 001 001 001 001 001 001 001 004 001 002 001 001 003 001 001 002 001 001

PART NO. DESCRIPTION 15300660 15300707 15300704 15300705 15300706 15300709 15300767 15300766 15300648 15300678 15304037 15257474 15300664 15300919 15251938 15252983 15252902 15258384 15303780 15303781 15305655 15300682 15300683 15300681 15300680 15300918 15300917 15300943 15300944 15253082 15251982 15236925 15251951 15253094 15251945 15253095 15253096 15255890 15253099 15253098

TUBE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY ADAPTOR HOSE ASSY HOSE ASSY ADAPTOR ELBOW TEE TEE HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY ADAPTOR ELBOW ADAPTOR ADAPTOR ADAPTOR TEE ADAPTOR ELBOW ADAPTOR ADAPTOR ELBOW REDUCER NUT-SWIVEL

220-0010-8211 STEERING LINES FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 042 043 044 045 046 047 048 049 050 051 052 053 054 055 056

001 002 002 001 001 001 008 005 016 016 002 001 001 001 001 001

PART NO. DESCRIPTION 15300946 15251950 15251994 15300940 15025869 15301382 09409982 09410968 00179841 00108580 09183205 15253129 15253243 15300916 15254978 15300684

ADAPTOR-BULKHEAD TEE ADAPTOR-BULKHEAD REDUCER PLUG-DUST BRACKET ASSY-ANTI FL FLANGE-SPLIT O RING BOLT LOCKWASHER PLUG ELBOW ELBOW ELBOW ELBOW HOSE ASSY

SER.NO. FROM

SER.NO. TO

220-0050-8211 PUMP-STEERING FROM SERIAL NO. A8201001

DRAWING NO. P9652 P9652

1

6

7

NSS NSS

NSS

4

4 4

2

3

5

4 4 4

4 NSS

NSS

NSS

NSS

NSS NSS NSS

NSS

NSS

NSS NSS

220-0050-8211 PUMP-STEERING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 006 007

001 001 001 001 004 004

PART NO. DESCRIPTION 15257085 NSS NSS 15272175 06351240 00103329

PUMP-MAIN/STEERING .WEAR PLATE .WEARPLATE .SEAL KIT BOLT LOCKWASHER

SER.NO. FROM

SER.NO. TO

220-0090-8211 STEERING VALVE FROM SERIAL NO. A8201001

DRAWING NO. P9641 P9641

1 15 15

4

7

8

15

2 NSS NSS

9

6 10 11

15 12 13

15 14

5 15

3

220-0090-8211 STEERING VALVE FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015

001 001 001 001 001 006 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15257496 15273426 15266157 15266149 15266160 15266161 15266150 15266151 15266162 15266152 15266158 15266154 15266159 15266163 15266164

VALVE-STEERING .VALVE-CHECK .PIN-ROLL .BEARING .SCREW .SCREW .RING .PIN .SPRING SET .SHAFT-CARDAN .SPACER .PLATE-DISTRIBUTOR .GEAR WHEEL SET .COVER .KIT-SEAL

SER.NO. FROM

SER.NO. TO

220-0100-8211 FLOW AMPLIFIER VALVE FROM SERIAL NO. A8201001

DRAWING NO. P9642 P9642

9 26

22

1

26 26

8

26

26

10

23

26

26

12 16

18

10

15 18 13

13

NSS

15 NSS

16 26

12

7

11

20

5

17

4 21

26

NSS

4 5

14 26 19

3 2 NSS

2

26 3

25 6 26

26 24

220-0100-8211 FLOW AMPLIFIER VALVE FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026

001 002 002 016 016 001 001 001 001 002 001 002 002 001 002 002 001 002 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15304964 15266071 15266072 15266073 15266074 15266075 15266076 15266079 15266080 15266081 15266082 15266083 15266084 15266087 15266088 15266089 15266090 15266091 15266087 15266098 15266093 15266094 15266095 15266096 15266097 15266061

VALVE-FLOW AMPLIFIER .SCREW .WASHER .SCREW .WASHER .COVER .COVER .VALVE-RELIEF .PLUG .VALVE .STOP .STOP .SPRING .ORIFICE .SPRING .SPRING .SPRING .ORIFICE .ORIFICE .ORIFICE .VALVE-CHECK .PLUG .VALVE-PRESSURE .SPRING .SPRING .KIT-SEAL

SER.NO. FROM

SER.NO. TO

220-0120-8211 STEERING CYLINDER FROM SERIAL NO. A8201001

DRAWING NO. P9564 P9564

12,13 21

18 17

16

16

16,19

18

17

23 24

14 15

22 25

IN STOWED POSITION

15

20

15 ROD END

8

7

9

11

BASE END

11

11 5

10

2

1

11,11 3 11 11 11

6

4

9

7 8

220-0120-8211 STEERING CYLINDER FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025

002 002 002 002 002 002 004 004 004 002 002 001 001 001 004 002 002 002 003 002 001 002 002 002 002

PART NO. DESCRIPTION 15304145 15268756 15273456 15267639 15273458 15266006 15265989 15265988 15265573 15273463 15273464 15303380 15301187 15302021 15234745 06351225 09262391 07161230 06471201 15300726 15235118 15304938 06351070 07151020 06471001

CYLINDER-CUSHIONED .ROD .PISTON .SLEEVE .RETAINER .GRUBSCREW .BEARING .CIRCLIP .NIPPLE-GREASE .SHELL ASSY .KIT-SERVICE PIN ASSY PIN ASSY BAR-LOCKING SPACER BOLT WASHER-HARDENED LOCKWASHER LOCKNUT PIN ASSY-STEERING PIN ASSY CLAMP ASSY BOLT WASHER LOCKNUT

SER.NO. FROM

SER.NO. TO

220-0140-8211 EMERGENCY STEERING VALVE FROM SERIAL NO. A8201001

DRAWING NO. P9645 P9645

1

2,3

220-0140-8211 EMERGENCY STEERING VALVE FROM SERIAL NO. A8201001

NC REF QTY 001 001 002 001 003 001

PART NO. DESCRIPTION 15235584 VALVE-EMERGENCY 15266127 .KIT-SEAL 15266401 .KIT-CARTRIDGE

SER.NO. FROM

SER.NO. TO

220-0230-8211 STEERING COLUMN MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P10438

P10438

8

13 4

10

18

17

12

3

14 22

11 15 16

23

5 6

27 24 25

21 2

26

1

29

7

28

9 30 8

STEERING VALVE SEC. 220-0090

220-0230-8211 STEERING COLUMN MOUNTING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 021 022 023 024 025 026 027 028 029 030

001 001 001 001 001 002 002 001 001 001 001 001 001 005 006 006 002 002 001 001 003 003 003 003 001 001 001 004 003

PART NO. DESCRIPTION 15308960 15274167 15274168 15274169 15274170 15274171 15274172 15274173 15274174 15254883 15255096 15230837 15255304 15255161 07150815 06470801 06351025 07161030 06350825 15255238 06351255 07151220 15244057 09037837 06431201 15300396 15234744 00179843 07161030

STEERING COLUMN ASSY .GAS STRUT ASSY .BRACKET ASSY .NUT .COLUMN ASSY-TOP-NSS .BUSH-PIVOT .SHOLDER BOLT .SHAFT ASSY-LOWER .UNIVERSAL JOINT BELLOWS COUPLING-STRG COLUMN COUPLING-FLEXIBLE STEERING WHEEL BOLT WASHER NUT BOLT LOCKWASHER BOLT SEAL-FOAM-NITRILE/PV BOLT WASHER MOUNTING-RUBBER WASHER NUT BRACKET ASSY COLUMN-STEERING BOLT LOCKWASHER

SER.NO. FROM

SER.NO. TO

230-0020-8211 LINES AND FITTINGS-BODY HOIST FROM SERIAL NO. A8201001

DRAWING NO. P10153 P10153

7,8, 9,10

3

13,14 22,23

22

2

4

1

14 13

7,8, 9,10 COOLER LINES SEC. 210-0100

5

DIAGNOSTIC MANIFOLD

7,8, 9,10

CONTROL VALVE

6

7

7,8, 9,10

7,8, 9,10

13,14 22,23

11 10 9 15

TRAILER MANIFOLD

21

FLOW AMPLIFIER VALVE

8

2

26 29

12

7,8, 9,10

PUMP

29

19

28 13,14 24,25

18 16

17 20

MTG. BKT. PART OF FRAME

13,14, 23,22

13,14 24,25

24 27

HYDRAULIC TANK

14 13

25

13,14 22,23

23

230-0020-8211 LINES AND FITTINGS-BODY HOIST FROM SERIAL NO. A8201001

NC REF QTY

A

001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029

001 002 001 001 001 001 005 010 020 020 001 001 020 020 004 002 001 004 001 001 001 003 006 002 004 001 001 001 002

PART NO. DESCRIPTION 15300624 15301037 15300921 15255442 15300948 15300687 09410969 09409983 00179860 00103328 15301133 15306654 00179885 00103329 00179885 06471201 15300998 07151220 15301714 15304167 15300947 09410970 09409984 15002672 09167602 15305656 15301305 15310972 15248752

TUBE ASSY HOSE ASSY HOSE ASSY-DIAGNOSTIC ELBOW PLATE-SANDWICH HOSE ASSY O RING FLANGE-SPLIT BOLT LOCKWASHER TUBE ASSY HOSE ASSY BOLT LOCKWASHER BOLT LOCKNUT VALVE-CHECK SPECIAL WASHER PIPE ASSY-HYDRAULIC HOSE ASSY PLATE-SANDWICH O RING FLANGE-SPLIT O RING FLANGE-SPLIT HOSE ASSY PIPE ASSY-HYDRAULIC HOSE-40MP X 11.75" CLAMP

NOTES: A 15275183 PLUG & SEAL KIT

SER.NO. FROM

SER.NO. TO

230-0021-8211 SERVO CONTROL LINES-BODY FROM SERIAL NO. A8201001

DRAWING NO. P10863 P10863

1

3

1

10

9

4

PILOT VALVE SEC. 230-0121

BODY CONTROL VALVE SEC. 230-0060

4

1

1

5 7 8

BRAKE LINES SEC. 250-0020

FROM BRAKE ACCUMULATOR SEC. 250-0020

1 3

4

2

2 TO HYDRAULIC TANK SEC. 230-0040

6

230-0021-8211 SERVO CONTROL LINES-BODY FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010

005 002 002 003 001 001 001 001 001 001

PART NO. DESCRIPTION 15251982 15252983 15251951 15255442 15301866 15307538 15301868 15301869 15025869 15301727

ADAPTOR ELBOW TEE ELBOW HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY PLUG-DUST NIPPLE-DIAGNOSTIC

SER.NO. FROM

SER.NO. TO

230-0040-8211 TANK AND MOUNTING-BODY HOIST FROM SERIAL NO. A8201001

DRAWING NO. P10282 P10282

10

20 19

18

21

5 6

1 16

2, 3 22

15

17

26

4

5

31

6

25 24

12

11

14 13 7

28

8,9

23

30 29

32 33 34

27 31 25 24

230-0040-8211 TANK AND MOUNTING-BODY HOIST FROM SERIAL NO. A8201001

NC REF QTY

A A A

A A A

000 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034

001 001 001 001 001 012 012 001 001 001 001 001 001 003 003 001 001 001 001 002 001 001 002 001 003 003 002 001 001 004 004 003 002 002 001

PART NO. DESCRIPTION 15310957 NSS 09246992 09247259 NSS 00179838 00108580 15304688 15250940 15265318 15246949 15305410 09188288 09188290 02389616 00443977 00454084 15305709 NSS 15011686 NSS 09136427 15244017 15240002 06471201 15225284 07151220 09267660 15249931 06351230 07161230 09056683 15311504 15308004 15308005

HYD TANK ASSY-COMPLETE .HYD TANK-WELDMENT ..CAP ASSY ...GASKET .PLATE-COVER .BOLT .LOCKWASHER .SIGHT GLASS .FILTER ASSY ..ELEMENT .BREATHER .STRAINER .GASKET .ROD .NUT-WING .NIPPLE .ELBOW 90 .GAUGE-FILTER INDICATO .PLATE-COVER .GASKET .PLATE ASSY-COVER .NIPPLE BOLT BOLT LOCKNUT WASHER WASHER WASHER BRACKET-FENDER BOLT LOCKWASHER SPRING BONDED SEAL DRAIN VALVE HOSE ADAPTOR

NOTES: A PARTS IN 15275411 KIT-HARDWARE

SER.NO. FROM

SER.NO. TO

230-0060-8211 CONTROL VALVE-BODY HOIST FROM SERIAL NO. A8201001

DRAWING NO. P9768 P9768

3

14

4 3 5

5 1 6

4

2

7 7

7

2

9

8

13 11 12

FIELD SERVICABLE ITEMS LISTED

10 8

230-0060-8211 CONTROL VALVE-BODY HOIST FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014

001 002 002 004 004 001 004 002 001 001 001 001 001 001

PART NO. DESCRIPTION 15300147 15266142 15273041 15271765 15271768 15265129 15272415 15271194 15270417 15271195 15272416 09389036 15265142 15266472

VALVE-BODY HOIST .O RING .KIT-PRESS SOL ASSY ..SEAL ..O RING .O RING .O RING .O RING .O RING .O RING .O RING .WASHER .O RING .O RING

SER.NO. FROM

SER.NO. TO

230-0081-8211 JOYSTICK-BODY CONTROL FROM SERIAL NO. A8201001

DRAWING NO. P10682 P10682

FORWARD (Lower/Float)

2 BACK (Raise)

1

230-0081-8211 JOYSTICK-BODY CONTROL FROM SERIAL NO. A8201001

NC REF QTY

PART NO. DESCRIPTION

A

15310435 JOYSTICK - BODY HOIST 15311666 SCREW-BUTTON HEAD

001 001 002 004

SER.NO. FROM

SER.NO. TO

NOTES: A NON-SERVICEABLE ITEM, AVAILABLE AS A COMPLETE ASSEMBLY ONLY

230-0121-8211 PILOT SUPPLY VALVE FROM SERIAL NO. A8201001

DRAWING NO. P9322

P9322

3

1

4 6 7

10

8

19

11 13

12

9

20

21

12 11

14

10

5

15 10 16

17 18

2

230-0121-8211 PILOT SUPPLY VALVE FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021

001 001 001 001 001 001 001 001 001 004 002 002 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15304849 15271729 15271730 15271731 15271732 15271733 15271734 15271735 15271736 15271737 15271738 15271739 15271740 15271741 15271742 15271743 15271744 15271745 15271746 15271747 15271748

VALVE-PILOT(PAINTED) .SPRING COVER .PLUG .O RING .O RING .SEAT .O RING .SPACER .HOUSING .PLUG .ADAPTOR .O RING .PLUG .PLUG .PILOT .SPRING .O RING .SPRING GUIDE .CONTROL SPOOL .SPRING GUIDE .CONTROL SPRING

SER.NO. FROM

SER.NO. TO

R1 01/02 (DRG CHGE) 250-0020-8211 BRAKE LINES-HYDRAULIC FROM SERIAL NO. A8201001

DRAWING NO. P10884 P10884

BRAKE MANIFOLD BLOCK SEC. 210-0052

77 LH

74

80 79

77 RH

HYDRAULIC TANK

74

TEE-REF. SEC. 210-0025

PRIORITY UNLOADER VALVE SEC.250-0075

84

81 59

75, 76

58 74 75,76

78

82

75, 76

83

57

DIFF. SW. SEC. 190-0270

13

23

69

21 T1

35

B1 P1

P2

5 6

B

A ACC1

20

8 29

60

ACC2

25,26 22 21 30

22

28 27

PRESS. SWT. SEC. 190-0270

38 39

34

31

33

37

6 32

PS2

5 7

51

61

A

P

62

3

T

55 TO PILOT VALVE SEC. 230-0021

6

VALVE-DIR CONTROL SEC. 250-0090

39

32

51

B

50 51 52

53

PS1 PRESS. SWT. SEC. 190-0270

PY

6

32

32

25,26

38 60

T

3 8 63

TO TRANS. LINES SEC. 120-0110

66

60 73 72 P1

22

P2

6

64

7

T2 B2

10

70,71 9

22

21 10

2 3

PS3 PRESS. SWITCHES SEC. 190-0270

10

1

1 2

7

86

87,88 89,90

46

4

20

11

8

21 8

24

13

P

4

15

13 P T

24

TO PILOT VALVE SEC. 230-0021

16,17 18,19

13

TREADLE VALVE SEC. 250-0070

ACCUMULATORS SEC. 250-0060

12

85

14

56

87,88 89,90

54

38

49

29 29

48

45 47

42,43 41

44 40

67

45

65

36 TO PARKING BRAKE

68

TO REAR BRAKES

250-0020-8211 BRAKE LINES-HYDRAULIC FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

002 002 003 001 001 005 002 004 001 003 001 001 004 001 001 001 002 004 004 002 004 004 001 001 004 004 001 001 003 001 001 004 001 001 001 001 001 003 002 001

PART NO. DESCRIPTION 15254346 15251979 15252983 15302019 15300667 15253302 15300650 15252983 15253061 15253647 15300676 15258391 15251938 15312019 15308872 09410969 09409983 06350840 07160830 15251979 15253151 15253073 15305696 15312015 15253125 15253126 15307917 15253043 15251951 15312039 15305697 15253157 15305698 15300710 15312029 15300923 15300665 15253055 15247882 15253073

R1 01/02 (DRG CHGE)

ADAPTOR ADAPTOR ELBOW HOSE ASSY HOSE ASSY ADAPTOR HOSE ASSY ELBOW ADAPTOR ELBOW HOSE ASSY ADAPTOR ADAPTOR HOSE ASSY ELBOW O RING FLANGE-SPLIT SCREW LOCKWASHER ADAPTOR ADAPTOR TEE HOSE ASSY HOSE ASSY REDUCER NUT HOSE ASSY ADAPTOR-BULKHEAD TEE HOSE ASSY HOSE ASSY ELBOW-BULKHEAD HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY ELBOW PLUG TEE

250-0020-8211 BRAKE LINES-HYDRAULIC FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 042 043 044 045 046 047 048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063 064 065 066 067 068 069 070 071 072 073 074 075 076 077 078 079 080

001 001 001 001 002 001 001 001 001 001 003 001 001 001 001 001 001 001 001 003 001 004 001 001 002 001 001 002 001 001 001 001 001 003 003 003 002 001 001 001

PART NO. DESCRIPTION 15253121 15253125 15253126 15300920 15300946 15307891 15300645 15307713 15307534 15300654 15253302 15253064 15300655 15300646 15300768 15305699 15312016 15312607 15312610 15227711 15234458 15244979 15301113 15025869 15025869 15301069 15302105 15257386 15253073 15253125 15253126 15253055 15301727 15253042 15253098 15253153 15312056 15253129 15251936 15252695

ELBOW-BULKHEAD REDUCER NUT HOSE ASSY ADAPTOR-BULKHEAD HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY ADAPTOR ADAPTOR HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY HOSE ASSY PIPE ASSY PIPE ASSY SEAL PLATE SCREW-SOCKET ADAPTOR PLUG-DUST PLUG-DUST HOSE ASSY HOSE ASSY HOSE ASSY TEE REDUCER NUT ELBOW NIPPLE-DIAGNOSTIC ADAPTOR NUT-SWIVEL REDUCER ADAPTOR ELBOW ADAPTOR ELBOW

SER.NO. FROM

SER.NO. TO

R1 01/02 (DRG CHGE) 250-0020-8211 BRAKE LINES-HYDRAULIC FROM SERIAL NO. A8201001

NC REF QTY 081 082 083 084 085 086 087 088 089 090

001 001 001 001 001 001 008 008 004 002

PART NO. DESCRIPTION 15250351 15311606 15251948 15255442 15312018 15312025 00179841 00108580 09409981 09216976

VALVE-CHECK CONNECTOR ELBOW ELBOW HOSE ASSY HOSE ASSY BOLT LOCKWASHER FLANGE-SPLIT O RING

SER.NO. FROM

SER.NO. TO

THIS PAGE IS INTENTIONALLY LEFT BLANK

250-0025-8211 BRAKE COOLANT TANK ASSEMBLY FROM SERIAL NO. A8201001

DRAWING NO. P10838 P10838

15

7 8

DETAIL A

24

17

28

25

16

29

20 10

25 26 27

9

2,3 31 33 32 30

18

1

13,14

19 34 6

22 21 23

22 23

A

4 7

8

11 12

5 A

21

250-0025-8211 BRAKE COOLANT TANK ASSEMBLY FROM SERIAL NO. A8201001

NC REF QTY

A A A A

A A A B B A B B B

C

001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034

001 001 001 001 001 001 010 010 001 001 001 001 001 001 001 001 001 001 001 004 011 011 011 003 006 003 003 001 004 001 004 004 004 002

PART NO. DESCRIPTION 15310316 09071724 09246992 15011686 09069296 15304688 00179838 00108580 09136427 15246949 15311504 15308004 15310413 15275454 NSS 15310915 NSS NSS NSS 15310942 06351020 15231278 07161030 06351250 09267949 07161230 06431201 15310870 15311605 15311638 00179895 00106265 00103329 15235583

TANK ASSY-BRAKE COOLAN LATCH CAP ASSY GASKET COVER SIGHT GLASS BOLT LOCKWASHER NIPPLE BREATHER BONDED SEAL DRAIN VALVE FILTER-COOLANT OIL .ELEMENT COVER PLATE ASSY GASKET PLATE-WALKWAY HEATSHIELD HEATSHIELD SCREW-S/HEAD C/S M8X20 BOLT WASHER LOCKWASHER BOLT WASHER-HARDENED LOCKWASHER NUT RELIEF VALVE-LOW PRESS SCREW-S/HEAD MANIFOLD BLOCK BOLT WASHER LOCKWASHER STRAINER

NOTES: A PARTS IN 15275451 PLATE KIT B PARTS IN 15275452 HEATSHIELD KIT C 15275601 REPAIR KIT

SER.NO. FROM

SER.NO. TO

250-0040-8211 BRAKE PUMP FROM SERIAL NO. A8201001

DRAWING NO. P10890

P10890

1

2

5 6

2

4 2 3

250-0040-8211 BRAKE PUMP FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006

001 001 001 001 002 002

PART NO. DESCRIPTION 15310868 15275605 15275606 15275607 06351235 09270000

TRIPLE PUMP ASSY .REPAIR KIT .O RING SEAL .REPAIR KIT BOLT WASHER-HARDENED

SER.NO. FROM

SER.NO. TO

250-0045-8211 MOTOR/TRIPLE PUMP ASSY FROM SERIAL NO. A8201001

DRAWING NO. P10833

P10833

1

3

4

2

5

6 9 8 7

250-0045-8211 MOTOR/TRIPLE PUMP ASSY FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009

001 001 004 004 008 001 001 001 001

PART NO. DESCRIPTION 15310869 15312181 06350850 07150815 06430801 15312180 06351025 07161030 07151020

MOTOR/TRIPLE PUMP ASSY PLATE-RUBBER SCREW WASHER NUT PLATE-RUBBER BOLT LOCKWASHER WASHER

SER.NO. FROM

SER.NO. TO

250-0050-8211 BRAKE MANIFOLD/PAS VALVE FROM SERIAL NO. A8201001

DRAWING NO. P10507 P10507

1 4

2

3

250-0050-8211 BRAKE MANIFOLD/PAS VALVE FROM SERIAL NO. A8201001

NC REF QTY

A

001 002 003 004

001 001 001 001

PART NO. DESCRIPTION 15307826 15274258 15274381 15274261

BRAKE MANIFOLD VALVE .CARTRIDGE-SOLENOID .COIL - SOLENOID .KIT-CHECK VALVE

NOTES: A 15274260 SEAL KIT-SOLENOID CARTRIDGE

SER.NO. FROM

SER.NO. TO

250-0060-8211 BRAKE ACCUMULATOR FROM SERIAL NO. A8201001

DRAWING NO. P6786 P6786

5 8 6 4

11

7 6 8

12

2

3

9

10 1

250-0060-8211 BRAKE ACCUMULATOR FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012

002 004 004 002 002 001 002 004 002 002 002 008

PART NO. DESCRIPTION 15231753 00114699 00103321 09055400 09055409 09055408 09055407 09055401 09055397 09055402 06525035 09060202

ACCUMULATOR .SCREW-NLA .LOCKWASHER .PROTECTOR .PISTON .WASHER-BACKUP .RING .RING-PISTON .O RING .CAP END VALVE ASSY-RECHARGE WASHER-HARDENED

SER.NO. FROM

SER.NO. TO

250-0065-8211 TWO SPEED CONTROL VALVE FROM SERIAL NO. A8201001

DRAWING NO. P10834 P10834

5

4 1, 2

3

250-0065-8211 TWO SPEED CONTROL VALVE FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005

001 001 002 002 002

PART NO. DESCRIPTION 15310872 15275604 07150815 07160830 06350850

CONTROL VALVE-2 SPEED .REPAIR KIT WASHER LOCKWASHER SCREW

SER.NO. FROM

SER.NO. TO

250-0070-8211 TREADLE VALVE FROM SERIAL NO. A8201001

DRAWING NO. P10866

P10866

4

1

10 9 7 6

8 2 5

3

11

2

250-0070-8211 TREADLE VALVE FROM SERIAL NO. A8201001

NC REF QTY

A

001 002 003 004 005 006 007 008 009 010 011 012

001 001 001 001 002 002 002 001 001 001 001 001

PART NO. DESCRIPTION 15312932 NSS 15273735 15275579 NSS NSS NSS NSS 15268405 15268404 15275580 15273740

TREADLE VALVE .VALVE SUB ASSY-TNDM .BASE-ACTUATOR .PEDAL ASSY .SCREW .NUT .WASHER .LABEL-PART & SERIAL .SPRING-PEDAL RETURN .SPRING-PEDAL RETURN .PROXIMITY SWITCH .SEAL KIT

NOTES: A ITEM NOT ILLUSTRATED

SER.NO. FROM

SER.NO. TO

250-0075-8211 PRIORITY UNLOADER VALVE FROM SERIAL NO. A8201001

DRAWING NO. P10891 P10891

1,2

250-0075-8211 PRIORITY UNLOADER VALVE FROM SERIAL NO. A8201001

NC REF QTY 001 001 002 001

PART NO. DESCRIPTION 15310976 PRIORITY UNLOADER VALV 15275600 .REPAIR KIT

SER.NO. FROM

SER.NO. TO

250-0090-8211 DIRECTIONAL CONTROL VALVE FROM SERIAL NO. A8201001

DRAWING NO. P7010 P7010

1

250-0090-8211 DIRECTIONAL CONTROL VALVE FROM SERIAL NO. A8201001

NC REF QTY

PART NO. DESCRIPTION

A

15233670 VALVE-DIRECTION CONT

001 001

SER.NO. FROM

NOTES: A 15265694 SEAL KIT FOR OVERHAUL, ALL OTHER ITEMS NONSERVICEABLE.

SER.NO. TO

250-0120-8211 RELIEF VALVE-BRAKES FROM SERIAL NO. A8201001

DRAWING NO. P10835 P10835

1, 2

5

4 3

250-0120-8211 RELIEF VALVE-BRAKES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005

001 001 003 003 003

PART NO. DESCRIPTION 15310873 15275603 07151020 07161030 06351020

RELIEF VALVE .REPAIR KIT WASHER LOCKWASHER BOLT

SER.NO. FROM

SER.NO. TO

R1 01/02 (ECN 104342) 260-0010-8211 CAB ASSEMBLY FROM SERIAL NO. A8201001

DRAWING NO. P10421A

260-0010-8211 CAB ASSEMBLY FROM SERIAL NO. A8201001

R1 01/02 (ECN 104342)

DRAWING NO. P10421B

R1 01/02 (ECN 104342) 260-0010-8211 CAB ASSEMBLY FROM SERIAL NO. A8201001

DRAWING NO. P10421C

260-0010-8211 CAB ASSEMBLY FROM SERIAL NO. A8201001

NC REF QTY

PART NO. DESCRIPTION

A

15310233 15270842 15270768 15270752 15270845 15270851 15270853 15270854 15272742 15273745 15273744 15273746 15270756 15270779 15270757 15270770 15270845 15250390 15270991 15270859 15270860 15250392 15250393 15270856 15270857 00274208 15255793 15270861 15270779 15270862 15270834 07161030 15270863 15270764 15270864 15270865 15270866 15270867 15270840 15270749

001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

001 001 001 002 004 001 001 001 001 001 001 001 001 002 001 002 002 001 002 002 001 001 001 001 001 001 001 001 002 001 004 004 001 002 001 001 001 001 001 002

CAB ASSEMBLY-COMPLETE .BOLT-LOCKING .COVER-STRIKER .HANDLE-PULL .SCREW .WINDOW-REAR .WINDOW-SIDE LH .WINDOW-EMERGENCY EXIT .WINDOW-SLIDING ..GLASS-FIXED ..GLASS-SLIDING ..LATCH .HOOK-COAT .SCREW .SUNBLIND .SCREW .SCREW .LIGHT-CAB INTERIOR .SCREW .NUT .COVER .PLATE-COVER LH .PLATE-COVER RH .WINDSCREEN .AERIAL .LOCKNUT .PLATE-ROPS/FOPS CERT .HAMMER .SCREW .BRACKET .SCREW .LOCKWASHER .WIPER MOTOR-FRONT .SPACER .WASHER-FIBRE .CAP-NUT .WASHER .SCREW .WASHER .VALVE-SCREEN WASHER

R1 01/02 (ECN 104342)

260-0010-8211 CAB ASSEMBLY FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 042 043 044 045 046 047 048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063 064 065 066 067 068 069 070 071 072 073 074 075 076 077 078 079 080

ASR 001 001 001 001 001 036 001 006 006 001 006 006 001 004 004 001 025 006 006 006 001 002 002 ASR 001 002 001 001 016 005 005 001 001 005 001 001 001 001 001

PART NO. DESCRIPTION 15270868 15270765 15270766 15257298 15257299 15257300 15270869 15234575 06350620 07160630 15252694 06350620 07160630 15252756 15270870 15270871 15270872 09379264 06351225 15270873 15270874 15271322 15270799 15270787 15270868 15270922 15270799 15270992 15272743 15270878 15270993 15270833 15272765 15270880 15270878 15272745 15270882 15272746 15272766 15270885

.TUBING-PVC .ARM-WIPER .BLADE-WIPER .NOISE INSUL-U/FLOOR .NOISE INSUL-U/FLOOR .NOISE INSUL-HATCH .NUT-SPIRE .PLATE-COVER .SCREW .WASHER .PLATE-COVER .SCREW .WASHER .BARRIER MAT-COVER .RETAINER .RIVET .HARNESS .TIE-CABLE .BOLT .WASHER .WASHER-FIBRE .STRAP .SCREW .GROMMET .TUBING-PVC .GUTTER .SCREW .PLATE-IDENTITY .TRIM PANEL-ROOF .FIXING .SCREW .NUT .TRIM PANEL-REAR .ADDITIVE-TRIM REAR .FIXING .TRIM PANEL-SIDE .ADDITIVE-TRIM SIDE .LINING .TRIM PANEL-SIDE .ADDITIVE-TRIM SIDE

SER.NO. FROM

SER.NO. TO

R1 01/02 (ECN 104342) 260-0010-8211 CAB ASSEMBLY FROM SERIAL NO. A8201001

NC REF QTY 081 082 083 084 085 086 087 088 089 090 091 092 093 094 095 096 097 098 099 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

001 001 002 008 008 001 001 002 004 004 004 001 001 009 ASR ASR 002 ASR 001 004 006 002 004 004 004 001 002 001 001 003 001 002 002 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15272748 15272749 15270888 15271182 15270995 15272750 15270899 15270901 15270829 15270900 15270790 15272932 15272931 15270895 15270896 15270896 15270897 15270898 15270898 15303871 15270997 15270891 15270892 15270781 15270840 15272753 15270903 15270904 15272754 15270829 15270906 15270996 15270833 15270913 15270996 15270833 15270913 15270996 15270833 15270907

.TRIM PANEL-SIDE .LINING .GRILLE-SPEAKER .SCREW .CLIP .DASHBOARD .SUPPORT-DASH .HOUSING-SWITCHES .SCREW .SCREW .WASHER .TEE & TUBE ASSY-RH .TEE & TUBE ASSY-LH .CLAMP .HOSE-BULK PLASTIC .HOSE-BULK PLASTIC .CLIP .SEAL-BULK .SEAL-BULK .DIFFUSER-AIR .SCREW .AIR DIFFUSER .SCREW .BOLT .WASHER .COVER .FASTENER .COVER-RADIO .COVER .SCREW .BRACKET-DASH .WASHER .NUT .SCREW .WASHER .NUT .SCREW .WASHER .NUT .BRACKET-DASHSUPPORT

260-0010-8211 CAB ASSEMBLY FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160

001 001 001 004 004 ASR 001 001 001 001 002 002 002 003 003 006 003 002 002 002 002 001 001 002 001 001 003 003 001 001 004 001 001 002 001 001 002 002 001 003

PART NO. DESCRIPTION 15270781 15270996 15270908 15270789 15270790 15270909 15270910 15275146 15272768 15274409 15270900 15270790 15271528 15270767 15270998 15270858 15270833 15270829 15270829 15270858 15270859 15270914 15270791 15270916 15271323 15270918 15270829 15270921 15270919 15270920 15271000 15271001 15271002 15272277 15272757 15271004 15271018 15270845 15271019 15271184

.BOLT .WASHER .SUPPORT-FUSE BOX .SCREW .WASHER .SEAL-BULK .GROMMET .CONSOLE RH-ARTIC CAB .PLATE-SUPPORT .REINFORCING PLATE .SCREW .WASHER .CONTACTOR SUPPORT .SCREW .WASHER .WASHER .NUT .SCREW .SCREW .WASHER .NUT .SUPPORT .CAP .PLATE-SPEAKER .WIPER MOTOR-REAR .ARM-REAR WIPER .SCREW .NUT .BLADE-REAR WIPER .TAPE-ADHESIVE .FIXING .FOAM .SEAL .SCREW .LINING-RH .MUG/CAN HOLDER .SPRAY NOZZLE .SCREW .CLAMP .SCREW

SER.NO. FROM

SER.NO. TO

260-0010-8211 CAB ASSEMBLY FROM SERIAL NO. A8201001

NC REF QTY 161 162 163 164 165 166 167 168 169 170 171 172 173 174

003 012 001 001 001 001 001 004 004 004 001 001 006 003

PART NO. DESCRIPTION 15271185 15270858 15257319 15271324 15271325 15247424 15271532 15271533 15271534 15271535 15271536 15271537 06350620 15313357

SER.NO. FROM

.WASHER .WASHER .NOISE INSUL-U/FLOOR .SPACER .SPACER .PLATE .PLATE-TIGHTNESS .SCREW .WASHER .NUT .SUPPORT-GEAR LEVER .UPPER COMPLEMENT GEA .SCREW .WASHER

NOTES: A INCLUDES DOOR ASSY. 15272735 SECT. 260-0030

R1 01/02 (ECN 104342)

SER.NO. TO

260-0015-8211 CAB MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P10840 P10840

41

42

42

41

40

27

40 42

42

34

35

34

19

36

33

5 6 1

17 16

2

15

4 43 30

2 1

24 5

31 26

25

7

37

28

9 38 39

32

12 13 14

3

29 30 31

36

8

10

11 10

20

21 22

22 23

260-0015-8211 CAB MOUNTING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

004 004 002 002 004 002 001 002 002 001 002 011 011 011 004 004 001 001 001 004 002 004 002 001 002 002 001 001 003 007 007 001 001 002 001 005 016 001 004 002

PART NO. DESCRIPTION 15311433 15247919 15247862 15247864 15247891 15251642 15301295 06351230 07161230 15301296 15301297 06351025 07151220 06471001 06350820 07160830 15247378 15256872 15301931 15301160 06350640 07150615 06470601 15310079 06350616 00103339 15006901 15312520 06351230 07161230 09267660 15313252 15309192 15246956 15246953 06471601 00453637 09191596 09056683 15308646

ISOLATION MOUNT WASHER BOLT BOLT LOCKNUT WASHER-HARDENED GUARD-WINDOW BOLT LOCKWASHER SPILLGUARD TIE BAR BOLT WASHER LOCKNUT SCREW LOCKWASHER PLATE BARRIER MAT-FIREWALL FLOORMAT-BLACK RUBBER TENSIONER BOLT LOCKWASHER LOCKNUT PLATE BENT BOLT WASHER CASE-MANUALS TUBE ASSY(MIRROR BKT) BOLT LOCKWASHER WASHER MIRROR BRACKET BRACE BOLT WASHER-SNUBBING MOUNTING LOCKNUT BALL WASHER SPRING MIRROR ARM

260-0015-8211 CAB MOUNTING FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 002 042 004 043 004

PART NO. DESCRIPTION 15308693 MIRROR-EXTERIOR CONVEX 15246087 MIRROR-WIDE ANGLE 06351225 BOLT

SER.NO. FROM

SER.NO. TO

260-0030-8211 CAB DOOR-LEFT HAND FROM SERIAL NO. A8201001

DRAWING NO. P9257

260-0030-8211 CAB DOOR-LEFT HAND FROM SERIAL NO. A8201001

NC REF QTY

A

000 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033

001 001 001 001 001 001 002 002 001 004 002 001 001 001 002 001 002 002 001 001 002 002 002 001 002 002 001 008 001 001 001 002 002 002

PART NO. DESCRIPTION 15272735 15270836 15272736 15273749 15273750 15273746 15270839 15270840 15270748 15270841 15270840 15270769 15270844 15270752 15270845 15229875 15270846 15270847 15270848 15270746 15270849 15270850 15270747 15250279 15270781 15270840 15270852 15270829 15272737 15270744 15270751 15271320 09383371 09079659

SER.NO. FROM

SER.NO. TO

.DOOR ASSY-COMPLETE ..DOOR ..WINDOW-SLIDING ...GLASS FRONT FIXED ...GLASS REAR SLIDING ...LATCH ..SCREW ..WASHER ..LOCK-DOOR ..SCREW ..WASHER ..COVER ..CAP ..HANDLE-PULL ..SCREW ..GAS STRUT ..SCREW ..NUT ..COVER-GAS STRUT ..STOP-DOOR ..SCREW ..NUT ..WASHER ..PLATE ..BOLT ..WASHER ..PLATE-TRIM PROTECTOR ..SCREW ..TRIM PANEL-DOOR ..SEAL-DOOR ..HANDLE-DOOR ...KEY-CAB DOOR ..HINGE ...WASHER

NOTES: A FOR CAB DOORS WITH SLIDING WINDOWS IN THE FORWARD POSITION USE: 15271020 WINDOW-FIXED, 15271021 WINDOW-SLIDING AND 15271226 LATCH

R1 01/02 (SERVICE CORR.) 260-0080-8211 SWITCHES AND INSTRUMENTS FROM SERIAL NO. A8201001

DRAWING NO. P10856 P10856

1,2

3

4

45

6

8

25

10,11

2,11

22

BULB FOR WARNING LIGHT MODULES

BULB FOR SWITCHES

44 29,30 24V

5

43

9

31 STEERING COLUMN RHS

17,26 33 35 CAB HORN

34

32

34

36,37,38 39,40,41

42

12,13

FUSE BOX COVER REMOVED

23 15,16 14

21,45 27,28 14 14 46,47 7,19 14 19,20 17,18 SWITCHES DETAILS

FRONT FRAME LHS

260-0080-8211 SWITCHES AND INSTRUMENTS FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

001 008 001 010 001 001 001 001 001 001 008 004 001 005 001 001 002 001 002 001 001 ASR 001 001 001 001 001 001 001 002 001 001 001 010 001 001 006 007 005 005

PART NO. DESCRIPTION 15301055 15271204 15256027 15256924 15311172 15258288 15247608 15256433 15258517 15307425 15271204 09079062 15247765 15229157 15258795 15237165 15258797 15237167 15258796 15229156 15258798 15265325 15309389 15237163 15310825 15300377 15258799 15229154 15247606 15267640 15256443 15227360 15244724 15256444 15247618 15247753 15247611 15247612 15247613 15247614

WARNING LIGHT MODULE .BULB & SOCKET-MODULE TACHOMETER SCREW SWITCH, EMERGENCY BRAK GAUGE-TRANS OIL TEMP LENS-ENGINE OVERRIDE SPEEDOMETER FREQUENCY DIVIDER WARNING LIGHT MODULE .BULB & SOCKET-MODULE DIODE-BLOCK DIODE-BLOCK PLUG-BLANKING SWITCH-HAZARDS LENS-HAZARD LIGHTS SWITCH-ON/OFF LENS-DIFF/LOCK SWITCH-TEST LENS-TEST SWITCH SWITCH-LIGHTS .BULB-SWITCHES MASTER SWITCH (CHAIN A LENS-LIGHTS INSTRUMENT PANEL LENS-RETARDER SWITCH-REAR/WASH LENS-WASH/WIPE SWITCH-KEY .KEY SOCKET-HANDLAMP BUZZER FLASHER UNIT RELAY RELAY 12V-DIODE SUPP FUSE-30AMP FUSE-15AMP FUSE-10AMP FUSE-7.5AMP FUSE-5AMP

R1 01/02 (SERVICE CORR.)

260-0080-8211 SWITCHES AND INSTRUMENTS FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 042 043 044 045 046 047

008 001 001 001 001 001 001

PART NO. DESCRIPTION 15247615 15247645 15237161 15307890 15310823 15258800 15249195

FUSE-3AMP BAR-BUS 20 CIRCUIT SWITCH-COLUMN CIGAR LIGHTER GAUGE-FUEL SWT-WORK LTS LENS-WORK LTS

SER.NO. FROM

SER.NO. TO

260-0090-8211 SEAT-DRIVER FROM SERIAL NO. A8201001

DRAWING NO. P10770A P10770

1

38 37 33 32 34 36 35

260-0090-8211 SEAT-DRIVER FROM SERIAL NO. A8201001

DRAWING NO. P10770B

260-0090-8211 SEAT-DRIVER FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038

001 001 001 001 001 001 001 001 002 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 004 004 004 004 004 004

PART NO. DESCRIPTION 15310159 15275350 15275351 15308711 15275352 15274025 15274026 15275357 15274028 15275355 15275358 15275354 15275356 15274033 15274034 15274035 15274036 15274037 15274038 15274039 15274040 15274041 15274042 15274043 15274044 15274045 15274046 15274047 15274048 15274049 15274050 15306036 06351030 07151020 06431001 07161030 00179890 00103329

HIGH-BACK SEAT(ARMREST .CUSHION-BACKREST .CUSHION-SEAT .SEAT BELT .EXTENSION-BACKREST .COVER-LH .COVER-RH .BACKREST .BUSHING .SEAT PAN .ADJUSTMENT RAILS(SET) .ARMREST-LH .ARMREST-RH .SUSPENSION ASSY-COMPL ..SHOCK ABSORBER ..KIT-LOCKING LEVER ..BOWDEN CABLE ASSY ..OPERATION UNIT ..HANDLE-OPERATION UNI ..KIT-HORIZONTAL ISOLA ..KIT-COMPRESSOR ..KIT-CONNECTING CABLE ..KIT-AIR HOSES ..HANDLE ..CABLE ..KIT-SHOCK ABSORBER ..KIT-SUSPENSION UPPER ..KIT-LEVEL CONTROL ..SWING ARM ..KIT-SUSPENSION .KIT-WEARING PARTS SUPPORT-DRIVERS SEAT BOLT WASHER NUT LOCKWASHER BOLT LOCKWASHER

SER.NO. FROM

SER.NO. TO

THIS PAGE IS INTENTIONALLY LEFT BLANK

260-0110-8211 SEAT-PASSENGER FROM SERIAL NO. A8201001

DRAWING NO. P10343

P10343

1

6

7

2 B

3 8 A

10 B

7

9 7

9 A

5 4

8

10

260-0110-8211 SEAT-PASSENGER FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010

001 001 001 004 004 004 004 002 002 002

PART NO. DESCRIPTION 15306670 15305891 15308711 06350816 07160830 00179890 00103329 15248799 00103028 00181429

SEAT ASSY-PASSENGER SEAT BASE-PASSENGER SEAT BELT BOLT LOCKWASHER BOLT LOCKWASHER BRACKET-SEAT BELT NUT BOLT

SER.NO. FROM

SER.NO. TO

260-0130-8211 AIR CONDITIONER/HEATER FROM SERIAL NO. A8201001

DRAWING NO. P10366A P10366

1

2

3

A

24 30

26

6 24

8 7

4 5

28

31 26

24

260-0130-8211 AIR CONDITIONER/HEATER FROM SERIAL NO. A8201001

DRAWING NO. P10366B P10366

16 12

21 21

21

17

16

16

21 17

13

21

32

21 20 19

15

9 A

22 25 10

14 29 24 23

11

10 13

27

18

11

260-0130-8211 AIR CONDITIONER/HEATER FROM SERIAL NO. A8201001

NC REF QTY

A

001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032

001 001 001 002 001 001 001 001 001 002 002 001 001 001 001 002 002 001 001 001 006 001 001 002 001 001 001 001 002 001 001 001

PART NO. DESCRIPTION 15275321 15272325 15272310 15272311 15272323 15272324 15275171 15273439 15275317 15272329 15272330 15273722 15273723 15272896 15272897 15272316 15272317 15272898 15272333 15272899 02301722 15272336 15272320 15273787 15272335 15273787 15272900 15274051 15272328 15272319 15255953 15270794

SER.NO. FROM

CAB KIT-A/CON .INNER BOX ASSY-A/CON ..BLOWER UNIT 24V ..VENT ..FILTER-A/CON ..HARNESS-BLOWER ..SWITCH & HARNESS ..KIT-FILTER HOUSING .OUTER BOX ASSY ..HOSE-DRAIN ..VALVE-CHECK ..WATER VALVE ..CABLE ASSY-CONTROL ..COIL-EVAPORATOR ..COIL-HEATER ..HOSE ..TUBE-CONNECTION ..VALVE BLOCK ..PIPE ASSY-NO6 ..PIPE ASSY-NO 10 ..CLIP ..SWITCH-BINARY ..CONTROL-WATER VALVE ..KNOB-CONTROL ..HARNESS KIT-BINARY ..KNOB-CONTROL ..PLATE ..THERMOSTAT & HARNESS ..NIPPLE-DRAIN ..SWITCH-BLOWER DECAL-HEATER FILTER-AIR

NOTES: A 1-OFF HOSE 15272316 MODIFIED (CUT IN HALF) TO ALLOW ASSEMBLY OF WATER VALVE

SER.NO. TO

THIS PAGE IS INTENTIONALLY LEFT BLANK

260-0140-8211 HEATER LINES AND WIRING FROM SERIAL NO. A8201001

DRAWING NO. P10527

P10527

6 1

7

TO HEATER

2

8

5

2 3

2

3

2 1

4

6 7 7

8 HEATER RETURN

HEATER SUPPLY

260-0140-8211 HEATER LINES AND WIRING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008

002 004 ASR 001 001 002 003 002

PART NO. DESCRIPTION 09014950 09379664 07551826 15301018 15301019 15230961 00108686 00144034

CONNECTOR CLAMP HOSE-BULK TUBE TUBE VALVE-BALL SHUT-OFF ELBOW BUSHING

SER.NO. FROM

SER.NO. TO

260-0145-8211 AIR CONDITIONER LINES FROM SERIAL NO. A8201001

DRAWING NO. P10798 P10798

AIR CONDITIONER OUTER BOX

26 28

19

3

1

29

25 21 22-27

27

2 22

15 16 18

22 30

7

12

15

9 16 23 15

13 15 18 16

16

12 6 7-18

8

25 14

17 15

20

5

16

4

11

24

10

31 16

15

11

260-0145-8211 AIR CONDITIONER LINES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031

001 002 001 001 001 001 001 002 001 002 002 002 002 002 010 007 002 004 006 001 001 001 001 001 001 001 001 001 004 001 001

PART NO. DESCRIPTION 15312702 15272890 15272889 15272892 15272353 15312338 15312319 15303449 15312346 15310334 15310335 15310336 15312347 NSS 07151020 NSS 09072032 09060202 07161030 15272356 15275310 15275311 15275312 15275313 15272340 15275315 15275316 15301488 06351020 15275565 15275566

KIT-AIR CON ENGINE .BRACKET-REC DRY .KIT-RECEIVER/DRY .COMPRESSOR .BELT-COMP DRIVE .COMPRESSOR MTG INST ..BRACKET ASSY ..PLATE ADJUSTER ..BOLT ..BOLT ..BOLT ..BOLT ..SPACER ..BOLT NSS ..WASHER ..NUT NSS ..WASHER ..WASHER-HARDENED LOCKWASHER CONDENSER-A/CON HOSE KIT .HOSE ASSY NO8 .HOSE ASSY NO8 .HOSE ASSY NO6 .HOSE ASSY NO6 .HOSE ASSY NO6 .HOSE ASSY NO10 PLATE BENT BOLT ANGLE-TOP ANGLE-BTM

SER.NO. FROM

SER.NO. TO

260-0190-8211 WINDSCREEN WASHER FROM SERIAL NO. A8201001

DRAWING NO. P10883 P10883

4

1

6 5

2,3

260-0190-8211 WINDSCREEN WASHER FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006

001 002 002 001 003 003

PART NO. DESCRIPTION 15256431 15271481 15271482 15271804 06350825 00103340

KIT-WASHER BOTTLE .PUMP-24V .RING SEAL .CAP-WASHERBOTTLE BOLT WASHER

SER.NO. FROM

SER.NO. TO

290-0010-8211 DECALS-ENGLISH FROM SERIAL NO. A8201001

DRAWING NO. P10889

P10889

1

38 9

26 3 30

8 2

21 N

22 25

4 23

18 37 24 11 7 38 38

31,41

20

18

27 33,34

15

35,36 5

5 32 19

15

15

12 10 6 16 28 19

27 14 29 15

17

19

15

290-0010-8211 DECALS-ENGLISH FROM SERIAL NO. A8201001

NC REF QTY

PART NO. DESCRIPTION

A

15303953 15302877 15255789 15304341 15255776 15255685 15255715 15255743 15250487 09361787 15302881 15255700 15304419 15245247 09271069 15303830 15254716 15253566 15255702 15255864 15255806 15255876 15255781 15255885 15302897 15307965 15301543 15255697 15301515 15311250 15249138 15310878 15310910 15310911 15313188 15313189 15303726 15256499 15311671 15311672

B

C

001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040

001 001 001 001 002 001 002 003 001 001 001 001 001 001 008 001 002 002 004 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 001 002 001 001

DECAL SET-ARTIC(ENGLIS .DECAL-CAUTION DIFF LO .DECAL-WARNING .DECAL-FUSES .DECAL-CAUTION .DECAL-ALTERNATOR .DECAL-CAB FOAM .DECAL-WARNING ACCUM .PLATE-HYDRAULIC OIL .DECAL-BATTERY EARTH .DECAL-BODY CONTROL .DECAL-ATTENTION .DECAL-REMOTE PLATE .DECAL-CE SAFETY .DECAL-HOOK .DECAL-LIFT INSTRUCTIO .DECAL-CAUTION BODY S .DECAL-WARNING ARTIC .DECAL-ATTENTION .DECAL-CAUTION RAD .DECAL-CAUTION .DECAL-WARNING PARK .DECAL-WARNING .DECAL-HAND LAMP .DECAL-PARKING BRAKE .DECAL-24V .DECAL-REMOTE PLATE .DECAL ATTENTION - DDE .DECAL-ATTENTION PIVOT DECAL-GEAR SHIFT DECAL-SERIAL PLATE DECAL-CROWN(GRILLE) DECAL-BODY LHS DECAL-BODY RHS DECAL-HOOD LHS DECAL-HOOD RHS DECAL-SERVICE PLATE DECAL-EMERGENCY EXIT DECAL-COWL LHS DECAL-COWL RHS

290-0010-8211 DECALS-ENGLISH FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 041 004

PART NO. DESCRIPTION

SER.NO. FROM

00145378 SCREW

NOTES: A DECAL SET 15303953 CONTAINS ITEMS 2 THROUGH 29 B NOT USED ON TA35/TA40 UNITS C FOR USA UNITS ADD MANUALS CASE P/N 15006901

SER.NO. TO

THIS PAGE IS INTENTIONALLY LEFT BLANK

Articulated Truck

TRAILER SECTIONS

CHASSIS

100

BOWL HYDRAULIC SYSTEM

235

DRIVELINE

130

BRAKING SYSTEM

250

CENTRE AXLE

150

BODY

270

REAR AXLE

160

BRAKE PARTS

165

PARKING BRAKE

170

SUSPENSION SYSTEM

180

ELECTRICAL SYSTEM

190

COOLING SYSTEM

210

TABLE OF CONTENTS FOR MODEL TA40

FROM SERIAL NO. A8201001

SECT-PAGE-PLI DESCRIPTION

SECT-PAGE-PLI DESCRIPTION

SECTION 100 CHASSIS 100-0010-8221 CHASSIS 100-0020-8221 ARTIC & OSCILLATION PIVOT

SECTION 250 BRAKING SYSTEM 250-0020-8221 BRAKE LINES-HYDRAULIC SECTION 270 BODY 270-0010-8221 BODY ASSEMBLY

SECTION 130 DRIVELINE 130-0020-8221 REAR DRIVELINE SECTION 150 150-0010-8221 150-0010-8221 150-0020-8221 150-0020-8221 150-0030-8221 150-0030-8221

CENTRE AXLE AXLE COMPLETE-CENTRE AXLE COMPLETE-CENTRE DIFFERENTIAL-CENTRE DIFFERENTIAL-CENTRE AXLE GROUP-CENTRE AXLE GROUP-CENTRE

SECTION 160 REAR AXLE 160-0010-8221 AXLE COMPLETE-REAR 160-0020-8221 DIFFERENTIAL-REAR 160-0030-8221 AXLE GROUP-REAR SECTION 165 BRAKE PARTS 165-0015-8221 BRAKE ASSY-OCDB(ARTICS) SECTION 170 PARKING BRAKE 170-0010-8221 PARKING BRAKE 170-0020-8221 PARKING BRAKE MOUNTING SECTION 180 SUSPENSION SYSTEM 180-0040-8221 REAR SUSPENSION SECTION 190 ELECTRICAL SYSTEM 190-0050-8221 CABLES/HARNESSES-REAR FRAME 190-0100-8221 ELECTRICAL LIGHTING SYSTEM 190-0210-8221 REVERSE ALARM SECTION 210 COOLING SYSTEM 210-0052-8221 OIL COOLING LINES-DISC BRAKES SECTION 235 BOWL HYDRAULIC SYSTEM 235-0010-8221 LINES AND FITTINGS-HYDRAULIC 235-0020-8221 BOWL CYLINDER

R1 01/02

28/01/02

THIS PAGE IS INTENTIONALLY LEFT BLANK

100-0010-8221 CHASSIS FROM SERIAL NO. A8201001

DRAWING NO. P10659

P10659

1

100-0010-8221 CHASSIS FROM SERIAL NO. A8201001

NC REF QTY 001 001

PART NO. DESCRIPTION 15310465 REAR FRAME COMPLETE

SER.NO. FROM

SER.NO. TO

100-0020-8221 ARTIC & OSCILLATION PIVOT FROM SERIAL NO. A8201001

DRAWING NO. P10790 P10790

42

47

41 39 36

45

3 46 50

45

49 48

11 7 20

10 6

5 25

22 21

2 12

32 1 A

30

10 A

38 4

28

36

51 16 25

29

33

26

43 18 27

15

44

8,9

40 31 8,9

35

31

15

24

17

26 19

16 51

37 30

29

23

28 4

37 45

34

13

14 24 45

46 47

23

13

19

100-0020-8221 ARTIC & OSCILLATION PIVOT FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 038 038

001 002 001 004 001 001 003 002 002 002 001 001 002 001 002 002 001 001 002 003 002 002 002 002 002 002 001 002 002 002 002 001 001 001 001 002 002 ASR ASR ASR

PART NO. DESCRIPTION 15259172 15258915 15301794 09411010 15246826 15246825 06351025 00137350 00457319 15259302 15258822 15237929 00118748 15311743 15235088 15234732 15305604 15235074 15310961 07151020 07161230 06351240 09402823 15301051 15235091 09410971 06351230 00444688 09410969 15237752 15235077 15302368 15302369 15237765 15237764 15302362 15235308 15235306 15235305 15235304

ARTICULATION BKT BUSH PIPE ASSEMBLY FITTING-GREASE GASKET PLATE BOLT CONE CUP V-RING A(V-400 A) THRUST NUT. LOCKPLATE CONNECTOR SHAFT SEAL WASHER-THRUST DRIVELINE YOKE 8.5C YOKE NUT,LOCK M35 X 1.50 WASHER LOCKWASHER BOLT ELBOW HOSE ASSY PLUG O RING BOLT PLUG O RING BEARING PACK RETAINER SEAL HOUSING SEAL HOUSING HOUSING HOUSING SEAL SEAL SHIM (0.040 IN) SHIM (0.020 IN) SHIM (0.006 IN)

100-0020-8221 ARTIC & OSCILLATION PIVOT FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY 038 039 040 041 042 043 044 045 046 047 048 049 050 051

ASR 001 001 001 001 001 001 016 004 012 001 001 001 002

PART NO. DESCRIPTION 15235303 15302406 15302370 15235312 09437116 15235314 09267949 07151220 06621235 66212130 00144033 15233978 15233858 15310964

SHIM (0.003 IN) SPACER PIN ASSY-UPPER WASHER NUT PIN ASSY (LOWER) WASHER-HARDENED WASHER BOLT BOLT BUSHING CONNECTOR ELBOW WASHER - TAB LOCK M35

SER.NO. FROM

SER.NO. TO

130-0020-8221 REAR DRIVELINE FROM SERIAL NO. A8201001

DRAWING NO. P9593 P9593

8

2

3

1

2

8

7

5

6

4

5

7

130-0020-8221 REAR DRIVELINE FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008

001 002 008 001 002 008 008 008

PART NO. DESCRIPTION 15311841 15275364 15272770 15311844 15275363 00186485 15232874 15234737

DRIVELINE 8.5C PARK BR .U-JOINT 8.5C-MAINT.FR .SCREW DRIVELINE 7C INTER-AXL .U-JOINT 7C-MAINT.FREE .BOLT CAPSCREW BOLT

SER.NO. FROM

SER.NO. TO

150-0010-8221 AXLE COMPLETE-CENTRE SERIAL NO. A8201001 TO A8201014

DRAWING NO. P10873

P10873

AXLE CENTRE

FRAME RAIL

3 2

3 1

4 5

3

150-0010-8221 AXLE COMPLETE-CENTRE SERIAL NO. A8201001 TO A8201014

NC REF QTY 001 002 003 004 005

001 001 001 001 001

PART NO. DESCRIPTION 15308852 15247154 15301070 09403096 00119930

AXLE-CENTRE (OCDB) ADAPTOR HOSE ASSY TEE BUSHING-REDUCER

SER.NO. FROM

SER.NO. TO

150-0010-8221 AXLE COMPLETE-CENTRE FROM SERIAL NO. A8201015

DRAWING NO. P10873

P10873

AXLE CENTRE

FRAME RAIL

3 2

3 1

4 5

3

150-0010-8221 AXLE COMPLETE-CENTRE FROM SERIAL NO. A8201015

NC REF QTY 001 002 003 004 005

001 001 001 001 001

PART NO. DESCRIPTION 15313723 15247154 15301070 09403096 00119930

AXLE-CENTRE (OCDB) ADAPTOR HOSE ASSY TEE BUSHING-REDUCER

SER.NO. FROM

SER.NO. TO

150-0020-8221 DIFFERENTIAL-CENTRE SERIAL NO. A8201001 TO A8201014

DRAWING NO. P10868A

150-0020-8221 DIFFERENTIAL-CENTRE SERIAL NO. A8201001 TO A8201014

DRAWING NO. P10868B

150-0020-8221 DIFFERENTIAL-CENTRE SERIAL NO. A8201001 TO A8201014

NC REF QTY

A A

001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 018 019 020 021 022 023 024 025 026 027 027 028 029 030 030 031 032 033 034 035 036 037

001 001 001 001 001 001 001 001 004 008 001 001 001 001 001 001 001 ASR ASR 001 001 001 001 001 001 001 001 ASR ASR 003 001 001 001 001 001 001 001 001 012 020

PART NO. DESCRIPTION 15273204 15265931 15265937 15265938 15265939 15265940 15265896 15265942 15265926 15265925 15273197 15265946 15265947 15265948 15265949 15265947 15265950 15265847 15265848 15273198 15265953 15265954 15265955 15269796 15265883 15273193 15265874 15265919 15265918 15265876 15273199 15275543 15275544 15267857 15265964 15267846 15265967 15265968 15273195 15265878

DIFF ASSY-THRU AXLE .NUT .FLANGE .CAP .SEAL-VITON .WASHER .BEARING .PLUG .BOLT .WASHER .HOUSING .CAGE .WASHER-THRUST .GEAR .GEAR .WASHER-THRUST .PLATE .SHIM (0.20 MM) .SHIM (0.25 MM) .HOUSING .SETSCREW .LOCKNUT .BEARING .HELICAL PINION .BEARING .GEAR SET-2400 RATIO .BEARING .SHIM (0.007 IN) .SHIM (0.005 IN) .DOWEL .PLUG .GEAR CASING .GEAR CASING ASSY .BUSHING .O RING .SHAFT .SPRING .FORK .BOLT .STUD

150-0020-8221 DIFFERENTIAL-CENTRE SERIAL NO. A8201001 TO A8201014 SER.NO. FROM

SER.NO. TO

NC REF QTY

A A A

038 039 040 041 042 043 044 045 046 047 048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063 064 065 066 067 068 069 070 071 072 072 072 072 073 073

001 001 001 012 002 002 002 001 001 001 001 001 001 001 001 001 001 004 004 004 002 004 020 001 004 002 002 002 004 004 001 001 001 001 ASR ASR ASR ASR ASR ASR

PART NO. DESCRIPTION 15275545 15273981 15274403 15265881 15265882 15265883 15273799 15265966 15267852 15267853 15267854 15267855 15267856 15267855 15265964 15267857 15265972 15265891 15265890 15274402 15265907 15265886 15273196 15274404 15265885 15273797 15265888 15267865 15273798 15265911 15265941 15272033 15275547 15265872 15265871 15265869 15265868 15265867 15265859 15265861

.BODY-DIFF HOUSING .DIFF HOUSING ASSY .END-FLANGED .NUT .NUT-ADJUSTING .BEARING .THRUST WASHER .LOCKNUT .PIN .FORK .CLIP .TIE .BOOT .TIE .O RING .BUSHING .CLUTCH .NUT .WASHER .STRAP-GEAR CASING .PIN SPLIT .PLATE .NUT .END-BOLTED .PLATE .DIFF CAGE .WHEEL-DIFF .TRUNNION-DIFF .PINION GEAR .STUD .PIN .WASHER .SWITCH-DIFFLOCK .BEARING .SPACER (10.200MM) .SPACER (9.600MM) .SPACER (9.300MM) .SPACER (9.000MM) .SPACER (6.625MM) .SPACER (6.675MM)

SER.NO. FROM

SER.NO. TO

150-0020-8221 DIFFERENTIAL-CENTRE SERIAL NO. A8201001 TO A8201014

NC REF QTY 073 073 073 073 073 073 074 075 076 077 078 079 080 081 082 083 084 085 086 087 088 089 090 091 092 093 094 095 096 097 098 099 100 101 102 103 104 105 106 107

ASR ASR ASR ASR ASR ASR 001 007 001 001 001 013 013 004 008 001 004 004 008 004 006 006 006 001 001 001 001 001 001 003 003 001 001 006 006 001 001 001 001 001

PART NO. DESCRIPTION 15265862 15265864 15265854 15265855 15265857 15265858 15265921 15275542 15265872 15269795 15265931 15265925 15265926 15265924 15265960 15265975 15265976 15265978 15275548 15265980 15265902 15265901 15265900 15275546 15267859 15269925 15265966 15269953 15273200 15265929 15273201 15269924 15271232 15265900 15265901 15265898 15265939 15265896 15271235 15271234

.SPACER (6.700MM) .SPACER (6.750MM) .SPACER (6.500MM) .SPACER (6.525MM) .SPACER (6.575MM) .SPACER (6.600MM) .HOUSING .SETSCREW .BEARING .HELICAL WHEEL .NUT .WASHER .BOLT .STUD .CAPSCREW .SPIDER .PINION & BUSHING .WASHER-THRUST .BOLT .NUT .STUD .WASHER .NUT AXLE CASING BUSHING ROD-PUSH LOCKNUT LOCKNUT-PUSHROD PLATE WASHER CAPSCREW CYLINDER SHAFT 2.50"-16 THD NUT WASHER CAP SEAL-VITON BEARING LOCKPLATE LOCKNUT

150-0020-8221 DIFFERENTIAL-CENTRE SERIAL NO. A8201001 TO A8201014 SER.NO. FROM

SER.NO. TO

NC REF QTY 108 109 110 111 111 112 113

006 001 001 007 007 014 014

PART NO. DESCRIPTION 15265902 15265903 15265905 15275541 15265906 15265912 15265913

SER.NO. FROM

SER.NO. TO

STUD PLUG PLUG STUD-AXLE CASING STUD WASHER-SPRING NUT

NOTES: A 15275544 GEAR CASING ASSEMBLY CONTAINS ITEMS: 30,55,56 & 57

150-0020-8221 DIFFERENTIAL-CENTRE FROM SERIAL NO. A8201015

DRAWING NO. P10885A

150-0020-8221 DIFFERENTIAL-CENTRE FROM SERIAL NO. A8201015

DRAWING NO. P10885B

150-0020-8221 DIFFERENTIAL-CENTRE FROM SERIAL NO. A8201015

NC REF QTY

A A

001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 018 019 020 021 022 023 024 025 026 027 027 028 029 030 030 031 032 033 034 035 036 037

001 001 001 001 001 001 001 001 004 008 001 001 001 001 001 001 001 ASR ASR 001 001 001 001 001 001 001 001 ASR ASR 003 001 001 001 001 004 001 001 001 012 020

PART NO. DESCRIPTION 15275597 15265931 15265937 15265938 15265939 15265940 15265896 15265942 15265926 15265925 15273197 15265946 15265947 15265948 15265949 15265947 15265950 15265847 15265848 15273198 15265953 15265954 15265955 15269796 15265883 15273193 15265874 15265919 15265918 15265876 15273199 15275544 15275543 15275594 15275595 15275593 15265967 15275592 15273195 15265878

DIFF ASSY-THRU AXLE .NUT .FLANGE .CAP .SEAL-VITON .WASHER .BEARING .PLUG .BOLT .WASHER .HOUSING .CAGE .WASHER-THRUST .GEAR .GEAR .WASHER-THRUST .PLATE .SHIM (0.20 MM) .SHIM (0.25 MM) .HOUSING .SETSCREW .LOCKNUT .BEARING .HELICAL PINION .BEARING .GEAR SET-2400 RATIO .BEARING .SHIM (0.007 IN) .SHIM (0.005 IN) .DOWEL .PLUG .GEAR CASING ASSY .GEAR CASING .AIR CYLINDER .CAPSCREW .OPERATING SHAFT .SPRING .OPERATING FORK .BOLT .STUD

150-0020-8221 DIFFERENTIAL-CENTRE FROM SERIAL NO. A8201015 SER.NO. FROM

SER.NO. TO

NC REF QTY

A A A

038 039 040 041 042 043 044 045 046 047 048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063 064 065 066 067 068 069 070 071 072 072 072 072 073 073

001 001 001 012 002 002 002 008 001 004 004 008 004 006 006 006 001 004 004 004 002 004 020 001 004 002 002 002 004 004 001 001 001 001 ASR ASR ASR ASR ASR ASR

PART NO. DESCRIPTION 15275545 15273981 15274403 15265881 15265882 15265883 15273799 15265960 15265975 15265976 15265978 15275548 15265980 15265902 15265901 15265900 15265972 15265891 15265890 15274402 15265907 15265886 15273196 15274404 15265885 15273797 15265888 15267865 15273798 15265911 15265941 15275596 15275547 15265872 15265867 15265868 15265869 15265871 15265859 15265861

.BODY-DIFF HOUSING .DIFF HOUSING ASSY .END-FLANGED .NUT .NUT-ADJUSTING .BEARING .THRUST WASHER .CAPSCREW .SPIDER .PINION & BUSHING .WASHER-THRUST .BOLT .NUT .STUD .WASHER .NUT .CLUTCH .NUT .WASHER .STRAP-GEAR CASING .PIN SPLIT .PLATE .NUT .END-BOLTED .PLATE .DIFF CAGE .WHEEL-DIFF .TRUNNION-DIFF .PINION GEAR .STUD .PIN .WASHER .SWITCH-DIFFLOCK .BEARING .SPACER (9.000MM) .SPACER (9.300MM) .SPACER (9.600MM) .SPACER (10.200MM) .SPACER (6.625MM) .SPACER (6.675MM)

SER.NO. FROM

SER.NO. TO

150-0020-8221 DIFFERENTIAL-CENTRE FROM SERIAL NO. A8201015

NC REF QTY 073 073 073 073 073 073 074 075 076 077 078 079 080 081 082 083 084 084 085 086 087 088 089 090 091 092 093 094 095 096

ASR ASR ASR ASR ASR ASR 001 007 001 001 001 013 013 004 014 014 007 007 001 001 006 001 001 001 001 001 006 006 001 001

PART NO. DESCRIPTION 15265862 15265864 15265858 15265857 15265855 15265854 15265921 15275542 15265872 15269795 15265931 15265925 15265926 15265924 15265913 15265912 15275541 15265906 15265905 15265903 15265902 15271234 15271235 15265896 15275546 15271232 15265900 15265901 15265898 15265939

SER.NO. FROM

SER.NO. TO

.SPACER (6.700MM) .SPACER (6.750MM) .SPACER (6.600MM) .SPACER (6.575MM) .SPACER (6.525MM) .SPACER (6.500MM) .HOUSING .SETSCREW .BEARING .HELICAL WHEEL .NUT .WASHER .BOLT .STUD NUT WASHER-SPRING STUD-AXLE CASING STUD PLUG PLUG STUD LOCKNUT LOCKPLATE BEARING AXLE CASING SHAFT 2.50"-16 THD NUT WASHER CAP SEAL-VITON

NOTES: A 15275544 GEAR CASING ASSEMBLY CONTAINS ITEMS: 30,55,56 & 57

150-0030-8221 AXLE GROUP-CENTRE SERIAL NO. A8201001 TO A8201014

DRAWING NO. P10875

P10875

4

5

6

10

7

3 2

8

9

13

1 14 15 16 17 18 19

23

22

21

20

24

12

31

11

32 33

34

28 27 26

25 37

36

35

37

38

30 29 39 REF. SEC. 165-0015

150-0030-8221 AXLE GROUP-CENTRE SERIAL NO. A8201001 TO A8201014

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039

002 070 070 003 006 003 002 002 002 002 002 002 002 002 004 002 002 006 002 002 002 006 006 001 001 046 046 002 002 002 002 002 002 002 002 038 008 002 002 002

PART NO. DESCRIPTION 15265843 15265840 15265957 15265803 15265804 15265803 15265838 15265807 15265808 15272904 15265817 15265816 15265815 15265814 15265813 15265812 15265803 15265806 15265802 15265841 15265842 15265801 15265800 15265810 15265811 15265820 15265821 15272904 15275552 15275562 15275561 15275553 15275554 15275555 15275556 15275557 15275558 15275559 15275560 15275581

PLUG BOLT WASHER WASHER PINION WASHER BUTTON-THRUST CIRCLIP GEAR-SUN BEARING ASSY RETAINER RING-HUB GEAR RING-PLANETARY GEAR NUT-HUB LOCKRING RING-SPRING WASHER SCREW CARRIER WASHER BOLT PIN O RING DRIVESHAFT RH DRIVESHAFT LH NUT STUD BEARING ASSY FACE SEAL-HUB/STUB STUB AXLE CAPSCREW SPACER-OIL SEAL O RING HOUSING-OIL SEAL RING CAPSCREW CAPSCREW SEAL HUB O RING

SER.NO. FROM

SER.NO. TO

150-0030-8221 AXLE GROUP-CENTRE FROM SERIAL NO. A8201015

DRAWING NO. P10875

P10875

4

5

6

10

7

3 2

8

9

13

1 14 15 16 17 18 19

23

22

21

20

24

12

31

11

32 33

34

28 27 26

25 37

36

35

37

38

30 29 39 REF. SEC. 165-0015

150-0030-8221 AXLE GROUP-CENTRE FROM SERIAL NO. A8201015

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039

002 070 070 003 006 003 002 002 002 002 002 002 002 002 004 002 002 006 002 002 002 006 006 001 001 046 046 002 002 002 002 002 002 002 002 038 008 002 002 002

PART NO. DESCRIPTION 15265843 15265840 15265957 15265803 15265804 15265803 15265838 15265807 15265808 15272904 15265817 15265816 15265815 15265814 15265813 15265812 15265803 15265806 15265802 15265841 15265842 15265801 15265800 15265811 15265810 15265820 15265821 15272904 15275552 15275562 15275561 15275553 15275554 15275555 15275556 15275557 15275558 15275559 15275560 15275581

PLUG BOLT WASHER WASHER PINION WASHER BUTTON-THRUST CIRCLIP GEAR-SUN BEARING ASSY RETAINER RING-HUB GEAR RING-PLANETARY GEAR NUT-HUB LOCKRING RING-SPRING WASHER SCREW CARRIER WASHER BOLT PIN O RING DRIVESHAFT LH DRIVESHAFT RH NUT STUD BEARING ASSY FACE SEAL-HUB/STUB STUB AXLE CAPSCREW SPACER-OIL SEAL O RING HOUSING-OIL SEAL RING CAPSCREW CAPSCREW SEAL HUB O RING

SER.NO. FROM

SER.NO. TO

160-0010-8221 AXLE COMPLETE-REAR FROM SERIAL NO. A8201001

DRAWING NO. P10874

P10874

AXLE-REAR

3 2

3

1

160-0010-8221 AXLE COMPLETE-REAR FROM SERIAL NO. A8201001

NC REF QTY 001 001 002 001 003 001

PART NO. DESCRIPTION 15308853 AXLE-REAR (OCDB) 15247154 ADAPTOR 15301072 HOSE ASSY

SER.NO. FROM

SER.NO. TO

160-0020-8221 DIFFERENTIAL-REAR FROM SERIAL NO. A8201001

DRAWING NO. P10869

160-0020-8221 DIFFERENTIAL-REAR FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 015 015 015 015 016 016 016 016 016 016 016 016 016 016 016 016 016 017 018 019 020 021 022 023 024

001 004 002 002 004 001 001 002 002 002 012 012 002 001 ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR ASR 001 001 001 008 008 001 001 001

PART NO. DESCRIPTION 15275564 15273798 15265888 15273797 15265886 15274388 15273981 15273799 15265882 15265883 15265881 15273195 15267865 15274393 15265867 15265868 15265869 15265870 15265871 15265861 15265862 15265863 15265864 15265865 15265866 15265860 15265854 15265855 15265856 15265859 15265858 15265857 15265940 15265939 15274394 15265912 15274395 15274396 15265931 15265872

DIFF ASSY-REAR AXLE .PINION GEAR .WHEEL-DIFF .DIFF CAGE .PLATE .BEVEL WHEEL & PINION .DIFF HOUSING ASSY .THRUST WASHER .NUT-ADJUSTING .BEARING .NUT .BOLT .TRUNNION-DIFF .HOUSING-PINION BRG .SPACER (9.000MM) .SPACER (9.300MM) .SPACER (9.600MM) .SPACER (9.900MM) .SPACER (10.200MM) .SPACER (6.675MM) .SPACER (6.700MM) .SPACER (6.725MM) .SPACER (6.750MM) .SPACER (6.775MM) .SPACER (7.150MM) .SPACER (6.650MM) .SPACER (6.500MM) .SPACER (6.525MM) .SPACER (6.550MM) .SPACER (6.625MM) .SPACER (6.600MM) .SPACER (6.575MM) .WASHER .SEAL-VITON .END CAP-PINION .WASHER-SPRING .SETSCREW .FLANGE-COUPLING .NUT .BEARING

160-0020-8221 DIFFERENTIAL-REAR FROM SERIAL NO. A8201001 SER.NO. FROM

SER.NO. TO

NC REF QTY

A

025 026 027 027 027 028 029 030 031 032 033 034 035 036 037 038 039 040 041 042

001 001 ASR ASR ASR 001 004 004 002 004 004 006 006 001 001 014 014 014 001 001

PART NO. DESCRIPTION 15265872 15265874 15274397 15274398 15274399 15274400 15265911 15265885 15265907 15265890 15265891 15265915 15265901 15265935 15275549 15265913 15265912 15265906 15265905 15265903

.BEARING .BEARING .SHIM 0.005" .SHIM 0.007" .SHIM 0.010" .GEAR CASING ASSY .STUD .PLATE .PIN SPLIT .WASHER .NUT BOLT WASHER PLATE AXLE CASING NUT WASHER-SPRING STUD PLUG PLUG

NOTES: A ITEM 28 INCLUDES ITEMS 29,32 & 33

SER.NO. FROM

SER.NO. TO

160-0030-8221 AXLE GROUP-REAR FROM SERIAL NO. A8201001

DRAWING NO. P10875

P10875

4

5

6

10

7

3 2

8

9

13

1 14 15 16 17 18 19

23

22

21

20

24

12

31

11

32 33

34

28 27 26

25 37

36

35

37

38

30 29 39 REF. SEC. 165-0015

160-0030-8221 AXLE GROUP-REAR FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039

002 070 070 003 006 003 002 002 002 002 002 002 002 002 004 002 002 006 002 002 002 006 006 001 001 046 046 002 002 002 002 002 002 002 002 038 008 002 002 002

PART NO. DESCRIPTION 15265843 15265840 15265957 15265803 15265804 15265803 15265838 15265807 15265808 15272904 15265817 15265816 15265815 15265814 15265813 15265812 15265803 15265806 15265802 15265841 15265842 15265801 15265800 15265811 15265810 15265820 15265821 15272904 15275552 15275562 15275561 15275553 15275554 15275555 15275556 15275557 15275558 15275559 15275560 15275581

PLUG BOLT WASHER WASHER PINION WASHER BUTTON-THRUST CIRCLIP GEAR-SUN BEARING ASSY RETAINER RING-HUB GEAR RING-PLANETARY GEAR NUT-HUB LOCKRING RING-SPRING WASHER SCREW CARRIER WASHER BOLT PIN O RING DRIVESHAFT LH DRIVESHAFT RH NUT STUD BEARING ASSY FACE SEAL-HUB/STUB STUB AXLE CAPSCREW SPACER-OIL SEAL O RING HOUSING-OIL SEAL RING CAPSCREW CAPSCREW SEAL HUB O RING

SER.NO. FROM

SER.NO. TO

165-0015-8221 BRAKE ASSY-OCDB(ARTICS) FROM SERIAL NO. A8201001

DRAWING NO. P10879

165-0015-8221 BRAKE ASSY-OCDB(ARTICS) FROM SERIAL NO. A8201001

NC REF QTY

A A

A B A A

B B B B

B

001 002 003 004 005 006 007 008 009 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031

001 003 003 003 003 003 001 001 001 001 005 025 002 004 001 001 003 003 001 001 001 001 020 020 001 001 004 009 010 010 001 001

PART NO. DESCRIPTION 15275493 15275495 NSS 15275497 NSS 15275499 15275500 NSS 15275502 NSS 15275504 NSS 15275506 NSS 15275508 NSS 15275510 NSS NSS 15275513 NSS 15275515 15275516 15275517 15275518 NSS 15275520 15275521 15275522 15275523 15275524 15275525

SER.NO. FROM

SER.NO. TO

BRAKE ASSY-(4 PLATE) .NUT-SLACK ADJUSTER .SEAL-SLACK ADJUSTER .JAM NUT-SLACK ADJUSTE .SEAL-SLACK ADJUSTER .SCREW-SLACK ADJUSTER .CAP-WEAR INDICATOR ..O RING .PIN-WEAR INDICATOR .O RING-WEAR INDICATOR .PLUG-DRAIN ..O RING .PLUG-PRESS INLET ..O RING .BLEEDER SCREW .COVER-BRAKE INNER .PIN-DOWEL .O RING .O RING .SEAL-PISTON INNER .SEAL-PISTON OUTER .PISTON-BRAKE .CAPSCREW .WASHER .COVER-BRAKE OUTER .O RING .FRICTION DISC & LININ .DISC-REACTION .SPRING-RETRACTOR .GUIDE PIN .PLATE-PISTON PRESS .BRK COVER & HSG ASSY

NOTES: A PARTS IN 15275527 SEAL KIT-BRAKE ASSY OUTER, PARTS ARE ALSO INCLUDED IN KIT 15275526 B PARTS IN 15275526 SEAL KIT-COMPLETE BRAKE ASSY

170-0010-8221 PARKING BRAKE FROM SERIAL NO. A8201001

DRAWING NO. P10668 P10668

7 10

10 8

1

10

4

10

11 'A'

11 10

11

9

5 10

11

10 10

6

5

2 'A'

12 10 5 10

3 AT POSITION 'A'

5

10

170-0010-8221 PARKING BRAKE FROM SERIAL NO. A8201001

NC REF QTY

A

001 002 003 004 005 006 007 008 009 010 011 012

001 002 001 001 001 001 001 001 001 001 001 001

PART NO. DESCRIPTION 15309437 15234854 09396802 09396803 15275090 15275091 09396810 15275092 15265334 09396814 15275093 15275100

SER.NO. FROM

SER.NO. TO

PARKING BRAKE ASSY .CARRIER & LINING .PISTON .CALIPER .YOKE ASSY .SLACK ADJUSTER ASSY .SHAFT .CAP ASSY .JOURNAL-BEARING .KIT-REPAIR .ACTUATOR ASSY .INSTAL KIT-SLACK ADJU

NOTES: A INDIVIDUAL ITEMS 10 ARE NOT SOLD SEPARATELY, SERVICED IN PARTS REPAIR KIT 9396814

170-0020-8221 PARKING BRAKE MOUNTING FROM SERIAL NO. A8201001

DRAWING NO. P10654

P10654

BRACKET ON FRAME RAIL

3 7

1

6 8

5 7

7

5

7

2

3

8 4

170-0020-8221 PARKING BRAKE MOUNTING FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008

001 001 002 008 002 008 004 016

PART NO. DESCRIPTION 15235069 15235100 66224250 06351255 06642401 06431201 07152440 07151220

DISC BRACKET BOLT BOLT LOCKNUT NUT WASHER WASHER

SER.NO. FROM

SER.NO. TO

R1 01/02 (ECN 104319) 180-0040-8221 REAR SUSPENSION FROM SERIAL NO. A8201001

DRAWING NO. P10865 P10865

11 12

'A'

5,6

15

12

30 19

12 14

'D'

'C'

2

'A' DETAIL 'C'

24,23

22

25 27

4

'C'

26 17 21

20

4

DETAIL 'D'

7

16

30 19

8

30 19 29 18

12

13

DETAIL 'B'

1 9 10

3 9 10

'E' 'A' 'A'

19 14

11 12

'A'

30 19

19

8 16

5,6

7

33 29

'B'

'A'

18

2 16 19

5,6

7

5,6

31,32

8 'B'

'A'

'B'

'A'

7

29

'A'

'A'

'E'

5,6

31,32 16

5,6

1

9 10

19 8

14

12 13

29

12

14 28

DETAIL 'A' TYPICAL

'A'

3 9 10

FORWARD

12

DETAIL 'E'

180-0040-8221 REAR SUSPENSION FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034

002 001 002 002 006 002 004 012 016 016 008 044 008 030 002 016 012 004 032 002 002 002 008 008 002 012 002 020 016 016 002 004 002 001

PART NO. DESCRIPTION 15235107 15311461 15235112 15251783 15251781 15268491 15250584 15234696 15024121 06642401 66220100 09250715 15313291 15248882 15245698 06351645 07151220 15234697 07161630 15303837 15235799 15234475 15010758 06351640 15310283 06351265 09411010 15245693 06351670 06471601 15246231 15268491 15303838 15311846

BRACKET ASSY BRACKET ASSY BRACKET ASSY BEAM ASSY CONTROL LINK .BUSHING MOUNT-INTERLEAF BOLT WASHER-HARDENED LOCKNUT BOLT WASHER-HARDENED BOLT LOCKNUT BOLT BOLT WASHER BOLT LOCKWASHER WEAR RING BUSHING PLATE WASHER BOLT COVER PLATE BOLT FITTING-GREASE BOLT BOLT LOCKNUT LINK-CONTROL .BUSHING V-RING SEAL BRACKET ASSY

R1 01/02 (ECN 104319)

SER.NO. FROM

SER.NO. TO

190-0050-8221 CABLES/HARNESSES-REAR FRAME FROM SERIAL NO. A8201001

DRAWING NO. P10526

P10526 CONNECTOR TO BODY PROXIMITY SWITCH

15234423 C

B

A

CONNECTOR TO MIDDLE AXLE DIFFLOCK SWITCH

15248424

1 15255083 CONNECTOR TO REAR LIGHTS HARNESS 15252729

CONNECTOR TO FRONT FRAME

15252728 CONNECTOR TO REAR FRAME HARNESS

2

15252801

TO RH REAR LIGHT HARNESS

TO LH REAR LIGHT HARNESS

15252801

CONNECTOR TO FOG LIGHT HARNESS TO REVERSE LAMP

15253703

REVERSE ALARM EARTH REVERSE ALARM SUPPLY

190-0050-8221 CABLES/HARNESSES-REAR FRAME FROM SERIAL NO. A8201001

NC REF QTY 001 001 002 001

PART NO. DESCRIPTION 15300102 HARNESS-REAR FRAME 15308400 HARNESS-REAR LIGHTS

SER.NO. FROM

SER.NO. TO

190-0100-8221 ELECTRICAL LIGHTING SYSTEM FROM SERIAL NO. A8201001

DRAWING NO. P10525 P10525

7,8

12

4,5,6 10 11

10 11

12

9 1,2,3

9

190-0100-8221 ELECTRICAL LIGHTING SYSTEM FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012

001 002 002 001 002 002 001 001 002 008 008 002

PART NO. DESCRIPTION 15308406 15274967 15274968 15308407 15274967 15274968 15248898 15271434 15258992 00179839 07151020 09373548

LIGHT ASSY-REAR LH .BULB 21W-HEAVY DUTY .BULB 5W-HEAVY DUTY LIGHT ASSY-REAR RH .BULB 21W-HEAVY DUTY .BULB 5W-HEAVY DUTY LAMP-FLOOD .BULB-24V-10W GUARD-REAR LIGHT BOLT WASHER BUTTON PLUG

SER.NO. FROM

SER.NO. TO

190-0210-8221 REVERSE ALARM FROM SERIAL NO. A8201001

DRAWING NO. P10524

P10524

2

1

3 4

190-0210-8221 REVERSE ALARM FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004

001 002 002 002

PART NO. DESCRIPTION 15001878 63608110 07150815 06470801

ALARM-REVERSE BOLT WASHER NUT

SER.NO. FROM

SER.NO. TO

210-0052-8221 OIL COOLING LINES-DISC BRAKES FROM SERIAL NO. A8201001

DRAWING NO. P10877 P10877

32,33 34,35

L.H. BRAKES

4

4

10

26

17

6,7 8,9

3

17

27 16 28

25 29

21,22 23,24

14

15

11 20

13

13

5

4

13

4

13

TRACTOR

1

20 29

29

31

18 19

30 17

12

17 TRAILER

2

3

32 R.H. BRAKES

4

210-0052-8221 OIL COOLING LINES-DISC BRAKES FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035

002 002 002 008 004 001 002 004 002 002 001 001 004 002 001 001 008 001 001 002 001 002 002 002 001 001 001 001 006 001 001 001 002 004 002

PART NO. DESCRIPTION 15312011 15312012 15255830 15244929 15311767 15311645 00179883 00106265 00274209 15311768 15312034 15312035 15251981 15253129 15312611 15312612 15312057 15312614 15312615 15310138 15312731 06351025 07151020 07161030 15312184 15312185 15312617 15312618 15251936 15312620 15312621 15312751 06351035 07151020 06471001

HOSE ASSY HOSE ASSY ELBOW-BULKHEAD ADAPTOR-BULKHEAD TUBE ASSY PLATE BENT BOLT WASHER LOCKNUT TUBE ASSY HOSE ASSY HOSE ASSY ELBOW ELBOW PIPE ASSY PIPE ASSY ADAPTOR PIPE ASSY PIPE ASSY MANIFOLD BLOCK PLATE BENT BOLT WASHER LOCKWASHER HOSE ASSY HOSE ASSY PIPE ASSY PIPE ASSY ADAPTOR PIPE ASSY PIPE ASSY PLATE BENT BOLT WASHER LOCKNUT

SER.NO. FROM

SER.NO. TO

235-0010-8221 LINES AND FITTINGS-HYDRAULIC FROM SERIAL NO. A8201001

DRAWING NO. P10528 P10528

9 7

R.H. TIP CYLINDER

6 2

19

5,10,11,12,18

1 DIFF. LOCK CYLINDER CENTRE AXLE

3

4

17 8 8 16 17

TO PORT B ON SOL. VALVE TO PORT A ON SOL. VALVE

15

3

19

15

5,10,11,12,18

1

13

15

14

2

6

20 7

L.H. TIP CYLINDER

9

235-0010-8221 LINES AND FITTINGS-HYDRAULIC FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020

002 002 002 002 002 002 002 002 002 002 004 004 001 001 003 002 002 004 002 002

PART NO. DESCRIPTION 15252290 15309411 15309412 15253240 15254318 15254068 15252675 15253339 09183207 15254319 15254320 00103339 15300070 15300071 15236116 15310080 15253340 00103319 15253036 15233865

TUBE ASSY HOSE ASSY HOSE ASSY ADAPTOR CLAMP ELBOW ELBOW TEE PLUG PLATE BOLT WASHER PIPE ASSY PIPE ASSY CLAMP-DOUBLE HOSE ASSY ADAPTOR LOCKWASHER O-RING UNION

SER.NO. FROM

SER.NO. TO

235-0020-8221 BOWL CYLINDER FROM SERIAL NO. A8201001

DRAWING NO. P9660

P9660

14,15

16

17 17

17 7 17 17 4

3

17 5 6 2 8 17 17 17 10 17 11 12 13 9

20 19

22

14,15

16

20 19

21 1

18

18

PIN MTG. - UPPER

PIN MTG. - LOWER

235-0020-8221 BOWL CYLINDER FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022

002 008 008 008 008 008 008 008 008 008 008 008 008 016 016 016 004 008 004 004 002 002

PART NO. DESCRIPTION 15253821 15269779 15269780 15270163 15265999 15266000 15265577 15266002 15266001 15266006 15266005 15265586 15267146 15266004 15266878 15265573 15269812 15235470 09217321 00179883 15235466 15255074

CYLINDER-TIP .SHELL ASSY .ROD ASSY .RETAINER .SLEEVE .CIRCLIP .LOCKRING .SPEAR .PISTON .GRUBSCREW .GRUBSCREW .SLEEVE .CIRCLIP .BEARING .CIRCLIP .NIPPLE-GREASE .KIT-TIP CYLINDER SPACER WASHER BOLT PIN ASSY PIN ASSY-TOP

SER.NO. FROM

SER.NO. TO

250-0020-8221 BRAKE LINES-HYDRAULIC FROM SERIAL NO. A8201001

DRAWING NO. P10876 P10876

L.H. BRAKES

10

16

3

9

15

19

1

2

16

4

14

1

17 11 13

24

13

17

17 12 18

20

16

16

21 5 6 7 8

PARKING BRAKE

23 22

R.H. BRAKES

250-0020-8221 BRAKE LINES-HYDRAULIC FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023

002 001 001 001 001 001 001 001 001 001 001 001 001 001 001 004 003 001 001 001 003 001 001

PART NO. DESCRIPTION 15253121 15313032 15253073 15312038 15251936 15253153 15253098 15253647 15253043 15313033 15312183 15253129 02276784 15252996 15312613 15312056 15253042 15312616 15312619 15312622 15233865 15309449 15256639

ELBOW-BULKHEAD PIPE ASSY TEE HOSE ASSY ADAPTOR REDUCER NUT-SWIVEL ELBOW ADAPTOR-BULKHEAD PIPE ASSY HOSE ASSY ELBOW SCREW-BLEED ELBOW PIPE ASSY ADAPTOR ADAPTOR PIPE ASSY PIPE ASSY PIPE ASSY UNION HOSE ASSY REDUCER

SER.NO. FROM

SER.NO. TO

270-0010-8221 BODY ASSEMBLY FROM SERIAL NO. A8201001

37

1

DRAWING NO. P10888

P10888

14

7 1

4

15 3

16

6

1

5

8

26 27

25

11 13

18 20 21

24 25

32 28

19

22

12

9 29

30

34

36

31 33

35

17 10

2

270-0010-8221 BODY ASSEMBLY FROM SERIAL NO. A8201001

NC REF QTY 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037

001 002 ASR ASR 036 072 036 006 002 002 001 ASR 001 002 008 008 ASR 001 001 001 001 001 002 001 001 003 003 004 004 004 001 001 001 001 002 002 ASR

PART NO. DESCRIPTION 15309542 15252668 15251929 15251930 06351040 07151020 06471001 15251741 15251058 09411010 15245615 09355578 15233816 15237117 07151220 06351240 15251001 15300020 15244394 09008198 09414095 15235483 06432001 06372070 15313234 06351235 09267949 06471001 00106263 06351035 15301139 15301140 15259165 15301141 00426482 09272898 15237116

BODY ASSEMBLY .BUSHING SHIM-10 S.W.G. SHIM-18 S.W.G. BOLT WASHER LOCKNUT PAD-BODY PIN ASSY-BODY HINGE FITTING-GREASE PIN ASSY CHAIN PIN-SPRING GUIDE PLATE WASHER BOLT SHIM BODY PROP BOLT WASHER LOCKNUT PIN ASSY NUT BOLT COVER PLATE BOLT WASHER-HARDENED LOCKNUT WASHER BOLT PLATE PLATE SWITCH ASSY PLATE-BENT BOLT WASHER SPACER

SER.NO. FROM

SER.NO. TO

THIS PAGE IS INTENTIONALLY LEFT BLANK
