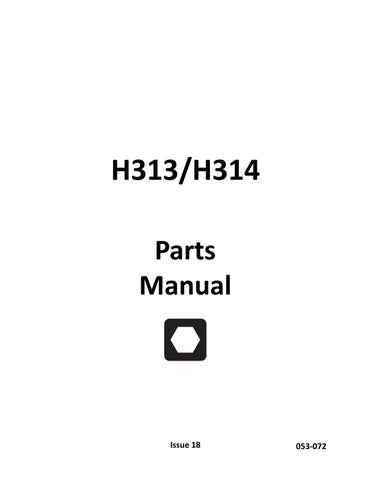

H313/H314 Parts Manual

Issue 18

053-072

1

H313 - H314 ISSUE NO. 18PL-01/22 For Replacement Copy Order P/N 053-072

Attachments for - 3700 This product and its use may be covered by one or more patents at http://patents.charlesmachine.works .

This manual contains information concerning the following models: H313, H314 Digging Attachments

Copyright 2004, 2005, 2007, 2008, 2011, 2014, 2016, 2017, 2018, 2019, 2020, 2021, 2022

by The Charles Machine Works, Inc. , Ditch Witch, CMW, AutoCrowd, Jet Trac, Roto Witch, Subsite, Fluid Miser, Power Pipe, Super Witch, Pierce Arrow, Zahn, The Underground, and The Underground Authority Worldwide are registered trademarks of The Charles Machine Works, Inc.

2

3

FOREWORD_________________________________________ This manual contains illustrated parts lists to help you select quality Ditch Witch® replacement parts for your Ditch Witch equipment. Using other replacement parts will lessen the productivity of your equipment.

•

Descriptions and specifications in this book were current at publication. However, the Charles Machine Works, Inc. reserves the right to improve equipment, so this manual might not reflect the most current improvements.

•

Part numbers enclosed in a box or marked as “obsolete” in the remarks column are no longer available from The Charles Machine Works, Inc. Your local Ditch Witch dealer may be able to locate the part for you.

•

Footnotes provide more information to help you identify parts shown in the manual.

•

Assembly instructions referenced in footnotes are available through your local Ditch Witch dealer.

•

Instructions on recommended equipment use and maintenance are in the Operator’s Manual that was shipped with your equipment.

Keep the following in mind when ordering Ditch Witch replacement parts: ♦ Specify parts you need by part number and description, not by illustration reference numbers. ♦ Have equipment model and serial number on hand to help ensure you get the right parts for your machine whether it’s old or new.

Thank you for buying and using Ditch Witch equipment and replacement parts.

Ver. 04

ID0128552

4

WARRANTY _________________________ DW WARRANTY Policy August, 2016

POLICY 1: DITCH WITCH® EQUIPMENT AND REPLACEMENT PARTS LIMITED WARRANTY POLICY Subject to the limitation and exclusions herein, free replacement parts will be provided at any authorized Ditch Witch dealership for any Ditch Witch equipment or parts manufactured by the Ditch Witch factory that fail due to a defect in material or workmanship within one (1) year of first commercial use. Free labor will be provided at any authorized Ditch Witch dealership for installation of parts under this warranty during the first year following “initial commercial” use of the serial numbered Ditch Witch equipment on which it is installed. The customer is responsible for transporting their equipment to an authorized Ditch Witch dealership for all warranty work.

EXCLUSIONS FROM PRODUCT WARRANTY •

All incidental or consequential damages.

•

All defects, damages, or injuries caused by misuse, abuse, improper installation, alteration, neglect, or uses other than those for which products were intended.

•

All defects, damages, or injuries caused by improper training, operation, or servicing of products in a manner inconsistent with manufacturer’s recommendations.

•

All engines and engine accessories (these are covered by original manufacturer’s warranty).

•

Tires, belts, and other parts which are subject to another manufacturer’s warranty. (Such warranty will be available to purchaser.)

•

ALL IMPLIED WARRANTIES NOT EXPRESSLY STATED HEREIN, INCLUDING ANY WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY.

IF THE PRODUCTS ARE PURCHASED FOR COMMERCIAL PURPOSES, AS DEFINED BY THE UNIFORM COMMERCIAL CODE, THEN THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE FACE HEREOF AND THERE ARE NO IMPLIED WARRANTIES OF ANY KIND WHICH EXTEND TO A COMMERCIAL BUYER. ALL OTHER PROVISIONS OF THIS LIMITED WARRANTY APPLY INCLUDING THE DUTIES IMPOSED. Ditch Witch products have been tested to deliver acceptable performance in most conditions. This does not imply they will deliver acceptable performance in all conditions. Therefore, to assure suitability, products should be operated under anticipated working conditions prior to purchase.

Defects will be determined by an inspection within thirty (30) days of the date of failure of the product or part

by Ditch Witch Product Support (DWPS) or its authorized dealer. DWPS will provide the location of its inspection facilities or it’s nearest authorized dealer upon inquiry. DWPS reserves the right to supply remanufactured replacement parts under this warranty as it deems appropriate.

Extended warranties are available upon request from your local Ditch Witch dealer or the Ditch Witch factory.

Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply. Further, some states do not allow exclusion of or limitation of how long an implied warranty lasts, so the above limitation may not apply. This limited warranty gives product owner specific legal rights and the product owner may also have other rights which vary from state to state.

For information regarding this limited warranty, contact the DWPS, P.O. Box 66, Perry, OK 73077-0066, or contact your local dealer.

Ver. 05

ID0134872

5

CONTENTS______________________ Decals

Miscellaneous

Decal Location – H313 ......................................... 8 Decal Location – H314 ....................................... 12

Optional Kits .................................................. 106 Parts Manual Change Request....................... 107 Related Publications ...................................... 106 Replacement O-Ring Chart ............................ 105 Torque Information ....................................... 100 Warranty Registration ................................... 110

Frame Components Adapter Frame – H314 ...................................... 26 Attachment Frame – H313 ................................ 18 Attachment Frame – H314 ................................ 20 Head Shaft/Sprocket ........................................ 24 Pivot ................................................................. 22 Slide Kit, Attachment Mount – H314................. 28 Slide Kit, Frame Mount – H314.......................... 30

Hydraulics Cylinder – 2” x 1.25” x 20” ................................... 44 Cylinder – 3” x 1.75” x 12” .................................... 46 Dig Chain Drive ................................................. 36 Motor ............................................................... 48 Pivot Lift – H313 ................................................ 38 Pivot Lift – H314 ................................................ 40 Schematic ......................................................... 34 Slide Kit – H314 .................................................. 42

Accessories Auger – H314 ..................................................... 54 Auger/Outboard Bearing – H313....................... 52 Boom ................................................................ 56 Boom, Roller..................................................... 64 Boom, Roller – Large Tail .................................... 62 Chain Assembly – 2P 50K Alligator/Shark............... 88 Chain Assembly – 2P Welded Alg/Shark II .............. 90 Cylinder, Grease ......................................... 58, 66 Digging Chains – 2P Combo ................................ 86 Duratooth Chain – 2P 50K Group 1 ...................... 74 Duratooth Chain – 2P 50K Group 2 ...................... 76 Duratooth Chain – 2P 50K Group 3 ...................... 78 Duratooth Chain – 2P 50K Group 4 ...................... 80 Duratooth Chain – 2P 50K Group 5 ...................... 82 Duratooth Chain – 2P 50K C2X ASB ...................... 84 Personnel Restraint.......................................... 68 Special Tool, Alligator Bit Puller ....................... 92 Special Tool, Alligator Bit Punch ...................... 94 Special Tool, Chain Jaw .................................... 96 Sprocket ........................................................... 60 Trench Cleaner ................................................. 70 Weight Kit ........................................................ 72

ID0135158

6

7

DECALS

ID0135069

8 270XXXX-1

DECAL LOCATION

270XXXX-1

H313

1 2 9

4

2 7 6

8

5

1 5

09

2 3

ID0092973

9

DECAL LOCATION H313 REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9

275-798 270-6328 273-017 270-5866 700-002 274-442 270-7947 275-230 275-232 274-753 270-5865 274-738 270-7940

QTY

1 1 3 1 2 4 1 1 1 1 1

DESCRIPTION

DECAL KIT - H313 DECAL KIT - H313 H313 MODEL ID H313 MODEL ID DANGER CHAIN AND AUGER ISO LIFT LOCATION CHAIN TENSION ISO DANGER STRIPE 1.75” X 18” DANGER 1.75” X 18” DIGGING INSTRUCTIONS OPERATOR’S INSTRUCTIONS DIGGING BOOM FUNCTIONS NOTICE LUBRICATION ISO

REMARKS

SEE FOOTNOTE 1 (OLD STYLE) (NEW STYLE)

SEE FOOTNOTE 1

FOOTNOTES 1. FOR USE WITH TIER 4 FINAL ONLY

09

ID0092973

10

DECAL LOCATION H313

09

ID0092973

11

12

DECAL LOCATION H314

07

ID0091878

13

DECAL LOCATION H314 REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9 10 11

275-799 270-6317 273-018 270-5988 700-002 274-442 270-7947 275-230 275-232 274-753 270-5865 274-738 274-748 270-7940 274-740 274-478

QTY

DESCRIPTION

DECAL KIT - H314 H314 SERVICE DECAL KIT 2 H314 MODEL ID 2 H314 MODEL ID 3 DANGER CHAIN & AUGER ISO 1 LIFT - POINT LOCATION 1 CHAIN TENSION ISO 4 DANGER STRIPE (1-3/4” X 18”) 1 DANGER (1-3/4” X 18”) 1 TRENCHING INSTRUCTIONS 1 OPERATOR INSTRUCTIONS 1 DIGGING BOOM FUNCTION 1 ATTACHMENT SLIDE 1 NOTICE LUBRICATION ISO 1 ATTACH/BFB TILT FUNCTION 1 FUNCTION SELECTOR

REMARKS

SEE FOOTNOTE 1 (OLD STYLE) (NEW STYLE)

(MODEL 3700) SEE FOOTNOTE 1 (MODEL 3700) (MODEL 3700)

FOOTNOTE 1: USE WITH TIER 4 FINAL ONLY

07

ID0091878

14

DECAL LOCATION H314

07

ID0091878

15

16

NOTES:

ID0134963

17

FRAME COMPONENTS

ID0135068

18

ATTACHMENT FRAME H313

2 16 14 13 4

3 5

12

1

11

21

6

15

2

3

7

8 20

22

8 9 20 4 4

17 19

10 18

05

ID0087813

19

ATTACHMENT FRAME H313

REF PART NO. NUMBER

QTY

1. 363-093 1 2. 106-632 8 3. 106-709 8 4. 106-383 8 5. 105-794 2 6. 107-336 1 7. 106-442 8 8. 105-793 7 9. 116-326 1 10. 116-327 1 11. 181-975 1 12. 183-768 1 13. 317-036 1 14. 360-357 1 15. 362-589 1 16. 105-363 2 17. 110-126 1 18. 259-099 1 19. 106-387 4 20. 105-894 7 21. 106-470 8 22. 106-724 3

DESCRIPTION

MOUNT PLATE FLG LK SCR (M12-1.75 X 35mm, SER) FLG LOCKNUT (M12-1.75) FLG LK SCREW (M10-1.50 X 30mm) WASHER (M12) FLG SCREW (M16-2.00 X 45mm, 10.9) FLG LK NUT(M16-2.00,PRVTRQ,10.9) WASHER (M10) SPOILS FLAP SPOILS FLAP TAPERED INSERT (1.75") TAPERED PIN (44.4mm X 205mm) ATTACHMENT FRAME OUTBOARD BEARING SUPPORT BOOM CYLINDER COVER WASHER (7/8") BOLT-ON CLAMP (1/2") PLUG WRENCH - 3/8" DRIVE FLG LOCKNUT (M10-1.50) LOCKNUT (M10-1.50, PRV TRQ, 10.9) FLG SCREW (M16-2.0 X 40mm) FLG LK SCREW (M10-1.50 X 25mm)

REMARKS

TORQUE ROPS BOLTS TO 300 FT-LB

NOT SHOWN:

FOOTNOTES:

NOTE:

05

ID0087813

20

ATTACHMENT FRAME H314

17 5 4

13 12

7

11

3 18

16 9 10

15

8 2

7

14

1 6

05

ID0087814

21

ATTACHMENT FRAME H314

REF PART NO. NUMBER

QTY

DESCRIPTION

REMARKS

1. 301-990 1 ATTACHMENT FRAME 2. 362-610 1 END GUARD 3. 362-613 1 BOOM CYLINDER COVER 4. 116-371 1 SPOILS FLAP 5. 116-372 1 SPOILS FLAP 6. 106-387 4 FLG LOCKNUT (M10-1.50) 7. 106-383 7 FLG LK SCREW (M10-1.50 X 30MM) 8. 105-894 3 LOCKNUT (M10-1.50, PRV TRQ, 10.9) 9. 106-709 3 FLANGE LOCKNUT (M12-1.75) 10. 105-793 3 WASHER (M10) 11. 107-336 1 FLG SCREW (M16-2.00X45MM,10.9) 12. 181-975 1 TAPERED INSERT (1.750") 13. 183-768 1 TAPERED PIN (44.4MM X 205MM) 14. 110-126 1 BOLT ON CLAMP (1/2") 15. 259-099 1 PLUG WRENCH - 3/8" DRIVE 16. 125-773 2 COMPOSITION BUSHING (1.75") 17. 106-632 3 FLG LK SCREW (M12-1.75 X 35MM) 18. 105-1301 2 INTERNAL SNAP RING (2.188)

NOT SHOWN:

FOOTNOTES:

NOTE:

05

ID0087814

22

PIVOT

H313, H314

15

2 7

3

5

8

3

1

13 4 11 10

6

4

3

13

14

1 12 9

06

1

ID0088383

23

PIVOT

H313, H314 REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

QTY

106-442 8 110-054 2 107-336 5 106-619 2 107-337 2 115-001 2 140-540 1 143-184 1 145-845 1 145-852 1 145-980 1 181-975 1 183-856 1 302-999 1 322-952 AR 125-644 1 151-042 1

DESCRIPTION

FLG LOCKNUT (M16-2.00, PRV TRQ) MACHINE BUSHING (1-3/4, 14GA) FLG SCREW (M16-2.00 X 45MM) SCREW (M16-2.00 X 130MM, CL-10.9) SCREW (M16-2.00 X 150MM, CL-10.9) ZERK (02N) 2P BOOM STUB 2P, STANDARD BOOM STUB PIVOT BOOM CLAMP PLATE PIVOT SLEEVE TAPERED INSERT(1.75") TAPERED PIN (44.4MM X 135MM) PIVOT CAP PIVOT CAP SHIM GROOVED PIVOT SLEEVE CYL (3" X 1.75" X 12")

REMARKS

H313 HS14 "LTR BOOMS"

NOT SHOWN:

FOOTNOTES:

NOTE:

06

ID0088383

24

HEADSHAFT AND SPROCKET

7 9 1

11

3

14

13

12 10 5 2 4 6

8

05

ID0032216

25

HEADSHAFT AND SPROCKET REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

105-159 105-497 106-344 105-761 105-762 106-478 105-423 142-127 142-044 142-009 178-098 178-914 178-099 157-583 165-531 125-140 125-073 115-489 115-488 115-001 140-696

QTY

DESCRIPTION

8 8 1 8 8 8 1 1 1 1 1 1 1 1 1 1 1 2 1 1

CAM WASHER (1/2") CAM WASHER (5/8") SCREW (M20-2.50 X 40mm) SCREW (M12-1.75 X 45mm) SCREW (M12-1.75 X 65mm) SCREW (M16-2.00 X 40mm, 10.9) WASHER (3/4") SPROCKET (2.000" A12, SPLIT) SPROCKET (2.000" A14, SPLIT) SPROCKET (3.067" A10) HUB (2.000" P) DRIVE HUB 2" PITCH HUB (3"P) INTERNAL SEAL HEADSHAFT BALL BEARING (2.362", DBL ROW) BALL BEARING (2.362") EXTERNAL SNAP RING (2.375") INTERNAL SNAP RING (4.331") ZERK (02N) BACKING RING

REMARKS

2P 3P SEE FOOTNOTE 1 2P, H314 & H514. USE LOCTITE 242, SEE FOOTNOTE 2 H313, USE LOCTITE 242, SEE FOOTNOTE 2 3P, H514 2P 2P 3P 2P, H313 & H314 2P, H514 3P, H514

USED WITH 14T SPROCKET

NOT SHOWN:

FOOTNOTES:

1. USE LOCTITE WHEN INSTALLING BOLT IN THE END OF THE HEADSHAFT. 2. TORQUE TO 100 FT/LBS.

NOTE:

05

ID0032216

26

ADAPTER FRAME H314

2 10 6

7

4

1 9 5 8

4

3

03

ID0088382

27

ADAPTER FRAME H314

REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

QTY

106-709 2 106-190 1 106-074 4 107-336 11 106-632 2 105-340 1 181-975 1 178-288 1 313-110 1 313-118 1

DESCRIPTION

FLG LOCKNUT (M12-1.75) BOLT (3/4-NC X 6-1/2", GD8) SCREW (M16-2.00 X 60MM) SCREW (M16-2.00 X 45MM 10.9 FLG) FLG LK SCREW (M12-1.75 X 35MM) FLG LOCKNUT (3/4-NC) TAPERED INSERT (1.75") TAPERED PIN (44.4 X 810MM) ADAPTER FRAME MOUNT BRACKET

REMARKS

TORQUE TO 300 FT-LB

NOT SHOWN:

FOOTNOTES:

NOTE:

03

ID0088382

28

29

30

H314 SLIDE KIT FRAME MOUNT

1 2

6 4

1

7

5

8

3

02

ID0087838

31

H314 SLIDE KIT FRAME MOUNT REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

125-771 151-065 106-442 181-982 307-265 106-632 179-042 106-074

QTY

2 1 4 1 1 1 1 4

DESCRIPTION

REMARKS

COMPOSITION BUSHING (1.25") CYLINDER (2.0" X 1.25" X 20.0") FLG LOCKNUT (M16-2.00, PRV TRQ) TAPERED INSERT (1.25") SLIDE MOUNT FLG LK SCREW (M12-1.75 X 35MM) TAPERED PIN (31.7MM X 144MM) SCREW (M16-2.00 X 60MM)

NOT SHOWN:

FOOTNOTES:

NOTE:

02

ID0087838

32

NOTES:

ID0134963

33

HYDRAULICS

ID0135071

34

35

36

DIGGING CHAIN DRIVE HYDRAULICS H313, H314, H514

8

8

6

7

"C"

4 7 9

5

5 3

"C" CASE DRAIN

"A"

"B"

HYDROSTAT "B" FORWARD

10

"A" HYDROSTAT REVERSE

1

2 11

17

ID0026731

37

DIGGING CHAIN DRIVE HYDRAULICS H313, H314, H514 REF PART NO. NUMBER 1.

QTY

DESCRIPTION

REMARKS

149-138

1

H Y D R A U L IC M O T O R S E A L R E PA IR K IT

SEE FOOTNOTE 1. OBSOLETE ENDS WITH S/N OBSOLETE, USED ON 149-138 HYD. MOTOR BEGINS WITH S/N OBSOLETE, SUPPERSEDED BY 150-1038

191 -0 35

1

150 -1 03 8

1

H Y D R A U L IC M O T O R (3 0 C ID )

150 -1 03 6

1

H Y D R A U L IC M O T O R ( 3 0 C ID )

150 -1 03 9

1

H Y D R A U L IC M O T O R ( 3 8 C ID )

150 -1 04 1

1

C O M P L E T E S E A L K IT

166 -2 84

1

S H AF T AS S EM B LY

2.

106-478

4

S C R E W ( M 1 6 - 2 .0 0 X 4 0 m m , 1 0 .9 )

3.

149-130

1

O - R IN G (3 5 6 D 7 0 )

4.

154-253

1

C O N N E C T O R (0 6 S - 0 8 O 9 0 )

154 -2 83

1

C O N N E C T O R (0 6 S- 0 8 O 4 5 )

154-306

2

C O N N E C T O R (1 2 S - 1 6 O )

5.

6.

7.

154-770

1

H O S E (0 8 O F X 4 5 - 6 6 " - 3 0 0 0 )

155 -4 93

1

H O SE (0 8 O F X- 6 0 "-3 0 0 0 )

154 -6 77

1

H O SE (0 8 O F X- 6 2 "-3 0 0 0 )

150-5268

1

H O SE (1 6 O F X -5 4 "-5 0 0 0 A R )

154 -8 85

1

H O SE (1 6 O F X- 6 2 "-5 0 0 0 )

154 -8 86

1

H O SE (1 6 O F X- 6 6 "-4 0 0 0 )

8.

117-1075

2

A B R A S IO N S L E E V E (2 .5 4 " X 5 8 ")

9.

514-266

1

C O N N E C T O R (0 8 O - 0 8 O 9 0 )

10 . 1 54 -2 90

2

U N IO N (1 6 O - 1 6 O F X 9 0 )

11 . 1 06 -3 98

4

W A S H E R (M 1 6 , H A R D E N E D )

USED IN HYD MOTORS: 150-1036, 150-1037 AND 150-1039 OBSOLETE, SEE FOOTNOTE 3

SEE FOOTNOTE 2 SEE FOOTNOTE 2 H514 H514 PRESSURE HOSE H514 RETURN HOSE REPLACES SINGLE ABRASION SLEEVE H313, H314

NOT SHOWN:

FOOTNOTES:

1. EARLY PRODUCTION MOTORS HAVE THE CASE DRAIN PORT LOCATED ON THE BOTTOM SIDE OF THE MOTOR. 2. CASE DRAIN LOCATED ON TOP SIDE OF MOTOR. 3. SHAFT ASSEMBLY 166-284 IS OBSOLETE AND NOT AVAILABLE AS A SERVICE PART. ORDER MOTOR FOR REPLACEMENT.

NOTE:

REFER TO O-RING CHART (800-301) IN BACK OF BOOK FOR REPLACEMENT OF O-RINGS.

17

ID0026731

38

39

40

41

42

SLIDE KIT HYDRAULICS H314

3

2 2 4

5

6

1

02

ID0139694

43

SLIDE KIT HYDRAULICS H314

REF PART NO. NUMBER

QTY

1.

2.

3.

4.

5.

6.

1 1 1 2 2 2

154-252 515-283 154-401 117-714 154-220 514-382

DESCRIPTION

REMARKS

CONNECTOR (04S-04090) HOSE (04OFX45-62"-3000) CONNECTOR (04S-04O90, ORF) ABRASION SLEEVE (1.00" X 54") CONNECTOR (04O-06S) UNION (16O-16OFX90, 5.5" LG)

NOT SHOWN:

FOOTNOTES:

NOTE:

SELECTOR VALVE KIT 190-739 IS NEEDED WHEN USING ATTACHMENT SLIDE WITH BACKFILL BLADE TILT AND REAR STEER ON A 3700.

REFER TO O-RING CHART (800-301) IN BACK OF THE BOOK FOR REPLACEMENT OF O-RINGS.

02

ID0139694

44

45

46

47

48

HYDRAULIC MOTOR 1

2

06

ID0033491

49

HYDRAULIC MOTOR REF PART NO. NUMBER

1.

2.

QTY

DESCRIPTION

150-1036 - HYDRAULIC MOTOR 150-1037 - HYDRAULIC MOTOR (38 CID) 191-1041 1 SEAL REPAIR KIT 166-284 1 SHAFT ASSEMBLY

REMARKS 149-138 OBSOLETE 149-881 OBSOLETE 191-035 OBSOLETE SEE FOOTNOTE 1

NOT SHOWN:

FOOTNOTES:

1. SHAFT ASSEMBLY 166-284 IS NOT AVAILABLE AS A SERVICE PART. NEED TO ORDER MOTOR FOR REPLACEMENT.

NOTE:

06

ID0033491

50

NOTES:

ID0134963

51

ACCESSORIES

52

AUGER AND OUTBOARD BEARING

4

9

3

6

11

2

H313

7 1

4

5

10

1 1 8

D

806-877

53

AUGER AND OUTBOARD BEARING H313 REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

106-685 106-632 178-180 106-578 110-364 110-363 115-003 125-048 140-686 165-577 178-139 363-093

QTY

6 4 1 2 1 1 1 1 1 1 1 1

DESCRIPTION

REMARKS

LOCKNUT (M12-1.75, PRV TRQ, 10.9) FLG LK SCREW (M12-1.75 X 35MM) AUGER SHAFT HUB SCREW (M12-1.75 X 80MM) FLANGETTE (NON-LUBRICABLE) FLANGETTE (LUBRICABLE) ZERK (1/4-NF, STR) BALL BEARING (1.750") AUGER AUGER SHAFT AUGER SPACER MOUNT PLATE

FOOTNOTES

NOTE:

D

806-877

54

AUGER

H314, H514, H515, H813, H853, H553 19

9

3

15 11

5 17

4

14 18

1 7 13

2

1 6

6 18

1

14

13 12

1

17

OPTION

2 15

16

10

8

08

ID0025107

55

AUGER

H314, H514, H515, H813, H853, H553 REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

QTY

106-685 8 106-632 4 105-391 AR 105-953 AR 115-001 AR 125-620 2 142-031 1 142-038 1 145-071 1 145-109 1 145-110 1 145-244 1 145-245 1 145-290 2 145-298 2 143-021 2 184-189 2 184-188 1 106-594 4 184-076 4 145-070 1

NOT SHOWN: 181-831

1

DESCRIPTION

LOCKNUT (M12-1.75, PRV TRQ, 1O.9) FLG LK SCR (M12-1.75 X 35mm,SER) BOLT (3/4-NC X 4-1/2") LOCKNUT (3/4-NC) ZERK (02N) FLANGE BEARING (1.750", 4-BLT) AUGER SPROCKET (2.000" A14) AUGER SPROCKET (3.067" B10) LEFT AUGER RIGHT AUGER LEFT AUGER DOUBLE AUGER SHAFT SINGLE AUGER SHAFT BEARING PLATE AUGER BEARING PLATE ZERK GUARD SPACER (1.6") SPACER (2.9") SCREW (M12-1.75 X 60mm) GUARD BUSHING (.562") RIGHT AUGER

REPLACEMENT SLEEVE (6.000")

REMARKS

2P 3P LONG, SEE FOOTNOTES 2 & 3 SHORT, SEE FOOTNOTES 2 & 3 SHORT, SEE FOOTNOTES 2 & 3 SEE FOOTNOTE 2 2P 3P

SEE FOOTNOTE 2

LONG, SEE FOOTNOTE 2 & 3

SEE FOOTNOTE 1

NOT SHOWN:

FOOTNOTES:

1-THE REPLACEMENT SLEEVE IS USED WHEN A DOUBLE AUGER SHAFT IS USED AS A SINGLE AUGER SET-UP. 2-TO BE USED WHEN OPERATING ATTACHMENT IN THE FULL SIDE POSITION, WITH THE SINGLE AUGER. 3-TO BE USED WHEN OPERATING ATTACHMENT IN MID POSITION, WITH LARGER BOOMS.

NOTE:

08

ID0025107

56

BOOM

1 4

2

3

01

ID0138873

57

BOOM REF PART NO. NUMBER

1.

2.

3.

4.

140-124 140-125 140-330 140-126 140-129 140-765 140-766 140-758 140-751 105-367 105-419 140-114 140-267 140-121 140-115 140-120 140-328 140-116

QTY

2 2 1 2 1 2 1 1 1 2 2 1 2 1 1

DESCRIPTION

BOOM PARTS ASS'Y (42.8 2P) BOOM PARTS ASS'Y (58.8 2P) BOOM PARTS ASS'Y (70.9 2P) BOOM PARTS ASS'Y (83.0 2P) BOOM PARTS ASS'Y (83.0 3P) SLIDE AND STOP SLIDE AND STOP SIDE PLATE SLIDE AND STOP SLIDE PLATE LOCKNUT (1-NC) BOLT (1-NC X 4") BOOM (44") SIDE PLATE ROCK GUARD BOOM (60.5") SIDE PLATE BOOM (70-7/8") BOOM (83")

REMARKS

FOR 2" P FOR 3" P

WELD-ON WELD-ON WELD-ON

NOT SHOWN:

FOOTNOTES:

NOTE:

01

ID0138873

58

59

60

SPROCKET 2P & 3P

1 (2P)

2

3 4

5 (3P)

6

7

8 08

ID0084614

61

SPROCKET 2P & 3P REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

140-654 140-707 125-209 180-062 181-051 125-209 180-448 180-534 115-165 115-003 115-009 105-313 105-377 140-656 140-723 140-661 140-661 115-470 125-265 125-266 155-843 180-026 180-243 180-244 180-440 180-441 115-009 115-001 115-003 115-152

QTY

2 1 1 2 2 1 1 1 1 1 1 2 2 2 1 1 2 1 2 2 2 2 2 1 1 1 1 1 1 1

DESCRIPTION

IDLER SPROCKET (2.000"A9) SPROCKET (2.000"A9) TAPERED BEARING/ RACE (1.250") DIRT SHIELD DIRT SHIELD TAPERED BEARING/RACE (1.250") IDLER SHAFT (1.250" X 3.500") IDLER SHAFT (1.250" X 4.375") PLUG (O8N, SOC) ZERK (1/4-NF, STR) ZERK (1/4-NF, STR XL) JAM NUT (1-1/4-NF) JAM NUT (1-1/2-NF) SPROCKET (3.067" A10) SPROCKET (3.067"A10) TAPERED BRNG/RACE (1.500") TAPERED BRNG/RACE (1.500") INTERNAL SNAP RING (3.250") TAPERED BEARING (1.500") TAPERED RACE (3.265") INTERNAL SEAL (2.474") SPACER (2.515") SEAL SPACER (1.501") BEARING SPACER (1.535") SLIDE & STOP SHAFT (4.875") IDLER SHAFT (1.500" X 4.375") ZERK (1/4-NF, STR XL) ZERK (02N) ZERK (1/4-NF, STR) PLUG (12N, SQ FM)

REMARKS

FOR 2" P FOR 2" P INCL. REF. NO. 4 SEE FOOTNOTE 1 SEE FOOTNOTE 2 FOR 2" P FOR 2" P SLIDE AND STOP FOR 2" P IDLER SPROCKET FOR 2" P EARLY STYLE FOR 2" P FOR 3" P FOR 3" P REF. NO. 5 FOR 3" P FOR 3" P

FOR 3" P SLIDE AND STOP FOR 3" P IDLER SPROCKET EARLY STYLE NON-SELF TAPPING SELF-TAPPING

NOT SHOWN:

FOOTNOTES:

1. THIS 9/32" DIRT SHIELD IS INCLUDED WITH SPROCKET AND IS USED WHEN SPROCKET IS BEING USED IN SLIDE STOP. 2. THIS 25/32" DIRT SHIELD IS NOT INCLUDED WITH SPROCKET PARTS ASSEMBLY. REPLACE SHIELD THAT COMES WITH SPROCKET PARTS ASSEMBLY WITH THIS SHIELD IF SPROCKET IS USED IN BOOM.

NOTE:

08

ID0084614

62

LARGE TAIL ROLLER BOOM LOW HEADSHAFT H300/H313/H400/3610

3 12 1 12 4

7 6

9 11 10 2 9

5 8

08

ID0127116

63

LARGE TAIL ROLLER BOOM LOW HEADSHAFT H300/H313/H400/3610 REF PART NO. NUMBER

QTY

DESCRIPTION

143-181 3' LT ROLLER BOOM (2"P) 143-180 4' LT ROLLER BOOM (2"P) 1. 143-138 1 3' BOOM 143-139 1 4' BOOM 2. 142-751 1 LT ROLLER (2.000"P, 14.5") 3. 151-053 1 CYL (1.5" X 1.5" X 8.375") 4. 180-448 1 IDLER SHAFT (1.25" X 3.50") 115-003 ZERK (1/4-NF, STR) 115-165 PLUG (08N, SOC) 5. 125-209 1 TAPERED BEARING/RACE (1.250") 6. 115-165 1 PLUG (08N, SOC) 7. 115-019 1 ZERK (02N) 8. 105-313 1 JAM NUT (1-1/4-NF) 9. 180-062 2 DIRT SHIELD 10. 115-276 1 REDUCER (16N-08NF) 11. 159-093 1 RELIEF VALVE (5/8-NF, 02N) 12. 115-001 2 ZERK (O2N)

REMARKS

INCL REF NO'S 1 THRU 12; USE 80P INCL REF NO'S 1 THRU 12; USE 84P USE 80P USE 84P INCL REF NO'S 5 & 9

NOT SHOWN:

FOOTNOTES:

NOTE:

08

ID0127116

64

ROLLER BOOM 2P

HIGH HEADSHAFT H300/H313/H400/M500/H552/H514/H515/H553

12

3 1 12

7 6

11 10

4 9

2 9 5 8 11

ID0025105

65

ROLLER BOOM 2P

HIGH HEADSHAFT H300/H313/H400/M500/H552/H514/H515/H553 REF PART NO. NUMBER

QTY

141-491 143-050 143-060 143-051 143-061 141-488 142-751 151-053 180-448 115-003 115-165 125-209 115-165 115-019 105-313 180-062 115-276 159-093 115-001

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

1 1 1 1 1 1

1 1 1 1 2 1 1 2

DESCRIPTION

REMARKS

BOOM ASSEMBLY 42" LT ROLLER BOOM (2.000"P) 48" LT ROLLER BOOM (2.000"P) 3' BOOM (2.000"P, 47.21") BOOM (59.21") 2P-5FT BOOM LT ROLLER (2.000"P, 14.5") CYL (1.5" X 1.5" X 8.375") IDLER SHAFT (1.25" X 3.50") ZERK (1/4-NF, STR) PLUG (08N, SOC) TAPERED BEARING/RACE (1.250") PLUG (08N, SOC) ZERK (02N) IDLER NUT (1-1/4-NF) DIRT SHIELD REDUCER (16N-08NF) RELIEF VALVE (5/8-NF, 02N) ZERK (02N)

INCL REF NO.'S 1 THRU 12, USES 108 P INCL REF NO.'S 1 THRU 12, USES 84 P INCL REF NO.'S 1 THRU 12, USES 96 P

INCL'S REF NO. 5 AND 9

SEE FOOTNOTE 1

NOT SHOWN:

FOOTNOTES:

1. REFER TO REPLACEMENT DIAGRAM 052-519

NOTE:

11

ID0025105

66

67

68

PERSONNEL RESTRAINT 2P

7

OPTION 6 2

4

8

5

1 8 3

03

ID0139700

69

PERSONNEL RESTRAINT 2P

REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

QTY

105-386 2 106-480 2 106-442 4 105-994 4 105-340 4 106-851 2 106-191 2 107-337 2 107-720 2 141-268 1 141-274 1 140-0008 1 141-354 1 141-350 1 141-276 1 141-371 1 141-373 1 141-277 1 141-372 1 141-374 1 141-280 1 106-949 4

DESCRIPTION

BOLT (5/8-NC X 4-1/2") SCREW (M16-2.00 X 110mm, 10.9) FLG LOCKNUT (M16-2.00, PRV TRQ) FLG LOCKNUT (5/8-NC) FLG LOCKNUT (3/4-NC) LOCKNUT (M18-2.5) BOLT (5/8-NC X 6", GD8) SCREW (M16-2.00 X 150mm, 10.9) SCREW (M18-2.5 X 160mm, 10.9) RESTRAINT BAR (46", 2P) RESTRAINT BAR (56", 2P) RESTRAINT BAR (60", 2P) RESTRAINT BAR (69", 2P) RESTRAINT BAR (80.5", 2P) LEFT MOUNT BRACKET LEFT MOUNT BRACKET (12") LEFT MOUNT BRACKET (16") RIGHT MOUNT BRACKET RIGHT MOUNT BRACKET (12") RIGHT MOUNT BRACKET (16") SUPPORT SPACER WASHER (3/4", HARDENED)

REMARKS

H313, H314, H514 M552 LOWER MOUNT BRACKET ONLY; TORQUE TO 650 FT-LBS H514 LOWER MOUNTING BOLTS H313, H314 H514, SEE FOOTNOTE 2 ROLLER BOOM ROLLER BOOM (FOR 3' AND 44" BOOM) ROLLER BOOM (FOR 4' BOOM) STANDARD BOOM "& 5'-50K ROLLER BOOM" STANDARD BOOM (FOR 5' BOOM) 3610 3610 3610 3610 SEE FOOTNOTE 1 H514, SEE FOOTNOTE 2

NOT SHOWN:

FOOTNOTES:

1. WHEN H312 OR H314 ATTACHMENT IS USED IN AN OFFSET POSITION THE RIGHT MOINT BRACKET WILL BE REPLACED BY REF. NO. 7 (41-280) SUPPORT SPACER 2. EARLY PRODUCTION UNITS USED 107-688 WITH TWO HARDENED WASHERS. CURRENT PRODUCTION UNITS USE 107-720 WITH FOUR HARDENED WASHERS

NOTE:

03

ID0139700

70

TRENCH CLEANER 2P

17

16

12 6

14 19

1

9

5

2

6 13 15

3

20 4 3 8 10

18

11

3

7

04

ID0139175

71

TRENCH CLEANER 2P

REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

QTY

190-2406 190-2604 105-065 3 105-071 2 183-179 4 105-279 2 105-386 2 106-191 2 106-480 2 105-994 4 105-340 2 106-442 4 106-851 2 106-191 2 105-464 2 107-337 2 107-720 2 115-503 8 115-602 2 115-1018 2 141-109 2 141-215 1 141-134 1 141-135 1 141-136 1 141-137 1 140-1357 1 140-1358 1 141-211 1 141-132 1 140-1361 1 140-1365 1 140-1352 1 140-1363 1 140-1369 1 140-1354 1 140-1356 1 141-276 1 141-371 1 141-373 1 141-277 1 141-372 1 141-374 1 141-280 3 106-949 4 105-884 2 115-0005 2

DESCRIPTION

MECH CLEANER CONV KIT (ROLLER BOOM) MECH CLEANER CONV KIT (STD BOOM) LOCKNUT (1/2-NC) WASHER (1/2") PIN CARRIAGE BOLT (1/2-NC X 3") BOLT (5/8-NC X 4-1/2") BOLT (5/8-NC X 6", GD8) SCREW (M16-2.0 X 110mm, 10.9) FLG LOCKNUT (5/8-NC) FLG LOCKNUT (3/4-NC) FLG LOCKNUT (M16-2.00,PRV TRQ) LOCKNUT (M18-2.5) BOLT (5/8-NC X 6", GD8) BOLT (3/4-NC X 7", GD8) SCREW (M16-2.00 X 150mm, 10.9) SCREW (M18-2.5 X 160mm, 10.9) KLIP RING (3/4") EXTENSION SPRING EXTENSION SPRING REAR LINK CLEANER SHOE 4" CLEANER SHOE 6" CLEANER SHOE 8" CLEANER SHOE 10" CLEANER SHOE 12" SHOE BEAM (LTS) SHOE BEAM (STD) FRONT LINK FRONT LINK 3' LOWER CLEANER BAR (2.000" P) 3' LOWER CLEANER BAR (2.000" P) 3' LOWER CLEANER BAR (2.000" P) 4' LOWER CLEANER BAR (2.000" P) 4' LOWER CLEANER BAR (2.000" P) 4' LOWER CLEANER BAR (2.000" P) 5' LOWER CLEANER BAR (2.000" P) LEFT MOUNT BRACKET LEFT MOUNT BRACKET (12") LEFT MOUNT BRACKET (16") RIGHT MOUNT BRACKET RIGHT MOUNT BRACKET (12") RIGHT MOUNT BRACKET (16") SUPPORT SPACER WASHER (3/4", HARDENED) WASHER (.531") EXTERNAL SNAP RING (0.500")

REMARKS

INCL REF NO'S 1-4,8-10,12,13, 19 & 20; SEE F/N 1 INCL REF NO'S 1-4,8-10,12,13, 19 & 20; SEE F/N 1

M552 H313, H314, H514 M552 LOWER MOUNT BRACKET ONLY; TORQUE TO 650 FT-LBS H313, H314, H514 (2) H514 LOWER MOUNTING BOLTS M552 H313, H314 H514, SEE FOOTNOTE 4 OLD STYLE; SEE FOOTNOTE 6 SEE FOOTNOTES 5 & 6

ROLLER BOOMS; SEE FOOTNOTE 6 STANDARD BOOMS; SEE FOOTNOTE 6 ROLLER BOOMS STANDARD BOOMS ROLLER BOOMS; SEE FOOTNOTES 3 & 6 ROLLER BOOMS; SEE FOOTNOTES 2 & 6 STANDARD BOOM; SEE FOOTNOTES 2 & 6 ROLLER BOOMS; SEE FOOTNOTES 3 & 6 ROLLER BOOMS; SEE FOOTNOTES 2 & 6 STANDARD BOOM; SEE FOOTNOTES 2 & 6 STANDARD BOOM; SEE FOOTNOTES 2 & 6 3610 3610 3610 3610 M552 H514, SEE FOOTNOTE 4 SEE FOOTNOTE 6 SEE FOOTNOTE 6

FOOTNOTES:

1. REFER TO INSTALLATION DIAGRAM 050-926 2. H311 BEGINS WITH S/N 8K0126; H411 BEGINS WITH S/N 3M0693; H313 3. H312, H412, H314, H514, H450, H552, M552 4. EARLY PRODUCTION UNITS USED 107-688 W/ TWO HARDENED WASHERS. CURRENT PRODUCTION UNITS USE 107-720 W/ FOUR HARDENED WASHERS 5. INSTALL SPRING 115-1018 SO THAT OPEN ENDS OF THE COILS ARE FACING IN TOWARDS THE CLEANER BAR AND SHOE BEAM. 6. IF REPLACING OLD SPRINGS, CLEANER BAR OR SHOE BEAM, USE NEW CLEANER BAR AND SHOE BEAM SHOWN ON THIS PAGE, & INSTALL TRENCH CLEANER SPRING KIT 190-2669.

NOTE:

04

ID0139175

72

H313/A323 WEIGHT KIT 15 15

3

11

11

11

2

18 18 9 1

19

5

9

1

17 16 12

13

14 4 20

8 7

13 8 4

7

6

11 10 10 02

4 11

14

12 ID0398257

73

H313/A323 WEIGHT KIT REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

190-2351 301-9298 301-9297 106-578 106-709 301-9327 115-002 107-197 106-398 106-442 106-708 106-397 106-396 106-387 106-642 107-507 110-126 259-099 106-632 106-470 362-589

QTY

DESCRIPTION

WEIGHT KIT, H313 / A323 2 WEIGHT, SIDE (1/2") 3 WEIGHT, TOP 2 SCREW (M12-1.75 X 80MM, 10.9) 8 FLG LK NUT (M12-1.75) 1 WEIGHT, SIDE (1/4") 1 ZERK (02N90) 2 SCREW (M16-2.00 X 80MM, 10.9) 2 WASHER (M16, HARDENED) 2 FLG LKNUT (M16-2.0,PRVTRQ10.9) 2 SCREW (M12-1.75 X 60MM, 10.9) 8 WASHER (M12, HARDENED) 2 WASHER (M10, HARDENED) 2 FLG LOCKNUT (M10-1.50) 2 SCREW (M10-1.50 X 65MM) 4 SCREW (M12-1.75 X 65MM) 0 BOLT-ON CLAMP (1/2") 0 PLUG WRENCH - 3/8" DRIVE 0 FLG LK SCR (M12-1.75X35MM,SER) 0 FLG SCREW (M16-2.0 X 40MM) 0 BOOM CYLINDER COVER

REMARKS

INCLUDES ITEMS #'S 1-15; SEE FOOTNOTE 1

NOT INCLUDED IN KIT NOT INCLUDED IN KIT NOT INCLUDED IN KIT NOT INCLUDED IN KIT NOT INCLUDED IN KIT

NOT SHOWN:

FOOTNOTES:

1. WEIGHT KIT 190-2351 IS REQUIRED WITH A RT45 UNIT WHEN EQUIPPED WITH A H313 TRENCHER AND AN A323 BACKHOE.

NOTE:

02

ID0398257

74

50K DURATOOTH CHAINS 2P CHAIN ASSEMBLIES GROUP 1

2

1

3

4 5 6 REPAIR PART# 131-115 138-228 1 131-135 0 138-218 0 135-1236 19 135-1233 16 135-964 10 135-912 3 135-950 5 105-043 28 105-066 10 105-002 12 105-076 20 105-065 70 105-111 0 135-913 0 135-914 0

02

131-116 1 0 0 19 18 4 3 2 26 8 12 8 72 20 5 0

131-117 1 0 0 18 18 16 2 2 16 20 8 8 72 8 2 3

CHAIN ASSEMBLIES 131-137 131-138 0 0 1 1 0 0 16 16 16 16 0 0 0 0 0 0 64 64 0 0 0 0 0 0 64 64 0 0 0 0 0 0

133-322 0 0 1 17 17 0 0 0 68 0 0 0 68 0 0 0

7

133-293 0 0 1 17 17 0 0 0 68 0 0 0 68 0 0 0

ID0446692

75

50K DURATOOTH CHAINS 2P CHAIN ASSEMBLIES GROUP 1 REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7

1 1 1 1 1 1 1

131-115 131-116 131-117 131-137 131-138 133-322 133-293

DESCRIPTION

REMARKS

50K 2P DURA 54P 10.1" 50K 2P DURA 54P 12.1" 50K 2P DURA 54P 16" 50K 2P DURA 64P 5.1" 50K 2P DURA 64P 6.1" 50K 2P DURA 68P 5.1" 50K 2P DURA 68P 6.1"

CHAIN ASSEMBLY COMPONENTS NOT SHOWN:

138-228 50K DIGGING CHAIN STD 2P (54P) 131-135 50K DIGGING CHAIN STD 2P (64P) 138-218 50K DIGGING CHAIN STD 2P (68P) 135-1236 DURATOOTH, RIGHT 1/4" 50K 135-1233 DURATOOTH, LEFT 1/4" 50K 135-964 TOOTH SPACER (1/4") 135-912 TOOTH ADAPTER (8") 135-950 TOOTH ADAPTER (10") 105-043 BOLT (1/2-NC X 1-1/4") 105-066 BOLT (1/2-NC X 1-3/4") 105-002 BOLT (1/2-NC X 2 1/4") 105-076 BOLT (1/2-NC X 3") 105-065 LOCKNUT (1/2-NC) 105-111 BOLT (1/2-NC X 4") 135-913 TOOTH ADAPTER (12") 135-914 TOOTH ADAPTER (16") 105-275 BOLT (1/2-NC X 6")

FOOTNOTES:

NOTE:

1. 50K STANDARD REPAIR STATION KIT 131-131, 50K PREMIUM REPAIR STATION KIT 135-1149, 50K MASTER PIN 135-1067, & 50K LOCK KEY 135-1086 2. NOT ALL CHAINS LISTED MAY BE SUITABLE FOR YOUR ATTACHMENT. CONSULT A DITCH WITCH DEALER FOR MORE INFORMATION.

02

ID0446692

76

50K DURATOOTH CHAINS 2P CHAIN ASSEMBLIES GROUP 2

1

4

6

5

01

REPAIR Part# 131-009 138-217 0 138-215 0 138-218 1 135-1236 21 135-1233 21 135-964 0 135-912 8 135-950 0 105-043 52 105-066 0 105-002 32 105-076 0 105-065 84 105-111 0 135-913 0

3

2

131-010 0 0 1 21 21 0 4 4 52 0 16 16 84 0 0

131-011 0 0 1 21 22 12 3 3 38 12 12 12 86 12 3

CHAIN ASSEMBLIES 133-324 133-290 131-008 0 0 0 1 1 1 0 0 0 18 18 22 18 18 24 0 0 12 0 0 3 0 0 4 72 72 40 0 0 12 0 0 12 0 0 16 72 72 94 0 0 12 0 0 3

7

133-358 1 0 1 20 20 0 0 0 80 0 0 0 80 0 0

8

133-359 1 0 1 20 20 0 0 0 80 0 0 0 80 0 0

ID0446728

77

50K DURATOOTH CHAINS 2P CHAIN ASSEMBLIES GROUP 2 REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7 8

1 1 1 1 1 1 1 1

131-009 131-010 131-011 133-324 133-290 131-008 133-358 133-359

DESCRIPTION

REMARKS

50K 2P DURA 68P 8.6" 50K 2P DURA 68P 10.25" 50K 2P DURA 68P 12.1" 50K 2P DURA 72P 5.1" 50K 2P DURA 72P 6.1" 50K 2P DURA 72P 12.1" 50K 2P DURA 80P 5.1" 50K 2P DURA 80P 6.1"

CHAIN ASSEMBLY COMPONENTS NOT SHOWN:

138-217 50K DIGGING CHAIN STD 2P (12P) 138-215 50K DIGGING CHAIN STD 2P (72P) 138-218 50K DIGGING CHAIN STD 2P (68P) 135-1236 DURATOOTH, RIGHT 1/4" 50K 135-1233 DURATOOTH, LEFT 1/4" 50K 135-964 TOOTH SPACER (1/4") 135-912 TOOTH ADAPTER (8") 135-950 TOOTH ADAPTER (10") 105-043 BOLT (1/2-NC X 1-1/4") 105-066 BOLT (1/2-NC X 1-3/4") 105-002 BOLT (1/2-NC X 2 1/4") 105-076 BOLT (1/2-NC X 3") 105-065 LOCKNUT (1/2-NC) 105-111 BOLT (1/2-NC X 4") 135-913 TOOTH ADAPTER (12")

FOOTNOTES:

NOTE:

1. 50K STANDARD REPAIR STATION KIT 131-131, 50K PREMIUM REPAIR STATION KIT 135-1149, 50K MASTER PIN 135-1067, & 50K LOCK KEY 135-1086 2. NOT ALL CHAINS LISTED MAY BE SUITABLE FOR YOUR ATTACHMENT. CONSULT A DITCH WITCH DEALER FOR MORE INFORMATION.

01

ID0446728

78

50K DURATOOTH CHAINS 2P CHAIN ASSEMBLIES GROUP 3

3 2

1

4

8

7 5

REPAIR Part# 131-012 138-217 1 135-1532 0 138-218 1 135-1236 25 135-1233 25 135-964 0 135-912 10 135-950 0 105-043 60 105-066 0 105-002 40 105-076 0 105-065 100 105-111 0 135-913 0

01

131-013 1 0 1 25 25 0 5 5 60 0 20 20 100 0 0

131-014 1 0 1 26 25 16 3 4 42 16 12 16 100 16 4

6

CHAIN ASSEMBLIES 133-356 133-325 131-015 0 0 0 1 1 1 0 0 0 21 21 26 21 21 26 0 0 0 0 0 10 0 0 0 84 84 64 0 0 0 0 0 40 0 0 0 84 84 104 0 0 0 0 0 0

131-016 0 1 0 26 26 0 5 5 64 0 20 20 104 0 0

131-017 0 1 0 27 26 16 3 4 46 16 12 16 106 16 4

ID0446855

79

50K DURATOOTH CHAINS 2P CHAIN ASSEMBLIES GROUP 3 REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7 8

1 1 1 1 1 1 1 1

131-012 131-013 131-014 133-356 133-325 131-015 131-016 131-017

DESCRIPTION

REMARKS

50K 2P DURA 80P 8.75" 50K 2P DURA 80P 10.1" 50K 2P DURA 80P 12.1" 50K 2P DURA 84P 5.1" 50K 2P DURA 84P 6.1" 50K 2P DURA 84P 8.75" 50K 2P DURA 84P 10" 50K 2P DURA 84P 12"

CHAIN ASSEMBLY COMPONENTS NOT SHOWN:

138-217 50K DIGGING CHAIN STD 2P (12P) 135-1532 50K DIGGING CHAIN STD 2P (84P) 138-218 50K DIGGING CHAIN STD 2P (68P) 135-1236 DURATOOTH, RIGHT 1/4" 50K 135-1233 DURATOOTH, LEFT 1/4" 50K 135-964 TOOTH SPACER (1/4") 135-912 TOOTH ADAPTER (8") 135-950 TOOTH ADAPTER (10") 105-043 BOLT (1/2-NC X 1-1/4") 105-066 BOLT (1/2-NC X 1-3/4") 105-002 BOLT (1/2-NC X 2 1/4") 105-076 BOLT (1/2-NC X 3") 105-065 LOCKNUT (1/2-NC) 105-111 BOLT (1/2-NC X 4") 135-913 TOOTH ADAPTER (12")

FOOTNOTES:

NOTE:

1. 50K STANDARD REPAIR STATION KIT 131-131, 50K PREMIUM REPAIR STATION KIT 135-1149, 50K MASTER PIN 135-1067, & 50K LOCK KEY 135-1086 2. NOT ALL CHAINS LISTED MAY BE SUITABLE FOR YOUR ATTACHMENT. CONSULT A DITCH WITCH DEALER FOR MORE INFORMATION.

01

ID0446855

80

50K DURATOOTH CHAINS 2P CHAIN ASSEMBLIES GROUP 4

4

3 2 1

7 6 5

REPAIR Part# 133-330 138-219 1 138-215 1 138-216 0 135-1533 0 135-1532 0 138-218 0 135-1236 22 135-1233 22 105-043 88 105-065 88

01

133-294 1 1 0 0 0 0 22 22 88 88

133-360 0 0 1 0 0 1 23 23 92 92

CHAIN ASSEMBLIES 133-361 133-331 133-291 0 0 0 0 0 0 1 0 0 0 1 1 0 0 0 1 0 0 23 24 24 23 24 24 92 96 96 92 96 96

133-332 1 0 0 0 1 0 25 25 100 100

ID0446920

81

50K DURATOOTH CHAINS 2P CHAIN ASSEMBLIES GROUP 4 REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7

1 1 1 1 1 1 1

133-330 133-294 133-360 133-361 133-331 133-291 133-332

DESCRIPTION

REMARKS

50K 2P DURA 88P 5.1" 50K 2P DURA 88P 6.1" 50K 2P DURA 92P 5.1" 50K 2P DURA 92P 6.1" 50K 2P DURA 96P 5.1" 50K 2P DURA 96P 6.1" 50K 2P DURA 100P 5.1"

CHAIN ASSEMBLY COMPONENTS NOT SHOWN:

138-219 50K DIGGING CHAIN STD 2P (16P) 138-215 50K DIGGING CHAIN STD 2P (72P) 138-216 50K DIGGING CHAIN STD 2P (24P) 135-1533 50K DIGGING CHAIN STD 2P (96P) 135-1532 50K DIGGING CHAIN STD 2P (84P) 138-218 50K DIGGING CHAIN STD 2P (68P) 135-1236 DURATOOTH, RIGHT 1/4" 50K 135-1233 DURATOOTH, LEFT 1/4" 50K 105-043 BOLT (1/2-NC X 1-1/4") 105-065 LOCKNUT (1/2-NC)

FOOTNOTES:

NOTE:

1. 50K STANDARD REPAIR STATION KIT 131-131, 50K PREMIUM REPAIR STATION KIT 135-1149, 50K MASTER PIN 135-1067, & 50K LOCK KEY 135-1086 2. NOT ALL CHAINS LISTED MAY BE SUITABLE FOR YOUR ATTACHMENT. CONSULT A DITCH WITCH DEALER FOR MORE INFORMATION.

01

ID0446920

82

50K DURATOOTH CHAINS 2P CHAIN ASSEMBLIES GROUP 5

4 3 1

2

8 7

5

REPAIR Part# 133-224 138-219 1 138-217 0 138-216 0 135-1533 0 135-1532 1 138-218 0 135-1236 25 135-1233 25 105-043 100 105-065 100

01

133-333 0 1 0 1 0 0 27 27 108 108

133-292 0 1 0 1 0 0 27 27 108 108

6

CHAIN ASSEMBLIES 133-295 133-264 133-336 1 0 0 0 0 0 0 2 1 1 0 1 0 0 0 0 1 0 28 29 30 28 29 30 112 116 120 112 116 120

133-268 0 0 1 1 0 0 30 30 120 120

ID0446942

83

50K DURATOOTH CHAINS 2P CHAIN ASSEMBLIES GROUP 5 REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7 8

1 1 1 1 1 1 1 1

133-224 133-333 133-292 133-291 133-295 133-364 133-336 133-268

DESCRIPTION

REMARKS

50K 2P DURA 100P 6.1" 50K 2P DURA 108P 5.1" 50K 2P DURA 108P 6.1" 50K 2P DURA 96P 6.1" 50K 2P DURA 112P 6.1" 50K 2P DURA 116P 5.1" 50K 2P DURA 120P 5.1" 50K 2P DURA 120P 6.1"

CHAIN ASSEMBLY COMPONENTS NOT SHOWN:

138-219 50K DIGGING CHAIN STD 2P (16P) 138-217 50K DIGGING CHAIN STD 2P (12P) 138-216 50K DIGGING CHAIN STD 2P (24P) 135-1533 50K DIGGING CHAIN STD 2P (96P) 135-1532 50K DIGGING CHAIN STD 2P (84P) 138-218 50K DIGGING CHAIN STD 2P (68P) 135-1236 DURATOOTH, RIGHT 1/4" 50K 135-1233 DURATOOTH, LEFT 1/4" 50K 105-043 BOLT (1/2-NC X 1-1/4") 105-065 LOCKNUT (1/2-NC)

FOOTNOTES:

NOTE:

1. 50K STANDARD REPAIR STATION KIT 131-131, 50K PREMIUM REPAIR STATION KIT 135-1149, 50K MASTER PIN 135-1067, & 50K LOCK KEY 135-1086 2. NOT ALL CHAINS LISTED MAY BE SUITABLE FOR YOUR ATTACHMENT. CONSULT A DITCH WITCH DEALER FOR MORE INFORMATION.

01

ID0446942

84

50K DURATOOTH/C2X ASB CHAINS 2P CHAIN ASSEMBLIES

1

2

REPAIR Part# 133-282 138-278 2 138-279 1 138-280 1 138-281 0 135-1236 17 135-1233 17 135-1237 0 135-1234 0 105-043 68 105-065 68

01

3

4 5

CHAIN ASSEMBLIES 133-299 135-1311 135-1308 135-1301 1 1 1 2 0 0 0 1 1 1 1 1 1 1 1 0 28 0 0 0 28 0 0 0 0 28 28 17 0 28 28 17 112 112 112 68 112 112 112 68

ID0447026

85

50K DURATOOTH/C2X ASB CHAINS 2P CHAIN ASSEMBLIES REF PART NO. NUMBER

QTY

1 2 3 4 5

1 1 1 1 1

135-1301 133-282 133-299 135-1311 135-1308

DESCRIPTION

REMARKS

50K C2X ASB 68P 5.12" 50K DURA ASB 68P 5.1" 50K DURA ASB 112P 6.1" 50K ASB C2X 112P 5.1" 50K ASB C2X 112P 6.1"

CHAIN ASSEMBLY COMPONENTS NOT SHOWN:

138-278 50K DIGGING CHAIN ASB 2P (16P) 138-279 50K DIGGING CHAIN ASB 2P (12P) 138-280 50K DIGGING CHAIN ASB 2P (24P) 138-281 50K DIGGING CHAIN ASB 2P (72P) 135-1236 DURATOOTH, RIGHT 1/4" 50K 135-1233 DURATOOTH, LEFT 1/4" 50K 135-1237 DURATOOTH C2X, RIGHT 1/4" 50K 135-1234 DURATOOTH C2X, LEFT 1/4" 50K 105-043 BOLT (1/2-NC X 1-1/4") 105-065 LOCKNUT (1/2-NC)

FOOTNOTES:

NOTE:

1. 50K STANDARD REPAIR STATION KIT 131-131, 50K PREMIUM REPAIR STATION KIT 135-1149, 50K MASTER PIN 135-1067, & 50K LOCK KEY 135-1086 2. NOT ALL CHAINS LISTED MAY BE SUITABLE FOR YOUR ATTACHMENT. CONSULT A DITCH WITCH DEALER FOR MORE INFORMATION.

01

ID0447026

86

50K COMBO CHAINS 2P DIGGING CHAINS

1

3

2

4

5

6 REPAIR Part# 131-140 131-135 1 138-218 0 138-217 0 135-1532 0 135-1533 0 138-223 0 138-228 0 135-1236 8 135-1233 8 136-236 5 136-237 5 136-240 3 136-241 3 136-036 0 136-037 0 136-040 0

01

136-041 135-912 135-950 135-913 136-237 135-952 136-043 105-076 105-111 105-136 105-002 105-110 105-065

0 0 0 0 0 48 16 16 16 32 0 0 64

131-415 0 1 0 0 0 0 0 8 8 5 5 4 4 0 0 0

131-412 0 1 1 0 0 0 0 10 10 6 6 4 4 0 0 0

0 0 0 0 0 52 16 16 20 32 0 0 68

0 0 0 0 0 60 20 20 20 40 0 0 80

CHAIN ASSEMBLIES 131-413 131-416 135-1483 131-404 0 0 0 0 0 0 0 1 0 0 0 1 1 0 0 0 0 1 0 0 0 0 1 0 0 0 1 0 11 12 9 10 11 12 9 10 5 7 0 0 5 7 0 0 5 5 9 0 5 5 9 0 0 0 0 6 0 0 0 6 0 0 0 4 0 0 0 0 0 64 20 20 20 44 0 0 84

0 0 0 0 0 72 24 24 24 48 0 0 96

0 3 3 3 3 24 18 18 0 36 12 12 78

4 0 0 0 0 60 20 20 20 40 0 0 80

8

7 131-405 0 0 0 1 0 0 0 11 11 0 0 0 0 5 5 5

131-408 0 0 0 0 1 0 0 12 12 0 0 0 0 7 7 5

5 0 0 0 0 64 20 20 20 44 0 0 84

5 0 0 0 0 72 24 24 24 48 0 0 96

9

ID0447522

87

50K COMBO CHAINS 2P DIGGING CHAINS REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7 8 9

1 1 1 1 1 1 1 1 1

131-416 135-1483 131-404 131-405 131-408 131-140 131-415 131-412 131-413

DESCRIPTION

50K 2P DURA/SHK B 96P 6.0 50K 2P CMB DURA/SHK B 60P 12" 50K 2P CMB DURA/ALG 80P 6.0 50K 2P CMB DURA/ALG 84P 6.0 50K 2P CMB DURA/ALG 96P 6.0 50K 2P CMB DURA/SHK B 64P 6.0" 50K 2P CMB DURA/SHK B 68P 6.0" 50K 2P CMB DURA/SHK B 80P 6.0" 50K 2P DURA/SHK B 84P 6.0"

REMARKS

SEE F/N 1 SEE F/N 1 SEE F/N 1

CHAIN ASSEMBLY COMPONENTS NOT SHOWN:

131-135 50K DIGGING CHAIN STD 2P (64P) 138-218 50K DIGGING CHAIN STD 2P (68P) 138-217 50K DIGGING CHAIN STD 2P (12P) 135-1532 50K DIGGING CHAIN STD 2P (84P) 135-1533 50K DIGGING CHAIN STD 2P (96P) 138-223 50K DIGGING CHAIN STD 2P (4P) 138-228 50K DIGGING CHAIN STD 2P (54P) 135-1236 DURATOOTH, RIGHT 1/4" 50K 135-1233 DURATOOTH, LEFT 1/4" 50K 136-236 50K LEFT INSIDE BOLT-ON SHARK ADAPTER 136-237 50K RIGHT INSIDE BOLT-ON SHARK ADAPTER 136-240 50K LEFT OUTSIDE WIDE BOLT-ON SHARK ADAP 136-241 50K RIGHT OUTSIDE WIDE BOLT-ON SHARK ADAP 136-036 50K CAST BIT ADAPTER, R.O. 136-037 50K CAST BIT ADAPTER, L.O. 136-040 50K CAST BIT ADPTR #10POS R.O. 136-041 50K CAST BIT ADPTR #10POS L.O. 135-912 TOOTH ADAPTER (8") 135-950 TOOTH ADAPTER (10") 135-913 TOOTH ADAPTER (12") 136-237 50K RIGHT INSIDE BOLT-ON SHARK ADAPTER 135-952 CHAIN SPACER (1.750") 136-043 SPACER 105-076 BOLT (1/2-NC X 3") 105-111 BOLT (1/2-NC X 4") 105-136 BOLT (1/2-NC X 3-1/2", GD8) 105-002 BOLT (1/2-NC X 2 1/4") 105-110 BOLT (1/2-NC X 4.5") 105-065 LOCKNUT (1/2-NC) FOOTNOTES:

USES 136-112 INSERT BITS

NOTE:

1. 50K STANDARD REPAIR STATION KIT 131-131, 50K PREMIUM REPAIR STATION KIT 135-1149, 50K MASTER PIN 135-1067, & 50K LOCK KEY 135-1086 2. NOT ALL CHAINS LISTED MAY BE SUITABLE FOR YOUR ATTACHMENT. CONSULT A DITCH WITCH DEALER FOR MORE INFORMATION.

01

ID0447522

88

50K ALLIGATOR & SHARK CHAINS 2P CHAIN ASSEMBLIES

1

2

5

4

3

6

01

REPAIR Part# 135-336 138-218 1 138-215 0 138-217 0 135-1532 0 135-1533 0 136-036 10 136-037 16 136-038 4 136-039 4 136-040 4 136-041 4 136-236 0 136-237 0 136-238 0 136-239 0 136-240 0 136-241 0 135-952 44 136-043 24 105-076 24 105-110 16 105-111 28 105-065 68

135-335 0 1 0 0 0 14 14 4 4 4 4 0 0 0 0 0 0 48 24 24 16 32 72

138-230 1 0 1 0 0 16 16 4 4 4 4 0 0 0 0 0 0 48 32 32 16 32 80

8

7

CHAIN ASSEMBLIES 135-337 138-225 132-302 0 0 1 0 0 0 0 0 0 1 0 0 0 1 0 17 19 0 17 19 0 4 5 0 4 5 0 4 5 0 4 5 0 0 0 13 0 0 13 0 0 4 0 0 4 0 0 4 0 0 4 52 60 44 32 36 24 32 36 24 16 20 16 36 40 28 84 96 68

132-301 0 1 0 0 0 0 0 0 0 0 0 14 14 4 4 4 4 48 24 24 16 32 72

132-303 0 0 0 1 0 0 0 0 0 0 0 17 17 4 4 4 4 52 32 32 16 36 84

ID0447762

89

50K ALLIGATOR & SHARK CHAINS 2P CHAIN ASSEMBLIES REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7 8

1 1 1 1 1 1 1 1

135-336 135-335 138-230 135-337 138-225 132-302 132-301 132-303

DESCRIPTION

50K 2P ALG B-O 68P 5.250 50K 2P ALG 72P 5.2 "NS" 50K 2P ALG 80P 5.25" 50K 2P ALG 84P 5.3" 50K 2P ALG 96P 5.3 50K 2P SHK B-O 68P 5.3 50K 2P B-O SHK 72P 5.5" 50K 2P SHK B-O 84P 5.3"

REMARKS

SEE F/N 1 SEE F/N 1 SEE F/N 1 SEE F/N 1 SEE F/N 1 SEE F/N 1

CHAIN ASSEMBLY COMPONENTS NOT SHOWN:

138-218 50K DIGGING CHAIN STD 2P (68P) 138-215 50K DIGGING CHAIN STD 2P (72P) 138-217 50K DIGGING CHAIN STD 2P (12P) 135-1532 50K DIGGING CHAIN STD 2P (84P) 135-1533 50K DIGGING CHAIN STD 2P (96P) 136-036 50K CAST BIT ADAPTER, R.O. 136-037 50K CAST BIT ADAPTER, L.O. 136-038 50K CAST BIT ADPTR #9 POS L.O. 136-039 50K CAST BIT ADPTR #9 POS R.O. 136-040 50K CAST BIT ADPTR #10POS R.O. 136-041 50K CAST BIT ADPTR #10POS L.O. 136-236 50K LEFT INSIDE BOLT-ON SHARK ADAPTER 136-237 50K RIGHT INSIDE BOLT-ON SHARK ADAPTER 136-238 50K RT OUTSIDE BOLT-ON SHARK ADPTER 136-239 50K LT OUTSIDE BOLT-ON SHARK ADPTER 136-240 50K LEFT OUTSIDE WIDE BOLT-ON SHARK ADAP 136-241 50K RIGHT OUTSIDE WIDE BOLT-ON SHARK ADAP 135-952 CHAIN SPACER (1.750") 136-043 SPACER 105-076 BOLT (1/2-NC X 3") 105-110 BOLT (1/2-NC X 4.5") 105-111 BOLT (1/2-NC X 4") 105-065 LOCKNUT (1/2-NC)

FOOTNOTES:

USES 136-112 INSERT BITS

NOTE:

1. 50K STANDARD REPAIR STATION KIT 131-131, 50K PREMIUM REPAIR STATION KIT 135-1149, 50K MASTER PIN 135-1067, & 50K LOCK KEY 135-1086 2. NOT ALL CHAINS LISTED MAY BE SUITABLE FOR YOUR ATTACHMENT. CONSULT A DITCH WITCH DEALER FOR MORE INFORMATION.

01

ID0447762

90

50K WELDED ALG/ SHARK II CHAINS 2P CHAIN ASSEMBLIES

3

2

1

4 5 6 7 8

01

ID0488231

91

50K WELDED ALG/ SHARK II CHAINS 2P CHAIN ASSEMBLIES REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7 8

1 1 1 1 1 1 1 1

131-050 131-096 131-097 131-175 131-171 131-172 131-173 131-174

DESCRIPTION

REMARKS

50K 2P ALG W/O 80P 6.0 50K 2P ALG W/O 84P 6.0 50K 2P ALG W/O 96P 6.0 50K 2P SHK II W-O 54P 6.0 50K 2P SHK II W-O 68P 6.0 50K 2P SHK II W-O 80P 6.0 50K 2P SHK II W-O 84P 6.0 50K 2P SHK II W-O 96P 6.0

NOT SHOWN:

FOOTNOTES:

NOTE:

01

ID0488231

92

SPECIAL TOOLS BIT PULLER FOR ALLIGATOR BITS

HAMMER 3 5

4

SLIDE HAMMER 3 1

2

H

801-056

93

SPECIAL TOOLS BIT PULLER FOR ALLIGATOR BITS REF PART NO. NUMBER

1.

2.

3.

4.

5.

259-002 259-001 259-036 105-403 105-357 183-072 259-003

QTY

1 1 2 1 1

DESCRIPTION

REMARKS

BIT PULLER - SLIDE HAMMER BIT PULLER - HAMMER BIT PULLER JAM NUT (5/8-NC) LOCKNUT (5/8-NC) SLIDE HAMMER ROD SLIDE HAMMER

INCL REF NO.'S 1 - 5 EARLY STYLE

FOOTNOTES

NOTE:

H

801-056

94

SPECIAL TOOLS - ALIG BIT PUNCH

5

3

4

1 9 2 8

6

H

7

801-057

95

SPECIAL TOOLS - ALIG BIT PUNCH REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

9.

259-150 105-708 105-964 105-994 183-072 259-003 259-151 259-152 259-153 105-357

QTY

DESCRIPTION

REMARKS

INCL REF NO.'S 1 THRU 8

2 1 1 1 1 1 1 1 1

BIT PUNCH - SLIDE HAMMER SET SCREW (3/8-NC X 3/8", NLK) WASHER (.656") FLG LOCKNUT (5/8-NC) SLIDE HAMMER ROD SLIDE HAMMER HEAVY BIT PUNCH-SLIDE HAMMER LIGHT BIT PUNCH-SLIDE HAMMER PUNCH ADAPTER-SLIDE HAMMER LOCKNUT (5/8-NC)

FOOTNOTES

NOTE:

H

801-057

96

SPECIAL TOOL - CHAIN JAWS FOR USE ON MASTER LINKS

LEFT JAW

RIGHT JAW

8

9

11 10 11 10

1 2

3 4 12 5 6

13 4

7

H

801-058

97

SPECIAL TOOL - CHAIN JAWS FOR USE ON MASTER LINKS REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

259-140 259-186 115-003 105-310 105-975 259-185 125-402 107-761 259-181 259-180 105-059 105-181 105-066 105-065

QTY

DESCRIPTION

REMARKS

INCL REF NO'S 1 - 13

1 1 1 2 1 1 1 1 1 2 2 1 1

CHAIN JAWS (1-1/8" DRIVE) THREADED TRUNION ZERK (1/4-NF, STR) JAM NUT (3/4-NC) WASHER (3/4") SLIP TRUNION BRONZE BUSHING (.750") BOLT ALL THREAD (3/4-10 NC X 11") LEFT JAW RIGHT JAW WASHER (7/16") BOLT (3/8-NC X 1/2") BOLT (1/2-NC X 1-3/4") LOCKNUT (1/2-NC)

FOOTNOTES

NOTE:

H

801-058

98

NOTES:

ID0134963

99

MISCELLANEOUS

ID0135063

100

Torque Information Tightening Guidelines Values given on the following pages are a guide. Do not use these values if a different torque value or tightening procedure is given for specific application. Check tightness of fasteners periodically.

Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical property class fasteners.

Fasteners should be replaced with the same or higher property class. If higher property class fasteners are used, tighten only to torque value of original fastener.

Make sure fastener threads are clean and that the threads are properly started. This will prevent them from cross threading or galling when tightened.

Lubed means cleaned, dry bolts lubricated with a standard, medium-viscosity machine oil. Lubricate all contact areas of the bolts and washers. Lubricating the bolts is the suggested torque method.

V01

ID0493104

101

SAE Bolt Torque Torque estimates based on clamp load (75% of proof strength) as specified in SAE J429 and ASME 574.

Diameter and Thread Pitch

SAE Grade 5

SAE Grade 8

Socket Head Cap Screw

Dry

Lubed

Dry

Lubed

Dry

Lubed

1/4-20

101 in• lb 11.4 N• m

76 in• lb 8.6 N• m

143 in• lb 16.2 N• m

107 in• lb 12.1 N• m

168 in• lb 19 N• m

120 in• lb 13.6 N• m

1/4-28

116 in• lb 13.1 N• m

87 in• lb 9.8 N• m

147 in• lb 16.6 N• m

123 in• lb 13.9 N• m

192 in• lb 21.7 N• m

144 in• lb 16.3 N• m

5/16-18

209 in• lb 23.6 N• m

157 in• lb 17.7 N• m

295 in• lb 33.3 N• m

221 in• lb 25 N• m

348 in• lb 39.3 N• m

264 in• lb 29.8 N• m

5/16-24

231 in• lb 26.1 N• m

174 in• lb 19.7 N• m

327 in• lb 36.9 N• m

245 in• lb 27.7 N• m

384 in• lb 43.4 N• m

288 in• lb 32.5 N• m

3/8-16

372 in• lb 42 N• m

276 in• lb 31.2 N• m

44 ft• lb 59.7 N• m

33 ft• lb 44.7 N• m

51 ft• lb 69.1 N• m

38 ft• lb 51.5 N• m

3/8-24

420 in• lb 47.5 N• m

312 in• lb 35.3 N• m

49 ft• lb 66.4 N• m

37 ft• lb 50.2 N• m

58 ft• lb 78.6 N• m

43 ft• lb 58.3 N• m

7/16-14

49 ft• lb 66.4 N• m

37 ft• lb 50.2 N• m

70 ft• lb 94.9 N• m

52 ft• lb 70.5 N• m

81 ft• lb 109.8 N• m

61 ft• lb 82.7 N• m

7/16-20

55 ft• lb 74.6 N• m

41 ft• lb 55.6 N• m

78 ft• lb 105.8 N• m

58 N• m 78.6 N• m

91 ft• lb 123.4 N• m

68 ft• lb 92.2 N• m

1/2-13

75 ft• lb 101.7 N• m

57 ft• lb 77.3 N• m

106 ft• lb 143.7 N• m

80 ft• lb 108.5 N• m

124 ft• lb 168.1 N• m

93 ft• lb 126.1 N• m

1/2-20

85 ft• lb 115.2 N• m

64 ft• lb 86.8 N• m

120 ft• lb 162.7 N• m

90 ft• lb 122 N• m

140 ft• lb 189.8 N• m

105 ft• lb 142.4 N• m

5/8-11

150 ft• lb 203.4 N• m

113 ft• lb 153.2 N• m

212 ft• lb 287.4 N• m

159 ft• lb 215.6 N• m

238 ft• lb 322.7 N• m

179 ft• lb 242.7 N• m

5/8-18

170 ft• lb 230.5 N• m

127 ft• lb 172.2 N• m

240 ft• lb 325.4 N• m

180 ft• lb 224 N• m

270 ft• lb 366.1 N• m

202 ft• lb 273.9 N• m

3/4-10

267 ft• lb 362 N• m

200 ft• lb 271.2 N• m

376 ft• lb 509.8 N• m

282 ft• lb 382.3 N• m

423 ft• lb 573.5 N• m

317 ft• lb 429.8 N• m

3/4-16

297 ft• lb 402.7 N• m

223 ft• lb 302.3 N• m

420 ft• lb 569.4 N• m

315 ft• lb 427.1 N• m

472 ft• lb 640 N• m

354 ft• lb 480 N• m

7/8-9

429 ft• lb 581.6 N• m

322 ft• lb 436.6 N• m

606 ft• lb 821.6 N• m

455 ft• lb 616.9 N• m

682 ft• lb 924.7 N• m

511 ft• lb 692.8 N• m

7/8-14

474 ft• lb 642.7 N• m

355 ft• lb 481.3 N• m

669 ft• lb 907 N• m

502 ft• lb 680.6 N• m

752 ft• lb 1019.6 N• m

564 ft• lb 791.8 N• m

1-8

644 ft• lb 873.1 N• m

483 ft• lb 654.9 N• m

909 ft• lb 1232.4 N• m

681 ft• lb 923.3 N• m

1022 ft• lb 1385.6 N• m

767 ft• lb 1039.9 N• m

1-12

722 ft• lb 978.9 N• m

542 ft• lb 734.9 N• m

1020 ft• lb 1382.9 N• m

765 ft• lb 1037.2 N• m

1147 ft• lb 1551.1 N• m

860 ft• lb 1166 N• m

V01

ID0493104

102

Metric Bolt Torque Torque estimates based on clamp load (75% of proof strength) as specified in ISO 898-1.

Class 8.8

Class 10.9

12.9 Socket Head Cap Screw 12.9

Size and Thread Pitch

Dry

Lubed

Dry

Lubed

Dry

Lubed

M5 X 0.80

54 in• lb 6.1 N• m

41 in• lb 4.6 N• m

78 in• lb 8.8 N• m

59 in• lb 6.7 N• m

91 in• lb 10.3 N• m

68 in• lb 7.7 N• m

M6 X 1.00

92 in• lb 10.4 N• m

69 in• lb 7.8 N• m

133 in• lb 15 N• m

99 in• lb 11.2 N• m

156 in• lb 17.6 N• m

116 in• lb 13.1 N• m

M7 X 1.00

156 in• lb 17.6 N• m

116 in• lb 13.1 N• m

222 in• lb 25.1 N• m

167 in• lb 18.9 N• m

260 in• lb 29.4 N• m

195 in• lb 22 N• m

M8 X 1.25

225 in• lb 25.4 N• m

169 in• lb 19.1 N• m

333 in• lb 37.6 N• m

242 in• lb 31.3 N• m

377 in• lb 42.6 N• m

284 in• lb 32.1 N• m

M10 X 1.50

37 ft• lb 50.2 N• m

28 ft• lb 38 N• m

53 ft• lb 71.9 N• m

40 ft• lb 54.2 N• m

62 ft• lb 84.1 N• m

47 ft• lb 63.7 N• m

M12 X 1.75

65 ft• lb 88.1 N• m

49 ft• lb 66.4 N• m

93 ft• lb 126.1 N• m

69 ft• lb 93.6 N• m

108 ft• lb 146.4 N• m

81 ft• lb 109.8 N• m

M14 X 2.00

104 ft• lb 141 N• m

78 ft• lb 105.8 N• m

148 ft• lb 200.7 N• m

111 ft• lb 150.5 N• m

173 ft• lb 234.6 N• m

130 ft• lb 176.3 N• m

M16 X 2.00

161 ft• lb 218.3 N• m

121 ft• lb 164.1 N• m

230 ft• lb 311.8 N• m

172 ft• lb 233.2 N• m

269 ft• lb 364.7 N• m

202 ft• lb 273.9 N• m

M18 X 2.50

222 ft• lb 301 N• m

167 ft• lb 226.4 N• m

318 ft• lb 431.2 N• m

238 ft• lb 322.7 N• m

372 ft• lb 504.4 N• m

279 ft• lb 378.3 N• m

M20 X 2.50

314 ft• lb 425.7 N• m

235 ft• lb 318.6 N• m

449 ft• lb 608.8 N• m

337 ft• lb 456.9 N• m

525 ft• lb 711.8 N• m

394 ft• lb 534.2 N• m

M22 X 2.50

428 ft• lb 580.3 N• m

321 ft• lb 435.2 N• m

613 ft• lb 831.1 N• m

460 ft• lb 623.7 N• m

716 ft• lb 970.8 N• m

537 ft• lb 728.1 N• m

M24 X 3.00

543 ft• lb 736.2 N• m

407 ft• lb 551.8 N• m

776 ft• lb 1052.1 N• m

582 ft• lb 789.1 N• m

908 ft• lb 1231.1 N• m

681 ft• lb 923.3 N• m

M27 X 3.00

796 ft• lb 1079.2 N• m

597 ft• lb 809.4 N• m

1139 ft• lb 1544.3 N• m

854 ft• lb 1157.9 N• m

1331 ft• lb 1804.6 N• m

998 ft• lb 1353.1 N• m

M30 X 3.50

1079 ft• lb 1462.9 N• m

809 ft• lb 1096.9 N• m

1543 ft• lb 2092 N• m

1158 ft• lb 1570 N• m

1804 ft• lb 2445.9 N• m

1353 ft• lb 1834.4 N• m

M33 X 3.50

1468 ft• lb 1990.3 N• m

1101 ft• lb 1492.8 N• m

2101 ft• lb 2848.6 N• m

1576 ft• lb 2136.8 N• m

2455 ft• lb 3328.5 N• m

1842 ft• lb 2497.4 N• m

M36 X 4.00

1886 ft• lb 2557.1 N• m

1415 ft• lb 1918.5 N• m

2699 ft• lb 3659.4 N• m

2024 ft• lb 2744.2 N• m

3154 ft• lb 4276.3 N• m

2366 ft• lb 3207.9 N• m

V01

ID0493104

103

Prevailing Torque Locknut Torque Torque relationships for electrodeposited zinc and lubricated all-metal prevailing torque locknuts.

Torque minimum and maximum estimates based on clamp load (75% of proof strength) for appropriate grade of bolt.

Locknut

Grade B Hex

Grade C Hex

US

Metric

US

1/4-20

7-10 ft• lb

9-13 N• m

8-12 ft• lb

1/4-28

8-11 ft• lb

11-15 N• m

5/16-18

13-18 ft• lb

5/16-24

Grade G Hex Flange

US

Metric

US

11-16 N• m

6-8 ft• lb

8-11 N• m

9-11 ft• lb

12-15 N• m

9-12 ft• lb

12-16 N• m

7-9 ft• lb

9-12 N• m

10-13 ft• lb

13-17 N• m

17-24 N• m

16-21 ft• lb

21-28 N• m

13-17 ft• lb

17-23 N• m

18-23 ft• lb

24-43 N• m

14-19 ft• lb

19-25 N• m

18-23 ft• lb

24-31 N• m

14-18 ft• lb

19-24 N• m

20-26 ft• lb

27-35 N• m

3/8-16

16-20 ft• lb

21-27 N• m

28-37 ft• lb

38-50 N• m

23-29 ft• lb

31-39 N• m

33-41 ft• lb

44-50 N• m

3/8-24

16-22 ft• lb

21-30 N• m

32-42 ft• lb

43-57 N• m

26-33 ft• lb

35-44 N• m

37-47 ft• lb

50-63 N• m

7/16-14

23-32 ft• lb

31-43 N• m

45-59 ft• lb

61-80 N• m

37-47 ft• lb

50-63 N• m

52-66 ft• lb

70-89 N• m

7/16-20

24-34 ft• lb

32-46 N• m

51-66 ft• lb

69-89 N• m

41-52 ft• lb

55-70 N• m

58-74 ft• lb

78-100 N• m

1/2-13

37-50 ft• lb

50-67 N• m

69-90ft• lb

93-122 N• m

57-72 ft• lb

77-97 N• m

80-101 ft• lb

1/2-20

38-53 ft• lb

51-72 N• m

78-102 ft• lb

105-138 N• m

64-81 ft• lb

87-110 N• m

90-114 ft• lb

9/16-12

50-70 ft• lb

67-95 N• m

100-130 ft• lb

135-176 N• m

82-103 ft• lb 111-139 N• m 115-146 ft• lb 156-198 N• m

9/16-18

58-78 ft• lb

78-105 N• m 111-146 ft• lb

150-198 N• m

91-115 ft• lb

5/8-11

70-95 ft• lb

95-129 N• m

138-180 ft• lb

187-224 N• m

5/8-18

73-98 ft• lb

99-133 N• m

156-204 ft• lb

211-276 N• m

127-161 ft• lb 172-218 N• m 180-228 ft• lb 224-309 N• m

3/4-10

125-165 ft• lb 169-223 N• m 245-320 ft• lb

332-434 N• m

200-253 ft• lb 271-343 N• m 282-357 ft• lb 382-484 N• m

3/4-16

120-165 ft• lb 162-223 N• m 273-357 ft• lb

370-484 N• m

223-282 ft• lb 302-382 N• m 315-399 ft• lb 427-541 N• m

7/8-9

185-250 ft• lb 251-339 N• m 394-515 ft• lb

534-698 N• m

7/8-14

200-270 ft• lb 271-366 N• m 435-568 ft• lb

589-770 N• m

1-8

275-375 ft• lb 373-508 N• m 591-772 ft• lb

801-1046 N• m

1-12

290-395 ft• lb 393-535 N• m 663-867 ft• lb

899-1175 N• m

1 1/8-7

294-404 ft• lb 398-547 N• m 837-1095 ft• lb

1135-1484 N• m

1 1/8-12

412-549 ft• lb 558-744 N• m 939-1227 ft• lb

1273-1663 N• m

1 1/4-7

375-513 ft• lb 508-695 N• m 1181-1545 ft• lb 1601-2094 N• m

1 1/4-12

412-549 ft• lb 558-744 N• m 1308-1710 ft• lb 1773-2318 N• m

V01

Metric

Grade F Hex Flange

Metric

108-137 N• m 122-154 N• m

123-156 N• m 128-163 ft• lb 173-221 N• m

113-143 ft• lb 153-194 N• m 159-201 ft• lb 215-272 N• m

Grades B and F: SAE J429 Grade 5 bolts Grades C and G: SAE J429 Grade 8 bolts

ID0493104

104

Torque Values for Other Types of Fasteners Find the torque for the same size and grade/class of hex nut and multiply that value by the conversion factor listed below to determine recommended torque values for other types of fasteners.

Type

Factor

Example

hex top deformed locknuts

.75

3/8”, grade 5: 31 ft• lb X .75 = 23.25 ft• lb

smooth flange nuts and bolts

1.5

M10, class 8.8: 52 N• m X 1.5 = 78 N• m

serrated flange nuts and bolts

2.0

1/2”, grade 8: 145 N• m X 2.0 = 290 N• m

Lug Nut Torque Size

Type

Torque (ft• lb)

Torque (N• m)

7/16-NF

cone

75-85

102-115

1/2-NF

cone

90-100

120-135

5/8-NF

flange

275-325

373-440

Do not use these values if a different torque value or tightening procedure is given for specific application.

Torque values listed are for general use only. Check tightness of fasteners periodically.

Torque values are for non-lubricated threads.

Hydraulic Cylinder Bolt Torque Bolt Size

Bolt PN

Cylinder Repair Kit PN

Torque

1/2”

106-096

190-165

90-100 ft• lb

120-135 N• m

5/8”

106-097

190-166 & 190-169

180-200 ft• lb

245-270 N• m

3/4”

106-098

190-167 & 190-170

290-325 ft• lb

395-440 N• m

7/8”

106-122

190-172 & 190-174

410-460 ft• lb

550-625 N• m

1”

106-145

190-175 & 190-189

630-700 ft• lb

855-950 N• m

1-1/8”

106-146

190-177

770-850 ft• lb

1045-1170 N• m

IMPORTANT: Do not reuse cylinder piston bolts when rebuilding a hydraulic cylinder. Each cylinder repair kit contains a new bolt. Use it. Lubricate lightly and tighten to value shown on chart.

V01

ID0493104

Replacement O-Rings Fitting

SAE (Port Seal)

ORFS (Face Seal)

Code 61, Code 62 4-Bolt Flange

Thread

O-Ring

Dash

O-Ring

Size

Dash

Thread

O-Ring

(Inch)

Size

Size

Dash Size

P/N

Size

Dash Size

P/N

Size

P/N

1/16

1

NA

NA

NA

NA

NA

NA

NA

NA

1/8

2

5/16 - 24

-902

NA

NA

NA

NA

NA

NA

3/16

3

3/8 - 24

-903

NA

NA

NA

NA

NA

NA

1/4

4

7/16 - 20

-904

155-760

9/16 - 18

-011

157-037

NA

NA

5/16

5

1/2 - 20

-905

NA

5/8 - 18

NA

NA

NA

NA

3/8

6

9/16 - 18

-906

155-705

11/16 - 16

-012

157-038

NA

NA

1/2

8

3/4 -16

-908

155-706

13/16 - 16

-014

157-039

-210

155-759 #

5/8

10

7/8 - 14

-910

155-707

1 - 14

-016

157-040

NA

NA

3/4

12

1-1/16 - 12

-912

155-709

1-3/16 - 12

-018

157-017

-214

155-723

7/8

14

1-3/16 - 12

-914

155-747

1-5/16 - 12

-020

157-042

NA

NA

1

16

1-5/16 - 12

-916

155-748

1-7/16 - 12

-021

155-714

-219

157-029

1-1/4

20

1-5/8 - 12

-920

155-702

1-11/16 - 12

-025

157-129

-222

157-078

1-1/2

24

1-7/8 - 12

-924

157-001

2 -12

-029

157-130

-225

157-128

2

32

2-1/2 - 12

-932

NA

2-1/2 - 12

-135

NA

-228

500-031

2-1/2

40

3 - 12

NA

NA

NA

NA

NA

-232

157-015 #

3

48

3-1/2 - 12

NA

NA

NA

NA

NA

-237

157-006 #

All part numbers listed above are D90 except for # which is D70.

Thread size indicates the diameter of the threaded area in fractions of an inch and number of threads per inch.

NA = not a current Ditch Witch® part numbered o-ring, or dash size does not occur in current Ditch Witch applications.

SAE = straight thread fitting that seals by compressing a hard o-ring between a shoulder on the male part and an angular surface at the mouth of the female port.

ORFS = o-ring seal; a fitting that seals by compressing a hard, captive o-ring between two flat parallel faces, one grooved for the o-ring and the other plain to act as the sealing surface.

V01

ID0493104

105

106

H313 - H314 Related Publications Component

Ass’y

P/N

Model: H313 .................. Parts Manual ......................................................... ............ 053-072 H313 .................. Operators Manual .................................................. ............ 054-516 H313 .................. Repair Guide (Service Manual) .............................. ................ N/A H313 .................. Supplementary Maint Guide - Trencher ................. ............ 050-633 H313 .................. Digging Chain Guide (6 Volumes) ......................... ............ 050-700 H313 ................... Special Tools Guide .............................................. ............ 052-901 H314 .................. Parts Manual ......................................................... ............ 053-072 H314 .................. Operators Manual .................................................. ............ 054-516 H314 .................. Repair Guide (Service Manual) .............................. ................ N/A H314 .................. Supplementary Maint Guide - Trencher ................. ............ 050-633 H314 .................. Digging Chain Guide (6 Volumes) ......................... ............ 050-700 H314 ................... Special Tools Guide .............................................. ............ 052-901

Optional Kits O-ring Repair Kit - FLG, ORS & SAE (15 different O-rings) .............................. 190-051 O-ring Repair Kit - Field Service (46 different O-rings) ..................................... 190-052

VER.01

ID0189713

107

Parts Manual Change Request (Please print clearly)

Date: _______________________

Dealer No. (required): _____________________________

Your Name: _____________________________ Phone: _________________

Position: _____________________________

Fax: _________________

E-mail: __________________

Publication Information: Parts Manual No.: _____-_____

Model: __________

Illustration Part No.: Manual Page No.: 1. _____-_____ .......................................................... 1. __________ 2. _____-_____ .......................................................... 2. __________ 3. _____-_____ .......................................................... 3. __________ Nature of Change Request:

 Text

 Graphics

 Missing Information

Describe change requested (if possible, include copy of publication page with changes marked.): ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ Please fax completed form to Parts Manual Department (580) 572-3525 Thank you for taking the time to submit this request. We will contact you if further information is needed to process your request.

ID0135001

108

109

ID0040564

110

ID0135281
