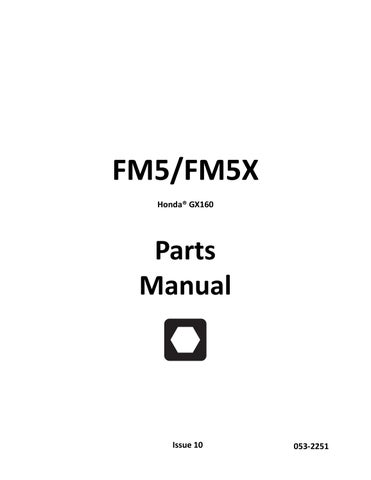

FM5/FM5X Honda® GX160

Parts Manual

Issue 10

053-2251

1

FM5/FM5X ISSUE NO. 10PL-06/21 For Replacement Copy Order P/N 053-2251

This product and its use may be covered by one or more patents at http://patents.charlesmachine.works.

This manual contains information concerning the following models: FM5, FM5X

Copyright 2010, 2011, 2012, 2014, 2016, 2017, 2021 by The Charles Machine Works, Inc. , Ditch Witch, CMW, AutoCrowd, Jet Trac, Roto Witch, Subsite, Fluid Miser, Power Pipe, Super Witch, Pierce Arrow, Zahn, The Underground, and The Underground Authority Worldwide are registered trademarks of The Charles Machine Works, Inc.

2

3

FOREWORD_________________________________________ This manual contains illustrated parts lists to help you select quality Ditch Witch® replacement parts for your Ditch Witch equipment. Using other replacement parts will lessen the productivity of your equipment.

•

Descriptions and specifications in this book were current at publication.

However, the Charles Machine Works, Inc. reserves the right to improve equipment, so this manual might not reflect the most current improvements.

•

Part numbers enclosed in a box or marked as “obsolete” in the remarks column are no longer available from The Charles Machine Works, Inc. Your local Ditch Witch dealer may be able to locate the part for you.

•

Footnotes provide more information to help you identify parts shown in the manual.

•

Assembly instructions referenced in footnotes are available through your local Ditch Witch dealer.

•

Instructions on recommended equipment use and maintenance are in the Operator’s Manual that was shipped with your equipment.

Keep the following in mind when ordering Ditch Witch replacement parts: ♦ Specify parts you need by part number and description, not by illustration

reference numbers.

♦ Have equipment model and serial number on hand to help ensure you get the

right parts for your machine whether it’s old or new.

Thank you for buying and using Ditch Witch equipment and replacement parts.

Ver. 05

ID0128552

4

WARRANTY ______________________________ POLICY 1: DITCH WITCH® EQUIPMENT AND REPLACEMENT PARTS LIMITED WARRANTY POLICY

DW WARRANTY Policy July 2019

Subject to the limitation and exclusions herein, free replacement parts will be provided at any authorized Ditch Witch dealership for any Ditch Witch equipment or parts manufactured by the Ditch Witch factory that fail due to a defect in material or workmanship within one (1) year of first commercial use. Free labor will be provided at any authorized Ditch Witch dealership for installation of parts under this warranty during the first year following “initial commercial” use of the serial numbered Ditch Witch equipment on which it is installed. The customer is responsible for transporting their equipment to an authorized Ditch Witch dealership for all warranty work.

EXCLUSIONS FROM PRODUCT WARRANTY •

All incidental or consequential damages.

•

All defects, damages, or injuries caused by misuse (including, but not limited to, rollover), abuse, improper installation, alteration, neglect, or uses other than those for which products were intended.

•

All defects, damages, or injuries caused by improper training, operation, or servicing of products in a manner inconsistent with manufacturer’s recommendations.

•

All engines and engine accessories (these are covered by original manufacturer’s warranty).

•

Tires, belts, and other parts which are subject to another manufacturer’s warranty. (Such warranty will be available to purchaser.)

•

ALL IMPLIED WARRANTIES NOT EXPRESSLY STATED HEREIN, INCLUDING ANY WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY.

IF THE PRODUCTS ARE PURCHASED FOR COMMERCIAL PURPOSES, AS DEFINED BY THE UNIFORM COMMERCIAL CODE, THEN THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE FACE HEREOF AND THERE ARE NO IMPLIED WARRANTIES OF ANY KIND WHICH EXTEND TO A COMMERCIAL BUYER. ALL OTHER PROVISIONS OF THIS LIMITED WARRANTY APPLY INCLUDING THE DUTIES IMPOSED. Ditch Witch products have been tested to deliver acceptable performance in most conditions. This does not imply they will deliver acceptable performance in all conditions. Therefore, to assure suitability, products should be operated under anticipated working conditions prior to purchase.

Defects will be determined by an inspection within thirty (30) days of the date of failure of the product or part by Ditch Witch Product Support (DWPS) or its authorized dealer. DWPS will provide the location of its inspection facilities or it’s nearest authorized dealer upon inquiry. DWPS reserves the right to supply remanufactured replacement parts under this warranty as it deems appropriate.

Extended warranties are available upon request from your local Ditch Witch dealer or the Ditch Witch factory.

Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply. Further, some states do not allow exclusion of or limitation of how long an implied warranty lasts, so the above limitation may not apply. This limited warranty gives product owner specific legal rights and the product owner may also have other rights which vary from state to state.

For information regarding this limited warranty, contact the DWPS, P.O. Box 66, Perry, OK 73077-0066, or contact your local dealer.

Ver. 07

ID0134872

CONTENTS______________________ FM5

300 Gallon Tank ................................................ 34 Centrifugal Pump ...................................46, 48, 50 Decal Location – 300 gal Tank .............................. 12 Decal Location – 400 Gal Tank .............................. 14 Decal Location – FM5 ............................................8 Decal Location – FM5X ....................................... 10 Decal Plate – 400 Gal Tank .................................... 16 Engine – Honda ................................................... 44 FM5/FM5X on T18B .......................................... 52 Garden Hose Adapter ....................................... 56 Hopper – FM5X ................................................... 28 Hopper .............................................................. 32 Hose Routing – 400 Gal FM5X Hose Kit ................... 40 Motor/Pump Mounting/Plumbing – FM5X ........ 18 Motor/Pump Mounting/Plumbing.........22, 24, 26 T18B Tie Down Kit ............................................. 54 Tank Base – 400 Gal Tank ...................................... 42 Tank Fill Plumbing – 400 Gal Tank ......................... 38 Tank Plumbing – 400 Gal Tank .............................. 36 Venturi – FM5X ................................................... 30

Accessories

Drilling Fluid Transfer ........................................ 66 Fluid Coupler Adapters ..................................... 68 Fluid Mixing Accessories ................................... 60 Garden Hose Adapter ....................................... 64 Water Transfer System ..................................... 62

Miscellaneous

Bolt/Nut Torque Chart ...................................... 72 Filters................................................................. 79 Optional Kits...................................................... 80 Related Publications ......................................... 78 Replacement O-Ring Chart................................ 77 Warranty Registration ...................................... 82

ID0258718

5

6

7

FM5/FM5X FLUID MIXER

ID0162988

8

DECAL LOCATION FM5 NEW GRAPHICS

8 270XXXX-1

6 5

6

9 3

7 2

4 1

08

ID0094321

9

DECAL LOCATION FM5 REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9 10

QTY

275-925 270-5726 1 275-419 1 275-173 1 275-355 1 273-232 1 274-813 273-492 2 270-6384 2 270-7287 2 273-475 1 273-265 1 270-7106 1 270-6406 1

DESCRIPTION

REMARKS

DECAL KIT - FM5 FM5 SERVICE DECAL KIT WARNING NO FLAME FUEL TANK (GASOLINE) CAUTION HOT PARTS NOTICE LUBE FITTING IMPORTANT METERING PLATE FM5 MODEL ID FM5 MODEL ID W/LOGOTYPE FM5 GRAY MODEL ID W/LOGOTYPE WARNING READ OPERATOR MANUAL DANGER ELECTRIC SHOCK FM5 SERVICE / LUBE CHART OPERATOR MANUAL REPLACEMENT

LOCATE INSIDE MANUAL BOX

FOOTNOTES:

08

ID0094321

10

DECAL LOCATION FM5X

1

2 3 4 6 7

11 8

2

9

10 5

05

ID0455928

11

DECAL LOCATION FM5X REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9 10 11

05

270-7753 270-7811 270-7727 700-143 270-7792 701-419 275-173 701-355 270-2413 270-7107 270-7726 270-4953

QTY

DESCRIPTION

REMARKS

FM5X SERVICE DECAL KIT 1 IMPORTANT FEED RATE ISO 2 FM5X MODEL ID 1 WARNING READ OPERATOR MANUAL ISO 1 OPERATOR MANUAL REPLACEMENT ISO 1 WARNING NO FLAME ISO 2 FUEL TANK (GASOLINE) 1 CAUTION HOT PARTS ISO 1 DANGER ELECTRIC SHOCK ISO 1 FM5/FM5X SERVICE/LUBE CHART ISO 1 NOTICE LUBE 50 HOUR ISO 1 CAUTION SILICA DUST ISO

ID0455928

12

DECAL LOCATION FM 300 GAL TANK NEW GRAPHIC

5

5

1 2 4 3 2 1 06

ID0094320

13

DECAL LOCATION FM 300 GAL TANK REF PART NO. NUMBER

1 2 3 4 5

QTY

275-924 270-5727 270-7759 274-442 274-318 270-2414 270-7020 700-230 270-6303 270-7286

4 4 2 2 2 2 2

DESCRIPTION

REMARKS

DECAL KIT - 300 G TANK 300G, 500G, 1000G TANK SERVICE DECAL KIT 300G, 500G, 950G TANK SERVICE DECAL KIT LIFT LOCATION TIE DOWN LOCATION DANGER LINE LOCATIONS ISO NOTICE DO NOT LIFT ISO 18” STACKED DITCH WITCH STACKED LOGOTYPE STACKED GRAY LOGOTYPE

OLD GRAPHIC NEW GRAPHIC NEW GRAPHIC

FOOTNOTES:

06

ID0094320

14

DECAL LOCATION 400 GAL

6 5

7

2707419-1

4 2 3

02

2

1

ID0561902

15

DECAL LOCATION 400 GAL REF PART NO. NUMBER

1 2 3 4 5 6 7

270-8103 270-2414 274-318 274-442 270-7020 270-8100 270-8101 270-8157

QTY

2 4 4 2 1 1 1

DESCRIPTION

REMARKS

400G TANK SERVICE DECAL KIT ISO DANGER LINE LOCATIONS TIE DOWN LOCATION LIFT LOCATION NOTICE DO NOT LIFT ISO DW LOGOTYPE 64.0” X 10.86” DW LOGO 9” X 7.69” - DRIPMOLD PLATE GRAPHIC STRIPE

FOOTNOTES

02

ID0561902

16

DECAL PLATE 400 GAL TANK

2

1

3

05

4

ID0543930

17

DECAL PLATE 400 GAL TANK REF PART NO. NUMBER

QTY

1 302-9660 2 107-687 3 108-156 4 107-778

1 DECAL PLATE 6 CLIP NUT M8-1.25, LONG, WIDE 6 WASHER (5/16") 6 SCREW (M8-1.25 X 30MM,BUT SOC)

DESCRIPTION

REMARKS

NOT SHOWN:

FOOTNOTES:

NOTE:

05

ID0543930

18

MOTOR/PUMP MOUNTING AND PLUMBING FM5X

32

30

31

5 45

4 40 41

3 2

34

35 36

33

29 9 28

50 11

38

37

43

40 45

39

42

6

46

48

23 7

13 14

44

47

27

19

12

23 15

8

16

9

17 18

10

24 20

21

25

26

22

1

03

ID0461743

19

MOTOR/PUMP MOUNTING AND PLUMBING FM5X

REF PART NO. NUMBER

QTY

DESCRIPTION

REMARKS

1 322-914 1 ENGINE SUPPORT 2 106-387 2 FLG LOCKNUT (M10-1.50) 3 105-838 2 BOLT (5/16-NC X 5") 4 106-237 3 LOCKNUT (M6-1.00,PRV TRQ,NLK) 5 302-7408 1 MOUNT ASSEMBLY 6 105-2214 1 GASKET (2") 7 159-698 1 CENTRIFUGAL PUMP 8 106-043 4 BOLT (5/16-NF X 1") 9 105-091 8 LOCK WASHER (5/16") 10 110-141 1 DRAIN VALVE (04N) 11 195-1640 1 ENGINE (HONDA GX160 4.8 HP) 12 107-473 2 LOCKNUT (M3 X .5) 13 106-013 2 WASHER (3/16") 14 324-411 1 TACHOMETER MOUNT 15 107-479 2 SCREW, FLAT HEAD (3MM X 12) ZP 16 215-1863 1 TACHOMETER/HOURMETER 17 106-989 4 FLG LK SCREW (M8-1.25 X 35MM) 18 106-386 4 FLG LOCKNUT (M8-1.25) 19 514-089 1 S/O COUPLER (32N-32H) 20 116-505 16 BULK HOSE (2", SOLD PER FT) 21 110-134 2 WORM CLAMP (2.062" TO 2.750") 22 159-180 1 FHC BODY (40-32H) 23 350-5453 1 Venturi 2" FLG (-32N-32N) SUB 24 120-059 1 SHUT-OFF (32NF-32NF) 25 115-296 1 NIPPLE (32N-4") 26 115-293 1 ELBOW (32NF-32NF90) 27 159-181 1 FHC ADAPTER (40-32N) 28 179-898 1 AL PUMP MANIFOLD 29 105-178 2 BOLT (5/16-NC X 2-1/2", GD8) 30 107-700 2 CARRIAGE BOLT (M10-1.50X20MM) 31 105-797 3 SCREW (M6-1.00 X 20MM, BX) 32 302-2531 1 MANUAL COMPARTMENT - VENTED 33 155-204 1 FHC ADAPTER (24-24N) 34 159-790 1 SHUT-OFF (24NF-24NF) 35 115-263 1 ALL THREAD (24N) 36 114-031 1 STREET ELBOW (24N-24NF90) 37 115-206 1 NIPPLE (16N-2.5") 38 115-440 1 STREET ELBOW (16N-16NF90) 39 514-318 1 SHUT-OFF (16NF-16NF) 40 150-4804 1 2" BALL VALVE 41 105-2168 2 HANDLE RISER 1 3/8" 42 155-232 1 FHC ADAPTER (16-16N) 43 107-936 1 WASHER (1/4"ID X 1"OD) 44 105-297 1 BOLT (1/4-NC X 3-1/4")

NOT SHOWN:

FOOTNOTES:

NOTE:

03

ID0461743

20

MOTOR/PUMP MOUNTING AND PLUMBING FM5X

REF PART NO. NUMBER

QTY

45 105-2167 46 115-167 47 157-115 48 150-5755 50 500-2518

2 FLANGE CLAMP (2") 1 PLUG (12N, SQ) 1 O-RING 2.36" X 2.64" X .140 (229 D90) 1 TEE (2" FLG-2" FLG-3/4 NPT) 1 PUMP GUARD

DESCRIPTION

REMARKS

NOT SHOWN:

FOOTNOTES:

NOTE:

03

ID0461743

21

22

MOTOR/PUMP MOUNTING AND PLUMBING FM5 - BEGINS WITH S/N: CMWFM5XXPD0001406 ENDS WITH S/N: CMWFM5XXTE0001647

26

15 14

27 8 29

20

19

3

24

42

12 16 18 17

43

7

34

35

36 37

44

28

30

41

32 2

33 17

11

25 13

38

39

9

1

10

23

5

31 22

21 5 4 40

6 03

21 ID0295111

23

MOTOR/PUMP MOUNTING AND PLUMBING FM5 - BEGINS WITH S/N: CMWFM5XXPD0001406 ENDS WITH S/N: CMWFM5XXTE0001647 REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44

1 CENTRIFUGAL PUMP 1 AL PUMP MANIFOLD 1 ENGINE (HONDA GX160 4.8 HP) 1 ENGINE SUPPORT 2 HOPPER SUPPORT BRACKET 1 MANUAL COMPARTMENT 1 NIPPLE (20N-2") 1 SHUT-OFF (20NF-20NF) 1 NIPPLE (32N-12") 1 ELBOW (32NF-32NF90) 1 FHC ADAPTER (40-32N) 1 VALVE HANDLE 2 WORM CLAMP (2.062" TO 2.750") 1 STREET ELBOW (24N-24NF90) 1 ALL THREAD (24N) 1 COUPLER COVER 8 LOCK WASHER (5/16") 4 BOLT (5/16-NC X 2-1/2", GD8) 4 FLG LK SCREW (M8-1.25 X 16MM) 4 FLG LK SCREW (M8-1.25 X 35MM) 12 FLG LOCKNUT (M10-1.50) 8 FLG LK SCREW (M10-1.50 X 20MM) 4 CARRIAGE BOLT (M10-1.50X20MM) 1 TACHOMETER MOUNT 1 BULK HOSE (2", SOLD PER FT) 1 SHUT-OFF (24NF-24NF) 1 FHC ADAPTER (24-24N) 1 TACHOMETER/HOURMETER 1 HANDLE 1 SHUT-OFF (32NF-32NF) 1 FHC BODY (40-32H) 1 S/O COUPLER (32N-32H) 8 FLG LOCKNUT (M8-1.25) 1 NIPPLE (16N-2.5") 1 STREET ELBOW (16N-16NF90) 1 SHUT-OFF (16NF-16NF) 1 FHC ADAPTER (16-16N) 1 DRAIN VALVE (04N) 4 BOLT (5/16-NF X 1") 4 POP RIVET (3/16" X .664") 2 SCREW, FLAT HEAD (3MM X 12) ZP 2 WASHER (3/16") 2 LOCKNUT (M3 X .5) 1 MIXING VENTURI

159-698 179-898 195-1640 322-914 323-682 318-588 115-207 159-789 114-018 115-293 159-181 324-467 110-134 114-031 115-263 324-511 105-091 105-178 106-380 106-989 106-387 106-382 107-700 324-411 116-505 159-790 155-204 215-1863 324-577 120-059 159-180 514-089 106-386 115-206 115-440 514-318 155-232 110-141 106-043 110-348 107-479 106-013 107-473 300-1572

DESCRIPTION

REMARKS

TORQUE PUMP CLAMP BOLTS TO 2O FT-LBS

USE 1 @ 16" SUPERSEDES 214-519

TORQUE TO 18 FT-LBS

NOT SHOWN:

FOOTNOTES:

NOTE:

03

ID0295111

24

MOTOR/PUMP MOUNTING AND PLUMBING FM5 BEGINS WITH S/N: CMWFM5XXPE0001648

14 13 24

23 7

17

11

2

21

16 15

40 39

25

6

30

37 26 28 1

29 15

22 35

32 33

41 38

31

8

10

12

34

9 4

20 SEE FTNT 2

27 19

18 4 3 36

5 03

18 ID0355382

25

MOTOR/PUMP MOUNTING AND PLUMBING FM5 BEGINS WITH S/N: CMWFM5XXPE0001648 REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41

1 AL PUMP MANIFOLD 1 ENGINE (HONDA GX160 4.8 HP) 1 ENGINE SUPPORT 2 HOPPER SUPPORT BRACKET 1 MANUAL COMPARTMENT 1 NIPPLE (20N-2") 1 SHUT-OFF (20NF-20NF) 1 NIPPLE (32N-12") 1 ELBOW (32NF-32NF90) 1 FHC ADAPTER (40-32N) 1 VALVE HANDLE 2 WORM CLAMP (2.062" TO 2.750") 1 STREET ELBOW (24N-24NF90) 1 ALL THREAD (24N) 8 LOCK WASHER (5/16") 4 BOLT (5/16-NC X 2-1/2", GD8) 4 FLG LK SCREW (M8-1.25 X 35MM) 12 FLG LOCKNUT (M10-1.50) 8 FLG LK SCREW (M10-1.50 X 20MM) 4 CARRIAGE BOLT (M10-1.50X20MM) 1 TACHOMETER MOUNT 16 BULK HOSE (2", SOLD PER FT) 1 SHUT-OFF (24NF-24NF) 1 FHC ADAPTER (24-24N) 1 TACHOMETER/HOURMETER 1 SHUT-OFF (32NF-32NF) 1 FHC BODY (40-32H) 1 S/O COUPLER (32N-32H) 4 FLG LOCKNUT (M8-1.25) 1 NIPPLE (16N-2.5") 1 STREET ELBOW (16N-16NF90) 1 SHUT-OFF (16NF-16NF) 1 FHC ADAPTER (16-16N) 1 DRAIN VALVE (04N) 4 BOLT (5/16-NF X 1") 4 POP RIVET (3/16" X .664") 1 MIXING VENTURI 2 SCREW (#6-32 X 5/8" FLT BRASS) 2 LOCK WASHER (#10) 2 NUT (#6-32) 1 CENTRIFUGAL PUMP

179-898 195-1640 322-914 323-682 318-588 115-207 159-789 114-018 115-293 159-181 324-467 110-134 114-031 115-263 105-091 105-178 106-989 106-387 106-382 107-700 324-411 116-505 159-790 155-204 215-1863 120-059 159-180 514-089 106-386 115-206 115-440 514-318 155-232 110-141 106-043 110-348 300-1572 106-273 195-418 105-215 159-698

DESCRIPTION

REMARKS

USE 1 @ 16" SUPERSEDES 214-519

TORQUE TO 18 FT-LBS

TORQUE PUMP CLAMP BOLTS TO 2O FT-LBS, SEE FOOTNOTE 1

NOT SHOWN:

FOOTNOTES:

1. CENTRIFUGAL PUMP SHOWN BEGINS WITH S/N: DWPFT5XXCH0000362.

2. FOR OLDER ADAPTER REPLACEMENT PARTS SEE FM5 CENTRIFUGAL PUMP PARTS PAGE ID0355392.

NOTE:

03

ID0355382

26

MOTOR/PUMP MOUNTING AND PLUMBING FM5 ENDS WITH S/N: CMWFM5XXTD0001405

15

26

14

27

8

29 20

7

19

3

35

34

16

18 17

42 43 24 28

9 11

44 41

36 37

2

33

12

30

33

13 17 39

1

25

38

13 10

32 22 23

22

31

23 21 22 5 21

40 4

11

6

21

ID0017212

27

MOTOR/PUMP MOUNTING AND PLUMBING FM5 ENDS WITH S/N: CMWFM5XXTD0001405 REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44

1 CENTRIFUGAL PUMP 1 AL PUMP MANIFOLD 1 ENGINE - HONDA 1 ENGINE SUPPORT 2 HOPPER SUPPORT BRACKET 1 MANUAL COMPARTMENT 1 NIPPLE (20N-2") 1 SHUT-OFF (20NF-20NF) 1 NIPPLE (32N-12") 1 ELBOW (32NF-32NF90) 1 FHC ADAPTER (40-32N) 1 VALVE HANDLE 2 WORM CLAMP (2.062" TO 2.750") 1 STREET ELBOW (24N-24NF90) 1 ALL THREAD (24N) 1 COUPLER COVER 8 LOCK WASHER (5/16") 4 BOLT (5/16-NC X 2-1/2", GD8) 4 FLG LK SCREW (M8-1.25 X 16MM) 4 FLG LK SCREW (M8-1.25 X 35MM) 12 FLG LOCKNUT (M10-1.50) 8 FLG LK SCREW (M10-1.50 X 20MM) 4 CARRIAGE BOLT (M10-1.50X20MM) 1 TACHOMETER MOUNT 1 BULK HOSE (2", SOLD PER FT) 1 SHUT-OFF (24NF-24NF) 1 FHC ADAPTER (24-24N) 1 TACHOMETER/HOURMETER 1 HANDLE 1 SHUT-OFF (32NF-32NF) 1 FHC BODY (40-32H) 1 S/O COUPLER (32N-32H) 8 FLG LOCKNUT (M8-1.25) 1 NIPPLE (16N-2.5") 1 STREET ELBOW (16N-16NF90) 1 SHUT-OFF (16NF-16NF) 1 FHC ADAPTER (16-16N) 1 DRAIN VALVE (04N) 4 BOLT (5/16-NF X 1") 4 POP RIVET (3/16" X .664") 2 SCREW, FLAT HEAD (3MM X 12) ZP 2 WASHER (3/16") 2 LOCKNUT (M3 X .5) 1 MIXING VENTURI

159-698 179-898 194-598 322-914 323-682 318-588 115-207 159-789 114-018 115-293 159-181 324-467 110-134 114-031 115-263 324-511 105-091 105-178 106-380 106-989 106-387 106-382 107-700 324-411 116-505 159-790 155-204 215-1863 324-577 120-059 159-180 514-089 106-386 115-206 115-440 514-318 155-232 110-141 106-043 110-348 107-479 106-013 107-473 300-1572

DESCRIPTION

REMARKS

TORQUE PUMP CLAMP BOLTS TO 20 FT-LBS SEE FOOTNOTE 1, BEGINS WITH S/N: 2Y0874

USE 1 @ 16" SUPERSEDES 214-519

TORQUE TO 18 FT-LBS

NOT SHOWN:

FOOTNOTES:

1. ALL MODELS BEFORE S/N: 2Y0874 USE 195-028 ENGINE - HONDA; USE WITH 179-964 SHAFT ADAPTER

NOTE:

11

ID0017212

28

HOPPER FM5X

12 8

13

10

11

19

9

14

3

16

23

21

17 4

16

2 20

7

22

5

18

6

15

3

1 4

01

ID0461874

29

HOPPER FM5X

REF PART NO. NUMBER

QTY

1 302-2088 2 107-700 3 302-2091 4 106-387 5 110-223 6 110-253 7 302-2092 8 309-090 9 110-224 10 110-222 11 106-093 12 106-538 13 106-561 14 107-519 15 106-712 16 106-385 17 310-566 18 310-567 19 106-724 20 302-4711 21 302-4710 22 105-834 23 501-153

1 HOPPER WELDMENT 4 CARRIAGE BOLT (M10-1.50X20MM) 2 BACKER PLT 8 FLG LOCKNUT (M10-1.50) 1 LATCH BRACKET 2 POP RIVET (3/16" X 1/2") 1 WEATHER FLAP 1 COVER 1 ANCHOR BRACKET 1 HOOD LATCH 1 SCREW (M6-1.00 X 45MM) 1 LOCKNUT (M6-1.00,PRV TRQ,10.9) 1 LOCKNUT (M8-1.25,PRV TRQ,10.9) 1 SCREW (M8-1.25 X 12MM) 8 FLG SCREW (M6-1.00 X 16MM) 8 FLG LOCKNUT (M6-1.00) 1 RIGHT BRACKET 1 LEFT BRACKET 4 FLG SCREW (M10-1.50 X 25MM) 1 CUTTER BASE PLATE 1 BAG BLADE 2 FLG LOCKNUT (3/8-NC) 2 FLG LK BOLT (3/8-NC X 5/8")

DESCRIPTION

REMARKS

NOT SHOWN:

FOOTNOTES:

NOTE:

01

ID0461874

30

VENTURI 2" FM5X

4 3

3

5

2

3

2 2

3 4 6 1 2

02

ID0461933

31

VENTURI 2" FM5X

REF PART NO. NUMBER

QTY

1 302-5153 2 105-2167 3 105-2214 4 302-6176 5 150-5755 6 115-167

1 VENTURI (2") 4 FLANGE CLAMP (2") 4 GASKET (2") 2 FLANGE (2" FLG-2" NPT) 1 TEE (2" FLG-2" FLG-3/4 NPT) 1 PLUG (12N, SQ)

DESCRIPTION

REMARKS

NOT SHOWN:

FOOTNOTES:

NOTE:

02

ID0461933

32

HOPPER

FM5, FM13, FM13V, & FM25

3

2 21 12

25

14

16

13 22

17 19

11

5 18 3

6

4

7 20 10

9 15

8

23 1 3

04

24

ID0033226

33

HOPPER

FM5, FM13, FM13V, & FM25 REF PART NO. NUMBER

QTY

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

1 HOPPER WELDMENT 1 BAG CUTTER 10 POP RIVET (3/16" X .664") 1 LANYARD CABLE (13.5") 1 WASHER (.191") 1 METER PLATE 1 BACKER PLT 1 WEATHER FLAP 1 COVER 1 LEFT BRACKET 1 RIGHT BRACKET 1 ANCHOR BRACKET 1 HOOD LATCH 1 SCREW (M6-1.00 X 45MM) 8 FLG LOCKNUT (M6-1.00) 1 LOCKNUT (M8-1.25,PRV TRQ,10.9) 1 SCREW (M8-1.25 X 12MM) 4 CARRIAGE BOLT (M10-1.50X20MM) 4 FLG LOCKNUT (M10-1.50) 8 FLG SCREW (M6-1.00 X 20MM) 1 SCREEN 1 SCREEN FRAME 1 LATCH BRACKET 2 POP RIVET (3/16" X 1/2") 1 LOCKNUT (M6-1.00,PRV TRQ,10.9)

309-293 310-210 110-348 110-239 106-205 309-914 302-2091 302-2092 309-090 310-567 310-566 110-224 110-222 106-093 106-385 106-561 107-519 107-700 106-387 106-161 305-621 309-355 110-223 110-253 106-538

DESCRIPTION

REMARKS

NOT SHOWN:

FOOTNOTES:

NOTE:

04

ID0033226

34

300 GALLON TANK BEGINS WITH S/N:

19

11

42 16

13

5 22

15

14

5

23

12 28

17 30

22

36

18

30

17 33

29 13 32

40 7

21 26

10 1

41 5

35

34 31

6 9

8 25

31 8 25 26

20

26

3 38

2

4 24

27

26 37

39

07

ID0017108

35

300 GALLON TANK BEGINS WITH S/N:

REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

364-644 159-626 322-815 108-066 157-492 157-490 120-059 157-489 153-883 153-721 357-261 105-247 106-709 115-295 105-059 514-089 115-293 110-134 108-072 322-628 324-985 155-233 159-828 324-447 155-223 159-831 110-353 159-863 364-434 159-862 324-513 159-727 159-829 159-180 324-575 116-094 116-505 116-094 116-094 116-094 159-181 323-681 105-651

QTY

DESCRIPTION

1 TANK (POLYETHYLENE, 300 GAL) 1 1-1/2 PVC M/F ADAPTER 1 TUBE (1.5", SCH 40) 1 1-1/2 LOCKNUT 3 BK CONNECTOR (32NF POLY) 1 BK CONNECTOR (16NF POLY) 1 SHUT-OFF (32NF-32NF) 2 BK CONNECTOR (12NF, POLY) 2 BK CONNECTOR (12NF, POLY) 1 PLUG (16N POLY) 1 FILLWELL (16") 8 SCREW (M12-1.75 X 35MM) 8 FLG LK NUT (M12-1.75) 2 ALL THREAD (32N-2") 8 WASHER (7/16") 1 S/O COUPLER (32N-32H) 1 ELBOW (32NF-32NF90) 2 WORM CLAMP (2.062" TO 2.750") 8 SCREW (#10-16 X 1.25", PAN PLPS) 2 TANK STRAP 1 TANK BASE 1 FHC BODY (16-16H) 2 ADAPTER (2", PVC) 1 TUBE (2", SCH 40) 1 S/O COUPLER (16H-16H90) 2 S/O COUPLER (12N-16H90) 8 WORM CLAMP (3/4" TO 1-1/2") 1 S/O TEE (16H-16H-16H) 1 TANK CAP (16", VENTED) 1 S/O TEE (32F-32F-32F) 2 COUPLE TUBE (2", SCH 40) 2 MIXING JET (12N,ORF.375",PP) 1 S/O COUPLER (32F-32F90L) 1 FHC BODY (40-32H) 1 SUCTION ELBOW 1 BULK HOSE (1", SOLD PER 1") 1 BULK HOSE (2", SOLD PER FT) 1 BULK HOSE (1", SOLD PER 1") 1 BULK HOSE (1", SOLD PER 1") 1 BULK HOSE (1", SOLD PER 1") 1 FHC ADAPTER (40-32N) 1 VALVE SUPPORT 1 PLUG (32N, SQ, PLASTIC)

REMARKS

ENDS WITH S/N: BEGINS WITH S/N:

SEE NOT SHOWN

USE 1 @ 104" USE 1 @ 24" USE 1 @ 3" USE 1 @ 3.5" USE 1 @ 10.5"

NOT SHOWN:

RETAINER ROPE 323-752 QTY. 1 FOOTNOTES:

NOTE:

07

ID0017108

36

TANK PLUMBING 400 GAL TANK

4 3

15 5

19

21 SEE FOOTNOTE 3

20

2 11

14

1

7 SEE F

OO

8 10

TNO TE

19

9

2

17 12

18

SEE F

OO

18 TNO TE

6 1

13

11 SEE FOO 19 TNO TE

07

19

13

18

17

16 2

ID0501360

37

TANK PLUMBING 400 GAL TANK REF PART NO. NUMBER

QTY

362-2331 1 362-0097 2 357-261 3 364-434 4 357-263 5 108-072 6 369-810 7 514-215 8 159-863 9 116-094 10 110-353 11 153-596 12 153-708 13 315-489 14 302-9658 15 156-939 16 153-721 17 362-1258 18 157-490 19 153-549 20 150-1405 21 302-9563

TANK CAP ASSEMBLY 1 FLUID TANK, 400 GAL - FILLWELL (16") - TANK CAP (16", VENTED) - TANK CAP (4") 8 SCREW (#10-16 X 1.25", PAN PLPS) 2 MIXING JET (16N,ORF.500", NY) 2 S/O COUPLER (16N-16H90) 1 S/O TEE (16H-16H-16H) 8 BULK HOSE (1", SOLD PER 1") 4 WORM CLAMP (3/4" TO 1-1/2") 3 ADAPTER (48NF-48W, ABS) 1 ELBOW (48WF-48WF90, ABS) 2 PIPE (-48 X 3.00", ABS) 1 PIPE (-48 X 67.5" ABS) 1 PLUG (48N) 2 PLUG (16N POLY) 2 PLASTIC PLUG 4 BK CONNECTOR (16NF POLY) 3 BK CONNECTOR (48NF-48NF, NYL) 1 TEE (48WF-48WF-48WF90, ABS) 1 PIPE (-48 X 6.00", ABS)

DESCRIPTION

REMARKS

INCLUDES REF NO'S: 2, 3, 4, & 5

INCLUDES REF NO'S: 4

USE 2 @ 4.00"

SEE FOOTNOTE 1 SEE FOOTNOTE 2 SEE FOOTNOTE 3

NOT SHOWN:

FOOTNOTES:

1. 4X CUT 2.12" DIAMETER HOLE CENTERED ON DIMPLE IN TANK. 2. 3X CUT 4.50" DIAMETER HOLE CENTERED ON DIMPLE IN TANK. 3. GLUE THIS END ONLY TO REF 20 -- DO NOT GLUE TO REF 11.

NOTE:

07

ID0501360

38

TANK FILL PLUMBING 400 GAL TANK

6

5 4

3

7

8

1

14

2

13 9 11

12

10

13

02

ID0543948

39

TANK FILL PLUMBING 400 GAL TANK

REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9 10 11 12 13 14

QTY

DESCRIPTION

350-3361 400G TANK FILL ASSY 106-380 6 FLG LK SCREW (M8-1.25 X 16MM) 105-003 8 FLG LOCKNUT (5/16-NC) 302-9663 2 FILL TUBE MOUNT 150-5711 1 TUBE (2") 195-910 2 U-BOLT (5/16-NC X 2") 110-134 2 WORM CLAMP (2.062" TO 2.750") 116-505 75 BULK HOSE (2", SOLD PER FT) 196-009 1 U-BOLT CLAMP (2.500") 300-2750 1 BRACKET 149-119 1 FHC ADAPTER (32-32H) 105-245 4 SCREW (M10-1.50 X 25MM) 302-9662 1 BRACKET 106-387 4 FLG LOCKNUT (M10-1.50) 302-9664 1 MOUNT

REMARKS

INCLUDES REF NO'S: 1-14

USE 1 @ 75"

NOT SHOWN:

FOOTNOTES:

NOTE:

02

ID0543948

40

HOSE ROUTING

400 GAL FM5X HOSE KIT

15 14 1

4 17

3

2

16 6

10

17

5

13

18 3 7

9

8 12 03

11 ID0568048

41

HOSE ROUTING

400 GAL FM5X HOSE KIT REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

QTY

DESCRIPTION

190-3060 400G FM5X HOSE & FITTING KIT 514-089 2 S/O COUPLER (32N-32H) 116-505 67 BULK HOSE (2", SOLD PER FT) 159-181 2 FHC ADAPTER (40-32N) 110-134 4 WORM CLAMP (2.062" TO 2.750") 514-318 1 SHUT-OFF (16NF-16NF) 116-505 45 BULK HOSE (2", SOLD PER FT) 116-094 154 BULK HOSE (1", SOLD PER 1") 116-094 6 BULK HOSE (1',SOLD PER 1") 116-094 5 BULK HOSE (1", SOLD PER 1") 155-232 1 FHC ADAPTER (16-16N) 110-353 6 WORM CLAMP (3/4" TO 1-1/2") 155-223 2 S/O COUPLER (16H-16H90) 155-233 1 FHC BODY (16-16H) 155-265 2 REDUCER (48N-32NF) 114-017 1 STREET ELBOW (48N-48NF90) 115-295 1 ALL THREAD (32N-2") 159-180 2 FHC BODY (40-32H) 120-059 2 SHUT-OFF (32NF-32NF)

REMARKS

INCLUDES REF No's 1 THRU 18

USE 1 @ 45" USE 1 @ 154" USE 1 @ 6" USE 1 @ 5"

NOT SHOWN:

FOOTNOTES:

NOTE:

1. USE APPROPRIATE LENGTH (M14-2.00, GRADE 12.9) BOLTS AND HARDWARE FOR MOUNTING TANK AND MIXING UNIT TO STRUCTURALLY SOUND COMPONENTS. 12X FOR MOUNTING TANK & 6X FOR MIXING UNIT. 2. REFER TO OPERATORS MANUAL FOR WEIGHTS AND CENTER OF GRAVITY LOCATION FOR COMPONENTS.

03

ID0568048

42

TANK BASE 400 GAL TANK

5

2

10

9

7

8

4

3

13

12 8

1

11 6 13

05

ID0544062

43

TANK BASE 400 GAL TANK REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9 10 11 12 13

QTY

DESCRIPTION

REMARKS

303-2279 2 TANK SUPPORT 302-9655 2 TANK SUPPORT 303-2280 2 END TANK SUPPORT 108-015 2 HHCS M14-2.0 X 35MM, 10.9, ZP 107-319 2 LOCKNUT (M14-2.0,PRV TRQ.10.9) 302-9659 4 THREADED BLOCK 302-9661 2 TIE STRAP 106-381 8 FLG LK SCREW (M8-1.25 X 25MM) 106-395 8 WASHER (M8, HARDENED) 107-096 8 LOCKNUT (M8-1.25, NLK) 302-9650 1 TANK BASE 303-2276 1 CENTER TANK SUPPORT TUBE 105-1808 16 FLG LK SCREW (M12-1.75 X 30mm)SERRATED

NOT SHOWN:

FOOTNOTES:

NOTE:

05

ID0544062

44

ENGINE - HONDA

3 2

1

4

5

6

7

07

ID0109184

45

ENGINE - HONDA REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

QTY

195-1640 1 194-598 1 195-028 1 194-010 1 194-009 1 194-001 1 194-007 1 194-003 1 194-004 1 194-005 1

DESCRIPTION

REMARKS

ENGINE HONDA (GX160 4.8HP) ENGINE - HONDA (GX160K1QX) ENGINE - HONDA (GX160K1TX) FUEL TANK CAP ELEMENT SET (PRIMARY/SECONDARY) GASKET COVER MUFFLER GASKET

GASOLINE GASOLINE GASOLINE FUEL TANK AIR FILTER AIR FILTER AIR FILTER MUFFLER

NOT SHOWN:

194-011 194-002 194-006 194-008

1 1 1 1

OIL LEVEL SWITCH FUEL FILTER (04H-04H) RECOIL STARTER CARBURETOR

FOOTNOTES:

NOTE:

07

ID0109184

46

CENTRIFUGAL PUMP

BEGINS WITH S/N:DWPFM5XXKH0002574 1

15

16

2

20 19 17

22 23

16 15

10

24

21

9 18

11

3

13

10

14

9 4

5

6

8

7

31

25

01

26

27

28

29

12 16

32

30

ID0440126

47

CENTRIFUGAL PUMP

BEGINS WITH S/N:DWPFM5XXKH0002574 REF PART NO. NUMBER

159-698 1 500-1227 2 115-112 3 153-423 4 115-012 5 500-2630 6 166-584 7 177-063 8 177-062 9 500-1226 10 158-101 11 500-3167 12 502-094 13 118-361 14 500-3168 15 105-564 16 105-091 17 125-585 18 115-153 19 177-064 20 164-035 21 325-585 22 108-170 23 106-447 24 502-096 25 500-730 26 500-2516 27 500-2629 28 500-2517 29 500-2628 30 500-2627 31 108-171 32 500-2232

QTY

DESCRIPTION

- CENTRIFUGAL PUMP 1 O-RING 1 PLUG (08N, SQ) 1 RELIEF VALVE 1 ZERK (04N) 1 ADAPTER, CAST IRON 1 WOODRUFF KEY (5/8" X 5/32") 1 DRIVE SLEEVE 1 DOUBLE SEAL, T-31 2 O-RING (4.737 ID, VITON) 2 GASKET, NI-2085 1 HANDLE KIT 1 ADAPTER 1 CLAMP ASS'Y, SS 1 GUARD CLAMP 1 BOLT (5/16-NC X 7/8", SOC) 1 LOCK WASHER (5/16") 1 SUCTION FLANGE, 2" NPT 1 PLUG (04N, SQ) 1 FLAPPER ASS'Y 1 HOUSING, CAST IRON 1 WEAR PLATE, STEEL 2 SCREW (5/16-NC X 1) 1 JAM NUT (1/2-NF) 1 IMPELLER 1 PIPE PLUG, 1/8" NPT 1 O-RING, VITON 1 PISTON, GREASE 1 O-RING, VITON 1 SPRING, GREASE 1 RESERVOIR, GREASE 6 STUD (5/16-NC X 2 1/4") 9 HEX NUT, SS (5/16-NC)

REMARKS

INCLUDES REF NO.'S 1-32

1/2" NPT 1/8" NPT

1/4" NPT

NOT SHOWN:

255-1018 AR PUMP SEAL GREASE

FOOTNOTES:

NOTE:

01

ID0440126

48

CENTRIFUGAL PUMP

BEGINS WITH S/N:CMWFM5XXAE0001592 ENDS WITH S/N: DWPFM5XX______ 6

7 4

3

12

10

2

8

1

13

11

9

5

26 25 24

16

17

20

13

21

22

19

14

23 15 10

18 27

03

29 28

30

31

ID0355392

49

CENTRIFUGAL PUMP

BEGINS WITH S/N:CMWFM5XXAE0001592 ENDS WITH S/N: DWPFM5XX______ REF PART NO. NUMBER

QTY

159-698 105-564 105-091 125-585 177-064 115-153 115-112 164-035 325-585 108-170 500-1226 106-447 502-096 158-101 166-584 177-063 115-012 153-423 500-2630 177-062 108-171 502-094 500-2232 118-361 500-2518 105-044 500-2631 500-2516 500-2629 500-2628 500-2517 500-2627

4 4 1 1 1 1 1 1 2 2 1 1 2 1 1 1 1 1 1 6 1 6 1 1 1 1 1 1 1 1 1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

DESCRIPTION

CENTRIFUGAL PUMP BOLT (5/16-NC X 7/8", SOC) LOCK WASHER (5/16") SUCTION FLANGE, 2" NPT FLAPPER ASS'Y PLUG (04N, SQ) PLUG (08N, SQ) HOUSING, CAST IRON WEAR PLATE, STEEL SCREW (5/16-NC X 1) O-RING (4.737 ID, VITON) JAM NUT (1/2-NF) IMPELLER GASKET, NI-2085 WOODRUFF KEY (5/8" X 5/32") DRIVE SLEEVE ZERK (04N) RELIEF VALVE ADAPTER, CAST IRON DOUBLE SEAL, T-31 STUD (5/16-NC X 2 1/4") ADAPTER HEX NUT, SS (5/16-NC) CLAMP ASS'Y, SS PUMP GUARD JAM NUT, 1/2" HANDLE O-RING, VITON PISTON, GREASE SPRING, GREASE O-RING, VITON RESERVOIR, GREASE

REMARKS

INCLUDES REF NO.'S 1-31

1/4" NPT 1/2" NPT

1/8" NPT

NOT SHOWN:

255-1018 AR PUMP SEAL GREASE 500-1227 O-RING, VITON - DISCHARGE

FOOTNOTES:

NOTE:

03

ID0355392

50

CENTRIFUGAL PUMP

ENDS WITH S/N:CMWFM5XXVE0001591

22

23

19 27

27 20

28

21 3

23

18 16

11

24 17 10 25 9 1 2 26

27 4 15 7 14

6

2

5

29

12 13 8

07

ID0036099

51

CENTRIFUGAL PUMP

ENDS WITH S/N:CMWFM5XXVE0001591 REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

159-698 502-094 158-101 177-062 502-095 177-063 502-096 325-585 164-035 125-585 177-064 158-102 108-169 158-103 105-564 108-170 108-171 106-447 153-423 115-130 166-584 115-166 364-555 105-092 118-361 105-285 115-012 105-091 500-1227 500-1226

QTY

DESCRIPTION

- PUMP ADAPTOR - GASKET - DOUBLE SEAL - ADAPTOR - DRIVE SLEEVE - IMPELLER - WEAR PLATE ASSY - HOUSING ASSY - FLANGE - 2" - FLAPPER ASSY - GASKET - ACORN NUT (5/16-NC) - ANNULAR GASKET - 5/16" - BOLT (5/16-NC X 7/8", SOC) - SCREW (5/16-NC X 1) - STUD (5/16-NC X 2 1/4") - JAM NUT (1/2-NF) - RELIEF VALVE - TEE (04NF-04NF-04NF) - WOODRUFF KEY (5/8" X 5/32") - NIPPLE (04N-1.5") - GREASE RESERVOIR - NUT (5/16-NC) - CLAMP ASSY - BOLT (5/16-NC X 1-3/4") - ZERK (04N) - LOCK WASHER (5/16") 1 O-RING (2.800 ID, VITON) 2 O-RING (4.737 ID, VITON)

REMARKS

OLD STYLE, SEE FOOTNOTE 1

SEE FOOTNOTE 1 SEE FOOTNOTE 1

NOT SHOWN:

255-1018 AR PUMP SEAL GREASE

FOOTNOTES:

1. O-RINGS WILL ONLY FIT NEW STYLE PUMPS WITH O-RING GROOVE. 158-102 SQUARE GASKET WILL FIT NEW AND/OR OLD STYLE PUMPS.

NOTE:

07

ID0036099

52

FM5/ FM5X ON T18B

12 11

14

2

3 3

1

15

8

4

7 6 5

13

16 10

9 03

ID0032480

53

FM5/ FM5X ON T18B REF PART NO. NUMBER

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

101-159 364-644 105-247 106-709 105-059 322-914 106-392 108-015 108-143 105-359 107-319 106-391 105-273 323-681 323-708 323-489 324-985

QTY

DESCRIPTION

FM5/ FM5X ON T18B KIT 1 TANK (POLYETHYLENE, 300 GAL) 8 SCREW (M12-1.75 X 35MM) 12 FLG LK NUT (M12-1.75) 8 WASHER (7/16") 1 ENGINE SUPPORT 17 WASHER (M16) 7 HHCS M14-2.0 X 35MM, 10.9, ZP 10 HHCS M14-2.0 X 75MM, 10.9, ZP 7 WASHER (5/8) 17 LOCKNUT (M14-2.0,PRV TRQ.10.9) 4 WASHER (M12) 4 SCREW (M12-1.75 X 30MM) 1 VALVE SUPPORT 2 TANK STRAP L 1 TANK SHIELD 1 TANK BASE

REMARKS

SEE FOOTNOTE 1 REFERENCE ONLY REFERENCE ONLY 4 IN KIT, 8 REFERENCE ONLY REFERENCE ONLY REFERENCE ONLY USED ON LEFT HAND SIDE USED ON RIGHT HAND SIDE USED WHEN NUT (REF #10) IS AGAINST WOOD

REFERENCE ONLY REFERENCE ONLY

NOT SHOWN:

FOOTNOTES:

1. INCLUDES 051-396 INSTRUCTIONS AND REF. NO.'S 1-16 EXCEPT REFERENCE ONLY PARTS

NOTE:

03

ID0032480

54

T18B TIE DOWN KIT

8 7

14

10

12 10

9 7

5

8

3 10

13 6 4

11 2

13

9

10 10

01

1

ID0139915

55

T18B TIE DOWN KIT REF PART NO. NUMBER

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

QTY

104-065 323-705 1 323-951 2 323-737 1 323-738 1 178-351 1 323-739 1 107-308 7 106-333 2 107-507 9 106-685 17 106-391 8 105-273 3 106-709 4 308-917 -

DESCRIPTION

T18B TIE DOWN KIT FRONT MOUNT STOP GUIDE RAIL GUIDE PLATE BUSHING BRACKET SCREW (M12-1.75 X 75MM) SCREW (M12-1.75 X 40MM, 8.8) SCREW (M12-1.75 X 65MM) LOCKNUT(M12-1.75,PRV TRQ,10.9) WASHER (M12) SCREW (M12-1.75 X 30MM) FLG LK NUT (M12-1.75) STOW BAR ASSEMBLY

REMARKS

SEE FOOTNOTE 1

NOT SHOWN:

324-465 324-466

1 1

RIGHT TIE DOWN ASSEMBLY LEFT TIE DOWN ASSEMBLY

FOOTNOTES:

1. INCLUDES REF. NO.'S 1 THRU 13, 051-384 INSTRUCTIONS, AND TIE DOWN ASSEMBLIES (NOT SHOWN)

NOTE:

01

ID0139915

56

GARDEN HOSE ADAPTER

1 2 3

4

02

ID0091310

57

GARDEN HOSE ADAPTER REF PART NO. NUMBER

1 2 3 4

159-891 114-038 115-271 115-134 159-500

QTY

1 1 1 1

DESCRIPTION

GARDEN HOSE ADAPTER NIPPLE (12N-12NH) REDUCER (24N-12NF) COLLAR (24NF) FHC BODY (24-24N)

REMARKS

INCL. REF No's 1 - 4

NOT SHOWN:

FOOTNOTES:

NOTE:

02

ID0091310

58

NOTES:

ID0134963

59

ACCESSORIES

60

FLUID MIXING ACCESSORIES

1 3 2

4

8 6

5

7

9

10

11

10

ID0109085

61

FLUID MIXING ACCESSORIES REF PART NO. NUMBER

QTY

DESCRIPTION

1. 259-195 2. 259-196 3. 259-804 4. 259-805 5. 259-807 6. 259-808 7. 259-809 8. 259-810 9. 259-821 10. 259-822 11. 259-832

1 1 AR AR AR AR AR AR AR AR AR

VISCOSITY FUNNEL VISCOSITY CUP BENTONITE, QUIK-GEL (50 LB) LIQUID POLYMER, EZ-MUD (5 GAL) BENTONITE, BORE-GEL (50 LB) VISCOSIFIER, LIQUI-TROL (5 GAL) POWDER POLYMER, QUIK-TROL (20 LB) WET AGENT, CON-DET (5 GAL) 'PAC-R' FILTRATION CONTROL 'BARAZAN D+' VISCOSIFIER 'NO SAG' (20# BOX/10-2#BAGS)

1 1

DRILLING FLUID TEST KIT SHEAROMETER

REMARKS

NOT SHOWN:

191-158 259-487

FOOTNOTES:

NOTE:

10

ID0109085

62

63

64

65

66

67

68

FLUID COUPLER ADAPTERS

(2")

2 1

(1.5") (3" x 2")

3

4

(3" x 1.5")

(1.5" x 2")

02

ID0114218

69

FLUID COUPLER ADAPTERS REF PART NO. NUMBER

1.

2.

3.

4.

QTY

191-226 1 159-485 1 157-300 1 159-500 1 157-792 1 116-736 157-793 1 116-736 150-1520 1 116-735 -

DESCRIPTION

REMARKS

FLUID COUPLER KIT FHC BODY (32-32N) FITTING FHC BODY (24-24N) FHC CPLR X ADPTR (48-32) SQUARE RING GASKET (48) FHC CPLR X ADPTR (48-24) SQUARE RING GASKET (48) FHC CPLR X ADPTR (32-24) GASKET (32)

NOT SHOWN:

FOOTNOTES:

NOTE:

02

ID0114218

70

NOTES:

ID0134963

71

MISCELLANEOUS

ID0135063

72

Torque Information Tightening Guidelines Values given on the following pages are a guide. Do not use these values if a different torque value or tightening procedure is given for specific application. Check tightness of fasteners periodically.

Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical property class fasteners.

Fasteners should be replaced with the same or higher property class. If higher property class fasteners are used, tighten only to torque value of original fastener.

Make sure fastener threads are clean and that the threads are properly started. This will prevent them from cross threading or galling when tightened.

Lubed means cleaned, dry bolts lubricated with a standard, medium-viscosity machine oil. Lubricate all contact areas of the bolts and washers. Lubricating the bolts is the suggested torque method.

V01

ID0493104

73

SAE Bolt Torque Torque estimates based on clamp load (75% of proof strength) as specified in SAE J429 and ASME 574.

Diameter and Thread Pitch

SAE Grade 5

SAE Grade 8

Socket Head Cap Screw

Dry

Lubed

Dry

Lubed

Dry

Lubed

1/4-20

101 in•lb 11.4 N•m

76 in•lb 8.6 N•m

143 in•lb 16.2 N•m

107 in•lb 12.1 N•m

168 in•lb 19 N•m

120 in•lb 13.6 N•m

1/4-28

116 in•lb 13.1 N•m

87 in•lb 9.8 N•m

147 in•lb 16.6 N•m

123 in•lb 13.9 N•m

192 in•lb 21.7 N•m

144 in•lb 16.3 N•m

5/16-18

209 in•lb 23.6 N•m

157 in•lb 17.7 N•m

295 in•lb 33.3 N•m

221 in•lb 25 N•m

348 in•lb 39.3 N•m

264 in•lb 29.8 N•m

5/16-24

231 in•lb 26.1 N•m

174 in•lb 19.7 N•m

327 in•lb 36.9 N•m

245 in•lb 27.7 N•m

384 in•lb 43.4 N•m

288 in•lb 32.5 N•m

3/8-16

372 in•lb 42 N•m

276 in•lb 31.2 N•m

44 ft•lb 59.7 N•m

33 ft•lb 44.7 N•m

51 ft•lb 69.1 N•m

38 ft•lb 51.5 N•m

3/8-24

420 in•lb 47.5 N•m

312 in•lb 35.3 N•m

49 ft•lb 66.4 N•m

37 ft•lb 50.2 N•m

58 ft•lb 78.6 N•m

43 ft•lb 58.3 N•m

7/16-14

49 ft•lb 66.4 N•m

37 ft•lb 50.2 N•m

70 ft•lb 94.9 N•m

52 ft•lb 70.5 N•m

81 ft•lb 109.8 N•m

61 ft•lb 82.7 N•m

7/16-20

55 ft•lb 74.6 N•m

41 ft•lb 55.6 N•m

78 ft•lb 105.8 N•m

58 N•m 78.6 N•m

91 ft•lb 123.4 N•m

68 ft•lb 92.2 N•m

1/2-13

75 ft•lb 101.7 N•m

57 ft•lb 77.3 N•m

106 ft•lb 143.7 N•m

80 ft•lb 108.5 N•m

124 ft•lb 168.1 N•m

93 ft•lb 126.1 N•m

1/2-20

85 ft•lb 115.2 N•m

64 ft•lb 86.8 N•m

120 ft•lb 162.7 N•m

90 ft•lb 122 N•m

140 ft•lb 189.8 N•m

105 ft•lb 142.4 N•m

5/8-11

150 ft•lb 203.4 N•m

113 ft•lb 153.2 N•m

212 ft•lb 287.4 N•m

159 ft•lb 215.6 N•m

238 ft•lb 322.7 N•m

179 ft•lb 242.7 N•m

5/8-18

170 ft•lb 230.5 N•m

127 ft•lb 172.2 N•m

240 ft•lb 325.4 N•m

180 ft•lb 224 N•m

270 ft•lb 366.1 N•m

202 ft•lb 273.9 N•m

3/4-10

267 ft•lb 362 N•m

200 ft•lb 271.2 N•m

376 ft•lb 509.8 N•m

282 ft•lb 382.3 N•m

423 ft•lb 573.5 N•m

317 ft•lb 429.8 N•m

3/4-16

297 ft•lb 402.7 N•m

223 ft•lb 302.3 N•m

420 ft•lb 569.4 N•m

315 ft•lb 427.1 N•m

472 ft•lb 640 N•m

354 ft•lb 480 N•m

7/8-9

429 ft•lb 581.6 N•m

322 ft•lb 436.6 N•m

606 ft•lb 821.6 N•m

455 ft•lb 616.9 N•m

682 ft•lb 924.7 N•m

511 ft•lb 692.8 N•m

7/8-14

474 ft•lb 642.7 N•m

355 ft•lb 481.3 N•m

669 ft•lb 907 N•m

502 ft•lb 680.6 N•m

752 ft•lb 1019.6 N•m

564 ft•lb 791.8 N•m

1-8

644 ft•lb 873.1 N•m

483 ft•lb 654.9 N•m

909 ft•lb 1232.4 N•m

681 ft•lb 923.3 N•m

1022 ft•lb 1385.6 N•m

767 ft•lb 1039.9 N•m

1-12

722 ft•lb 978.9 N•m

542 ft•lb 734.9 N•m

1020 ft•lb 1382.9 N•m

765 ft•lb 1037.2 N•m

1147 ft•lb 1551.1 N•m

860 ft•lb 1166 N•m

V01

ID0493104

74

Metric Bolt Torque Torque estimates based on clamp load (75% of proof strength) as specified in ISO 898-1.

Class 8.8

Class 10.9

12.9 Socket Head Cap Screw 12.9

Size and Thread Pitch

Dry

Lubed

Dry

Lubed

Dry

Lubed

M5 X 0.80

54 in•lb 6.1 N•m

41 in•lb 4.6 N•m

78 in•lb 8.8 N•m

59 in•lb 6.7 N•m

91 in•lb 10.3 N•m

68 in•lb 7.7 N•m

M6 X 1.00

92 in•lb 10.4 N•m

69 in•lb 7.8 N•m

133 in•lb 15 N•m

99 in•lb 11.2 N•m

156 in•lb 17.6 N•m

116 in•lb 13.1 N•m

M7 X 1.00

156 in•lb 17.6 N•m

116 in•lb 13.1 N•m

222 in•lb 25.1 N•m

167 in•lb 18.9 N•m

260 in•lb 29.4 N•m

195 in•lb 22 N•m

M8 X 1.25

225 in•lb 25.4 N•m

169 in•lb 19.1 N•m

333 in•lb 37.6 N•m

242 in•lb 31.3 N•m

377 in•lb 42.6 N•m

284 in•lb 32.1 N•m

M10 X 1.50

37 ft•lb 50.2 N•m

28 ft•lb 38 N•m

53 ft•lb 71.9 N•m

40 ft•lb 54.2 N•m

62 ft•lb 84.1 N•m

47 ft•lb 63.7 N•m

M12 X 1.75

65 ft•lb 88.1 N•m

49 ft•lb 66.4 N•m

93 ft•lb 126.1 N•m

69 ft•lb 93.6 N•m

108 ft•lb 146.4 N•m

81 ft•lb 109.8 N•m

M14 X 2.00

104 ft•lb 141 N•m

78 ft•lb 105.8 N•m

148 ft•lb 200.7 N•m

111 ft•lb 150.5 N•m

173 ft•lb 234.6 N•m

130 ft•lb 176.3 N•m

M16 X 2.00

161 ft•lb 218.3 N•m

121 ft•lb 164.1 N•m

230 ft•lb 311.8 N•m

172 ft•lb 233.2 N•m

269 ft•lb 364.7 N•m

202 ft•lb 273.9 N•m

M18 X 2.50

222 ft•lb 301 N•m

167 ft•lb 226.4 N•m

318 ft•lb 431.2 N•m

238 ft•lb 322.7 N•m

372 ft•lb 504.4 N•m

279 ft•lb 378.3 N•m

M20 X 2.50

314 ft•lb 425.7 N•m

235 ft•lb 318.6 N•m

449 ft•lb 608.8 N•m

337 ft•lb 456.9 N•m

525 ft•lb 711.8 N•m

394 ft•lb 534.2 N•m

M22 X 2.50

428 ft•lb 580.3 N•m

321 ft•lb 435.2 N•m

613 ft•lb 831.1 N•m

460 ft•lb 623.7 N•m

716 ft•lb 970.8 N•m

537 ft•lb 728.1 N•m

M24 X 3.00

543 ft•lb 736.2 N•m

407 ft•lb 551.8 N•m

776 ft•lb 1052.1 N•m

582 ft•lb 789.1 N•m

908 ft•lb 1231.1 N•m

681 ft•lb 923.3 N•m

M27 X 3.00

796 ft•lb 1079.2 N•m

597 ft•lb 809.4 N•m

1139 ft•lb 1544.3 N•m

854 ft•lb 1157.9 N•m

1331 ft•lb 1804.6 N•m

998 ft•lb 1353.1 N•m

M30 X 3.50

1079 ft•lb 1462.9 N•m

809 ft•lb 1096.9 N•m

1543 ft•lb 2092 N•m

1158 ft•lb 1570 N•m

1804 ft•lb 2445.9 N•m

1353 ft•lb 1834.4 N•m

M33 X 3.50

1468 ft•lb 1990.3 N•m

1101 ft•lb 1492.8 N•m

2101 ft•lb 2848.6 N•m

1576 ft•lb 2136.8 N•m

2455 ft•lb 3328.5 N•m

1842 ft•lb 2497.4 N•m

M36 X 4.00

1886 ft•lb 2557.1 N•m

1415 ft•lb 1918.5 N•m

2699 ft•lb 3659.4 N•m

2024 ft•lb 2744.2 N•m

3154 ft•lb 4276.3 N•m

2366 ft•lb 3207.9 N•m

V01

ID0493104

75

Prevailing Torque Locknut Torque Torque relationships for electrodeposited zinc and lubricated all-metal prevailing torque locknuts.

Torque minimum and maximum estimates based on clamp load (75% of proof strength) for appropriate grade of bolt.

Locknut

Grade B Hex

Grade C Hex

Grade F Hex Flange

Grade G Hex Flange

US

Metric

US

Metric

US

Metric

US

Metric

1/4-20

7-10 ft•lb

9-13 N•m

8-12 ft•lb

11-16 N•m

6-8 ft•lb

8-11 N•m

9-11 ft•lb

12-15 N•m

1/4-28

8-11 ft•lb

11-15 N•m

9-12 ft•lb

12-16 N•m

7-9 ft•lb

9-12 N•m

10-13 ft•lb

13-17 N•m

5/16-18

13-18 ft•lb

17-24 N•m

16-21 ft•lb

21-28 N•m

13-17 ft•lb

17-23 N•m

18-23 ft•lb

24-43 N•m

5/16-24

14-19 ft•lb

19-25 N•m

18-23 ft•lb

24-31 N•m

14-18 ft•lb

19-24 N•m

20-26 ft•lb

27-35 N•m

3/8-16

16-20 ft•lb

21-27 N•m

28-37 ft•lb

38-50 N•m

23-29 ft•lb

31-39 N•m

33-41 ft•lb

44-50 N•m

3/8-24

16-22 ft•lb

21-30 N•m

32-42 ft•lb

43-57 N•m

26-33 ft•lb

35-44 N•m

37-47 ft•lb

50-63 N•m

7/16-14

23-32 ft•lb

31-43 N•m

45-59 ft•lb

61-80 N•m

37-47 ft•lb

50-63 N•m

52-66 ft•lb

70-89 N•m

7/16-20

24-34 ft•lb

32-46 N•m

51-66 ft•lb

69-89 N•m

41-52 ft•lb

55-70 N•m

58-74 ft•lb

78-100 N•m

1/2-13

37-50 ft•lb

50-67 N•m

69-90 ft•lb

93-122 N•m

57-72 ft•lb

77-97 N•m

80-101 ft•lb

108-137 N•m

1/2-20

38-53 ft•lb

51-72 N•m

78-102 ft•lb

105-138 N•m

64-81 ft•lb

87-110 N•m

90-114 ft•lb

122-154 N•m

9/16-12

50-70 ft•lb

67-95 N•m

100-130 ft•lb

135-176 N•m

82-103 ft•lb

111-139 N•m

115-146 ft•lb 156-198 N•m

9/16-18

58-78 ft•lb

78-105 N•m

111-146 ft•lb

150-198 N•m

91-115 ft•lb

123-156 N•m 128-163 ft•lb 173-221 N•m

5/8-11

70-95 ft•lb

95-129 N•m

138-180 ft•lb

187-224 N•m

113-143 ft•lb 153-194 N•m 159-201 ft•lb 215-272 N•m

5/8-18

73-98 ft•lb

99-133 N•m

156-204 ft•lb

211-276 N•m

127-161 ft•lb 172-218 N•m 180-228 ft•lb 224-309 N•m

3/4-10

125-165 ft•lb 169-223 N•m 245-320 ft•lb

332-434 N•m

200-253 ft•lb 271-343 N•m 282-357 ft•lb 382-484 N•m

3/4-16

120-165 ft•lb 162-223 N•m 273-357 ft•lb

370-484 N•m

223-282 ft•lb 302-382 N•m 315-399 ft•lb 427-541 N•m

7/8-9

185-250 ft•lb 251-339 N•m 394-515 ft•lb

534-698 N•m

7/8-14

200-270 ft•lb 271-366 N•m 435-568 ft•lb

589-770 N•m

1-8

275-375 ft•lb 373-508 N•m 591-772 ft•lb

801-1046 N•m

1-12

290-395 ft•lb 393-535 N•m 663-867 ft•lb

899-1175 N•m

1 1/8-7

294-404 ft•lb 398-547 N•m 837-1095 ft•lb

1135-1484 N•m

1 1/8-12

412-549 ft•lb 558-744 N•m 939-1227 ft•lb

1273-1663 N•m

1 1/4-7

375-513 ft•lb 508-695 N•m 1181-1545 ft•lb 1601-2094 N•m

1 1/4-12

412-549 ft•lb 558-744 N•m 1308-1710 ft•lb 1773-2318 N•m

V01

Grades B and F: SAE J429 Grade 5 bolts Grades C and G: SAE J429 Grade 8 bolts

ID0493104

76

Torque Values for Other Types of Fasteners Find the torque for the same size and grade/class of hex nut and multiply that value by the conversion factor listed below to determine recommended torque values for other types of fasteners.

Type

Factor

Example

hex top deformed locknuts

.75

3/8”, grade 5: 31 ft•lb X .75 = 23.25 ft•lb

smooth flange nuts and bolts

1.5

M10, class 8.8: 52 N•m X 1.5 = 78 N•m

serrated flange nuts and bolts

2.0

1/2”, grade 8: 145 N•m X 2.0 = 290 N•m

Lug Nut Torque Size

Type

Torque (ft•lb)

Torque (N•m)

7/16-NF

cone

75-85

102-115

1/2-NF

cone

90-100

120-135

5/8-NF

flange

275-325

373-440

Do not use these values if a different torque value or tightening procedure is given for specific application.

Torque values listed are for general use only. Check tightness of fasteners periodically.

Torque values are for non-lubricated threads.

Hydraulic Cylinder Bolt Torque Bolt Size

Bolt PN

Cylinder Repair Kit PN

Torque

1/2”

106-096

190-165

90-100 ft•lb

120-135 N•m

5/8”

106-097

190-166 & 190-169

180-200 ft•lb

245-270 N•m

3/4”

106-098

190-167 & 190-170

290-325 ft•lb

395-440 N•m

7/8”

106-122

190-172 & 190-174

410-460 ft•lb

550-625 N•m

1”

106-145

190-175 & 190-189

630-700 ft•lb

855-950 N•m

1-1/8”

106-146

190-177

770-850 ft•lb

1045-1170 N•m

IMPORTANT: Do not reuse cylinder piston bolts when rebuilding a hydraulic cylinder. Each cylinder repair kit contains a new bolt. Use it. Lubricate lightly and tighten to value shown on chart.

V01

ID0493104

Replacement O-Rings Fitting

SAE (Port Seal)

ORFS (Face Seal)

Code 61, Code 62 4-Bolt Flange

Thread

O-Ring

Dash

O-Ring

Size

Dash

Thread

O-Ring

(Inch)

Size

Size

Dash Size

P/N

Size

Dash Size

P/N

Size

P/N

1/16

1

NA

NA

NA

NA

NA

NA

NA

NA

1/8

2

5/16 - 24

-902

NA

NA

NA

NA

NA

NA

3/16

3

3/8 - 24

-903

NA

NA

NA

NA

NA

NA

1/4

4

7/16 - 20

-904

155-760

9/16 - 18

-011

157-037

NA

NA

5/16

5

1/2 - 20

-905

NA

5/8 - 18

NA

NA

NA

NA

3/8

6

9/16 - 18

-906

155-705

11/16 - 16

-012

157-038

NA

NA

1/2

8

3/4 -16

-908

155-706

13/16 - 16

-014

157-039

-210

155-759 #

5/8

10

7/8 - 14

-910

155-707

1 - 14

-016

157-040

NA

NA

3/4

12

1-1/16 - 12

-912

155-709

1-3/16 - 12

-018

157-017

-214

155-723

7/8

14

1-3/16 - 12

-914

155-747

1-5/16 - 12

-020

157-042

NA

NA

1

16

1-5/16 - 12

-916

155-748

1-7/16 - 12

-021

155-714

-219

157-029

1-1/4

20

1-5/8 - 12

-920

155-702

1-11/16 - 12

-025

157-129

-222

157-078

1-1/2

24

1-7/8 - 12

-924

157-001

2 -12

-029

157-130

-225

157-128

2

32

2-1/2 - 12

-932

NA

2-1/2 - 12

-135

NA

-228

500-031

2-1/2

40

3 - 12

NA

NA

NA

NA

NA

-232

157-015 #

3

48

3-1/2 - 12

NA

NA

NA

NA

NA

-237

157-006 #

All part numbers listed above are D90 except for # which are D70.

Thread size indicates the diameter of the threaded area in fractions of an inch and number of threads per inch.

NA = not a current Ditch Witch® part numbered o-ring, or dash size does not occur in current Ditch Witch applications.

SAE = straight thread fitting that seals by compressing a hard o-ring between a shoulder on the male part and an angular surface at the mouth of the female port.

ORFS = o-ring seal; a fitting that seals by compressing a hard, captive o-ring between two flat parallel faces, one grooved for the o-ring and the other plain to act as the sealing surface.

V01

ID0493104

77

78

FM Series Related Publications Component

Ass’y

P/N

Model: Fluid Mixers ........... Parts Manual .................................................................... .............. 053-478 Fluid Mixers ........... Operators Manual ............................................................ .............. 054-513 Fluid Mixers ........... Repair Guide (Service Manual) ....................................... .................. N/A Fluid Mixers ........... Supplementary Maint. Guide - Trenchless ...................... .............. 055-485 Fluid Mixers ........... Special Tools Guide ......................................................... .............. 052-901 Engine: MM5 Honda 5.5hp .......... Parts Manual - GX160K1TX .................................... 195-028 ...... 053-042 Honda 5.5hp .......... Operators Manual - GX160K1TX .................................... .................. N/A Honda 5.5hp .......... Service (Shop) Manual - GX160K1TX ............................. .................. N/A Lombardini 5.5hp ... Parts Manual - 15LD315K ....................................... 195-196 .......... N/A Lombardini 5.5hp ... Operators Manual - 15LD315K ........................................ .................. N/A Lombardini 5.5hp ... Service (Shop) Manual - 15LD315K ................................ .................. N/A MM9 Honda 9hp ............. Parts Manual - GX270PA2 ...................................... 195-194 .......... N/A Honda 9hp ............. Operators Manual - GX270PA2 ....................................... .................. N/A Honda 9hp ............. Service (Shop) Manual - GX270PA2 ............................... .................. N/A Lombardini 10hp .... Parts Manual - 6LD435 ............................................ 195-197 .......... N/A Lombardini 10hp .... Operators Manual - 6LD435 ............................................ .................. N/A Lombardini 10hp .... Service (Shop) Manual - 6LD435 .................................... .................. N/A FM5/FM5X Honda 5.5hp .......... Parts Manual - GX160K1TX .................................... 195-028 ...... 053-042 Honda 5.5hp .......... Parts Manual - GX160K1QX ................................... 194-598 ...... 053-042 Honda 5hp .............. Parts Manual – GX160UT2QX2 ............................... 195-1640 ....... 053-2456 Honda 5.5hp .......... Operators Manual - GX160K1TX & GX160K1TX ............ .................. N/A Honda 5hp .............. Operators Manual – GX160UT2QX2........................ 195-1640 ....... 053-2455 Honda 5.5hp .......... Service (Shop) Manual - GX160K1TX & GX160K1TX .... .................. N/A Honda 5hp .............. Service (Shop) Manual – GX160UT2QX2 ................ 195-1640 ...... 053-2495 FM13V/FM13X Honda 13hp ............ Parts Manual - GX390K1QXC ................................. 195-278 ...... 053-047 Honda 12hp ………..Parts Manual – GX390UT2QNR2.......................... 195-2449 ....... 053-XXX Honda 13hp ........... Operators Manual - GX390K1QXC ................................. .................. N/A Honda 12hp ............ Operators Manual – GX390UT2QNR2 .................. 195-2449 ........... .N/A Honda 13hp ........... Service (Shop) Manual - GX390K1QXC ......................... .............. 055-047 Honda 12hp ............ Service (Shop) Manual – GX390UT2QNR2 .......... 195-2449 ....... 053-XXX FM50 Kubota .................... Parts Manual – V3300EBG ...................................... 499-348 .......... N/A Kubota ................... Operators Manual – V3300EBG ...................................... .............. 054-076 Kubota ................... Service (Shop) Manual – V3300EBG .............................. .................. N/A

5

ID0117337

79

FM Series Continued

Filters Engine: MM5 Air Filter Parts Ass’y - Honda 5.5hp (GX160K1TX) .......................................................... 194-001 Element Set (primary, paper) - Honda (GX160K1TX) ......................................... N/A (secondary, foam) - Honda (GX160K1TX) .................................... N/A Fuel Filter (04H-04H, in-line) - Honda 5.5hp (GX160K1TX) ............................................ 194-002 Air Filter Parts Ass’y - Lombardini 5.5hp (15LD315K) .......................................................... N/A Element Set (primary, paper) - Lombardini (15LD315K) ..................................... N/A (secondary, foam) - Lombardini (15LD315K) ................................ N/A Oil Filter Element (spin-on) - Lombardini 5.5hp (15LD315K) ............................................... N/A Fuel Filter (0_H-0_H, in-line) - Lombardini 5.5hp (15LD315K) ............................................ N/A MM9 Air Filter Parts Ass’y - Honda 9hp (GX270PA2) ............................................................... 194-104 Element Set (primary, paper) - Honda (GX270PA2) ........................................... N/A (secondary, foam) - Honda (GX270PA2) ...................................... N/A Fuel Filter (0_H-0_H, in-line) - Honda 9hp (GX270PA2) .................................................. 194-107 Air Filter Parts Ass’y - Lombardini 10hp (6LD435) ........................................................... 194-109 Element Set (primary, paper) - Lombardini (6LD435) .......................................... N/A (secondary, foam) - Lombardini (6LD435) .................................... N/A OIL Filter Element (spin-on) - Lombardini 10hp (6LD435) ............................................... 194-108 Fuel Filter (0_H-0_H, in-line) - Lombardini 10hp (6LD435) .............................................. 194-110 FM5/FM5X Air Filter Parts Ass’y - Honda 5.5hp (GX160K1QX & GX160K1TX) ................................ 194-001 Element Set (primary, paper) - Honda (GX160K1QX & GX160K1TX) ................ N/A (secondary, foam) - Honda GX160K1QX & (GX160K1TX) .......... N/A Fuel Filter (04H-04H, in-line) - Honda 5.5hp (GX160K1QX & GX160K1TX) ................... 194-002 FM13/FM13V/FM13X Air Filter Parts Ass’y - Honda (GX390K1QXC) ................................................................ 195-159 Element Set (primary, paper) - Honda (GX390K1QXC) ...................................... N/A (secondary, foam) - Honda (GX390K1QXC) ................................ N/A FM50 Air Filter Parts Ass’y – Kubota – (V3300EBG) ................................................................. 499-360 Element Set (primary) – Kubota – (V3300EBG) .............................................. 499-361 (secondary) - Kubota – (V3300EBG) ........................................ 499-362 Oil Filter Element - Kubota – (V3300EBG) ....................................................................... 194-268 Fuel Filter - Kubota – (V3300EBG) .................................................................................. 153-829

Water {H2O}: Water Strainer (2.250” x 7.0”) - Y-Strainer, MM5, MM5D, MM5H .................................... 159-239 Strainer (4.000” x 9.0”) - Y-Strainer, MM9, MM9D, MM9H, FM13 ........................ 159-490

5

ID0117337

80

FM Series Optional Kits O-ring Repair Kit - FLG, ORS & SAE (15 different O-rings) ............................................. 190-051 O-ring Repair Kit - Field Service (46 different O-rings) .................................................... 190-052

5

ID0117337

81

ID0040564

82

ID0135281
