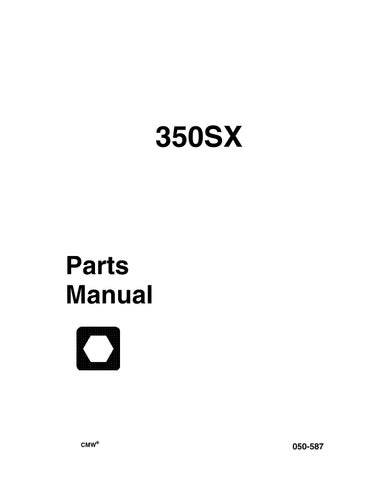

350SX

Parts Manual

cmw®

050-587

Ditch Witch 350SX ISSUE NO. 07PL-08/92 For Replacement Copy Order P/N 050-587

This manual contains information concerning the following models:

350SX Plow, A300 Digging, & Reel Carrrier Attachmen

Copyright 1982, 1984, 1986, 1987, 1990, 1992 The Charles Machine Works, Inc. AutoCrowd, Ditch Witch, Jet Trac, Modularmatic, Perma Soil, ProTech, Roto Witch, Sidekick, Subsite and

El are registered trademarks of The Charles Machine Works, Inc.

FOREWARD Ditch Witch equipment is quality engineered and manufactured to provide years of dependable service. To help ensure you obtain this long and satisfactory service we have provided you with this Parts Manual containing illustrated parts list from which you may select quality Ditch Witch replacement parts.

To help you in obtaining the exact parts you need please specify the parts required by part number and description, not illustration reference numbers. Also, because we are continually seeking ways to improve our equipment and do make changes, it will be of great help to have the model and serial number of your specific equipment available when ordering parts from your Ditch Witch dealer.

Make sure you read all footnotes carefully as they help identify the part you May need. Part numbers shown in reverse type (white on black) are no longer available from The Charles Machine Works, Inc. However, your Ditch Witch dealer may be able to assist you. You may find the footnotes make reference to assembly instructions and/ or Tech Bit articles. These publications are not included in this Parts Manual but may be obtained by contacting your local Ditch Witch dealer.

In some instances it may be important to replace more than a single part when making a repair to prevent premature failure or wear of the new part or to preclude the necessity for repeat repairs. For instance, when replacing digging chain due to wear it is recommended that the digging chain sprockets also be replaced to prevent accelerated wear on the new chain, and vice versa. Very often your Ditch Witch dealer may have a parts kit available containing the parts you will need or can advise you as to what parts are recommended to be replaced.

We recommend that ordinary vendor items not be substituted for genuine Ditch Witch replacement parts because of variances in materials, specifications or workmanship which may not be apparent upon visual inspection. Genuine Ditch Witch replacement parts have been quality engineered and tested to provide satisfactory service and provide the best protection for your equipment investment Instructions on recommended use and maintenance of your Ditch Witch equipment can be found in the Operator's Manual. Should you have questions not answered in these publications please contact your Ditch Witch dealer.

The descriptions and specifications contained in this manual were current at the time of it's publication. However, The Charles Machine Works, Inc. reserves the right, as part of it's normal product improvement to modify or change specifications at any time without notice.

The keys to long and productive equipment life are proper equipment operation, adherence to a good service/ maintenance program and the use of quality parts. You have an investment in your Ditch Witch equipment and we want to help you gain the most from that investment A Ditch Witch dealer is your equipment partner in the underground construction equipment business and can gladly provide you with Ditch Witch Professional ProTech TM Parts and Service as well as a full range of equipment assistance.

We thank you for your patronage and confidence in Ditch Witch equipment

PERSONAL COMMENTS Before press time, the contents of this manual were checked for accuracy. However, if you should find an error, please note it below and FAX this page to the Charles Machine Works Inc., ATN: Parts Product Manager, C/O Parts Coordination. We will correct the error and make the update with the next printing. Your comments concerning this manual are solicited and appreciated.

Error Correction Page

Reference Number

Correction or Revision

Please help us make our manuals better.

Rate this manual as to ease of use, accuracy, content, and appearance or write your comments below.

Outstanding Excellent Good Fair Poor Ease of Use ( ) ( ) ( ) ( ) ( ) Accuracy ( ) ( ) ( ) ( ) ( ) Content ( ) ( ) ( ) ( ) ( ) Appearance ( ) ( ) ( ) ( ) ( ) Comments:

800-302

350SX TRACTOR PARTS LIST

18

Ref. No.

10.

11.

12.

13.

Part Number 050-359 275-023 275-024 275-033 275-048 275-070 275-087 275-089 275-100 275-148 275-173 275-184 275-195 275-196 275-197

14.

15.

16.

17.

275-203 275-245 275-303 275-309

1.

2.

3.

4.

5.

6.

7.

8.

9.

Qty. 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 2

Ref. No. 18.

19.

20.

21.

22.

23.

Description Location Diagram Oil Level Parking Brake Notice Alternator (Deutz) Important Safety Rules Warning Runaway Ignition Switch Steering Cap Plaque Manifold Fuel Tank (Diesel) Fuel Tank (Gasoline) Warning Moving Parts Return Pressure Danger Rotating Shaft (Roto Witch®)-Option Battery Caution Battery Acid Warning Rollover Ditch Witch®-ID

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

Qty. 1 1 1 2 1 1 1 1 1 1 1 1 1 2 2 2 2 1

Description Ditch Witch Emblem Reservoir Boring (Roto Witch)-Option 350sx Model-ID Right Console Panel Left Console Panel (Diesel) Left Console Panel (Gasoline) Instrument Panel 'Left Instrument Panel Control Valve Attachment Speed Warning Fan Caution Hot Parts Diesel-ID (Deutz) Warning Flammable Accent Stripe (1-7/16" x 25-3/4") Accent Stripe (1-7/16" x 46-3/4") Ditch Witch Emblem Plaque

'Not part of kit. This Decal is required on machine S/N 4B0042 and below.

Ditch Witch and Roto Witch are registered trademarks of The Charles Machine Works, Inc.

8/89-F

Part Number 275-310 275-331 275-343 275-345 275-347 275-348 257-349 275-350 275-351 275-352 275-353 275-354 275-355 275-364 275-419 275-430 275-430 275-449

8 (CONTINUED)

050-359

Continued 050-359 Page 2

DEUTZ ENGINE

6 13

Ref. No.

Part Number

1. 105-047 2. 195-838 3. 105-150 4. 105-162 5. 105-357 6. 105-407 7. 105-840 8. 105-842 9. 105-876 10. 105-877 105-242 11. 105-964 12. 195-962 13. 116-127 14. 180-725 15. 180-766 180-760 182-083 115-003 16. 181-479

Qty.

Description

2 1 4 2 3 3 4 6 4 2 2 4 1 3 1 2

Lockout (3/8-NC) Air Intake Manifold Bolt (3/8-NC x 1-3/4') Bolt (3/8-NC x 2-1/4") Lockout (5/8-NC) Bolt (5/8-NC x 4') Bolt (M14-2.0 x 40mm) Bolt (M8-1.25 x 20mm) Bolt (M10-1.5 x 35mm) Bolt (3/8-NC x 5-3/4")-early models Bolt (3/8-NC x 6-1/2') Washer Muffler Clamp Shock Mount Double Center Yoke Cross and Bearing Bearing Cap (w/o zerk hole) Bearing Cap (w/zerk hole) Zerk (1/4-NF, STR) Mount Spacer

2

Rol. No.

Part Number

17.

18.

181-589 182-086 115-003 182-091 195-820 195-821

19.

20.

21.

196-084 170-036 170-051 24. 196-055 25. 317-148 26. 317-150 27. 196-050 28. 195-806 29. 195-807 Not Shown: 215-095

22.

23.

Qly.

Description

1 1

Spacer Pump Yoke Zerk (1/4-NF, STR) 1 Flange Yoke 1 Engine Adapter 1 Deutz Diesel Engine (Incl. ref.

No.'s 28 thru 30) Muffler Hardware Kit 1 1 Beft Set (35.5" CIR) 1 2 Belt Set (37' CIR) 1 Manifold Muffler (Incl. ref. no. 30) 1 Front Engine Mount 2 Rear Engine Mount 1 Exhaust Tail Pipe 1 Oil Filter Element 1 Fuel Filter Element Solenoid Cover

'Used on early models. Shipped with 797 card.

2 Used on current models. Shipped with 797 card.

10053-10054

10

- WISCONSIN ENGINE

Ref. No.

Part Number

1.

2.

3.

4.

5.

6.

7.

105-003 105-065 105-082 105-150 195-605 195-908 105-822 105-823 196-054 317-165 105-071 105-244 159-019 165-687 165-943 180-725 105-032 180-766 180-760 182-083 115-003 181-589 115-003 182-086 115-003

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

Qty.

Description

4 4 4 4 1 1 8 8 1 1 4 4 1 1 1 1 2 2

Flange Nut (5/16-NC) Locknut (1/2-NC) Bolt (1/2-NC x 2-1/2") Bolt (3/8-NC x 1-3/4") Retainer Washer Choke Control Cable Flange Lock Bolt (5/16-NC x 1/2")-early models Flange Lock Bolt (5/16-NC x 3/4") Exhaust Muffler Muffler Shield Washer (1/2")-early models Washer (1/2") Oil Filter (for base RV-52-A1) Exhaust Gasket Woodruff Key (1/4" x 1-1/8" LG) Double Center Yoke (1-7/8' LG) Bolt (3/8-NC x 3/4") Cross and Bearing Bearing Cap (w/o zerk hole) Bearing Cap (with zerk hole) Zerk (1/4-NF, STR) Spacer Zerk (1/4-NF, STR) Yoke Zerk (1/4-NF, STR)

1 1 1

Rel. No.

Part Number

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

182-091 195-412 195-413 195-415 195-424 195-432 195-433 115-592 165-631 195-410 195-414 195-422 195-423 195-418 195-438 105-072 105-825 105-834

32.

33.

34.

Qty.

1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 4 4

Description

Flange Yoke Lock Washer Bolt (7/16-NC x 1-1/4", CSK ALN HD) Internal Seal Starter Engine Adapter Engine (Incl. ref. no.'s 11 and 24) Extension Spring (governor) Accessory Drive Gasket Main Bearing Plate (Incl. ref. no. 30) 3 Internal Seal 1 Distributor Cap 1 Distributor Rotor 1 Lock Washer (No. 10) 2Distributor Cap and Rotor Lock Washer (3/8") Flange Lock Bolt (3/8-NC x 3/4") Flange Locknut (3/8-NC)

lUse of Prestolite distributor parts ends with Wisconsin engine 5/N6164220.

See footnote 2.

2 Use of Colt distributor parts begins with Wisconsin engine S/N6164221.

3 Refer to special tool diagram 052-518.

10054-10055

11

AIR FILTER DEUTZ ENGINE

14

Rel. No.

Part Number

Qty.

Description

Ref. No.

Pad Number

1.

105-823

4

Flange Lock Bolt (5/16-NC x 3/41

10.

195-818

Safety Element

2.

105-841

4

Clip Nut (5/16-NC)

11.

195-641

Baffle

3.

110-134

1

Clamp (2-3/4" ID)

12.

195-642

Clamp

4.

110-169

1

Clamp (3-3/4" ID)

13.

195-824

Bottom Cup Wing Nut

Qiy.

Description

5.

116-188

1

Air Cleaner Hose

14.

195-815

6.

195-692

1

Air Cleaner Stack Cap

15.

215-145

1

Vacuum Switch

7,

195-656

2

Mounting Band

16.

115-172

2

Pipe Collar (1/8-NPT)

8.

195-816

1

Air Cleaner (Incl. ref. no.'s 9 thru 14)

17.

115-180

1

All Thread (1/8-NPT)

Primary Element

18.

105-117

8

Washer (5/161

9.

195-817

13050-13055

12

"'I AIR FILTER WISCONSIN ENGINE 12

Ref. No.

Part Number

Qty.

Description

1.

105-822

4

Flange Lock Bolt (5/16-NC x 1/2")—early models

9.

195-691

Bottom Cup

105-823

4

Flange Lock Bolt (5/16-NC x 3/4")

10.

195-815

Wing Nut

105-841

4

Clip Nut (5/16-NC)

11.

195-675

2

Mounting Band

3.

110-134

2

Clamp (2-3/4' ID)

12.

195-692

1

Air Cleaner Stack Cap

4.

116-189

1

Air Cleaner Hose

13.

215-145

1

Vacuum Switch

5.

195-671

1

Air Cleaner (Incl. ref. no.'s 6 thru 10)

14.

115-172

2

Pipe Collar (1/8-NPT)

6.

195-682

Primary Filter Element

15.

115-180

1

All Thread (1/8-NPT)

7.

195-435

Baffle

16.

105-117

8

Washer (5/16')

8.

195-436

Clamp

2.

Rel. No.

13051-13056

13

Part Number

Wy.

Description

- ALTERNATOR DEUTZ ENGINE ......./

......

"N

/

19 footnote'

te

—18

21 24

22

i 6

Ref. No.

Part Number

Qty.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

105-065 105-089 105-229 105-117 105-160 105-272 105-298 105-838 170-243 181-013 181-476 181-506 215-156

1 4 1 3 1 1 1 1 1 1 1 1 1

215-161

1

14. 360-284 15. 360-285

2 1

Description

Locknut (1/2-NC) Locknut (5/16-NC) Bolt (1/2-NC x 2") Washer (5/16') Bolt (5/16-NC x 1-1/4") Bolt (M8-1.25 x 30mm, GO 8) Washer (3/8") Bolt (5/16-NC x 5") Alternator Sheave Sleeve Rear Bracket Bushing (1" OD) Front Bracket Bushing (1-3/8" OD) 1 Alternator (#8AR2069F)—Incl. ref. no.'s 16 and 17 2Alternator (#8EA2001FA)—Incl. ref. no.'s 17 and 18 Mount Bracket Belt Tightener Bracket

Ref. No.

Part Number

WY.

16.

17.

18.

19.

20.

21.

22.

23.

24.

506-001 506-025 506-032 110-397 110-398 105-826 105-845 363-031 105-109

1 1 1 2 1 1 1 1 1

Description

3Regulator (#8RF2012A) Woodruff Key 4Regulator (#8RC2009A) Plastic Cap (3/16") Plastic Cap (1/4") 5Flange Lock Bolt (3/8-NC x 1") 5Flange Locknut (3/8-NC) 3Alternator Bracket Bolt (5/16-NC x 1-1/2")

lAkernator/ #8AR2069F (ref. no. 13) used regulator/ #8RF2012A (ref. no.

15). If alternator requires replacement refer to page entitled ELECTRICAL DIAGRAM DEUTZ ENGINE. 2 Early series of alternator/ #8EA2001 FA used regulator/ #8RF2012A (ref. no.16), later series use regulator/ #8RC2009A (ref. no.18). Refer to pages entitled ELECTRICAL DIAGRAM DEUTZ ENGINE. 3 Regulator/ #8RF2012A (ref. no. 16) was used with early style alternators, which are no longer available. , Regulator/ #8RC2009A (ref. no. 18) is used with presently available alternator/ #8EA2001 FA. 5 Use of alternator bracket (ref. no. 23) begins with S/N4D0211.

13052-13058

14

THROTTLE LINKAGE DEUTZ ENGINE

Ref. No.

Part Number

Qty.

Description

Ref. No.

Part Number

Qty.

Description

1.

105-003

2

Flange Locknut (5/16-NC)—Deutz

7.

317-154

1

Throttle Bracket (Deutz)

2.

105-065

1

Locknut (1/2-NC)

8.

361-678

1

Throttle Lever

3.

105-823

2

Flange Lock Bolt (5/16-NC x 3/4")—Deutz

9.

105-093

2

Nut (3/8-NF)

4.

105-951

6

Belleville Spring Washer (5/8")

10.

195-911

1

Throttle Control Cable

5.

105-965

1

Shoulder Bolt (5/8-NC x 2", GD 8)

11.

196-058

2

Wire Swivel Connector

6.

115-717

1

Friction Washer

12.

317-142

1

Throttle Cable Bracket

18033-18033

15

- THROTTLE LINKAGE WISCONSIN ENGINE

Ref. No.

Part Number

Qty.

Description

1.

105-152

1

Nut (1/4-NF)

2.

105-065

1

Locknut [1/2-NC)

3.

105-508

2

Cotter Pin (3/32" x 1")

4.

105-951

6

Belleville Spring Washer [5/8")

5.

105-965

1

Shoulder Bolt (5/8-NC x 2", GD 8)

6.

115-717

1

Friction Washer

7.

110-067

1

Clevis

8.

361-678

1

Throttle Lever

9.

110-082

1

Clevis Pin

10.

361-707

1

Throttle Rod

18034-18034

16

FUEL LINE DEUTZ ENGINE (Pads Only3)

2524 < 26 16 10 11 22 \ 1

Rel. Part No. Number

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

Qty.

105-003 2 105-814 1 105-825 1 105-866 2 110-097 1 110-212 3 110-249 14 110-253 3 110-255 1 110-256 1 110-257 1 116-108 AR 116-108 AR 116-108 AR 155-162 2

16. 155-164 2 17.

18.

19.

20.

21.

156-028 AR 156-038 1 156-040 1 116-108 1 156-253 1

23 tv

re, 4

30

Description

Rel. No.

Flange Locknut (5/16-NC) Flange Locknut (3/8-NC) Flange Lock Bolt (3/8-NC x 3/4") Flange Lock Bolt (5/16-NC x 1-1/41 Clamp (1/2") Clamp (5/16') Clamp (5/8') Pop Rivet Spring Clamp Plug Kit Separator Element Base Hose (.296' I13)-use 2 of 12' Hose (.296" ID)-use 14' Hose (.2966 ID)-use 16' Slip-On Coupler (1/4-NPT M x 5/16" OD, STR) Slip-On Coupler (1/4-NPT M x 5/16" OD x 90 °) Plastic Tubing (1/41)-use 18" Fuel Line (5/16°T x 79-1/16° LG) Fuel Line (5/16"T x 46" LG) 1 Hose (19/64" ID)-use 3' 1 Hose Coupler (3/16" OD x 5/16" OD, STR)

Separator Element 159-009 1 105-890 4 Seal Washer (7/161 105-957 4 Seal Washer (9/16') 156-250 2 Fuel Bolt (M14-1.5 x 26mm) Fuel Bolt (M12-1.5 x 24mm) 156-251 2 Fuel Hose (1/2" OD x 21-3/4" LG) 195-828 1 Fuel Hose (5/8" OD x 29" LG) 195-830 1 215-066 1 2Shutoff Solenoid Fuel Filter Element 195-807 1 Slip-On Tee (5/16" OD) 156-252 1 116-108 AR Hose (19/64" ID)-use 2 of 10" Pipe Plug (1/4-NPT M, SO M HD) 115-153 1 Slip-On Coupler (1/4-NPT M x 155-164 1 5/16" OD x 90 °) Drain Valve (1/4-NPT) 1 35. 110-141 36. 105-893 2 Seal Washer (M8) Fuel Bolt (M8-1.25 x 32mm) 37. 156-254 1 Slip-On Hose Coupler 38. 195-833 1 Clamp (1/4" ID) 39. 110-304 1 1 Hose and hose coupler (ref. no.'s 20 and 21) replace earlier arrangements.

2 Refer to installation diagram 052-103 if changing from a Deutz to a Murphy shutoff solenoid.

3This page depicts models with early style fitter head and mount bracket.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

23047-23051

17

Part Number

Qty. Description

FUEL LINE DEUTZ ENGINE (Parts Only)

25

Ref. No.

Pad Number

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

105-003 2 105-814 1 105-825 1 105-866 2 110-097 1 110-212 3 110-249 8 110-253 3 110-255 1 110-256 1 110-257 1 116-108 AR 116-108 AR 116-108 AR 155-162 2

16.

155-164

17.

156-028 AR

Qty.

2

Description

Flange Lockout (5/16-NC) Flange Locknut (3/8-NC) Flange Lock Bolt (3/8-NC x 3/4") Flange Lock Bolt (5/16-NC x 1-1/41 Clamp (1/2' ID) Clamp (5/16") Clamp (5/8") Pop Rivet Spring Clamp Plug Kit Separator Element Base Hose (19/64' ID)-use 2 of 12' Hose (19/64" ID)-use 14' Hose (19/64" 10)-use 16' Slip-On Coupler (1/4-NPT M x 5/16" OD, STR) Slip-On Coupler (1/4-NPT M x 5/16' OD x 90 °) Plastic Tubing (1/4"1)-use 18"

Ref. No.

Part Number

Qty.

Description

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

156-038 156-040 156-220 156-238 159-009 105-890 105-957 156-250 156-251 195-828 195-830 215-066 195-807 105-893 156-254 195-833 110-304

1 1 1 1 1 4 4 2 3 1 1 1 1 2 1 1 1

Fuel Line (5/161 x 79-1/16' LG) Fuel Line (5/16"T x 46" LG) Tube Connector (5/16"T x 1/8-NPT M, STR) Tube Connector (1/4"T x 1/8-NPT M, STR) Separator Element Seal Washer (7/16") Seal Washer (9/161 Fuel Bolt (M14-1.5 x 26mm) Fuel Bolt (M12-1.5 x 24mm) Fuel Hose (1/2" OD x 21-3/4" LG) Fuel Hose (5/8' OD x 29" LG) 1 Shutoll Solenoid Fuel Filter Element Seal Washer (M8) Fuel Bolt (M8-1.25 x 32mm) Slip-On Hose Coupler Clamp (1/4' ID)

1 Refer to installation diagram 052-103 if changing from a Deutz to a Murphy

shutoff solenoid.

23044-23048

18

FUEL LINE DEUTZ ENGINE

37 29

FROM 36SP/ENGINE

/-

A

TO INJECTOR PUMP

efir l 41p_____ 39

38

alFe

'6--17

24 25

-21

641§/ -27

40 __7

1,-20 0-7 19

1-7

7i4 35

15

\ \\

14-- , 32

ki 7

31 32

)

/13

•• 7

7 '1>`1/441 414,

12 7

8

6N

12

\G"

Ref. No.

Pad Number

My.

Description

1.

2.

3.

105-003 105-814 105-825 105-826 105-866 110-097 110-259 110-212 110-249 110-253 110-255 110-256 110-257 116-108 116-108 116-108 155-162 155-164 156-028 156-038 156-040 116-108 156-253

2 1 1 1 2 1 1 2 14 2 1 1 1 AR AR AR 2 2 AR 1 1 AR 1

Flange Locknut (5/16-NC) Flange Lockout (3/8-NC) Flange Lock Bolt (3/8-NC x 3/4')-early models Flange Lock Bolt (3/8-NC x Flange Lock Bolt (5/16-NC x 1-1/41 Clamp (1/21-early models Clamp (5/8') Clamp (5/16") Clamp (5/8') Pop Rivet Spring Clamp Plug Kit Separator Element Base Hose (.296' ID)-use 2 at 12' Hose (.296' ID)-use 14' Hose (.296" ID)-use 16' Slip-on Coupler (1/4-NPT M x 5/16" OD, STR) Slip-on Coupler (1/4-NPT M x 5/16" OD x 90 °) Plastic Tubing (1/4"T)-use 18" Fuel Line (5/16'T x 79-1/16' LG) Fuel Line (5/16"T x 46" LG) 1 Hose (.296" ID)-use 3" 1 Hose Coupler (3/16' OD x 5/16" OD, STR)

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

23057-23062

19

Ref. No.

Pad Number

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

159-009 1 105-890 2 105-957 6 156-250 3 156-251 1 195-828 1 195-845 1 215-066 1 195-807 1 156-252 1 116-108 AR 115-153 1 155-164 1 110-141 1 105-893 2 156-254 1 195-833 1 110-304 1 180-096 2

My.

Description

Separator Element Seal Washer (7/16') Seal Washer (9/161 Fuel Bolt (M14-1.5 x 26mm) Fuel Bolt (M12-1.5 x 24mm) Fuel Hose (1/2" OD x 21-3/4" LG) Fuel Hose (5/8" OD x 27-1/2" LG) 1 Shutoff Solenoid Fuel Filter Element Slip-on Tee (5/16" OD) Hose (19/64' ID)-use 2 at 10' Pipe Plug (1/4-NPT M, SQ M HD) Slip-on Coupler (1/4-NPT M x 5/16" OD x 90 °) Drain Valve (1/4-NPT) Seal Washer (M8) Fuel Bolt (M8-1.25 x 32mm) Slip-on Hose Coupler Clamp (1/4' ID) Spacer

'Refer to installation diagram 052-103 when changing from a 13euU to a Murphy shutoff solenoid.

FUEL CONTROL SOLENOID Deutz Engine (S/N 4 B0537 thru S/N 180568)

Rel. Pad No. Number

Qty.

Description

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

2 1 1 2 2 1 4 4 2 1 1 1 1 1

Lockmd (3/8-NC) Boft (3/8-NC x 1-1/4') 2 Locked (1/4-NC) Washer (3/81 2 Nd (1/4-NF) 2 Bolt (1/4-NC x 1') 2 Flange Lock Nut (1/4-NC) 2 Flange Lock Bolt (1/4-NC x 1/21 2 Pop Rivet (3/16') 2 Rod End (1/4-NF, RH THOS) Extension Spring (1-1/2" LG) 2 Solenoid Switch 2Circuit Breaker 2 Extra Fuel Solenoid

105-047 105-052 105-085 105-118 105-152 105-197 105-832 105-836 110-253 110-281 115-619 215-026 215-065 215-075

Ref. No.

Pad Number

cry.

15.

361-764 361-899 215-458 215-460 215-525 195-418 506-021 105-091 105-092

1 1 1 1 1 1 1 2 2

16.

17.

18.

19.

20.

21.

22.

Description

1 Fuel Button Lever (manually activated) 2Fuel Button Lever (solenoid activated) 2Male Bullet Terminal 2Wire (10 GA x 6' LG) 2Ring Terminal (5/16') Lock Washer (#10) Nut (#10) Lock Washer (5/16') Nut (5/16-NC)

1 Ends with S/N4B0536. Early units, which were not equipped with fuel a

button lever, may install this manually operated lever by ref ering to Instructions and parts list found in the Technical Bits microfiche under In The Meantime dated 7-8-82.

2 Begins with S/N4B0537.

18041-18041

20

FUEL CONTROL SOLENOID Deutz Engine (Begins with S/N 180569)

/THRU ENGINE HARNESS TO 19 8 SAFETYSW/TOI WHT/BLK 12

Ref. No.

Pad Number

Qty.

Description

Ref. No.

Pad Number

Qty.

Description

1.

105-047

2

Locknut (3/8-NC)

13.

215-065

1

Circuit Breaker

2.

105-052

1

Bolt (3/8-NC x 1-1/4")

14.

215-075

1

Extra Fuel Solenoid

3.

105-085

1

Lockout (1/4-NC)

15.

361-899

1

Fuel Button Lever (solenoid activated)

4.

105-118

2

Washer (3/8")

16.

215-740

1

MC Terminal (56 Series)

5.

105-152

2

Nut (1/4-NF)

215-741

1

FMC Insulator (56 Series)

6.

105-197

1

Bolt (1/4-NC x 1")

215-460

1

Wire (10 GA x 6' LG)

7.

105-832

4

Flange Nut (1/4-NC)

18.

215-525

1

Ring Terminal (5/16")

8.

105-836

4

Flange Lock Bolt (1/4-NC x 1/2")

19.

195-418

1

Lock Washer (#10)

9.

110-253

2

Pop Rivet (3/16")

20.

506-021

1

Nut (#10)

10.

110-281

1

Rod End (1/4-NF, RH THDS)

21.

105-091

2

Lock Washer (5/16')

11.

115-619

1

Extension Spring (1-1/2" LG)

22.

105-092

2

Nut (5/16-NC)

12.

215-026

1

Solenoid Switch

17.

18066-18067

21

" COLD START KIT HEATER PLUG TYPE For Deutz Engine

(Parts Only)

r722. ,„ 1 12 •• '441 INTAKE MANIFOLD

16

Ret. No.

Part Number

Qty.

190-378

Ret. Part No. Number

Description

Description

1 Cold Start Conversion Kit

9.

215-505 AR

Wire (10 GA)—use 45'

215-505 AR

Wire (10 GA)—use 50' Wire (10 GA)—use 40'

1.

105-865

2

Bolt (1/4-NC x 3/4", GD 8)

10.

2.

105-085

2

Lockout (1/4-NC)

11.

215-505 AR

3.

215-059

1

Resistor Block

12.

215-527

1

Female Terminal (1/4" x 14/18 GA)

4.

215-060

1

Toggle Switch

13.

215-531

1

Ring Terminal (3/8" x 10/12 GA)

5.

215-061

1

Heater Plug

14.

215-573

1

Female Terminal (1/4" x 10/12 GA)

6.

215-444

1

Green Pilot Light

15.

215-592

3

Ring Terminal (No. 10, 10/12 GA)

Light Kit

16.

110-030

4

Cable Tie

Butt Connector (14-16 GA)

1 These parts are shown for replacement only. If installing a new cold start

215-415 215-478

1

215-490 AR

kit referto COLD START KIT— ETHER CANISTERTYPE— For Deutz Engine.

Wire (16 GA)—use 45'

13044-13049

22

COLD START KIT

ETHER CANISTER TYPE For Deutz Engine

19 Rel. Part No. Number

Part Number

Qty. Description

13. 215-074 1 14. 215-077 1 15. 215-458 1 16. 215-459 1 17. 215-478 3 18. 215-490 1 19. 215-490 1 20. 215-490 1 21. 215-527 2 22. 215-590 2 23. 215-600 1 24. 363-022 1 Not Shown: 275-378 1 275-418 1 275-419 1 275-420 1

1 Cold Start Conversion Kit (Incl. decals and ref. no.'s 1 thru 9 and 11 thru 24) 105-003 4 Flange Lockout (5/16-NC) 105-822 4 Flange Lock Bolt (5/16-NC x 1/2') 105-825 2 Flange Lock Bolt (3/8-NC x 3/4') 105-834 2 Flange Locknut (3/8-NC) 110-367 1 Clamp 115.365 AR Grommet (for 2-1/8 6 OD hole)—use 1.5' 156-018 AR Tubing (1/8' OD)—use 60' Blocker Connector (1/8'T x 1/8-NPT x 156-255 1 90°, w/orifice) 156-204 Ferrule (1/8'T) Nut (1/81) 156-205 Valve/Canister Bracket (shipped with 1 195-841 CMW-772 Caution Flamable Gas card) Gaping 110-252 Gasket 195-844 195-842 1 1 Ether Canister (shipped with CMW-772 Caution Flamable Gas card) Injector Noule 195-843 1 Ferrule (1/81) 156-204 Nut (1/8"T) 156-205 2Sensor Switch 215-073 1 190-400

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

Qty.

Description

Fuse (32 V, 15 AMP) Rocker Switch Male Bullet Terminal (14/16 GA) Female Bullet Terminal (14/16 GA) Butt Connector (14/16 GA) Wire (16 GA)use 12" Wire (16 GA)use 60' Wire (16 GA)use 56' Female Terminal (1/41 Ring Terminal (3/8',14/16 GA) Fuse Holder (12/16 GA) Mount Bracket (2300 & 3210) Cold Start Decal Cold Start Operations Decal (2300 & 3210) Caution Flamable Gas Decal Cold Start Operations Decal (350SX)

1 This kit is used In conjunction with extra fuel solenoid. If unit is not equipped

with an extra fuel solenoid order this kit and the extra fuel solenoid cold start kit that is designed for your machine. Refer to installation diagram 050-149 for installation instructions. Refer to item 1 of Technical Bits dated 12-19-85 for cold weather starting Instructions. Refer to item 2 of Technical Bits dated 12-19-85 for trouble shooting the ether cold start kit. Ether canister (ref. no. 10) must be ordered separately from kit.

2The wire, from the sensor switch to the solenoid, must be connected to the starter terminal of the solenoid to insure proper operation.

13061-13067

23

FUEL LINE '

WISCONSIN ENGINE (Parts Only)

4

9 2

8

7

3

Ref. No.

Part Number

Qty.

Description

Ref. No.

Part Number

Qty.

Description

1.

110-212

2

Clamp (5/16")

8.

155-142

1

Reusable Coupler (1/8-NPT M x

2.

110-249

6

Clamp (1/4" - 5/8")

3.

110-253

2

Pop Rivet

4.

115-153

1

Pipe Plug (1/4-NPT, SO M HD)

5.

116-108 AR

6.

7.

5/16' OD, STR) 9.

155-162

1

Slip-On Coupler (1/4-NPT M x

Hose (.2961—use 1-1/2'

10.

155-941

1

Fuel Filter Element

116-108 AR

Hose (.2961—use 3-1/2'

11.

156-040

1

Fuel Line (5/16'T x 46' LG)

116108 AR

Hose (.2961—use 12'

12.

156-241

1

Street Elbow (1/8-NPT M x

5/16' OD, STR)

1/8-NPT FM x 90 °)

23043-23047

24

FUEL LINE

WISCONSIN ENGINE

15

—11

3 Ref. No.

Part Number

Qty.

Description

1.

2.

3.

4.

5.

6.

7.

8.

110-212 110-249 110-253 115-153 116-108 116-108 116-108 155-142

1 10 1 2 AR AR AR 1

9.

155-162

1

Clamp (5/16") Clamp (5/81 Pop Rivet Pipe Plug (1/4-NPT M, SQ M HD) Hose (.2961—use 3' Hose (.2961—use 3-1/2' Hose (.296")—use 12' Reusable Coupler (1/8-NPT M x 5/16' OD, STR) Slip-On Coupler (1/4-NPT M x 5/16" OD, STR)

23046-23050

25

Ref. No.

Part Number

Qty.

Description

10.

11.

12.

155-941 156-040 156-241

1 1 1

13.

14.

15.

116-108 AR 156-252 2 155-164 1

Fuel Filter Element Fuel Line (5/16'T x 46" LG) Street Elbow (1/8-NPT M x 1/8-NPT FM x 90 °) Hose (.296")—use 2 at 10" Slip-On Tee (19/64" OD) Slip-On Coupler (1/4-NPT M x 5/16" OD x 90°)

SPEED CONTROL

Ref. No.

Part Number

Qty.

1.

2.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

105-047 105-052 105-887 105-818 105-085 105-093 105-215 105-216 105-388 105-510 105-825 105-826 105-830 105-833 105-834 110-021 110-102 115-503 125-710 115-616 125-609 196-052 215-046 215-047

2 1 1 1 1 6 2 2 1 2 6 6 2 2 6 1 2 1 1 1 2 1 1 1

23.

24.

25.

26.

27.

28.

29.

317-136 317-140 361-689 361-691 361-693 361-697 361-698

1 1 1 1 1 1 1

3.

4.

5.

6.

7.

8.

9.

10.

Description

Lockout (3/8-NC) 2 Bolt (3/8-NC x 1-1/41 3 Bolt (3/8-NC x 1-3/4')

Bolt (1/4-NC x 1-1/2") Locknut (1/4-NC) Nut (3/8-NF) Nut (No. 6-32) Bolt (No. 6-32 x 1-1/4") Nut (3/4-NF) Roll Pin (1/4' x 1-1/2") Flange Lock Bolt (3/8-NC x 3/4")-early models Flange Lock Bolt (3/8-NC x 1') Flange Lock Bolt (1/2-NC x 1-1/4") Flange Lockout (1/2-NC) Flange Lockout (3/8-NC) Knob (3/8-NF) Rod End (3/8-NF, RH THDS) External Klip Ring 1 Lock Collar Extension Spring (3-7/8" LG) Bearing Control Cable (Incl. ref. no.'s 8 and 41) Safety Switch Safety Switch Bracket (Incl. ref. no.'s 6 and 7) Speed Control Mount Box Bearing Support Control Lever Speed Control Shalt Override Arm Plow Control Rod Control Arm

19015-19016

26

Qty. Description

1 4 Pump Arm 31. 105-183 1 2 Boft (3/8-NC x 2-1/2") 105-888 1 3 Bolt (3/8-NC x 2-3/4") 32. 105-823 2 Flange Lock Bolt (5/16-NC x 3/4") 33. 105-003 2 Flange Lockout (5/16-NC) 34. 363-013 1 Spring Bracket 35. 115-582 1 Compression Spring 36. 181-617 2 Spring Back-Up 37. 361-721 1 Control Rod 38. 105-118 6 Washer (3/8") Rod End (3/8-NF, LH THDS) 39. 110-287 1 Nut (3/8-NF, LH THDS) 40. 105-262 1 41. 105-152 2 Nut (1/4-NF) 42. 105-512 2 Cotter Pin 43. 105-821 1 5 Flange Lock Bolt (1/4-NC x 1-3/4") 44. 105-832 1 5 Flange Locknut (1/4-NC) 45. 106-054 1 5Bolt (3/8-NC x 2-1/4") 46. 361-967 1 5 Pump Arm 1 Lock collar (ref. no. 17) replaces early style snap ring and springs.

2 Ends with S/N 180135.

3 13egins with S/N 180136.

4 Ends with S/N4D0000. Pump arm (ref. no. 30) is replaced by pump arm and

associated parts (ref. no.'s 43 thru 46). See footnote5.

5 Begins with S/N4D0001. Pump arm (ref. no. 46) is present production and

used for all replacements.

HYDRAULIC PUMP SPEED CONTROL (Ends with S/N 180735)

Ref. No.

Part Number

Qty.

Description

1.

2.

3.

4.

5.

6.

7.

105-047 105-052 105-058 105-067 105-818 105-085 105-093 105-118 105-152 105-215 105-216 105-244 105-510 105-530 105-832 105-836 105-869 110-021 110-067 110-082 110-102 115-617

2 2 2 1 1 1 1 4 1 2 2 2 1 1 2 2 1 1 1 1 1 1

Locknut (3/8-NC) Bolt (3/8-NC x 1-1/4'l Belleville Spring Washer (1/2") Bolt (1/2-NC x 2-3/4'l Bolt (1/4-NC x 1-1/2") Locknut (1/4-NC) Nut (3/8-NF) Washer (3/8") Nut (1/4-NF) Nut (No. 6-32) Bolt (No. 6-32 x 1-1/4", RD SLT HD) Washer (1/21 Roll Pin (1/4" x 1-1/2") Cotter Pin (1/16" x 3/41 Flange Locknut (1/4-NC) Flange Lock Bolt (1/4-NC x 1/2) Bolt (1/2-NC x 2", GD 8, ALN HD) Knob (3/8-NF) Clevis (1/4-NF) Clevis Pin (1/4") Rod End (3/8-NF, RH THDS) Extension Spring

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

Ref. No.

Part Number

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

125-430 196-053 215-046 215-047 317-092 317 156 -

317 161 361-696 -

361 699 -

361-702 361-705 110-287 105-262 105-821 105-832 105-512 106-054 361-967

Qty.

Description

2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Bronze Bushing Shaker Control Cable (Incl. ref. no. 9) Safety Switch Bracket (Incl. ref. no.'s 10 and 11) Anti-Reverse Block Control Box Vernier Stop Plow Control Rod 'Pump Arm Lever Mount Control Lever Rod End (3/8-NF, LH THDS) Nut (3/8-NF, LH THDS) 2Flange Lock Bolt (1/4-NC x 1-3/41 2Flange Locknut (1/4-NC) 2Cotter Pin (3/32" x 3/41 2Bolt (3/8-NC x 2-1/41 2Pump Arm

'Early style pump arm (ref. no. 31) is replaced by pump arm and associated parts (ref. no.'s 36 dim 40). See footnote 2.

2 Pump arm [ref. no. 40] is present production and used for all replacements.

20031-20033

27

HYDRAULIC PUMP SPEED CONTROL (Begins with S/N 180736)

RM. Pad No. Number

Qty.

Description

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

2 2 2 1 1 1 2 4 1 2 2 2 1 1 2 2 1 1 1 1

Lockout (3/8-NC) Soft (3/8-NC x 1-1/4') Belleville Spring Washer (1/2') Bolt (1/2-NC x 2-3/4') Bolt (1/4-NC x 1-1/2") Locknut (1/4-NC) Nut (3/8-NF) Washer (3/81 Nut (3/8-NF, LH THDS) Nut (No. 6-32) Bolt (No. 6-32 x 1-1/4", RD SLT HD) Washer (1/2") Roll Pin (1/4" x 1-1/21 Rod End (3/8-NF, LH THDS) Flange Locknut (1/4-NC) Flange Lock Bolt (1/4-NC x 1/2) Bolt (1/2-NC x 2", GO 8, ALN HD) Knob (3/8-NF) 3 Lever Mount Pump Speed Control Lever

105-047 105-052 105-058 105-067 105-818 105-085 105-093 105-118 105-262 105-215 105-216 105-244 105-510 110-287 105-832 105-836 105-869 110-021 361-702 361-705

Ref. No.

Part Number

22.

21.

23.

24.

25.

26.

27.

28.

115-617 110-102 125-430 361-696 215-046 215-047 317-092 317-181

29.

30.

31.

32.

33.

34.

105-821 105-832 105-512 106-054 361-967

361 699 -

Qty. Description 1 Extension Spring 1 Rod End (3/8-NF, RH THDS) 2 1 1 1 1 1

3Bronze Bushing Plow Control Rod Safety Switch Bracket (Incl. ref. no.'s 10 and 11) Anti-Reverse Block Control Box

1 1 1 1 1 1

'Pump Arm 2 Flange Lock Bolt (1/4-NC x 1-3/4") 2 Flange Lockout (1/4-NC) 2 Cotter Pin (3/32' x 3/4') 2 Bolt (3/8-NC x 2-1/4") 2Pump Arm

'Ends with S/N4D0000. Early style pump arm (ref. no. 29) may be replaced by pump arm and associated parts (ref. no.'s 30 thru 34). See footnote 2.

2 BegIns with S/N400001. Pump arm (ref. no. 34)15 present production and used for all replacements.

3 Early style lever mount (ref. no. 11i had .625" ID and required bronze bushing (ref. no. 23). Present production and replacement lever mounts have .5" ID and do not use bushing.

20041-20043

28

DIFFERENTIAL MOUNT

Ret. No.

Part Number

1.

2.

Description

Ret. No.

Part Number

Dry.

Description

105-047 28

Lockout (3/8-NC)

8.

115-483

4

External Klip Ring

105-065

8

Lockout (1/2-NC)

9.

161-037

2

Differential (limited slip)

3.

105-082

8

Bolt (1/2-NC x 2-1/21

10.

161-041

2

Differential Flange

4.

105-156 28

Bolt (3/8-NC x 1-1/2')

11.

161-042

2

Motor Flange

5.

105-357 14

Lockout (5/8-NC)

12.

183-307

2

Differential Mount Pin

6.

105-393

8

Bolt (5/8-NC x 2-1/4")

13.

317-050

2

Torsion Plate

7.

317-066

1

Differential Mount

cihr.

35029-35038

29

STEERING MECHANISM

12

11

Ref. No.

Part Number

Qty.

Description

Ref. No.

Part Number

Qty.

Description

1.

105-041

28

Locknut (3/8-NC)

10.

160-378

2

Left Spindle Housing

2.

105-351

14

Locknut (5/8-NC)

11.

160-379

2

Right Spindle Housing

3.

105-364

8

Bolt (3/4-NF x 2", Nylok)

12.

161-037

2

Differential (limited slip)

4.

105-422

8

Washer (3/4'l

13.

181-552

8

Bushing

183-308

2

Steering Cylinder Pin

5.

105-462

6

Bolt (5/8-NC x 2-1/4)

14.

6.

105-514

2

Cotter Pin (1/4 x 3")

15.

317-071

2

Upper Cylinder Mount

7.

125-403

6

Bronze Bushing

16.

317-072

2

Lower Cylinder Mount

8.

125-735

16

Urethane Flange Bushing

17.

105-156

28

Bolt (3/8-NC x 1-1/21

Tie Rod

18.

160-377

2

Tie Rod Clevis

9.

160-375

2

35017-35022

30

1—

SPINDLES and AXLES 18

14

Bel No.

Pad Number

01Y•

Description

Rel. No.

Pad Number

Description

1.

105-114 20

Lug Nut (1/2-NF)

13.

160-378

2

Left Spindle Housing

2.

105-123 20

Lug Bolt (1/2-NF x 1-1/2")

14.

160-379

2

Right Spindle Housing

3.

105-364

8

Bolt (3/4-NF x 2', Nylok)

15.

115-005

2

Zerk (1/4-NF x 90°)

4.

105-410

4

Castle Nut (3/4-NF)

16.

160-380

4

Spindle Shaft

5.

105-422

8

Washer (3/41

17.

161-030

4

Axle (9-13/32' LG)

6.

105-518

4

Cotter Pin (1/8 x 1-1/2)

18.

161-037

2

Differential (limited slip)

7.

115-010

Zerk (1/8-NPT x 22-1/2°)—early models

19.

180-279

4

Spindle Washer

115-002

2

Zerk (1/8-NPT x 90 °)

20.

181-552

8

Bushing

8.

125-260

8

Bearing

21.

182-084

4

Axle Yoke

9.

125-261

8

Race

22.

182-087

4

Cross and Bearing (Incl. ref. no. 7 )

10.

125-735 16

Urethane Flange Bushing

11.

155-808

8

Internal Seal

12.

160-117

4

Spindle Flange (Incl. ref. no. 5)

Internal Snap Ring

115-500 23.

35028-35037

31

205-671

4

Hub Cap

- PARKING BRAKE

1 22

Ref. Pad No. Number

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

105-003 105-215 105-216 105-508 105-820 105-823 105-826 105-824 105-826 105-834 110-082 160-719 160-800 505-087 163-001

Qty.

Description

2 2 2 2 8 4 4 3 3 3 2 2 2

Flange Locknut (5/16-NC) Nut (No. 6-32) Bolt (No. 6-32 x 1-1/4", RD SLT HD) Cotter Pin (3/32' x 1") Flange Lock Bolt (1/4-NC x 3/4") Flange Lock Bolt (5/16-NC x 3/41—early models Flange Lock Bolt (5/16-NC x1") Flange Screw (5/16-NC x 1-3/4") Flange Lock Bolt (3/8-NC x Flange Locknut (3/8-NC) Clovis Pin (1/4") Brake Disc Caliper Unit Friction Pad (pair) Brake Lever

1

41032-41042

32

Ref. No.

Pad Number

Qty.

Description

14.

15.

16.

17.

163-002 163-003 215-046 215-047

1 1 1 1

18.

19.

20.

21.

22.

23.

24.

312-215 317-073 317-167 317-168 105-130 105-089 105-003 105-834

2 2 1 1 1 1 4 4

Front Control Cable Rear Control Cable Safety Switch Safety Switch Bracket (Incl. ref. no.'s 2 and 3) Brake Caliper Mount Cable Bracket Safety Switch Mount Brake Mount Bolt (5/16-NC x 2-1/4") Locknut (5/16-NC) Flange Locknut (5/16-NC)—early models Flange Locknut (3/8-NC)

HOOD and GRILLE

Ref. No.

Part Number

Qty.

Flange Nut (5/16-NC) Flange Lock Bolt (5/16-NC x 3/4") Clip Nut (5/16-NC) Pop Rivet (3/16") Left Hood Center Hood (Deutz) Center Hood (Wisc.)

Right Hood Lower Baffle Hood Cable Guide Left Engine Cover Right Engine Cover

13.

362-292 362-293 115-671 115-349 116-260 116-203 115-355 116-203 115-355 110-259 110-121 110-223

1 Grille (Wisc.)

1 Grille (Deutz) AR Grommet Edging (use 2 of 42") 1 1 Grommet (3/4' hole)—Wisc.

1 2 Grommet (1-3/8" hole)—Wisc.

1 1 Grommet (13/16" hole)—Deutz 2 Grommet (1-3/8' hole)—Deutz 1 1 1 Grommet (13/16' hole)—Deutz 1 2Grommet (1-3/8" hole)—Deutz 3 1 Clamp (5/8") 2 3 Clamp (7/161 4 Hood Latch Bracket

Front Cover

1 Ends with S/N4B0536.

Ref. No.

Part Number

Qty.

Description

1.

2.

3.

4.

5.

6.

105-003 105-823 105-841 110-253 317-099 317-101 317-104 317-107 317-171 318-234 362-289 362-290 362-291

26 70 38 8 1 1 1 1 1 1 1 1 1

7.

8.

9.

10.

11.

12.

14.

15.

16.

17.

18.

2 Begins with S/N4B0537.

43047-43049

33

Description

— SIDE COVER and FLYWHEEL SHIELDS

11

4

1

RM. Pad No. Number

Ref. No.

Pad Number

Qty.

Description

1.

COy. Description 105-003 26 Flange Nut (5/16-NC)

10.

317-143

1

Left Side Cover (Wisc.)

2.

105-085

4

Locknut (1/4-NC)

11.

317-145

1

Right Side Cover (Wisc.)

3.

105-818

4

Bolt (1/4-NC x 1-1/2")

12.

362-313

1

Lett Flywheel Shield

4.

105-823 70

Flange Lock Bolt (5/16-NC x 3/4")

13.

362-314

1

Right Flywheel Shield (Deutz)

5.

105-841

38

Clip Nut (5/16-NC)

14.

362-316

1

Right Flywheel Shield (Wisc.)

6.

110-222

4

Hood Latch

15.

115-671 AR

Grommet Edging (use 5")—early models

7.

110-224

4

Anchor Bracket

115-686 AR

Grommet Edging (use 5")

8.

317-093

1

Lett Side Cover (Deutz)

115-671 AR

Grommet Edging (use 2")—early models

9.

317-096

1

Right Side Cover (Deutz)

115-686 AR

Grommet Edging (use 5")

16.

43084-43087

34

CONSOLE' TILT STEERING VALVE (Ends with S/N 4B6042) 16

.

.

/ /

I

1.

2.

3.

4.

5.

6.

7.

\

\

\ \

/ footnotes

.3-51"

w, ,/

28 N

105-047 105-052 105-058 105-065 105-118 105-121 105-214

8. 105-361 9. 105-512 10. 105-823 11. 105-841 12. 110-065 13. 115-613 14. 160-323 15. 160-338 16. 181 590 17. N.A. 18. 317-123

\

0 fa i

2 1 2 2 1 2 6 1 1 12 6 1 1 1 1 1 1 1

Locknut (3/8-NC) Bolt (3/8-NC x 1-1/41 Spring Washer (1/2") Locknut (1/2-NC) Washer (3/81 Bolt (1/2-NC x Flange Screw (No. 10-24 x 1/2", SLF TAP) Jam Nut (13/16-NEF) Cotter Pin (3/32" x 3/4'] Flange Lock Bolt (5/16-NC x 3/41 Clip Nut (5/16-NC) Knob Extension Spring Steering Wheel Cap Steering Wheel Bushing Console Mount Plate

Ref. No.

Part Number

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

317-124 317-125 317-126 317-127 317-151 317-153 361 701 -

501-325 115-686 110-225 105-003 105-823 105-828 105-833 317-129 317-130

Qty.

Description

1

Left Console Panel (Deutz) Right Console Panel Left Console Panel (Wisc.)

Valve Bracket Tilt Steering Latch Steering Valve Cover Latch Rod Flange Lock Bolt (5/16-NC x 5/81 Grommet Edging (use 101 1 Plug Flange Nut (5/16-NC) Flange Lock Bolt (5/16-NC x 3/41 Flange Lock Bolt (1/2-NC x 3/4") Flange Lock Nut (1/2-NC) Left Console Mount Right Console Mount

1 1 1 1 1 1 4 2 1 4 4 8 8 1 1

lEady Deutz units which were equipped with oil temperature gauge should discontinue use of gauge and fill gauge hole with plug (ref. no. 281.

43048- 43050

35

CONSOLE FIXED STEERING VALVE BEGINS WITH S/N 4B0043

36

C ONSOLE FIXED STEERING VALVE BEGINS WITH S/N 4B0043 REF NO. 1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

PART NUMBER OTY DESCRIPTION REMARKS 105-214 6 FLG SCREW (#10-24 X 1/2".SLF TAP) 105-361 1 JAM NUT (13/16-NF) 105-823 12 FLANGE LOCK BOLT (5/16-NC X 3/4") 105-826 4 FLANGE LOCK BOLT (3/8-NC X 1") 105-841 6 CLIP NUT (5/16-NC) 105-854 6 CLIP NUT (3/8-NC) 110-663 1 STEERING WHEEL CAP 160-428 1 STEERING WHEEL 317-112 1 CONSOLE 317-123 1 MOUNT PLATE 317-124 1 LEFT CONSOLE PANEL DEUTZ 317-125 1 RIGHT CONSOLE PANEL 317-126 1 LEFT CONSOLE PANEL WISCONSIN 317-318 1 STEERING MOTOR MOUNT 501-325 4 FLANGE LOCK BOLT (5/16-NC X 5/8") 115-686 2 GROMMET EDGING USE 10" 105-003 4 FLANGE NUT (5/16-NC) 105-823 4 FLANGE LOCK BOLT (5/16-NC X 3/4") 105-828 8 FLANGE LOCK BOLT (1/2-NC X 3/4") EARLY MODELS 105-823 8 FLANGE LOCK BOLT (5/16-NC X 1") 105-833 8 FLANGE LOCK NUT (1/2-NC) EARLY MODELS 105-841 8 FLANGE LOCK NUT (5/16-NC) 317-129 1 LEFT CONSOLE MOUNT 317-130 1 RIGHT CONSOLE MOUNT

FOOTNOTES

801-748

37

SEAT COVERS R.O.P.S.

15

34

21

Ref. No.

Part Number

1.

2.

3.

105-003 105-073 105-103 105-120 105-132 105-187 105-160 105-214 105-267 105-372 105-383 105-820 105-823 105-832 105-836 105-838 105-841 105-866 110-010 110-043 110-132 110-272 115-153

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

Qty.

Rel. No.

Description

Flange Nut (5/16-NC) 10 Lock Washer (7/16") 2 2 4 Nut (7/16-NC) 2 5 Nut (7/16-NF) 2 4 Bolt (7/16-NC x 1-1/2") 2 5 Bolt (7/16-NF x 1-1/4') 4 1 Bolt (5/16-NC x 1-1/4") 4 Flange Screw (No. 10-24 x 1/2") 11 4 Cup Washer (5/161 Locknut (3/4-NC) 4 Bolt (3/4-NC x 6", GD 8) 4 Flange Lock Bolt (1/4-NC x 3/41 8 Flange Lock Bolt (5/16-NC x 3/4') 14 Flange Lockout (1/4-NC) 10 Flange Lock Bolt (1/4-NC x 1/2") 2 2 Bolt (5/16-NC x Clip Nut (5/16-NC) 18 Flange Lock Bolt (5/16-NC x 1-1/4") 6 Fuel Cap 1 Hinge 2 1 Filler Neck 1 Seat Belt Kit Pipe Plug (1/41 1 115-418 1 2 Seat Filler Neck Gasket 1 165-626

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

Part Number

215-140 165-704 306-197 317-070 317-132 317-133 317-134 317-135 317-169 317-170 318-236 360-814 110-130 110-253 250-622 115-421 105-003 115-477 105-822

Qty.

1 1 1 1 1 1 1 1 1 1 1 1 3 1 1 4 1 4

Description

Fuel Sender Gasket 2-Post R.O.P.S. Seat Deck Panel Lett Rear Fender Right Rear Fender Left Rear Fender Cover Right Rear Fender Cover Seat Deck Rod Guide Seat Deck Rod R.O.P.S. Cable Guide Fuel Tank Magnet Pop Rivet Manual Compartment 3Seat Flange Locknut (5/16-NC) Grip Ring Flange Lock Bolt (5/16-NCI( 1-1/4")

1 This bolt is used when slides on seats do not have studs.

2 Early seat did not have provisions for operator presence safety switch. See

footnote 3.

3 Present production seat has provisions for operator presence safety switch

and threaded mounting studs.

4 Early seat belts, with double retractor, used hardware with NC threads.

3 Present production seat belts, with single retractor, use hardware with NF

threads.

43046-43048

38

PUMP and STEP COVERS

16 /

Ret. No.

Part Number

1.

2.

105-003 26 105-085 2 105-152 2 105-823 8 105-832 16 105-820 16 105-841 8 110-218 2 312-135 1 312-136 1 312-149 2 317-111 2

3.

4.

5.

6.

7.

8.

9.

10.

11.

Qty.

Ret. No.

Description

Flange Locknut (5/16-NC) 2 Locknut (1/4-NC) 3 Locknut (1/4-NF)

Flange Lock Bolt (5/16-NC x 3/4") Flange Locknut (1/4-NC) Flange Lock Bolt (1/4-NC x 1/2") Clip Nut (5/16-NC) Hinge 1 Battery Strap (for two batteries) Battery Strap (for single battery) 2 Battery Hold-Down Step Cover

Pad Number

12.

13.

362-301 362-302 362-303 14. 115-686 15. 115-704 16. 115-704 Not Shown: 115-318

Qty.

Description

1 1 1 2 1 1

Top Pump Cover Left Pump Cover Right Pump Cover Grommet Edging (use 16") Grommet Edging (use 3") Grommet Edging (use 2') Non-Skid Decking

1 Ends with S/N 180568.

2 Earty style battery hold down (ref. no. 10) had 1/4-NC threads. See

footnote 3.

3 Present production and replacement battery hold down (ref. no. 10) has

1/4-NF threads and requires corresponding nut (ref. no. 2).

43085-43088

39

— KICK PANEL and REAR BAFFLES

Ref. Part No. Number

Qty.

Description

Ref. No.

Part Number

Qty.

Description

1. 317-109

1

Front Baffle (Deutz)

6.

362-315

1

Mount Cover (for boring attachment)

2. 317-110

1

Rear Baffle (Deutz)

7.

105-825

4 Flange Lock Bolt (3/8-NC x 3/4")—

3. 317-131

1

Front Kick Panel

4. 317-172

1

Top Baffle

5. 317-173

1

Front Baffle Cover (Deutz)-

early models 105-823

early models

43086-43089

40

4

Flange Lock Bolt (5/16-NC x 3/4')

OIL COOLER and FAN

Ref. Pad No. Number

Wy.

Description

Ref. Part No. Number

1. 105-841

11

Clip Nut (5/16-NC)

8.

110-253

8

2Pop Rivet

2. 105-174

8

1 Bolt (1/4-NC x 1/2")

9.

105-819

8

4Flange Lock Bolt (1/4-NC x 1")

10.

105-832

8

4Flange Locknut (1/4-NC)

3. 105-823

11

Flange Lock Bolt (5/16-NC x 3/4")

4. 105-832

8

1 Flange Lockout (1/4-NC)

5.

215 201 -

2

3 Fan

215-205

2

4 Fan

6. 360-330

1

Oil Cooler

7. 360-331

1

3 Fan Shroud

360-338

1

4 Fan Shroud

8. 105-003

4

Flange Lockout (5/16-NC)

8

2Washer (3/16")

9. 106-013

'Early style fans bolted to fan shroud. See footnote 2.

2 Later model fans attach to fan shroud by pop rivet (ref. no. 10). Refer to

Item 3 of Technical Bits dated 7-10-86 when retrofitting on units that bolted on. See footnotes 3 and 4.

3This fan and shroud (ref. no.'s 5 and 7) ends with S/N 4E0568. This style of fan is no longer available — See footnote 4. phis fan and shroud (ref. no.'s 5 and 7) begins with S/N 4E0569. If replacing an on earlier models order new fan, shroud, bolts and nuts (ref. no.'s 5, 7,11 and 12) — (Reference Item 6 of Technical Bits dated 12-8-88).

3 Fan Blade

506-030

Qty. Description

43138-43140

41

- TIRE TUBE WHEEL

Ref. No.

Part Number

Qty.

Description

Ref. No.

1.

205-105

4

Tire (26 x 12-12, 4-ply) Tire and Wheel Assembly (26 x 12-12)-

205-800

Incl. ref. no.'s 1, 2, 4 and 6 Tire and Wheel Assembly (26 x 12-12)-

205-778

Incl. ref. no.'s 1, 4, 5 and 6 Tire and Wheel Assembly (26 x 12-12)-

205-821

Incl. 112 LBS tyrtil and ref.

205-120 205-813

4

Qty.

Description

2. 205-163

4

Tube (26 x 12-12)—Incl. ref. no. 6

3. 205-211

4

Wheel (8.5 x 12)

4. 205-249

4

Wheel (10.5 x 12)

5. 205-164

4

Valve Stem (Incl. ref. no. 6)

6. 205-165

4

Valve Stem Cap

7. 105-065

2

locknut (1/2-NC)

8. 105-071

2

'Washer (1/21

no.'s 1, 4, 5 and 6

9. 105-112

2

'Carriage Bolt (1/2-NC x 81

Tire (23 x 10.5-12, 4-ply)

10. 375-097

1

'Weight (100 LB)

Tire and Wheel Assembly (23 x 10.5-12)-

Not Shown: AR

Tyrfil [85 or 112 LBS/tire)

205-173

Incl. ref. no.'s 1, 3, 5 and 6 205-822

Part Number

Tire and Wheel Assembly (23 x 10.5-12)-

'Quantities shown are per wheel.

NOTE: Refer to general specification 052-195 for tire pressures.

Incl. 85 LBS tyrfil and ref. no.'s 1, 3, 5 and 6

64026-64040

42

HORN

TO RELAY

Ref. No.

Part Number

Qty.

Description

1. 105-003

1

Flange Lock Nut (5/16-NC)

2. 105-823

1

Flange Lock Bolt (5/16-NC x 3/4")

3. 306-601

1

'Horn (Incl. nut)

4. 363-015

1

'Mount Bracket (1/8" THK)

When replacing horn use mount bracket (ref. no. 4) in place of bracket that comes with horn.

64027-64041

43

" ELECTRICAL DIAGRAM CONSOLE HARNESS for Deutz Engine

Ref. Part No. Number

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

215-051 105-909 215-052 215-060 215-063 215-064 215-065 215-128 215-129 215-131 215-133 215-141 215-142 215-145 215 201 215-205 215-482 -

15. 215-553 16. 215-567

61131-61143

Description

1

Ignition Switch Jam Nut (13/16-NEF) Keys (pair) Toggle Switch 1 2 Relay 2 Diode Bridge 2 Circuit Breaker Hour Meter 1 Voltmeter 1 Pressure Sender Oil Gauge 1 Fuel Gauge 1 Oil High Temperature Sender 1 Oil Low Temperature Sender 1 Vacuum Switch (air filter) 1 2 4 Fan 2 5Fan 2-Wire Harness (Hour Meter ground and 1 Toggle Switch negative pole to ground) 1 Wire (16 GA x 20" LG) 2-Wire Harness (No. 1 Diode positive pole 1 and Toggle Switch positive pole to No. 2 Diode positive pole)

Ref. Pad Number No.

Qty. Description

Wire (16 GA x 12") 215-578 1 215-642 2 2-Wire Harness (Voltmeter ground and Fuel Gauge ground to ground) 19. 215-647 1 3Console Harness 20. 217-006 4 , Red Pilot Light 1 'Horn 21. 306-601 1 Horn Bracket 363-015 2Engine Oil Temperature Gauge 22. 215-146 Not Shown: Light Kit 215-415 2 Plug 110-225 1 Use seperate bracket in place of bracket that comes with horn.

17.

18.

2 Use of engine oil temperature guage or temperature sender is not required,

discontinue use of both and plug hole in console with plug (not shown).

3 Relacement console harness will have Packard Plug and will not work with

harnesses that have molded plugs, either replace all harnesses or modify to corresponding plugs. This application may not use all wires in harnesss refer to electrical schematic 050-853.

4 Ends with S/N 4E0568. If replacement is required refer to page entitled OIL COOLER and FAN. silegins with S/N 4E0569.

ELECTRICAL DIAGRAM CONSOLE HARNESS for Wisconsin Engine

ENGINE 12 HARNESS 18 RED/BLK

1 6 9 10.

ri3'

BRN ORG

20

OR BLK

:71

731K

GRN

I

BRN

ORG GRN/BLU

BRN/ORG

HYD. OIL TEMP.

Rel. No.

Part Number

1.

13.

215-051 215-052 105-909 215-060 215-063 215-064 215-065 215-128 215-129 215-133 215-141 215-142 215-145 215 201 215-205 215-482

14.

215-553

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

-

Qty.

1

1 2 2 2 1 1 1 1 1 1 2 2

1 1

Description

Ignition Switch Keys (pair) Jam Nut (13/16-NEF) Toggle Switch Relay Diode Bridge Circuit Breaker Hour Meter Voltmeter Fuel Gauge Oil High Temperature Sender Oil Low Temperature Sender Vacuum Switch (air filter) 3 Fan 4 Fan 2-Wire Harness (Hour Meter ground and Toggle Switch negative pole to ground) Wire (16 GA x 20" LG)

Rel. No.

Part Number

cur.

15.

215-567

1

16.

17.

215-578 215-642

1 1

18.

19.

20.

Description

2-Wire Harness (No. 1 Diode positive pole and Toggle Switch positive pole to No. 2 Diode positive pole) Wire (16 GA x 12' LG) 2-Wire Harness (Voltmeter ground and Fuel Gauge ground to ground) 1 Console Harness Red Pilot Light 2 Horn 2 Horn Bracket

215-647 1 217-006 3 306-601 1 363-015 Not Shown: 215-415 Light Kit 1 Relacement console harness will have Packard Plug and will not work with harnesses that have molded plugs, either replace all harnesses or modify to corresponding plugs. This application may not use all wires in harnesss refer to electrical schematic 050-852.

2 Use seperate bracket In place of bracket that comes with horn.

3 Ends with S/N 4E0568. If replacement is required refer to page entitled OIL COOLER and FAN. 4 Begins with S/N 4E0569.

61132-61144

45

'1 ELECTRICAL DIAGRAM ENGINE HARNESS for Deutz Engine (Ends with S/N 180568)

„12 FOOTNOTE 4 10

5 low /

WHT/BLU —

RED/GRN

STARTER

/SOLEN01

WHT/BRN WHT/B LK

BR N WHT

[ BLU/ORG

BLU/GRN RED

11

FRAME HARNESS 11

CONSOLE HARNESS

Rel. No.

Part Number

Qty.

Description

Rel. No.

Part Number

Qty.

Description

1.

215-054

1

Diode

9.

215-322

1

Battery Cable (75" LG)

2.

215-066

1

3 Shutoff Solenoid

3.

215-113

1

Oil Sender

10.

215-457

1

Wire (16 GA x 1", BLK)

4.

215-143

1

Head Temperature Sender

11.

N.A.

1

1 Engine Harness

215 156 -

1

2Alternator (#8AR2069F)

12.

215-147

1

4 Engine Oil Temperature Sender

215-161

1

2Alternator (#8EA2001 FA)—replacements

1 This engine harness is no longer available, if replacement is required order

215-499

1

2 Wire (14 GA x 161

6.

215-261

2

Battery (12V/490AMP)

7.

215-303

1

Battery Cable (10" LG)

8.

215-319

2

Battery Cable (10" LG, 2/0 GA)

Terminal Cover

116-193

engine harness from page entitled ELECTRICAL DIAGRAM — ENGINE HARNESS for Deutz Engine— (Begins with S/N 180569). This application may not require use of all wires refer to Electrical schematic 050-853.

2 Wire (ref. no. 5) is required on machines which use alternator with regulator(#8RC2009A).

3 Refer to installation diagram 052-103 when changing from a Deutz to a Murphy shutoff solenoid. tUse of oil temperature sender or gauge is not required, discontinue use of both and plug hole in console.

61067-61075

46

ELECTRICAL DIAGRAM ' ENGINE HARNESS for Deutz Engine (Begins with S/N 180569)

9' '

BLU

.-I3

12

6

BRN

1E1

4

1 17 /

2

BLU

RED/GRN

STARTER

14" SOLENOID ORG

WHT/BLK

WHT/BLK BRN

WHT

[ BLU/ORG

BLU/GRN-r*

16

BATT.

13--

RED B L

RED

FRAME HARNESS

U

r7 WHT/BLU

16 !!! MI vim

10 ...L.

CONSOLE HARNESS

Ref. Part No. Number

Ref. No.

Qty. Description

Part Number

OTC

9

Qty. Description

1.

215-026 1

2Solenoid Switch

14. 215-499 1

3Wire (14 GA x 16")

2.

215-054 1

Diode

15. 215-525 1

2 Ring Terminal (5/16')

3.

215-065 2

Circuit Breaker

16. 215-646 1

'Engine Harness

4.

215-066 1

4Shutoff Solenoid

17. 215-676 1

Wire (16 GA x 6" LG)

5.

215-075 1

2Extra Fuel Solenoid

6.

215-113 1

Oil Sender

7.

215-143 1

8.

215-161

9.

215-255 1

Battery (1211/700AMP)

215-262 1

Battery (12V/925AMP)optional

1

Head Temperature Sender

1

Battery Cable (10' LG) Battery Cable (75' LG)

116-193

215-311 1

that have molded plugs, either replace all harnesses or modify to corresponding plugs. This application may not use all wires in harnesss refer to electrical schematic 050-853.

2 Begins with S/N4B0537. Units prior to this serial number may be retrofit with extra fuel solenoid by refering to installation instructions.

3Wire(ref. no. 14) Is required on machines which use alternator (#942F01410) with regulator (#8RC2009).

4 Refer to installation diagram 052-103 when changing from a Deutz to a Murphy shutoff solenoid.

Terminal Cover

12. 215-457 1 Wire (16 GA xr LG, BLK) 13. 215-460 1

Battery Cable (10' LG)—Engine GND

1 Relacement harness will have Packard Plug and will not work with harness

3Afternator

11. 215-322 1

10. 215-319

Not Shown:

2Wire (10 GA x 6' LG)

61076-61084

47

- ELECTRICAL DIAGRAM ENGINE HARNESS for Wisconsin Engine

RECTIFIER MODULE

I— BRN

1

e'

WHT/BLK

RED/BLU

[BT"RO WHT BLU/GRN

RED/WHT

9 FRAME HARNESS

ICOIL

PLUG 1. F.:1 all % OMM DISTRIBUTOR

CONSOLE HARNESS

1170

CONDENSER

Ref. Pad No. Number

Qty.

Description

Ref. Pad Number No.

1.

195-424

1

Starter

8.

215-554 1

Wire (16 GA x 12" LG)

2.

195-359

1

1 Breaker Point Set

9.

215-645 1

3Engine Harness

195-439

1

2 Breaker Point Set

3.

215-026

1

Solenoid

4.

215-251

1

Battery (12V/330AMP g 0°F)

5.

215-304

1

Battery Cable (13" LG)

6.

215-335

1

Battery Cable (10" LG, 1/0 GA)

7.

215-322

1

Battery Cable (75" LG)

116-193

Qty. Description

I Use of Prestolite distributor parts ends with Wisconsin engine S/N6164220.

2 Use of Colt distributor parts begins with Wisconsin engine S/N6164221.

3 Relacement harness will have Packard Plug and will not work with harness that have molded plugs, either replace all harnesses or modify to corresponding plugs. This application may not use all wires in harnesss refer to electrical schematic 050-852.

Terminal Cover

61066-61074

48

20

11

ELECTRIC SCHEMATIC DEUTZ ENGINE FOR MODEL 350SX (ENDS WITH S/N 180568) Ref. Part No. Number

Qty.

1. 215-046 3 2. 215-051 1 215-052 105-909 1 3. 215-054 4. 215-060 1 5. 215-063 2 6. 215-064 2 7. 215-065 2 8. 215-066 1 9. 215-113 1 10. 215-128 1

Description

Safety Switch Ignition Switch (Incl. Keys & Nuts) Keys (Pair) Jam Nut (13/16-NF) Diode Toggle Switch Relay Diode Bridge Circuit Breaker Shut-Off Solenoid Oil Sender Hour Meter

49 11/88-C

(CONTINUED)

Ref. Part No. Number

Qty.

Description

11. 215-129 215-415 12. 215-131 215-415 13. 215-133 215-415 14. 215-140 15. 215-141 16. 215-142 17. 215-143 18. 215-144

1 1 1 1 1 1 1 1 1 1 1

Volt Meter Light Kit (Option) Oil Gauge (Option) Light Kit (Option) Fuel Gauge Light Kit (Option) Fuel Sender Hyd Oil Hi Temp Sender Hyd Oil Lo Temp Sender Head Temperature Sender Hyd Oil Filter Switch

050-853

Continued 050-853 Page 2 Ref. No.

Part Number

19. 215-145 20.

N/A 21. 215-201 22. 215-261 23. 215-303 24. 215-319 25. 215-322 26. 215-457 27. 215-482 28. 215-553

Qty.

1

Ref. No.

Description

Air Filter Switch

29. 215-567 30. 215-578 31. 215-641 32. 215-642 33. 215-644 34.

N/A 35. 215-647 36. 217-006 37. 306-601 NOT SHOWN: 215-311

1 Alternator

2 2 1 2 1 1 1 1

Part Number

Fan Battery Battery Cable (10") Battery Cable (10") Battery Cable (75") Wire (16 Ga. x 1", BLK) 2-Wire Harness Wire (16 Ga. x 20")

Qty.

Description

1 1 1 2 1 1 4 1

2-Wire Harness Wire (16 Ga. x 12") Wire (16 Ga. x 10") 2-Wire Harness Frame Harness 1 Engine Harness Console Harness Red Pilot Light Horn

1

Battery Cable (101-Engine GND

NOTE: Replacement harness will have Packard Plug, and will not fit harness with molded plug. lUsed on earlier models.

(CONTINUED)

50

r

Continued 050-853 Page 3

—RED/ ORG

I1

BRN

411 , 1 11Fa

19 ERI.0

Br

38

4

ALT. DETAIL

WHT/BLK

—ERN WHT

41

Usi

RED/BLK

43

RN

/

21

34

IZ

18

6

2

CROWD

NC NO C

BLK

ORO-

BAN

1 BLK

2

36

5

ELECTRIC SCHEMATIC DEUTZ ENGINE FOR MODEL 350SX (BEGINS WITH S/N 180569) Ref. Part No. Number

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

215-026 215-046 215-051 215-052 105-909 215-054 215-060 215-063 215-064 215-065 215-066 215-075 215-113 215-128

Ref. No.

Qty. Description

1 3 1 1 1 2 2 3 1 1 1 1

Part Number

13. 215-129 215-415 14. 215-131 215-415 15. 215-133 215-415 16. 215-140 17. 215-141 18. 215-142 19. 215-143 20. 215-144 21. 214-145 22. 215-161 23. 215-205 215-201

2 Solenoid

Safety Switch Ignition Switch (Incl. Keys & Nuts) Keys (Pair) Jam Nut (13/16-NF) Diode Toggle Switch Relay Diode Bridge Circuit Breaker Shut-Off Solenoid 2 Extra Fuel Solenoid Oil Sender Hour Meter

51 (CONTINUED)

Qty.

Description

1

Volt Meter Light Kit (Option) Oil Gauge (Option) Light Kit (Option) Fuel Gauge Light Kit (Option) Fuel Sender Hyd Oil Hi Temp Sender Hyd Oil Lo Temp Sender Head Temperature Sender Hyd Oil Filter Switch Air Filter Switch 1 Alternator Fan 3 Fan

1 1 1 1 1 1 1 1 1 1 1 1 2 2

Continued 050-853 Page 4 Ref. No

Part.

Number

24.

215-255

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

215-262 215-319 215-322 215-457 215-460 215-482 215-499 215-525 215-553 215-567 215-578 215-641 215-642 215-644

Qty.

Description

1 1 1 1 1 1 1 1 1 1 1 1 1 2 1

Battery Battery (Option) Battery Cable (10") Battery Cable (75") Wire (16 Ga. x 1", BLK) 2 Wire (10 Ga. x 6") 2-Wire Harness 1 Wire (14 Ga. x 6") 2 Ring Terminal (5/16") Wire (16 Ga. x 20") 2-Wire Harness Wire (16 Ga. x 12") Wire (16 Ga. x 10") 2-Wire Harness Frame Harness

Ref. No

Part.

Number

38.

39.

40.

41.

215-646 215-647 215-676 215-740 215-739 217-006

42.

43.

306-601 NOT SHOWN: 215-311

Qty.

Description

1 1 1 1 1 4 1

Engine Harness Console Harness Wire (16 Ga. x 6") 2 MC Terminal (1/4") 2 MC Insulator (1-Terminal) Red Pilot Light Horn

1

Battery Cable (10")-Engine GND

NOTE: Replacement harness will have Packard Plug, and will not fit harness with molded plug.

1 Wire is required on machines which use alternator (#8EA2001 FA) with regulator (#8RC2009A).

2 Begins with S/N 4130537 and above.

3 Ends with S/N 4E0568 and below.

52

9E:TT CY

111

111

BRN/WHT YEL

1

■■

ORG

• // 414 \ // \ / 10

A

7\

AIR HYO. HYD. OIL TEMP FILTER OIL FILTER

5

ELECTRICAL SCHEMATIC WISCONSIN ENGINE FOR MODEL 350SX Ref. No. 1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

8/88

Part Number

195-424 195-439 195-359 215-026 215-046 215-051 215-052 105-909 215-060 215-063 215-064 215-065 215-128 215-129 215-415 215-133 215-415 215-140 215-141 215-142 215-144 215-145 215-205 215-201

Qty.

1 1 1 1 3 1 1 2 2 2 1 1 1 1 1 1 1 1 1 1 2 2

Description

Starter 2 Breaker Point Kit 1 Breaker Point Set Solenoid Safety Switch Ignition Switch (Incl. Keys & Nut) Keys (Pair) Jam Nut (13/16-NF) Toggle Switch Relay Diode Bridge Circuit Breaker Hour Meter Volt Meter Light Kit (Option) Fuel Gauge Light Kit (Option) Fuel Sender Hyd Oil Hi Temp Sender Hyd Oil Lo Temp Sender Hyd Oil Filter Switch Air Filter Switch Fan

Ref. No.

Part Number

Qty.

Description

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

215-251 215-304 215-322 215-335 215-482 215-553 215-554 215-567 215-578 215-641 215-642 215-644 215-645 215-647 217-006 306-601

1 1 1 1 1 1 1 1 1 1 1 1 1 1 3 1

Battery Battery Cable (13") Battery Cable (75") Battery Cable (10") 2-Wire Harness Wire (16 Ga. x 20") Wire (16 Ga. x 12") 2-Wire Harness Wire (16 Ga. x 12") Wire (16 Ga. x 10") 2-Wire Harness Frame Harness Engine Harness Console Harness Red Pilot Light Horn

NOTE: Replacement harness will have Packard Plug, and will not fit harness with molded plug.

BLU, GRN and YEL wires in harness are not used.

1 Ends with Engine S/N 6164220 and below (fits Prestolite).

2Begins with Engine S/N 6164221 and above (fits Colt).

3Ends with S/N 4E0568 and below.

3 Fan

53

050-852

ELECTRICAL DIAGRAM FRAME HARNESS for Deutz and Wisc. Engines

ENGINE HARNESS

WHT/BLK

—BRN BLU/ORG

WHT

BLU/GRN

5

I.'

1\ NC NO

CROWD

11 ■,. WHT/O G

1

ATTACHMENT SPEED

NC NO

C

1 WHT/YEL PARKING BRAKE

NC NO

C

Ref. No.

Pad Number

Qty.

Description

Rel. No.

Part Number

1.

215-046

3

Safety Switch

6.

215-643

2.

215-140

1

Fuel Sender

1 New style frame harness does not use hydraulic oil filter sender harness.

3.

215-144

1

Vacuum Switch (oil filter)

2 Relacement harness will have a Packard Plug and will not work with a

4.

215-641

1

Wire (16 GA x 10" LC)

5.

215-644

1

2 Frame Harness

Qty.

Description

1 Hydraulic Oil Filter Sender Harness

harness that has molded plugs, either replace all harnesses or modify to corresponding plugs. This application may not use all wires in harnesss refer to electrical schematics 050-852/ Wisconsin or 050-853/ Deutz.

See footnote 1.

61130-61142

54

HYDRAULIC SCHEMATIC For Model 350sx TM

ROTO WITCH OPTION 1 MANIFOLD

O

- - - - - - - - - RETURN 2000 PSI A// RELIEF /TRICK QUICK COUPLER

I

0 PR ESSURE

POWER BEYOND QUICK COUPLER

CONTROL VALVE

DOUBLE HYDROSTATIC PUMP

VARIABLE PUMP

DRAIN

V

REAR /..._ DOUBLE ACTING STEER

CYLINDER

COUNTERBALANCE VALVE NO NC

OIL COOLER

FILLER

VACUUM SW ITCH

0 41_

BREATHER

^15 PSI BYPASS - SIGHT GLASS FILTER EL MENT

L

I

FILL" SCREEN

STEP RESERVOIR

•

4()

CHECK I '-`-‘----- VALVE

....,...._ 2500 PSI RELIEF 301 ■ PILOT 4341 OPT ION I

*

I

RESERVOIR =r.MAGNET

NOTE: Reference numbers refer to connections on attachment hydraulic schematics.

A. Change counterbalance cartridge S/N 180479, was 1750 PSI relief.

B. Change front and rear motors S/N 4E0442.

10/88-A

(CONTINUED)

55

050-731

Continued 050-731 Page 2

SPECIFICATIONS

MFG (No Load)

RPM

RPM

GPM

Deutz (Diesel)

3000 Ground Drive 3000 Charge 3000 Auxiliary No.1 x3000 Auxiliary No.2 3000 3000 Ground Drive 3000 Charge 3000 Auxiliary No.1 3000 Auxiliary No.2 3000

29.9 9.4 29.9 13.0 29.9 9.4 29.9 13.0

Wisconsin (Gas)

M TOR

PUMP

ENGINE TYPE

56

DISPLACEMENT

2.3 in. 3 7.2 in. 3 2.3 in. 3 1.0 in.3 2.3 in.3 .72 in. 3 2.3 in. 3 1.0 in. 3

TYPE

DISPLACEMENT

Steering Rear Drive Front Drive

7.42 in.3 320.6in 320.6in

Steering Rear Drive Front Drive

7.42 in. 3 320.6in 20.6in3

- VALVE HYDRAULICS

See footnotel To Control Valve

8

Ref. No.

Part Number

Qty.

Description

6.

154-135

1

Run Tee (3/4-JIC FM x

0-Ring (-908)

7.

154-576

1

Hose (3/4-JIC FM x 22-1/2", 2000 PSI)

Adapter Connector (3/4-SAE M x

8.

158-513

1

Hydraulic Control Valve

9.

158-514

1

Counterbalance Valve

10.

156-377

1

Return Tube (1/2"T x 21-7/81

11.

154-031

1

Adapter Connector (7/8-SAE M x

Ref. No.

Part Number

Qty.

Description

1.

154-005

1

Adapter Connector (3/4-JIC M x

3/4-JIC M x 3/4-JIC M)

3/4-SAE M, STR) 155-706

2

154-015

4

7/16-JIC M, STR) 3.

154-066

4

Adapter Union (7/16-11C FM x 7/16-JIC M x 90°)

4.

154-073

1

3/4-JIC M, STR)

Adapter Connector (9/16-SAE M x 155-707

3/4-JIC M x 45°) 154-077

'Refer to TROLLEY LIFT and SWING HYDRAULICS for units with plows. Refer to WHEEL LIFT and SWING HYDRAULICS for units with earth saws.

0-Ring (-906)

155-105 5.

1

0-Ring (-910)

Adapter Union (3/4-JIC M x 3/4-JIC FM x 90°)

69092-69094

57

PUMP HYDRAULICS

801-722 58

PUMP HYDRAULICS REF PART NO. NUMBER OTY DESCRIPTION 1. 105-032 2 BOLT (3/8-NC X 3/4") 2. 105-047 2 LOCKNUT (3/8-NC) 3. 105-048 2 BOLT (1/2-NC X 1-1/2") 4. 105-065 2 LOCKNUT (1/2-NC) 5. 105-089 2 LOCKNUT (5/16-NC) 6. 110-026 2 HOSE CLAMP (1/2 TO 1-1/4") 7. 110-250 2 HOSE CLAMP (1-1/4" TO 2-1/8") 8. 110-268 1 STRAINER 9. 116-080 AR SUCTION HOSE 10. 115-374 AR SUCTION HOSE 11. 116-080 AR SUCTION HOSE 12. 110-133 2 HOSE CLAMP (1-1/16" TO 1-5/16") 13. 154-014 2 ADAPTER CONNECTOR (12S-12J90) 14. 154-027 2 ADAPTER CONNECTOR (12S-12J) 15. 317-155 1 REAR SUPPORT 16. 215-144 1 VACUUM SWITCH 17. 165-631 1 GASKET 18. 156-376 1 MANIFOLD TUBE 19. 154-542 1 HOSE (12JFX-42-1/2"-2250) 20. 155-513 1 HYDRAULIC PUMP 21. 155-149 1 SLIP-ON COUPLER (16S-20H90) 22. 155-166 1 SLIP-ON COUPLER (16S-20H-2N90) 23. 155-169 1 SLIP-ON COUPLER (16N-20H) 24. 155-512 1 DOUBLE HYDRAULIC PUMP 197-453 1 REBUILT DOUBLE HYDRAULIC PUMP N/A 1 DOUBLE HYDRAULIC PUMP 197-452 1 REBUILT DOUBLE HYDRAULIC PUMP 25. 155-190 1 SLIP-ON COUPLER (16S-20H90) 26. 155-132 1 ADAPTER CONNECTOR (4S-4J45) 27. 154-523 1 HOSE (04JFX-12-1/2"-5000) 28. 154-091 1 PLUG (04J)

REMARKS

USE 26-1/2" USE 18" USE 48"

BEGINS WITH S/N 4F0109 BEGINS WITH S/N 4F0109 SEE FOOTNOTE 1 ENDS WITH S/N 4F0108 EXTRA LONG

REFER TO 0-RING CHART (800-301) IN BACK OF THE BOOK FOR REPLACEMENT OF SAE AND ORS 0-RINGS.

FOOTNOTES 1 -THIS EARLY STYLE OF DOUBLE HYDRAULIC PUMP ENDS WITH S/N 4F0108 AND IS NO LONGER AVAILABLE. IF REPLACEMENT IS REQUIRED ORDER. PUMP, ADAPTER & HOSE FOR THE NEW VERSION OF THE DOUBLE HYDRAULIC PUMP (P/N 197-453).

2 -REFER TO PAGE ENTITLED OIL FILTER HYDRAULICS. NOTES: IF REMOVAL OF PUMP IS REQUIRED THE INNER FENDERS. OF THE FRAME. MAY BE ALTERED TO ALLOW FUTURE ACCESS TO THE RELIEF CARTRIDGES WITHOUT REMOVAL OF THE PUMP. REFER TO ITEM 5 OF TECHNICAL BITS DATED 12-5-85. AND SEE F/N 1.

801-722 59

" GROUND DRIVE HYDRAULICS (Ends with S/N 4E0442)

5

Ref. Part No. Number

Qty.

Description

Ref. No.

Part Number

Qty. Description

1.

154-026

3

Adapter Union (1-1/16-JIC FM x

6.

154-149

1

Run Tee (9/16-JIC M x 9/16-JIC M x

2.

154-035

4

Adapter Connector (7/8-SAE M x

7.

154-150

1

Adapter Connector (1-1/16-SAE M x

1-1/16-J1C M x 90 °)

9/16-JIC FM)

1-1/16-J1C M, STR) 155-707 3.

4.

154-044 154-057

9/16-JIC M, STR)

0-Ring (-910) 1 1

155-709

0-Ring (-912)

Adapter Union (9/16-JIC FM x

8.

154-522

1

Hose (9/16-JIC FM x 18", 4000 PSI)

9/16-JIC M x 90°)

9.

154-509

1

Hose (9/16-JIC FM x 84", 4000 PSI)

Adapter Connector (9/16-SAE M x

10.

154-597

3

Hose (1-1/16-JIC FM, STR x 1-1/16-

9/16-JIC M x 90°) 155-705 5.

154-145 155-748

2

JIC M x 90 ° x 35', 3000 PSI)

0-Ring (-906)

11.

155-572

1

Hydraulic Motor (front drive)

Adapter Connector (1-5/16-SAE M x

12.

155-573

1

Hydraulic Motor (rear drive)

1-1/16-JIC M x 90 °)

1 Ref er to page entitled VIBRATOR HYDRAULICS for units equipped with

A331 (vibratory plow). Refer to page entitled WHEEL DRIVE HYDRAULICS for units equipped with A341 (earth saw).

0-Ring (-916)

76028-76028

60

GROUND DRIVE HYDRAULICS (Begins with S/N 4E0443)

Rd. Pad No. Number

Description

1.

154-026

3

2.

154-035

4

3

155-707 154-044

1

4.

154-057

1

5

155-705 154-145

2

155-748

Adapter Union (1-1/16-JIC FM x 1-1/16-JIC M x 90 °) Adapter Connector (7/8-SAE M x 1-1/16-JIC M, STR) 0-Ring (-910) Adapter Union (9/16-JIC FM x 9/16-JIC M x 90°) Adapter Connector (9/16-SAE M x 9/16-JIC M x 90°) 0-Ring (-906) Adapter Connector (1-5/16-SAE M x 1-1/16-JIC M x 90 °) 0-Ring (-916)

Rel. No.

Part Number

QIY-

Desedption

6.

154-149

1

7.

154-150

1

8.

9.

10.

155-709 154-522 154-510 154-597

1 1 3

11.

12.

155-572 158-703

1 1

Run Tee (9/16-JIC M x 9/16-JIC M x 9/16-JIC FM) Adapter Connector (1-1/16-SAE M x 9/16-JIC M, STR) 0-Ring (-912) Hose (9/16-JIC FM x 18", 4000 PSI) Hose (9/16-JIC FM x 96", 4000 PSI) Hose (1-1/16-JIC FM, STR x 1-1/16JIC FM x 90° x 35', 3000 PSI) Hydraulic Motor (rear drive) Hydraulic Motor (front drive)

1 Refer to page entitled VIBRATOR HYDRAULICS for units equipped with

A331 (vibratory plow). Refer to page entitled WHEEL DRIVE HYDRAULICS for units equipped with A341 (earth saw).

76082-76084

61

RESERVOIR and OIL COOLER HYDRAULICS

78

6

---- ,-- 9

■.

Z /---- - - \ 3 footnote ' 181910 / / \

#),

@,)

/ 56 -- 3 242625

17

14 —@

Ref. No.

Pad Number

1.

2.

3.

4.

5.

105-841 105-184 105-823 105-214 110-008 165-626 110-026 110-269 360-822 115-374 115-691 154-114

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

155-709 110-130 154-576 155-130 155-705 155-167

Qty.

Description

11 Clip Nut (5/16-NC) 6 3 Screw (No. 10-24 x 3/41 15 Flange Lock Bolt (5/16-NC x 3/4") 6 Screw 1 Filler Breather 1 Gasket 2 Hose Clamp 1 1 Diffuser 1 Head Tank AR Suction Hose (3/4' ID)use 66" 1 30i1 Level Window 2 Adapter Connector (1-1/16-SAE M x 3/4-JIC M x 90 °) 0-Ring (-912) 2 Magnet 1 Hose (3/4-JIC FM x 22-1/2") 1 Plug (9/16-SAE M) 0-Ring (-906) 1 1 Slip-On Coupler (1/2-NPT M x 3/4" OD x 90 °)

Ref. No.

Pad Number

16.

155-174

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

155-709 105-814 165-626 165-668 304-275 360-330 360-817 105-825 115-320 116-218 360-849

Qty.

Description

1 2Slip-On Coupler (1-1/16-SAE M x 3/4' OD x 90 °) 0-Ring (-912) 8 Flange Lockout (3/8-NC) 1 3Filler Neck Gasket 1 3Gasket 1 3Reinforcing Ring 1 Oil Cooler 1 Step Tank 8 Flange Lock Bolt (3/8-NC x 3/4") 1 °Grommet 1 4Sight Glass 1 °Reflector

lEnds with S/N180716. Diffuser (ref. no. 7) and related slip-on coupler (ref. no. 15) were used on early models.

2 8egIns with S/N 180717.

3 Ends with S/N 180755. , Begins with S/N 180756.

76030-76030

62

- OIL FILTER HYDRAULICS

1

Ref. No.

Part Number

Qty.

Description

1.

2.

3.

110-250 116-191 155-047

2 1 1

4.

155-748 155-168

1

5.

155-702 155-954

1

Hose Clamp Suction Hose (1-1/4' ID x 6-1/2' LG) Slip-On Coupler (1-5/16-SAE M x 1-1/4" OD, STR) 0-Ring (-916) Slip-On Coupler (1-5/8-SAE M x 1-1/4" 013x 90 °) 0-Ring (-920) Oil Filter Element

ets

Ref. No.

Part Number

6.

7.

8.

9.

10.

11.

159-015 1 105-825 12 105-826 2 4 105-845 317-147 1 150-964 1 157-001

Qty.

Description

Oil Filter Head Flange Lock Bolt (3/8-NC x 3/4') Flange Lock Bolt (3/8-NC x 1') Flange Locknut (3/8-NC) Oil Filter Bracket 1 Suction Tube (1-7/8-SAE M x 1-5/8-SAE FM) 0-Ring (-924)

1 Present production, suction tube was not used on early models.

76080-76082

63

64

FRONT AND REAR STEERING HYDRAULICS REF NO.

PART NUMBER OTY DESCRIPTION

1.

2.

150-123 154-016 154-057 154-044 154-055 154-057 154-066 154-11 9 154-506 154-537 154-538 154-541 154-586 155-032 155-091 155-129 155-133 158-513 158-515 158-616 105-003 105-826 105-834 105-873 317-205 317-206

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

.

2 1 1 2 3 2 3 2 1 2 2 1 1 3 1 1 1

1 1 1 2 1 1 2 1 1

CYL (2.0" X 1.18" X 2.25") CONNECTOR (08S-06S) CONNECTOR (06S-06J90) UNION (06J-06J90) CONNECTOR (06S-04J90) CONNECTOR (06S-06J90) UNION (04J-04J90) CONNECTOR (04J-04J90. .06 ORF) HOSE (06JFX-33"-4000) HOSE (04JFX-56"-5000) HOSE (04JFX-45"-2750) HOSE (04JFX-35.5"-2750) HOSE (06JFX-63"-2250) UNION (12N-08N90) CONNECTOR (04S-04J90) ADAPTER BUSHING (12S-06S) CONNECTOR (04S-04J) HYDRAULIC CONTROL VALVE POWER STEERING VALVE POWER STEERING VALVE FLANGE LOCKNUT (5/16-NC) FLG LK BOLT (3/8-NC X 1") FLANGE LOCKNUT (3/8-NC) FLG LK BOLT (5/16-NC X 1") HOSE RETAINER UPPER HOSE GUARD

REMARKS

ENDS WITH S/N BEGINS WITH S/N

FOOTNOTES

801-807 65

- MANIFOLD HYDRAULICS

Rel. Part No. Number

Qty.

Description

1.

2.

3.

4.

105-098 105-260 110-253 154-027

2 2 1 2

5.

6.

7.

8.

155-709 156-375 159-014 155-630 155-074 155-706

Bolt (3/8-NC x 3") Clip Nut (3/8-NC) Pop Rivet Adapter Connector (1-1/16-SAE M x 1-1/16-JIC M, STR) 0-Ring (-912) Tube (3/4"T x 14" LG) Hydraulic Manifold Pressure Relief Cartridge Plug (3/4-SAE M) 0-Ring (-908)

1 1 1 2

RM. No.

Part Number

9.

10.

11.

155-933 155-958 500-302 155-709 500-400 500-373 215-141 215-142 155-935 155-936 155-709

12.

13.

14.

15.

16.

17.

76081-76083

66

MY.

Description

2 1 1

Quick Coupler Adapter (1-1/16-SAE M) Trick Quick Coupler Body (1-1/16-SAE M) Plug (1-1/16-SAE M) 0-Ring (-912) Flow Divider Seal Repair Kit Hydraulic Oil High Temperature Sender Hydraulic Oil Low Temperature Sender

1 1 1 2 1 2

Dust Cap Dust Plug 0-Ring (-912)

BORING ATTACHMENT

68

DRILLING TOOLS WET BORE REF NO.

PART NUMBER OTY DESCRIPTION

1.

351-004 1 351-005 1 351-006 1 2. 351-065 1 351-013 1 351-014 1 351-059 1 351-031 1 3. 351-020 AR 4. 351-026 1 5. 351-094 1 6. 351-015 1 7. 351-023 1 8. 105-013 1 9. 105-095 1 10.

351-0081 AR 351-030 AR 11. 1351-016 AR 351-032 AR 12. 351-010 AR 13. 351-009 AR 14. 351-012 AR 351-011 AR 15. 351-100 AR 351-095 AR 351-096 AR 351-097 AR

2-1/4" COMPACTION BIT (1-NC) 1-3/4" COMPACTION BIT (1-NC) 1-3/4" COMPACTION BIT (3/4-NPT) 4-3/4" BACK REAMER 6" BACK REAMER 8" BACK REAMER 10" BACK REAMER 12" BACK REAMER GUIDE ROD 2" FISHTAIL WATER BIT (1-NC) 3-3/4" WATER REAMER (1-NC) 2-1/4" WATER BIT (3/4-NPT) WATER BIT CUTTER SHOULDER BOLT (5/16-NC X 5/8") WASHER (1/4") JOINT CONNECTOR (3/4-NPT) JOINT CONNECTOR (1-NC) TOOL JOINT ADAPTER (1-NC FM X 3/4-NPT M. 3-9/16" LG) TOOL JOINT ADAPTER (1-NC FM X 3/4-NPT FM. 6" LG) TOOL JOINT (1-NC) TOOL JOINT (1-NC) TOOL JOINT (1-NC) TOOL JOINT (1-NC) DRILL PIPE (1') DRILL PIPE (5') DRILL PIPE (10') DRILL PIPE (20')

REMARKS

FOR 1" STD PIPE FOR 1" XH PIPE FOR 3/4" STD PIPE FOR 3/4" XH PIPE

FOOTNOTES

801-764

69

DRILLING TOOLS DRY BORE PRESENT PRODUCTION

70

DRILLING TOOLS DRY BORE PRESENT PRODUCTION REF NO. 1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

PART NUMBER OTY DESCRIPTION 105-085 1 LOCKNUT (1/4-NC) 105-106 1 BOLT (1/4-NC X 2) 105-525 1 ROLL PIN (3/16 X 1-1/4) 105-535 ROLL PIN (1/8 X 5/8) 115-618 COMPRESSION SPRING (.625 LG) 220-010 1 SLIM DETECTION SONDE 351-030 1 ALL THREAD (1-NC X 2-3/4) 351-135 1 1.5" THREADED COMPACTION BIT 351-357 1 1.75" THREADED COMPACTION BIT 351-139 1 2" THREADED COMPACTION BIT 351-141 1 2.25" THREADED COMPACTION BIT 351-136 1 1.5" SLIP LATCH COMPACTION BIT 351-138 1 1.75" SLIP LATCH COMPACTION BIT 351-140 1 2" SLIP LATCH COMPACTION BIT 351-142 1 2.25" SLIP LATCH COMPACTION BIT 351-154 1 DETECTION ROD 105-702 SET SCREW (3/8-NC X 3/8) 351-345 STOP 351-155 1 TOOL JOINT ADAPTER 351-156 1 ROD ADAPTER 351-234 COUPLING SEAR 351-236 1 CONNECTOR SHAFT 167-035 1 CONNECTOR SHAFT 351-255 AR 5' STEM SECTION 351-256 AR 10' STEM SECTION SLIP LATCH STEM END 351-265 351-238 1 HEX SLEEVE STEM END 351-351 1 HAND HELD ROD GUIDE 351-266 1 ADAPTER 351-267 1 ADAPTER 351-272 1 SLIP LATCH UNCOUPLER 351-275 1 ADAPTER 351-280 1 ADAPTER 351-310 1 1.5" TWO PRONG ROCK BIT 351-311 1 2" TWO PRONG ROCK BIT 351-312 1 3" TWO PRONG ROCK BIT 351-313 1 BIT BODY 351-314 1 BIT BODY 351-331 1 FROST AUGER 351-332 1 FROST AUGER 351-337 1 1.5" SPADE BIT 351-020 AR GUIDE ROD 351-095 AR ROD SECTION 5' 351-096 AR ROD SECTION 10' 190-137 SLIP LATCH COUPLER REPAIR KIT 351-143 1 1.38" SAND BIT 351-347 ROD GUIDES

REMARKS

7/8-NC (FMS) TO 1-NC (FMC) 7/8-NC (FMC) TO FEMALE SLIP LATCH SLIP LATCH THREADED WELD-ON REPLACEMENT WELD-ON REPLACEMENT INCLUDING DECAL 275-480, DANGER ROTATING SHAFT. FEMALE THREADED TO MALE SLIP LATCH FEMALE THREADED TO FEMALE SLIP LATCH SLIP LATCH MALE TO MCLAUGHLIN FEMALE SLIP LATCH FEMALE TO MCLAUGHLIN MALE SEE FOOTNOTE 1 SEE FOOTNOTE 1 SEE FOOTNOTE 2

SEE FOOTNOTE 1

INCL REF NO. 4, 5, 13 INCLUDING DECAL 274-187 TURNING SHAFT HAZARD ALERT.

FOOTNOTES 1 BIT BODY (REF 24 OR FROST AUGER (REF 26) AND ROOL PIN (REF 3) NEEDED TO COMPLETE BIT ASSEMBLY. 2 BIT BODY (REF 25) OR FROST AUGER (REF 27) AND BOLT AND NUT (REF 1 7 2) NEEDED TO COMPLETE BIT ASSEMBLY.

801-492

A

71

PULLING TOOLS

16 15

-44

3 1

10

801-533 72

PULLING TOOLS REF NO.

PART NUMBER OTY DESCRIPTION

1.

2.

3.

4.

5.

6.

105-053 105-075 105-117 105-535 106-133 106-134

7.

8.

9.

110-289 115-618 351-147 351-148 351-149 351-150 351-153 351-230 351-234 351-246 351-340

10.

11.

12.

13.

14.

15.

16.

17.

185-901 185-902 185-903 185-904 185-906 185-907 185-913 354-046 354-047 354-048 354-049 354-050 354-137 190-137

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

REMARKS

NUT (3/8-NC) BOLT (3/8-NC X 2") WASHER (5/16") ROLL PIN (1/8" X 5/8") STUD (7/8-NC X 2.4") STUD (7/8-NC X 2.4".

3/8-NC D & T) ANCHOR SHACKLE (5/16") COMPRESSION SPRING (.625" LG) 2.5" REAMER 3" REAMER 3.5" REAMER 4" REAMER BEARING SWIVEL SLIP LATCH PIN COUPLING SEAR SWIVEL ADAPTER (7/8-NC M TO SLIP LATCH M) PULLING GRIP (3/8" TO 1/2") PULLING GRIP (1/2" TO 3/4") PULLING GRIP (3/4" TO 1-1/4") PULLING GRIP (1-1/4" TO 2") PULLING GRIP (2" TO 2-3/4") PULLING GRIP (2-3/4" TO 3-1/2") PULLING GRIP (3-1/2" TO 4-1/4") PIPE ADAPTER (1-NPT) PIPE ADAPTER (1-1/2-NPT) PIPE ADAPTER (2-NPT) PIPE ADAPTER (2-1/2-NPT) PIPE ADAPTER (3-NPT) PIPE ADAPTER (4-NPT) SLIP LATCH COUPLER REPAIR KIT

INCL REF NO 17

INCL REF NO 4. 8. AND 12

FOOTNOTES

801-533

73

050-727

HYDRAULIC SCHEMATIC FOR MODELS BA/1810 AND 350SX

CONTROL VALVE E

CONTROL LEVER BORING MOTOR

NV IN

-4-our 2500 PSI RELIEF SPRING CENTER

NOTE: Reference numbers refer to connections on machine hydraulic schematic.

74 (CONTINUED)

050-727

Continued 050 727 -

SPECI F ICAT IONS

MFG (No Load) DNA

MOTOR

PUMP

ENGINE RPM

TYPE

RPM

GPM

DISPLACEMENT

TYPE

DISPLACEMENT

DNA

DNA

DNA

DNA

DNA

Boring

18.7 in. 3

75

BORING ATTACHMENT HYDRAULICS

Ref. Part No. Number

022-039 1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

Qty. Description

2 Dry Bore Attachment Kit (Incl.

no.'s 1 thru 30) 105-048 4 Bolt (1/2-NC x 1-1/21 105-065 6 Lockout (1/2-NC) 105-229 2 Bolt (1/2-NC x 2') 154-005 2 Adapter Connector (3/4-SAE M x 3/4-JIC M, STR) 155-706 0-Ring (-908) 154-006 1 Adapter Connector (1-1/16-SAE M x 3/4-JIC M, STR) 155-709 0-Ring (-912) 154-014 1 Adapter Connector (1-1/16-SAE M x 1-1/16-J1C M x 90 °) 155-709 0-Ring (-912) 154-026 2 Adapter Union (1-1/16-JIC M x 1-1/16-JIC FM x 90 °) 154-111 4 'Adapter Union (3/4-JIC M x 3/4-JIC FM x 90 °) 154-114 1 'Adapter Connector (1-1/16-SAE M x 3/4-JIC M x 90°) 155-709 0-Ring (-912) 154-128 2 Adapter Union (3/4-JIC M x 3/4-JIC FM x 45 °) 154-542 2 Hose (1-1/16-J1C FM x 90° x 42-1/2", 5000 PSI) 154-562 2 Hose (3/4-JIC FM x 37-1/2', 2000 PSI) 154-567 1 Hose (3/4-JIC FM x 45', 2000 PSI) 155-579 1 Hydraulic Motor 155-621 1 Hydraulic Control Valve 180-723 1 Cross and Bearing 115-010 Zerk (1/8-NPT x 22-1/2°) 180-760 Bearing Cap

Ref. Pad No. Number

Qty.

17.

1

18.

19.

20.

21.

182-061 190-125 190-173 182-092 317-128 351-219 154-153

22.

155-709 154-013

23.

155-707 154-031

24.

25.

26.

27.

28.

29.

30.

31.

155-707 317-205 105-826 105-834 159-017 155-706 155-780 155-718 501-153

Description

3Quick Disconnect Yoke 3Slide Lock Repair Kit (w/steel collar) 3Slide Lock Repair Kit (w/plastic collar) 1 Motor Yoke 1 Boring Attachment Mount 1 Yoke Guard 1 Branch Tee (1-1/16-SAE M x 1-1/16-JIC M x 1-1/16-JIC M) 0-Ring (-912) 1 Adapter Connector (7/8-SAE M x 3/4-JIC M x 90 °) 0-Ring (-910) 1 Adapter Connector (7/8-SAE M x 3/4-JIC M, STR) 0-Ring (-910) 1 Hose Retainer 1 Flange Lock Bolt (3/8-NC x 11 1 Flange Locknut (3/8-NC) 1 1 Port Plug 1 '0-Ring (-908) 2 'Backup Ring (-012) 1 '0-Ring (-012) 4 Flange Lock Bolt (3/8-NC x 5/8")

'Adapters, port plug and associated parts are only used on manifold when machine Is equipped with a boring attachment.

2 Refer to installation diagram 050-181.

3 Early style quick disconnect yoke (ref. no. 17) has steel collar present yoke has plastic collar. Yokes are interchangeable, but the repair kits are not.

78081-78083

76

A331 PLOW PARTS LIST

275-561 DECAL KIT FOR MODELS VPR30, A330, A331, VP40, A430, VP60, VP65 AND A630 Ref. No.

Part Number

1.

2.

050-344 275-023 275-052

Qty.

Description

2 1

Location Diagram Oil Level Plow Shifter

Ref. No.

Part Number

Qty.

Description

3.

275-142 275-274 275-275 275-405 275-300

1 1 1 1 1

A330 Model-ID A430 Model-ID A630 Model-I D A331 Model-ID Plow Control Valve (4010, 5010 & 6510)

4.

6/84—C

78

050-344

TROLLEY

12

Rel. No.

Part Number

Qty.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

105-003 105-070 105-172 105-293 105-475 105-823 110-228 115-341 125-435 125-727 125-728 125-734 183-289 183-290 183-291 183-292 317-083 317-084 317-087

4 Flange Locknut (5/16-NC) 4 Lock Washer (1/2") 4 Bolt (1/2-NF x 18 Bolt (1/2-NC x 3/4") 18 Washer (1/2") 4 Flange Lock Bolt (5/16-NC x 3/4") 2 Quick Clip Pin 2 Shock Mount 2 5 Composition Bushing (1-1/2" OD x 1-1/2" LG) 6 5 Composition Bushing (1-1/2" OD x 3/4' LG) 24 5Composition Bushing (1-1/2" OD x 1' LG) 4 5 Bushing (1-3/4" OD x 1" LG) 6 Pin (11-1/16" LG) 1 Pin (10-1/16" LG) 2 Pin (3-3/16' LG) 2 Handle Pin (5-15/16" LG) 1 Upper Lift Arm 1 Lower Lift Arm 1 Lift Link

Description

48086-48091

79

Ref. No.

Part Number

20.

317-090 317-212

317-215 21. 317-162 22. 105-047 23. 105-118 24. 105-156 25. 185-911 Not Shown: 317-052

Qty.

Description

1 1 Trolley Swing 1 2Trolley Swing 1 3Trolley Swing (all replacements) 1 Trolley Cover 2 Lockout (3/8-NC) 4 Washer (3/8") 2 Bolt (3/8-NC x 1-1/2') 1 Sod Cutter Blade 4Cylinder Support

1 Ends with S/N180477. When replacing trolley swing on machines prior to

S/N180478 refer to footnote 3.

2 3/N180477 thru S/N180694. See footnote 3.

3 Begins with S/N180695. This style of trolley swing (see cylinder tab)

replaces earlier styles. When replacing trolley swing prior to S/N180478 It Is necessary to replace hydraulic swing cylinder as indicated on TROLLEY LIFT and SWING HYDRAULICS. , If necessary to replace cylinder support brace, on trolley swing, order cylinder support (not shown) and refer to Item 1 of Technical Bits dated 12-2-82.

3 Refer to special tool diagram 052-511.

FEED BLADES (See Notes)

9 ,, footnote' ,

/

1 ,

Rel. Part No. Number

Qty.

1.

110-032

1

1 Clip Pin (5/16" x 2-1/4")

2.

125-734

4

4 Bushing (1-3/8" ID x1 1 LG)

3.

186-237

1

3Cable Guide (12" LG x 3/8" THK x 1-1/2" RAD)

186-450

1

186-773

1

186-240

1

186-502 4.

Rel. No.

Pad Number

Qty.

5.

186-239

1

3 Cable Guide (12' LG x 3/4' THK x 7-1/2" MD)

186-465

1

4 Cable Guide (12' LG x 3/4' THK x 7-1/2' MD)

186-400

1

3 Cable Guide (12" LC x 1' THK x 10' RAD)

table Guide (12" LG x 3/8" THK x 1-1/2" RAD)

186-473

1

4 Cable Guide (12" LC x 1" THK x 10' MD)

table Guide (12" LG x 1/2' THK x 1-1/2" RAD)

186-242

1

3

3Cable Guide (18" LG x 3/8' THK x 1-1/2" RAD)

186-516

1

table Guide (18' LG x 3/4' THK x 7-1/2' RAD)

1

table Guide (18" LG x 3/8" THK x 1-1/2' RAD)

186-243

1

3 Cable Guide (18" LG x 1' THK x 10" MD)

186-780

1

table Guide (18' LG x 1/2" THK x 1-1/2' RAD)

186-530

1

4 Cable Guide (18" LG x 1' THK x 10' MD)

186-238

1

3Cable Guide (12' LG x 3/4" THK x 3' RAD)

186-457

1

table Guide (12" LG x 3/4" THK x 3" RAD)

186-241

1

3 Cable Guide (18' LG x 3/4" THK x 3" RAD)

186-509

1

4 Cable Guide (18" LG x 3/4" THK x 3' RAD)

Description

186-244

1

3 Cable Guide (24" LG x 3/4" THK x 3" MD)

186-523

1

4 Cable Guide (24' LG x 3/4" THK x 3' MD)

Description

Cable Guide (18' LG x 3/4" THK x 7-1/2' MD)

(Continued on following page.)

66079-66103

80

FEED BLADES (Cont'd.)

(See Notes) Ref. Part No. Number

6.

186-199

Ref. Part No. Number

Qty. Description 3

Feed Blade (12' LG, w/1/8" IM x 1-1/2"

8.

86-414

Qty. Description 3

Feed Blade (12" LG, w/3/4" IM x 7-1/2'

RAD)—Incl. ref. no.'s 3 and 11 186-448

4

RAD)—Incl. ref. no.'s 5 and 11

Feed Blade (12" LG, w/3/8" IM x 1-1/2 6

4

186-463

RAD)—Incl. ref. no.'s 3 and 11 186-765

4

RAD)—Incl. ref. no.'s 5 and 11

Feed Blade (12' LG, w/1/2' IM x 1-1/2'

86-406

3

186-471

4

86-370

3

186-514

4Feed Blade (18" LG, 3/4' IM x 7-1/2'

86-371

3

186-528

4

RAD)—Incl. ref. no.'s 3 and 11 186-804

4

3

Incl. ref. no.'s 3 and 11 4Feed Blade (18' LG, 1/2' IM x 1-1/2' RAD)-

186-805

4

186-200

3

RAD)—Incl. ref. no.'s 5 and 11

Incl. ref. no.'s 3 and 11

9.

RAD)—Incl. ref. no.'s 4 and 11 4Feed Blade (12' LG, w/3/4" IM x 3"

186-202

3

186-507

4

186-203

3

186-521

4

Feed Blade (18" LG, 1" IM x 10' RAD)—Incl. ref. no.'s 5 and 11

Feed Blade (12' LG, w/3/4" IM x 3'

186-455

Feed Blade (18' LG, 1' IM x 10° RAD)—Incl. ref. no.'s 5 and 11

Speed Feed Blade (18' LG, 1/2" IM x 1-1/2" RAD)—Incl. ref. no.'s 3 and 11

7.

Feed Blade (18' LG, 3/4 IM x 7-1/2" RAD)—Incl. ref. no.'s 5 and 11

4Feed Blade (18' LG, 3/8' IM x 1-1/2' RAD)-

186-774

Feed Blade (12' LG, w/1" IM x 10" RAD)—Incl. ref. no.'s 5 and 11

Feed Blade (18' LG, 3/8' IM x 1-1/2' RAD)Incl. ref. no.'s 3 and 11

186-500

Feed Blade (12" LG. w/1" IM x 10' RAD)—Incl. ref. no.'s 5 and 11

Speed Feed Blade (12' LC, w/1/2" IM x 1-1/2' RAD)—Incl. ref. no.'s 3 and 11

186-201

Feed Blade (12" LG, w/3/4" IM x 7-1/2'

105-052 1

1 Bolt (3/8-NC x 1-1/4")— for 3/8 IM blade

105-286 1

RAD)—Incl. ref. no.'s 4 and 11

1 Bolt (3/8-NC x 1-3/4")— for 3/4" IM blade

Feed Blade (18" LG, 3/4' IM x 3" 105-075 1

RAD)—Incl. ref. no.'s 4 and 11

1 Bolt (3/8-NC x for 1' IM blade

Feed Blade (18' LG, 3/4" IM x 3' RAD)—Incl. ref. no.'s 4 and 11

10.

186-187 1

1 Hand Nut (3/8-NC)

Feed Blade (24' LG, 3/4' IM x 3'

11.

106-021

1

1 Wing Bolt (3/8-NC x 1-1/4")—

106-022 1

1 Wing Bolt (3/8-NC x 1-3/4')—

106-023 1

1 Wing Bolt (3/8-NC x

for 3/8' IM blade

RAD)—Incl. ref. no.'s 4 and 11 Feed Blade (24" LG, 3/4" IM x 3'

for 1/2" and 3/4" IM blade

RAD)—Incl. ref. no.'s 4 and 11

for 1' IM blade 1 Clip pin (ref. no. 1) is used on early models. Bolt and hand nut (ref. no.'s

9 and 10) replaced them and in turn replaced by the wing bolt (ref. no.

11).

2 Bushing (ref. no. 2) is used on early style plow blades which had mounting bosses with 103/4" ID. This busging is not used on replacement blades having bosses with 103/8" ID. Refer to special tool diagram 052-511.

3These parts are associated with blades which have flanged chute entries.

Cable guides for these chutes are available but may not be used with replacement blades which have cast shute entries. Blades, with flanged entries, are no longer available, replace with blades with cast chute entries (ahich include corresponding cable guide). ( These parts are associated with blades which have cast chid entries.

Blades, of this design, wilt not accept cable guides designed for blades with flanged chute entries.

NOTES: Length refers to cover depths. Feed blades (which have fixed tubes) have measurements of the space between feed tubes sides referred to as inside measurement (IM). Cable guide thickness (THK) measurements refer to a measurement from edge to edge and correspond to the inside measurements (IM) of the feed blades they are used with.

66079-66103

81

FLOAT BLADES (See Notes)

Ref. No.

Part Number

Qty.

Description

1.

105-065

4

Lockout (1/2-NC)

2.

105-871

4 1

Bolt (1/2-NC x 2", GD 8) 1 Clip Pin (5/16" x 2-1/2")

Ref. No.

9.

Pad Number

Qty.

186-239

1

3

Cable Guide (12" LG x 3/4" THK x 7-1/2" RAD)

186-465 186-400

1

4

Cable Guide (12' LG x 3/4' THK x 7-1/2' RAD)

1

3

Cable Guide (12' LG x 1" THK x 10" RAD) Cable Guide (12' LG x 1 6 THK x 10' RAD) Cable Guide (18' LG x 3/4" THK x 7-1/2" RAD)

Description

3.

4.

110-032 125-734

4

2 Bushing (1-3/8" ID x 1" LG)

1

5.

125-736

2

Bushing (1' ID x 3/4" LG)

186-473 186-242

4

1

3

6.

181-598

4

Bushing (33/64" ID x 7/8' LG)

186-516

1

7.

186-237 186-450 186-240

1

3 Cable Guide (12' LG x 3/8" THK x 1-1/2" RAD)

1 1

3 Cable Guide (18' LG x 3/8' THK x 1-1/2 6 RAD)

186-243 186-530 186-245

1

4 Cable Guide (12' LG x 3/8" THK x 1-1/2" RAD)

186-502 186-238

1

table Guide (18' LG x 3/8' THK x 1-1/2' RAD)

186-558 186-246

8.

1

3 Cable Guide (12" LG x 3/4" THK x 3' RAD)

186-457 186-241

1

4 Cable Guide (12" LG x 3/4' THK x 3" RAD)

1

3 Cable Guide (18" LG x 3/4" THK x 3" RAD)

186-509

1

table Guide (18" LG x 3/4' THK x 3" RAD)

186-244

1

3 Cable Guide (24' LG x 3/4" THK x 3' RAD)

10.

4 Cable Guide (18' LG x 3/4' THK x 7-1/2' RAD) 3 Cable Guide (18" LG x 1' THK x 10 6 RAD)

4

Cable Guide (18' LG

3

Cable Guide (24' LG x 3/4' THK x 7-1/2' RAD)

1

4

Cable Guide (24' LG x 3/4" THK x 7-1/2' RAD)

1

3

Cable Guide (24' LG x 1' THK x 10" RAD)

186-565

1

4

Cable Guide (24" LG x 1" THK x 10" RAD)

186-248

4

1 1

Link

(Continued on following page.)

66080-66104

82

THK x 10" RAD)

FLOAT BLADES (Cont'd.)

(See Notes) Ref. No.

Part Number

Qty. Description

11. 186-191

Float Blade (12' LG x 5/8" THK)-

Ref. No.

Part Number

14.

186-219

3 Feed Tube (12" LG x 3/4' IM x 7-1/2" RAD)

186-490

4 Feed Tube (12" LG x 3/4" IM x 7-1/2" RAD)-

Incl. ref. no.'s 5 186-192

Qty.

Float Blade (12" LG x 1" THK)-

Incl. ref. no.'s 1, 2, 5, 6, 9, 10 and 17

Incl. ref. no.'s 5 186-395

Float Blade (12" LG x 1-1/4" THK)-

186-398

3 Feed Tube (12' LG x 1' IM x 10' RAD)

186-495

4 Feed Tube (12" LG x 1' IM x 10" RAD)-

Ind. ref. no.'s 5 186-193

Incl. ref. no.'s 1, 2, 5, 6, 9, 10 and 17

Float Blade (18' LG x 5/8" THK)Ind. ref. no.'s 5

186-194

Float Blade (18" LG x1" THK)-

186-222

3 Feed Tube (18" LG x 3/4" IM x 7-1/2" RAD)

186-546

4 Feed Tube (18" LG x 3/4" IM x 7-1/2' RAD)-

Incl. ref. no.'s 1, 2, 5, 6, 9, 10 and 17

Ind. ref. no.'s 5 186-195 186-197

Float Blade (18' LG x 1-1/4" THK)-

186-223

3 Feed Tube (18' LC x 1' IM x 10" RAD)

Ind. ref. no.'s 5

186-551

4 Feed Tube (18" LG x1" IM x 10' RAD)-

Incl. ref. no.'s 1, 2, 5, 6, 9,10 and17

Float Blade (24" LG x 1" THK)-

186-198

Incl. ref. no.'s 5

186-225

3 Feed Tube (24' LG x 3/4" IM x 7-1/2' RAD)

Float Blade (24" LG x 1-1/4" THK)-

186-556

4 Feed Tube (24' LG x 3/4" IM x 7-1/2" RAD)-

Ind. ref. no.'s 1, 2, 5, 6, 9, 10 and 17

Ind. ref. no.'s 5 12. 186-217 186-480

3

Feed Tube (12" LC x 3/8" IM x 1-1/2" RAD)

186-226

3 Feed Tube (24' LG x 1' IM x 10' RAD)

4Feed Tube (12" LG x 3/8" IM x 1-1/2" RAD)-

186-563

4 Feed Tube (24" LG x1" IM x 10' RAD)-

Incl. ref. no.'s 1 , 2, 5, 6, 7, 10 and 17 186-220

3 Feed Tube (18" LG x 3/8' IM x 1-1/2" RAD)

186-536

4 Feed Tube (18" LG x 3/8" IM x 1-1/2" RAD)-

Ind. ref. no.'s 1, 2, 5, 6, 9, 10 and 17 15.

Incl. ref. no.'s 1 , 2, 5, 6, 7, 10 and 17 13.

Description

105-052

1

1 Bolt (3/8-NC x 1-1/4")--for 3/8" IM blade

105-286

1

1 Bolt (3/8-NC x 1-3/41-for 3/4' IM blade

105-075

1

1 Bolt (3/8-NC x 21-for 1" IM blade

186-218

3Feed Tube (12' LG x 3/4" IM x 3" RAD)

16.

186-187

1

1 Hand Nut (3/8-NC)

186-485

4 Feed Tube (12" LG x 3/4m IM x 3" RAD)-

17.

106-021

1

1 Wing Bolt (3/8-NC x 1-1/4")-

Incl. ref. no.'s 1, 2, 5, 6, 8, 10 and 17

for 3/8' IM blade

186-221

3 Feed Tube (18" LG x 3/4' IM x 3" RAD)

106-022

1

1 Wing Bolt (3/8-NC x 1-3/41-for 3/4" IM blade

186-541

4 Feed Tube (18" LG x 3/4" IM x 3" RAD)-

106-023

1

'Wing Bolt (3/8-NC x 2')for 1' IM blade

Incl. ref. no.'s 1, 2, 5, 6, 8, 10 and 17 186-224

'Clip pin (ref. no. 3) Is used on early models. Bolt and hand nut (ref no.'s 15 and 16) replaced them and were in turn replaced by the wing bolt (ref. no. 17).

2 Bushing (ref. no. 4) is used on early style plow blades which had mounting bosses with 1-3/4" ID. This bushing is not used on replacement blades having bosses with 1-3/8" ID. Refer to special tool diagram 052-511.

3These parts are associated with feed tubes which have flanged chute entries. Cable guides for these tubes are available but may not be used with replacement feed tubes, which have cast chute entries. Feed tubes with flanged entries are no longer available, replace with tubes with cast chute entries (which include corresponding cable guide).

4These parts are associated with tubes which have cast chute entries.

These tubes will not accept cable guides designed for tubes with flanged chute entries.

NOTES:Length refers to cover depths. Feed tubes have surements of the space between feed tubes sides referred to as inside measurement (IM).

Cable guide thickness (THK) measurements refer to a measurement from edge to edge and correspond to the inside measurements (IM) of the feed tubes they are used with.

3 Feed Tube (24" LG x 3/4" IM x V' RAD)

66080-66104

83

PULL BLADES (See Notes)

Ref. Part No. Number

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

Qty. Description

105-065 2 Lockout (1/2-NC) 105-871 2 Bolt (1/2-NC x 2", GD 8) 125-734 4 1 Tension Bushing (1-3/8" ID x 1" LG) 125-736 2 Tension Bushing (1" ID x 3/4" LG) 181-598 AR Bushing (.515" ID x .875' LG)1/link kit, 4/feed tube 185-901 1 Pulling Grip (28" LG)—for 3/8' to 1/2" cable 185-902 1 Pulling Grip (36" LG)—for 1/2' to 3/4" cable 185-903 1 Pulling Grip (37' LG)—for 3/4' to 1-1/4' cable 185-904 1 Pulling Grip (48" LG)—for 1-1/4" to 2" cable 186-191 1 Pull Blade (12' LG x 5/8" THK)Incl. ref. no.'s 4 186-395 1 Pull Blade (12' LG x 1-1/4" THK)Incl. ref. no.'s 4 186-193 1 Pull Blade (18' LG x 5/8" THK)Incl. ref. no.'s 4 186-196 1 Pull Blade (24" LG x 3/4" THK)Incl. ref. no.'s 4 186-248 2 Link 186-247 1 Blade Link Kit (Incl. ref. no.'s 1, 2, 5 and 8) 105-047 1 Lockout (3/8-NC) 105-162 1 Bolt (3/8-NC x 2-1/41—for blade with 3' OD bullet 105-156 1 Bolt (3/8-NC x 1-1/2")--for blade with 1-1/2' OD bullet

Rel. Part No. Number

Qty. Description

11.

1

186-422

186-424 1 186-334

1

186-336 1 186-810 1 186-423

1

186-425 1 186-811

1

186-335

1

186-337 1

1 Bullet Blade (12' LG x 3/8" THK, w/ 1-1/2" OD bullet)—Incl. ref. no. 2 2 Bullet Blade (12" LG x 3/8" THK, w/1-1/2' OD bullet) Bullet Blade (12° LG x 3/8' THK, w/3" OD bullet)—Incl. ref. no. 2 2 Bullet Blade (12" LG x 3/8" THK, w/3" OD bullet) 2Speed Bullet Blade (12" LG x 1/2" THK, w/2" OD bullet) 1 Bullet Blade (18' LG x 3/8" THK, w/ 1-1/2' OD bullet)—Incl. ref. no. 2 2 Bullet Blade (18' LG x 3/8' THK, w/1-1/2" OD bullet) 2Speed Bullet Blade (18" LG x 1/2" THK, w/2"OD bullet) 1 Bullet Blade (18" LG x 3/8" THK, w/3"OD bullet)—Incl. ref. no. 2 2Bullet Blade (18" LG x 3/8" THK, w/3' OD bullet)

1 Pull blades with 1-3/4" ID mounting bosses, used bushing (ref. no. 3), and

are no longer available. This bushing is not used on replacement blades having bosses with 1-3/8" ID. Refer to special tool diagram 052-511. See footnote 2.

2These pull blades have bosses with 1-3/8" ID and do not use bushing (ref. no. 3).

NOTES:Length refers to cover depths. For more information refer to Plow Blade Options Chart.

66045-66052

84

SKID SHOES

Ref. No.

Part Number

Qty.

190-212

Ref. No.

Description 1 Skid Shoe Conversion Kit (Incl.

ref. no.'s 1 thru 1 1. 105-047

4

Locknut (3/8-NC)

2.

105-830

4

Flange Lock Bolt (1/2-NC x 1-1/4")

3.

105 - 833

4

Flange Locknut (1/2 - NC)

Part Number

Qty.

Description

6. 317-209

1

Right Skid Shoe

7. 317-210

2

Skid Shoe and Trolley Support

Not Shown: 317-049

2Mounting Bracket

1 Refer to installation diagram 050-176. See footnote 2.

2 If machine's serial numberis before S/N 180512, order mounting bracket

105-835

4

Carriage Bolt (3/8-NC x 3/4")

5. 317-208

1

Left Skid Shoe

4.

(not shown) and see footnote 1.

66053-66060

85 -

COUNTERWEIGHT

4

Ref. No.

Part Number

Qty.

Description

Counterweight Kit (Incl. ref.

100-648

no.'s 1 thru 5) 1.

105-340

1

Flange Locknut (3/4-NC)

2.

105-384

2

Washer (3/41

3.

105-480

1

Bolt (3/4-NC x 81

4.

317-300

1

Weight Rack

5.

375-080

3

Weight Casting [100 LBS)

45059-45062

86 -

REEL CARRIER

3

1 V 7

2

4' Rel. No.

Pad Number

Qty.

2

100-509

1

Description

Rel. No.

Pad Number

Qty.

Description

Reel Carrier Conversion Kit (Incl.

11.

105-003

2

Flange Locknut (5/16-NC)

ref. no.'s 1 thru 11)

12.

105-823

2

Flange Lock Bolt (5/16-NC x 3/4")

105-156

2

3

Bolt (3/8-NC x 1-1/2")

13.

105-841

2

Clip Nut (5/16-NC)

105-150

2

4 Bolt (3/8-NC x 1-3/4")

14.

105-819

4

2.

105-053

2

Nut (3/8-NC)

15.

105-832

4

3.

110-228

2

Clip Pin

16.

110-239

2

1 Flange Lock Bolt (1/4-NC x1") i Flange Lockout (1/4-NC) 1 Hood Lanyard

4.

181-659

2

Lock Collar

17. 318-225

2

1 Wedge

5.

318-226

1

Reel Tube

6.

318-227

1

Reel Carrier Arm

7.

318-238

1

Arbor Shaft

8.

318-234

1

Hood Cable Guide

9.

318-236

1

R.O.P.S. Guide

10. 105-838

2

Bolt (5/16-NC x 5")

4

1 This reel carrier has been replaced by design shown In main illustration.

See footnote 2.

2 Refer to installation diagram 050-178 when installing reel carrier.

3 Early style lock collar (ref. no. 4) was not tapered and used 1-1/2" LG bolt

(ref. no. 1). See footnote 4.

4 Present production and replacement lock collar (ref. no. 4) is tapered and

requires 1-3/4" LG bolt (ref. no. 1).

50005-50041

87

HYDRAULIC SCHEMATIC For Models A331 and A341

ATTACHMENT MOTOR

*g SWING DOUBLE ACTING CYLINDER

I

LIFT

NOTE: Reference numbers refer to connections on machine hydraulic schematic.

7/84

(CONTINUED)

88

050-740

Continued 050-740 Page 2

SPECIFICATIONS

PUMP

ENGINE MFG (No Load)

RPM

TYPE

RPM

DNA

DNA

DNA

DNA

DNA

DNA

GPM

M TOR DISPLACEMENT

TYPE

DISPLACEMENT

DNA DNA

DNA

Shaker

2.3 in. 3

DNA DNA

DNA

Wheel

89

40.6in3

- TROLLEY LIFT and SWING HYDRAULICS

Ref. No.

Part Number

1.

2.

3.

4.

6.

105-089 105-251 105-920 150-124 150-138 150-125 151-020 154-015

7

155-706 154-025

8

154-032

9

155-705 154-055

5.

155-705 10. 154-066 11. 154-142 155-705 12. 154-143 155-760 13. 154-538 14. 154-545

Ref. No.

04. Description 2 Locknut (5/16-NC) Bolt (5/16-NC x 3-3/4") 2 2 Jam Nut (7/16-NE) 1 Swing Cylinder 1 2 Swing Cylinder 2 4 Lift Cylinder 2 5 Lift Cylinder 4 Adapter Connector (3/4-SAE M x 7/16-JIC M, STR) 0-Ring (-908) Bulkhead Run Tee (7/16-JIC M)-Incl.

2 ref. no. 3 2 Adapter Connector (9/16-SAE M x 7/16-JIC M, STR) 0-Ring (-906) 4 Adapter Connector (9/16-SAE M x 7/16-JIC M x 90 °) 0-Ring (-906) 4 Adapter Union (7/16-JIC FM x 7/16-JIC M x 90 °) 2 Adapter Connector (9/16-SAE M x 7/16-JIC M, STR, w/orifice) 0-Ring (-906) 2 Adapter Connector (7/16-SAE M x 7/16-JIC M x 90 °, w/orifice) 0-Ring (-904) Hose (7/16-JIC FM x 45", 2750 PSI) 2 Hose (7/16-JIC FM x 18', 5000 PSI) 2

Part Number

Qty.

Description

Hose (7/16-JIC FM x 28", 2750 PSI) Adapter Connector (7/16-SAE M x 7/16-J1C M x 90 °) 0-Ring (-904) 155-760 Hydraulic Tube (1/4"T x 22-15/16" LG) 1 17. 156-371 Hydraulic Tube (1/4"T x 25-9/16" LG) 18. 156-372 1 Hydraulic Tube (1/4"T x 33" LG) 19. 156-373 1 Hydraulic Tube (1/4"T x 31" LG) 20. 156-374 1 3 Dual Cushion Counterbalance Valve 21. 158-514 1 Bulkhead Mount 22. 317-164 1 Pin (4-1/2' LG) 23. 180-488 2 Cotter Pin (3/16" x 2") 24. 105-502 2 Locknut (5/8-NC) 25. 105-357 1 Bronze Bushing (3/4" LG) 26. 125-403 1 Bolt (5/8-NC x 2-1/4") 27. 105-462 1 28. 125-435 4 5Composition Bushing (1-1/2" LG) 29. 125-728 8 6Fiber Bushing (1" LG) 'IBMs with SA1180477. See footnote 2.

15.

16.

154-573 155-091

2 2

2 8egins with S/N180478. Order this cylinder if replacing trolley swing on

machines prior to this serial number, with trolley swing which has revised cylinder tabs (refer to page entitled TROLLEY).

3 Counterbalance valve comes equipped with cartridge (1800 PSI) for plow, if machine is equipped with earth saw you must substitute cartridge (2500 PSI) intended for use with earth saw. Refer to Item 2 of Technical Bits dated 12-2-82 for instructions on adjusting counterbalance cartridge pressure.

4This cylinder is no longer available. For replacement see footnote 5.

Mils cylinder is used in present production and for all replacements.

6 Refer to special tool diagram 052-511.

78079-78081

90

VIBRATOR HYDRAULICS (Ends with S/N 4E0442)

6—

Rd. Part No. Number

Qty.

Description

Ref. No.

Part Number

Qty.

Description

1.

105-170

1

Bolt (5/16-NC x 3')

7.

154-509

1

Hose (9/16-JIC FM x 84", 4000 PSI)

105-129

1

1 Bolt (5/16-NC x 3-1/4')

8.

154-598

2

Hose (1-1/16-J1C FM x90 ° x 1-1/16-JIC FM,

2.

105-841

1

Clip Nut (5/16-NC)

3.

110-274

1

Clamp (Incl. ref. no. 1)

9.

155-577

1

320-008

STR x 90', 3000 PSI)

Backup Spacer

Hydraulic Motor

155-855

Internal Seal (.969" ID x 2.132' OD)

165-701

Gasket

4.

115-731

1

Abrasion Sleeve

5.

154-028

1

Adapter Connector (3/4-SAE M x

10.

105-048

2

Bolt (1/2-NC x 1-1/2')

9/16-JIC M x 90°)

11.

155-074

1

Plug (3/4-SAE M)

155-706 6.

154-145

0-Ring (-908) 4

155-706

Adapter Connector (1-5/16-SAE M x

12.

1-1/16-JIC M x 90°) 155-748

317-211

0-Ring (-908) 1

1 Bracket

1 These parts are for field installation of hose clamp on early models. Refer

to Item 3 of Technical Bits dated 2-17-83.

0-Ring (-916)

78077-78079

91

VIBRATOR HYDRAULICS (Begins with S/N 4E0443)

6—

s

1

FRONT HYDRAULIC MOTOR

IP

AY

( _ -7cb2Ref. No.

Pad Number

Qty.

Description

Rel. No.

Pad Number

Qty.

Description

1.

105-170

1

Bolt (5/16-NC x 3")

7.

154-510

1

Hose (9/16-J1C FM x 96", 4000 PSI)

105-129

1

Bolt (5/16-NC x 3-1/4")

8.

154-598

2

Hose (1-1/16-JIC FM x 90 ° x 1-1/16-JIC FM,

2.

105-841

1

Clip Nut (5/16-NC)

3.

110-274

1

Clamp (Incl. ref. no. 1)

320-008

STR x 90", 3000 PSI) 9.

155-577

1

Hydraulic Motor

Backup Spacer

155-855

Internal Seal (.969" ID x 2.132" OD)

165-701

Gasket

4.

115-731

1

Abrasion Sleeve

5.

154-028

1

Adapter Connector (3/4-SAE M x

10.

105-048

2

Bolt (1/2-NC x 1-1/2")

9/16-JIC M x 90°)

11.

155-074

1

Plug (3/4-SAE M)

155-706 6.

154-145

0-Ring (-908) 4

155-706

Adapter Connector (1-5/16-SAE M x

12.

1-1/16-JIC M x 90°) 155-748

0-Ring (-916)

78128-78130

92

317-211

0-Ring (-908) 1

Bracket

A300 DIGGING ATTACHMENT PARTS LIST

8

275-564 DECAL KIT For Model A300 Ref. No. 1.

2.

3.

4.

Part Number 050-367 275-117 275-123 275-194 275-195

4/87—A

Qty. 1 1 1 1

Ref. No. 5.

6.

7.

8.

Description Location Diagram A300 Model-ID Danger Chain & Auger Power Beyond Return

(CONTINUED)

94

Part Number 275-196 275-230 275-232 275-333

Qty. 1 2 1 1

Description Pressure Warning Stripe (2" x 18") Danger (2" x 18") Control Valve

050-367

Continued 050-367 Page 2

4.00

95

VALVE CONTROL LINKAGE (Ends with S/N 281058)

Ref. Part No. Number

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

105-093 105-118 105-179 105-183 105-826 105-834 110-283 110-284 110-285 110-027 110-286 115-619 181-636 317-197

Qty.

Description

2 2 1 3 1 4 2 2 2 2 2 1 2

Nut (3/8-NF) Washer (3/8") Bolt (3/8-NC x 3-1/2") Bolt (3/8-NC x 2-1/2") Flange Lock Bolt (3/8-NC x 1") Flange Locknut (3/8-NC) Knob Pull Pin (3/16" x 1" LG) Clevis (3/8-NF, fiber) Clevis (3/8-NF, forged) Spring Clevis Pin (3/8") l Extension Spring Control Lever Spacer (1/2" L.G) 3 Cover Support

1

Rel. No.

Part Number

14.

15.

16.

17.

18.

19.

20.

317-198 317 200 -

361-724 N.A. 361 727 -

361-728 362-348

Qty.

1 1 1 2 1 1 1

Description

1 Rod Support 1 Safety Lock Pedal Control Rod 4Control Lever 2 Lever Pivot Control Rod Rod Cover

1 Spring, lock pedal and rod support (ref. no.'s 11, 14 and 15) are to be

replaced with lever guard, rod support and revised control lever decal; according to instructions in Safety Notification Letter dated 4-20-83. See VALVE CONTROL LINKAGE (Begins with S/N281059) to order parts.

2 When replacing lever pivot (ref. no. 18) order pivot bracket and sleeve from VALVE CONTROL LINKAGE (Begins with S/N2B1059).

3 Order replacement cover support from VALVE CONTROL LINKAGE (Begins with S/N2B1059).

4 Order replacement control levers from VALVE CONTROL LINKAGE (Begins with S/N2B1059).

20033-20035

96

VALVE CONTROL LINKAGE (Begins with S/N 261059)

Ref. No.

Part Number

Qty.

Description

Ref. No.

Part Number

Qty.

Description

1.

105-093

2

Nut (3/8-NF)

12.

181-636

2

Control Lever Spacer (1/2" LC)

2.

105-118

2

Washer (3/8")

13.

135-951

1

Spacer (1.5" LG)

3.

105-179

1

Bolt (3/8-NC x 3-1/21

14.

317-221

1

Rod Support

4.

105-183

3

Bolt (3/8-NC x 2-1/21

15.

190-018

1

Sleeve (3/8" ID x 1-1/2" LG)

5.

105-826

1

Flange Lock Bolt (3/8-NC x 1")

16.

361-124

1

Control Rod (45" LG)

6.

105-834

5

Flange Locknut (3/8-NC)

17.

361-725

2

Control Lever

7.

110-283

2

Knob

18.

317-223

1

Pivot Bracket

8.

110-284

2

Pull Pin (3/16" x 1" LG)

19.

361-728

1

Control Rod (45-3/4" LG)

9.

110 285 -

2

Clevis (3/8-NF)—fiber

20.

362-348

1

Rod Cover

110-027

2

Clevis (3/8-NF)—forged

Not Shown:

10.

110-286

2

Spring Clevis Pin (3/8")

11.

317.218

1

Lever Guard

275-333

20038-20040

97 -

Control Valve Decal

ATTACHMENT FRAME

Rel. Part No. Number

1.

2. , 3.

4.

5.

6.

7.

8.

9.

10.

11.

105-047 105-475 105-826 105-827 105-829 105-845 110-128 125-435 183-328 183-330 183-331

Illy.

4 1 2 4 1 2 2 5 2 1 1

Description

Locknut (3/8-NC) Washer (1/2") Flange Lock Bolt (3/8-NC x 1") Flange Lock Bolt (3/8-NC x 1-1/4") Flange Lock Bolt (1/2-NC x 11 Flange Locknut (3/8-NC) 1 Spring Clip Pin Composition Bushing 1 Handie Pin Attachment Frame Pin (4-3/4" LG) Attachment Frame Pin (2.6" LG)

RM. Mc

Part Number

12.

13.

14.

15.

16.

17.

18.

183-332

317-176 317-183 105-310 106-073 317-374 181-180

ott• Description 1 Pivot Attachment Frame Pin (2-5/8" LG) 1 Attachment Frame 1 Pivot Attachment Frame 2 2Jam Nut (3/4-NC) 2 2Boft (3/4-NC x 6') 2 2Wedge 2 2Boss (3/4-NC tap)—field retrofit

lEnds with S/N 4D0356. Early method of mounting digging attachment used handle pin (ref. no. 9). See footnote 2.

2 Begins with S/N 4D0357. Present method of mounting digging attachment uses bolt and wedge (ref. no.'s 16 and 17). For retrofit information refer to item 9 of Technical Bits dated 8-13-87.

49011-49011

98

HEAD SHAFT

77 10Z/ 4, 8 .,,

-

%'

'41,,It,

)1

'--„I ,---%,) / Il l

9 / 15

-

,/-

/,,,,,/

--

,/

ii/

S rp________-14

`is III 20

'(1)' 9 /4v 217 5 /(k-

3 19

Qty.

Description

Ref. No.

Part Number

Qty.

Description

1. 105-043

2

Bolt (1/2-NC x 1-1/4']

13.

125-613

1

Flange Bearing (1.375" ID)

2.

105-048

2

Bolt (1/2-NC x 1-1/21

115-001

Zerk (1/8-NPT, STR, SLF TAP)

3.

105-065

4

Locknut (1/2-NC)

125-707

Lock Collar (Incl. setscrew)

4.

105-082

2

Bolt (1/2-NC x 2-1/21

105-702

Setscrew (3/8-NC x 3/8")

5.

105-188

4

Locknut (7/16-NF)

14.

140-038

1

6.

105-203

4

Bolt (7/16-NF x 2")

15.

140-703

1

Head Shaft Sprocket (9T, 1.654" P)

145-206

1

Auger

Ref. No.

Part Number

Boom Adjusting Block

7.

105-352

2

Screw (3/4-NC x 5, SO HD)

16.

8.

105-475

1

Washer (1/2")

17.

155-582

1

Hydraulic Motor

9.

105 704

2

Setscrew (5/16-NC x 1/41

18.

165-985

1

Key (1/4" SQ x 2-1/4")

105-701

2

Setscrew (5/16-NC x 3/8']—replacements

19.

167-064

Head Shaft

180-660

Coupler

10. 105-829

1

Flange Lock Bolt (1/2-NC x

20.

11. 105-833

2

Flange Locknut (1/2-NC)

21.

181-638

Bearing Spacer (2" LG)

12. 125-503

1

'Pillow Block Bearing (1.25" ID)

22.

181-639

Auger Spacer (1-13/16" LG)

115-003

Zerk (1/4-NPT, STR, SLF TAP)

'Refer to special tool diagram 052 517.

125-708

'Lock Collar (Intl. setscrew)

105-702

Setscrew (3/8-NC x 3/81

-

49010-49010

99

CHA I N JAWS FOR USE ON MASTER LINKS REF PART NO. NUMBER OTY DESCRIPTION 259-140 CHAIN .TAWS (1-1/8" DRIVE) 1. 259-329 1 TRUNNION/SCREW ASSEMBLY 2. 105-066 1 BOLT (1/2—NC X 1-3/a") 3. 105-065 1 LOCKNUT (1/2—NC)

REMARKS INCL REF NOS 1 7HRU 13

FOOTNOTES 1—LEFT & RIGHT CHAIN JAWS CANNOT BE ORDERED INDIVIDUALLY.

801-058

8

101

- BOOM

Ref. No.

Part Number

Qty.

140-063

Description

Ref. No.

Part Number

Qty.

Description

Boom Parts Assembly (20" LG)—Incl. ref.

9.

140-712

1

Idler Sprocket (12 T, 1.654" P) Idler Sprocket Assembly (Incl. sprocket

140-653

no.'s 2, 4, 5, 7, 8, 9, 12 and 15

and ref. no.'s 5, 7, 9 and 12)

1.

105-067

2

Bolt (1/2-NC x 2-3/41

2.

105-379

1

Bolt [3/4-NC x 1-1/4", Nylok)

10.

140-762

3.

105-833

2

Flange Locknut (1/2-NC)

11.

140-770

1

Slide and Stop (Incl. ref. no. 10)

4.

115-001

1

Zerk (1/8-NPT, STR, SLF TAP)

12.

140-775

2

Flat Washer (3" OD)

5.

115-464

1

Internal Snap Ring (3.296" OD)

13.

141-182

1

Personnel Restraint Bar (36" LG)

6.

115-553

1

Compression Spring (5" LG)

14.

141-183

1

Restraint Backup Bar

7.

125-009

1

Ball Bearing (1.25" SO ID)

15.

180-445

1

Idler Shaft (1.125" SQ ID)

8.

140-050

1

2' Boom (Incl. ref. no.'s 6 and 11)

56031-56038

102 -

Sprocket Side Plate ,weld-on

DIGGING CHAIN ( 33, 000 LB TEST) 1.654' PITCH CHAIN - 2 PITCH SPACING

REF. NO.

1.

2.

3.

4.

5.

6.

7.

PART NUMBER OTY. DESCRIPTION

REF. NO.

PART NUMBER OTY. DESCRIPTION

105-099 AR 1 BOLT (3/8-NC X 7/8' ) 105-047 AR LOCKNUT (3/8-NC) 137-003 AR ROLLER LINK 137-014 AR 2' -2' DIGGING CHAIN 137-015 AR 7' -2' DIGGING CHAIN 135-001 AR CHAIN PIN 137-005 AR TOOTH SIDEBAR (KEY SIDE) 137-006 AR TOOTH SIDEBAR (HEAD SIDE)

8.

9.

10.

11.

12.

13.

14.

135-007 AR LOCK KEY 136-024 AR LEFT DIGGING TOOTH 136-025 AR RIGHT DIGGING TOOTH 181-650 AR 4 CHAIN SPACER ( 1.41' LG) 181-651 AR 4 CHAIN SPACER ( 1.235' LG) 105-162 AR 2 BOLT ( 3/8-NC X 2-1/4' ) 105-183 AR 3 BOLT ( 3/8-NC X 2-1/2' )

1USED WITH NO CHAIN SPACER (SEE F/N *2).

2 , USED WITH ONE INSIDE TOOTH.

USED WITH ONE OUTSIDE TOOTH. '"CHAIN SPACERS (REF. NO.'S II & 12) ARE USED ON LEAD BOLTS.

801-539 103

DIGGING CHAIN ( 33, 000 LB TEST) 1.654' PITCH CHAIN - 4 PITCH SPACING

REF. NO.

PART NUMBER OTY. DESCRIPTION

REF. NO.

PART NUMBER QTY. DESCRIPTION

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

105-047 AR LOCKNUT ( 3/8-NC) 105-099 AR 3 BOLT ( 3/8-NC X 7/8" ) 135-001 AR CHAIN PIN 137-003 AR ROLLER LINK 137-005 AR TOOTH SIDEBAR ( KEY SIDE) 137-006 AR TOOTH SIDEBAR ( HEAD SIDE) 135-007 AR LOCK KEY 137-008 AR PLAIN SIDEBAR ( KEY SIDE) 137-009 AR PLAIN SIDEBAR ( HEAD SIDE) 137-010 AR DIGGING CHAIN ( 2' 2' ) 137-011 AR DIGGING CHAIN ( 7' 2' )

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

136-024 AR RIGHT DIGGING TOOTH 136-025 AR LEFT DIGGING TOOTH 105-052 AR BOLT ( 3/8-NC X 1-1/4' ) 136-029 AR TOOTH ADAPTER SPACER 105-075 AR BOLT ( 3/8-NC X 2' ) 181-650 AR 2 CHAIN SPACER ( 1.41' LG) 181-651 AR 2 CHAIN SPACER ( 1.235' LO) 105-162 AR 4 BOLT ( 3/8-NC X 2-1/4' ) 105-183 AR 4 BOLT ( 3/8-NC X 2-1/2' ) 105-098 AR ( BOLT ( 3/8-NC X 3' )

;USED WITH ONE INSIDE TOOTH AND CHAIN SPACER. ',CHAIN SPACERS (REF. NO.'S 16 & 17) ARE USED ON LEAD BOLTS. A JUSED WITH NO CHAIN SPACER (SEE F/N *4).

"USED WITH ONE INSIDE TOOTH.

801-540 104

HYDRAULIC SCHEMATIC For Model A300

QUICK COUPLER

RETURN

i 1-0-- R —44- OUT

CONTROL VALVE _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _______________ 7 1 I I CONTROL • LEVER _.), 1

1—

E

_

4117

ill 2500 PSI RELIEF

M

PRESSURE 1--0— p ÷- IN

POWER BEYOND

VV\

3- POSITION • DETENT

40 I]

RI

<0— PB -44- PB

iril

LOAD Irgi CHECK SPRING/ CENTER

DOUBLE ACTING CYLINDER

BOOM

DIGGING CHAIN MOTOR

NOTE: Manifold connections on machine hydraulic schematic.

4/87

105 (CONTINUED)

050-732

Continued 050-732 Page 2

SPECIFICATIONS

MFG (No Load) RPM

Type

RPM

DNA

DNA

DNA DNA

DNA

Motor

Pump

Engine

GPM

106

Displacement

Type

Displacement

DNA

Digging Chain

14.9 in3

DIGGING ATTACHMENT HYDRAULICS

14

Ref. Part No. Number

Qiy.

Description

1.

2.

150-080 154-014

1 3

3.

155-709 154-020

1

4.

154-021

1

5.

154-031

2

6.

155-707 154-047

7.

155-709 154-052

8.

155-709 154-096

2

9.

155-706 154-123

1

Frame Pivot Cylinder Adapter Connector (1-1/16-SAE M x 1-1/16-JIC M x 90 °) 0-Ring (-912) Adapter Connector (1/4-NPT M x 7/16-J1C M, STR) Adapter Connector (1/4-NPT M x 7/16-.11C M x 90 °) Adapter Connector (7/8-SAE M x 3/4-JIC M, STR) 0-Ring (-910) Adapter Connector (1-1/16-SAE M x 1-1/16-J1C M x 45 °) 0-Ring (-912) Adapter Connector (1-1/16-SAE M x 1-1/16-J1C M x 90 °, XLG) 0-Ring (-912) Adapter Connector (3/4-SAE M x 3/4-JIC M x 90 °, XLG) 0-Ring (-908) Adapter Connector (7/16-JIC FM x 7/16-J1C M x 45 °)

1

1

72052-72057

107

Ref. No.

Number

my.

Description

10.

154-159

1

11.

12.

13.

14.

15.

16.

154-513 154-545 154-562 154-601 154-611 155-091

1 1 2 1 2 2

17.

155-760 154-027

1

18.

155-709 155-156

2

19.

20.

21.

22.

155-706 155-582 158-519 159-004 159-007

1 1 2 1

Adapter Union (1-1/16-JIC FM x 1-1/16-JIC M x 45 °) Hose (7/16-J1C FM x 20', 5000 PSI) Hose (7/16-J1C FM x 18', 5000 PSI) Hose (3/4-J1C FM x 37-1/2', 2000 PSI) Hose (1-1/16-JIC FM x 33-1/2', 2250 PSI) Hose (1-1/16-J1C FM x 30", 3000 PSI) Adapter Connector (7/16-SAE M x 7/16-J1C M x 90 °) 0-Ring (-904) Adapter Connector (1-1/16-SAE M x 1-1/16-JIC M, STR) 0-Ring (-912) Adapter Bushing (3/4-SAE M x 7/16-JIC M x 90°) 0-Ring (-908) Hydraulic Motor Hydraulic Control Valve Quick Coupler Body (1-1/16-J1C FM) Quick Coupler Adapter (1-1/16-SAE FM)

275-577 DECAL KIT For Model A341 Ref. No. 1.

2.

3.

4.

Part Number 050-377 275-049 275-103 275-184 275-193

Qty. 2 2 3 2

Ref. No. 5.

6.

7.

8.

9.

Description Location Diagram A341 Model-ID Danger Rotating Wheel Warning Moving Parts Caution Flying Objects

Part Number 275-230 275-233 275-310 275-326 275-443

Qty. 2 2 2 1 1

Description Warning Stripe (2" x 18") Danger (3" x 18") Ditch Witch® Emblem Warning Crushing Weight Danger Rotating Wheel

'Used on earlier models

7/87

(CONTINUED)

108

050-377

Continued 050-377 Page 2

109

WHEEL FRAME (Early Style)

Rel Pad No. Number

Ctly.

Description

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

4 1 4 3 4 1 4 2 3 4 2 4 1 1 2 2 2

Bolt (1/2-NC x 3/4") Washer (5/8") Washer (1/2") Cotter Pin (1/4" x Bolt (5/8-NC x 4-1/2") Flange Bolt (5/8-NC x 4") Flange Locknut (5/8-NC) Handle Grip (black) Clip Pin Pop Rivet (optional) External Klip Ring (1-1/4' ID) External Klip Ring (1" ID) Rear Chute Extension (optional) Bronze Bushing (.75' OD) Composition Bushing (1.536° OD) Composition Bushing (1.75" OD) Pin (1-3/8' OD x 3-3/16' LG)

105-293 105-416 105-475 105-514 105-967 105-993 105-994 110-015 110-032 110-348 115-483 115-499 116-237 125-403 125-435 125-738 183-291

Ref. No.

Pad Number

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

183-424 183-425 183-426 183-427 183-428

29.

30.

31.

32.

50058-50058

110

317-224

317-254 317-271 317-274 317-275 317-303 317-304 105-836 362-132 106-015 165-699

Qty.

Description

1 2 2 2 1 1 1 2 2 1 1 1 2 1 2 1

Pin (1-1/2' OD x 11' LG) Handle Pin (1" OD x 3.5" LG) Pin (1' OD x 8.5° LG) Pin (1-1/4" OD x 5.5' LG) Pin (1-1/4" OD x 13.4' LG) Frame Swing Post Stabilizer Foot Inner Tube Wheel Guard Left Parking Stand Right Parking Stand Flange Lock Bolt (1/4-NC x 1/2") Cover Plate Nutsert (1/4-NC) Felt Washer

- WHEEL FRAME (Present Production)

Ret. Pad No. Number

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

105-293 105-416 105-475 105-514 105-967 105-993 105-994 110-015 110-032 317-370 115-483 115-499 116-239 125-403 125-435 125-738 183-291 183-424 183-425 183-426 183-427 183-428 317-322 275-049 275-103 275-184 275-230 275-326

Qty.

Description

4 1 4 3 4 1 4 2 2 1 2 4 1 1 2 2 2 1 2 2 2 1 1 2 2 2 2 1

Bolt (1/2-NC x 3/41 Washer (5/8") Washer (1/21 Cotter Pin (1/4" x 3") Bolt (5/8-NC x 4-1/21 Flange Bolt (5/8-NC x 4") Flange Locknut (5/8-NC) Handle Grip (black) Clip Pin Handle External Klip Ring (1-1/4' ID) External Klip Ring (1' ID) Deflector Flap Bronze Bushing (.75' OD) Composition Bushing (1.536" OD) Composition Bushing (1.75" OD) Pin (1-3/8" OD x 3-3/16" LG) Pin (1-1/2" OD x 11" LG) Handle Pin (1' OD x 3.5" LG) Pin (1" OD x 8.5' LG) Pin (1-1/4' OD x 5.5' LG) Pin (1-1/4" OD x 14° LG) Frame (Incl. decals) A341 Identification Decal Danger Rotating Wheel Decal Warning Moving Parts Decal Warning Stripe Decal Warning Crushing Weight Decal

Rel. No.

Part Number

24.

25.

317-254 1 1 Swing Post 317-357 1 Left Stabilizer 317-358 1 Right Stabilizer 317-274 2 Inner Tube 317-350 1 Wheel Guard 317-303 1 Left Parking Stand 317-304 1 Right Parking Stand 105-836 2 Flange Lock Bolt (1/4-NC x 1/2") 362-132 1 Cover Plate 105-818 4 Bolt (1/4-NC x 1-1/2") 105-873 23 Flange Lock Bolt (5/16-NC x 1") 105-891 1 Bolt (5/16-NC x 1-1/2', SLT HD) 110-043 4 Hinge 110-222 4 Hood Latch 110-223 4 Bracket 110-224 4 Anchor Bracket 110-253 8 Pop Rivet 110-298 2 Knob 115-349 1 Grommet 183-461 2 Pin (3/4" OD x 6.2" LG) 317-347 1 Left Cover 317-348 1 Right Cover 115-503 4 External Clip Ring 105-021 2 ;Net (1/2 NC) 105 709 2 'Setscrew (1/2 NC x 2') 110-055 2 Machinery Bushing 0-1/0

26.

27.

28.

29.

30.

38.

39.

40.

41.

42.

43.

44.

45.

46.

47.

48.

49.

50.

51.

52.

53.

Qty.

Description

-

-

-

1 Present production swing post (ref. no. 24) has nut and setscrew (ref.

no.'s 51 and 52) to allow for swing adjustment.

50072-50072

111

'EARTH SAW WHEEL'

15

REPAIR TOOLS

Ref. No.

Part Number

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

Qty.

Description

105-183 105-337 106-012 105-425 105-970 105-994 110-348 110-355 110-362 116-236 136-100 136-101 136-102 181-787 259-038 317-259 317-260 100-659

3 6 6 1 36 6 30 2 2 2 36 36 36 1 1 2 6

317-261 317-262 100-660

3 3

317-263 317-264 100-661

3 3

'Bolt (3/8-NC x 2-1/21 ',Flange Bolt (5/8-NC x 2") °Flange Bolt (5/8-NC x 3") 'Bolt (1-NC x 2-1/21 Flange Bolt (5/8-NC x 1-3/41 Flange Locknut (5/8-NC) .

6 Pop Rivet (3/16" x .6641 °Brush °Brush Holder (Incl. nutserts) 6 Seal Carbide Cap Bit Carbide Insert Bit Heavy Duty Carbide Insert Bit Wheel Hub "Hub Puller (4" DIA) Wheel Side Plate 2.5" Saw Segment '2.5" Saw Segment Kit (Incl. ref. no.'s 4, 14 and 15) 2 15" Saw Segment 3 3.5" Saw Segment 7 15" Saw Segment Kit (Incl. ref. no.'s 4, _ 14 and 15) 2 5" Saw Segment 3 5" Saw Segment '5" Saw Segment Kit (Incl. ref. no.'s 4, 14 and 15)

Ref. No.

Part Number

317-270 317-320 317-308 105-836 317-319 235-123 235-124 235-125 235-126 235-127 21. 235-085 22. 259-001 23. 259-002 15.

16.

17.

18.

19.

20.

ety.

Description

12 2 2 6 2

Wear Bar °Seal Support (Incl. nutserts) 6Seal Cap Flange Lock Bolt (1/4-NC x 1/2'] Wheel Bolt Plate Block Mounting Fixture (2.5" seg) 2Block Mounting Fixture (3.5" seg) 3Block Mounting Fixture (3.5" seg) 2Block Mounting Fixture (5" seg) 3Block Mounting Fixture (5" seg) Tooth Block Clamp Bit Puller (hammer type) Bit Puller (slide-hammer type)

'These are tools used to remove wheel hub. , While facing front of segment the first block points right 3 While facing front of segment the first block points left.

°Used on early style which did not have wheel bolt plate. °Used on present production which has wheel bolt plate. °Used on early style earth saws that had seals and brushes.

'Refer to installation diagram 050-032.

50060-50060

112

PIVOT GUARD (Early Models)

4 13

13

5

3 / 6

#

7

Rel. Parl No. Number

Qty.

Description

Ref. No.

Parl Number

Qty.

Description

1.

105-226

1

Washer (5/16')

11.

183-430

1

Pin (1' 013x 10.5' LG)

2.

105-508

1

Cotter Pin (3/32' x

12.

317-284

4

Rivet Bar (10.6' LG)

3.

105-529

2

Roll Pin (5/16" x 1-1/2")

13.

317-285

2

Rivet Bar (5.4' LG)

4.

110-350 16

Pop Rivet

14.

317-286

1

Front Foot (for 2.5' and

5.

115-499

2

External Klip Ring (1" ID)

6.

115-503

5

External Klip Ring (3/4' ID)

317-287

1

Front Foot (for 5' saw segments)

7.

115-587

1

Torsion Spring

317-291

1

Pivot Guard (for 2.5' and

8.

116-234

2

Scraper (11.9" LG)

9.

116-235

1

Scraper (8' LG)

10.

183-429

2

Pin (3/41 OD x 7.6 1 LG)

3.5" saw segments) 15.

3.5" saw segments) 17-295

50059-50059

113

1

Pivot Guard (for 5' saw segments)

SPECIAL TOOLS BIT PULLER FOR ALLIGATOR BITS

SPECIAL TOOLS

BIT PULLER FOR ALLIGATOR BITS REF NO.

PART NUMBER OTY DESCRIPTION

1.

2.

3.

4.

5.

6.

7.

259-002 259-036 105-964 105-994 183-072 259-003 105-357 259-001

1 1 2 1 1 1 1

REMARKS

SLIDE HAMMER BIT PULLER BIT PULLER WASHER (5/8') FLANGE LOCKNUT ROD SLIDE HAMMER FLANGE LOCKNUT HAMMER BIT PULLER

INCLUDES REF NO.'S 1-6

.

FOOTNOTES

115

801-056

SPECIAL TOOLS

BIT PUNCH FOR ALLIGATOR BITS

SPECIAL TOOLS BIT PUNCH FOR ALLIGATOR BITS REF NO.

PART NUMBER OTY DESCRIPTION

1.

2.

3.

4.

5.

6.

7.

8.

259-150 105-708 105-964 105-994 183-072 259-003 259-151 259-152 259-153

2 1 2 1 1 1 1 1

SLIDE HAMMER BIT PUNCH SETSCREW WASHER (5/8') FLANGE LOCKNUT ROD SLIDE HAMMER HEAVY BIT PUNCH LIGHT BIT PUNCH PUNCH ADAPTER

.

REMARKS INCLUDES REF NO.'S 1-8

..

FOOTNOTES

117

801-057

HYDRAULIC SCHEMATIC For Models A331 and A341

ATTACHMENT MOTOR

SWING DOUBLE ACTING CYLINDER

1 I

LIFT I I I 0 1

1

NOTE: Reference numbers refer to connections on machine hydraulic schematic.

7/84

(CONTINUED)

118

050-740

Continued 050-740 Page 2

SPECIFICATIONS

PUMP

ENGINE

M TOR DISPLACEMENT

TYPE

DISPLACEMENT

DNA DNA

DNA

Shaker

2.3 in.3

DNA DNA

DNA

Wheel

MFG (No Load)

RPM

TYPE

RPM

DNA

DNA

DNA

DNA

DNA

DNA

GPM

119

40.6in3

- WHEEL LIFT and SWING HYDRAULICS

13

27

Ref. No.

Part Number

Qty.

1.

2.

3.

4.

5.

6.

105-089 105-251 105-920 150-124 150-138 150-122 154-015

2 2 2 1 1 2 4

7.

8.

155-706 154-025 154-032

9.

155-705 154-143

10.

155-760 154-066

11.

154-142

12.

155-705 154-143

13.

14.

15.

155-760 154-538 154-545 154-573

Description

Locknut (5/16-NC) Bolt (5/16-NC x 3-3/4") Jam Nut (7/16-NF) 'Swing Cylinder 2 Swing Cylinder Lift Cylinder Adapter Connector (3/4-SAE M x 7/16-JIC M, STR) 0-Ring (-908) 2 Bulkhead Run Tee (7/16-11C)-Incl. ref. no. 3 2 Adapter Connector (9/16-SAE M x 7/16-JIC M, STR) 0-Ring (-906) 2 Adapter Connector (7/16-SAE M x 7/16-JIC M x 900, w/orifice) 0-Ring (-904) 4 Adapter Union (7/16-JIC FM x 7/16-JIC M x 90°) 2 Adapter Connector (9/16-SAE M x 7/16-JIC M, STR, w/orifice) 0-Ring (-906) 2 Adapter Connector (7/16-SAE M x 7/16-JIC M x 900, w/1/32" ORF) 0-Ring (-904) 2 Hose (7/16-JIC FM x 45", 2750 PSI) 2 Hose (7/16-JIC FM x 18", 5000 PSI) 2 Hose (7/16-11C FM x 28", 2750 PSI)

79010-79012

120

Ref. No.

Part Number

Qty.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

154-512 156-371 156-372 156-373 156-374 158-514 317-164 180-488 105-502 105-357 125-403 105-462 115-005 115-001 155-091

2 1 1 1 1 1 1 2 2 1 1 1 2 2 2

31.

155-760 154-106

32.

33.

110-031 110-331

Description

Hose (7/16-11C FM x 16", 2750 PSIHydraulic Tube (1/4"T x 22-15/16" LG) Hydraulic Tube (1/4"T x 25-9/16" LGJ Hydraulic Tube (1/4"T x 33" LG) Hydraulic Tube (1/4"T x 31" LG) 'Counterbalance Valve Bulkhead Mount Pin (4-1/2" LG) Cotter Pin (3/16" x 2") Locknut (5/8-NC) Bronze Bushing Bolt (5/8-NC x 2-1/4") Zerk (1/4-NF x 90°) Zerk (1/8-NPT, STR) Adapter Connector (7/8-SAE M x 7/16-JIC M x 90°) 0-Ring (-904) 2 Adapter Connector (7/16-JIC M x 7/16-11C M, STR) 4 Cable Tie 4 Clamp

'Ends with S/N 180477. See footnote 2.

2 Begins with S/N 180478. Order this cylinder if replacing trolley swing on

machines prior to this serial number, with trolley swing which has revised cylinder tabs (reference page entitled TROLLEY).

'Counterbalance valve comes equipped with cartridge (1800 PSI) for plow, if machine is equipped with earth saw you must substitute cartridge (2500 PSI) intended for use with earth saw.

' WHEEL DRIVE HYDRAULICS (Ends with S/N 4E0442)

6—

Ref. No.

Part Number

1.

4.

5.

105-170 105-129 105-841 110-274 320-008 115-731 154-057

6.

155-705 154-196

7.

155-748 154-509

2.

3.

Qty.

1 1 1 1 1 1

2

1

Description

Bolt (5/16-NC x 3") 1 Bolt (5/16-NC x 3-1/4") Clip Nut (5/16-NC) Clamp (Incl. ref. no. 1) Backup Spacer Abrasion Sleeve Adapter Connector (9/16-SAE M x 9/16-J1C M x 90 °) 0-Ring (-906) Adapter Connector (1-5/16-SAE M x 1-1/16-JIC M x 45 °) 0-Ring (-916) Hose (9/16-JIC FM x 84", 4000 PSI)

Ref. No.

Part Number

Qty.

Description

8.

154-598

2

9.

1

10.

155-593 500-464 154-107

11.

154-069

1

12.

13.

154-504 317-211

1 1

Hose (1-1/16-JIC FM x90 ° x 1-1/16-JIC FM, STR x 90", 3000 PSI) Hydraulic Motor Shaft Seal Repair Kit Adapter Connector (9/16-JIC M x 9/16-JIC M, STR) Adapter Union (1-1/16-JIC M x 1-1/16-JIC M x 90 °) Hose (9/16-JIC FM x 12", 4000 PSI) Hose Clamp Bracket

1

iThese parts are for field installation of hose clamp on early models. Refer to hem 3 of Technical Bits dated 2-17-83.

79019-79021

121

WHEEL DRIVE HYDRAULICS (Begins with S/N 4E0443)

12 10

5\ SS igt

1

FRONT HYDRAULIC MOTOR

Rel. No.

Part Number

1.

2.

3.

4.

5.

105-170 105-841 110-274 320-008 115-731 154-057

6.

155-705 154-196

2

7.

155-748 154-510

1

Qty.

Description

1 1 1

Bolt (5/16-NC x Clip Nut (5/16-NC) Clamp (Incl. ref. no. 1) Backup Spacer Abrasion Sleeve Adapter Connector (9/16-SAE M x 9/16-JIC M x 90 °) 0-Ring (-906) Adapter Connector (1-5/16-SAE M x 1-1/16-J1C M x 45 °) 0-Ring (-916) Hose (9/16-JIC FM x 96", 4000 PSI)

1 1

4111-41401

122

Ref. No.

Part Number

MY.

Description

8.

154-598

2

9.

1

10.

155-593 500-464 154-107

11.

154-069

1

12.

13.

154-504 317-211

1 1

Hose (1-1/16-JIC FM x90 ° x 1-1/16JIC FM, STR x 90", 3000 PSI) Hydraulic Motor Shaft Seal Repair Kit Adapter Connector (9/16-.1IC M x 9/16-JIC M, STR) Adapter Union (1-1/16-JIC M x 1-1/16-J1C M x 90 °) Hose (9/16-JIC FM x 12', 4000 PSI) Hose Clamp Bracket

1

ASSEMBLY DRAWINGS

DIFFERENTIAL

DANA 44 - LIMITED SLIP

Ref. No.

Parl Number

Qty.

Description

1.

2.

3.

4.

5.

6.

7.

8.

125-251 125-252 125-266 125-289 125-291 125-293 155-851 N.A.

1 1 2 1 1 2 1 1

9.

10.

11.

165-618 501-126 501-274

1 2 1

12.

13.

14.

15.

16.

17.

18.

501-284 501-286 501-294 105-995 501-296 501-297 501-298 501-299 501-300 501-301

1 1 1 1 1 10 AR AR AR AR

Bearing Race (3" OD) Bearing Race (2.875" OD) Bearing Race (3.265' OD) Bearing (1.125' ID) Bearing (1.375' ID) Bearing (1.796" ID) Internal Seal Differential Housing (Incl. bearing caps and bolts)-rear differential only Differential Cap Gasket Washer Differential Case Assembly (Incl. ref.

No.'s 10 and 25 thru 29) Differential Cover Ring Gear and Pinion Set (Incl. ref. no. 15) Oil Slinger 1 Flange Locknut (3/4-NF) Washer Ring Gear Bolt Pinion Shim (.003") Pinion Shim (.005") Pinion Shim (.010") Pinion Shim (.030")

Ref. No.

Part Number

19.

501-302 AR 501-303 AR 501-304 AR 501-305 AR 501-306 AR 501-307 AR 501-308 AR 501-325 10 155-820 4 115-158 1 501-373 1 501-592 1 501-593 2 501-594 1 501-595 2 501-596 2 105-173 1 105-284 1 155-751 1 501-569 1

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

Qty.

Description

Pinion Gear Shim (.003') Pinion Gear Shim (.0051 Pinion Gear Shim (.010") Carrier Shim (.003') Carrier Shim (.005') Carrier Shim (.010") Carrier Shim (.030") Flange Lock Bolt Internal Seal Pipe Plug (3/8-NPT M, SQ HD) Oil Slinger (2.984' OD) Clutch Pack Retainer Ring Axle Shaft Axle Gear Axle Gear Bolt (1/4-NC x 3/8', RD SLT HD) Washer (3/16") Neophrene Washer Oil Slinger (4.125" OD)

1 Torque to 230/270 FT LBS. Refer to Item 5 of Technical Bits dated 8-30-84.

NOTE:Refer to assembly Instruction 052-183.

37035-37043

124

VIBRATOR

FOOTNOTE 3 FOOTNOTE 3

1.

2.

3.

4.

5.

6.

7.

8.

9.

105-065 4 2LOCKNUT (1/2-NC) 105-070 4 2LOCK WASHER (1/2") 105-136 4 2BOLT (1/2-NC X 3-1/2") 105-823 14 FLG LK BOLT (5/16-NC X 3/4") 105-826 12 FLANGE LK BOLT (3/8-NC X 1") 105-854 12 CLIP NUT (3/8-NC) 105-935 2 THRUST LOCKNUT (1.967" NF-18) 105-936 2 TANG LOCK WASHER (1.992") 110-111 1 SIGHT GAUGE 155-748 0-RING (-916) 10. 110-266 1 EXPANSION PLUG (4-1/2" DIA) 11. 110-267 4 1MACHINERY BUSHING (.06" THK) 110-303 4 1MACHINERY BUSHING (.09" THK) 12. 115-518 2 EXTERNAL SNAP RING 13. 125-344 4 ROLLER BEARING (1.968" ID) 14. 155-138 1 3PLUG (1-5/16-SAE M) 155-748 0-RING (-916) 15. 155-898 4 INTERNAL SEAL(2.625" ID X 4" OD) 16. 165-929 1 KEY (3/8" SQ X 2.5" LG) 17. 165-980 2 KEY (3/8" SQ X .98" LG) 18. 167-057 1 1RIGHT VIBRATOR SHAFT 19. 167-058 1 1LEFT VIBRATOR SHAFT (13 INTERNAL SPLINE) 20. 185-050 4 VIBRATOR BALANCE WEIGHT 21. 185-073 1 COVER 22. 185-097 1 LEFT GEAR 23. 185-098 1 RIGHT GEAR 24. 316-252 2 KEY (3/8" SQ X 1.495" LG)

25. 317-075 1 VIBRATOR BOX 317-163 1 VIBRATOR PARTS ASSEMBLY (INCL. REF. NO.'S 1 THRU 27) 26. 317-082 2 SIDE COVER 27. 501-325 4 FLG LK BOLT (5/16-NC X 5/8") 28. 105-549 4 2BOLT (1/2-NC X 3-3/4") 29. 185-135 1 3BEARING COVER 30. 105-823 4 3FLG LK BOLT (5/16-NC X 3/4”) 31. 150-3090 1 3CONNECTOR (16S-04NF) 32. 155-001 1 3UNION (04N-04NFX90) 33. 111-021 1 3BREATHER CAP (TANK) NOT SHOWN: 259-041 SEAL AND BEARING DRIVER (FOR VIBRATOR BOX SEAL AND BEARINGS.) 1 REFER TO ITEM 3 OF TECHNICAL BITS DATED 122-82 FOR METHOD TO DETERMINE PROPER MACHINERY BUSHING. 2 EARLY STYLE LOCKOUT (REF. NO. 1) USED 3-1/2" LG BOLT AND WASHER (REF. NO.'S 2 AND 3). LATER STYLE LOCKNUT IS THICKER AND USES 3-3/4" LG BOLT (REF. NO.28) AND NO WASHER).

3 NEW STYLE BOXES REQUIRING REF. NO.’S 29 AND 30 SHOULD USE REF. NO.’S 31, 32, & 33 IN PLACE OF REF. NO. 14.

125

126

BEARING SWIVEL REF NO.

PART NUMBER OTY DESCRIPTION 351-153 BEARING SWIVEL 1. 106-132 1 SHOULDER BOLT 2. 110-499 1 EYE NUT (3/8-NC) 3. 115-003 1 ZERK (1/4-NF. STR) 4. 125-446 1 BRONZE BUSHING (.5" ID X .628" OD) 5. 126-007 1 BEARING (.5" ID) 6. 126-008 1 BEARING RACE (1.38" OD)

REMARKS INCL REF NO.'S 1 THRU 6

FOOTNOTES

801 -81 5

127

RELIEF CARTRIDGE

•

• ,

/

/, /

I; \

)

_

I

4

I,-

(2 ;>-. `1,1

■!S,

REF. PART REF. PART NUMBER QTY. DESCRIPTION NO. NUMBER CITY. DESCRIPTION NO. 4. 500-025 AR SHIM 1 RELIEF CARTRIDGE (INCL. REF. 155-630 500-318 1 SPRING 5.

NO.'S 1 THRU 7) 6. 500-408 1 CAP 1. 155-707 1 0-RING (910 090) 157-508 1 BACKUP RING 7.

2. 155-749 1 0-RING (023 070) 3. 155-750 1 0-RING (022 D90)

1 REFER TO INSTALLATION DIAGRAM 052-139 FOR REPLACEMENT PROCEDURES.

801-340

128

TRICK QUICK COUPLER

ry ^

)

.<()=';\\Y 4:721=N\

REF. PART NUMBER OTY. DESCRIPTION -NO.

REF. PART NUMBER OTY . DESCRIPTION NO.

155-958 1.

155-747

1

TRICK QUICK COUPLER (INCL. REF. NO'S 1 THRU 3) 0-RING (-914)

2. 155-777 1 3. 157-016 1

0-RING (-119) BACKUP RING (-119)

801-837 FR0008 129

COUNTERBALANCE VALVE

Ref. Part No. Number

1 This cartridge is used at two pressure settings depending on the serial

Qty. Description

158-514

number of the unit and how the unit is equipped. First it is used, at a pressure setting of 1750 PSI, on units prior to S/N180478 which are equipped with vibratory plows and have not been converted to new style trolley swing and swing cylinder. Second it Is used at a pressure setting of 2000 PSI on units equipped with an earth saw. See footnote 3.

2This cartridge is used, at a pressure setting of 1000 PSI, on units after S/N180478 which are equipped with vibratory plows or any units prior to that serial number that have been converted to new style trolley swing and swingcyiinder. See footnote 3.

3 Counterbalance valve comes equipped with cartridge (1000 PSI) for plow, If machine is equipped with earth saw you must substitute cartridge (set at 2000 PSI) intended for use with earth saw. For additional Information refer to item 2 of Technical Bits dated 12-2-82 and Item 9 of Technical Bits dated 12-5-85.

3Counterbalance Valve (Incl. ref. no.'s 1 and 2)

1

500-409 2 Check Valve Cartridge

2

500-478 2

1 Counterbalance Cartridge (1000-2500 PSI

500-410 2

2Counterbalance Cartridge (400-1500 PSI)

ATTACHMENT:

CARTRIDGE

PSI

Earth Saw:

500-478

2000

PLOW: Prior to

500-478

1750

500-410

1000

S/N180478 (unconverted)

PLOW: After S/N180477 or converted 84051-84077

130

HYDRAULIC CONTROL VALVE SINGLE SPOOL

REF. NO.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

PART NUMBER OTY. DESCRIPTION 155-621 2HYDRAULIC CONTROL VALVE (INCL. REF. NO.'S 1 THRU 22) N.A. 1VALVE HOUSING N.A. VALVE SPOOL 105-079 1 LOCK WASHER (1/4") 105-226 1 WASHER (5/16") 105-512 1 COTTER PIN (3/32" X 3/4") 115-178 1 PIPE PLUG 500-054 1 LEVER BRACKET 500-055 2 LOCK WASHER (1/4") 500-056 2 BOLT 500-057 2 U-CUP SEAL

REF. NO. 11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

PART NUMBER OTY. DESCRIPTION 500-058 1 LEVER 500-059 1 LEVER PIN 500-060 4 1BOLT 1 1DETENT BONNET 500-061 501-179 1 SCREW 500-065 1 1COMPRESSION SPRING 500-066 1 1SPOOL COLLAR 500-182 1 COMPRESSION SPRING 500-184 1 RELIEF SEAT 500-185 1 0-RING (110, D70) 500-186 1 STEEL BALL 500-374 NEUTRAL RETURN KIT (INCL. REF. NO.'S 3, 4, AND 13 THRU 17)

1 1F REPLACEMENT OF THESE PARTS IS NECESSARY ORDER RETURN KIT (REF. N0. 22) AND REFER TO INSTALLATION DIAGRAM 050-088.

2 REFER TO INSTALLATION DIAGRAM 052-141 FOR ADJUSTMENT OF PRESSURE RELIEF.

801-435

131

HYDRAULIC CONTROL VALVE TWO SPOOL for A300 tj

12 22

16 23

sir

13 14 15 26 /46,

1 18 /

o

>16

•

19 12 ty.to

—17

24

1- 20,n

c,

CO footnote 6 50 (:;)

27

r— I I

•

07) ...„=„,

L__ Ref. No.

Part Number

Qty.

158-519 1. 105-092 2. 105-093 3. 105-173 4. 105-261

4 2 4 4

105-161 115-178 155-771 155-867 500-032 500-031 500-044 500-163 155-752 500-173 500-175 500-476 115-621 500-277 500-294 155-707 500-302 155-709 500-309

4 1 2 2 2 3 1 4 4 1 4 2 2 2 5

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

11.

18.

1 1

Ref. No.

Description

Hydraulic Control Valve (Incl. ref. no.'s 1 thru 26) Nut (5/16-NC) Nut (3/8-NF) Bolt (1/4-NC x 3/8", RD SLT HD) Bolt (1/4-NC x 1-1/2", ALN HD)—early style Bolt (1/4-NC x 3/4", ALN HD) Pipe Plug (3/8-NPT, ALN HD) 0-Ring (-011) Internal Seal (5/8" ID)—early style Backup 0-Ring (19/32" ID) 0-Ring (-228) Port Relief Cartridge Kit (2500 PSI) 0-Ring (-114)—early style 0-Ring (-113) Outlet Cover 'Shutoff Plug Load Check Poppet Load Check Compression Spring Stud Bolt (5/16-NC x 61 Plug (1/8-SAE) 0-Ring (-910) Plug (1-1/16-SAE) 0-Ring (-912) Inlet Cover (Incl. ref. no. 8)

Part Number

19. 500 310 500-171

1 1

20. 500-311 21. 500-312 22. 500-316 500-035 23. 500-317 24. 500-337 25. 500-343 26. 500-344

2 2 2 2 1 1 1 1

500-171

1

27. 500-494

1

Valve Section (early style) 'Waive Section (Incl. ref. no.'s 3, 4, 7, 8, 10, 13, 14, 22 and 24) Plunger Adapter Spacer Seal Plate (early style) Seal Plate Stud Bolt (3/8-NF x 6-1/81 4Standard Spool Positioner 5Three Position Detent 2Valve Section (Incl. ref. no.'s 3, 4, 7, 8, 10, 13, 14, 20, 21, 22 and 27) 3Valve Section (Incl. ref. no.'s 3, 4, 7, 8, 10, 13, 14, 21, 22 and 24) °Three Position Detent

'Shutoff plug are required on replacement valve sections.

2 This valve section contains three position detent and plunger adapter. USE this part FOR all REPLACEMENT of motor spool section. See footnote 7.

3 D0 NOT USE this valve section FOR REPLACEMENT of motor spool section.

Contains standard spool positioner. Order plunger adapter and valve section with three position detent (ref. no.'s 20 and 26). See footnote 2.

TO NOT USE this standard spool positioner FOR REPLACEMENT on motor spool section. Order plunger adapter and three position detent (ref. no.'s 20 and 27). See footnote 2.

5 This three position detent is for solid spool valve section, DO NOT USE FOR REPLACEMENT. For replacement order three position detent for hollow spool valve section (ref. no. 27).

6 This three position detent is for hollow spool valve section, USE FOR REPLACEMENT. 'Refer to valve section replacement diagram 052-138.

84055-84081

132

HYDRAULIC CONTROL VALVE THREE SPOOL for TRACTOR

Rel. Part No. Number

Qty.

158-513 1.

500-350

3

Description

Ref. No.

Part Number

Qty.

Description

Hydraulic Control Valve (Incl.

8.

500-357

1

Seal Repair Kit

ref. no.'s 1 thru 8)

155-772

0-Ring (-112)

Spool End Cap

500-163

0-Ring (-114)

2.

500-351

3

Lockout Plunger

9.

105-104

1

Bolt (3/8-NC x 5')

3.

500-352

6

Lockout Compression Spring

10.

105-047

1

Lockout (3/8-NC)

4.

500-353

3

Port Adapter Plug Kit

11.

105-224

2

Bolt (1/4-NC x 2-1/2')

0-Ring (-114)

12.

105-832

2

Flange Locknut (1/4-NC)

500-163

5

500-354

6

Lockout Seat Kit

13.

130-101

3

Connector Link (No. 50)

6

500-355

3

Seat Retainer Plug Kit

14.

361-679

1

Front Lever (beige grip)

0-Ring (-114)

15.

361-680

1

Center Lever (black grip)

Spring Centering Kit

16.

361-681

1

Rear Lever (black grip)

500-163

7

500-460

3

84049-84075

133

HYDRAULIC MOTOR TAPERED KEYED SHAFT

134

HYDRAULIC MOTOR TAPERED KEYED SHAFT REF NO.

1.

2.

3.

4.

5.

6.

PART NUMBER OTY DESCRIPTION HYDRAULIC MOTOR 155-579 HYDRAULIC MOTOR 155-580 500-347 1 HYDRAULIC MOTOR SEAL REPAIR KIT 155-771 3 0-RING (011 D70) 155-760 1 0-RING (904 D90) 165-915 1 KEY (5/16" S0 X 1") 105-418 1 NUT 105-501 1 COTTER PIN

REMARKS INCL REF NO.'S 1 THRU 6 SEE FOOTNOTE 1 INCL REF NO.'S 1 THRU 5 SEE FOOTNOTE 2 INCL REF NO.'S 2 AND 3

.

FOOTNOTES 1 USED ON ROTO WITCH II BORING UNITS. 2 USED ON ROTO WITCH III AND IV BORING UNITS.

801-568

135

--

HYDRAULIC MOTOR 14 Spline

Ref. No.

Part Number

Qty.

Hydraulic Motor (Incl. ref. no.'s 1 thru 3)

155-582 1.

500-347

Description

1

Hydraulic Motor Seal Repair Kit (Incl. ref. no.'s 2 and 3)

2.

155-771

3

0-Ring (-011)

3.

155-760

1

0-Ring (-904)

86006-86072

136

HYDRAULIC MOTOR MAE Series (Ends with S/N 4D0481)

RN. Part Na. Mania

Oly. Description

Hydraulic Motor (Incl. ref.

N.A.

no.'s 1 and 2) 1. 500-412

1

Seal Repair Kit

2. 105-418

1

Nut

86061-86117

137

HYDRAULIC MOTOR ME Series (Begins with S/N 4D0482)

M. Part s. Number N i

Qty. Description

Hydraulic Motor (Incl. ref.

155-572

no.'s 1 and 2) Hydraulic Motor (Incl. ref.

155-573

no.'s 1 and 2) Hydraulic Motor (Incl. ref.

158-703

no.'s 1 and 2) 1.

500-510

1

Seal Repair Kit

2.

105-418

1

Nut

86062-86118

138

Hydraulic Motor (Incl. ref. no.'s 1 and 2) Seal Gasket

139

HYDRAULIC PUMP VICKERS: 9 Spline

Ref. No.

Part Number

Qty.

155-513

Description

Ref. No.

Part Number

Qty.

Description

Hydraulic Pump (Incl. ref. no.'s 1 thru 13)

1.

N.A.

1

Compression Spring

1.

500-226

4

Bolt (3/8-NC x 3", GD 8

8.

500-236

1

Pressure Plate (Incl. bushing)

2.

N.A.

2

Dowel Pin

9.

N.A.

1

Shaft

500-227

2

'Dowel Pin (substitute)

10. 500 238

1

Cover

3.

500-228

1

Internal Snap Ring

11.

N.A.

Cartridge Kit (Incl. o-rings and ref. no. 12)

4.

500-229

1

External Snap Ring

12.

N.A.

Vane Repair Kit

5.

500 230 -

1

Bearing

13.

500-241

Seal Repair Kit (Incl. seal and o-rings)

125-030

1

Bearing (replacements)

'Substitute dowel pin must have .2" ground off in order to work.

500 234

1

Body

6.

-

-

86010-86068

140

--

DOUBLE HYDRAULIC PUMP SUNSTRAND: 15 Spline

Ref. No.

Part Number

Qty.

Description

Double Hydraulic Pump (Incl. ref.

155-512

no.'s 1 thru 11) 1.

155-841

4

Internal Seal (1.441" OD)

2.

155-863

1

Internal Seal (2.129" OD)

3.

500-362

4

Check Valve Kit

4.

500-413

1

Charge Pump Line

5.

500-414

2

'Shaker Pressure Relief (3000 PSI)

6.

500-415

2

Ground Drive Pressure Relief (5000 PSI)

7.

500-416

1

Charge Pump Kit

Ref. No.

Part Number

Qty.

Description

8.

500-472

1

Shaft (8-1/2" LG)

9.

125-223

2

Bearing (1" ID)

125-224

2

Race (1.98" OD)

125-381

2

Bearing (.75" ID)

125-382

2

Race (1.781" OD)

500-473

1

Gasket Set (Incl.'s gaskets and

10.

11.

o-rings for entire pump) 'If removal of pump is required the inner fenders, of the frame, may be altered to allow future access to the relief cartridges without removal of the pump.

Refer to Item 5 of Technical Bits dated 12-5-85.

86032-86070

141

142

POWER STEERING VALVE REF NO.

1.

2.

3.

4.

5.

PART NUMBER OTY DESCRIPTION 158-515 158-616 105-361 158-507 158-617 155 -790 158-516 158-622 500-424 500-459

1 1 1 1 1 1

POWER STEERING VALVE POWER STEERING VALVE JAM NUT (13/16-NEF) ORBITROL VALVE ORBITROL VALVE 0-RING (032 D90) ORBITROL COLUMN ORBITROL COLUMN SEAL REPAIR KIT SEAL

REMARKS ENDS WITH S/N BEGINS WITH S/N

& SEE FOOTNOTE 1

ENDS WITH S/N BEGINS WITH S/N

& SEE FOOTNOTE 1

ENDS WITH S/N & SEE FOOTNOTE 1 BEGINS WITH S/N EITHER STEERING VALVE

FOOTNOTES 1-ORDER 158-616 IF REPLACING 158-507 OR 158-516.

801-808 143

STEERING and PLOW SWING CYLINDERS

Rel. No.

part

Oty.

150-123 150-124 150-138 1.

2.

3.

4.

5.

6.

7.

150-381 150-315 150-389 150-231 150-247 150-239 150-842 150-798 150-904 150-906 150-912 181-179

1 1 1 1 1 1 1 1

1 1

Rel. No.

Description

Steering Cylinder (2" ID)Incl. ref. no.'s 1 thru 6 and 8 6 Plow Swing Cylinder (2' ID)Incl. ref. no.'s 1 thru 9 7 Plow Swing Cylinder (2' ID)Incl. ref. no.'s 1 thru 6 and 8 Cylinder Rod (steering) 6 Cylinder Rod (plow swing) 7 Cylinder Rod (plow swing) 6 Cylinder Barrel (plow swing) 7 Cylinder Barrel (plow swing) Cylinder Barrel (steering) 3 Cylinder Head 4 Cyiinder Head Smooth Piston Body (for 2' OD) Grooved Piston Body (for 2' OD) Lock Ring (for 2' ID) 6 Spacer (plow swing)

Part Number

Qty.

Description

1 1 Seal Repair Kit (for 2' ID) 190-101 1 2Seal Repair Kit (for 2' ID) 190-158 e Bolt (plow swing) 9. 105-459 %oft (3/4-NF x 4') 106-112 5 Spacer 181-978 Not Shown: Rod U-Seal Installer (1 to 1.484' ID seals) 259-100 seal kit is no longer available order corresponding kit listed below.

Ibis 8.

2This seal kit contains rod o-ring and backup ring for cylinder heads with

.208" THK Internal groove and u-seal for cylinder heads with .28" THK internal groove. Refer to Installation diagram 050-023 and piston seal replacement diagram 052-144.

2This head has .208" THK internal groove designed for use with o-ring and back-up ring combination. This head Is replaced by head with .28" THK Internal groove and rod u-seal. See footnote 4. *This head has .28" THK Internal groove designed for use with rodu-seal.

5 Eariy style bolt with 1" stop Is no longer available. Bolt and spacer (ref. no.

9) must be substituted for bolt in kit, on plow swing cylinders prior to S/N 180478.

6 Ends with S/N 180477.

7 Begins with S/N 180478 and cylinders used with replacement trolley swings which have revised cylinder tab (refer to page entitled TROLLEY).

87035-87089

144

FRAME PIVOT and PLOW LIFT CYLINDER

Ref. No.

Part Number

Qty.

150-080 150-125

151-020

150.238

1 1

150-277

1

2.

150-353 150-380

3.

150 851

1 1 1 1 1 1 1 1 1

1.

150-203

-

150-801 150-843

4.

5.

150-799 150-795 150-952 150-911

Description

Frame Pivot Cylinder (3" ID)—Incl. ref. no.'s 1 thru 6 8 Plow Lift Cylinder (3" ID, w/2.25" LG head)Incl. ref. no.'s 1 thru 6 °Plow Lift Cylinder (3" ID, w/2.5" LG head)— ref. no.'s 1 thru 6 Cylinder Barrel (frame pivot) °Cylinder Barrel (used with 2.25" LG head)—plow lift °Cylinder Barrel (used with 2.5" LG head)—plow lift Cylinder Rod (frame pivot) Cylinder Rod (plow lift) 3 Cylinder Head (frame pivot) 4 Cylinder Head (frame pivot) °Cylinder Head (2.25" LG)—plow lift °Cylinder Head (2.25" LG)—plow lift 'Cylinder Head (2.5" LG)—plow lift Piston Body Lock Ring

Ref. No.

Part Number

6.

190 102 -

190-159 Not Shown: 259-065 259-066 259-100

Qty. Description

1 1

'Seal Repair Kit 2Seal Repair Kit 'Piston Ring Compressor 10Piston Ring Guide Rod U-Seal Installer

'This seal kit is no longer available order corresponding kit listed below.

2 This seal kit contains rod o-ring and backup ring for cylinder heads with .208"

THK internal groove and u-seal for cylinder heads with .28" THK internal groove. Refer to installation diagram 050-024 and piston seal replacement diagram 052-144.

3 This head has .208" THK internal groove designed for use with o-ring and back-up ring combination. This head is replaced by head with .28" THK internal groove and rod u-seal. See footnote 4 4 This head has .28" THK internal groove designed for use with rod u-seal. °This head is 2.25" LG and has .208" THK internal groove designed for use with o-ring and back-up ring combination. This head is replaced by head with .28" THK internal groove and rod u-seal. See footnote 6 6 This head is 2.25" LG and has .28" THK internal groove designed for use with rod u-seal. See footnote 8.

7 This head is 2.5" LG and has .28" THK internal groove designed for use with rod u-seal. See footnote 9. °Cylinder and cylinder barrel designed for use with 2.25" LG cylinder head are no longer available. For replacement see footnote 9. °For replacement cylinder order cylinder with 2.5" LG cylinder head. If replacing cylinder barrel order new barrel designed for use with 2.5" LG head, a 2.5" LG cylinder head and a seal kit. °Tor procedures regarding use of piston ring tools for installation of o-ring and backup ring, on 3" OD pistons, refer to Technical Bits dated 2-27-86.

87115-87092 Ani■m■

145

°- EARTH SAW CYLINDER

Pad p l.. Number

Qty.

150-122

Description

Rel. No.

Pad Number

Qty.

Earth Saw Lift Cylinder (2' ID)—Incl.

7.

190-101

1

1 Seal Repair Kit (for 2' ID)

190-158

1

2Seal Repair Kit (for 2' ID)

rel. no.'s 1 thru 7

Description

1.

150-235

1

Cylinder Barrel

2.

150-381

1

Cylinder Rod

3.

150-842

1

3 Cylinder Head

1 Thls seal kit is no longer available order corresponding kit listed below.

150-798

1

4 Cylinder Head

2This seal kit contains rod o-ring and backup ring for cylinder heads with

4.

150-904

1

Smooth Piston Body (for 2' OD)

5.

150-906

1

Grooved Piston Body (for 2' OD)

6

150-912

1

Lock Ring (for 2' ID)

Not Shown: 259-100

Rod U-Seal Installer (1 to 1.484' ID seals)

.208" THK internal groove and u-seal for cylinder heads with .28" THK Internal groove. Refer to installation diagram 050-023 and piston seal replacement diagram 052-144.

2This head has .208" THK Internal groove designed for use with o-ring and back-up ring combination. This head Is replaced by head with .28" THK Internal groove and rod u-seal. See footnote 4.

4This head has .28" THK internal groove designed for use with rod u-seal.

146

MISCELLANEOUS SECTION

RELATED PUBLICATIONS 350SX PARTS MANUAL

050-587

350SX OPERATOR'S MANUAL

054-404

DEUTZ F2L511 PARTS MANUAL

050-532

DEUTZ F2L511 OPERATOR'S MANUAL

050-546

DEUTZ SERVICE MANUAL

050-509

DEUTZ PROBLEM DIAGNOSIS GUIDE

050-555

DEUTZ SALES/SERVICE DIRECTORY

050-556

WISCONSIN W4-1770 PARTS MANUAL

050-655

DANA 44 SERIES SERVICE MANUAL

055-021

SUNDSTRAND SERVICE MANUAL

050-661

SUNDSTRAND TANDEM SERVICE MANUAL

050-660

SUPPLEMENTARY MAINTENANCE GUIDE

050-633

HYDROSTATIC MANUAL

050-662

SPECIAL TOOL GUIDE

052-901

148

350SX: FILTERS - CAPACITIES FILTERS 159-019 WISCONSIN ENGINE OIL FILTER 195-682 WISCONSIN AIR FILTER 155-941 WISCONSIN FUEL FILTER 195-806 DEUTZ ENGINE OIL FILTER 195-817 DEUTZ AIR FILTER (PRIMARY) 195-818 DEUTZ AIR FILTER (SECONDARY) 195-807 DEUTZ FUEL FILTER 159-009 DEUTZ WATER TRAP FILTER 155-954 HYDRAULIC FILTER (GAS OR DIESEL) - EARLY HYDRAULIC FILTER (GAS OR DIESEL) - PRESENT 159-042 NOTE: The Charles Machine Works, Inc., strongly urges replacing the filters on Ditch Witch equipment with original equipment Ditch Witch filters.

FLUID CAPACITIES FUEL ENGINE OIL WISCONSIN DEUTZ DIFFERENTIAL HYDRAULIC OIL HEAD TANK STEP TANK SYSTEM *VIBRATOR

6.6 GAL (25 1) (3.8 1) (3.5 1) (2.1 1)

GEO DEO MPL

2.3 GAL (8.7 1) 5.5 GAL (20.8 1) 11.5 GAL (43.5 1)

THF THF THF MPL

4 QT 3.7 QT 4.5 PT

* - With vibrator level, fill to bottom of sight gauges.

LUBRICANT SPECIFICATIONS TRACTOR HYDRAULIC FLUID DIESEL ENGINE OIL, SAE 15W40 MEETING API CLASSIFICATION SF/CD OR CE GASOLINE ENGINE OIL MEETING API CLASSIFICATION GEO SD GEAR OIL, 80W90, MEETING API CLASSIFICATION MPL GL-5 MULTI PURPOSE GREASE MPG HYDRAULIC OIL, SAE 10W OR 10W40, MEETING API HYDO CLASSIFICATION SD AUTOMATIC TRANSMISSION FLUID ATF, TYPE F ATF-F DEXRON II AUTOMATIC TRANSMISSION FLUID MEETING ALLISON SPECIFICATION C-3 WORM GEAR LUBRICANT MATCHING AMERICAN GEAR AGMA-7 .MANUFACTURERS ASSOCIATION COMPOUND #7 THF DEO

149

BOLT AND NUT TORQUE

SAE G R-5 BOLTS (FINE OR COARSE THREAD)

Bolt and Nut Details

1/4

5/16

3/8

7/16

Diameter (In Inches) 1/2 9/16 5/8

3/4

7/8

1

1•/8

1.1/4

Regular hex nuts or regular hex bolt heads torqued into regular nuts. flange nuts. or drilled and tapped holes

12

25

40

65

(FT. LBS. TORQUE) 100 150 200

350

560

840

1030

1460

Hex section top deflected locknuts

8

15

25

40

60

90

120

210

340

500

620

880

Flanged section with flange teeth nuts'. or flange teeth bolt heads' torqued into flange nuts or drilled and tapped holes.

20

45

75

125

190

270

370

650

1050

1580

1950

2760

SAE G R-8 BOLTS (FINE OR COARSE THREAD) Bolt and Nut Details

1/4

5/16

3/8

7/16

Diameter (In Inches) 1/2 9/16 5/8

3/4

7/8

1

1.1/8

1.1/4

Grade C" regular hex nuts — or regular hex bolt heads torqued into grade "C" regular nuts' -. flange nuts. or drilled and tapped holes.

14

30

55

85

FT. LBS. TORQUE) 130 190 260

450

730

1090

1550

2180

Grade C" hex section top deflected locknuts"

10

18

35

50

80

110

160

270

440

650

930

1310

Flanged section with flange teeth nuts — or flange teeth bolt heads' torqued into flange nuts or drilled and tapped holes.

24

50

90

140

220

310

430

750

1210

1820

2580

3640

NOTES: * For flange sections without flange teeth use values for regular nuts and bolt heads. **For nuts that are not Grade "C" use values for grade 5.

150

TOE-008

IN

IN

IN

ZT-Z/T-E

IN

8-E

E

Bi►

IN

IN

IN

ZI/E

IN

8-Z/T-Z

Z/T-Z

0$

IN

IN

IN

ZI-Z/T-Z

ZT-Z/T-Z

g'TT-Z

Z

ZE

IN

ZI-Z

TOO-LgT

ZT-8/L-T

ZT-8/L-T

g'IT-Z/I-T

Z/T-I

VZ

IN

ZI-9I/I1-T

ZOL-SST

ZT-8/g-T

ZI-8/G-T

g'IT-17/T-T

$/t-I

OZ

tTL-GGT

ZT-9T/L-I

8tL-SST

ZT-9T/g-T

ZT-9T/g-I

g'TT-T

1

9T

IN

IN

LtL-SST

ZI-9T/£-I

ZI-9T/£-I

IN

8/L

VT

LIO-LGT

ZT-9t/£-T

60L-SST

ZT-9T/T-T

ZI-9T/T-T

6t-1'/£

17/E

ZI

0$0-LGT

tT-T

LOL-GgI

$t-8/L

tI-8/L

IN

e/s

OT

6E0-LGT

9T-9T/ET

90L-GG1

9T-t/E

9T-t/E

17T-Z/T

Z/I

80

8E0-LgT

9T-9T/TT

GOL-GgT

81-91/6

81-91/6

8T-8/E

8/E

90

IN

IN

LIL-GgI

OZ-Z/T

IN

9T/G

GO

8I-9T/6

09L-SGT

OZ-9T/L

OZ-9T/L

8I-17/T

17/T

$0 '

LEO-LgT

OZ-Z/T

.

IN

IN

IN

tZ-8/C

IN

IN

9T/E

CO

IN

IN

IN

$Z-9T/g

IN

LZ-8/T

8/T

ZO

IN

IN

IN

IN

IN

IN

9T/T

TO

avamu

°bird-0

avama

avama

avama

0 I f

1 d N

azis mouovua

HSVQ

DNIH-0 S

a 0

Rpm

a V S

omiu-o - azis avaum - azis lava

azis

WARRANTY SUPPORT SERIAL NUMBER RECORD Record the serial number and date of purchase of your equipment in the space provided. Specify equipment serial number and part number to expedite processing of parts orders.

Date of Purchase: Serial Number: Model Number:

WARRANTY SUPPORT PROCEDURE Notify your dealer immediately of any malfunction or failure of Ditch Witch equipment.

Always give model, serial number and approximate date of your equipment purchase.

Return damaged parts to dealer for inspection and warranty consideration.

Order genuine Ditch Witch replacement or repair parts from your authorized Ditch Witch dealer. Use of another manufacturer's parts may void Warranty Support consideration.

Ditch Witch® EQUIPMENT AND REPLACEMENT PARTS LIMITED WARRANTY POLICY Effective 01/01/91 The following Major Component Limited Warranty covers only the serial numbered products ("Products") as listed that are manufactured and distributed by Charles Machine Works, Inc. ("CMW") Replacement parts, serial numbered Products, and non-major components listed under Major Component Limited Warranty are covered under Product Limited Warranty.

MAJOR COMPONENT LIMITED WARRANTY Major Components of these Products and their attachments are warranted for a period of 1000 hours of use or one year, whichever occurs first, beginning on date of delivery of any such new Product to original purchaser.

Models 1010, 100SX, 1620, 2020, 520, and 255SX Equipment and attachments for: 2310, 3500, 4500, 5110, 5020, 7520, 8020, Earth Augers, Jet Trac Guided Boring System, True Trac Guided Boring System, Pierce Airrow Tools, P40, P80, Trailers, Power Pacs, Subsite Surface Transmitters & Receivers Major Components are defined as: Subsite Surface Transmitters and Receivers.

Differentials and parts contained within.

Mechanical Transmissions.

Drive gear boxes and parts contained within.

Hydraulic, hydrostatic, and fluid pumps, motors and components that control or protect pumps and motors.

Auxiliary hydraulic control valves and electrical components used for controlling hydraulic components.

Hydraulic cylinders and components excluding repair kits.

Batteries, alternators, instruments, gauges, and protection components for electrical systems.

CMW will provide free replacement parts to original purchaser for any part of Major Components which has a defect in material or workmanship within warranty period. Defects will be determined by an inspection of Major Component or part by CMW or its authorized dealer. Original purchaser of the Product containing a Major Component must present Major Component or part to CMW or its authorized dealer for inspection within 30 days of the date Major Component or part fails. CMW will provide the location of its inspection facilities or its nearest authorized dealer upon inquiry. CMW reserves the right to supply remanufactured replacement parts as it deems appropriate.

152

PRODUCT LIMITED WARRANTY Products are warranted for * 90 days from date of delivery of any new Product to original purchaser. CMW will provide free replacement parts to original purchaser for any Product which has a defect in material or workmanship. Replacement parts are warranted for 90 days from date of delivery of any such replacement part to original purchaser. Any part of a Product subject to ground contact is warranted only for defects in material or workmanship and only for the period of operational life of such part, which period shall not in any event exceed the 90 day limited warranty above. Defects will be determined by an inspection of the Product or part by CMW or its authorized dealer. Original purchaser of the Product must present Product or part to CMW or its authorized dealer for inspection within 30 days of the date of failure. CMW will provide the location of its inspection facilities or its nearest authorized dealer upon inquiry. CMW reserves the right to supply remanufactured replacement parts as it deems appropriate. *180 days for Ditch Witch DR52, DR65, and DP195.

EXCLUSIONS FROM PRODUCT AND MAJOR COMPONENT LIMITED WARRANTY SPECIFICALLY EXCLUDED FROM PRODUCT AND MAJOR COMPONENT LIMITED WARRANTY ARE Transportation and labor charges related to repair, replacement, or inspection of Products, Major Components, or parts.

All incidental or consequential damages.

All defects, damages, or injuries caused by misuse, abuse, improper installation, alteration, neglect or uses other than those for which Products were intended.

All defects, damages, or injuries caused by improper training, operation, or servicing of Products in a manner inconsistent with manufacturer's recommendations.

All engines and engine accessories (these are covered by original manufacturer's warranty).

Tires, belts, and other parts which may be subject to another manufacturer's warranty (such warranty will be available to purchaser).

ALL IMPLIED WARRANTIES NOT EXPRESSLY STATED HEREIN, INCLUDING ANY WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY. IF THE PRODUCTS ARE PURCHASED FOR COMMERCIAL PURPOSES AS DEFINED BY THE UNIFORM COMMERCIAL CODE, THEN THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE FACE HEREOF AND THERE ARE NO IMPUED WARRANTIES OF ANY KIND WHICH EXTEND TO A COMMERCIAL BUYER. ALL OTHER PROVISIONS OF THIS LIMITED WARRANTY APPLY INCLUDING THE DUTIES IMPOSED. Ditch Witch Products have been tested to deliver acceptable performance in most conditions. This does not imply they will deliver acceptable performance in all conditions. Therefore, to assure suitability, Products should be operated under anticipated working conditions prior to purchase.

This limited warranty applies to original purchasers only. Some states do not allow exclusion or limitation of incidental or consequential damages, so above limitation or exclusion may not apply. Further, some states do not allow exclusion of or limitation of how long an implied warranty lasts, so above limitation may not apply. This limited warranty gives original purchaser specific legal rights and the original purchaser may also have other rights which vary from state to state.

For information regarding this limited warranty, contact CMW's Technical Administration Department, P.O. Box 66, Perry, OK 73077-0066, or contact your local Ditch Witch dealer.

153

A Note To Ditch Witch Equipment Owners: If your equipment was purchased through a Ditch Witch dealer, there is no need to read further.

However, if you purchased from any other source, please fill out the form on the reverse side and return it to us.

This will enable you to receive updates on this equipment as well as information on new products of interest.

Thanks for using Ditch Witch equipment!

(Please Fold Along This Line And Seal At Bottom With Tape)

NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES

BUSINESS REPLY MAIL FIRST CLASS

PERMIT NO, 23 PERRY, OKLAHOMA

POSTAGE WILL BE PAID BY

The Charles Machine Works, Inc. P.O. Box 66 Perry, Oklahoma 73077-9989

Ditch Witch® Registration Card Please Type Or Print All Information

Purchaser's Company Name

Attention

Street Address or P.O. Box

City

County

Zip

State

Nation

I Phone Number With Area Code

Machine Model

Serial Number

Attachments

Serial Number

Attachments

Serial Number

Attachments

Serial Number

Name of Ditch Witch Dealership

Your Signature

Thanks!

The Charles Machine Works, Inc. Box 66 Perry, OK 73077-9989
