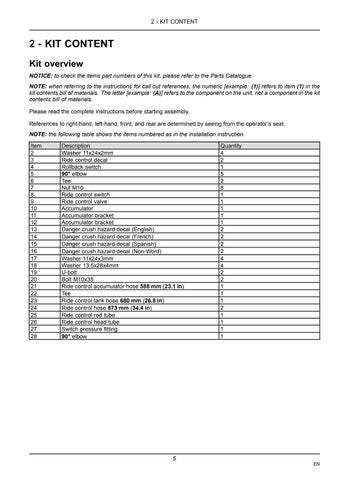

2 - KIT CONTENT
2 - KIT CONTENT Kit overview NOTICE: to check the items part numbers of this kit, please refer to the Parts Catalogue. NOTE: when referring to the instructions for call out references, the numeric [example: (1)] refers to item (1) in the kit contents bill of materials. The letter [example: (A)] refers to the component on the unit, not a component in the kit contents bill of materials. Please read the complete instructions before starting assembly. References to right-hand, left-hand, front, and rear are determined by seeing from the operator’s seat. NOTE: the following table shows the items numbered as in the installation instruction. Item 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
Description Washer 11x24x2mm Ride control decal Rollback switch 90° elbow Tee Nut M10 Ride control switch Ride control valve Accumulator Accumulator bracket Accumulator bracket Danger crush hazard decal (English) Danger crush hazard decal (French) Danger crush hazard decal (Spanish) Danger crush hazard decal (Non-Word) Washer 11x24x3mm Washer 13.5x28x4mm U-bolt Bolt M10x35 Ride control accumulator hose 588 mm (23.1 in) Tee Ride control tank hose 680 mm (26.8 in) Ride control hose 873 mm (34.4 in) Ride control rod tube Ride control head tube Switch pressure fitting 90° elbow
Quantity 4 2 1 5 2 8 1 1 1 1 1 2 2 2 2 4 4 2 2 1 1 1 2 1 1 1 1
5 EN
