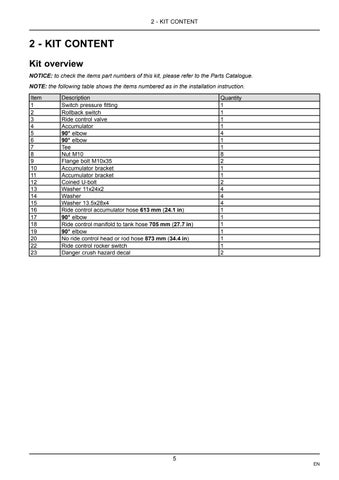

2 - KIT CONTENT
2 - KIT CONTENT Kit overview NOTICE: to check the items part numbers of this kit, please refer to the Parts Catalogue. NOTE: the following table shows the items numbered as in the installation instruction. Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 22 23
Description Switch pressure fitting Rollback switch Ride control valve Accumulator 90° elbow 90° elbow Tee Nut M10 Flange bolt M10x35 Accumulator bracket Accumulator bracket Coined U-bolt Washer 11x24x2 Washer Washer 13.5x28x4 Ride control accumulator hose 613 mm (24.1 in) 90° elbow Ride control manifold to tank hose 705 mm (27.7 in) 90° elbow No ride control head or rod hose 873 mm (34.4 in) Ride control rocker switch Danger crush hazard decal
Quantity 1 1 1 1 4 1 1 8 2 1 1 2 4 4 4 1 1 1 1 1 1 2
5 EN
