Connect the hydraulic hose (19) the straight fitting

Set the hook link (17) in position. Align the upper holes in the hook link (17) and the mounting holes the machine. Install the upper pin (S) , the shims (R) , and the snap rings (Q) . Align the lower holes in the hook link (17) and the mounting holes the machine. Install the lower pin (O) , the shims (N) , and the snap rings (M) .

Electric harness install

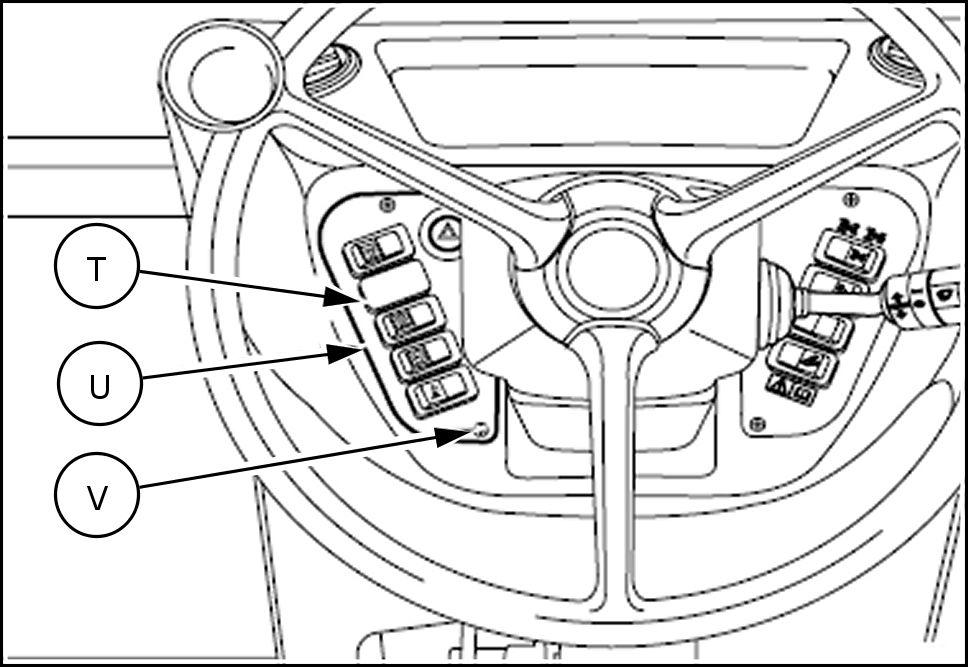

Inside the cab remove the plug (T) the front left - hand instrument panel (U) . Paying attention the electric connections, partially lift the front left - hand instrument panel (U) make the lower side accessible.

Remove the screws (W) securing the side instrument cluster (X) . NOTICE: Care must used when pulling the panel away from the cluster that there is damage the wire harnesses.

RAIL16TLB0362BA 21

RAIL14TLB0878BA 22

RAIL14TLB0879BA 23
