Connect the hydraulic hose (8) the straight fitting
from CNH Object Handling kit 580ST 580T Loader backhoe Installation Instructions Manual 48161061 - PDF DO

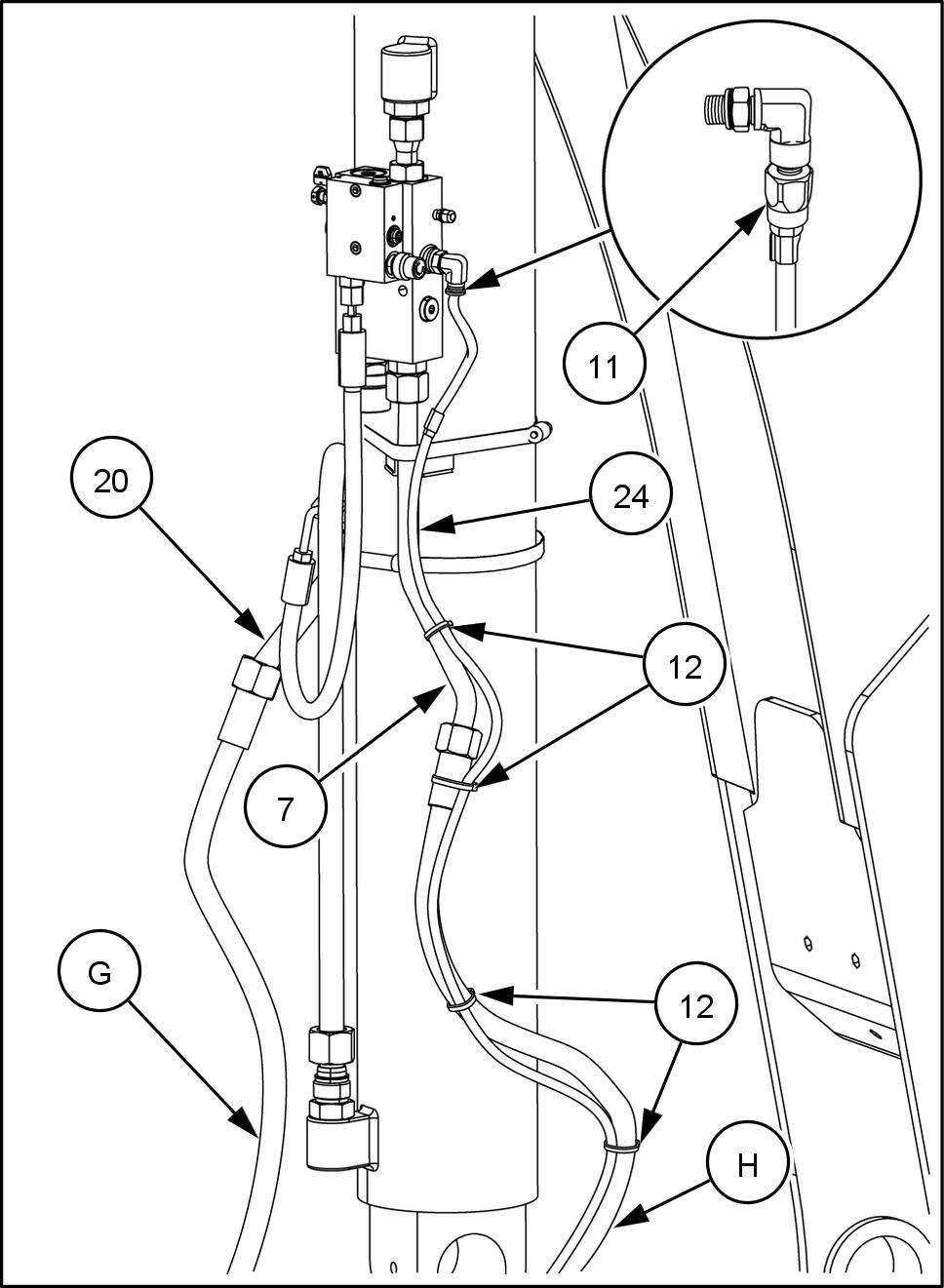

15. Connect the existing hose (G) the rigid boom tube (20) . 16. Connect the existing hose (H) the rigid boom tube (7) . 17. Route the boom electric harness (24) along the existing hose (H) and the rigid boom tube (7) the pressure switch . 18. Connect the connector “X2.p” the boom electric harness (24) the pressure switch . 19. Secure the boom electric harness (24) in place with four tie straps (12) where shown.
Lift hook link install

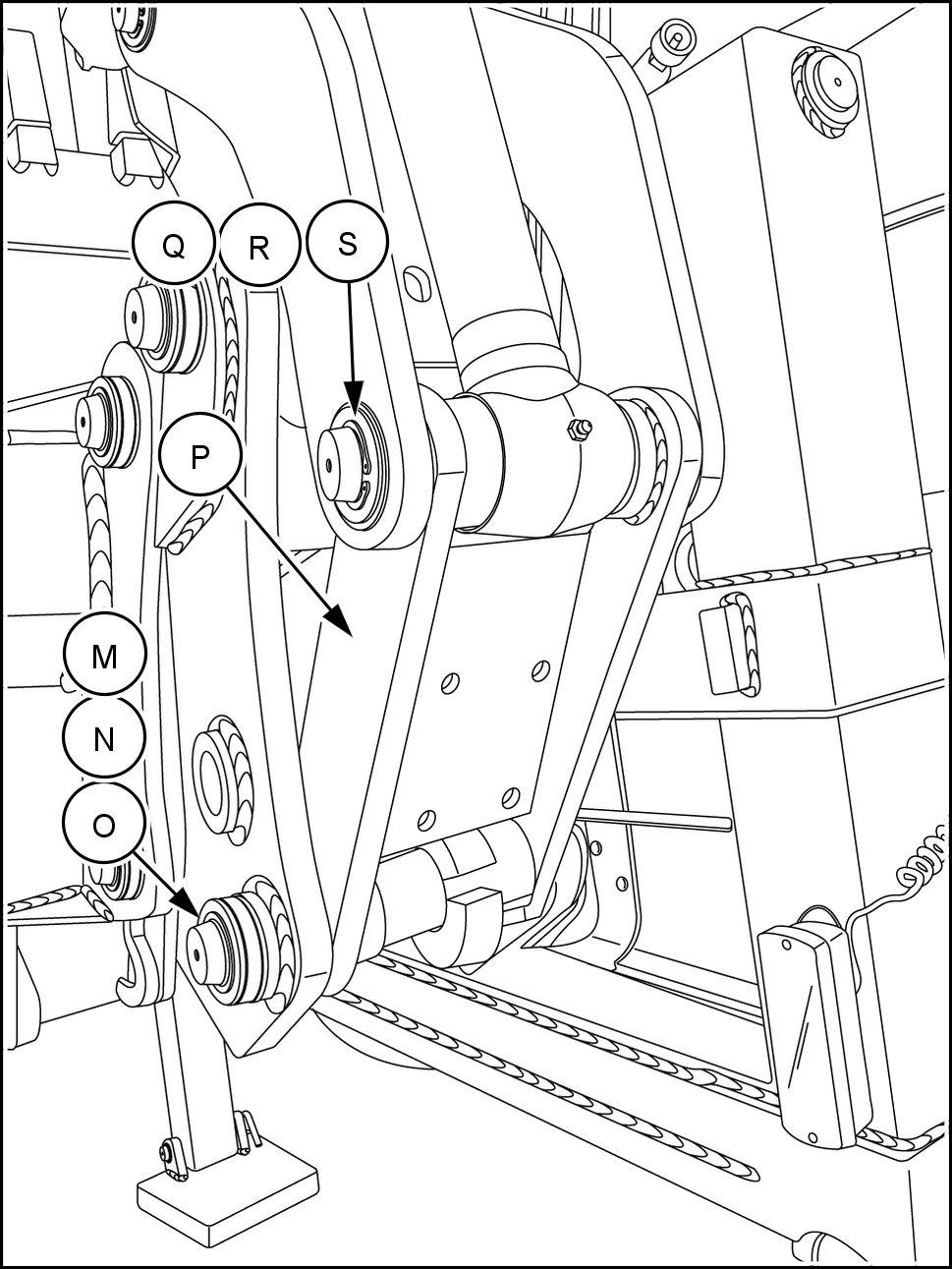

Remove the lower snap rings (M) , the shims (N) , and the pin (O) . Support the existing link (P) . Remove the upper snap rings (Q) , the shims (R) , and the pin (S) . Remove the existing link (P) from the machine.
RAIL17TLB0216BD 19
RAIL16TLB0363BA 20
