Secure the drain hose (5) the existing hydraulic hoses (L) . Use the cable ties (14) .
from CNH Hydraulic Drain Line (XT-TC, Z-Bar) 121F XT 21F XT W50C TC W60C TC 121F ZB Instruction Manual

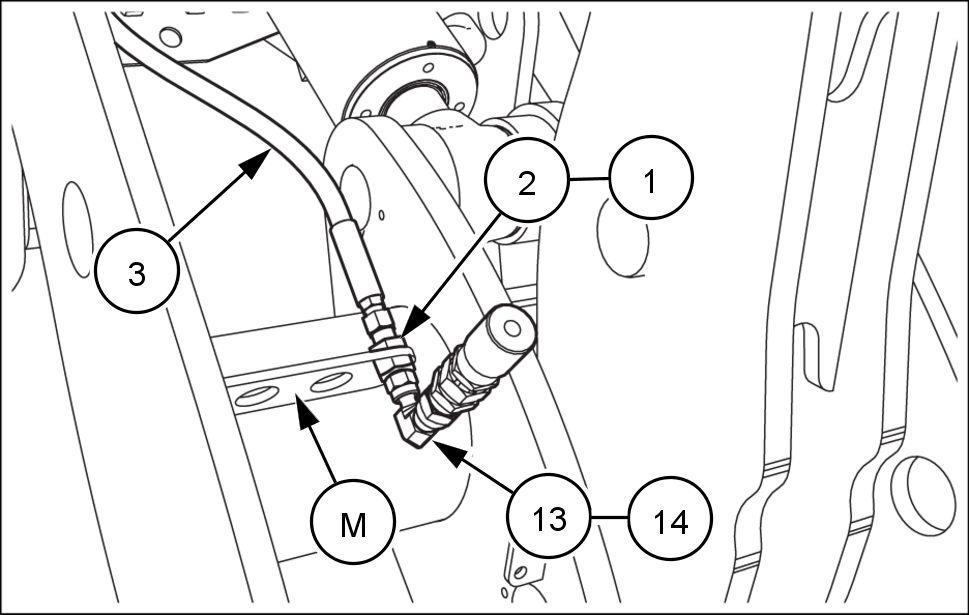

18. Install the union (1) the plate (M) . Use the lock nut (2) . 19. Install the drain hose (3) the union (1) . Tighten
N·m ( ). 20. Install the ° elbow (13) the union (1) . Tighten
N·m ( ). 21. Install the quick coupling (14) the ° elbow (13) . 22. Adjust the orientation the ° elbow (13) , and the quick coupling (14) shown in Figure . Tighten the quick coupling (14) 100 N·m ( ).

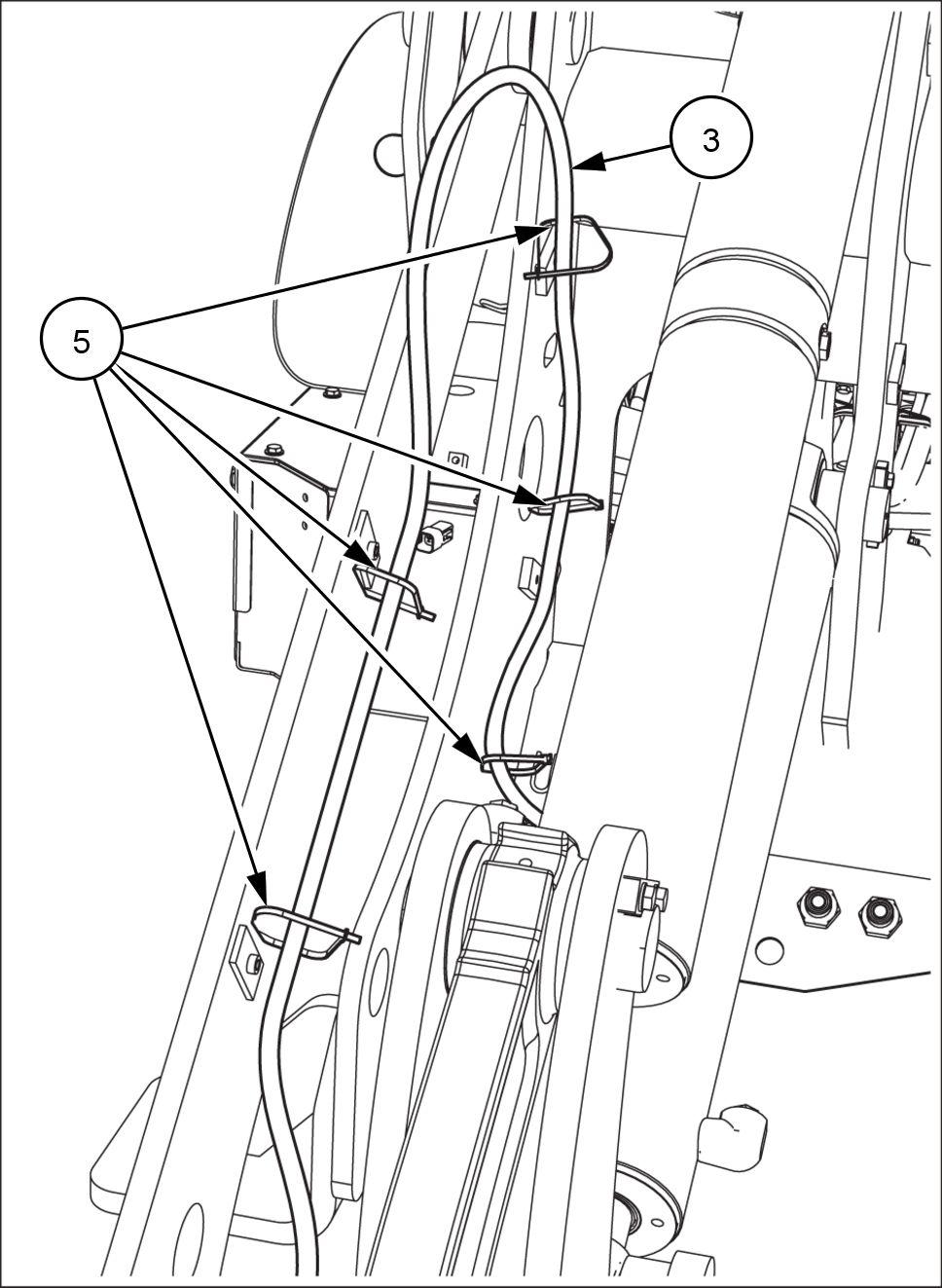

23. Secure the drain hose (3) the existing hydraulic hoses. Use the cable ties (5) .
LEIL19CWL0303AA 28
LEIL19CWL0310AA 29
LEIL19CWL0304AA 30
