Pass the drain hose (5) through the hole the front
from CNH Hydraulic Drain Line (XT-TC, Z-Bar) 121F XT 21F XT W50C TC W60C TC 121F ZB Instruction Manual

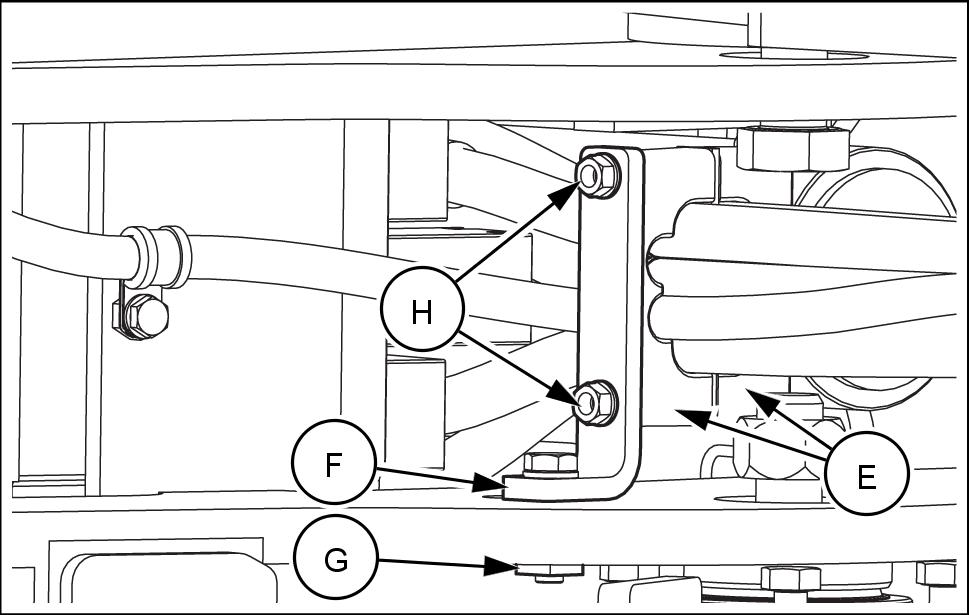

the rear frame locate the clamps (E) . Remove the hardware (H) and loosen the nut (G) move the plate (F) and facilitate the drain hose installation.

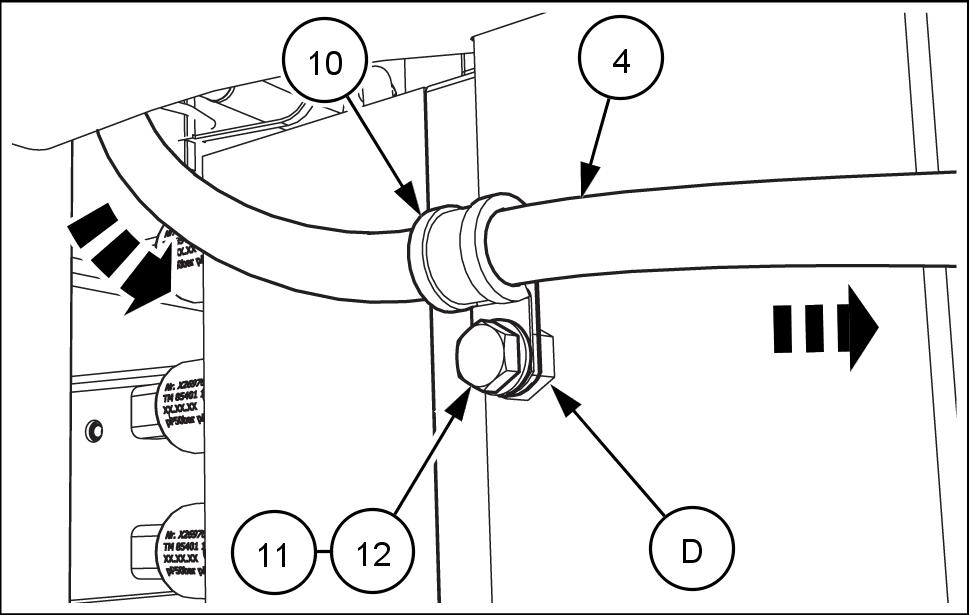

Secure the drain hose (4) the rear frame. Use the clamp (10) , the bolt (12) , the washer , and the nut (D) . NOTE: Align the clamp (10) the mark the drain hose (4) .

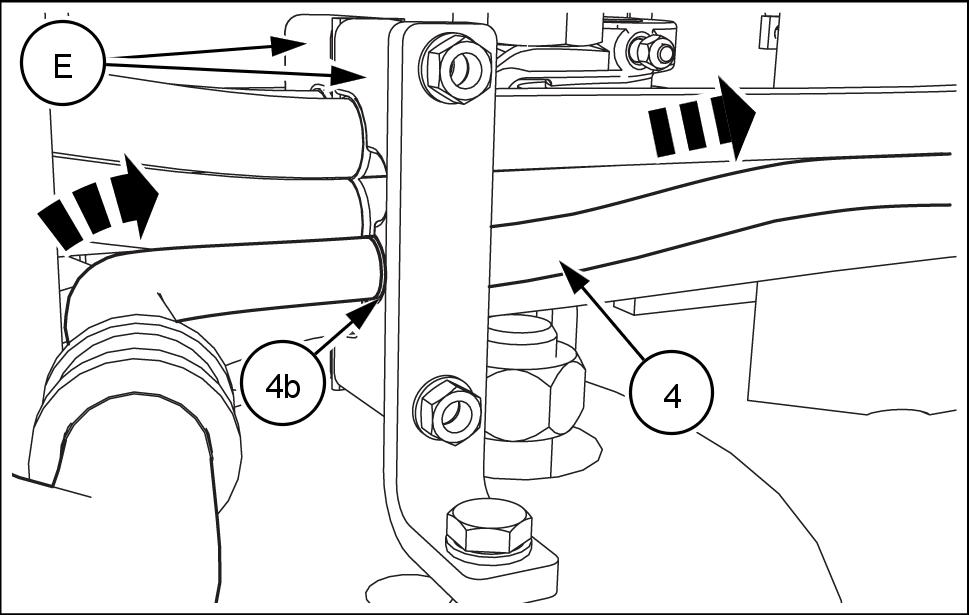

10. Pass the drain hose (4) through the clamps (E) shown. NOTE: Align the mark (4b) the drain hose (4) the clamps (E) .
1 Reinstall the hardware (H) reassemble the clamps (E) and the plate (F) . Tighten the nut (G) .
LEIL19CWL0332AA 20
LEIL19CWL0264AA 21
LEIL19CWL0333AA 22
LEIL19CWL0334AA 23
