Place the washer (9) onto the screw

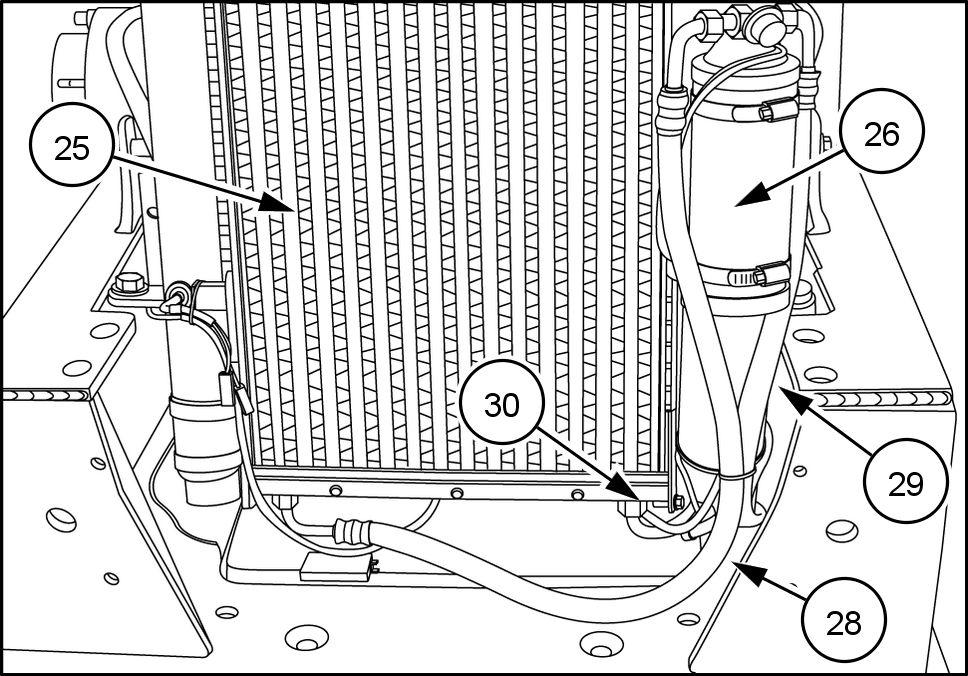

22. Connect the hose (28) between the condenser (25) and the filter (26) . Connect the hose (30) the condenser (25) . Connect the hose (14) the filter (26) and route it along the frame the top the cab, before connecting it the bottom the air conditioning assembly (56) . Fasten the hoses means the flange valve kit (27) . NOTE: Before connecting the hoses, lubricate the Orings.

23. Remove the operator's seat. Remove the panels from the right and left posts inside the cab, remove the inner cab roof panel and remove the right side panel. NOTE: Discard all the trim buttons that were removed. 24. Bore the cab roof panel and install the vents (60) and (61) . Place the hoses (57) and (58) onto the roof panel. Connect the hoses (57) and (58) the vents (60) and (61) means the clamps (51) . Connect the hoses (57) and (58) the cab roof means the cable ties (50) .

25. Install the dif fusers (59) onto the vents (60) and (61) means the screws (68) . Position and fasten the roof panel means the plugs (55) .

RAIL14TLB0662BA 7

RAIL14TLB0663BA 8

RAIL14TLB0664BA 9

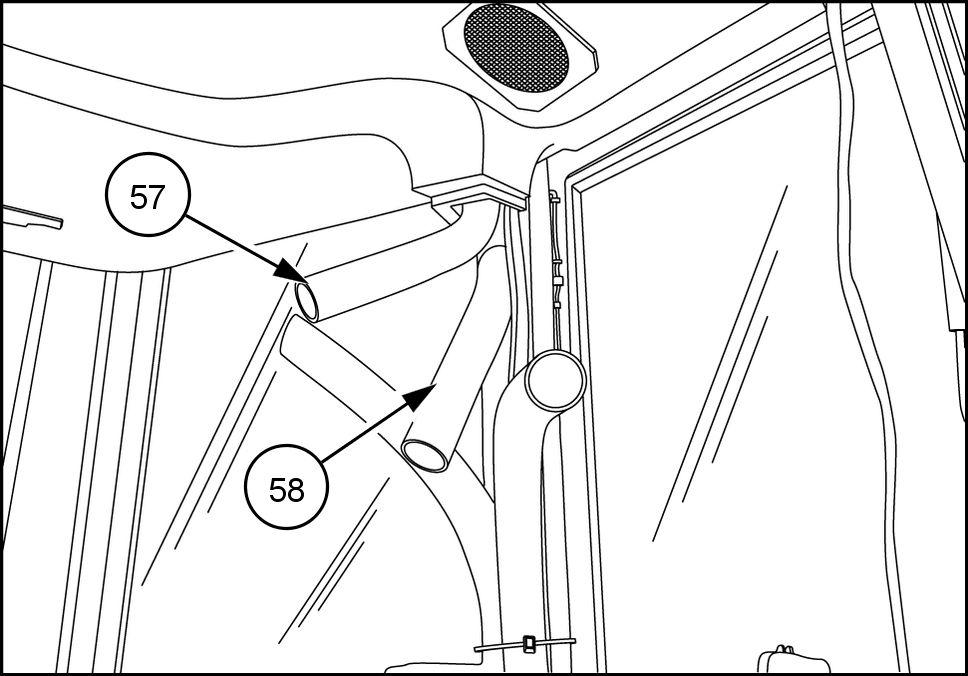

26. Let the hoses (57) and (58) come out the appropriate opening in the cab roof panel the right post's side.

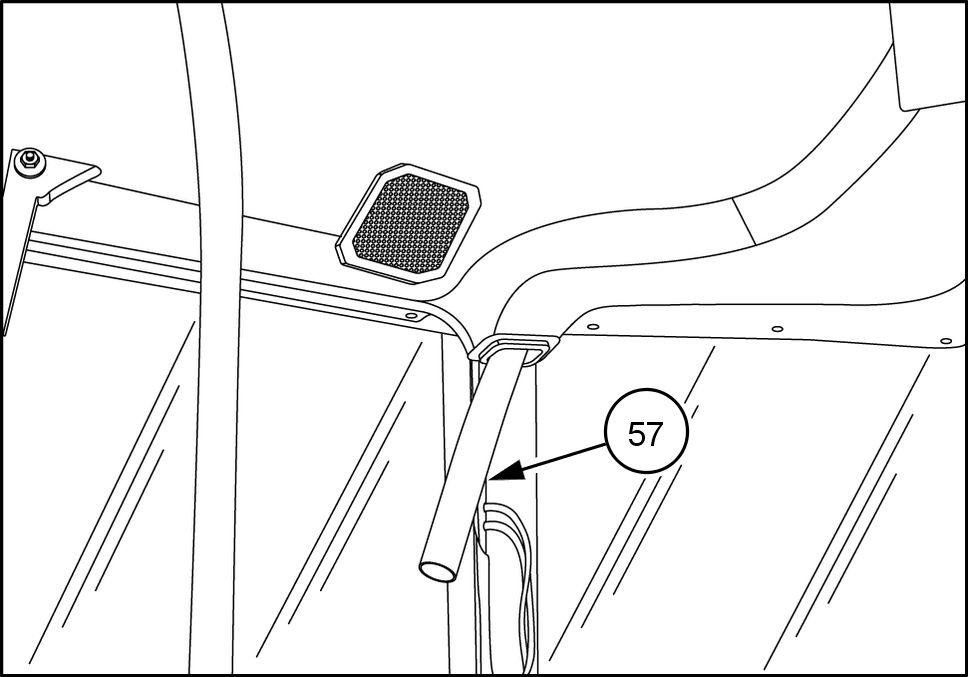

27. Let the second hose (57) come out the appropriate opening in the cab roof panel the left post's side.

28. Bore the panel the left post and position the vent (67) and a dif fuser (49) . Connect the hose (57) the vent (67) means a sleeve (66) . Reassemble the panel the left post means the plugs (54) .

RAIL14TLB0665BA 10

RAIL14TLB0666BA 11

RAIL14TLB0668BA 12
