ASSEMBL Y

2 - KIT CONTENT

Kit overview

Item Description Quantity Part Reference

1–41 Kit, Air Conditioner Machine Part 1 47779884 1 Bolt, M10 x 2 11 106421 2 Bolt, M10 x 1 11 107421 3 W asher , Belleville 10.5 x x 2.3 x 2.75 2 11 190574 4 W asher , Belleville 8.4 x x 1.4 x 1.85 3 11 193874 5 W asher , 10.5 x x 2 2 14496601 6 Nut, M10 1 1257721 1 7 W asher , W ave 10.5 x x 4.2 2 12601474 8 Bolt, x 7 43127 9 W asher , Rosetta 5 14496534 Bolt, x 2 120104 11 Screw 1 15213921 Bolt, M10 x 130 1 14421621 Nut, 2 87597953

Screw Belt 7 85819184 1 87565328

Switch, Pressure 1 85804065

Bracket, Condenser , T

1 87630384 Bracket, Condenser 1 87646126 Bracket, Condenser , Left hand, Lower 1 87630386 Bracket, Condenser , Right hand, Lower 1 87630383 Decal, Important 1 85804441 Compressor 1 85817170 Bracket, Filter 1 87315236 Clamp 2 87315239 Condenser 1 87314566 Filter , A/C 1 87315241 Kit, Flange V alve 1 85021 131 Flex hose, Filter Condenser 1 87315364 Flex hose, Filter Evaporator 1 87315368 Flex hose, Compressor Condenser 1 8756531 1 Flex hose, Compressor Evaporator 1 87495914 Support, Compressor 1 87565321 Support, Pulley Tightening 1 87565322 Pulley , Tightening 1 87565326 Block 1 87315459 Hand Guard 1 87565346 Hexagon Nut, Self - Lock 4 1404071 1 Decal 1 87324469 Bolt 1 10903421 Bracket, Upper A/C Condenser Mounting 2 47703656 Bracket, Lower A/C Condenser Mounting 2 47703658 Extension, A-C 1 87569316 Fuse, 10A 1 1 1054990 Cable Tie, 199.3 x 3.65 2 14560187 Clamp 4 47048451 Relay , 40A 1 85821537 Refrigerant 1 87314755 Seal, Fixed Hood 1 84525074 Louver , Air Outlet 2 87362068 Cable Tie, 290 x 4.8 3 12712

Item Description Quantity Part Reference

Clamp, Hose 4 13000690 Bracket, Right - hand Condenser 1 87319438 Bracket, Left - hand Condenser 1 87319441 Fastener , Plastic 81870039 Plug, Headliner 1 85805777 Air Conditioning, Cab Assembly 1 51666586 57–61 Kit, A/C Louvers, Headliner 1 47930014 T ube, Paper , 040 L870 2 47930010 T ube, Paper , 040 L1000 1 47930012 Nozzle, Rectangular 2 47930016 Connector , Rectangular 1 47930019 Fitting, Rectangular 1 47930021 62–67 Kit, A/C Duct Outlet Fittings 1 47929997 T ube, Paper , 045 L1400 1 47930007 T ube, Paper , 045 L1250 1 47929999 Fitting, Through 1 47930001 Sleeve, Rubber , 050 3 47929989 Sleeve, Rubber , 045 1 47930003 Junction L58 1 47930005 Screw , x 4 14440327

T 5162852 Control, AC T emperature and fan speed 1 47839903

3 - PRE-ASSEMBL Y

PREP ARING FOR ASSEMBL Y

Heating, V entilation, and Air - Conditioning (HV AC) unit - Prepare

READ COMPLETE INSTRUCTION SHEET BEFORE INST ALLA TION THIS KIT

Reference numbers and letters illustrations are the same reference numbers and letters in the instructions. Special torque specifications are included in the instructions. torque specifications are not included in the instructions, use standard torque specifications. See your Service Manual Authorized Dealer if you need standard torque specifications.

Preparing for Kit Component Upgrade

Park the machine a level surface. Raise the loader arms and engage the safety strut. Stop the engine and apply the parking brake. Switch the master disconnect the f position.

RAIL13SSL0013AA 1

4 - ASSEMBL Y

INSTRUCTIONS

Heating, V entilation, and Air - Conditioning (HV AC) unit - Install

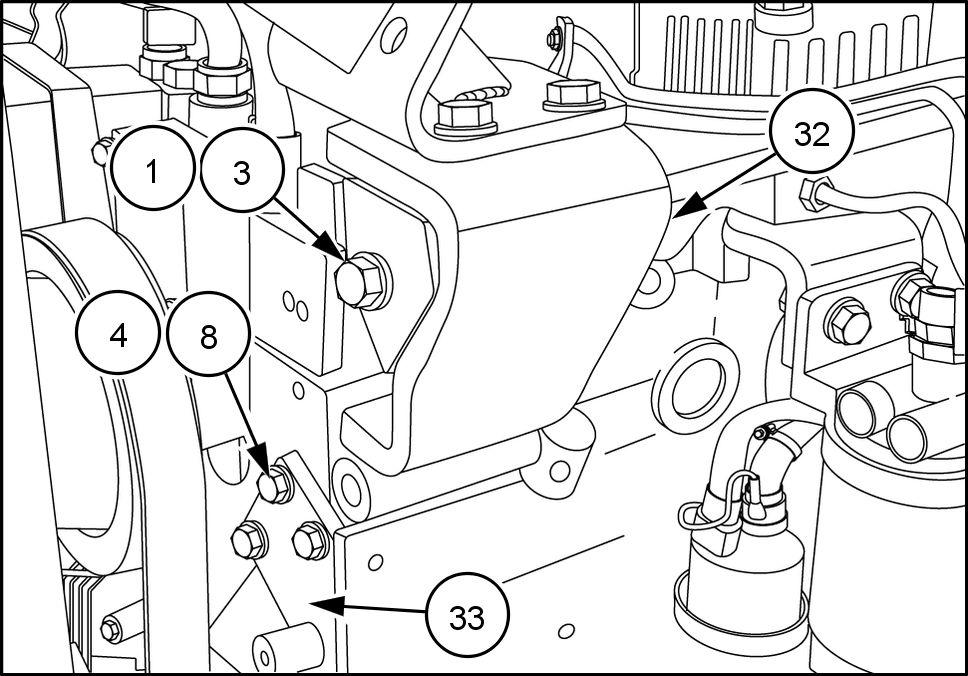

Remove the front grill screen. Retain all hardware. Open and raise the engine hood. Install the compressor support (32) between the muffler support and the engine, means the existing hardware, and one M10 x screw (1) and one 10.5 x x 2.3 x 2.75 washer (3) from the kit. Install the pulley tightening support (33) onto the front the engine block. Secure in place with three x bolts (8) and three 7.4x x 1.4 x 1.85 washers (4) .

RAIL14TLB0657BA 1

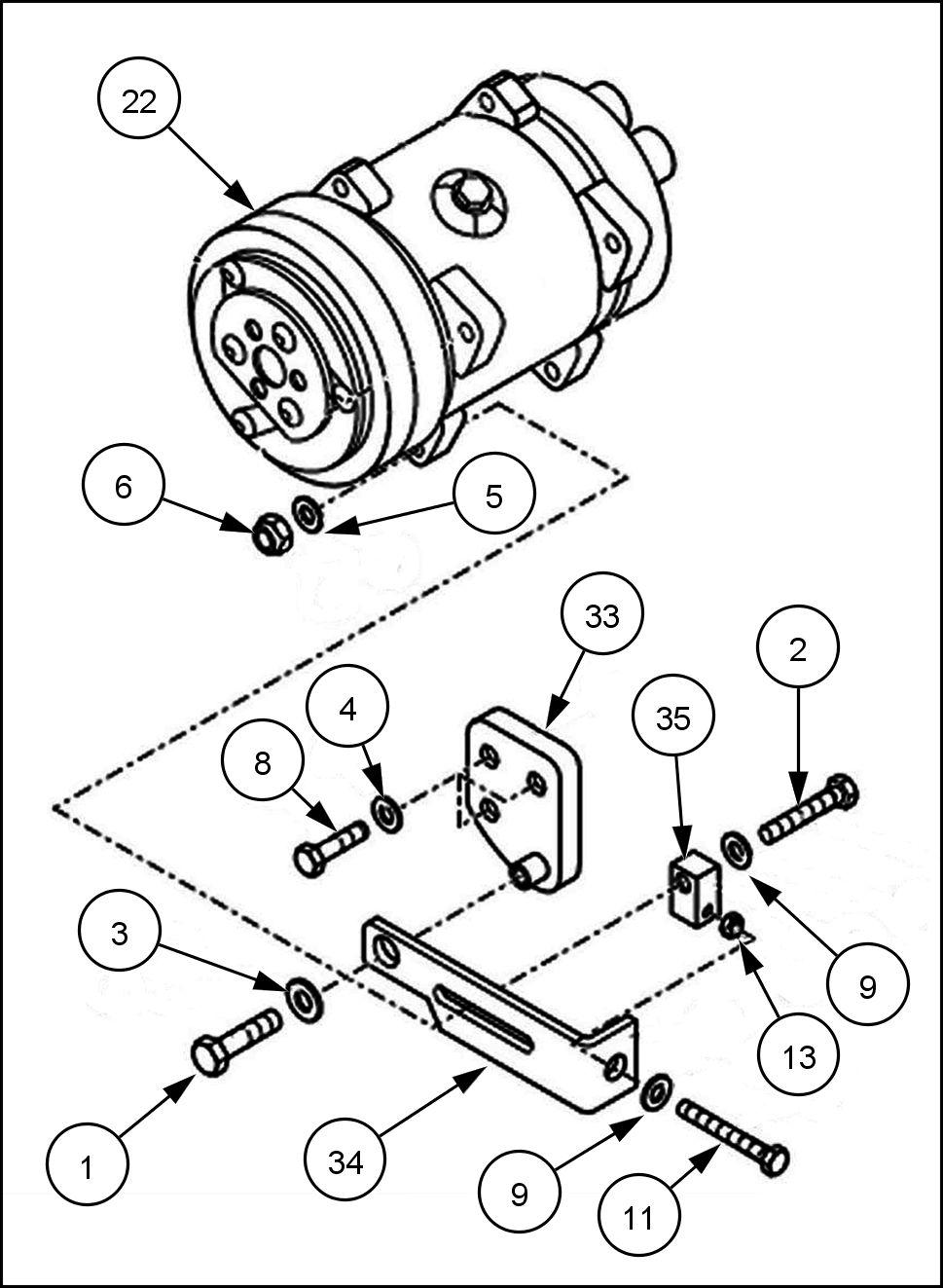

Install the compressor (22) onto the compressor support (32) .

Secure in place with the M10 x 130 bolt (12) and washer (7) .

Install the belt tensioner (34) with the screw and one washer (9) .

Fasten the compressor means the block (35) , the

M10 x bolt (2) , one washer (9) , one washer (5) , and the M10 nut (6) . 10. Place the washer (9) onto the screw . 1 Place the screw and the nut (13) between the block (35) , the nut (13) and the belt tensioner (34) . 12. Place the belt (15) in position and tension it. 13. Install the hand guard (36) means one M10 x bolt (1) and the washer (7) .

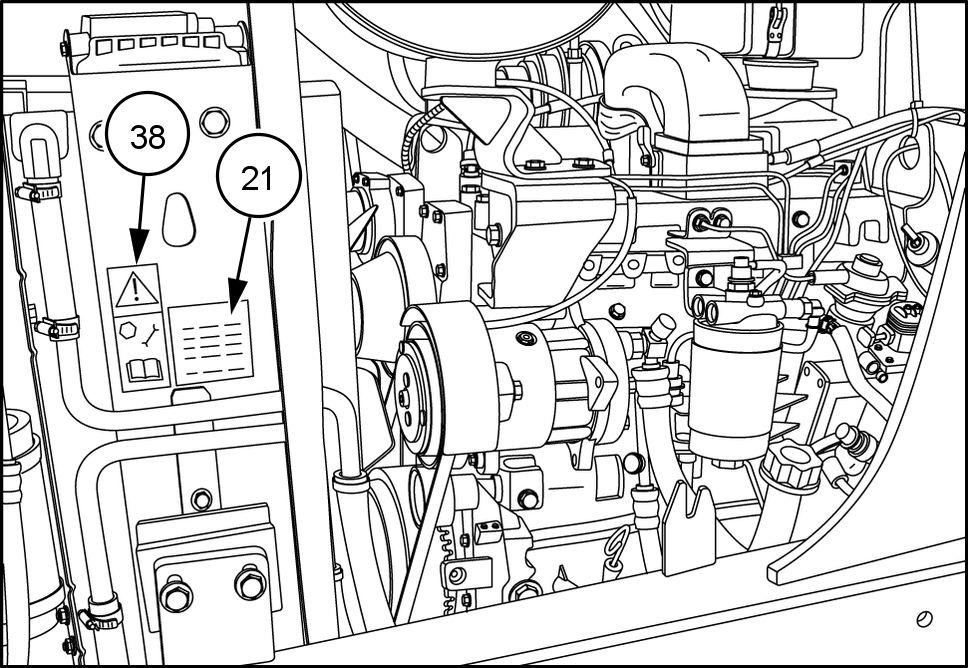

14. Connect the wiring harness the compressor the wiring harness the engine. 15. Attach the decals (38) and (21) shown.

RAIL16TLB1043BA 2

RAIL14TLB0658BA 3

RAIL14TLB0681BA 4

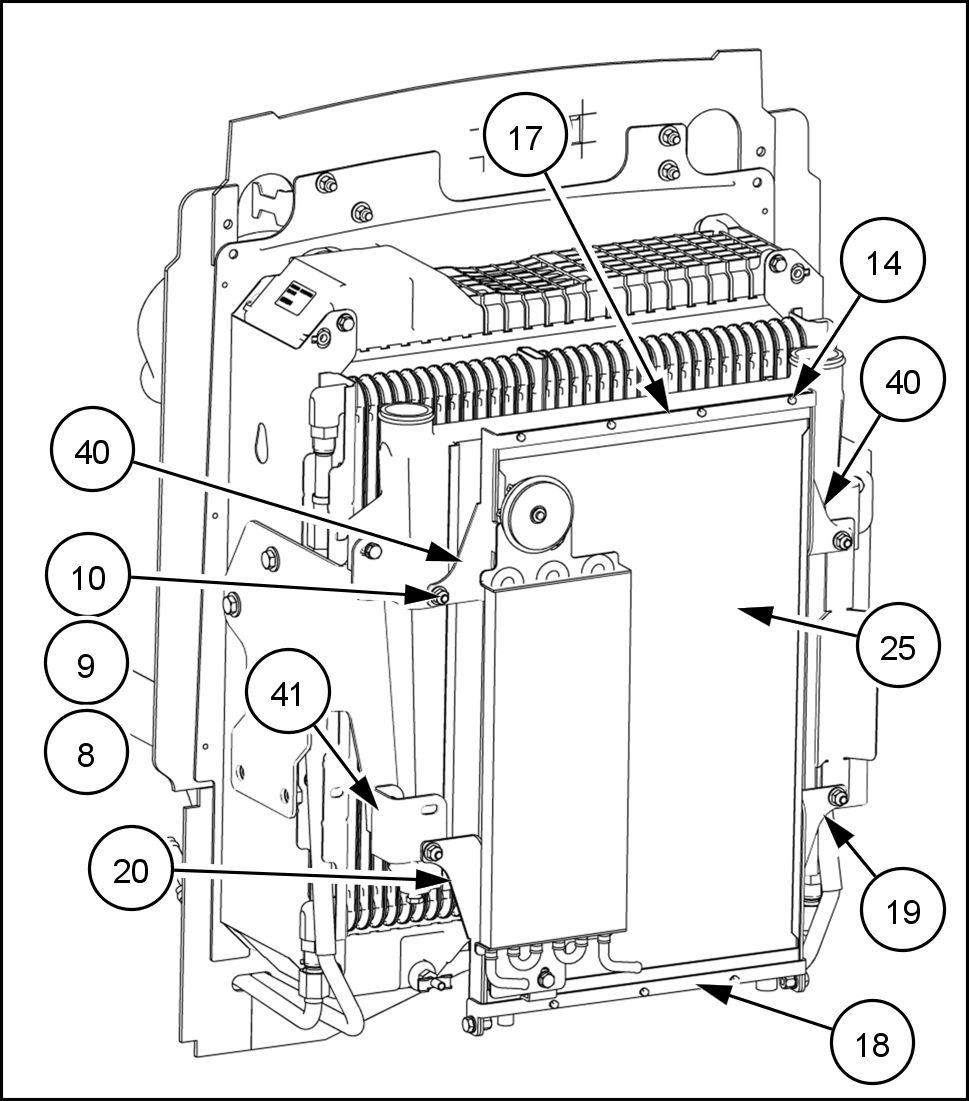

16. Install the upper condenser bracket (17) and the lower condenser bracket (18) onto the condenser (25) with the seven screws (14) . 17. Install the bottom left - hand condenser bracket (19) and the bottom right - hand condenser bracket (20) onto the lower condenser bracket (18) with the two bolts (10) , the two nuts (37) , and the four washers (9) . 18. Attach the condenser assembly the coolant package with the two upper brackets (40) and the two lower brackets (41) with the four bolts (8) , the four nuts (37) , and the four washers (9) .

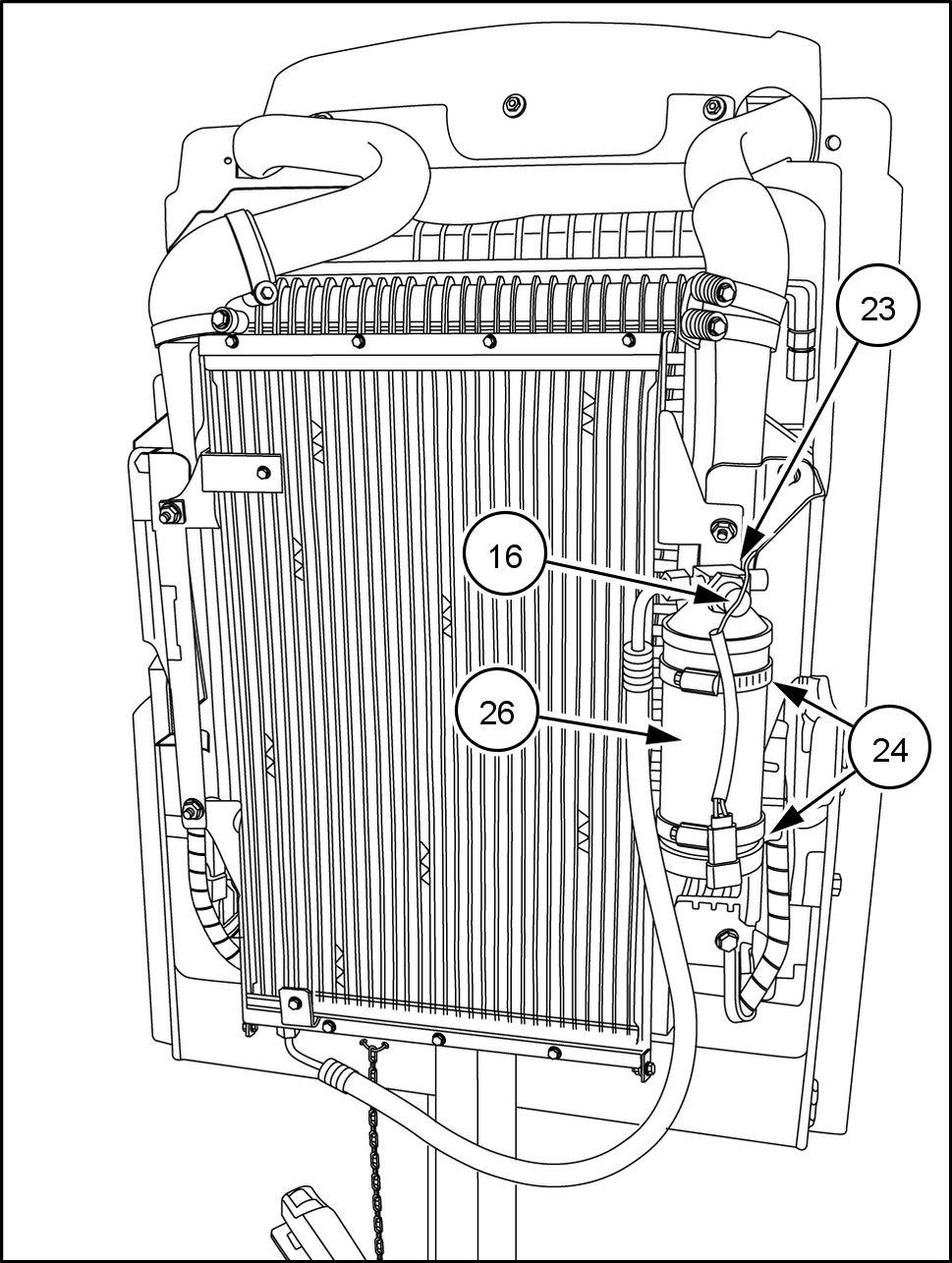

19. Install the pressure switch (16) onto the filter (26) . In-

stall the filter (26) onto the support (23) means two clamps (24) . Connect the pressure switch extension harness the pressure switch (16) . 20. Route the harness extension along the inside the right - hand chassis channel. 21. Connect the harness extension the engine harness connector located near the starter .

RAIL16TLB0458GA 5

RAIL15TLB0519BA 6
