Install the hand guard (36) means one M10 x bolt (1) and the washer (7) .

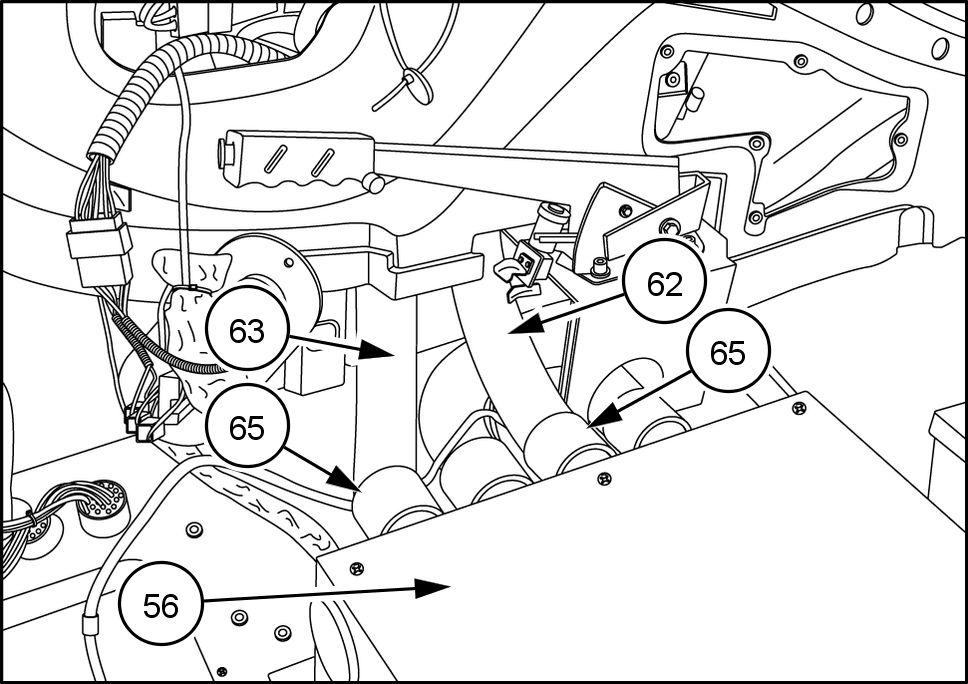

32. Connect the hoses (62) and (63) the conveyor (56) means the clamps (65) .

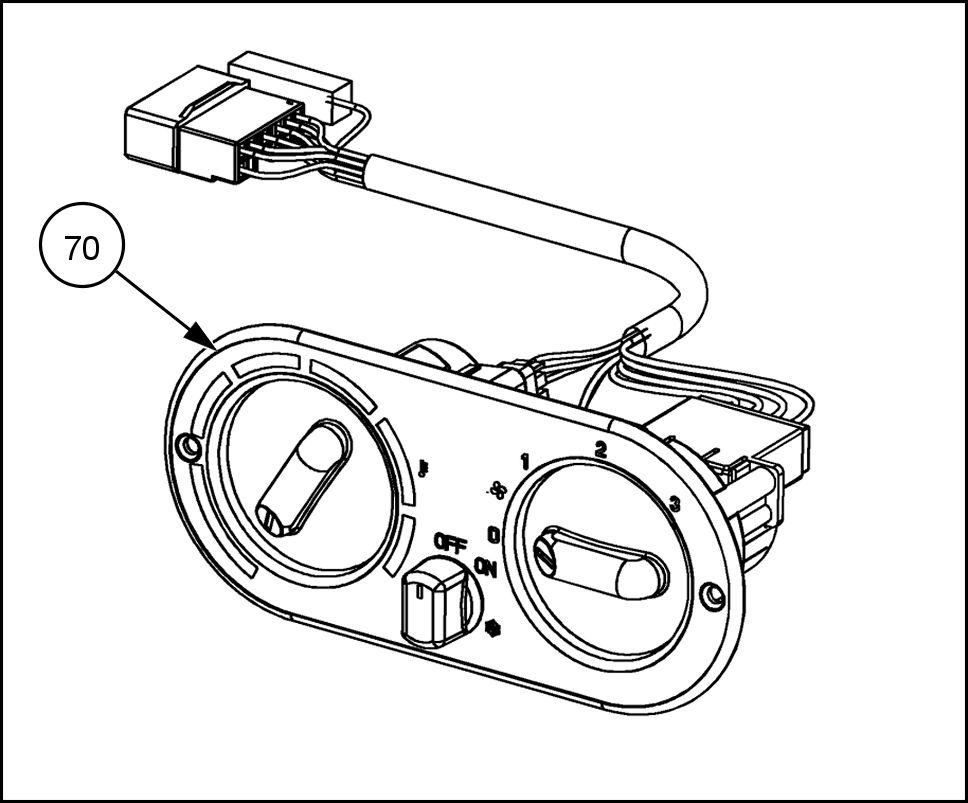

33. Remove the heat only fan control switch from the right hand side the side console, retain the mounting hardware. 34. Install the AC temperature and the fan speed controller (70) into the right - hand side console with the previously removed hardware.

35. Install the inner cab roof panel and the right side panel with the trim buttons (54) . Install the panels from the right and left posts inside the cab with the trim buttons (54) . Install the operator's seat. 36. Follow the AC procedure evacuate and charge the air conditioning system with the appropriate quantity R134a air conditioning refrigerant. 37. Inspect the air conditioning system for any refrigerant leaks, after the system has been charged and cycled. 38. Install the operator's seat. Reconnect the battery master switch. Lower and close the engine guard.

Remove the safety support strut and lower the loader attachment. Check the operation the air conditioning system.

RAIL14TLB0682BA 16

RAIL16TLB0431BA 17
