CLAAS ACADEMY | Annual modifications 2018/2019 CLAAS Saulgau GmbH

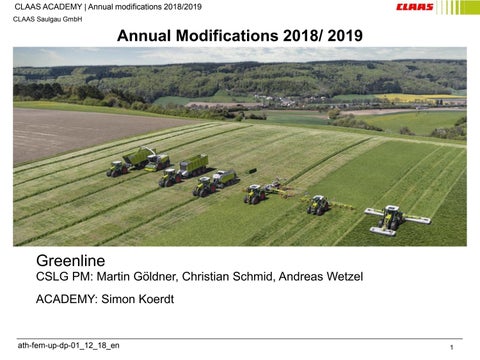

Annual Modifications 2018/ 2019

Greenline CSLG PM: Martin Göldner, Christian Schmid, Andreas Wetzel ACADEMY: Simon Koerdt

ath-fem-up-dp-01_12_18_en

1

CLAAS ACADEMY | Annual modifications 2018/2019

EU-type approval 167/2013: „Mother regulation“ Impact EU-Type Approval EU167/2013 on greenline in general  From 01/01/2018 optional for all trailers and towed implements (DISCO, VOLTO, LINER, CARGOS, QUANTUM and balers)  EU Member States be able to transfer this EU legislation in national law at any time causing the EU-Type Approval would be binding also for all trailers and towed implements  First countries changed already to EU-Type Approval (NL 01/01/2018), others will follow (e.g. Spain 01/01/2019)

ath-fem-up-dp-01_12_18_de

2

CLAAS ACADEMY | Annual modifications 2018/2019

EU-type approval 167/2013: „Mother regulation“ Impact EU-Type Approval EU167/2013 on greenline

 Beside e.g. the documents* and a new identification plate, the EU167/2013 for trailers and implements requires additional technical content (e.g. safety chain)  To be prepared for these market demands new options are available (are in standard for all the affected subtypes!)

*print and distribution of COC over sales network (similar process to CT)

 Max. transport speed of machines coupled in lower linkage and / or without brakes is restricted to max. 40 kph with EU167/2013!  The option is configured into the standard equipment. All machines with the new EU-Type Approval need to get the technical content in standard, also in countries which don’t change to the EU-Type Approval in 2019!

Characteristic DI_S03_0230_Legal eq. EU 167/2013 VO_S03_0230_Legal eq. EU 167/2013 LI_S03_0230_Legal eq. EU 167/2013 ath-fem-up-dp-01_12_18_de

3

CLAAS ACADEMY | Annual modifications 2018/2019

EU-type approval 167/2013: „Mother regulation“ Impact EU-Type Approval EU167/2013 on greenline and balers  With EU-Type Approval hydraulic single circuit braking systems are not permitted any longer. Countries with homologation based on EU16/2013 have to switch on belonging types to air brakes! (hydraulic double circuit braking systems will be not available for CLAAS balers, trailers and implements)

ath-fem-up-dp-01_12_18_de

4

CLAAS ACADEMY | Annual modifications 2018/2019

EU-type approval 167/2013: „Mother regulation“ Affected subtypes greenline Product group Product

type subtype

technical restriction

DISCO

F90 F90 F90 F93 F93 F93 F93 G53 G54 G55 G55 631 631 G12 G13 G15 G16 G17 G17 G17 G17 G18 G18 985 986 987 987 988 989 G06 G05

DI_A02_4700 only with DI_S03_0230 DI_A02_4710 only with DI_S03_0230 DI_A02_4720 only with DI_S03_0230 DI_A02_6630 only with DI_S03_0230 DI_A02_6650 only with DI_S03_0230 DI_A02_6660 only with DI_S03_0230 DI_A02_6670 only with DI_S03_0230 VO_A02_1050 only with VO_S03_0230 VO_A02_1070 only with VO_S03_0230 VO_A02_0950 only with VO_S03_0230 VO_A02_0960 only with VO_S03_0230 VO_A02_0580 only with VO_S03_0230 VO_A02_1120 only with VO_S03_0230 LI_A02_1730 only with LI_S03_0230 and with S03 0200 LI_A02_1780 only with LI_S03_0230 and with S03 0200 LI_A02_1150 only with LI_S03_0230 LI_A02_1850 only with LI_S03_0230 LI_S02_1600 only with LI_S03_0230 LI_S02_1630 only with LI_S03_0230 LI_S02_1700 only with LI_S03_0230 LI_S02_1730 only with LI_S03_0230 LI_S02_1830 only with LI_S03_0230 LI_S02_1900 only with LI_S03_0230 LI_A02_0750 only with LI_S03_0230 LI_A02_0800 only with LI_S03_0230 LI_A02_0850 only with LI_S03_0230 LI_A02_0870 only with LI_S03_0230 LI_A02_0900 only with LI_S03_0230 LI_A02_1100 only with LI_S03_0230 Option not available, technical content in the base machine!

Option not available, technical content in the base machine!

VOLTO

LINER

3200 TC/TRC 3200 TC/TRC 3200 TC/TRC 3150 TC/TRC 3150 TC/TRC 3150 TC/TRC 3150 TC/TRC 800 T 900 T 1100 T 1100 T 1300 T 1300 T 450 T 500 T 700 Twin 800 Twin 1600-1700 1600-1700 1600-1700 1600-1700 1800-1900 1800-1900 2600 2700 2800 2800 2900 3100 3600 4000

ath-fem-up-dp-01_12_18_de

010 110 210 010 030 040 110 110 110 110 120 110 130 110 110 010 010 010 020 030 040 020 030 010 010 010 040 010 010 all subtypes all subtypes

5

CLAAS ACADEMY | Annual modifications 2018/2019

CORTO

ath-fem-up-dp-01_12_18_en

6

CLAAS ACADEMY | Annual modifications 2018/2019

CORTO 285 F / 310 F; 3200 F PROFIL; 3200 CONTOUR

1

 Pivoting bolt of the swath disc carrier is now greasable (1)  Increased longitudinal adjustment, for improved adjustment towards mowing drum (2)

2

 Reinforcement (3) of the setting of the additional swath disc

Note: 3

ath-fem-up-dp-01_12_18_en

Modification in production from 2. building slot 2019 on. Type F02 / F03 / F04 7

CLAAS ACADEMY | Annual modifications 2018/2019

CORTO 3200 F PROFIL / 310 F / 285 F  Double mirrors for better visibility into crossroads now also on the CORTO available

 For CORTO 3200 F PROFIL (1) and for CORTO 285/310 F (2)

1

 Option code S03 0020  Retrofittable to older machines of type F01 / F02 and F03 2

ath-fem-up-dp-01_12_18_en

 Spare part numbers: 2652 281.0 for 3200 F 2652 727.0 for 310/285 F

8

CLAAS ACADEMY | Annual modifications 2018/2019

CORTO 3200 F PROFIL  Additional guiding plate (1) for an easier hitching of the A-frame

1

 Two addtional fitting points (2) of the front cover sheet to reduce vibrations

2

ath-fem-up-dp-01_12_18_en

9

CLAAS ACADEMY | Annual modifications 2018/2019

CORTO 285 F / 310 F

1 2

 Additional guiding plate (1) for an easier hitching of the A-frame  Changed shape of the Uprofile for better accessability to the screw of the locking lug (2)

3

ath-fem-up-dp-01_12_18_en

 Additional bumper (3) for the side guards

10

CLAAS ACADEMY | Annual modifications 2018/2019

CORTO 3200 CONTOUR  Jack stand elongated (1), for a better / more even unhitching

1

ath-fem-up-dp-01_12_18_en

11

CLAAS ACADEMY | Annual modifications 2018/2019

CORTO 190 / 220

1

 The chain inside the safety curtains is changed to plastic plates (1) (like on the CORTO 3200 CONTOUR)

2

 Chain and hook of the drive shaft reinforced (2)

ath-fem-up-dp-01_12_18_en

12

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO

ath-fem-up-dp-01_12_18_en

13

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO General Installation aid for conditioner tines, Straigthening tool and mounting pin 1

2

 For all tine conditioner machines the tools are availble  The new mounting pin will be delivered with all tine conditioner machines builded April 2019 and later

Spare part numbers: 2622 204.0 Straithening tool (1) 2628 457.0 Installation aid (2) 2633 080.0 Mounting pin (3)

3

ath-fem-up-dp-01_12_18_en

14

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Front

 Outer safety frames become (1) grey  Same like on DISCO MOVE 1

ath-fem-up-dp-01_12_18_en

15

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Front

 Springs become now an option like ACTIVE FLOAT  DISCO front mowers will be deliverd without mounted springs

 Either springs oder ACTIVE FLOAT comes in an accessory kit with the machine

ath-fem-up-dp-01_12_18_en

16

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Front

Hydraulic remote rear to front  Hydraulic hose with couplers from rear to front of the tractor (1)  Equipping of a second tractor fro front mower options

1

 Connecting of the hose with an remote on the rear side of the tractor via another short hose (2)  Bringing a rear remote to the front of the tractor  For example for adjusting of the ACTIVE FLOAT pressure of the front mower 2

 For double acting function 2x needed Part number: 2681 586.0 DI_R03 0950 (Typ F95-98) ath-fem-up-dp-01_12_18_en

17

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Rear CONTOUR + TREND triple mower Additional weight piece  On machines without swath discs this additional weight piece can be mounted (1)  The weight reduces the sometimes upcoming noise at the headland on machines without swath disc (movement of the mowing unit)

1

 Available via spare parts

 Spare part number: 1393 486.0  Additional mounting parts: 1

- 2x Screw M12 x 120 242 380.0 - 4x B12 Contact-Disc 239 395.1 - 2x Safety nut M12 238 234.0

ath-fem-up-dp-01_12_18_en

18

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Rear CONTOUR Main frame

1

 Changed shape of the connecting bracket between main frame and boom (1)  Mainly needed for heavy machines (like 3600 C) to be save also in worst case scenario „hitting an obstacle while lifting the mowing unit“  Change to high strength steel S700

2

 Elongated reinforcement sheet on the lower side of the main frame (2)

ath-fem-up-dp-01_12_18_en

19

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Rear CONTOUR Drive shaft  Increased torque in the friction clutch  1200 to 1350 Nm  Marked by „135“ on the clutch  From december 2018 on

ath-fem-up-dp-01_12_18_en

20

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Triple mower

2

1 1

3

 Forged and hardened fork for better unrolling (while folding the mowing units) and less wear (1) (Feb 2019 and later)  Longlife-crosses with better shape and higher lifetime (2) (Okt. 2019 and later)  Less free play in the overrunning clutch for increased quietness (3) (Okt. 2019 and later)  In case of damaged or bended fork, half drive shaft (part towards mowing unit) is available via spare parts Spare part number : 2695 156.0 ath-fem-up-dp-01_12_18_en

21

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Triple mower* Hydraulic foldable side guards  The hydraulic hoses have been changed from 1SC DN6 to 2SC DN5.  The new hoses have a higher resistance against foreign objects 1

Spare part number: 2669 941.0

* Except DISCO 1100 C/RC

ath-fem-up-dp-01_12_18_en

22

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Triple mower DISCO 1100 C/RC and 9200 CAS Cover hydraulic unit  The cover is shortened by 30mm at the front (1)

1

 Prevention of damage while driving with the top link on the upper position

 Ease of use of KAT 4 top links  DISCO 1100 from TY 2019 on and DISCO 9200 CAS from secon building slot TY 2019 on

ath-fem-up-dp-01_12_18_en

23

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO 9200/C/RC/CAS; 9400C; 4000; 3600C  Wear bars for the safety curtain available via spare parts  3,4m mowing unit Part number 2641 436.0  Also for 3,8m / DISCO 4000 available Part number 2641 456.0  Holes in the curtains are already perforated

1

ath-fem-up-dp-01_12_18_en

The reinforcement strip in front of the curtain is on the inner side now elongated upwards, to provide an even better wear protection.

Part number for newest safety curtain, see picture (1)

24

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO 9200 C AS

1

ath-fem-up-dp-01_12_18_en

 New expansion sleeves and longer screws (1) at the belt tension mechanic for a tight setting of the screws and better adjustment

25

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO 9200 C AS  Proposal for the usage of ISOBUS AUX keys on drive stick and COM 2 for CLAAS AXION and Fendt tractors  Compact and durable for the permanent use in the cabine  Will be delivered togehter with the technical documentation together with every machine  Also available via spare parts  Additional some adjustment hints for heavy crop on the back of the card (for example whole crop silage, winter forage, …)

Spare part number: 2308 839.0

 Link to a explanation video: https://www.youtube.com/watch?v=EJgcETUb590

ath-fem-up-dp-01_12_18_en

26

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO 9400 DUO  The valve cores (1) for lift left and right are changed to seat valves, for higher tightness  For retrofit 2 cable harness extensions are needed and a software update to actual version

Spare part numbers: Valve block: 2627 367.0 Cable extension: 2643 290.0 1

Note: The BUSINESS models have been changed already TY 2018

ath-fem-up-dp-01_12_18_en

27

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Rear 50 series  CAT 3 bolt for lower linkage of the 50 series available via spare parts.

(For special circumstances or in case a customer is not willing to belive that the machine usually is sprung out of the left lower linkage hook when the right bolt is broken)

1

Generally:

2

 Use only high quality lower linkage hooks (GKN) CLAAS spare part number is written in the users manual. At older or worn out lower linkage hooks, the hook should be looked by an screw (3) Short bolt(1): spare part number: 2647 742.0 Long bolt(2): spare part number: 2647 732.0

3

Screw M8x50 (3) with nut or solution with splint (spare part number lynch pin: 216 574.0) ath-fem-up-dp-01_12_18_en

28

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Rear 50series

1

 Different shape of the bracket at the main frame (1) for higher stability

ath-fem-up-dp-01_12_18_en

29

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Rear 50 series  Increased stability of the security screw of the lifting cylinder  Now 14.9.  If the screw is loosen/lost please do not use „any“ screw!

Spare part number: 0469 472.0

1

ath-fem-up-dp-01_12_18_en

30

CLAAS ACADEMY | Annual modifications 2018/2019

DISCO Rear 50 series / CONTOUR Different bracket of the swath disc:  Increased support area (1)  Bigger rubber bumper (2)  Prevents a movement of the swath disc downwards until the rubber of the disc gets cutted by the knives 2 1

Old version ath-fem-up-dp-01_12_18_en

31

CLAAS ACADEMY | Annual modifications 2018/2019

New software TYP

Version old

Version new

Modifications • • • • • •

F65 DISCO 9200 AS

V02.00.01

V02.01.01

•

• • • • •

ath-fem-up-dp-01_12_18_en

Service counter is not shown in the order menu as long as there is no service intervall open to do ActiveFloat hillside controll: At fast changing inclinations the pressure will be regulated directly Setting of DISCO PROFIL or DISCO MOVE in the InitMenu (Important for AF control of the front mower!)

Display in transport nad working menu if PROFIL or MOVE front mower is selected Sensor monitoring of the front mower starts when speed/pressure signal cable is connected Button for release of suspension pressure of the front mower is also shown when speed/pressure cable is not connected When the option ACTIVE FLOAT setting front mower is mounted, the hectar counter is activated/deactiviated via the same logic as the AF pressure regulation is activated/deactivated When the „factory setting“ is loaded also the AUX-N Buttons are set back to standard setting While folding in transport position, the belt units are repressed in end stops/transport position Improvements of the ACTIVE FLOAT pressure regualtion of the front mower to prevent a „fixed“ front mower Option front mower lift: Belt boost is now starting after the time gap (means as soon als the rear units start to lift) Option front mower lift: Different behavior of the softkey „all unit lifting / lowering“

32

CLAAS ACADEMY | Annual modifications 2018/2019

New software TYPE

Version old

Version new

Modifications • • • •

•

F68 DISCO 1100 Business

V01.03.03

V01.03.04

• • •

• • • •

ath-fem-up-dp-01_12_18_en

Service counter is not shown in the order menu as long as there is no service intervall open to do Setting of DISCO PROFIL or DISCO MOVE in the InitMenu (Important for AF control of the front mower!)

Sensor monitoring of the front mower starts when speed/pressure signal cable is connected Button for release of suspension pressure of the front mower is also shown when speed/pressure cable is not connected When the option ACTIVE FLOAT setting front mower is mounted, the hectar counter is activated/deactiviated via the same logic as the AF pressure regulation is activated/deactivated When the „factory setting“ is loaded also the AUX-N Buttons are set back to standard setting Improvements of the ACTIVE FLOAT pressure regualtion of the front mower to prevent a „fixed“ front mower Option front mower lift: Different behavior of the softkey „all unit lifting / lowering“ Bug fixed that leads to worng displayed settings after resetting the terminal Bug fixed that leads to problems with folding in transport position Folding of the inner side curtains changed from time depending to sensor depending activation Permanent monitoring of the telescope position and alert if telescope moves to far to the center (small leakages inside hydraulic system during the day)

33

CLAAS ACADEMY | Annual modifications 2018/2019

New software TYP

Version old

Version new

Modifications • • •

F62 – F64 DISCO 9200 Business

•

V01.05.00

V01.05.01 •

•

F66 DISCO 9400 DUO F62 – F64 DISCO 8500/9200 CONTOUR

V01.05.00

V01.04.01

V01.05.01

V02.00.02 (works only on UBM 2.0)

Service counter is not shown in the order menu as long as there is no service intervall open to do Setting of DISCO PROFIL or DISCO MOVE in the InitMenu (Important for AF control of the front mower!)

Sensor monitoring of the front mower starts when speed/pressure signal cable is connected Button for release of suspension pressure of the front mower is also shown when speed/pressure cable is not connected When the option ACTIVE FLOAT setting front mower is mounted, the hectar counter is activated/deactiviated via the same logic as the AF pressure regulation is activated/deactivated Improvements of the ACTIVE FLOAT pressure regualtion of the front mower to prevent a „fixed“ front mower

• •

New hydraulicblock Service counter is not shown in the order menu as long as there is no service intervall open to do

• • •

Introduction UBM 2.0 AUX-N now with UBM 2.0 possible Service counter is not shown in the order menu as long as there is no service intervall open to do Sensor monitoring of the front mower starts when speed/pressure signal cable is connected

•

DISCO Contour machines are now equipped with UBM 2.0. The newest software version is not compatible with old UBM 1.1 machines (TY 2018 and older).

Retrofitting a UBM 2.0 to an older machine is possible. But take care to use the correct software!

ath-fem-up-dp-01_12_18_en

34

CLAAS ACADEMY | Annual modifications 2018/2019

VOLTO

ath-fem-up-dp-01_12_18_en

35

CLAAS ACADEMY | Annual modifications 2018/2019

VOLTO 700 – 1300 Rotor gearbox  All bearings are changed to the CLAAS Norm 211008  The better sealing prevents moisture from getting into the gearbox

ath-fem-up-dp-01_12_18_en

36

CLAAS ACADEMY | Annual modifications 2018/2019

VOLTO 65 Klappung  The complete area (1) was changed to avoid any damage during folding

1

ath-fem-up-dp-01_12_18_en

 Part number retrofit kit: 2694 588.0

37

CLAAS ACADEMY | Annual modifications 2018/2019

LINER

ath-fem-up-dp-01_12_18_en

38

CLAAS ACADEMY | Annual modifications 2018/2019

LINER

1

Rotor height adjustment  Circular part (1) with smaller diameter, to prevent any possible collision with the rotor mounting Spare part no.: 2631 694.0

 LINER 420, 450, 500, 1900, 2600, 2700, 2900, 3100, 3600, 4000

ath-fem-up-dp-01_12_18_en

39

CLAAS ACADEMY | Annual modifications 2018/2019

LINER

1

Rotor height adjustment  The Sticker (1) for the visualization of the turning direction now delivered with the machines, to be mounted by the dealer  To avoid wrong mounted stickers ath-fem-up-dp-01_12_18_en

40

CLAAS ACADEMY | Annual modifications 2018/2019

LINER 500; 1900; 2900; 3100; 4000

1

14 arm swath gearbox  Seal washer (1) changed from rubber to metal  Better sealing and protection for the bearing behind it

Spare part no.: 2616 409.0

ath-fem-up-dp-01_12_18_en

41

CLAAS ACADEMY | Annual modifications 2018/2019

LINER 1800 / 1900

1

Rotor carriage To prevent any collision between tine arms and the PTO shafts in headland position, additional plates (1) are mounted under the glide elements

Spare part no.: 2616 405.0

ath-fem-up-dp-01_12_18_en

42

CLAAS ACADEMY | Annual modifications 2018/2019

LINER 2800; 2900; 3100

Swath curtain Linch pin (1) replaced with a roll pin

1

ath-fem-up-dp-01_12_18_en

43

CLAAS ACADEMY | Annual modifications 2018/2019

LINER 1600 / 1700; 1800 / 1900

1

PTO shaft  On the machine side the fork changed to a bolted version, and the guard has a assembling hole now (1)  This prevents PTO noise in higher angles while turning on the headland Spare part no.: 2617 619.0 ath-fem-up-dp-01_12_18_en

44

CLAAS ACADEMY | Annual modifications 2018/2019

LINER

All 6-wheel chassis

2

 Axle (1) has a radius  While assembling please check carefully, that the washer (2) is assembled also and centered  If axle (1) is ordered, the washer (2) automatically will be delivered also Spare part no.: 2685 071.0

1

3

 If the numbers 0485 625.2 and 1598 076.0 are ordered, the axle and washer will be delivered also as mentioned above

 The axle (3) is changed to a different material

ath-fem-up-dp-01_12_18_en

45

CLAAS ACADEMY | Annual modifications 2018/2019

LINER 3500 / 3600

1

Main folding cylinder  The sealing in the nut changed to a more durable version, including a support ring  Spare part no. retrofit kit: 2694 795.0

ath-fem-up-dp-01_12_18_en

46

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS

ath-fem-up-dp-01_12_18_en

47

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700/8000/9000

2

1

3

4

Improved waving and driving behaviour on mechanical suspended 18 / 20 t chassis by using additional bushings on rigid and steered axles

chassis 18 to

chassis 20 to

production 2018

production 2019

(1)

no bushing

rubber bushing 49 mm

(2)

no bushing

steel bushing * 70 mm

(3)

no bushing

rubber/steel bushing* 80 mm

(4)

no bushing

rubber/steel bushing* 100 mm

(1)

rubber bushing 49 mm

additional steel bushing* 70 mm

(2)

no bushing

rubber bushing 49 mm

(3)+(4)

rubber bushing 49 mm

additional steel bushing* 80 mm

*Steel bushing with bigger diameter placed above the rubber bushing

ath-fem-up-dp-01_12_18_en

48

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700/8000/9000

production 2018

production 2019

Less raising / lifting of the spring assembly causing improved waving stability partNo.: 2680 221.0 (18 to chassis) / 2680 222.0 (20 to chassis)

ath-fem-up-dp-01_12_18_en

49

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700/8000/9000

C

C

Modified position of chassis equipped with mechanical and hydraulical suspended axles for increased drawbar load to improve traction especially on smaller tractors (in particular with removed chopping unit).

Chassis position compared to production 2018 shifted backwards (c = end of C-profile to first screwing position of the chassis):     

CARGOS 8400/9400 CARGOS 8500/9500 CARGOS 750 CARGOS 8500/9500 CARGOS 9600

ath-fem-up-dp-01_12_18_en

tandem 18/20 to tridem 27 to tridem 27 to tridem 30 to tridem 27/30 to

c + 400 mm c + 400 mm c + 300 mm c + 200 mm c + 200 mm 50

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700/8000/9000

1

1

   

Modified stoppers (1) on tandem/tridem chassis equipped with 30,5“ tires Different assembly on hydraulic and mechanical suspended chassis Improved wear resistance and optimised positioning partNo.: 2663 498.0 (for tandem chassis) / 2663 499.0 (for tridem chassis)

ath-fem-up-dp-01_12_18_en

51

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700/8000/9000

1



 

Improved clamping of the damper placed on the steering rod, with additional chocks (1) and longer srews For run-on axles and axles with active forced steering system partNo.: 2668 193.0 (2x); additional longer srews 0242 389.0 (2x) used with active steering system

ath-fem-up-dp-01_12_18_en

52

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700/8000/9000

Modified sensor support on the steering axle (1) for the active steering system partNo.: 2644 989.2 (for thick damper)

1

2

ath-fem-up-dp-01_12_18_en

Modified sensor support for machines already in the market, equipped with a small damper (2) partNo.: 2645 095.0 (for thin damper)

53

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700/8000/9000

 

ath-fem-up-dp-01_12_18_en

New rubber gaiter on the breaking cylinders Improved UV resistance, modified fixation

54

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700/8000/9000

1

1

Modified spring tensioning levers (1) for improved adjustability of the sprocket > adjustment of chain aligning by using washers partNo.: 1325 762.3 (complete bracket)

ath-fem-up-dp-01_12_18_en

55

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700/8000/9000

1

1

Transport cover with reinforced covering of the hydraulic motor (1), with additional borehole for improved maintenance access partNo.: 2614 575.3 (left) and 2614 614.3 (right)

ath-fem-up-dp-01_12_18_en

56

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700/9000

Retrofit kits for top extensions available via CSP:   

For CARGOS 9400 For CARGOS 9500 For CARGOS 9600

partNo.: 2685 792.0 partNo.: 2685 799.0 partNo.: 2685 812.0

  

For CARGOS 740 For CARGOS 750 For CARGOS 760

partNo.: 2685 753.0 partNo.: 2685 779.0 partNo.: 2685 784.0

ath-fem-up-dp-01_12_18_en

57

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 8000/9000

Modified end stanchions to avoid crack formation (modified radius in lower connection area) partNo.: 1325 801.2 (stanchion left); 1325 818.2 (stanchion right);

ath-fem-up-dp-01_12_18_en

58

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 8000/9000

1

Optimised welding part on cross tube (1) for increased stability

ath-fem-up-dp-01_12_18_en

59

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 8000/9000

2

1 2

1 3

1 3

Optimisation of cutting quality in outer rotor section  Reduction of cutting gap by using additional plates in outer area of the cutting trough (1)  Additional guidance plates in the outer rotor section left and right (2)  Modified rubber and extended infeed plates (3) partNo.: 2666 419.0 (retrofit kit)

ath-fem-up-dp-01_12_18_en

60

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 8000/9000

1

Reinforcement of all components used in lowered scrapper floor zone

1

2

3

 Increased stability of the side panels (t=5 mm) (1) with increased movement space for cylinders  Extended bolts and additional plastic bushings for optimal guidance of the cylinders (2)  Reinforced plates (t=8 mm) with additional supporting points at the outer area of the crossbar, extended bolts (3)  Material thickness of angle brackets (4) increased from 4 to 8 mm.

Improved support for cylinders partNo.: 2678 434.1 (complete kit with side panels and frame)

4

ath-fem-up-dp-01_12_18_en

61

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 8000/9000

3 1

1

2

Sprockets with 20 teeth for improved start-up behaviour using the machines as silage transport trailer (increased torque)  

partNo.: 2668 112.0 lower sprocket partNo.: 2668 117.0 top sprocket

ath-fem-up-dp-01_12_18_en

62

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 8000/9000

1

Gearbox for drive of metering rollers (1) optimised concerning production and assembly

ath-fem-up-dp-01_12_18_en

63

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 8300

Adoption of reinforced scrapper floor drive from 8400/8500 partNo.: 1392 526.0

ath-fem-up-dp-01_12_18_en

64

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 8500

CARGOS 8500 now available also with tridem chassis and 30,5“ tires  

30 to tridem chassis, mechanical or hydraulic suspended (on CARGOS 8500 just available in combination with 30,5“ tires!) tires 710/50 R30.5 BKT Ridemax FL693

ath-fem-up-dp-01_12_18_en

65

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 8300/740

Side rail / C-profile thickness increased from t=5 to t=8 mm

ath-fem-up-dp-01_12_18_en

66

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700

Torque for overload clutch on PTO increased from 1100 to 1200 Nm partNo.: 1399 990.1

ath-fem-up-dp-01_12_18_en

67

CLAAS ACADEMY | Annual modifications 2018/2019

CARGOS 700

New structure on product offer for transport trailers to differ more easily between machines equipped with standard and those with comfort hydraulics 

CARGOS 7X0 TREND with standard hydraulics operation via tractor spool valves, 2-step scrapper floor drive for option



CARGOS 7X0 BUSINESS with comfort hydraulics LS compatible, operation via terminal (ISOBUS compatible), different additional options such as laoding weight indication

ath-fem-up-dp-01_12_18_en

68

CLAAS ACADEMY | Annual modifications 2018/2019

New Software

TYPE

995 CARGOS 700

Version old

Version new

Modifications

• • 1.0.4

1.0.5 • •

•

•

991/994 CARGOS 8X00 9X00

• 2.1.5

2.1.6 • • •

ath-fem-up-dp-01_12_18_en

Support of AUX New Modified system for loading weight indication (optimised accuracy, information on net load displayed, manual set of tare / empty weight) Position of transport cover switching from road to loading mode will be selectable TONI (Telematics ON Implements) available

Modified system for loading weight indication (optimised accuracy, information on net load displayed, manual set of tare / empty weight) Automated drawbar control is switching off below 250 rpm on PTO (instead of 500 rpm) Automated drawbar control is switching on again after activation of the automated blockage clearance Elimination of software „freezing“ between loading and transport mode Initialisation values for end stops will be recorded within the machine report Adaptation of the loading automatic (no unmeant movement of the srapper floor)

69
