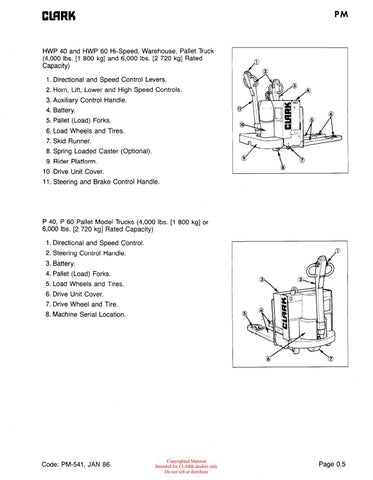

HWP 40 and HWP 60 Hi-Speed, Warehouse, Pallet Truck (4,000 Ibs. [l 800 kg] and 6,000 Ibs. [2 720 kg] Rated Capacity) 1. Directional
and Speed Control Levers.
2. Horn, Lift, Lower and High Speed Controls. 3. Auxiliary
Control Handle.
4. Battery. 5. Pallet (Load) Forks. 6. Load Wheels and Tires. 7. Skid Runner. 8. Spring Loaded Caster (Optional). 9. Rider Platform. 10. Drive Unit Cover. 11. Steering and Brake Control Handle.
P 40, P 60 Pallet Model Trucks (4,000 Ibs. [l 800 kg] or 6,000 Ibs. [2 720 kg] Rated Capacity) 1. Directional
and Speed Control.
2. Steering Control Handle. 3. Battery. 4. Pallet (Load) Forks. 5. Load Wheels and Tires. 6. Drive Unit Cover. 7. Drive Wheel and Tire. 8. Machine Serial Location.
Code: PM-541, JAN 86
Copyrighted Material Intended for CLARK dealers only Do not sell or distribute
Page 0.5
