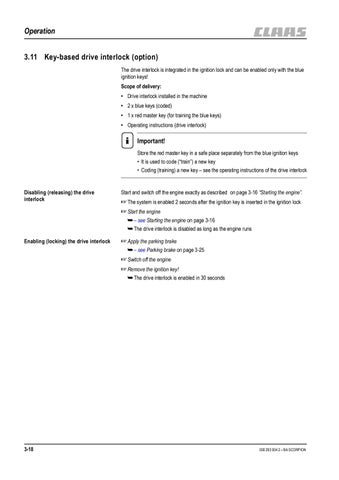

Operation 3.11 Key-based drive interlock (option) The drive interlock is integrated in the ignition lock and can be enabled only with the blue ignition keys! Scope of delivery: • Drive interlock installed in the machine • 2 x blue keys (coded) • 1 x red master key (for training the blue keys) • Operating instructions (drive interlock)
Important! Store the red master key in a safe place separately from the blue ignition keys • It is used to code (“train”) a new key • Coding (training) a new key – see the operating instructions of the drive interlock
Disabling (releasing) the drive interlock
Start and switch off the engine exactly as described on page 3-16 “Starting the engine”.
☞ The system is enabled 2 seconds after the ignition key is inserted in the ignition lock ☞ Start the engine ➥ – see Starting the engine on page 3-16 ➥ The drive interlock is disabled as long as the engine runs
Enabling (locking) the drive interlock
☞ Apply the parking brake ➥ – see Parking brake on page 3-25 ☞ Switch off the engine ☞ Remove the ignition key! ➥ The drive interlock is enabled in 30 seconds
