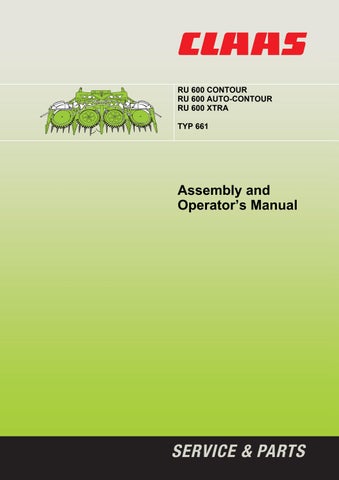

CLAAS RU 600 CONTOUR RU 600 AUTO-CONTOUR RU 600 XTRA TYP 661 Operator’s Manual

RU 600 CONTOUR RU 600 AUTO-CONTOUR RU 600 XTRA TYP 661

Assembly and Operator’s Manual

Re

ad an df o ll ow th es afe ty

in s

tru

cti

on

s!

EC Declaration of Conformity according to EC Directive 89/392/EEC

CLAAS Saulgau GmbH

We

Zeppelinstrasse 2

D-88348 Bad Saulgau

declare under their sole responsibility that the product

Maize header - Type 661 “RU 600 Contour / RU 600 Auto-Contour / RU 600 Xtra” to which this declaration refers corresponds to the pertinent basic safety and health requirements of EC Directive 89/392/EEC, and to the requirements of the other pertinent EC Directives:

-/-

For correct implementation of the safety and health requirements mentioned in the EC Directives, the following standard(s) and/or technical specification(s) has (have) been applied:

EN 632 - 1995

Bad Saulgau, May 30, 2005 Development Management (Rauch)

Production Management (Fetscher)

Quality Management (Switalski)

Machine overview

Machine overview

9 1

2

3

4

5

6

7

8

10

5

11

12

13

14

14

24

20

20 23

20 20 21

20 19

22 23

14 20 21

1 Machine overview Pos.

Description

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 (Fig. 1)

Down-crop auger Push bar, right Side arm, right Push bar, right, can be swivelled Intake cone Lock mechanism Push bar, centre Feed auger Serrated strips Hitch-up Push bar, left, can be swivelled Side arm, left Push bar, left Piston guiding tube Outer crop divider, left Divider point, left Knife, left Intake discs, left Divider point Divider point, right Knife, right Crop divider (only with Autopilot) Intake discs, right Outer crop divider, right

1.1

1

16 19

16 18

16 17

16 14

16 19

16 18

16

16 15

17 1

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Introduction

Introduction

2 Introduction INTRODUCTION This operator's manual provides information on how to use, adjust and service the CLAAS maize header.

Note that in the following chapter, the CLAAS maize header is also called attachment/machine.

Follow the advice on correct maintenance and servicing in order to ensure maximum performance and a long service life of your machine.

Also have the assembly of your machine and regular inspections carried out by your specialist workshop.

Failure to carry out maintenance work, or incorrect operation will result in poor machine efficiency and loss of valuable time.

By ensuring correct operation, and carrying out maintenance and service work with care, you will be able to make full use of the state-of-the-art technology and the experience with which your maize header has been designed.

Your CLAAS Service Department

VALIDITY This operator's manual applies for all maize headers: RU 600 Contour / RU 600 Auto-Contour / Xtra Type 661 From serial No. 661 0 1465.

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

2.1

Table of contents

Table of contents

3 Table of contents 1. Machine overview ................................................... 1.1 2. Introduction Introduction ............................................................................... 2.1 Validity ...................................................................................... 2.1

3. Table of contents .................................................... 3.1 4. Preface Of special importance ............................................................... 4.1 Identification plate ..................................................................... 4.2 Transport on public roads ......................................................... 4.3 Protective equipment for road transport ............................. 4.3 Driving lights during road transport ..................................... 4.4 Additional weights ............................................................... 4.4

5. Safety instructions Identification of warnings and dangers ..................................... 5.1 Designated use ......................................................................... 5.1 General safety and accident prevention instructions ................ 5.1 Safety decals with pictorials ...................................................... 5.3 Safety prop ................................................................................ 5.6

6. Specifications RU 600 Contour ........................................................................ 6.1 RU 600 Auto-Contour ............................................................... 6.1 RU 600 Xtra .............................................................................. 6.1

7. Before operation Loading and unloading the maize header ................................. 7.1 Mounting the maize header for the first time ............................. 7.2 Adjustments to the forager ........................................................ 7.3 Additional weights ............................................................... 7.3 Required additional weights ................................................ 7.3 Order numbers – additional weights ................................... 7.3 Additional lighting for road transport ................................... 7.4 Installing the restrictor on the forager ................................. 7.4 JAGUAR 880, 860, 840, 820 .............................................. 7.5 JAGUAR 900, 890, 870, 850, 830 ...................................... 7.5 Adjusting the drop rate ........................................................ 7.6 JAGUAR 900 / 890 / 870 / 850 / 830 .................................. 7.6 JAGUAR 880 / 860 / 840 / 820 ........................................... 7.6 Mounting the safety covers ................................................. 7.7 Assembly of maize header ........................................................ 7.8 Mount locking mechanism rods .......................................... 7.8 Installing down-crop augers ................................................ 7.9 Assembly of crop dividers/divider points ........................... 7.10 Installing crop dividers ...................................................... 7.10 Installing divider point (RU 600 with 4 divider points) ........................................... 7.13 Assembly of crop divider (D) for Autopilot (RU 600 with 4 divider points) ........................................... 7.14 Installing divider points (RU 600 with 3 divider points) ........................................... 7.15 Assembly of crop divider (D) for Autopilot (RU 600 with 3 divider points) ........................................... 7.15

3.1

Adjusting the crop dividers ...............................................

Attaching the push bar .....................................................

Removing the protective strip ...........................................

Removing the transport frame ..........................................

Check and observe the following before putting into operation ...................................................

Mounting the maize header ....................................................

Unlocking ..........................................................................

Attaching the maize header ..............................................

Locking .............................................................................

Adjusting the locking mechanism .....................................

Adjusting the locking rods ................................................

Connecting the hydraulics ................................................

Connecting the power supply ...........................................

Installing the universal drive shaft ....................................

Pivoting frame ..................................................................

Unlocking the swing stop ..................................................

Locking the swing stop .....................................................

Prop stands ............................................................................

Work and transport position ....................................................

Transport position .............................................................

Working position ...............................................................

Unhitching/setting down the maize header .............................

7.16 7.17 7.17 7.18 7.19 7.20 7.21 7.21 7.22 7.22 7.23 7.24 7.24 7.25 7.26 7.26 7.26 7.26 7.27 7.27 7.27 7.28

8. Operation Use ........................................................................................... 8.1 Raising and lowering the maize header ............................. 8.1 JAGUAR 900 / 890 / 870 / 850 / 830 .................................. 8.1 JAGUAR 880 / 860 / 840 / 820 ........................................... 8.2 Raise and lower side arms of the maize header ................ 8.2 JAGUAR 900 / 890 / 870 / 850 / 830 .................................. 8.2 JAGUAR 880 / 860 / 840 / 820 ........................................... 8.2 Using the maize header ..................................................... 8.3 Crop dividers ...................................................................... 8.4 Adjusting the angle of the crop dividers ............................. 8.4 Adjusting the outer crop dividers ........................................ 8.5 Adjusting the deflector plates (up to serial No.: 661 0 1804) ............................................. 8.5 Adjusting the push bar ........................................................ 8.6 Speed adjustment .............................................................. 8.6 Changing the sprocket ....................................................... 8.8 Adjusting serrated strips ..................................................... 8.8 Adjusting the knives ........................................................... 8.8 Adjusting the hitch .............................................................. 8.9 Harvesting down-crop ...................................................... 8.10 Optional equipment ................................................................ 8.11 15-tooth sprocket .............................................................. 8.11 Down-crop cone (D03 0070) ............................................ 8.11 CLAAS Auto-Contour (R03 0070) .................................... 8.11 CLAAS Contour Plus (R03 0060) ..................................... 8.11 CLAAS Autopilot (R03 0080 / R03 0110) ......................... 8.12 Deflector bar height increase (D03 0060) ........................ 8.13

9. Maintenance Important maintenance instructions .......................................... 9.1 Hydraulic system ................................................................ 9.1

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Table of contents Bolts .................................................................................... 9.1 Lubrication .......................................................................... 9.1 Guards ................................................................................ 9.1 Drive systems ........................................................................... 9.2 Gearboxes .......................................................................... 9.2 Main drive (B) ..................................................................... 9.3 Bevel gear drive (D) ............................................................ 9.3 Angle drive (E) .................................................................... 9.4 Rotor drive (F) .................................................................... 9.4 Clearing drive (G) ............................................................... 9.5 Gearboxes (H, I) for down maize augers ............................ 9.5 Clutches .............................................................................. 9.6 Universal drive shafts ................................................................ 9.7 General information on universal drive shafts .................... 9.8 Chains ....................................................................................... 9.8 Lubricating the drive chain .................................................. 9.8 Tensioning the drive chain .................................................. 9.9 Knives ....................................................................................... 9.9 Replacing knives ................................................................ 9.9 Spring adjustment ................................................................... 9.10 Intake auger spring tension .............................................. 9.10 Spring tension of folding frame ......................................... 9.11 Hydraulic system ..................................................................... 9.11 Hydraulic hose connections .............................................. 9.11 Fixing elements ....................................................................... 9.12 Screw connections ........................................................... 9.12 Joining elements ............................................................... 9.12 End of season storage ............................................................ 9.12 Lubricants chart ...................................................................... 9.13

10. Lubrication chart Safety instructions ................................................................... 10.1 Lubricants ............................................................................... 10.1 Lubrication .............................................................................. 10.1

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

3.2

Preface

Preface

4 Preface OF SPECIAL IMPORTANCE The instructions set forth in this operator's manual must be read carefully and followed by all persons concerned with the operation, maintenance, repair or inspection of this machine in order to prevent accidents.

In particular, read the sections entitled “Safety rules” and “Prior to operation” in the CLAAS JAGUAR 900, 890, 870, 850, 830 or CLAAS JAGUAR 880 - 820 operator's manual.

The use of spare parts, accessories and additional equipment which are not originally manufactured, checked and released by CLAAS can have a negative effect on specific design features of the CLAAS machine or on its operability, and thereby impair active and/or passive operating safety, as well as safety at work (accident prevention).

CLAAS will in no way be liable for damage or personal injury caused by the use of other than original CLAAS parts, accessories and additional equipment.

Technical specifications, dimensions and weights are understood with the usual tolerances.

Front, rear, right and left refer to the direction of travel.

4.1

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Preface IDENTIFICATION PLATE Please specify the machine number (FZ-Ident-Nr.) (2), the type and serial number for all spare parts orders and technical queries. This is necessary in order to ensure correct delivery of spare parts.

The identification plate (1) with the machine number (FZ-Ident-Nr.) (2) is affixed on the rear panel on the right side.

1

(Fig. 1, 2) 66015

1 1

661

xxx

xxx

66101465

xxxx

2

2

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

4.2

Preface

Preface TRANSPORT ON PUBLIC ROADS DANGER! The lifting cylinder of the forage harvester must be locked to prevent it from lowering during transport on public roads with the maize header raised.

3 2

2

1

Lower the maize header completely when leaving the forage harvester 3

– Switch off the engine.

– Remove the ignition key.

– Switch off the battery master switch.

3

Protective equipment for road transport The following requirements must be fulfilled for road transport: 1. Maize header swung into transport position – see Transport position on page 7.27.

4 66023

4

2. Folding frame locked – see Pivoting frame on page 7.26 3. With autopilot installed: Tip (3) swung back, remove spring clip (4) below the point and swing the tip (3) to the rear.

4. Safety bar with lighting (1) attached and mounted with the spring hooks.

NOTE!

5

Attach the safety bar with the socket on the right side, 5

and the safety bar with the cables on the left side.

5. Side safety guards (2) hung in the suspension points on the frame and fastened with spring hooks.

6. 3-pin plug plugged into the right safety bar.

7. 7-pin plug for lighting plugged into socket (5).

8. Check if lighting and turn flashers are working, and repair if necessary.

9. Driving lights switched over – see Driving lights during road transport on page 4.4.

(Fig. 3, 4, 5)

4.3

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Preface 10. To ensure that the driver's field of view is not restricted, the maize header must only be raised to the point where the front edge of the horizontal safety bar is no more than approx. 400 mm above the ground.

(Fig. 6)

400 mm 6 Driving lights during road transport

A

The normal front driving lights of the forage harvester are covered by the maize header when it is swung into transport position.

A

When driving on public roads and paths, the driving lights must be switched to the headlights (A) located at a higher position, as well as the contour lamps and turn flashers.

• Check if lighting and turn flasher are working, and repair if necessary.

7

Further information – see Additional lighting for road transport on page 7.4.

(Fig. 7)

Additional weights Forage harvesters with a front attachment installed must be fitted with additional counterweights according to the traffic regulations of your country for transport on public roads and ways. This is necessary so that the machine does not lift at the rear during braking and when driving on slopes.

The load on the steering axle wheels should be 20% of the machine weight with mounted maize header.

Further information – see Additional weights on page 7.3.

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

4.4

Safety instructions

Safety instructions

5 Safety instructions Before putting the machine into operation, read the operator's manual and follow the safety precautions!

IDENTIFICATION OF WARNINGS AND DANGERS All parts of this manual having to do with your safety or the safe operation of the machine are marked with the following signs. Please pass all safety instructions on to other users, too.

DANGER! Sign to indicate instructions which must be observed. Failure to do so would cause danger to life and limb to the operator and the people around him.

The maize header is designed for the usual applications in agriculture only (designated use).

Any additional use shall not be considered as designated use; the manufacturer is not responsible for any damage resulting from such use; the user solely bears the risk.

Designated use also includes observing the service, maintenance and repair conditions as prescribed by the manufacturer.

The maize header may be used, serviced and repaired only by persons who are familiar with the machine and which have been informed of the risks.

Observe the pertinent accident prevention regulations and other generally acknowledged regulations regarding safety and occupational health, as well as the regulations and standards relevant to motor vehicles and traffic.

– Preventive measures.

Modifications of the maize header without proper authority exclude the manufacturer's liability for damage resulting from any such modifications.

ATTENTION!

GENERAL SAFETY AND ACCIDENT PREVENTION INSTRUCTIONS

Sign to indicate instructions which must be observed. Failure to do so could result in damage to the machine.

– Measures to prevent damage to the machine.

1. In addition to the information set forth in this operator's manual, also follow the general instructions for safety and accident prevention.

2. Follow the regulations in force when you use public roads!

NOTE!

3. Before starting work familiarise yourself with all actuation equipment and its function, as it will be too late once you have set off.

Sign to indicate instructions for a more efficient and economic use of the machine.

4. Before starting, check the maize header for any loose parts on the machine.

ENVIRONMENT! Sign to indicate instructions which must be observed in order to avoid damage to the environment.

Danger to the environment is caused by irregular handling and incorrect disposal of toxic material (e.g. old oil).

The warning and instruction signs on the machine provide important recommendations for safe operation.

These instructions involve your safety – observe them at all times!

5.1

DESIGNATED USE

5. Always stop the engine, remove the ignition key and switch off the battery master switch before working in or on the maize header. All control levers must be in their neutral position and the hydraulic lines must not be under pressure.

6. Perform work under the raised maize header only after having propped it safely.

7. The maize header must always be in transport position on public roads and paths.

Attach safety bar with warning signs and side lights at the front of the maize header and connect lighting.

8. Secure machine against rolling away (parking brake, wheel chocks) when swivelling the maize header.

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Safety instructions 9. Before actuating the rocker switch for swivelling the maize header ensure that nobody is standing between the drive wheels and maize header.

10. Make sure nobody is in the swinging range when swivelling the maize header.

11. Increased risk of injury when installing and removing the knives.

12. Intake augers, intake discs and similar cannot be fully secured by design measures because of their function. Therefore, keep an adequate safety distance from these moving parts during operation.

13. Never start drive shafts turning without appropriate protection.

14. Use safety chains to prevent the drive shaft guards from rotating with the drive shaft.

15. Always switch off the drive and the engine before carrying out troubleshooting, and for repair, maintenance and cleaning work.

– Remove the ignition key.

– Switch off the battery master switch.

16. Always switch off the battery master switch before starting work on the electrical system.

17. Reinstall protective devices after maintenance work.

18. Mounting the maize header onto the forager involves risk of injury.

19. Make sure nobody is standing between the forager and the maize header unless the vehicle is secured to prevent it from rolling away with the parking brake and/or wheel chocks Follow all other safety instructions in the operator's manual for the forage harvester.

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

5.2

Safety instructions

Safety instructions SAFETY DECALS WITH PICTORIALS Safety decals are attached to the danger zones of the machine. These safety decals help to alert persons to hazards which can cause personal injury. The pictorials provide instructions to avoid the hazard.

These safety signs, their placement on the machine and a brief explanatory text are shown on the following pages.

The CLAAS part number of every decal is stated ahead of the text.

The figure in ( ) refers to the adjacent picture and indicates the correct location of the decal on the machine.

Safety decals that are damaged or cannot be recognized any more must be replaced immediately by new ones.

When parts that have decals are replaced, always make sure to install the relevant new decals with each new part.

1

1

3 Warning symbol 514 878.0 (1) Do not touch moving machine parts. Wait until they have come to a complete standstill.

1

(Fig. 1, 2, 3) 2

5.3

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Safety instructions

2

4

6 Warning symbol 516 042.0 (2) Keep clear of danger area between attachment and machine.

2

(Fig. 4, 5, 6) 5

3

7

9 Warning symbol 516 040.0 (3) Danger! Do not approach the maize header feed units before the drive and engine have been switched off, the ignition key is removed, and the battery master switch switched off. Only then may possible malfunctions be corrected.

3

8

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

(Fig. 7, 8, 9)

5.4

Safety instructions

4

10

12 Warning symbol 516 029.0 (4) Position safety prop before entering the danger area.

4

(Fig. 10, 11, 12)

11

5

13

15 Warning symbol 514 898.0 (5) Keep clear of the machine's turning/slewing range.

5

(Fig. 13, 14, 15)

14

5.5

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Safety instructions

Safety instructions SAFETY PROP DANGER! All work under the raised front attachment must be carried out only with secure support.

– Raise front attachment to the highest position.

– Prop/support front attachment securely.

– Use suitable prop elements.

16

– Bring out props on left and right.

(Fig. 16)

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

5.6

Specifications

Specifications

6 Specifications NOTE! Technical specifications, dimensions and weights are understood with the usual tolerances.

RU 600 CONTOUR

RU 600 RU 600 XTRA AUTO-CONTOUR

Working position Width:

mm

6000

6000

6000

Length:

mm

2650

2650

2650

Width:

mm

3000

3000

3000

Parked height:

mm

2950

2950

2950

kg

3020

3020

2950

Transport position

Weight

6.1

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation

Before operation

7 Before operation LOADING AND UNLOADING THE MAIZE HEADER 1 DANGER! Incorrect loading and transport can result in accidents.

– Load the maize header only by suspending it by the left and right hoisting points (1) (Fig. 1, 2).

1

– Make sure the slings are sufficiently large.

Maize header weight – see Specifications on page 6.1.

1 NOTE! If a crop divider (E) (Fig. 21) is fitted, it must be replaced with the hoisting lug (1) (Fig. 2) – see Installing crop dividers on page 7.10.

(Fig. 1, 2) 2

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

7.1

Before operation MOUNTING THE MAIZE HEADER FOR THE FIRST TIME DANGER! Carry out work under and on the raised maize header only after having propped it safely.

2

– see Safety prop, page 5.6 Carry out work on the maize header only with the drive switched off and the engine at a standstill.

3

– Remove the ignition key.

– Switch off the battery master switch.

1. Check the shipping package against the delivery note.

2. Remove the lashing (2) of the various components and remove the components.

3. Open the locking mechanism – see Unlocking on page 7.21.

4. Hitch up the maize header – see Attaching the maize header on page 7.21.

5. Close the locking mechanism – see Locking on page 7.22.

6. Make adjustments to the forager – see Adjustments to the forager on page 7.3.

7. Lower the maize header from the transport framework with the forager hydraulics – see Removing the transport frame on page 7.18.

8. Connect hydraulic lines and power supply – see Connecting the hydraulics on page 7.24 or Connecting the power supply on page 7.24.

9. Fold out maize header – see Raise and lower side arms of the maize header on page 8.2.

10. Install and adjust crop dividers – see Assembly of maize header on page 7.8 or Adjusting the crop dividers on page 7.16.

11. Install and adjust push bar – see Attaching the push bar on page 7.17.

12. Remove edge protectors from knives – see Removing the protective strip on page 7.17.

13. Install universal drive shaft – see Installing the universal drive shaft on page 7.25.

(Fig. 3)

7.2

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation ADJUSTMENTS TO THE FORAGER The maize header is designed for operation on the forager models 492 and 491 Overdrive (with 12t drive axle).

The following adjustments must be made on the forager before attaching the maize header.

Additional weights Forage harvesters with a front attachment installed must be equipped with additional weights according to the traffic regulations of your country for transport on public roads and ways. This is necessary so that the machine does not lift at the rear during braking and when driving on slopes.

The load on the steering axle wheels should be 20% of the machine weight with mounted maize header.

Attaching the additional weights – see forage harvester operator's manual.

Required additional weights Forager model:

Number

JAGUAR model 491 Overdrive:

16

JAGUAR model 492 with 540/65-R24 tyres and standard steering axle:

12

JAGUAR model 492 with 540/65-R24 tyres and 4-trac steering axle:

10

JAGUAR model 492 with 700/50-26.5 tyres and 4-trac steering axle:

7

JAGUAR model 492 with 16.9-24 tyres and standard steering axle:

13

JAGUAR model 492 with 16.9-24 tyres and 4-trac steering axle:

11

Order numbers – additional weights Quantity Description

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

Order no.

7 additional weights

780 kg

S09 0050

10 additional weights

1100 kg

S09 0065

11 additional weights

1221 kg

S09 0070

12 additional weights

1332 kg

S09 0080

13 additional weights

1443 kg

S09 0085

16 additional weights

1776 kg

S09 0090

7.3

Before operation Additional lighting for road transport

A

The normal front driving lights of the forage harvester are covered by the maize header when it is in transport position.

A

Mount additional lighting (A) – see fitting instructions for accessory set.

Headlights on top and turn flashers on the sides Order number: 4

S03 0020

(Fig. 4)

Installing the restrictor on the forager Installation of the restrictor on the right side of the forager ensures that the maize header can be coupled without jerking.

NOTE! Note the direction of the restrictor when installing it (arrow – slot (K)).

K

71698

5

Any restrictor plates in the couplings to the hydraulic cylinder must be removed.

(Fig. 5)

7.4

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation JAGUAR 880, 860, 840, 820 Installation position: A: Hydraulic cylinder for switching the feed drive B: Coupling on top

A

C: Coupling at bottom

B C

71699

6

(Fig. 6, 7)

C

B

1 0082 730.0 restrictor 2 0239 479.0 reducer coupling 3 0075 994.0 threaded coupling + 0962 418.0 oil pressure switch

3 1 1

2

2 7 JAGUAR 900, 890, 870, 850, 830 Installation position:

A

B

A: Hydraulic cylinder for switching the feed drive B: Coupling on top

C

C: Coupling at bottom

67455

8

0082 730.0 restrictor 0239 479.0 reducing coupling 0216 048.0 straight coupling 0238 788.0 elbow union 0084 150.0 orifice plate (0.9)

(Fig. 8, 9)

B

4

1 2 3 4 5

3 C

2 1

4

5

2

9

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

7.5

Before operation Adjusting the drop rate

JAGUAR 900, 890, 870, 850, 830

JAGUAR 900 / 890 / 870 / 850 / 830 The drop rate of the maize header can be adjusted by means of the knurled knob (V) on the flow divider.

E

First move the shift linkage (E) of the change-over valve for front attachments to position (S).

Position (S) = heavy front attachment

S

With the hydraulic oil at operating temperature set the knurled knobs so the front attachment drops from its top position to the ground in 5 to 6 seconds.

L

67443

10

JAGUAR 900, 890, 870, 850, 830

Drop rate: Faster = screw the knurled knob (V) in Slower = screw the knurled knob (V) out Refer to the operator's manual of the forage harvester for further instructions.

(Fig. 10, 11)

V

JAGUAR 880 / 860 / 840 / 820 Adjust the drop rate of the maize header by means of the restrictor (V) on the 3/3 way solenoid valve.

11

JAGUAR 880, 860, 840, 820

Basic setting: Lower the attached maize header until it touches the ground and there is no load on the hydraulic cylinder of the front attachment.

Turn the restrictor (V) in as far as it will go and then unscrew three turns.

V

With the hydraulic oil at operating temperature check or set the drop rate so the front attachment drops from its top position to the ground in 5 to 6 seconds.

Drop rate: Faster = screw restrictor (V) out 67444

12

Slower = screw restrictor (V) in Refer to the operator's manual of the forage harvester for further instructions.

(Fig. 12)

7.6

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation Mounting the safety covers

RU 600 Contour, RU 600 Auto-Contour

If the maize header is attached in position (B), a safety cover (1) must be attached on the right and left sides of the forager feeder housing.

B

• Mount the safety covers with screws (M8x16), contact washers, and nuts (VM8).

– see Adjusting the hitch on page 8.9.

(Fig. 13, 14, 15)

13 RU 600 Xtra

B

14

1

64035

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

15

7.7

Before operation ASSEMBLY OF MAIZE HEADER DANGER! Carry out work under and on the raised maize header only after having propped it safely.

– see Safety prop, page 5.6

Mount locking mechanism rods To mount the locking mechanism rods:

1

– Remove cable tie (1).

– Remove split pin (2) 4x22, washer (3) ø13, and pin (4) B12h11x35x4.

2

– Fix linkage to lever (5) with pin, washer and split pin.

3 4

(Fig. 16, 17) 16

5

17

7.8

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation Installing down-crop augers 6

CAUTION! The various components for the down-crop augers are marked with “RECHTS” (right) and “LINKS” (left) labels. Observe during installation.

7

To install the down-crop augers:

18

8

10

• • • •

Remove casing (7).

Lubricate drive shaft (6).

Slide down-crop auger onto drive shaft (6).

Slide support (11) with bearing journal (8) into the square tube, and fasten with screw (10) (M10x65), washer (A10), and self-locking nut (VM10).

• Check that the down-crop auger turns easily. If

9

necessary, adjust bearing journal (8) and move down-crop auger.

• Tighten screws (9).

11 19

• Tighten screws (12).

• Reinstall casing (7).

Observe tightening torque of fixing screws (13) – see Screw connections, page 9.12.

12 7

(Fig. 18, 19, 20)

13

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

20

7.9

Before operation

(1)

(2)

(3) B

A

(4)

(1) C

(4) D

(5) E

(6)

(7)

(8)

B

(5) F

(6)

(7)

(8)

B

Assembly of crop dividers/divider points

A

21

Installing crop dividers

• Install the outer crop dividers (A) according to fig. 23 as follows:

A

• Remove screws (14) M12x30, lock washer (15) (ø12), and bush (16) from support (17).

• Mount the crop divider (A) with screws (14) (M12x30), lock washer (15) (ø12) and bush (16) on support (17).

(Fig. 21, 22, 23) 22

14

15

A 73669

7.10

16

17 23

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation Mount the crop dividers (C, F) as follows:

• Mount the bracket (21) (Fig. 25).

• If necessary, mount bracket (20).

• Attach the crop dividers (F) with bush (24),

18

contact washers (23), and bolt (22) to the bracket (21)(Fig. 25, 26).

19

NOTE!

20

24

Hereby, mount the dividers (C, F) so the lug (18) is in the bracket (19).

(Fig. 21, 24, 25)

F C

21

25 Crop divider (C, F) with two deflector bars.

up to serial No.: 661 0 1804

22 23 24

(Fig. 26)

21

F C

71778

26 Crop divider (C) with deflector bar left = right side

from serial No.: 661 0 1805

(Fig. 27) 22 23 24

21

C

20 74733

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

27

7.11

Before operation Crop divider (F) with deflector bar right = left side

from serial No.: 661 0 1805

(Fig. 28) 21

22 23 24

F

20 28

74734

Mount the crop dividers (E) as follows:

• Remove the lug (25) (Fig. 29) and attach the holder (28) (Fig. 30).

25

• Mount the bracket (21) .

• Attach the crop dividers (E) with bush (24), contact washers (23) and bolt (22) to the bracket (21).

29

NOTE! Hereby, mount the divider (E) so that the lug (27) clicks into the guide (26) (Fig. 30).

Retain the hoisting lug (25) for later use when lifting the maize header with a crane.

27

(Fig. 21, 29, 30, 31)

E

26 28

65989

30

E

21

31

7.12

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation Centre crop dividers (E) with two deflector bars.

up to serial No.: 661 0 1804

22 23 24

(Fig. 32)

21

E

71778

32 Centre crop divider (E) without deflector bar

from serial No.: 661 0 1805

(Fig. 33)

22 23 24

21

E

28 33

74735

B

B

B

(8)(7)(6)(5) (8)(7)(6)(5)

Installing divider point (RU 600 with 4 divider points)

B

(4)(3)(2)(1) (4)(3)(2)(1)

NOTE! The divider points (B) are numbered in sequence in their original state. With installed Autopilot, instead of the central divider points (2) and (3), the crop divider (D) is mounted.

Observe the sequence.

73196

34

B 29

35

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

7.13

Before operation • Mount all the divider points (B) to the holder (29)

A12

M12x80

according to the diagrams below.

29

(Fig. 21, 34, 35, 36) M10x30

A10 VM10 VM12 A12 M12x80

36

71752

Assembly of crop divider (D) for Autopilot (RU 600 with 4 divider points)

D

• Install bracket (31) for crop divider (D) on holder (30).

(4)

• Mount divider point ((1), (4)) to holder (30).

(1) 30

31 37

(1)

M12x80

A12

30

D

M10x30

31

VM12

(4)

A10 VM10

A12 M12x80

38

71760

• Install crop divider (D) with cylinder-head

32

screws (32) (M12x30), lock washers (33), and bushes (34) to the bracket (31).

33 D

34

To continue – see fitting instructions for “Autopilot”.

34 33 32

(Fig. 21, 37, 38, 39)

31 73202

7.14

39

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation

B

B

B

Installing divider points (RU 600 with 3 divider points)

B

(4) (5) (6) (4) (5) (6) (1) (2) (3) (1) (2) (3)

CAUTION! The divider points (B) are numbered in sequence in their original state. With installed Autopilot, instead of the central divider points (2) (Fig. 40), the crop divider (D) (Fig. 21)is mounted.

Observe sequence, see fig. 40.

74370

40

• Install all divider points (1), (2), (3), (4), (5), (6) on the carriers (35) in the appropriate positions (see fig. 40).

36

35

37

• Install divider points (1), (3), (4), (6) with mushroom-head screws (38) (M12x90), contact washers (36) and self-locking nuts (37).

38

• Install divider points (2), (5), with hexagon bolts (39) (M10x75), contact washers (40) and self-locking nuts (41).

41 40

39

(Fig. 21, 40, 41) 38

74669

41 Assembly of crop divider (D) for Autopilot (RU 600 with 3 divider points)

D

Mount the bracket for crop divider (D) as follows:

• Instead of the central divider point ((2)), mount the bracket (42) for the crop divider (D).

To continue – see fitting instructions for “Autopilot”.

(Fig. 21, 42) 42 74361

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

42

7.15

Before operation Adjusting the crop dividers The crop dividers (C), (D), (E) and (F) can be adjusted in height.

• Lower the maize header to the ground, and adjust the tips so that they just touch the ground.

Crop divider (D) (with autopilot only):

• Fold divider (D) upwards, for this, remove linch pin

44

43

under the divider.

• Remove the head bolt (44), re-install and lock with 43

nut (43).

(Fig. 21, 43) Crop dividers (C), (E) and (F): NOTE! With an Autopilot installed, the bracket for the crop divider (E) must be installed in its highest position.

45 46

47

44

• Loosen screws (47).

• Move bracket (46) in slotted holes (45).

• Tighten screws (47).

(Fig. 21, 44)

7.16

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation Attaching the push bar Attach the two outer push bars with screws (48) (M10 x 90), washers (A10) and self-locking nuts (VM10) to the holder (49).

(Fig. 45) 48 49

45 Bring the two movable push bars into their correct position.

50

To do this, loosen the screws (52).

51

Mount the push bar (50) in the centre hole on the support (51) with the screw (52).

(Fig. 46)

52

46

Removing the protective strip NOTE! 53

Remove the grey protective strip (53) from the knives before operating the machine.

(Fig. 47)

47

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

7.17

Before operation Removing the transport frame DANGER! Carry out work under and on the raised maize header only after having propped it safely.

– see Safety prop, page 5.6.

• Hitch up the front attachment – see Mounting the maize header on page 7.20.

• • • •

Raise front attachment to the highest position.

Prop/support front attachment securely.

Use suitable prop elements.

Extend the prop stands until they touch the ground and secure them – see Prop stands on page 7.26.

• First remove screws (54), then screws (55) on left and right.

• Pull out transport frame.

(Fig. 48, 49)

54

48

55

49

7.18

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation CHECK AND OBSERVE THE FOLLOWING BEFORE PUTTING INTO OPERATION DANGER! Carry out work under and on the raised maize header only after having propped it safely.

– see Safety prop, page 5.6.

Always carry out work on the maize header and/or on the forage harvester with the drive switched off and the engine at a standstill.

– Remove the ignition key.

– Switch off the battery master switch.

1. Check the oil level in the gearboxes; to do this swivel the maize header into working position – see Gearboxes on page 9.2.

2. Thoroughly lubricate the maize header before putting it into operation – see Lubrication chart on page 10.1.

3. Check that all bolts and screws are tight.

4. Check the spring tension for the intake auger and folding frame – see Intake auger spring tension on page 9.10 and Spring tension of folding frame on page 9.11.

5. Check drive chains for correct tension – see Tensioning the drive chain on page 9.9 6. Secure universal drive shaft gear against rotating by hanging in the chains.

7. Inspect safety guards and safety bar for wear and damage.

8. Mount and lock all protective devices – see Guards on page 9.1.

9. Check the vehicle for loose attached parts before moving it. Firmly attach or cover parts which can fall off during travel.

10. Before driving on public roads, observe the instructions for transport on public roads – see Transport on public roads, page 4.3.

11. Make sure nobody is in the danger zone. Immediately switch off the machine if persons approach the danger zone.

12. Never let the machine run without proper supervision.

13. Switch on maize header only when it is in the working position and at idling speed – see Working position on page 7.27.

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

7.19

Before operation MOUNTING THE MAIZE HEADER DANGER! Mounting the maize header may cause injury.

– Make sure there is nobody between the forage harvester and the maize header.

Carry out work under and on the raised maize header only after having propped it safely.

– see Safety prop, page 5.6.

Carry out work on the maize header only with the drive switched off and the engine at a standstill.

– Remove the ignition key.

– Switch off the battery master switch.

ATTENTION! Before mounting the maize header, ensure that the locking mechanism is open.

To mount the maize header proceed as follows: 1. Open the locking mechanism – see Unlocking on page 7.21.

2. Hitch the front attachment – see Attaching the maize header on page 7.21.

3. Close the locking mechanism – see Locking on page 7.22.

4. Check that the front attachment is securely locked, if necessary adjust the locking mechanism – see Adjusting the locking mechanism on page 7.22.

5. Unlock the folding frame – see Unlocking the swing stop on page 7.26.

6. Connect the hydraulic hoses – see Connecting the hydraulics on page 7.24.

7. Mount the drive shaft – see Installing the universal drive shaft on page 7.25.

8. Adjust the lowering rate – see Adjusting the drop rate on page 7.6.

7.20

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation Unlocking On the maize header press the lever (1) outwards and up; remove the spring clip to do this.

(Fig. 50)

1

50

Attaching the maize header

RU 600 Contour, RU 600 Auto-Contour

2

3 DANGER! Mounting the maize header may cause injury.

– Make sure there is nobody between the forage harvester and the maize header.

Carry out work under and on the raised maize header only after having propped it safely.

51

RU 600 Xtra

– see Safety prop, page 5.6.

Carry out work on the maize header only with the drive switched off and the engine at a standstill.

– Remove the ignition key.

2

– Switch off the battery master switch.

3 ATTENTION! Before mounting the maize header, ensure that the locking mechanism is open.

52 Drive the forage harvester to the front attachment until the coupling hooks (3) of the feed drive are under the coupling pins (2) of the front attachment. Raise the attachment with the hydraulic system of the forage harvester.

(Fig. 51, 52)

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

7.21

Before operation Locking ATTENTION!

4

Make sure the maize header is safely locked to the coupling shaft (6).

Press the lever (5) on the maize header down and lock it with the spring clip (4).

5

(Fig. 53) 53

Adjusting the locking mechanism If the locking mechanism cannot be closed, adjust the cast bearing (8) on the maize header.

6

DANGER! Carry out work under and on the raised maize header only after having propped it safely.

7

– see Safety prop, page 5.6.

8

54

To adjust the locking mechanism:

• • • •

Raise front attachment to the highest position.

Prop/support front attachment securely.

Use suitable prop elements.

Extend the prop stands until they touch the ground and secure them – see Prop stands on page 7.26.

• Slacken bolts (7) • Slide the cast bearing (8) in the slots as required • Retighten bolts (7).

(Fig. 54)

7.22

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation Adjusting the locking rods 9 DANGER! 14

Carry out work under and on the raised maize header only after having propped it safely.

10 11

– see Safety prop, page 5.6.

13

12 NOTE!

55

The locking rods must be adjusted so that the catch hooks (13) surround the coupling shaft (14) from the feeder housing of the forager with pretension.

The locking rods (9) must be readjusted as required.

Proceed as follows:

• • • •

Raise front attachment to the highest position.

• • • • •

Loosen the yoke (11) on the lever (12).

Prop/support front attachment securely.

Use suitable prop elements.

Extend the prop stands until they touch the ground and secure them – see Prop stands on page 7.26.

Loosen the lock nut (10).

Screw the yoke (11) in or out from the rod.

Retighten the yoke (11) on the lever (12).

Retighten the lock nut (10).

(Fig. 55)

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

7.23

Before operation Connecting the hydraulics Connect the hydraulic hoses (16) for the tilt cylinder and, if applicable, for accessory equipment to the female hydraulic couplings (15) on the forager.

15

ATTENTION!

17 16

Dirt on the hydraulic male and/or female couplings can contaminate the hydraulic system.

– Always clean the male couplings of the hydraulic hoses and the hydraulic coupling sockets before connecting them.

56

Slip hydraulic hoses (16) through fixture (17) and connect them to the forager.

Observe the colour coding on the hydraulic lines and female couplings.

Refer to the operator's manual of the forage harvester for further instructions.

(Fig. 56)

Connecting the power supply ATTENTION!

18

Beware of friction and jamming.

If necessary, insert the connector (18) for the CLAAS autopilot and/or CLAAS Auto Contour accessory equipment to the forager.

(Fig. 57) 57

7.24

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation Installing the universal drive shaft DANGER! Never run drive shafts without their guards, or if the guards are damaged.

– Mounting shaft guard and protective tube.

– Fasten them to prevent them from rotating!

– The universal drive shafts must only be operated when in good condition.

Carry out work under and on the raised maize header only after having propped it safely.

– see Safety prop, page 5.6.

1. Raise the front attachment as far as possible.

2. Switch off the engine and remove the ignition key.

3. Extend the prop stands to the ground and secure them – see Prop stands on page 7.26.

4. First connect drive shaft (19) to the PTO of the front attachment. Press in the locking pin and slide the universal drive shaft onto the PTO shaft of the of the speed-change and reversing gear. Ensure that the locking pin clicks securely into place.

19

20

66005

58

5. Secure universal drive shaft gear against rotating by hanging in the chains.

6. Close cover (20).

(Fig. 58)

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

7.25

Before operation Pivoting frame (only RU 600 Contour, RU 600 Auto-Contour) The maize header pivots on the feeder housing of the forager for better adaptation to uneven ground conditions.

21

Unlocking the swing stop Rotate pin (21) upward and pull out at the same time.

Make sure the pin is fully pulled out and locked in its end position.

59

(Fig. 59) Locking the swing stop Rotate pin (21) right and press in at the same time, if necessary move maize header from side to side.

Make sure the pin is pushed fully in to its final position.

(Fig. 60)

21

60

PROP STANDS DANGER! Carry out work under the raised maize header only after having propped it safely.

1

– see Safety prop, page 5.6.

2

– Extend the prop stands to the ground and secure them – see below.

61

Raise the maize header to the highest position.

Extend prop stand (1) to the ground and secure it in the next possible hole with pin (2).

(Fig. 61)

7.26

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation WORK AND TRANSPORT POSITION DANGER! Make sure nobody is in the swinging range when swivelling the maize header.

– Make sure nobody is in the area of danger.

Transport position NOTE! The safety guards and safety bars must be mounted and connected for transport on public roads and ways. – see Transport on public roads on page 4.3.

• Raise the two side arms of the maize header to maximum height with the forager hydraulics – see Raise and lower side arms of the maize header on page 8.2.

• Raise maize header – see Raising and lowering the maize header on page 8.1.

• Lock folding frame – see Locking the swing stop on page 7.26.

Working position

• Remove safety guards and bars.

• Swing crop divider (D) (Fig. 21) (only required with Autopilot installed) forward and lock with linch pin.

• Release folding frame – see Unlocking the swing

2

stop on page 7.26.

• Slide prop stands (1) fully upwards and secure

1

with pin (2).

• Lower maize header to working height 62

– see Raising and lowering the maize header on page 8.1.

• Lower the side arms – see Raise and lower side arms of the maize header on page 8.2.

(Fig. 62)

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

7.27

Before operation UNHITCHING/SETTING DOWN THE MAIZE HEADER DANGER! Carry out work under and on the raised maize header only after having propped it safely.

– see Safety prop, page 5.6 Carry out work on the maize header only with the drive switched off and the engine at a standstill.

– Remove the ignition key.

– Switch off the battery master switch.

ATTENTION! Set down the maize header on firm and level ground only.

NOTE! The maize header must only be removed in transport position.

Set down the maize header as follows: 1. Raise the maize header and place it in transport position – see Transport position on page 7.27.

2. Extend the prop stands and lock with pins – see Prop stands on page 7.26.

3. Open cover (2) and pull off universal drive shaft (1) while pressing the locking pin.

1 66005

7.28

2 63

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Before operation 4. Uncouple hydraulic hoses (3) at the quick-release couplings.

NOTE!

4

Lay out the hydraulic hoses so the quick-release couplings are not contaminated.

3

64

5. If applicable pull out electrical plugs (4, 5) for “Road transport” accessory lighting or for CLAAS Autopilot and/or CLAAS Auto Contour from the forager.

6. Unlock maize header – see Unlocking on page 7.21.

7. Lower maize header to the ground.

5 ATTENTION! Ensure that the coupling hooks do not catch on the coupling pins when reversing the forage harvester.

8. Carefully reverse the forage harvester.

65

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

(Fig. 63, 64, 65)

7.29

Operation

Operation

8 Operation DANGER! Carry out work under and on the raised maize header only after having propped it safely.

– see Safety prop, page 5.6 Carry out work on the maize header only with the drive switched off and the engine at a standstill.

– Remove the ignition key.

– Switch off the battery master switch.

USE DANGER! While raising, lowering the maize header or while folding the side arms of the maize header, nobody must stand in the danger zone.

– Make sure nobody is in the danger zone.

Raising and lowering the maize header

JAGUAR 900, 890, 870, 850, 830

JAGUAR 900 / 890 / 870 / 850 / 830 With the multifunction lever:

R

• Press the tip switch (1a) – lower maize header.

1a

• Press the tip switch (1b) – raise maize header.

1d

• By tapping the tip switch (1d) – switch on Contour System (only RU 600 Contour, RU 600 Contour Plus).

1b 70798A

1 NOTE! Press tip switch (1a, 1b) to switch off the Contour system.

(Fig. 1)

8.1

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Operation JAGUAR 880 / 860 / 840 / 820

JAGUAR 880, 860, 840, 820

With the multifunction lever:

• Press the tip switch (4) – lower maize header.

• Press tip switch (3)

4

3

– Raise maize header.

With the switch console:

• Press switch (2)

2

– to switch on the Contour system. (only RU 600 Contour, RU 600 Contour Plus) 2

(Fig. 2)

Raise and lower side arms of the maize header

JAGUAR 900, 890, 870, 850, 830

JAGUAR 900 / 890 / 870 / 850 / 830 With the multifunction lever: Actuate the switch (5) to raise and lower side arms.

5

Position (s) = lower side arms h

Position (h) = raise side arms (Fig. 3)

70799

s

3 JAGUAR 880 / 860 / 840 / 820

JAGUAR 880, 860, 840, 820

With the switch console: – Actuate the rocker switch (6) to raise and lower side arms.

(Fig. 4)

6

4

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

8.2

Operation Using the maize header

JAGUAR 900, 890, 870, 850, 830

7 DANGER! Work on the knives or their fastenings may incur risk of injury.

8

– Only work on the knives or their fastenings: – with the drive stopped.

Remove the ignition key.

– Switch off the battery master switch.

5 JAGUAR 880, 860, 840, 820

– Remove universal drive shaft.

– Wear work gloves.

1. Carry out “Before operation” work steps – see Check and observe the following before putting into operation on page 7.19.

2. Bring maize header to working position or check that it is in the working position – see Working position on page 7.27.

12

3. Start the engine.

14

4. Switch on the front attachment as follows: 6

JAGUAR 900 / 890 / 870 / 850 / 830: • Switch on safety switch (7) and the main drive (impact switch 8) (Fig. 5).

JAGUAR 880 / 860 / 840 / 820: • Switch on master safety switch (12) and rocker switch (14) (Fig. 6) for the main drive.

5. Check the drop rate of the maize header, adjust if necessary – see Adjusting the drop rate on page 7.6.

6. Switch on the maize header at idle speed before driving into the crop.

7. Lower maize header to working height.

8. Accelerate to working speed and move into the crop.

9. The ground speed depends on the operating conditions (soil conditions, crop characteristics).

(Fig. 5, 6)

8.3

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Operation

A

B

C

B

E

B

F

B

A

71727

Crop dividers

7

Check the crop dividers before adjusting the height – see Adjusting the crop dividers on page 7.16.

Adjusting the angle of the crop dividers F

While foraging, if the crop dividers (C, E, F) run exactly on the maize rows, the dividers can be angled to match the rows. Proceed as follows:

E C

• Loosen screw (15) until the spigot (17) can be

15

removed.

16

• Lift bracket (16) and adjust spigot (17) by one hole

17

to the left or right.

• Retighten bolt (15).

8

NOTE! If the crop dividers are to be straightened again, reinstallspigots (17) in the centre holes.

(Fig. 7, 8)

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

8.4

Operation Adjusting the outer crop dividers If the maize rows are aimed directly at the outer dividers (A) during foraging, the outer dividers (A) can be adjusted inwards or outwards. Proceed as follows:

• Loosen screws (18).

• Inward adjustment: Position plate (19b) (0996 236.0) outside.

A

• Outward adjustment:

A

Position plate (19a) (0996 236.0) inside.

71728

9

• Reinstall screws (18).

• Check that the down-crop auger can turn freely. If necessary, adjust bearing journal (20) – see Installing down-crop augers, page 7.9.

(Fig. 9, 10)

19 18 65743

10

19a

20

18

19b 11

73678

Adjusting the deflector plates

up to serial No.: 661 0 1804

(up to serial No.: 661 0 1804) To prevent the distance between the feed plate (24) and deflector plate (23) from becoming too short after adjustment of the crop dividers, the deflector plate (23) can also be adjusted. Proceed as follows:

21 22

23

• Loosen nuts (22). Remove bolts.

• Slide deflector plate (23) in the opposite direction

24

to the crop divider via one of the holes (21).

• Reinstall screws, contact washers and nuts (22).

12

8.5

(Fig. 12)

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Operation Adjusting the push bar The push bar can be adjusted depending on the height of the maize. Proceed as follows:

25

• Loosen screws (25).

• Slide push bar (24) to the desired hole.

• Reinstall screws (25).

24

(Fig. 13, 14)

13

24

25

14

Speed adjustment ATTENTION! Speed adjustments must only be made with the drive switched off and the motor stopped, because otherwise the gearbox may be damaged.

– Remove the ignition key.

– Switch off the battery master switch.

26 66010

15

There is a gearbox (lever (26) fig. 15) and two sprockets, 16-tooth (standard) and 24-tooth (33) (Fig. 20), for adjusting the front attachment to the chopping length set at the forager. The gearbox only affects the speed of the intake auger.

(Fig. 15)

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

8.6

Operation The arrangement of the sprockets (column 2) for the chopping length (column 3), the ratio of the gearbox (column 5), and the range shift (column 4) on the forager is shown in fig. 16, fig. 17 and fig. 18.

JAGUAR model 492 with 12-knife drum

Fig. 16 for forger model 492 with 12-knife drum Fig. 17 for forager model 492 with 10-knife drum NOTE! In forager model 492 the range shift lever (27) (Fig. 18) can also be used to control the ground speed of the front attachment.

16

68061a JAGUAR model 492 with 10-knife drum

(Fig. 16, 17, 18) Example: Desired chopping length: 7 mm On forager:

• Reversing gear: adjust desired chopping length.

• Range shift (model 492 only): lever (27) – “tortoise” gear (Fig. 18).

17

68062a

On maize header:

JAGUAR model 492

• 16-tooth sprocket, • Main gearbox: lever (26) – “hare” gear (Fig. 15), or on maize header: • 24-tooth sprocket,

27

• Main gearbox: lever (26) – “tortoise” gear (Fig. 15).

(Fig. 15, 16, 17, 18) 18

8.7

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Operation Changing the sprocket The 24-tooth sprocket (29) and chain (28) can be found on the left side of the maize header.

If the 24-tooth sprocket (29) is used, the chain must be extended with the extra links (28).

28

(Fig. 19) To change the sprocket:

29 19

• Loosen bolts (31).

• Unscrew bolt (30) slightly to relieve the chain tension.

• Remove linch pin (32) and pull off sprocket (33).

After replacing the sprocket (33) adjust the chain tension with the bolt (30) – see Tensioning the drive chain on page 9.9.

30 31

Then tighten the bolts (31).

31

(Fig. 20) 32 33

66006

20

Adjusting serrated strips 34

If the intake auger cannot pull in the crop because of extreme crop conditions (such as very short, dry maize, heavy undergrowth, wet crop conditions), the serrated strips (34) can be adjusted by sliding them in the slots (36). Proceed as follows:

35 36

• Loosen screws (35).

• Slide the serrated strips (34) to the desired position in the slots (36).

• Tighten the screws (35).

21

Adjusting the knives

37

37

(Fig. 21)

The knives can be adjusted outward in heavy undergrowth conditions where blockage is a problem. Proceed as follows:

37

• Loosen truss-head screws (37).

• Pull knives (38) outwards.

• Retighten truss-head screws (37).

37

(Fig. 22) 37

38 22

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

8.8

Operation Adjusting the hitch

RU 600 Contour, RU 600 Auto-Contour

A

B

The upper connecting rod/deposit bag (39) between main frame and folding frames can be mounted in two positions.

39

(Fig. 23, 24) 40

With normal ground conditions, the connecting rod/deposit bag (39) must be mounted in position A. (Fig. 25) 23

RU 600 Xtra

39

A

B

In extremely soft ground the forage harvester wheels sink in deeply, making distance X between ground and crosspiece at the maize header too short. The maize header must be raised. To lower the dividers again, and subsequently to keep the machine at the correct angle, the connecting rod/deposit bag (39) must be mounted in position B. (Fig. 26)

40 24

To change the connecting rod/deposit bag (39), pull the pin (40) out completely and move the folding frames to the desired position. To do this, carefully raise or lower the maize header until it is in the desired position. Re-insert the pins (40) and lock them.

After repositioning, the safety covers must be mounted at left and right of the feeder housing – see Mounting the safety covers on page 7.7.

(Fig. 23, 24, 25, 26)

Pos. A

X 25

71730

Pos. B

71731

8.9

X

26

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Operation Harvesting down-crop 41

While harvesting down-crop, the down-crop auger (42) can be switched on by turning the handle (41).

OFF

If the down-crop auger (42) is no longer needed, it can be switched off by turning the handle (41).

ON

ON = switched on 42

OFF = switched off (Fig. 27) 27 NOTE! For best results with down-crop, run the machine at right angles to the lie of the down-crop.

(Fig. 28)

71733

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

28

8.10

Operation OPTIONAL EQUIPMENT 15-tooth sprocket Order no.: 0999 065.1 Intake problems resulting from the crop returning at the intake auger may occur during harvesting of dry, ripe maize and short chopping lengths if the intake auger rotates too fast.

If this occurs, replace the standard 16-tooth sprocket with the 15-tooth sprocket (1).

1

Changing the sprocket – see Changing the sprocket on page 8.8.

66006

29

(Fig. 29)

Down-crop cone (D03 0070) Order no.: 0999 169.0 - 1 unit

2

Intake problems caused by down-crop can be solved by installing down-crop cones (2), which are mounted on the cutting discs instead of the cover plates.

(Fig. 30)

67400

30

CLAAS Auto-Contour (R03 0070) Order no.: 0999 960.0 The CLAAS Auto-Contour System provides for optimum adjustment of the maize header on the terrain (only for RU 600 Contour).

(Fig. 31)

CLAAS Contour Plus (R03 0060) Order no.: 0997 589.2 31

The CLAAS Contour Plus System provides for optimum adjustment of the maize header on the terrain (only for RU 600 Xtra).

(Fig. 31)

8.11

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Operation CLAAS Autopilot (R03 0080 / R03 0110)

RU 600 with 4 divider points

M12x80

A12

RU 600 with:

D

M10x30

Order no.:

4 divider points

R03 0080

0999 909.0

3 divider points:

R03 0110

0498 765.0

The maize header can be fitted with the digital CLAAS Autopilot.

A10 VM10

With the Autopilot fitted, the crop divider (D) is installed instead of the central divider. To install the Autopilot – also see fitting instructions for “CLAAS Autopilot”.

VM12

A12 M12x80

32

71760

(Fig. 32, 33)

RU 600 with 3 divider points

NOTE!

D

With an Autopilot installed, the bracket for the crop divider (E) must be installed in its highest position – see Adjusting the crop dividers on page 7.16.

Adjusting the sensors:

33

74744

Adjust sensors (3) and (4) so that distance (X) is 20 mm with the sensing bands in rest position. The crop divider (D) must be folded back for this adjustment.

Adjust the sensors in the slots accordingly and tighten.

3

Adjust sensors (3) and (4) equally on both sides. The sensors must be able to swing freely.

E

(Fig. 34)

4 D X

34

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

8.12

Operation

1

2

3

5 3 4

8

7 6

9 10

6 4

11 10

12

3 3

6

2

9 1 8

14 3 13

15

3 3 4 74736

Deflector bar height increase (D03 0060)

35

Order no.: 0999 182.0 While harvesting very high corn, increasing the deflector bar height can improve the crop feed.

Mount the deflector bar height increase as shown in Fig. 35.

Note: Before folding the maize header, remove detachable pipes (8) on left and right.

1 Pin 12x96 ........................................................... 2 2 Hexagon head bolt M10x100 ............................. 4 3 Contact washer A10 ......................................... 20 4 Hexagon nut M10 ............................................... 8 5 Outrigger pipe, right ........................................... 1 6 Contact washer A12 ........................................... 8 7 Hexagon nut M12 ............................................... 4 8 Detachable pipe ................................................ 2 9 Transverse pipe ................................................. 2 10 Hexagon head bolt M12x70 .............................. 4 11 Intermediate pipe 40x 3x 400 ............................. 1 12 Outrigger pipe, left.............................................. 1 13 Hexagon head bolt M10x40 ............................... 4 14 Hexagon head bolt M10x50-Mk ......................... 4 15 Bush 22x4.5x 33................................................. 4 (Fig. 35)

8.13

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Maintenance

Maintenance

9 Maintenance IMPORTANT MAINTENANCE INSTRUCTIONS DANGER! Always switch off the drive and the forage harvester before troubleshooting, and for repair, maintenance and cleaning work.

Lubrication Observe the oil change intervals and the oil type in the gearbox specified by the manufacturer. Use only good quality grease or oil to lubricate the machine. Clean the grease nipples before applying the grease gun.

Lubricate regularly following the lubrication chart.

The lubrication intervals stated apply to normal service conditions only. Lubricate more frequently if the machine is used in severe conditions.

– Remove the ignition key.

– Switch off the battery master switch.

ENVIRONMENT! Dispose of oil and grease according to regulations.

DANGER! Carry out repair, maintenance and cleaning work on or under the raised maize header or feeder housing only if it is safely propped.

– see Safety prop on page 5.6.

Hydraulic system

Guards Open folding guards only with the drive switched off and the engine at a standstill.

– Remove the ignition key.

– Switch off the battery master switch.

Mount the complete guards again after all maintenance and repair work.

Regularly check safety guards.

DANGER! Always depressurise the hydraulic system before working on it.

Replace worn or damaged safety guards with new ones.

Fluid escaping under high pressure (hydraulic oil etc.) can penetrate the skin and cause serious injuries.

Immediately consult a doctor in case of injury, otherwise serious infections can set in.

ENVIRONMENT! Dispose of oil and grease according to regulations.

Check hydraulic lines at regular intervals, and replace them in case of damage or ageing. Replaced hydraulic lines must correspond to the technical requirements of the equipment manufacturer.

Repair work on the hydraulic system must be carried out by authorised workshops, if possible your CLAAS partner.

Bolts Check all bolts for tightness and retighten if necessary.

Check that all split pins and roll pins are in place.

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

9.1

Maintenance

Maintenance DRIVE SYSTEMS Gearboxes DANGER! Prop the raised maize header securely!

– see Safety prop on page 5.6.

Always carry out work on the maize header and/or on the forage harvester with the drive switched off and the engine at a standstill.

– Remove the ignition key.

– Switch off the battery master switch.

– Disconnect the universal drive shaft.

NOTE! The maize header must be swung into working position when checking the oil in all gearboxes.

1. Swing the maize header into working position – see Working position on page 7.27.

2. Secure the forage harvester to prevent it from rolling away.

3. Switch off drive and engine.

4. Remove the ignition key.

5. Switch off the battery master switch.

ENVIRONMENT! Dispose of drained oil according to regulations.

For gear lubrication, only use the stipulated gear oil.

Specification: – see Lubricants chart, page 9.13 Maintenance intervals: Unless otherwise indicated, change all gear oil every 500 working hours - but no later than after every season. Check all gearboxes for leaks once a week and check oil level as required.

9.2

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Maintenance

D

B

D

71735

1 Main drive (B) Gearbox capacity: – see Lubricants chart, page 9.13 1 = oil filler and oil level check plug 2 = oil drain plug

1

(Fig. 1, 2)

2 66012

2 Bevel gear drive (D) Gearbox capacity: – see Lubricants chart, page 9.13 3 = oil filler and oil level check plug 4 = oil drain plug

3

(Fig. 1, 3) 4

63327

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

3

9.3

Maintenance

F

F

F

E

F

E

71735

4 Angle drive (E) Gearbox capacity: – see Lubricants chart, page 9.13 5 = oil drain plug 6 = oil filler and oil level check plug 6 (Fig. 4, 5) 5

63328

5 Rotor drive (F) Gearbox capacity: – see Lubricants chart, page 9.13 7 = oil filler and oil level check plug 8 = oil drain plug (Fig. 4, 6)

7

8 6

9.4

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Maintenance

H

H G

G

G

G I

I

71735

7 Clearing drive (G) For gear lubrication, use only medium-soft multi-purpose grease (liquid grease).

Specification: – see Lubricants chart, page 9.13

9

Gear grease quantity: – see Lubricants chart, page 9.13 9 = filler and check hole (Fig. 7, 8)

63329

8 Gearboxes (H, I) for down maize augers The gearboxes are maintenance-free.

Gearbox capacity: – see Lubricants chart, page 9.13 (Fig. 7)

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

9.5

Maintenance

M K

M K

K

K

71735

Clutches

9

The clutches must be opened every 500 operating hours - latest after every second season - and serviced in a workshop in compliance with the clutch manufacturer's operating manual.

ATTENTION! The adjusted torque of the clutches must not be changed, as it could lead to considerable damage to the universal drive shaft, gears, etc.

• Check for signs of wear, and replace worn parts if necessary.

(Fig. 9)

9.6

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Maintenance Key clutch (K) Torque setting: 780 ±78 Nm (Fig. 9, 10) K

10

74730

Locking body clutch (M) Torque setting: 1000 Nm (Fig. 9, 11) M

74732

11

UNIVERSAL DRIVE SHAFTS DANGER! Work on the universal drive shafts only when the drive and engine are switched off.

– Remove the ignition key!

– Switch off the battery master switch!

Never run drive shafts without their guards, or if the guards are damaged.

– Mounting shaft guard and protective tube.

– Fasten them to prevent them from rotating!

– The universal drive shafts must only be operated when in good condition.

For lubrication intervals and lubricants see Lubrication chart, page 10.1.

Service the universal drive shafts in accordance with the instructions of the shaft manufacturer – see drive manufacturer's operator's manual.

Observe the safety instructions of the manufacturer!

The universal drive shafts must only be operated when in good condition.

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

9.7

Maintenance General information on universal drive shafts DANGER! Never run drive shafts without their guards, or if the guards are damaged.

– Mounting shaft guard and protective tube.

– Fasten them to prevent them rotating!

– The universal drive shafts must only be operated when in good condition.

Immediately replace damaged or missing protective tubes, universal drive shaft guards and securing chains.

Protect the universal drive shafts against the weather.

After the working season, thoroughly clean and lubricate all components of the universal drive shafts.

The protective tubes must be greased to prevent freezing during winter.

After long periods of non-use, lubricate the universal drive shafts before using them again and check their functioning.

CHAINS Lubricating the drive chain Remove the side panels to lubricate the drive chains (1).

(Fig. 12) 1

12

9.8

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Maintenance Tensioning the drive chain 2

Check all chains for correct tension after the first 10 operating hours.

3

The steel roller chain is tensioned correctly when its slack side, with the tight side slightly under load, can be pulled down with the thumb by about 2% of the centre distance between the sprockets. Check the tension more often with new chains.

4 4

Example: centre distance 500 mm = pulled down on slack side by about 10 mm (Fig. 14).

66006

13

Retension the drive chain (2) as follows: 1. Remove side panel.

2. Loosen screws (4).

3. Adjust chain tension with screw (3).

4. Tighten screws (4).

(Fig. 13, 14)

14

KNIVES Replacing knives DANGER! Carry out work on the knives or their attachment only with the drive switched off and the engine at a standstill.

– Remove the ignition key.

– Switch off the battery master switch.

– Disengage the universal drive shaft on the left and right.

– Wear gloves when working on the knives.

ATTENTION! Check the knives before every use and after running into an obstacle.

– Check correct seating of the knife.

– Worn, damaged or deformed blades must be replaced immediately.

Use only original CLAAS knives for best results.

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

9.9

Maintenance Changing the knives:

3

• Loosen screws (1).

• Change knives (2).

• Reinstall screws (1) with contact washers (5) and

1

self-locking nuts (6).

1 1

CAUTION!

4

Note the direction of rotation when installing new knives.

2 15 1

Do not forget reinforcements (3) and cleaners (4).

Tightening torque of the knife fixing screw = 45 Nm

1

(Fig. 15, 16)

2 4

5 6

3

2 16

74739

SPRING ADJUSTMENT Intake auger spring tension The intake auger is pressed against the crop from the left and right with springs. The pressure is adjusted by the spring tension. Proceed as follows:

1 2

• Unscrew side covers.

• Loosen lock nut (1).

• Turn the screw in until the spring (2) is fully tensioned.

66821

17

• Re-tighten lock nut (1).

(Fig. 17, 18)

1

2

66822

9.10

18

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Maintenance Spring tension of folding frame (only RU 600 Contour, RU 600 Auto-Contour) The maize header is held in its horizontal position by the springs (3). If the maize header hangs down on one side, the spring (3) tension must be adjusted. Proceed as follows:

3 19

• • • •

Loosen lock nut (4).

Adjust screw (5) until distance “X” is reached.

Re-tighten lock nut (4).

Check horizontal position of the maize header.

NOTE! The springs (3) should be equally tensioned on both sides.

4 X

Distance “X”: 110 mm (Fig. 19, 20) 5 20

HYDRAULIC SYSTEM Repair work on the hydraulic system must be carried out by authorised workshops, if possible your CLAAS partner.

Hydraulic hose connections Check hydraulic hoses before putting the machine into operation for the first time and afterwards at least once a year.

Exchange hydraulic hoses when damaged or aged.

21

NOTE! Hydraulic hoses may be used for a maximum period of 6 years after production.

The production date (month and year) is shown on the hydraulic hose.

Example: “2 Q-02” indicates that the date of manufacture is the 2nd quarter of 2002.

(Fig. 21)

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

9.11

Maintenance FIXING ELEMENTS Screw connections After 10 operating hours, check all screws and nuts of the machine again and tighten. Check regularly.

CAUTION! Observe the maximum tightening torque during assembly of plastic covers and shields.

Max. tightening torque: 10 Nm

Joining elements Regularly check all safety-relevant joining elements such as pins, screws, pins etc. for wear and deformation.

If necessary, replace the joining elements with new ones.

END OF SEASON STORAGE 1. Clean all contamination from the maize header.

2. Drain oil from the gearboxes and fill to the specified level with new oil.

3. Lubricate all lubrication points thoroughly until the grease comes out of the bearings (see Lubrication chart on page 10.1). Run the maize header for a short period.

4. Check maize header for wear and damage, and repair it.

5. Remove any rust, and repaint damaged paintwork.

6. Store the maize header in a dry, weatherproof building where no synthetic fertiliser is stored.

9.12

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Maintenance LUBRICANTS CHART Component

Quantity

Lubricant class specification

Viscosity/SAE Change times/ class Check

Gearboxes Main drive (B)

2.0 litres

Rotor drive (F)

3.5 litre each

Bevel gear drive (D)

0.8 litre each

Gear oil API-GL-5-90 SAE 90 Gear oil see Gearboxes, page 9.2

API-GL-4-90

Angle drive (E)

0.45 litre each

Gearboxes (H, I) for down maize augers

0.35 litre each

EP-Gear oil

Clearing drive (G)

1.5 kg each

Liquid grease DIN 51 825 – KP 000 K

Lubrication points Grease nipple

Branded multi-purpose grease DIN 51825 - K2K CLAAS multi-purpose grease EP2 KP 2K-30 Order no.: 400g cartridge

Other lubrication point

see Lubrication chart

0147 451.0

Biodegradable lubricating oil CEC-L-33-A-93 > 80% CLAAS roller chain oil BIO HEES 46 Order no.: 5 ltr. PE canister

see Lubrication chart

0147 457.0

NOTE! The stipulated quantities are approximate values, decisive for the correct oil level is always the oil level check.

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

9.13

Lubrication chart

Lubrication chart

10 Lubrication chart SAFETY INSTRUCTIONS DANGER! Lubricate the front attachment only with the drive switched off and the engine at a standstill.

– Remove the ignition key.

– Switch off the battery master switch.

LUBRICANTS Branded grease, e. g.

FINA

“Marson EPL 2”

ARAL

“Aralub HLP 2”

FUCHS “Rendit TEP 2” SHELL

“Retinax EP 2” or “Alvania G3”

DEA

“Glissando EP”

FAG

“Arcanol L 135 V”

SKF

“LGEP2”

Specifications: – see Lubricants chart, page 9.13

LUBRICATION

Lubricate these grease points every 100 working hours.

Lubricate these grease points every 250 working hours.

10.1

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Lubrication chart

Lubrication chart

6 4

5 3

1

3

2

3

71735

1

2

3

4 NOTE! Remove the right side panels to lubricate the drive chains (A).

A 5

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

6

10.2

Lubrication chart

13

14

7

8

9 10

11 12

71735

10.3

7

8

9

10

11

12

13

14

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Lubrication chart

15

16 18

17 18

71735

NOTE! To lubricate the rotor gear (Fig. 15), a rigid extension of approx. 190 mm is needed for the grease gun.

15

16

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

17 74717

18

10.4

Lubrication chart

26 25 21 24

24 21 25 26 22

23

22 19

20

71735

74731

10.5

19

20

21

22

24

71742

25

23

71741

26

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Lubrication chart

27 28

29

71735

30

29

RU 600 Contour, RU 600 Auto-Contour

27

28

29

30

0299 173.2 - ABA/BA RU 600 Contour / Auto-Contour / Xtra

10.6

Lubrication chart

10.7

ABA/BA RU 600 Contour / Auto-Contour / Xtra - 0299 173.2

Following the policy of CLAAS KGaA mbH of continuous product improvement to keep abreast of technical development, we reserve the right to make modifications which must not necessarily correspond to the text and illustrations contained in this operator's manual, and this without assuming the obligation to modify any machines previously delivered.

Technical specifications, dimensions and weights are understood with the usual tolerances. Responsibility for errors and omissions not accepted.

Reproduction or translation, in whole or part, only with written authorization by CLAAS KGaA mbH. All rights under the provision of the Copyright act are reserved.

CLAAS KGaA mbH 33426 Harsewinkel Germany

CLAAS KGaA mbH Postfach 1163 33426 Harsewinkel - Germany Tel.: +49 (0) 5247 12-0 www.claas.com

0299 173.2 ABA/BA RU 600 Contour / Auto-Contour / Xtra EN - 06.05 Printed in Germany
