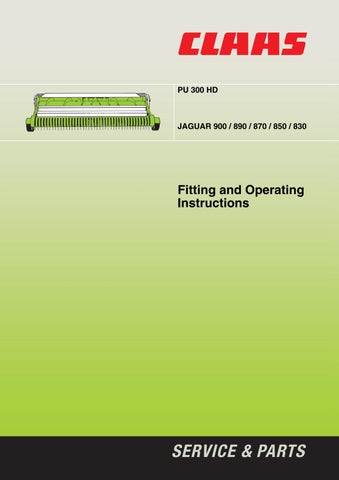

CLAAS JAGUAR 900 / 890 / 870 / 850 / 830 PU 300 HD Fitting and Operating Instructions Manual

PU 300 HD

JAGUAR 900 / 890 / 870 / 850 / 830

Fitting and Operating Instructions

Pl ea

se

re ad an df o ll ow th es afe

ty

in s

tru

cti

on

s!

EU Declaration of Conformity in accordance with the EC Directive 89/392/EEC

CLaaS Saulgau GmbH

We,

Zeppelinstraße 2

D - 88348 Bad Saulgau

declare under our sole responsibility that the product

Model 905 »PU 300 HD« to which this declaration refers, complies with the relevant safety and health provisions of EC Directive 89/392/EEC, as well as the provisions of other relevant EC Directives.

-/-

The following standard(s) and/or technical specification(s) were applied for the correct implementation of the safety and health provisions specified in the EC Directives:

EN 1553 - 1999

Bad Saulgau, 17.02.2005 Development Management (Rauch)

Production Management (Fetscher)

Quality assurance (Switalski)

Machine overview

Machine overview

7 6

6

3 2

5

4 5

4

1

1

1 Machine overview 11

Item No.

15

9 10

12

13

8

14 2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Designation Pick up Roller crop press Intake auger Land wheels Land wheel bracket Stop points Dust net Prop wheels/gauge wheel Prop stand right Prop stand left Universal drive shaft inlet auger Universal drive shaft pick up Angle drive Lock mechanism Identification plate

(Fig. 1-2)

1.1

BA PU 300 HD - 0293 615.0

Introduction

Introduction

2 Introduction INTRODUCTION This fitting and operating instruction manual provides information on the use, adjustment and operation of the CLaaS Pickup.

The advice on care and servicing should be followed in order to obtain maximum performance and long service from the machine.

The assembly and regular inspections of your machine should be carried out by your specialist workshop.

Neglect in maintenance or service or incorrect use will result in poor machine efficiency and loss of time.

Make use of the experience and latest developments incorporated in this machine by correct operation and careful maintenance and the machine will always give you good service.

This fitting and operating manual is valid for Pickup: CLAAS PU 300 HD from serial no. 905 0 1001 onwards

Your CLaaS Service Department

0293 615.0 - BA PU 300 HD

2.1

Table of contents

Table of contents

3 Table of contents 1. Machine overview 2. Introduction Introduction ............................................................................... 2.1

3. Table of contents 4. Preface Of special importance ............................................................... 4.1 Identification plate ..................................................................... 4.2

5. Safety rules Correct use ............................................................................... 5.1 General safety and accident prevention regulations ................. 5.1 Identification of warning and danger sings ................................ 5.2 Safety decals with pictorials ...................................................... 5.3

6. Specifications PU 300 HD ................................................................................ 6.1

7. Assembly Unloading / loading the machine ............................................... 7.1 Unpacking the machine ............................................................ 7.2 Machine assembly .................................................................... 7.3 Release the lock mechanism .............................................. 7.4 Hitching the Pickup ............................................................. 7.4 Supporting the Pickup ......................................................... 7.5 Closing the lock mechanism ............................................... 7.5 Adjusting the lock mechanism ............................................. 7.6 Connecting the hydraulics .................................................. 7.6 Fitting the land wheels ........................................................ 7.7 Fitting the universal drive shaft ........................................... 7.7

8. Prior to operation Hitching the pickup for the first time .......................................... 8.1 Connecting the universal drive shaft ................................... 8.2 Setting the dog clutch ......................................................... 8.3 Working position ....................................................................... 8.4 Working position land wheels ............................................. 8.4 Working position prop stands ............................................. 8.5 Setting the working height .................................................. 8.6 Setting the Pickup lowering speed ...................................... 8.6 Check and note the following before starting to work. .............. 8.7 Fitting the Pickup ...................................................................... 8.8 Before transport ........................................................................ 8.9 Transport position ............................................................... 8.9 Road travel ....................................................................... 8.10 Removing and disengaging the Pickup ................................... 8.11 Extending the prop stands ................................................ 8.11 Removing the universal drive shaft ................................... 8.12

Using the Pickup ................................................................

Setting the Contour-System (Ground Pressure Control) ....

Feeder paddle extension ....................................................

Distance between intake auger and bottom of trough ........

Intake auger speed change ................................................

Roller crop press with hydraulic lift out ...............................

Ancillary equipment ..................................................................

Hydraulic auger lifting .........................................................

Filler bars for the intake shafts ...........................................

Fitting kit guide wheel .........................................................

Hydraulically folding land wheels .......................................

9.2 9.3 9.4 9.5 9.6 9.7 9.8 9.8 9.8 9.8 9.9

10. Maintenance Important maintenance instructions ........................................

Hydraulic system ..............................................................

Screws and bolts ..............................................................

Lubrication ........................................................................

Safety guards ...................................................................

Wheels and tyres ..............................................................

Drives .....................................................................................

Angle drive .......................................................................

Tightening the drive chains ..............................................

Drive chain pick-up ...........................................................

Drive chain intake auger ...................................................

Universal drive shafts .............................................................

Hydraulics ...............................................................................

Hydraulic hoses ................................................................

Fasteners ................................................................................

Threaded Fasteners ...............................................................

Safety guards .........................................................................

Tyres .......................................................................................

Tyre pressure ...................................................................

Winter storage ........................................................................

10.1 10.1 10.1 10.1 10.1 10.2 10.3 10.3 10.4 10.4 10.5 10.5 10.6 10.6 10.6 10.6 10.6 10.7 10.7 10.8

11. Lubrication chart Safety rules ............................................................................. 11.1 Lubricants ............................................................................... 11.1 Lubrication .............................................................................. 11.1

9. Operation Field operation .......................................................................... 9.1 Lifting / lowering the Pickup ................................................ 9.1 Lifting / lowering the roller crop press or intake augers hydraulically ........................................................................ 9.1

3.1

BA PU 300 HD - 0293 615.0

Preface

Preface

4 Preface OF SPECIAL IMPORTANCE Please also note that the CLAAS Pickup is also called the machine in the following chapters.

The notes in this fitting and operating manual should be read and observed by all persons who are involved in the use, maintenance, repair or monitoring of the machine.

In order to provide a better illustration, some of the guards and covers have been removed for this purpose. all guards and covers must be replaced before the machine is started!

Pay particular care when reading the sections "Safety rules« and »Prior to operation«.

The use of spare parts, accessories, and ancillary equipment not originally manufactured by CLAAS, or which have not been checked and approved by CLAAS, can change the specified design characteristics of the CLAAS machine or can detract from its functional performance, with a possible adverse effect on the active and/or passive safety of the machine and its working safety (accident prevention).

CLAAS are in no way liable for any damage or personal injury caused through the use of parts, accessories, and ancillary equipment other than original CLAAS parts.

Technical specifications, dimensions, and weights cover the corresponding tolerances.

CLAAS reserves the right to make subsequent changes in the course of technical developments.

Front, rear, right, and left always refer to the direction of travel.

0293 615.0 - BA PU 300 HD

4.1

Preface IDENTIFICATION PLATE In the case of all spare part orders and technical queries always quote the machine number, the type and the serial number. This is required to avoid supplying the wrong spare parts.

The identification plate (1) with the machine number (Fz-Ident-No.) (2) is mounted on the right hand side wall of the machine.

1

(Fig. 1) 1 1

XXX

XXX

XXX

XXXX

XXXXXXXX

2

4.2

2

BA PU 300 HD - 0293 615.0

Safety rules

Safety rules

5 Safety rules Before putting the machine into operation, read thre operator's manual and follow the safety precautions!

CORRECT USE The Pickup is designed exclusively for normal use in agricultural work (correct use). any other use is considered as incorrect use, and the manufacturer cannot be held responsible for any resulting damage, the risk is entirely that of the operator.

Correct use also includes strict adherence to the conditions of operation, service, and repair as specified by the manufacturer.

The Pickup may only be used, maintained and repaired by persons who are familiar with these processes and who have been advised of the dangers involved.

The relevant accident prevention regulations and other generally recognised health and safety at work and road traffic regulations are to be observed. any modifications to the Pickup undertaken solely by the operator release the manufacturer from any liability for any resulting damage.

6. Working under the lifted pickup is only permitted if it is securely supported.

7. On public roads and tracks, the Pickup must always be in the transport position.

8. Never operate the universal drive shafts without the guards fitted.

9. Repair, maintenance and cleaning work, as well as rectifying functional faullts, should only ever be undertaken with the drive switched off and with the engine at a standstill.

Remove the ignition key.

10. When working on the electrical system, always switch off the battery isolator switch.

11. Refit the guards after completion of the maintenance work.

12. When fitting the Pickup to a forage harvester there is a danger of injury.

13. No person should stand between the forage harvester and the Pickup unless the vehicle has been secured against rolling away by using the parking brake and/or chocks under the wheels!

Observe all the other safety instructions outlined in the forage harvester operating instructions.

GENERAL SAFETY AND ACCIDENT PREVENTION REGULATIONS 1. In addition to the instructions provided in this operating manual, please also note the general safety and accident prevention regulations.

2. always comply with local traffic regulations when driving on public roads.

3. Before starting to work, familiarise yourself with all the operating equipment and its function. It will be too late to do this once driving!

4. Before starting the Pickup check to make sure that there are no loose components which have been carried with it.

5. any work on or in the Pickup can only be undertaken with the engine at a standstill and with the ignition key removed. all the operating levers must be in the neutral position and there must be no hydraulic pressure in any of the lines.

0293 615.0 - BA PU 300 HD

5.1

Safety rules IDENTIFICATION OF WARNING AND DANGER SINGS All parts of this manual having to do with your safety or the safe operation of the machine are marked with the following signs. Please pass all safety instructions on other users, too.

Danger!

Sign to indicate instructions which must be observed. Failure to do so would cause danger to life and limb to the operator and the people around him.

– Preventive measures.

Attention!

Sign to indicate instructions which must be observed. Failure to do so could result in damage to the machine.

– Measures to prevent damage to the machine.

Note: Sign to indicate instructions for a more efficient and economic use of the machine.

Environment!

Sign to indicate instructions which must be observed in order to avoid damage to the environment.

Danger to the environment is caused by irregular handling and incorrect disposal of toxic material (e.g. old oil).

5.2

BA PU 300 HD - 0293 615.0

Safety rules

Safety rules SAFETY DECALS WITH PICTORIALS Safety decals are attached to the danger zones of the machine. The safety decals help to alert persons to hazards which can cause personal injury. The pictorials provide instructions to avoid the hazard.

These safety signs, their placement on the machine and a brief explanatory text are shown on the following pages.

The CLAAS part number of every decal is stated ahead of the text.

The figure in ( ) refers to the adjacent picture and indicates the correct location of the decal on the machine.

Safety decals that are damaged or cannot be recognised any more must be replaced immediately by new ones.

When parts that have decals are replaced, always make sure to install the relevant new decals with each new part.

1 1

3 Warning symbol 0516 055.0 (1) Never reach into the Pickup area whilst the engine is running with the PTO shaft engaged.

(Fig. 1, 2, 3) 1 2

0293 615.0 - BA PU 300 HD

5.3

Safety rules

3

2 4

6 Warning symbol 0516 042.0 (2) Do not walk in the danger area between the front attachment and the machine.

(Fig. 4, 5, 6) 2

3 5

7 Warning symbol 0516 038.0 (3) Never reach into the pinch danger area whilst the parts in this area can still move.

(Fig. 4, 5, 7)

5.4

BA PU 300 HD - 0293 615.0

Specifications

Specifications

6 Specifications Note: Technical specifications, dimensions, and weights cover the corresponding tolerances.

PU 300 HD Working position Width: (Prop wheels swung out)

mm

3700

mm

3000

Transport position Width: Prop wheels swung in) Tyres Tyre pressure:

Weight:

0293 615.0 - BA PU 300 HD

18.5x8.50-8 6PR bar (psi)

2.5 (36)

kg

975

6.1

Assembly

Assembly

7 Assembly UNLOADING / LOADING THE MACHINE Danger!

Improper lifting and transporting can cause accidents.

– Only suspend the machine from the slinging points (1) on the left and right (Fig. 1)!

1 1

– Ensure that the lifting gear (e.g. slings) is sufficiently dimensioned.

Machine weight – see Specifications, on page 6.1.

(Fig. 1, 2)

1 2

7.1

BA PU 300 HD - 0293 615.0

Assembly UNPACKING THE MACHINE Check the scope of delivery against the delivery note.

1

2

Fitting components: 1 2 3 4 5

6 3

5

Prop wheels (2x) Prop stand right Fitting and Operating instructions Coupler/intake auger extension (4x) Universal drive shaft

4 3

Release the lashings on the fitting components and remove the fitting components.

Release the lashings (6) on the Pickup and remove the lashing straps completely.

Release the cable strap (7) on the safety frame.

(Fig. 3-5)

6

4

7

5

0293 615.0 - BA PU 300 HD

7.2

Assembly MACHINE ASSEMBLY Danger!

All work under or on the raised Pickup only to be undertaken with secure support.

– Raise the Pickup to the highest position – see page 9.1, Lifting / lowering the Pickup.

– Extend the stands to touch the ground and secure – see Extending the prop stands on page 8.11.

– Do not additionally load the stands through the hydraulic system of the forage harvester.

Danger!

Only work on the Pickup when the engine is at a standstill.

– Disengage drive shaft.

– Stop the engine.

– Remove the ignition key.

– Wear gloves.

7.3

BA PU 300 HD - 0293 615.0

Assembly Release the lock mechanism Push the lever (1) on the Pickup upwards after removing the spring plug.

1

(Fig. 6)

6

Hitching the Pickup

2

Danger!

3

When fitting the Pickup there is a danger of injury.

– No person should be between the forage harvester and the Pickup.

Attention!

7

Before fitting the Pickup ensure that the lock mechanism is open.

Move the machine towards the front attachment so that the location pegs (3) of the feed are underneath the location holes (2) of the unit.

Raise the front attachment with the machine hydraulic system – see page 9.1, Lifting / lowering the Pickup.

(Fig. 7)

0293 615.0 - BA PU 300 HD

7.4

Assembly Supporting the Pickup Danger! all work under the raised Pickup only to be undertaken with secure support.

The prop stands on the left and right can be used to provide safety support.

Attention!

5

Do not additionally load the prop stands through the hydraulic system of the forage harvester.

4

For further information on handling the prop stands – see Extending the prop stands on page 8.11.

8

Raise the Pickup to the highest position. Fully extend the left prop stand (4) and secure in the nearest hole available.

Also use additional suitable props (5).

(Fig. 8)

Fit the right prop stand (6) in the bottom holder (B).

Extend the prop stand (6) to its maximum length using the hand crank.

(Fig. 9) A B 6

9

Closing the lock mechanism Attention!

8

Make sure that that the Pickup is securely locked on the coupling shaft (9) (Fig. 11).

On the Pickup, push the lever (7) downwards and secure with the spring plug (8).

7

(Fig. 10) 10

7.5

BA PU 300 HD - 0293 615.0

Assembly Adjusting the lock mechanism If the lock mechanism cannot be closed, adjust the stop (11) on the Pickup.

9

To adjust the lock mechanism: 10

• Release the bolts (10), • adjust the position of the stop (11) in the slotted holes,

• retighten the bolts (10).

11

(Fig. 11) 11 16

Connecting the hydraulics

13

Connect the hydraulic hoses (14) for the roller crop press to the hydraulic coupler (13) on the chopper.

12

Connect the hydraulic hoses (15) for the additional equipment to the hydraulic coupler (16) on the chopper.

15 14

Attention!

Contamination of the hydraulic system is possible by the use of dirty hydraulic couplers or oil plug sockets.

12

– Clean the coupler plugs on the hydraulic hoses and the oil plug sockets before each connection operation.

Insert the hydraulic hoses (14, 15) through the holder (12) and connect to the chopper.

Note the colour coding marks on the hydraulic lines and plug sockets.

Further information – see the operating instructions for the forage harvester.

(Fig. 12)

0293 615.0 - BA PU 300 HD

7.6

Assembly Fitting the land wheels Stop the engine and remove the ignition key.

18

Raise the roller crop press (17).

19

Open the lock mechanism of the land wheel bracket (18) and turn the lever (19) outwards.

Swing the land wheel bracket (18) outwards and relock.

17

(Fig. 13) 13 Push the land wheel (20) into the location and secure with the expansion pins (21).

(Fig. 14)

21

20 14

Fitting the universal drive shaft 1. Stop the engine and remove the ignition key.

23 22

24

2. First push the universal drive shaft (22) onto the PTO shaft (23) of the front attachment.

3. Push the universal drive shaft (22) all the way back and place in the bracket (25).

4. Use safety chains (24) to prevent the drive shaft guards from rotating with the drive shaft.

25

(Fig. 15)

24 15

Carry out the operations described in Check and note the following before starting to work.on page 8.7.

Put machine into operation – see Field operation, on page 9.1.

7.7

BA PU 300 HD - 0293 615.0

Prior to operation

Prior to operation

8 Prior to operation Danger!

Only work on the Pickup and / or the forage harvester with the drive switched off and with the engine at a standstill.

– Remove the ignition key.

Attention!

Pickup front attachments can only be operated with the contour system or with cutting height preselection.

Otherwise the Pickup could get damaged.

HITCHING THE PICKUP FOR THE FIRST TIME Release the lock mechanism – see page 7.4, Release the lock mechanism.

Hitching the Pickup – see page 7.4, Hitching the Pickup.

Closing the lock mechanism – see page 7.5, Closing the lock mechanism.

Connecting the hydraulics – see page 7.6, Connecting the hydraulics.

0293 615.0 - BA PU 300 HD

8.1

Prior to operation Connecting the universal drive shaft Danger! all work under the raised Pickup only to be undertaken with secure support.

– See Extending the prop standson page 8.11.

Danger!

Never remove the protective guards (1) from the universal drive shaft.

– Check that all locks are securely engaged before starting work with the drive shaft.

– Hang the fixing chains (4) for the universal drive shaft protection on the front attachment with the hook.

1. Stop the engine and remove the ignition key.

4

2. Remove the universal drive shaft (1) from the bracket (2).

1

3. Push the universal drive shaft (1) onto the PTO shaft (3) of the transmission and reverser gear.

Make sure that the universal drive shaft engages securely.

3

(Fig. 9) 2 4 9

8.2

BA PU 300 HD - 0293 615.0

Prior to operation Setting the dog clutch 8

When fitting for the first time make sure that the dog clutch (5) is aligned.

6

Danger!

All work under the raised Pickup only to be undertaken with secure support.

7

– See Extending the prop standson page 8.11.

5 10

If necessary, the height, side and/or angular offset can be compensated for by moving the angle drive (6) in the slotted holes.

• Release hex bolts (7) and/or (8).

• Align the angle drive (6).

• Tighten hex bolts (7) and/or (8).

(Fig. 10)

0293 615.0 - BA PU 300 HD

8.3

Prior to operation WORKING POSITION Working position land wheels

5

Raise the roller crop press (5).

Unlock the land wheel bracket (2) by turning the lever (3) outwards and swinging the land wheel bracket (2) outwards and relocking.

3

Ensure that the locking pin (3) engages securely.

Lift the lock mechanism (4) and swing the land wheel backwards and engage it in this position.

Lower the roller crop press (5).

2 11

(Fig. 11-13)

4

12 4

2

3

13

8.4

BA PU 300 HD - 0293 615.0

Prior to operation Working position prop stands Raise the Pickup to the position – see Lifting / lowering the Pickup on page 9.1.

Extract the plug (7) and pull the left prop stand (6) all the way upwards.

7

Secure the left prop stand (6) with the plug (7).

(Fig. 14)

6

14 Turn the right prop stand (9) all the way upwards using the hand crank (10).

8

Extract the plug (8) and remove the prop stand (9) from the bracket (A).

10

A

(Fig. 15)

B 9

15 Push the right prop stand (9) onto the bracket on the inside and secure with the plug (8).

8

(Fig. 16)

9

16

0293 615.0 - BA PU 300 HD

8.5

Prior to operation Setting the working height 12

The distance between the tines and the ground should be 20 to 30 mm. Raise the Pickup to allow adjustment.

11

H

The height adjustment of the Pickup can be undertaken on the left and the right by moving the position of the pin (11).

K

If the desired working height cannot be adjusted by the land wheels, check and, if necessary, correct the setting of the rear prop wheels – see Fitting kit guide wheel on page 9.8.

17

Set the desired working height on the prop wheel using the pin (11) and secure the pin using the linch pin (12).

Position (H) =

highest working height

Position (K) =

lowest working height

(Fig. 17)

Setting the Pickup lowering speed The lowering speed of the Pickup can be adjusted by moving the knurled knob (V) on the flow divider.

E

The shift linkage (E) must first be switched to the change-over valve for the front attachment to position (L).

L

S

Position (L) =

18

light front attachment

With the hydraulic oil at operating temperature, set the knurled knob so that the front attachment sinks down from the uppermost position to the ground in approx.

5 to 6 seconds.

Lowering speed: Quicker = screw in the knurled knob (V) Slower = screw out the knurled knob (V) Further information – see the operating instructions for the forage harvester.

(Fig. 18, 19)

V

19

8.6

BA PU 300 HD - 0293 615.0

Prior to operation CHECK AND NOTE THE FOLLOWING BEFORE STARTING TO WORK. 1. Check the oil level in the gearbox.

2. Lubricate the machine thoroughly before starting to work – see Lubrication chart, on page 11.1.

3. Check the bolts for tightness.

4. Check the drive chains for correct tension.

5. Check all safety devices (e.g. overload clutches, covers of drive elements,...) for correct function and installation.

6. Use safety chains to prevent the drive shaft guards from rotating with the drive shaft.

7. Never let the Pickup run unattended.

8. Remove persons away from the danger area, if persons approach the danger area turn the Pickup off immediately.

0293 615.0 - BA PU 300 HD

8.7

Prior to operation FITTING THE PICKUP Danger!

When fitting the Pickup there is a danger of injury.

– No person should be between the forage harvester and the Pickup. all work under or on the lifted Pickup only to be undertaken with secure support.

– See Extending the prop standson page 8.11.

Work only to be carried out on the Pickup with the drive switched off and the engine at a standstill.

– Remove the ignition key.

Attention!

Before fitting the Pickup make sure that the lock mechanism is open.

Proceed as follows to fit the Pickup: 1. Release the lock mechanism – see Release the lock mechanism on page 7.4.

2. Hitch the front attachment – see Hitching the Pickup on page 7.4.

3. Close the lock mechanism – see Closing the lock mechanism on page 7.5.

4. Check that the front attachment is securely locked and adjust the lock mechanism if necessary – see adjusting the lock mechanism on page 7.6.

5. Connect the hydraulic hoses – see Connecting the hydraulics on page 7.6.

6. Fit the universal drive shaft – see Connecting the universal drive shaft on page 8.2.

8.8

BA PU 300 HD - 0293 615.0

Prior to operation BEFORE TRANSPORT Danger!

Only ever work on the machine if the engine is at a standstill.

– Remove the ignition key.

1. Hitch the machine – see Fitting the Pickup, on page 8.8.

2. Raise the machine – ground clearance 3. Raise the rotors into the transport position – see Transport position, on page 8.9 4. Transport the machine only when switched off.

During transport make sure that the control levers of the hydraulic system are not accidentally actuated.

Transport position Fold the dust net (1) downwards.

1

(Fig. 20)

20

0293 615.0 - BA PU 300 HD

8.9

Prior to operation 5

Swing the left and right land wheel (2) forwards by pushing the land wheel downwards against the rubber pad, then swing forwards and allow it to engage in this position.

4

Check the lock mechanism (5).

Raise the roller crop press (6).

2

Unlock the land wheel bracket (3) by turning the lever of the locking pin (4) outwards and swinging the land wheel bracket (3) inwards.

3

Relock the land wheel bracket (3).

21

Ensure that the locking pin (4) engages securely.

Lower the roller crop press (6) onto the rubber pad.

(Fig. 21-23)

5

Road travel Danger!

During road travel with a raised machine, the hydraulic control lever must be locked against inadvertent lowering.

22

6

– Lock the control lever!

• Observe the relevant traffic regulations when 5

moving the machine on public roads.

4

• In the Federal Republic of Germany, the "Road

3

Traffic Registration Regulations" (StVZO) are applicable.

In other countries, different traffic regulations may apply.

• The ground speed is to be matched to the traffic 23

and road conditions.

In other countries observe max. permissible road speeds.

Reduce your speed when approaching a bend.

• Preparing the machine for road travel – see Before transport, on page 8.9.

8.10

BA PU 300 HD - 0293 615.0

Prior to operation REMOVING AND DISENGAGING THE PICKUP Attention!

Only lower the Pickup onto solid flat ground Proceed as follows to disengage the Pickup:

Extending the prop stands Danger!

All work under the raised Pickup only to be undertaken with secure support.

2 1

Raise the Pickup Extend the left prop stand (1) completely and secure in the closest hole with the plug (2).

24

(Fig. 24) Remove the right prop stand (4) from the bracket on the inside, remove the plug (3).

3

Push the right prop stand (4) into the top bracket (A) on the outside and secure with the plug (3).

Turn out the right prop stand (4) by about 120 mm by using the hand crank (5).

4 Attention!

Both prop stands must have the same distance from the ground before lowering.

25

3 A

– Turn the right prop stand (4) out until the Pickup is horizontal.

(Fig. 24 - 26)

5

B 4

120 mm 26

0293 615.0 - BA PU 300 HD

8.11

Prior to operation Removing the universal drive shaft Pull off the universal drive shaft (6) by pulling back the sliding lock mechanism.

6

Push the universal drive shaft (6) all the way back and place in the bracket (7).

Move the land wheels and land wheel bracket to the working position – see Working position land wheels on page 8.4.

7

27 Plug the land wheels to the highest working height (H) – see Setting the working height on page 8.6.

H Note: The Pickup can be lowered if the land wheels are in the working position or also in the transport position.

28 11

Disconnect the hydraulic hoses (10) for the roller crop press and possibly also for the ancillary equipment (9) at the quick release couplings (8, 11).

8

Release the Pickup – see Release the lock mechanism on page 7.4.

9

Lower the Pickup to the ground.

10

Attention!

29

Before moving backwards make sure that the locating pins are not hanging on the coupling pins!

Move the forage harvester backwards carefully.

(Fig. 27, 28, 29)

8.12

BA PU 300 HD - 0293 615.0

Operation

Operation

9 Operation FIELD OPERATION Attention!

Pickup front attachments can only be operated with the contour system or with cutting height preselection.

Otherwise the Pickup could be damaged.

Lifting / lowering the Pickup On the multifunction lever: R

– By pushing the tip switch (1a) – lowering the Pickup.

1a

– By pushing the tip switch (1b) – lifting the Pickup up/out.

1d

– By inching the tip switch (1d) – switching on the Contour system.

1b 70798A

1

Note: By actuating the tip switch (1a, 1b) the contour system is switched off.

(Fig. 1)

Lifting / lowering the roller crop press or intake augers hydraulically Note: The hydraulic cylinders for the roller crop press and the intake augers are controlled in parallel, which means that the lighter equipment is lifted first.

2 h

70799

On the multifunction lever:

s 2

By actuating the switch (2) – lifting or lowering the roller crop press or intake augers.

Position (s) =

lowering

Position (h) =

lifting

(Fig. 2)

0293 615.0 - BA PU 300 HD

9.1

Operation Using the Pickup 3

1. Check the working position of the Pickup – see Working position on page 8.4.

2. Start the engine.

3. Switch on the front attachment, by:

4

Switching on the safety switch (3) and the main drive (impact switch 4).

4. Check the lowering speed of the Pickup and adjust if necessary – see Setting the Pickup lowering speed on page 8.6.

3

5. Set the ground pressure of the Pickup on the potentiometer - see operating instructions for the forage harvester or Setting the Contour-System (Ground Pressure Control)on page 9.3.

6. Before entering the field of crops switch on the Pickup at idle speed.

Attention!

The Pickup front attachments may only be lowered to the mid range of the pendulum travel.

Otherwise the Pickup could get damaged.

7. Lower the Pickup down to the working height.

8. Increase to working speed and enter the field of crops.

9. The ground speed depends upon the individual conditions (ground condition, condition of the crops).

(Fig. 3)

9.2

BA PU 300 HD - 0293 615.0

Operation Setting the Contour-System (Ground Pressure Control) Tip the tip switch (1d). The indicator light (C) lights up.

R

Using the potentiometer (a) move the Pickup to the desired height.

1a Note:

1d

Lower the Pickup using the potentiometer (a) so that the pendulum range of the Pickup is in the upper third.

1b 70798A

4

C

4

Attention!

4

6 8 2

2

The Pickup front attachments may only be lowered to the mid range of the pendulum travel.

Otherwise the Pickup could get damaged.

6 8

a

0

10

41649

0

The working height of the Pickup front attachments can be adjusted as desired using the potentiometer (a).

10 5

Attention!

Avoid overloading the Pickup land wheels!

For further information – see the operating instructions for the forage harvester.

(Fig. 4, 5)

0293 615.0 - BA PU 300 HD

9.3

Operation Feeder paddle extension Danger!

Danger of injury!

– Always bring the chopper motor to a standstill and remove the ignition key when undertaking setting and changeover work.

In the event of intake problems, the intake auger can be fitted with additional intake extensions/carriers (5) (4x).

6

Attention!

All the intake extensions (4x) must always be fitted!

5 Fix the intake extensions (5) with the bolts (6) (32x M8x20) to the intake auger.

6

9.4

(Fig. 6)

BA PU 300 HD - 0293 615.0

Operation Distance between intake auger and bottom of trough Danger!

Danger of injury!

– Always bring the chopper motor to a standstill and remove the ignition key when undertaking setting and changeover work.

In the event of intake problems, the distance between the intake auger and the bottom of the trough can be adjusted.

Left side

A

B

Roller (7) in Pos. A – Standard setting Small distance between the intake auger and the bottom of the trough - for normal feed conditions and medium swathe volumes.

7

Roller (7) in Pos. B Large distance between the intake auger and the bottom of the trough - for above average feed conditions and large swathe volumes.

7

Note:

Right Side

B

The adjustment must always be carried out on both sides.

A

• Raise the intake auger with suitable equipment

7

and prop securely.

• Remove the locking washer, washer and hex bolt on the roller (7).

• Mount the roller (7) with the hex bolt, washer and spring washer in the new position.

8

• Lower the intake auger onto the roller (7) using suitable equipment.

(Fig. 7 - 8)

0293 615.0 - BA PU 300 HD

9.5

Operation Intake auger speed change Danger!

Danger of injury!

– Always bring the chopper motor to a standstill and remove the ignition key when undertaking setting and changeover work.

The speed of the intake auger can be adjusted by changing the sprocket (8) giving two different speeds.

Small sprocket (Z = 15, fitted as standard): for high cutting lengths 9 - 20 mm Large sprocket (Z = 24 + 3 cranked chain links from the accessories): for low cutting lengths 4 - 9 mm Changing the sprocket:

• Open the cover hood.

• Slacken the chain (9)– see page 10.4, Tightening the drive chains.

10

• Remove the connecting link of the chain (9).

• Remove the hex bolts (10) (6xM10) and change

8

the sprocket (8).

• Fit the hex bolts (10) (6xM10).

• Shorten or extend the chain (9) as required using

9

9

the cranked chain links.

• Replace the connecting link of the chain (9).

11 Note: The lock mechanism (11) of the chain connector must be mounted with the closed side in the direction of rotation.

• Tighten the chain (9) – see page 10.4, Tightening the drive chains.

10

• Close the cover hood.

(Fig. 9 - 10) Spare parts' order Nos.: Small sprocket (Z = 15): Large sprocket (Z = 24): 3 x cranked chain links: Chain connector

9.6

0906 926.0 0495 483.0 0214 345.0 0214 344.0

BA PU 300 HD - 0293 615.0

Operation Roller crop press with hydraulic lift out Danger!

Danger of injury!

– Always bring the chopper motor to a standstill and remove the ignition key when undertaking setting and changeover work.

12

11

The roller crop press (12) can be lifted out from the operator's platform using the hydraulic cylinder.

Before reversing the feeder mechanism, lift out the roller crop press completely.

Note: When reversing, the roller crop press is automatically lifted.

When starting to operate again, the roller crop press is not lowered automatically.

After reversing, the roller crop press has to be lowered – see Lifting / lowering the roller crop press or intake augers hydraulically on page 9.1.

(Fig. 11)

0293 615.0 - BA PU 300 HD

9.7

Operation ANCILLARY EQUIPMENT Hydraulic auger lifting (R03/0050) By fitting the hydraulic cylinders (1) the intake auger with the roller crop press can be lifted out from the operator's platform.

Before reversing the intake mechanism the roller crop press and the intake auger must be lifted out completely.

1

12

After reversing, the intake auger with the roller crop press must be lowered again – see Lifting / lowering the roller crop press or intake augers hydraulically on page 9.1.

(Fig. 12)

The fitting kit can be obtained from our spare parts department.

Order-No.:

0987 784.0

Filler bars for the intake shafts (B03/0040) M8

In the event of winding problems with grass harvesting, on the toothed rails (2) of the intake shafts of the chopper intake housing, filler bars (3) can be fitted with hex bolts (M8x20), washers (8,4) and locknuts (M8).

8,4

2

M8x20 M8x20 8,4

3

The fitting kit can be obtained from our spare parts department.

M8

Order-No.: 13

70803

0998 045.0

(Fig. 13)

Fitting kit guide wheel (R03/0060) In order to provide improved adaptation to ground contours, a guide wheel (4) can be mounted in the centre of the Pickup.

4

The fitting kit can be obtained from our spare parts department.

Order-No.:

0987 827.0

(Fig. 14) 14

9.8

BA PU 300 HD - 0293 615.0

Operation Hydraulically folding land wheels (R03/0080) The fitting kit "Hydraulically folding land wheels" can only be dismantled if there is a second double-acting control circuit (hydraulic fore and aft reel adjustment) in the forage harvester.

5

The operation of the hydraulically folding land wheels (5) is via the operating element "hydraulic fore and aft reel adjustment" - see operating instructions for the forage harvester.

15

The fitting kit can be obtained from our spare parts department.

Order-No.:

0905 436.0

(Fig. 15)

0293 615.0 - BA PU 300 HD

9.9

Maintenance

Maintenance

10 Maintenance IMPORTANT MAINTENANCE INSTRUCTIONS

Inspect hydraulic hoses regularly, and replace them if damaged or worn. Replacement hoses must meet the technical requirements specified by the manufacturer.

Repair work on the hydraulic system may only be carried out by authorised specialist workshops.

Danger!

Screws and bolts

Repair, maintenance and cleaning work, as well as rectifying functional faults, should only be undertaken with the drive switched off and with the forage harvester at a standstill.

Check all screws and bolts for tightness, and retighten if necessary.

– Remove the ignition key.

Observe the prescribed oil change periods and oil qualities in the gearbox. Only use high-quality branded grease and oil to lubricate the machine. Clean the grease nipples before applying the grease. Lubricate the machine according to the lubrication chart at the end of this manual.

Danger!

In the case of repair, maintenance and cleaning work on or under the raised Pickup, the work can only be undertaken with secure supporting props.

– see Sicherheitsstützeon page 4.3.

Hydraulic system

Make sure that all securing pins and clips are in place.

Lubrication

The specified lubrication intervals only apply for normal conditions of use. If the machine is operated under rough conditions, it must be lubricated more frequently.

Environment!

Dispose of oil and grease in the prescribed manner.

Danger!

When working on the hydraulic system, always make sure that it is pressure-free.

Safety guards Danger!

Fluids (hydraulic oil) escaping under high pressure can penetrate the skin and cause serious injury. In the event of an injury, obtain the services of a doctor immediately, since otherwise serious infection can occur.

Environment!

Dispose of oil and grease in the prescribed manner.

The safety guards may only be opened if the drive is switched off and the engine is at a standstill.

– Remove the ignition key.

Refit the guard frame and any other protective devices after completing any repair or maintenance work.

Check the safety guards at regular intervals.

Worn or damaged safety guards should be replaced by new ones.

10.1

BA PU 300 HD - 0293 615.0

Maintenance Wheels and tyres Repair work on the tyres may only be undertaken by specialists using the specific assembly tools.

Danger!

Excessively high pressure can cause a tyre to burst.

– Keep clear of the tyre while inflating.

– Check tyre pressures regularly.

– The prescribed tyre pressure, – see page 6.1, Specifications, should be maintained.

0293 615.0 - BA PU 300 HD

10.2

Maintenance

Maintenance DRIVES Angle drive Danger!

Only work on the Pickup and / or the forage harvester with the drive switched off and with the engine at a standstill.

Remove the ignition key.

– Prop the Pickup securely – see page 7.5, Supporting the Pickup!

Note: For maintenance work on the gearbox of the Pickup we recommend that the forage harvester with fitted Pickup be driven over a suitable inspection pit.

Attention!

The inspection pit must comply with the safety regulations.

Raise the Pickup until the angle drive is horizontal.

Prop the Pickup securely.

Switch off the drive and bring the engine to a standstill.

Secure the forage harvester against rolling away.

10.3

BA PU 300 HD - 0293 615.0

Maintenance Use only gearbox oil SAE 90 to (MIL-L-2105) API GL-4-90 for lubricating the angle drive.

The filling quantity is 0.80 litres.

1 1 = Oil filling and check screw 2 = Oil draining screw Environment!

Dispose of drained oil properly.

2 1

Oil change: After starting to use for the first time or after a gearbox overhaul, the first oil change should be undertaken after 40 operating hours.

After this once yearly or every 500 operating hours.

Check the oil level every 50 operating hours.

(Fig. 1)

Tightening the drive chains After the first 10 operating hours, all the chains should be checked for tension.

Even when using the machine later, the chain tension must be checked.

The steel roller chain is correctly tensioned if the slack span of the chain, with a small load on the tight span, can be pushed in by thumb pressure by about 2% of the axial separation. In the case of new chains, the tension needs to be checked more regularly.

2

Example: axial separation 500 mm = depression movement on the slack span approx. 10 mm.

(Fig. 2)

Drive chain pick-up 3

To tighten the drive chain (3) proceed as follows:

• Remove the cover.

• Release the hex nuts (5).

• Move the chain tensioner (4) in the slotted holes

5

to the desired position.

• Retighten the hex nuts (5).

• Refit the cover.

4 3

0293 615.0 - BA PU 300 HD

(Fig. 3)

10.4

Maintenance Drive chain intake auger To tighten the drive chain (6) proceed as follows:

7

• Open the cover.

• Release the lock nuts (7).

• Screw the hex bolt (8) in or out until the desired chain tension is produced.

• If necessary, shorten the drive chain (6).

• Retighten the lock nuts (7).

• Close the cover.

6 4

(Fig. 4, 5)

8 7

5

UNIVERSAL DRIVE SHAFTS The universal drive shafts (9, 10) should be maintained in accordance with the manufacturer's instructions (see operating instructions of the universal drive shaft manufacturer).

9

Observe the manufacturer's safety instructions.

Damaged or missing guard tubes, guard cones, or safety chains must be replaced immediately.

Protect the universal drive shafts from the effects of the weather.

6 10

After each prolonged standstill the universal drive shafts should be re-lubricated before starting to operate again, and the readiness for operation should be checked.

Attention!

Damage to and increased wear of the drives.

– Only use the universal drive shafts if their condition is technically perfect.

7

10.5

(Fig. 6, 7)

BA PU 300 HD - 0293 615.0

Maintenance HYDRAULICS Repair work on the hydraulic system may only be carried out by CLAAS authorised specialist workshops.

Hydraulic hoses Attention!

Aged hydraulic hoses can burst or start leaking.

8

– Inspect hydraulic hoses regularly, and replace them if damaged or worn.

Check hydraulic hoses before operating for the first time and then at least once a year.

Hydraulic hoses may not be used for longer than 6 years after date of manufacture. The date of manufacture (month and year) is marked on the hydraulic hose (Fig. 8).

Example: The information "2 Q 02“ designates manufacture in the 2nd quarter of 2002.

FASTENERS All fasteners required for safety, such as bolts, screws, pins, clips, etc. must be checked regularly for signs of wear or deformation.

Any worn or damaged fasteners must be replaced.

THREADED FASTENERS After about 10 operating hours, all the bolts and nuts on the entire machine should be checked for correct tension and if necessary retightened.

Check whether all the split pins are present.

Then check at regular intervals.

SAFETY GUARDS Danger!

The safety guards guard against rotating machine parts – Danger of injury!

Before opening the safety guards: – Stop the engine.

– Remove the ignition key.

0293 615.0 - BA PU 300 HD

10.6

Maintenance TYRES Tyre pressure Danger!

Damaged tyres can unexpectedly lose their pressure during operation.

– Check tyres regularly for damage and correct pressure.

– Repair work on tyres may only be carried out by professionals with suitable tools.

Excessively high pressure can cause a tyre to burst.

– Keep clear of the tyre while inflating.

– Use only compressed air to pump up the tyres.

– Maintain the maximum permissible air pressure.

Check the tyre pressures on a regular basis. For pressure – see Specifications on page 6.1.

10.7

BA PU 300 HD - 0293 615.0

Maintenance WINTER STORAGE 1. Clean the Pickup of straw and dirt.

2. Wipe grease and dust from the outside of all bearings.

3. Lubricate all grease points until grease emerges from the bearings (see lubrication chart). allow the Pickup to turn over for a short period.

4. Check the Pickup for wear and damage and repair if necessary.

5. Clean rusty areas and repair damaged paint work.

6. Use protective tyre paint to prevent rubber from deteriorating.

7. Store the Pickup in a dry, weather-protected room where no artificial manure is stored.

0293 615.0 - BA PU 300 HD

10.8

Lubrication chart

Lubrication chart

11 Lubrication chart SAFETY RULES Danger!

When lubricating the pickup always make sure that the drive is disconnected and the engine is at a standstill.

– Remove the ignition key.

LUBRICANTS Brand grease, e.g.

FINA

»Marson EPL 2«

ARAL

»Aralub HLP 2«

FUCHS

»Rendit TEP 2«

SHELL

»Retinax EP 2« or »Alvania G3«

DEA

»Glisando EP«

FAG

»Arcanol L 135 V«

SKF

»LGEP2«

Brand gearbox oil SAE 90 - API GL 4

LUBRICATION Lubricate these points every 10 operating hours.

Lubricate these points every 50 operating hours.

Lubricate these points every 100 operating hours.

Lubricate these points every 250 operating hours.

11.1

BA PU 300 HD - 0293 615.0

Lubrication chart

Lubrication chart

1

4x

1

0293 615.0 - BA PU 300 HD

11.2

Lubrication chart

5

11.3

6

2, 3

2

3

4

5

4

6

BA PU 300 HD - 0293 615.0

Lubrication chart

10

8

11 12

0293 615.0 - BA PU 300 HD

13

7

14

9

7

8

9

10

11

12

13

14

11.4

Lubrication chart

15

11.5

16

BA PU 300 HD - 0293 615.0

The policy of CLAAS KGaA mbH is to improve their products as technical developments continue. Therefore, we reserve the right to make alterations, which must not necessarily correspond to the text and illustrations contained in this publication, and without incurring the obligation to alter any machines previously delivered.

Technical specifications, dimensions, and weights are understood with the usual tolerances. No responsibility is accepted for errors or omissions.

Reproduction or translation of this publication, in whole or part, is not permitted without the written consent of CLAAS KGaA mbH. All rights reserved under the provision of the Copyright Act. CLAAS KGaA mbH 33426 HARSEWINKEL Germany

CLAAS KGaA mbH Postfach 1163 33426 HARSEWINKEL Tel. +49 (0) 5247 12-0 www.class.com

0293 615.0 BA PU 300 HD EN - 03.05 Printed in Germany
