Moving the ball retainers

1

2

1

2 2

3

2 MOVING THE BALL RETAINERS

Frame, front

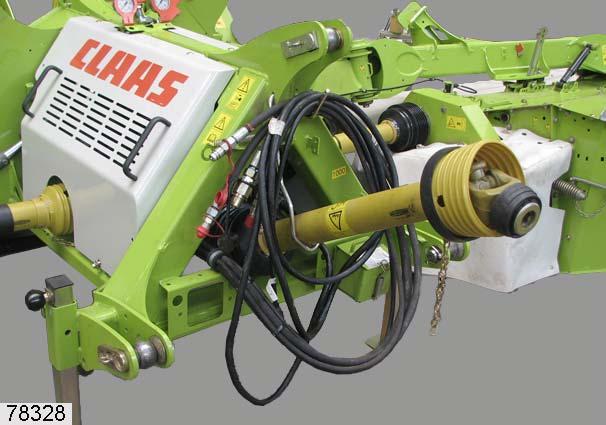

• Remove upper link pin and ball sleeve(1). • Remove lower link pin and ball retainers(2). (Fig.5)

Frame, rear

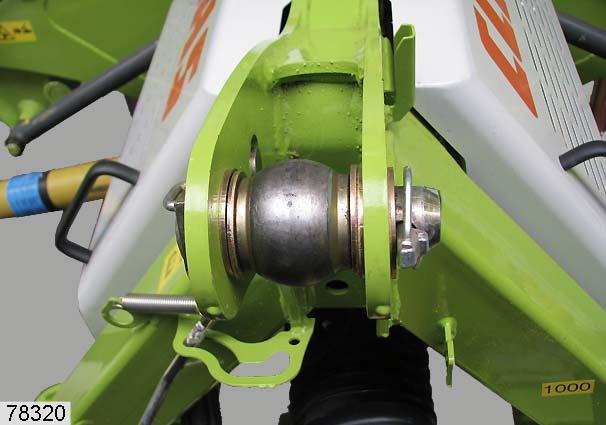

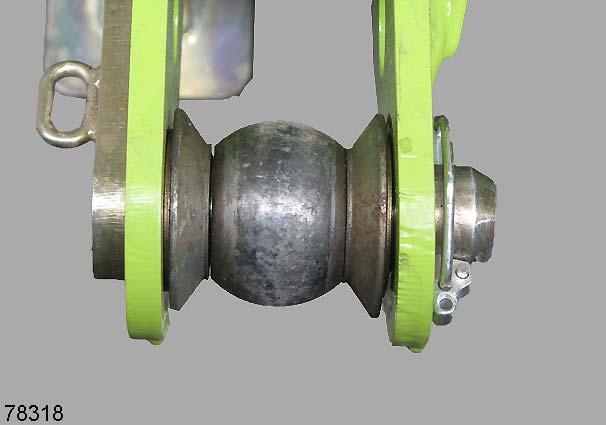

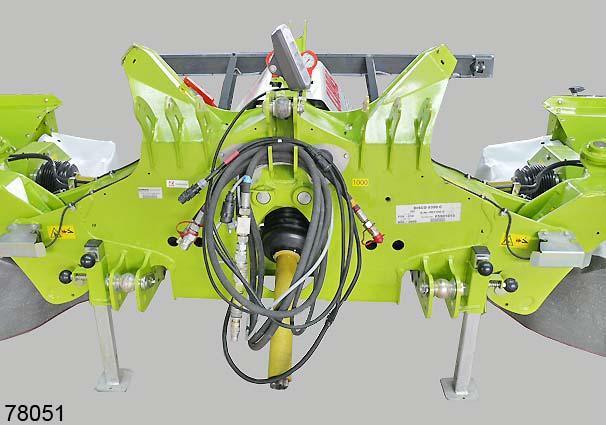

• Fit upper link pins and ball sleeve(1) and use washers(3) to ensure there is no play. • Fit lower link pins and ball retainers(2) and use washers(3) to ensure there is no clearance. (Fig.6,7,8)

5

6

7

3

8
